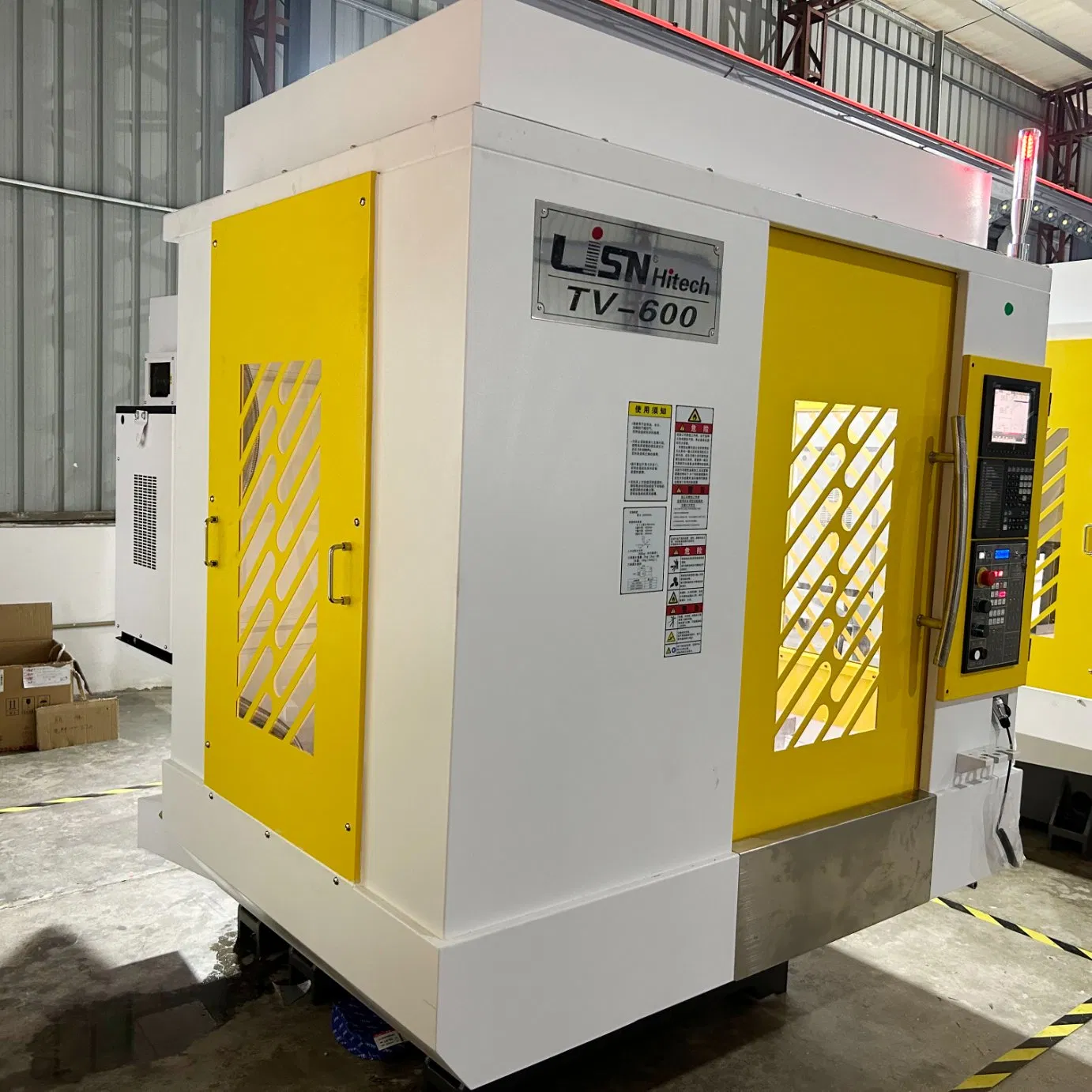

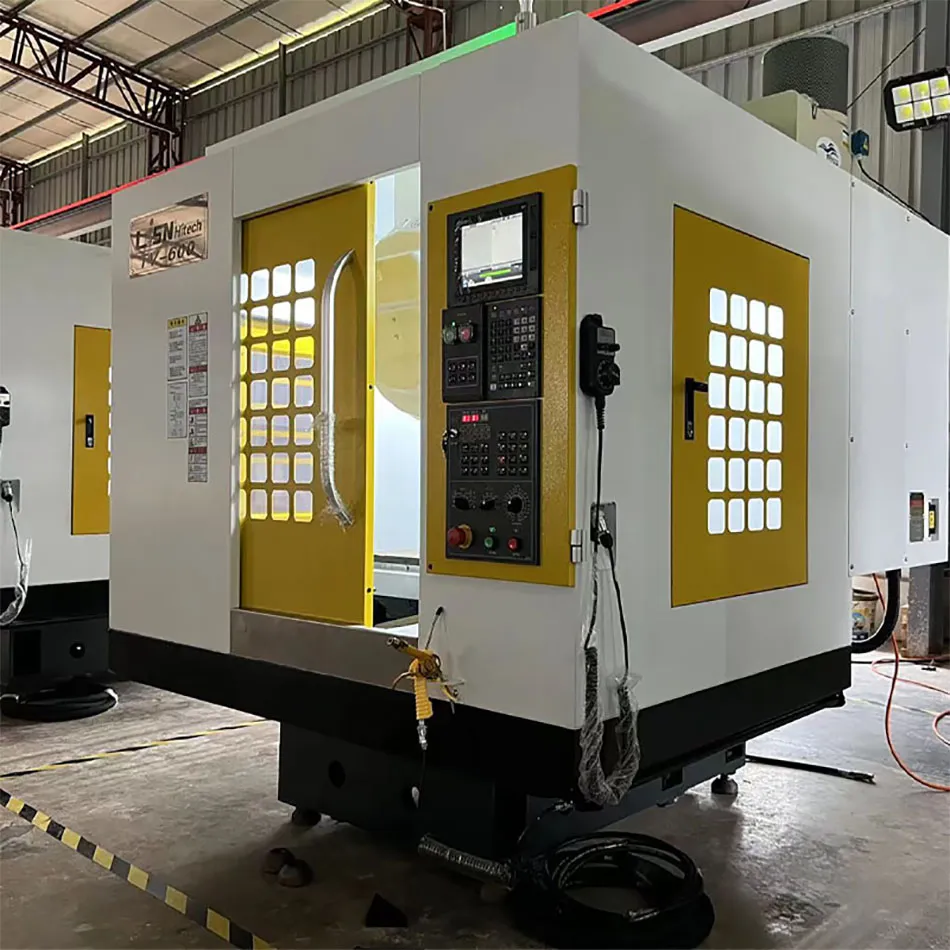

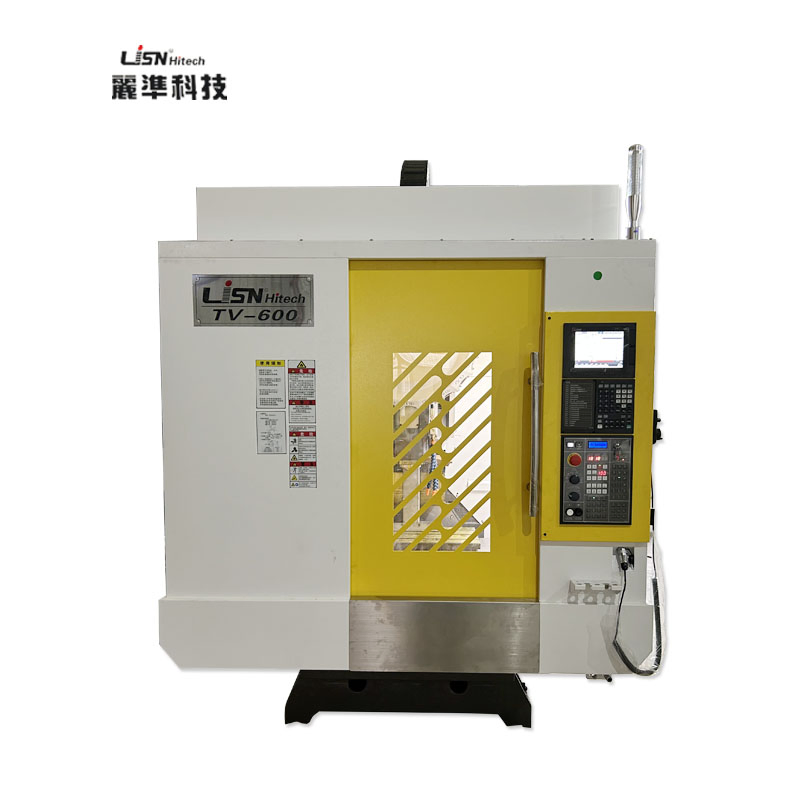

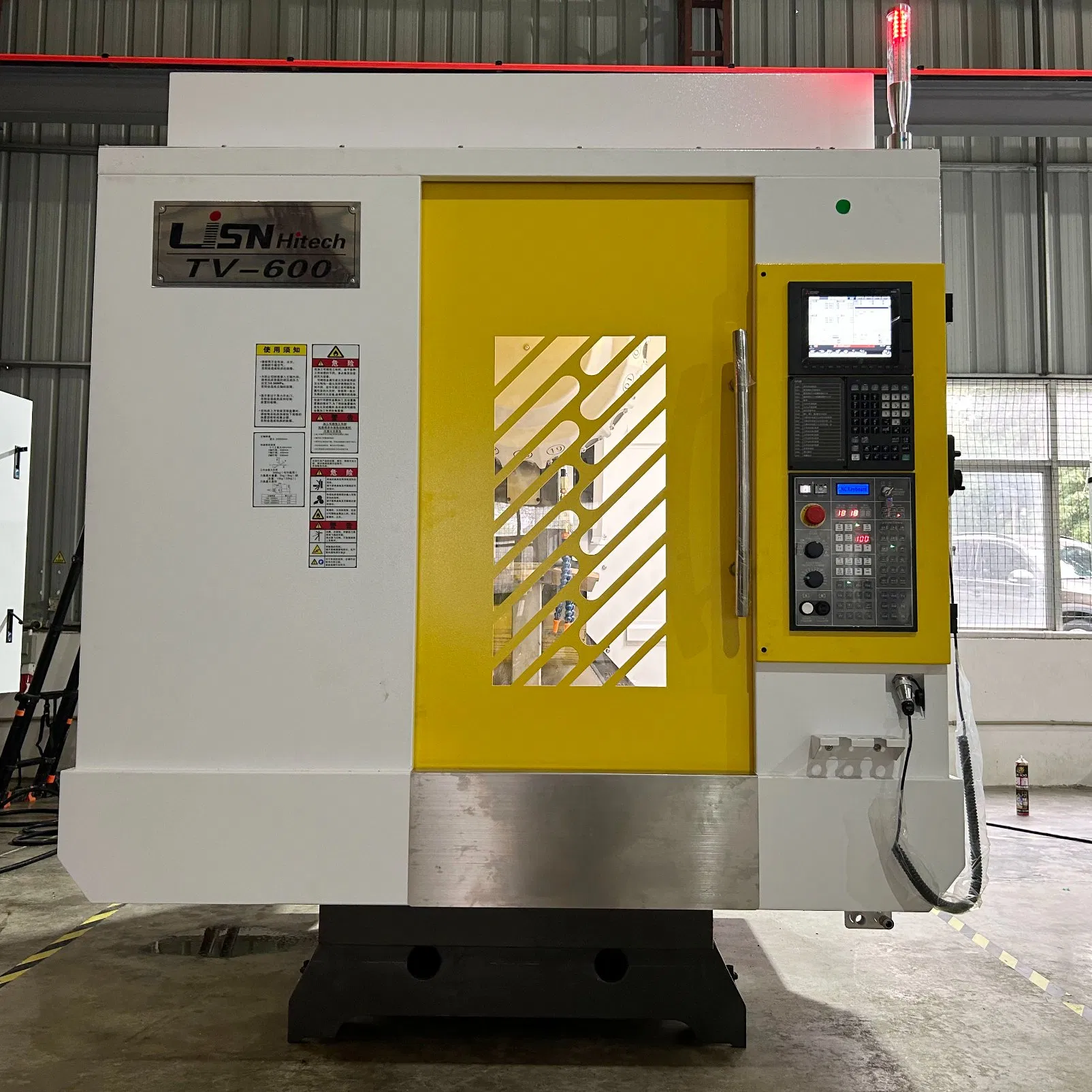

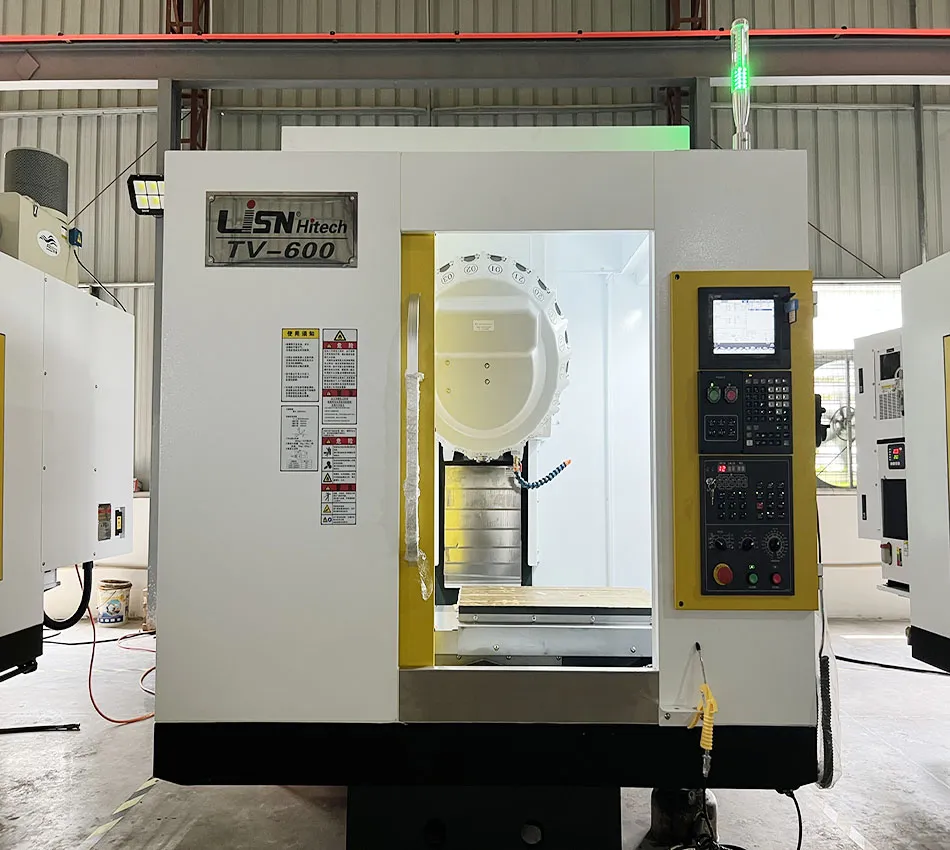

The TV-600 is a high-speed and high-precision CNC Drilling and Tapping Machine Center. The base, saddle, table, column, and other main structures are made of high-quality materials and have undergone secondary annealing treatment to ensure high rigidity and stability.
Equipped with a 200-liter water tank and rear row crumbs system. The large drainage channel inclination angle allows for rapid chip liquid reflux, effectively preventing chip accumulation.
All three axes use high-torque motors, providing 1G acceleration and reaching 0-60m in 0.21 seconds. The Thermal Isolated Direct Drive System (TIDD) effectively blocks motor heat from the spindle, reducing thermal elongation.
| ITEM | UNIT | MODEL TV600 |
|---|---|---|
| Worktable Size (W*L) | mm | 700x420 |
| T-Slots Distance | mm | 3×14×125 |
| Max Table Load | kg | 200 |
| X/Y/Z Axis Travel | mm | 600/400/300 |

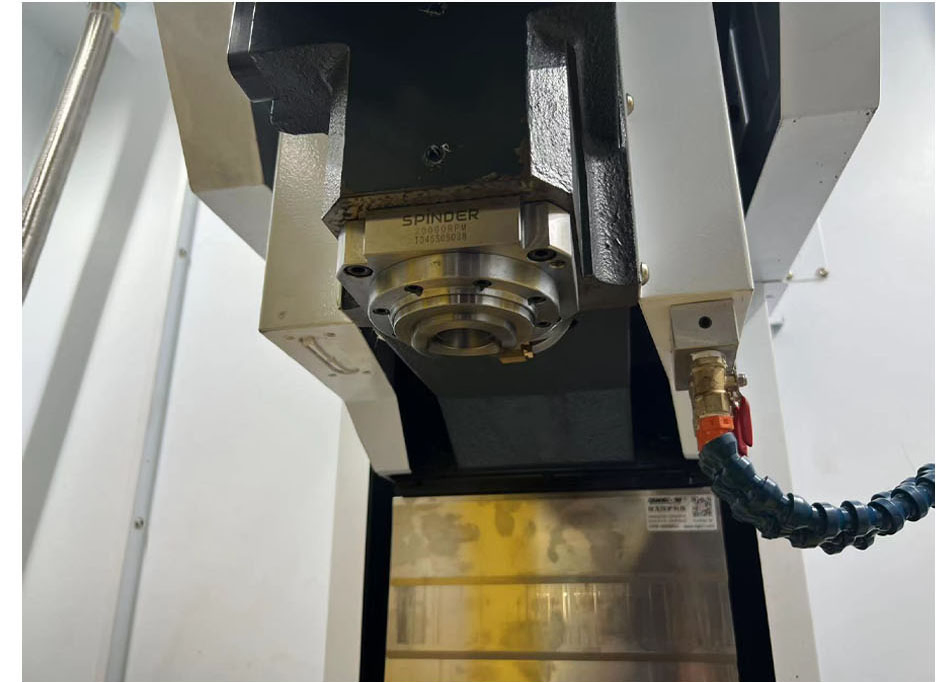

| Spindle Taper | / | BT30 |
| Spindle Speed Range | r/min | 20000 |
| Max Cutting Feed Speed | mm/min | 1-20000 |

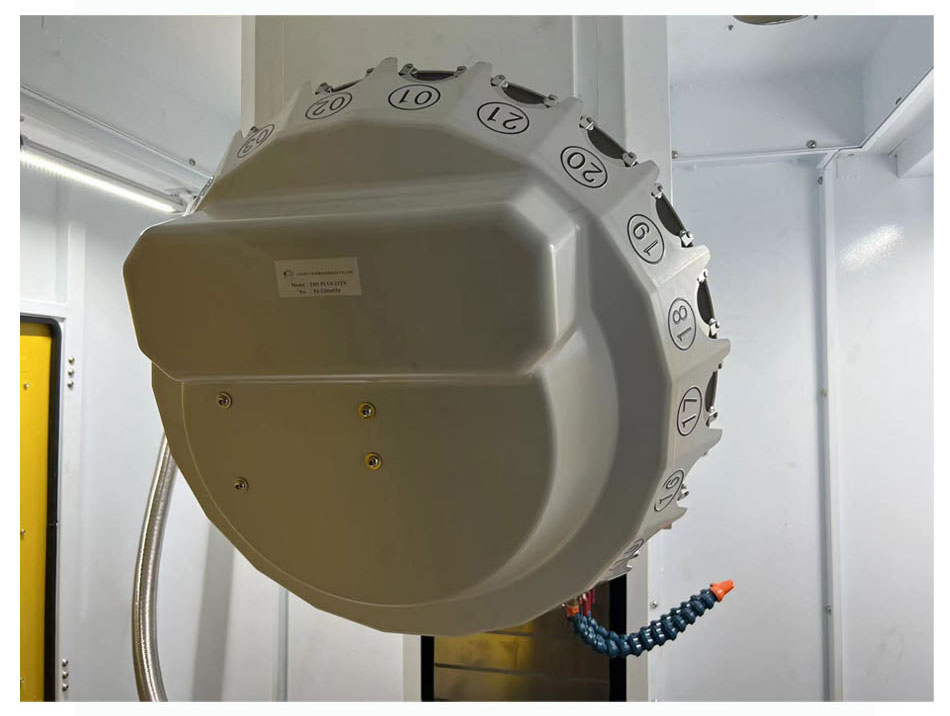

| Tool Magazine Capacity | pcs | 21 |
| Positioning Accuracy | mm | ±0.005/300 |
| Machine Weight | kg | 3000 |
| Machine Dimensions | mm | 1930×2450×2450 |
