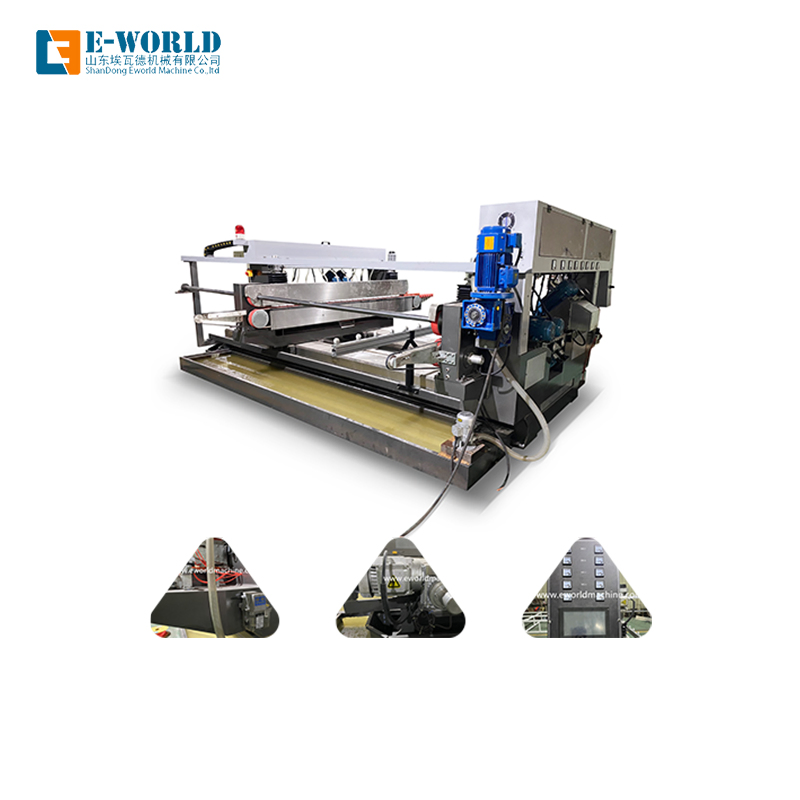

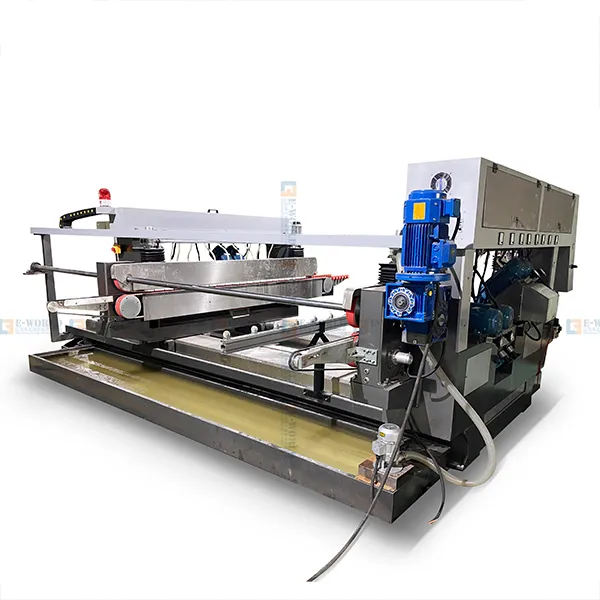

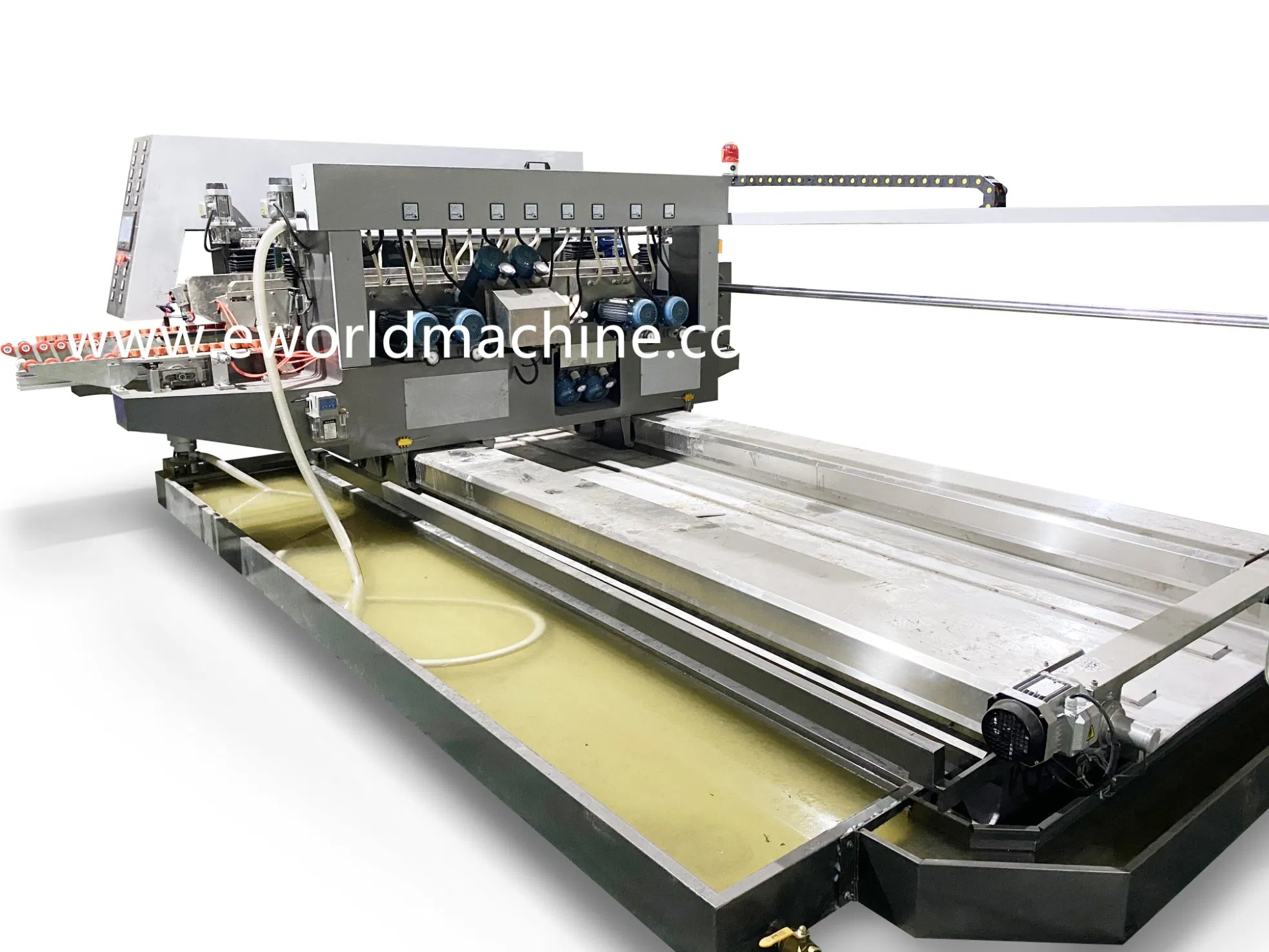

Ewd3010 Double Side Glass Edging Machine

Customization:	Available
After-sales Service:	on Line
Warranty:	One Years

📋

Basic Specification

Model NO.

EWD3010

Certification

GS, CE, RoHS, ISO 9001

Usage

Woodworking, Metal, Plastic, Glass, Stone, Rubber, Mould

Drive Type

Hybrid Servo Drive

Volt

380V, 50Hz/220V.60Hz

Speed

1-6m/Min

Min Size

300*300 mm

Max Size

3600*3600mm

Glass Thickness

3-19 mm

Chamfer Width

2mm

Total Power

40kw

Max Weight

4500kg

Over Size

4200mm*5300mm*2000mm

HS Code

8464201000

⚙️

Product Description

EWD3010 Double side glass edging machine is an economical and efficient equipment designed with high-end techniques. It utilizes ball screw and linear guide rail systems to ensure superior repeat positioning accuracy. The main transmission features stepless gears, while the glass transport system employs ring synchronous belts for smooth transmission and precise positioning.

✔ Adopt ball screw and linear guide rail for high-precision repeat positioning.

✔ Main convey driver adopts stepless gear for versatile operation.

✔ Top-located main convey axis for easy maintenance and replacement.

✔ Ring synchronous belt ensures smooth glass transmission and accurate alignment.

📊

Technical Wheel Configuration

No.	Wheel Type	Specification
1	Diamond wheel with teeth	100# Ф150Ф1210*10
2	Resin wheel	240# Ф150Ф1210*10
3, 5	Resin wheel	240# Ф130Ф1210*10
4, 6	Polishing wheel	10S40, 130*50
7, 8	Polishing wheel	10S40, 150*50

🖼️

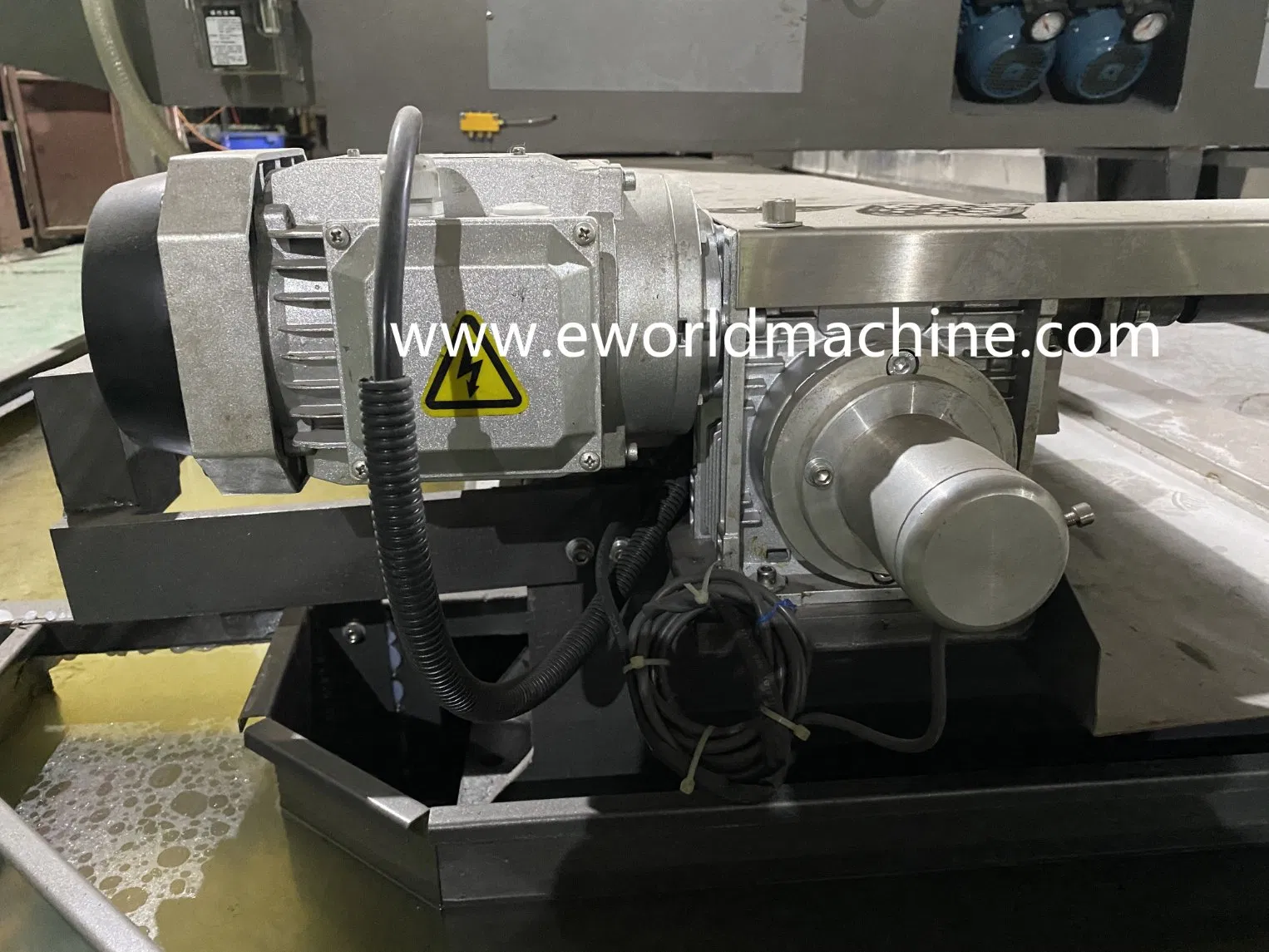

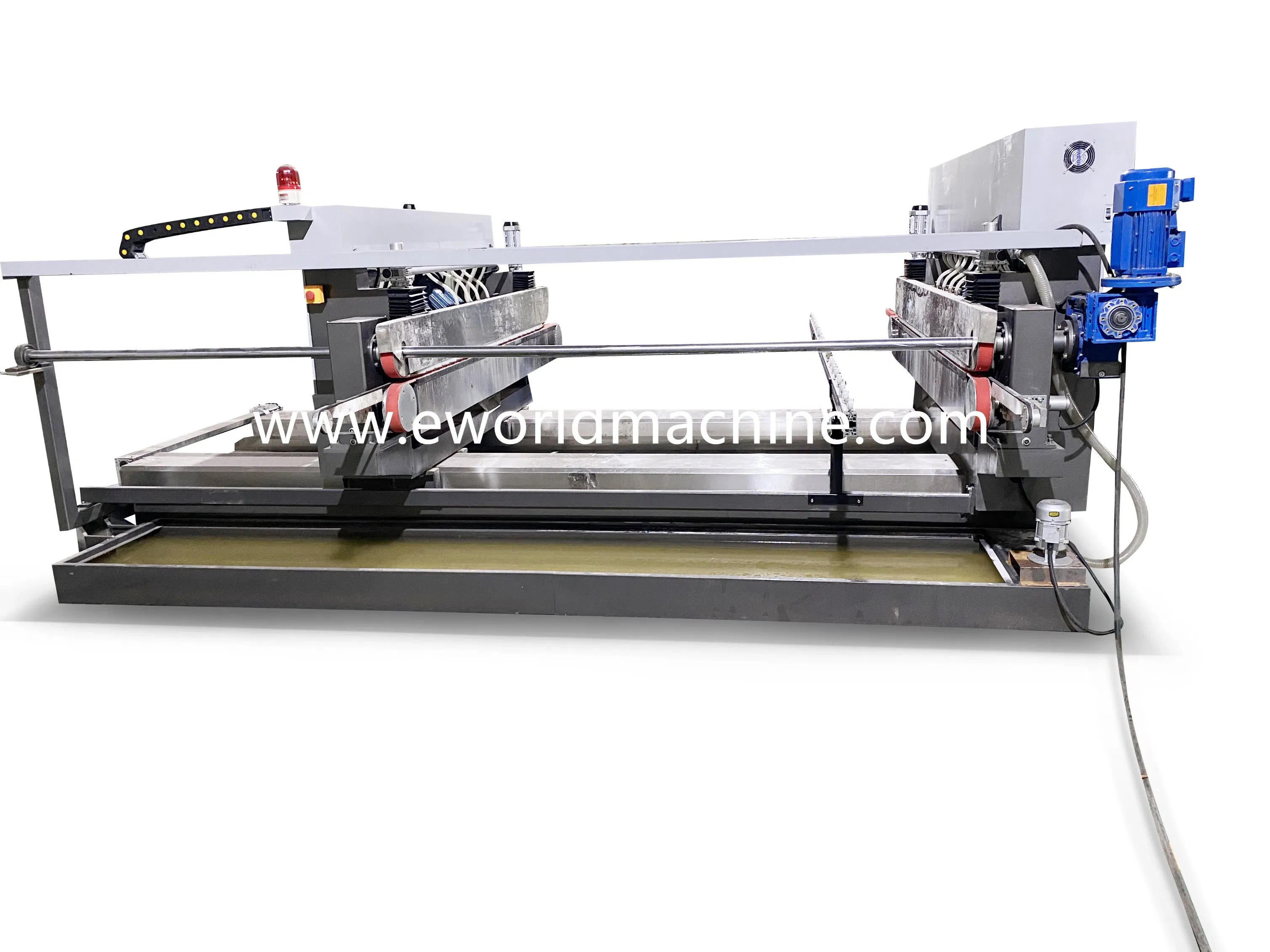

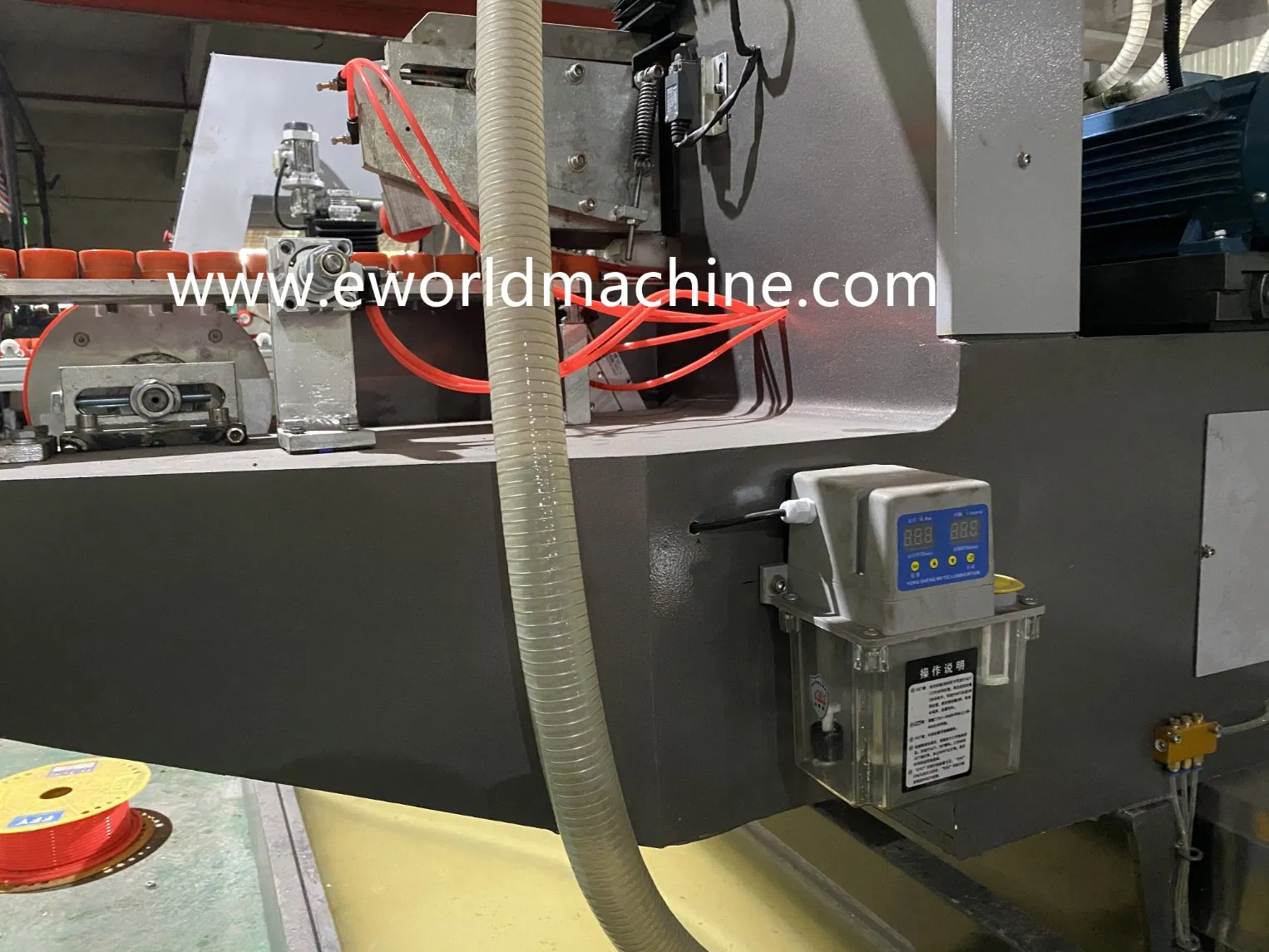

Product Showcase

❓

Frequently Asked Questions

1. Are you a professional manufacturer?

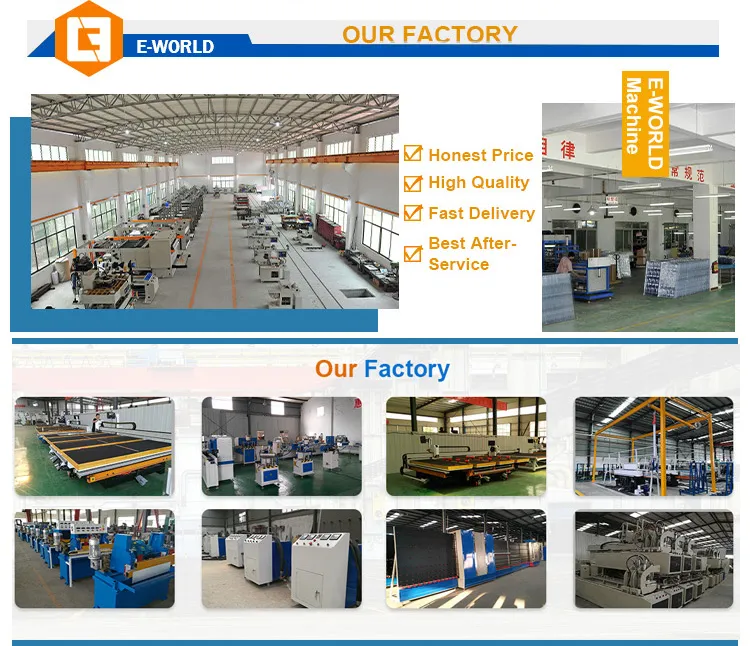

Yes, we are a professional manufacturer with more than 5 dedicated workshops specialized in glass processing machinery.

2. What kind of service can I expect?

We provide rapid responses within 12 hours for emails, delivery within 15 days for standard models, and 24-hour after-sales support backed by over 12 years of industry experience.

3. What is the warranty period for the machine?

We offer an 18-month guarantee on the machine, including 24-hour technical support, English manuals, and video tutorials. Consumable parts are provided at agency prices.

4. Do you provide equipment operation training?

Yes. We can dispatch professional engineers to your site for installation, adjustment, and comprehensive operation training for your staff.

5. Why should I choose your machine over cheaper options?

We prioritize reliability by using famous and high-quality internal electrical components. Many machine breakdowns are caused by inferior internal parts, but we ensure long-term stability and superior service.

6. How long is the typical delivery time?

Standard machines are typically delivered within 3-15 days. For non-standard or customized machines tailored to specific requirements, the delivery time is 15 to 30 days.
