Efficient Glass Double Edging Production Line for Industrial Applications

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

📋 Basic Info

Model NO.	SSZM3025L	Customized	Available
Glass Thickness	3-25mm	Chamfering Size	1~3mm
Max Glass Removal	5mm	Glass Diagonal Error	≤±0.5mm/M
Chamfer Width Error	≤±0.2mm/M	Glass Parallel Error	≤±0.2mm/M
Power	380V/50Hz	Pneumatic Pressure	0.5~0.8MPa
Installed Power	≈132kw	Working Table Height	900±30 mm
Grinding Heads	18	Structure	Vertical
HS Code	846420	Origin	Custom

⚙️ Product Description

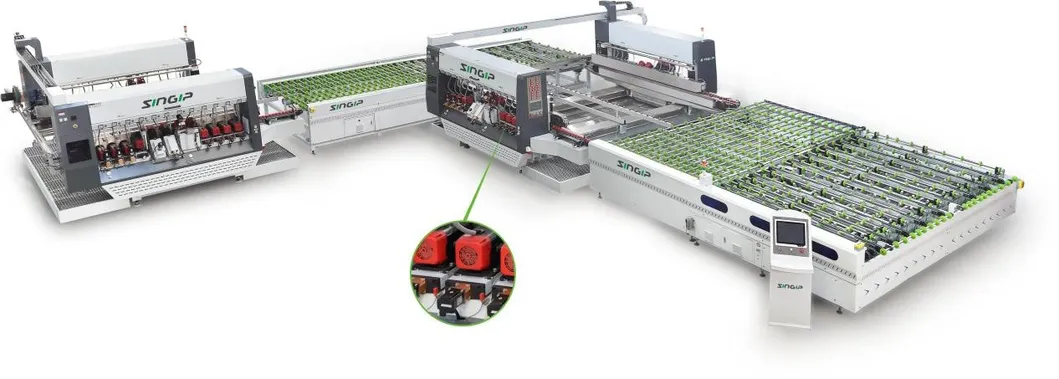

Intelligent High Speed Full Automatic Glass Double Edging Production Line

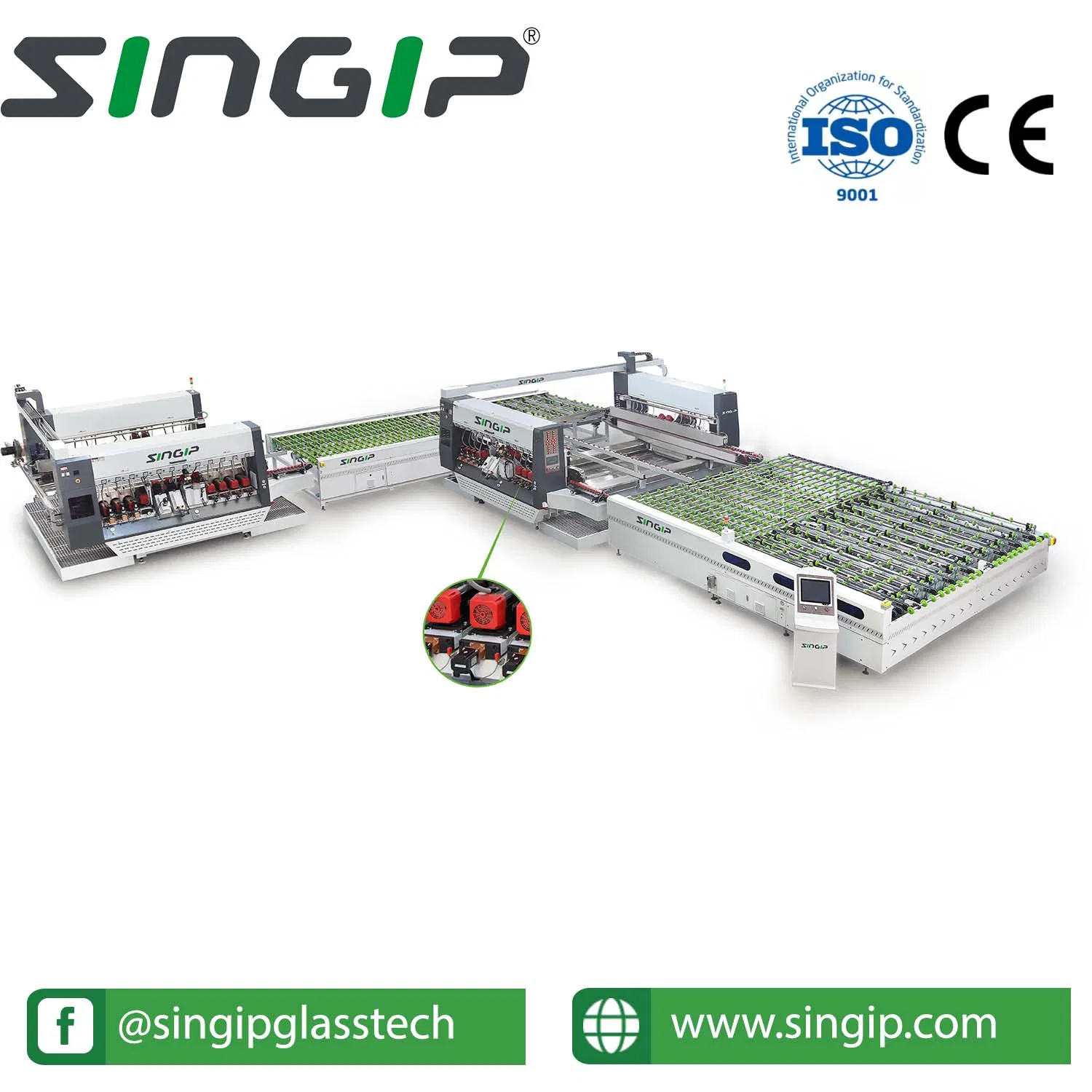

This 18-grinding-head production line consists of a testing platform, two high-speed intelligent double-edging machines, and an L-shaped turning platform. It is specialized for processing double straight edges of flat glass for construction and furniture industries.

Main Parameters

Model	Min Processing Size	Max Processing Size
SSZM-G18AC(P)-3025L	300*300mm	3000*2500mm
SSZM-G18AC(P)-3725L	300*300mm	3700*2500mm
SSZM-G18AC(P)-4525L	330*300mm	4500*2500mm
SSZM-G18AC(P)-6030L	450*300mm	6000*3000mm

🚀 Key Features & Configuration

🌐

Intelligent & Efficient Standard industrial IoT system for remote monitoring, maintenance, and upgrades. Servo-driven width adjustment ensures high precision.

💎

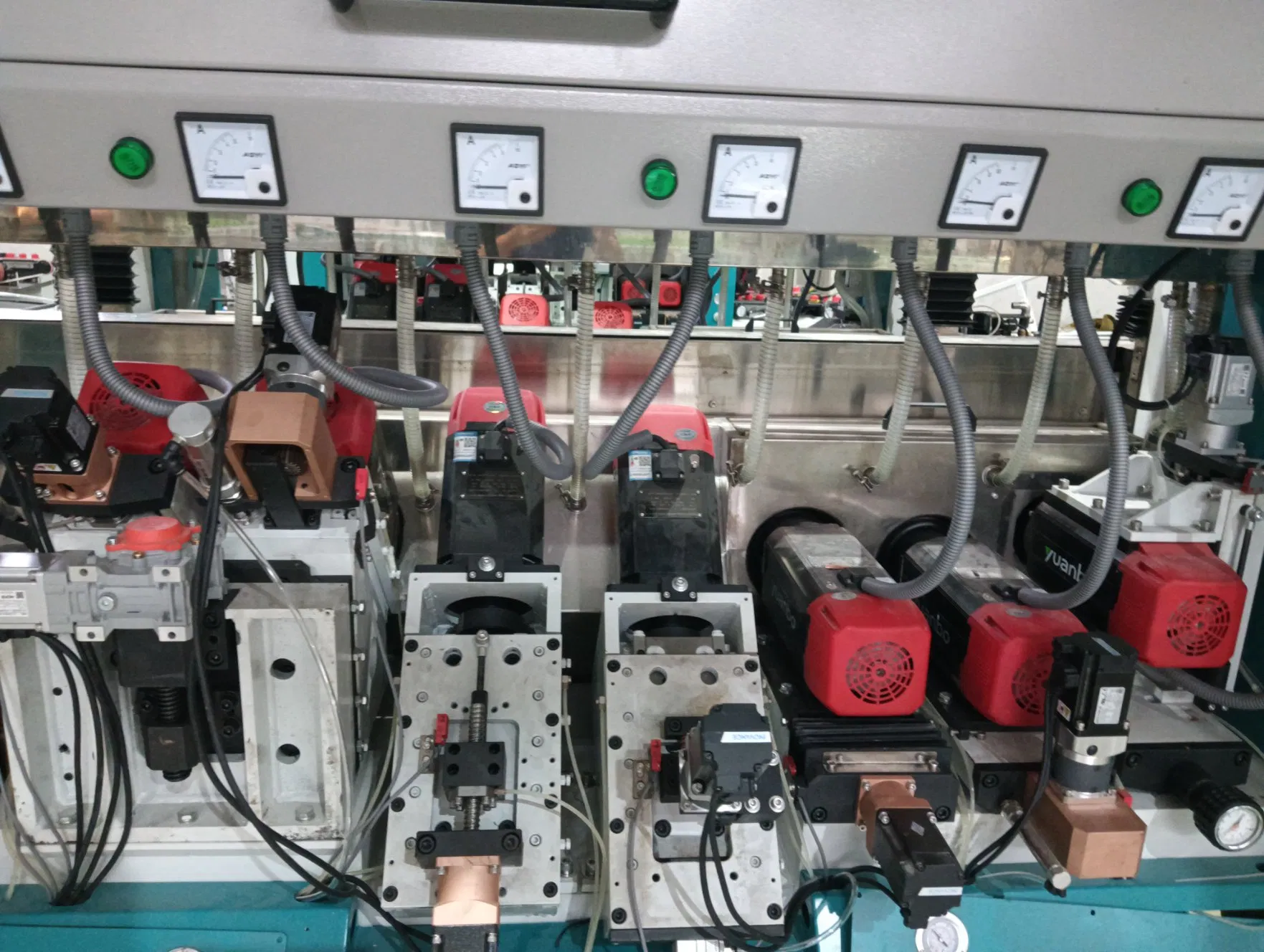

Automatic Wheel Compensation Servo motors control grinding positions for diamond and resin wheels, automatically adjusting for wear based on processing volume.

⚖️

Automatic Grinding Distribution System switches wheel positions based on glass thickness presets, distributing the allowance proportionally.

⚡

Energy Saving Technology 1-level energy-efficient permanent magnet synchronous motors with individual frequency control reduce no-load current by 50%.

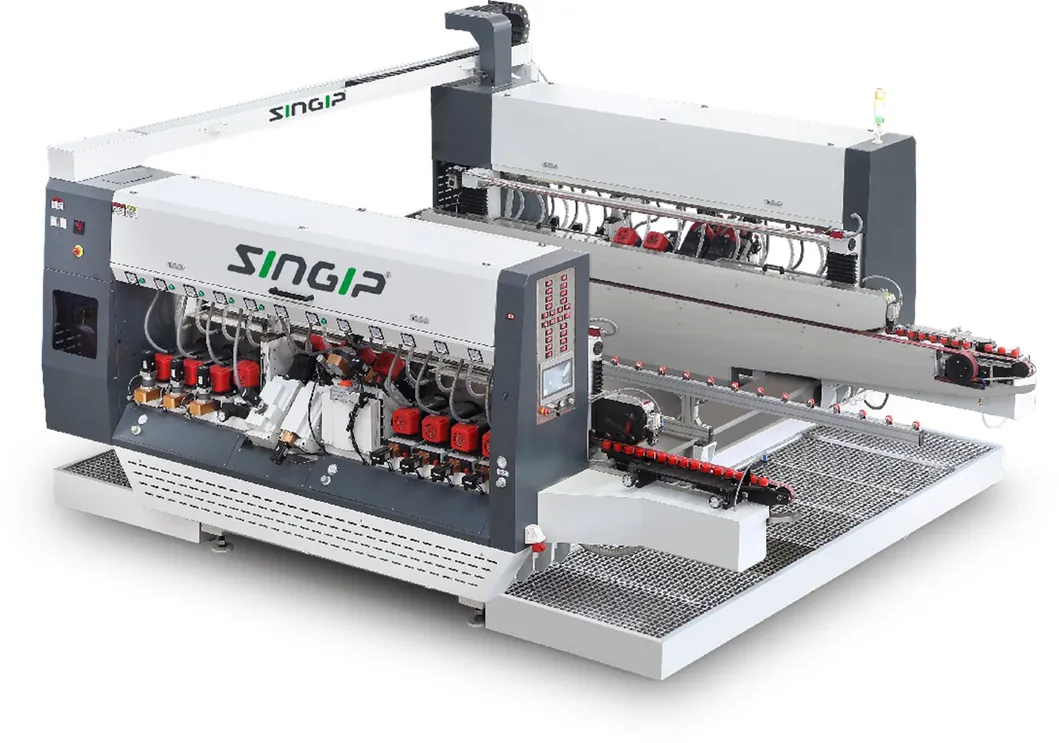

Double Edging Machine

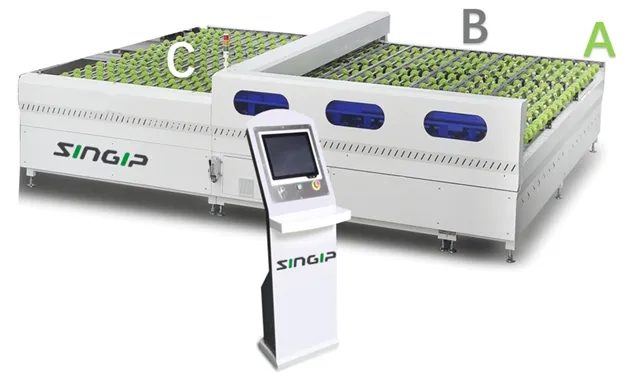

Dimension Detecting Table

🔧 Main Components & Process

🏗️

Machine Structure Base and main body built with 12mm thick-walled square tubes. Artificial aging treatment eliminates welding stress to prevent deformation.

🔄

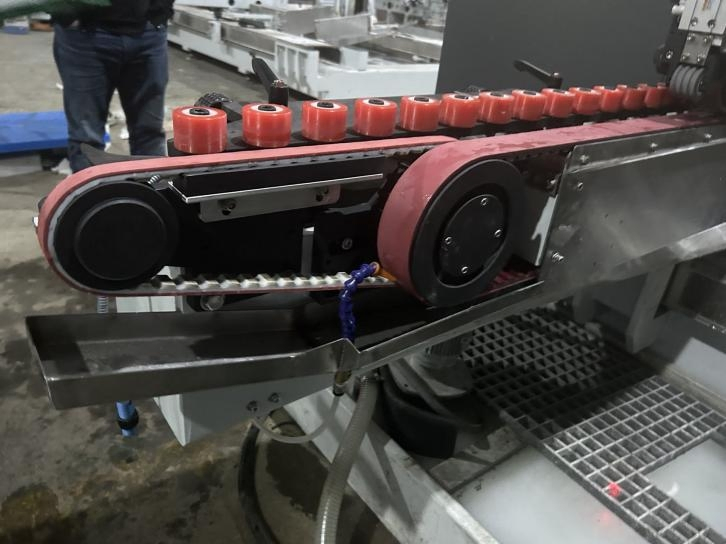

Transmission System Dual servo motors and hyperbolic gear reducers provide high synchronization and easier maintenance compared to traditional models.

📏

Precision Lifting Servo-controlled pressure beams and 45° chamfer lifting ensure fast, accurate positioning and solve traditional inaccuracy issues.

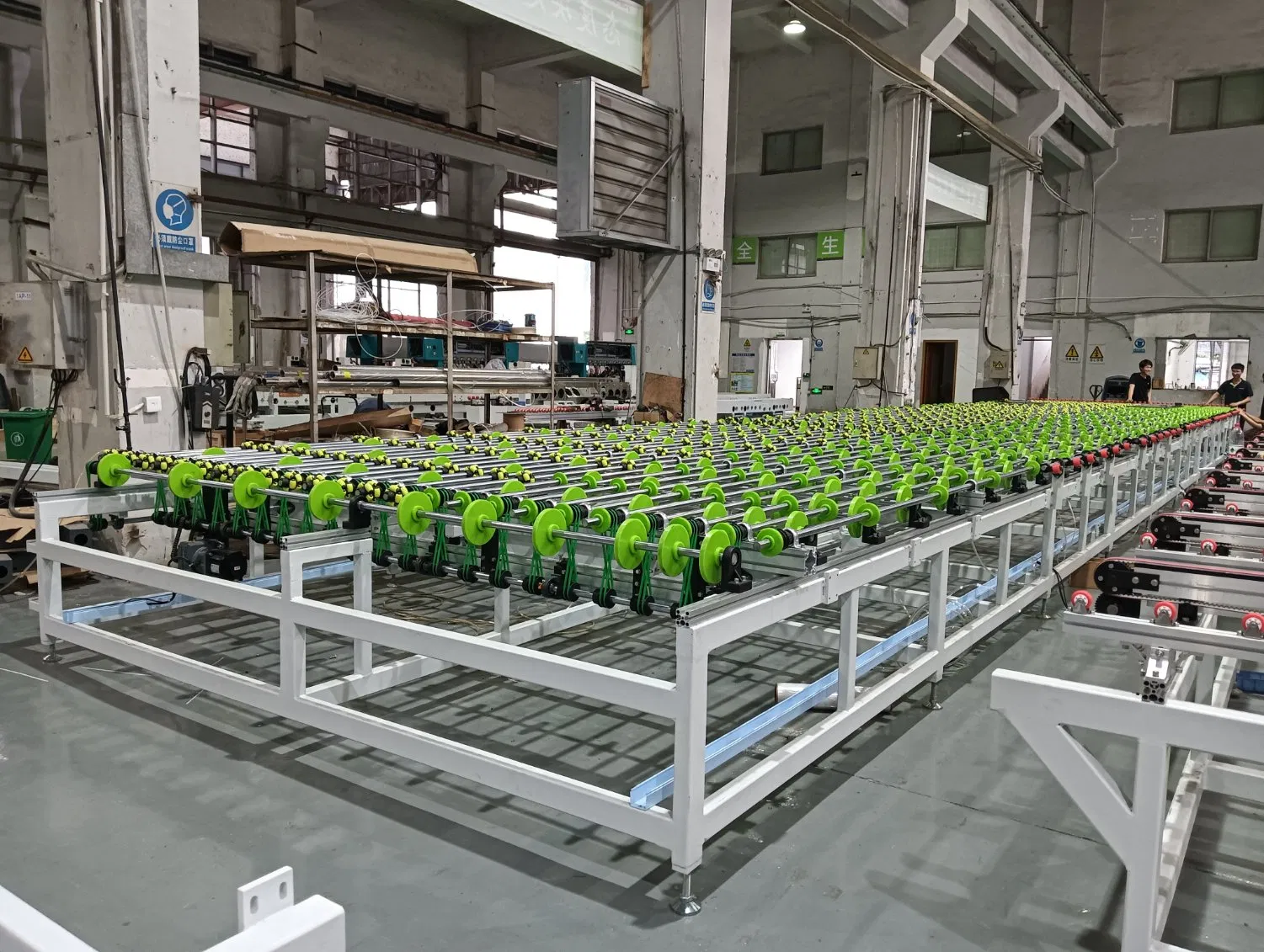

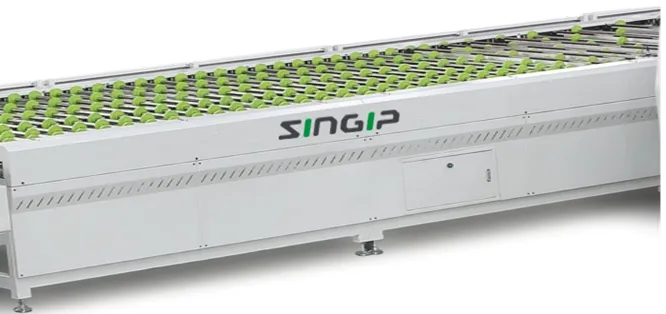

L-type Transfer Station

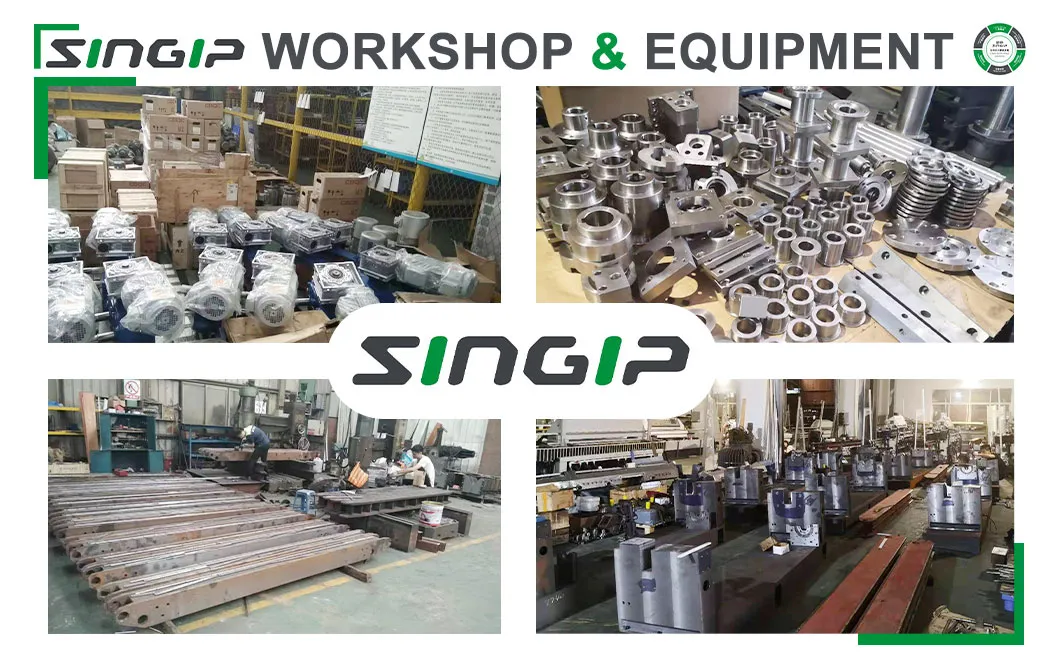

🏭 Production & Facilities

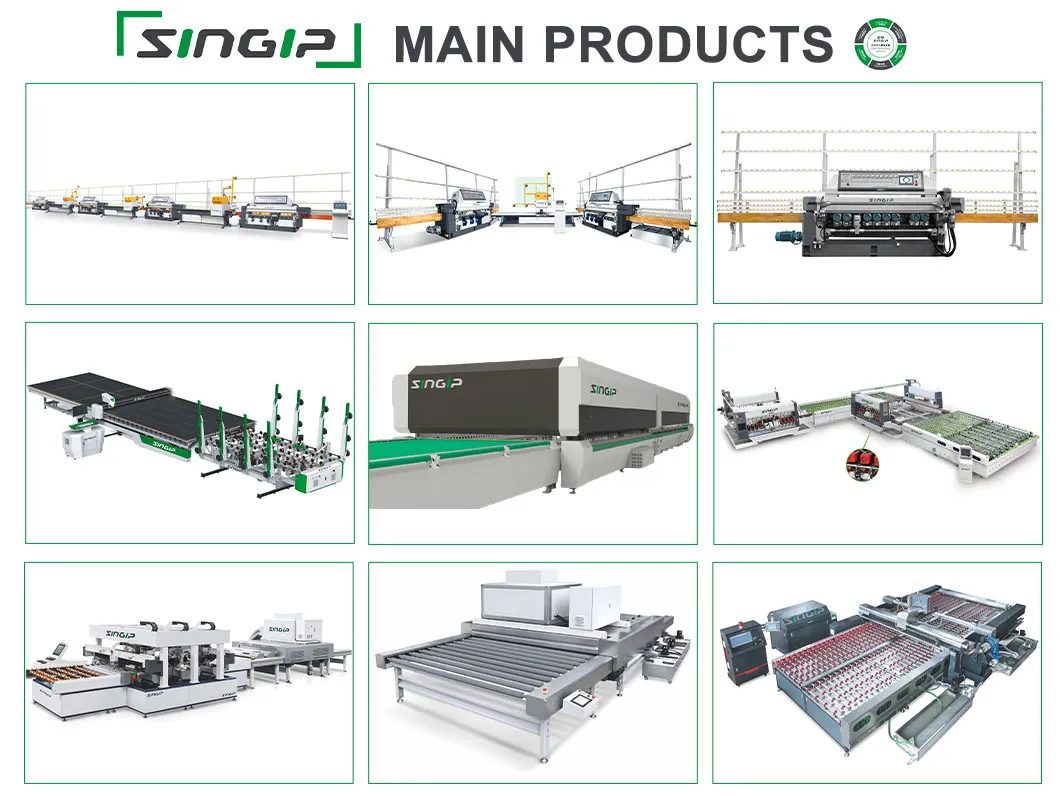

A diverse range of industrial machinery including specialized processing lines and single-unit machines designed for efficiency and precision.

🏆 Quality & Global Presence

📦 Packaging & Shipping

❓ FAQ

🔹 Do you provide on-site installation and training?

Yes, we offer global installation services and comprehensive operator training programs.

🔹 How are your glass machines packaged?

Machines are packed in containers suitable for long-distance ocean transport using shock-absorbing materials like pearl cotton and protective film. Wooden box packaging is an available option.

🔹 How do you ensure long-term operation stability?

We conduct rigorous endurance tests on all units before they leave the factory and select high-quality components with excellent durability.

🔹 Can I custom order machinery?

Yes, most of our machinery can be custom configured to match your specific production needs.

🔹 Where can I get spare parts?

We maintain a full stock of spare parts for all our machinery to ensure minimal downtime.

🔹 How long is the warranty period?

The standard warranty is 12 months (excluding wear and tear parts).
