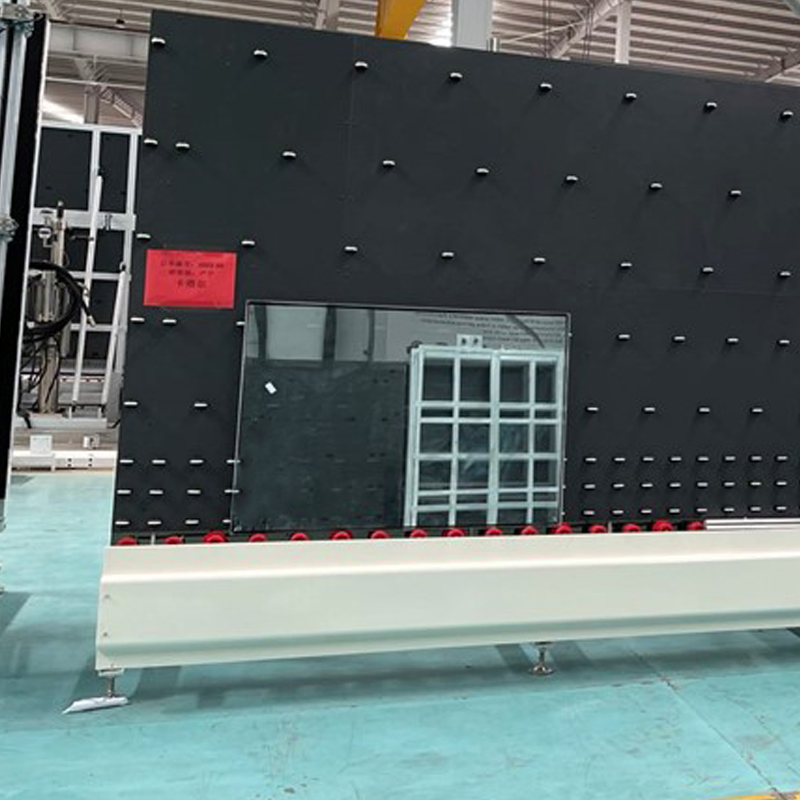

Doubled Glass Line Insulating Line Igu Insulating Glass Production Hollow Line

1 / 5

Doubled Glass Line Insulating Line Igu Insulating Glass Production Hollow Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

📋 Basic Information

Model NO.	LBW2500PC
Color	Red, Blue
Size	Customed
Standard	CE, ISO
OEM	Supported
Type	Insulating Glass Production Line
Structure	Vertical
Glass Edging Machine Type	Glass Round Edging Machine
Grinding Head Number	8
Condition	New
Washing Machine Type	Vertical Glass Washing Machine
Production Capacity	10000 pieces/Year

⚙️ Product Description

Double Glazing Glass Machinery Automatic Insulating Glass Production Line

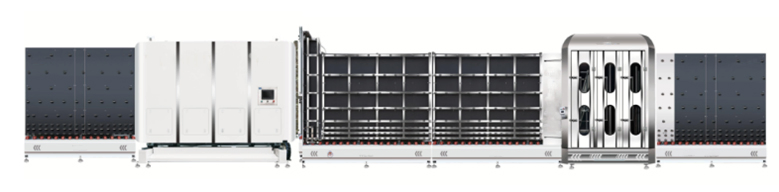

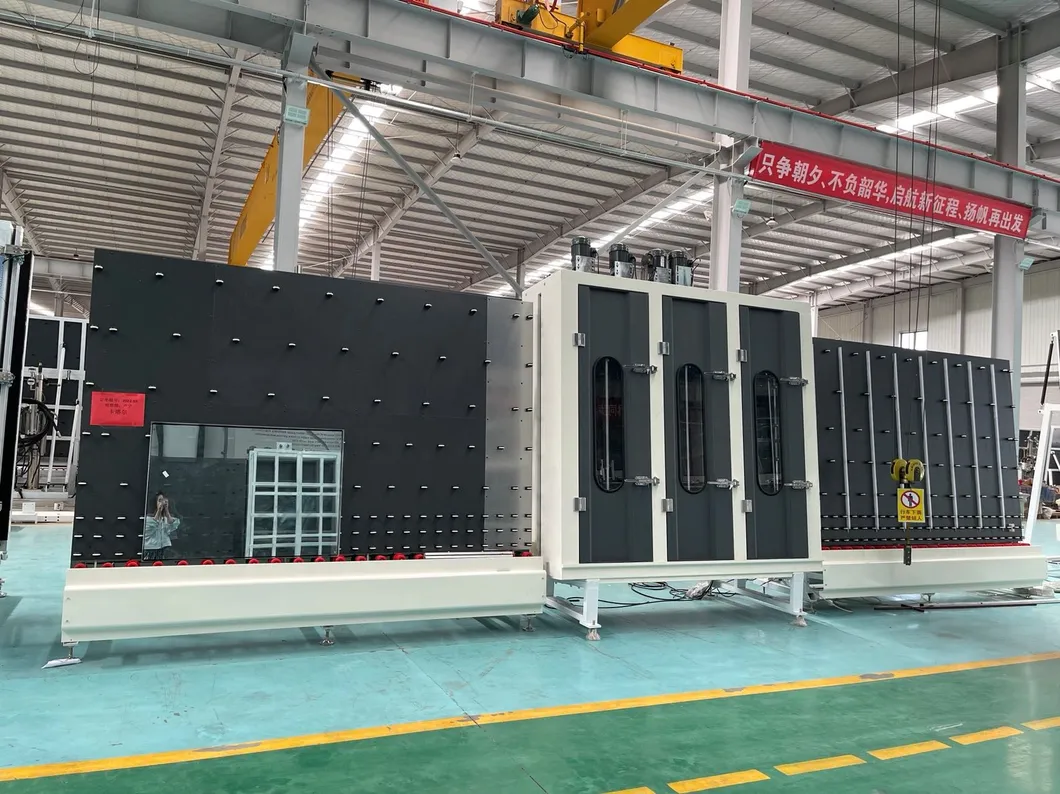

This production line is composed of 6 sections: feed section, washing and drying section, transition and storage section, light inspection section and spacer bar location section, inside flat press section, and storage section.

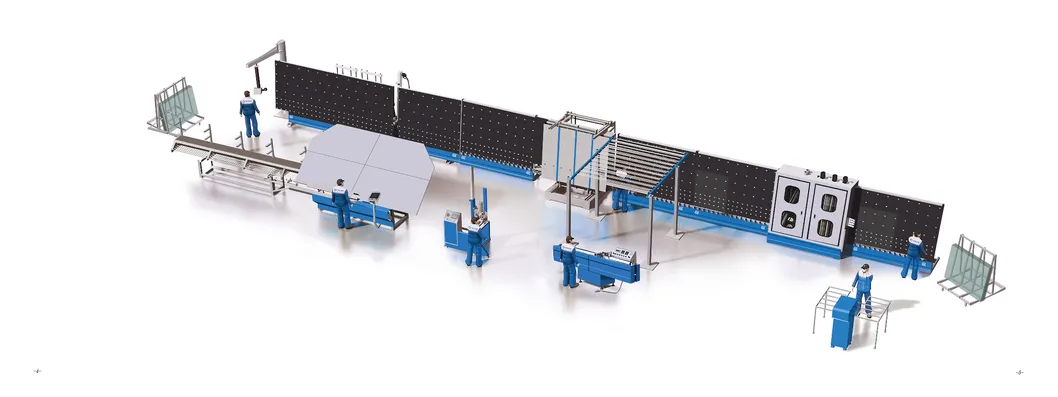

Insulating Glass Production Line Overview

🌟 Key Features

Achieve the functions of inside assembly, automatically filling argon gas.
Adopts the PLC to control the working condition and touch screen.
Automatic detect coated surface of coating glass and Low-E glass.
Air knife can automatic adjust according to glass thickness.
Brushes' rotate speed variable frequency drive.
Aluminum spacer and glass automatic positioning system.
Remote monitor and program upgrade functions.
Produce double, triple, low-e, and laminated insulating glass.
Automatic detect length and height of glass for best gas filling time.
Servo motors for assembling and pressing, ensuring argon concentrate ≥ 90%.

📊 Product Parameters

Power Supply	380V/50HZ 37.5Kw
Dimension(LxWxH)	21300x2800x3800mm
Production Quantity	600-700 IG units / 8 hours
Max Glass Size	2500x3500mm
Min Glass Size	300x400mm
Washing Thickness	3-20mm
Washing Speed	0-10m/min
IG Thickness	≤60mm
Transmission Speed	45m/min
Air Pressure	1Mpa

🏗️ Structure and Function

Adopt PLC control, this production line can produce Low-E glass, double glazing, and triple glazing. Operation methods include "Automatic" and "Manual" for maintenance needs.

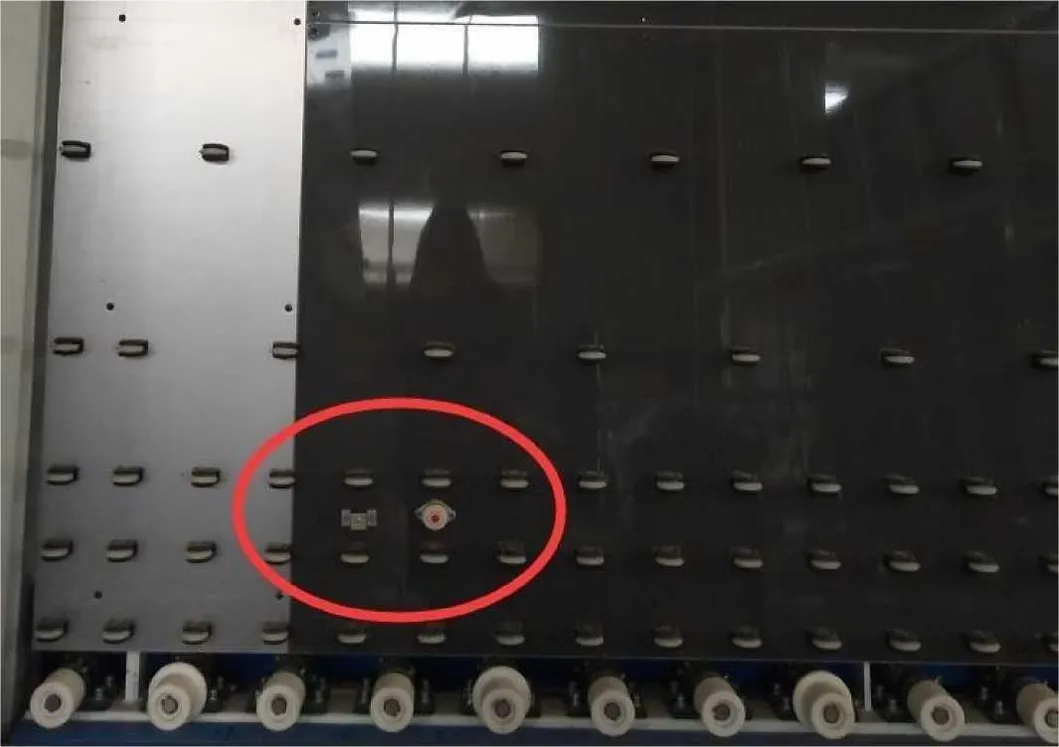

Section 1: Feed Section

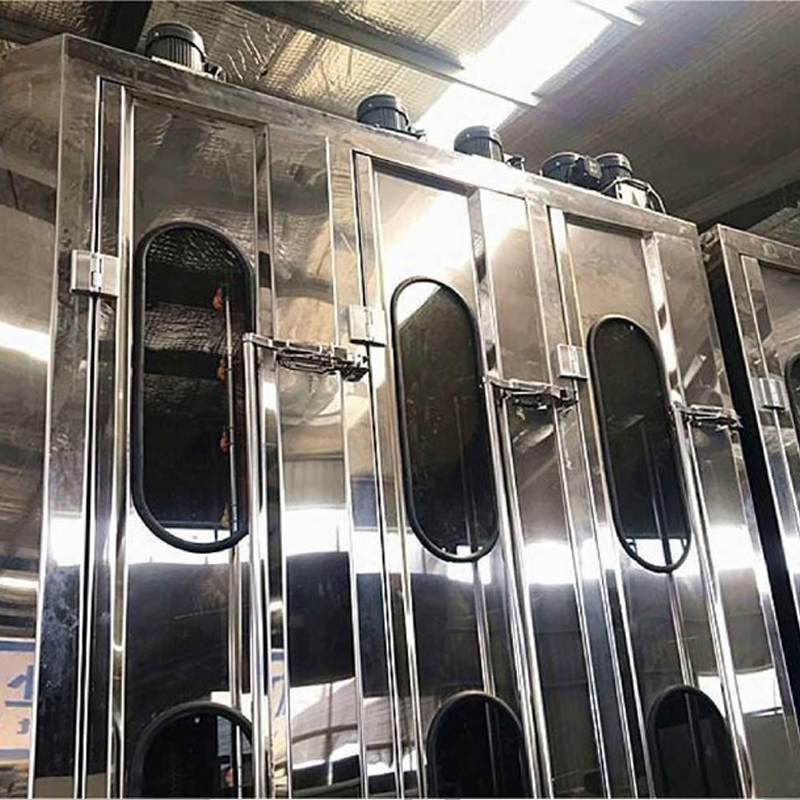

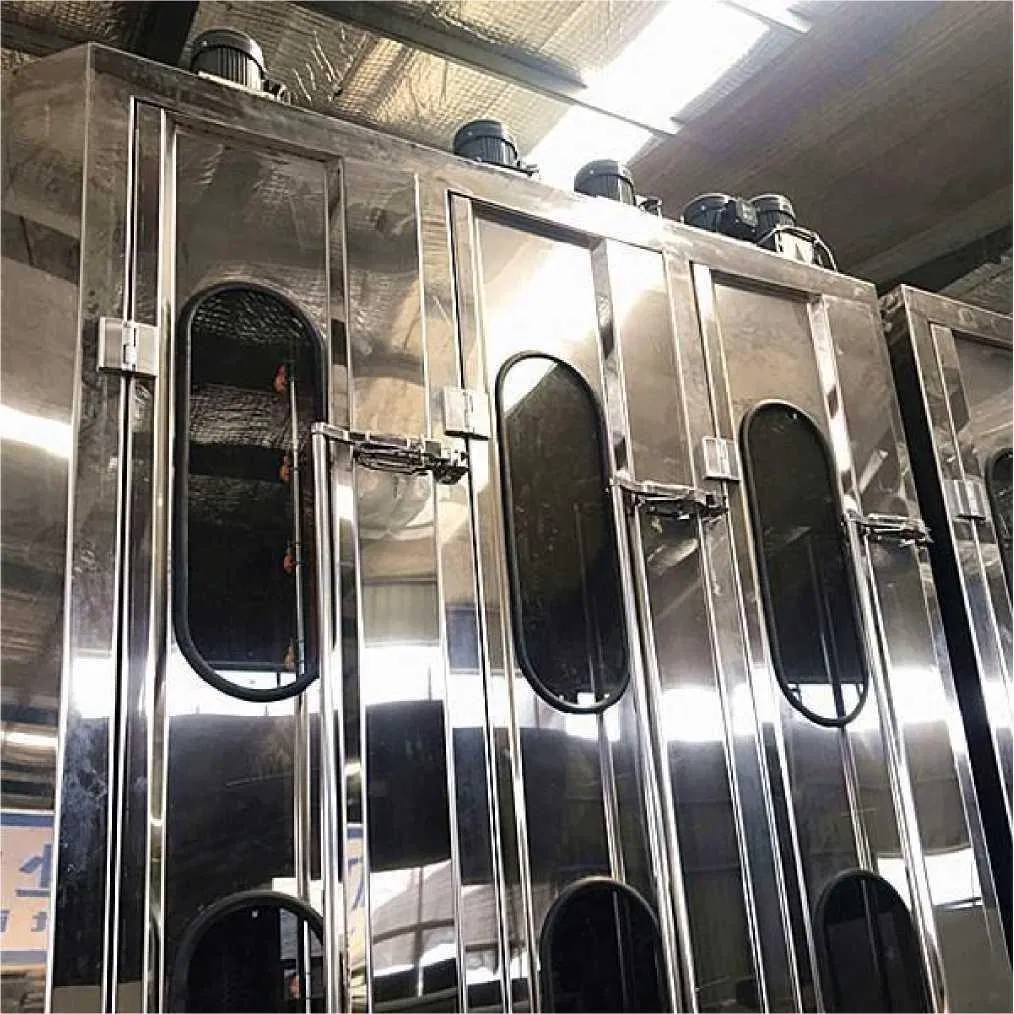

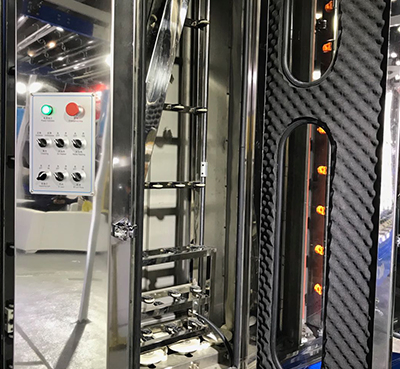

Section 2: Washing and Drying Section

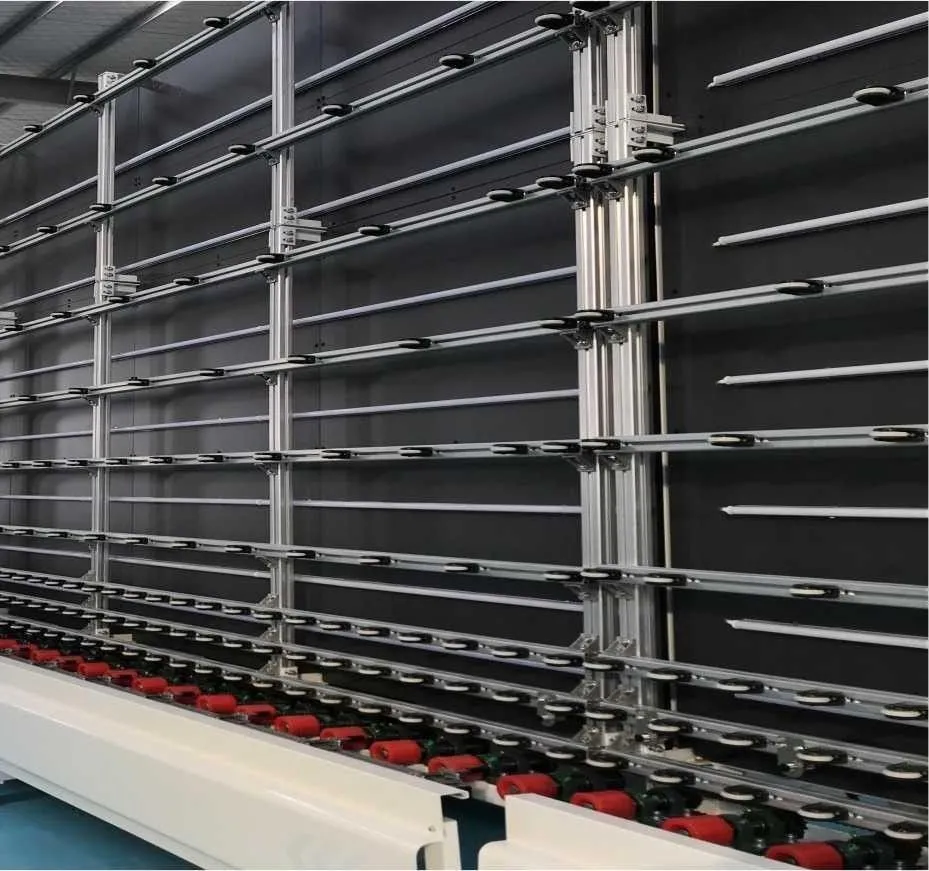

Section 3 & 4: Transition & Inspection

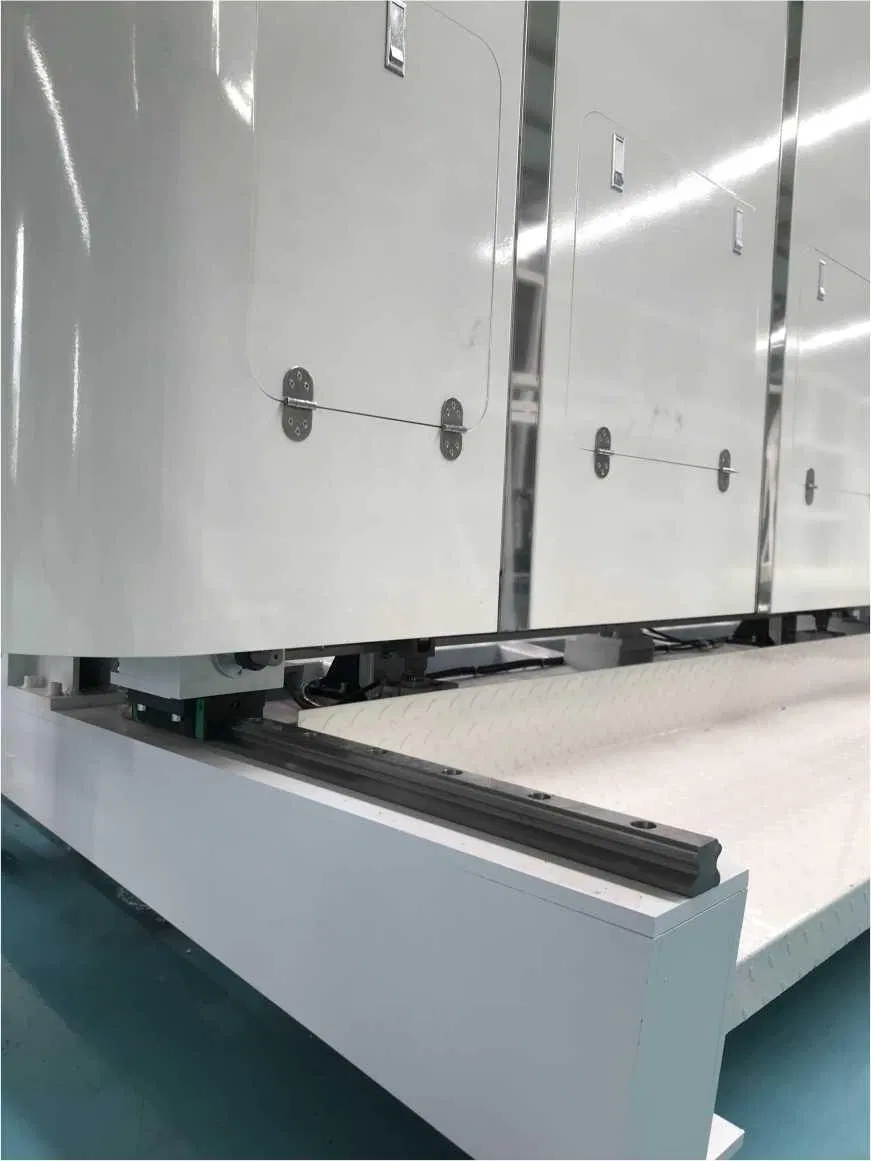

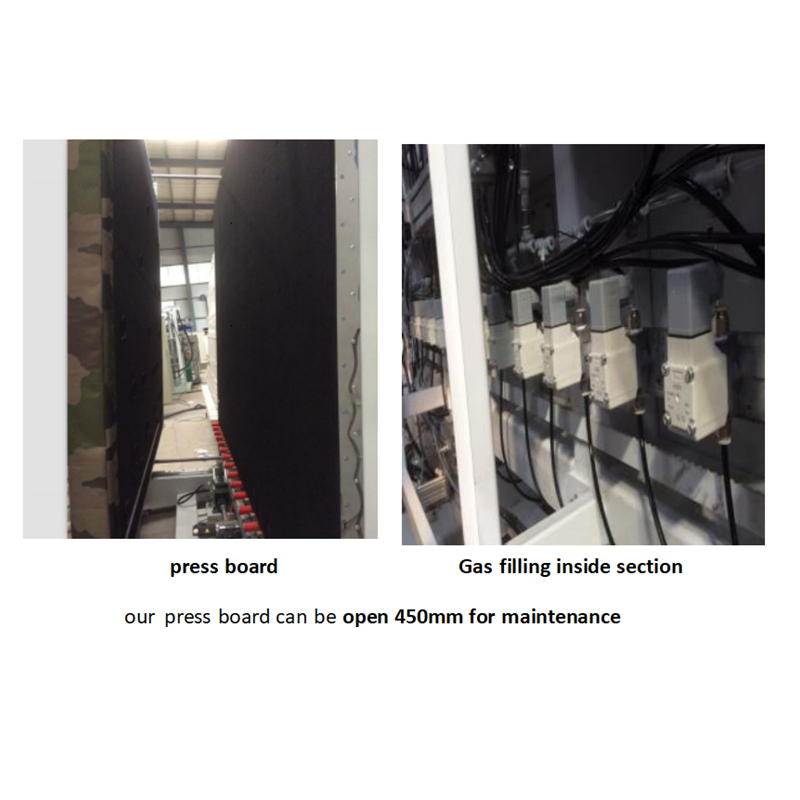

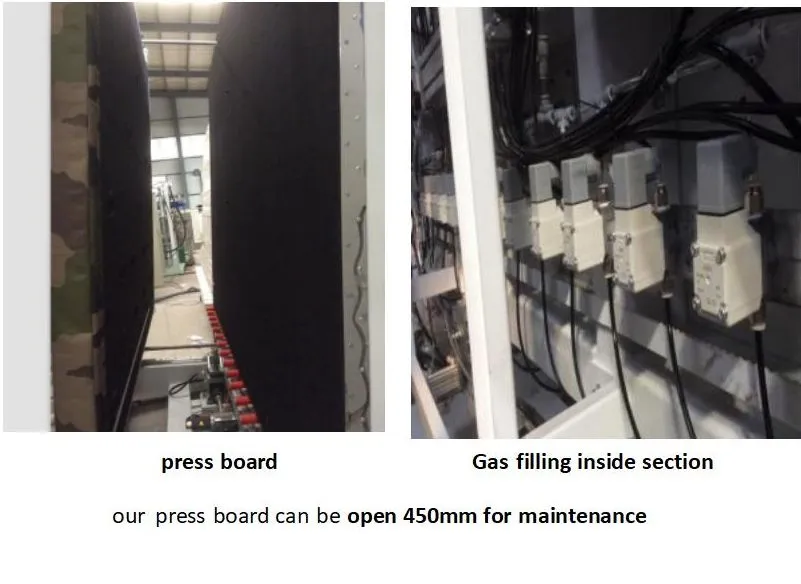

Section 5: Inside Flat Press & Assembly

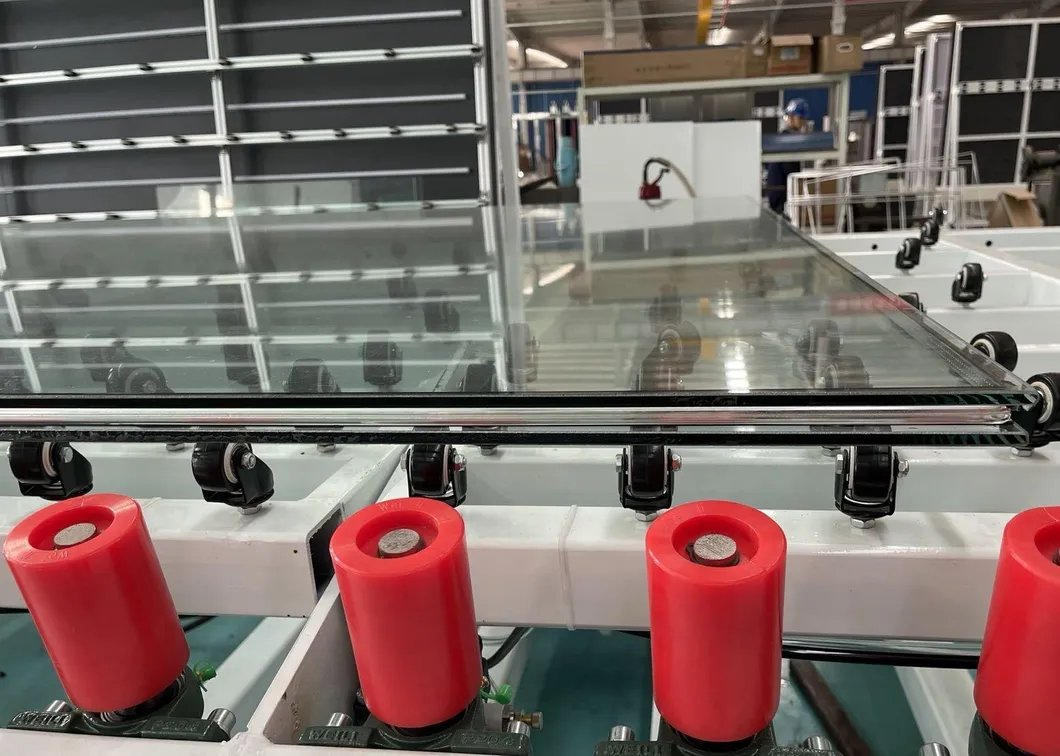

Section 6: Storage Section

💎 Why Choose Us?

Top 3 Glass Machinery Supplier with strong market reputation.
Served 864 global clients with high-quality standards.
Trusted partner of the world's top 20 glass factory brands.
28 years of manufacturing and 9 years of export expertise.
Strictly 15 quality control checks and 6S production standards.
Fast delivery: Stock for same-day shipping; custom units in 2-3 weeks.
Competitive pricing, typically 5%-10% lower than market average.

🛠️ 8 Major Services

❓ Frequently Asked Questions

Q1: What is an IG Line used for? A: An IG (Insulated Glass) Line is used to produce double or triple-glazed insulating glass units (IGUs). It automates cleaning, spacer placement, assembly, pressing, and gas filling.

Q2: What types of glass can be processed? A: It can process flat glass, low-E glass, tempered glass, and coated glass, ideal for high-performance windows, doors, and curtain walls.

Q3: What are the main components of an IG line? A: Typical components include a loading station, automatic washer/dryer, inspection station, spacer mounting section, pressing section, and gas filling system.

Q4: Can the IG line handle gas-filled glass? A: Yes, advanced lines include automatic gas filling systems for injecting inert gases like argon to improve thermal performance.

Q5: What are the advantages of a fully automatic IG line? A: Advantages include high production efficiency, precise alignment, reduced labor costs, and superior quality control for large-scale operations.

Q6: Can it be customized for specific production needs? A: Absolutely. Custom configurations are available for different glass sizes, thickness ranges, and spacer types to meet specific factory requirements.
