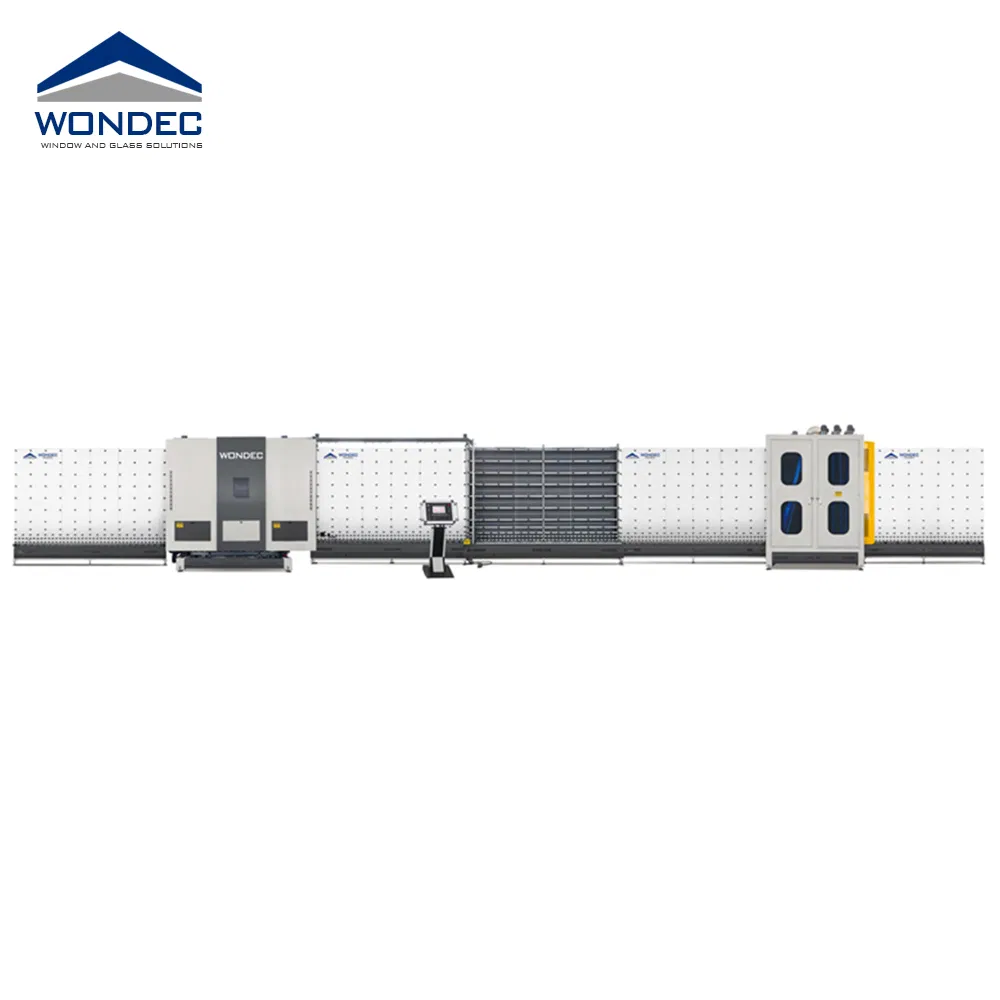

2537 Double Triple Glazing Dgu Making Machines Ig Insulated Glass Production Line with Online Argon Gas Filling Function

2537 Double Triple Glazing DGU Making Machines IG Insulated Glass Production Line With Online Argon Gas Filling Function

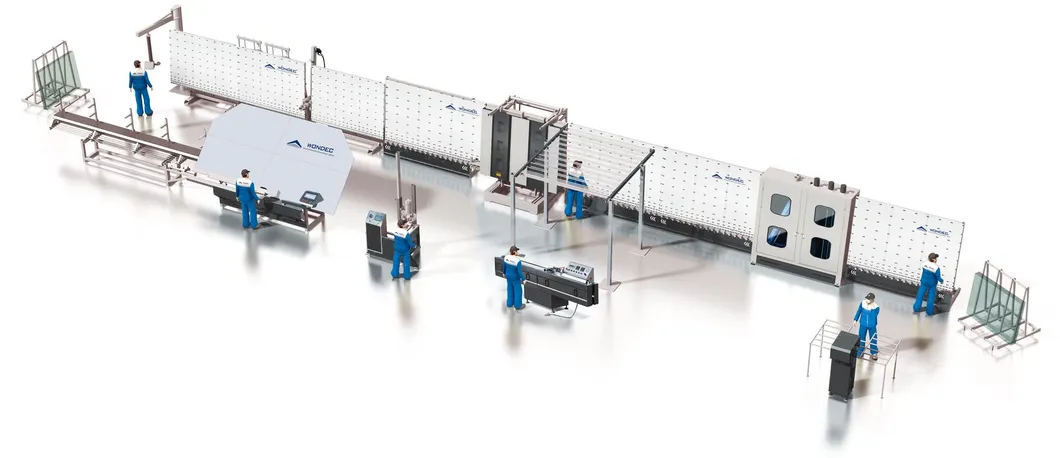

This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.

We can provide a complete set of insulating glass deep processing machinery and equipment, such as insulating glass production line, automatic sealing robot, automatic spacer bar bending machine, desiccant filling machine, automatic butyl extruder, vertical glass washing machine etc.

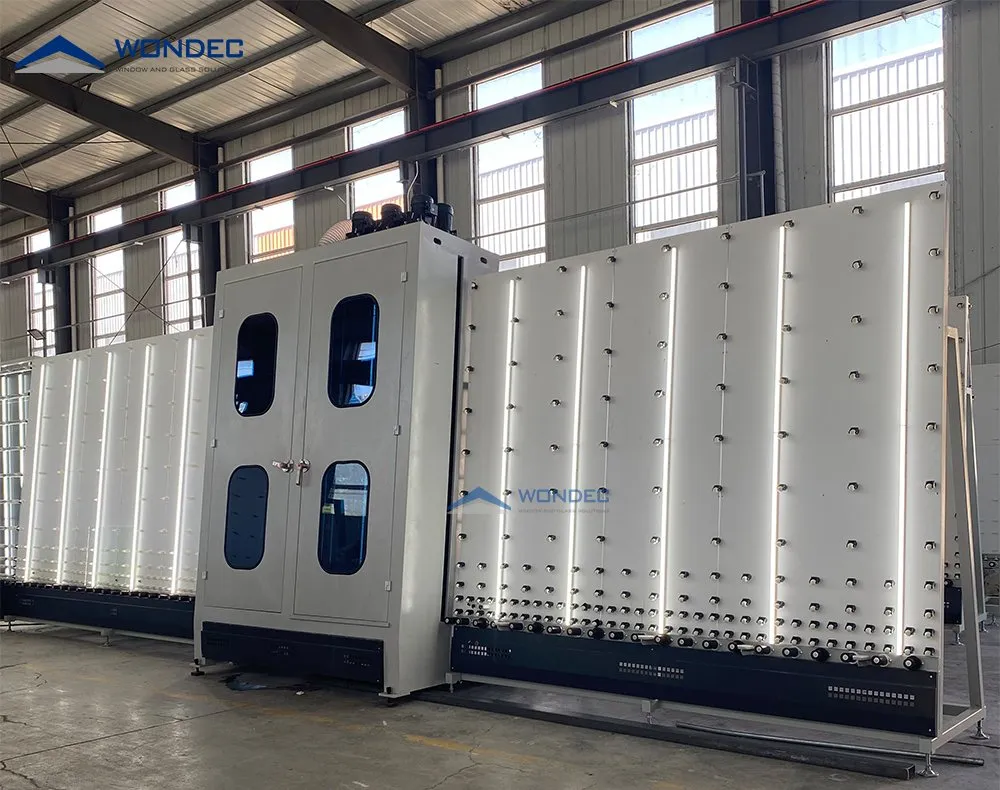

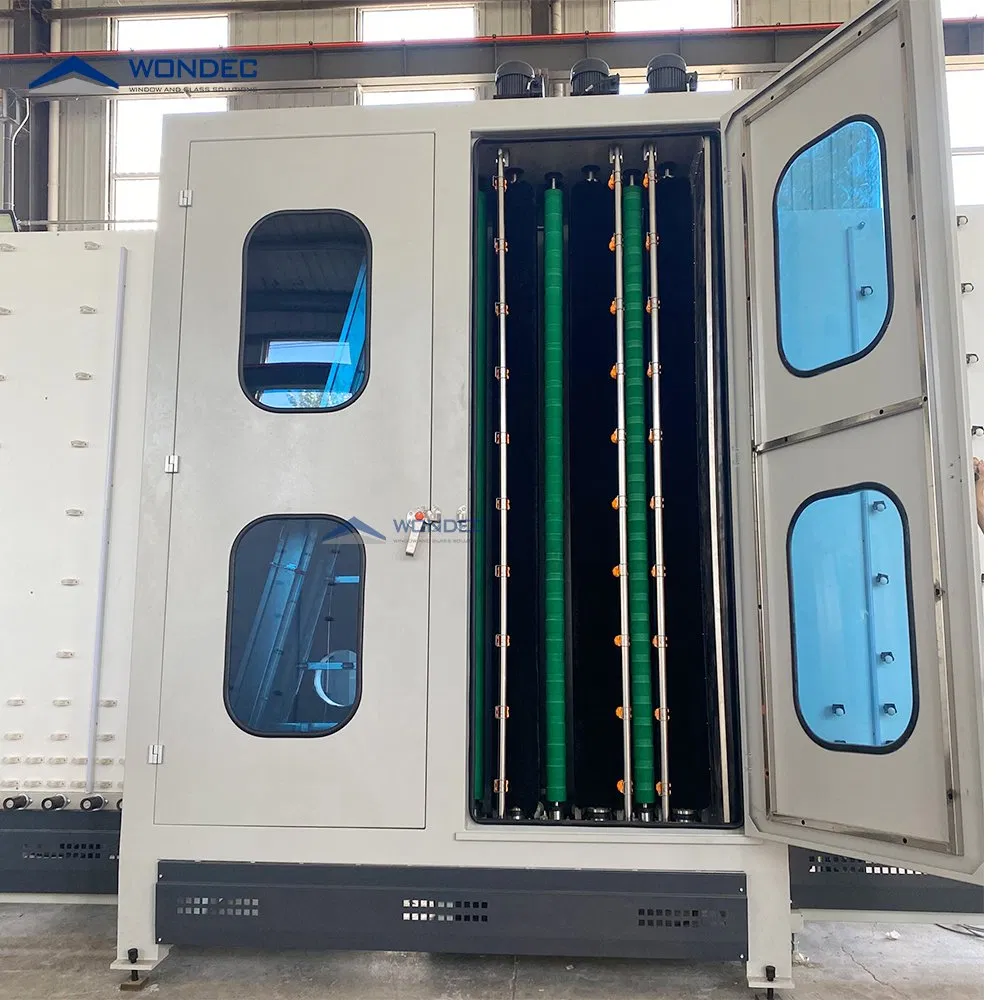

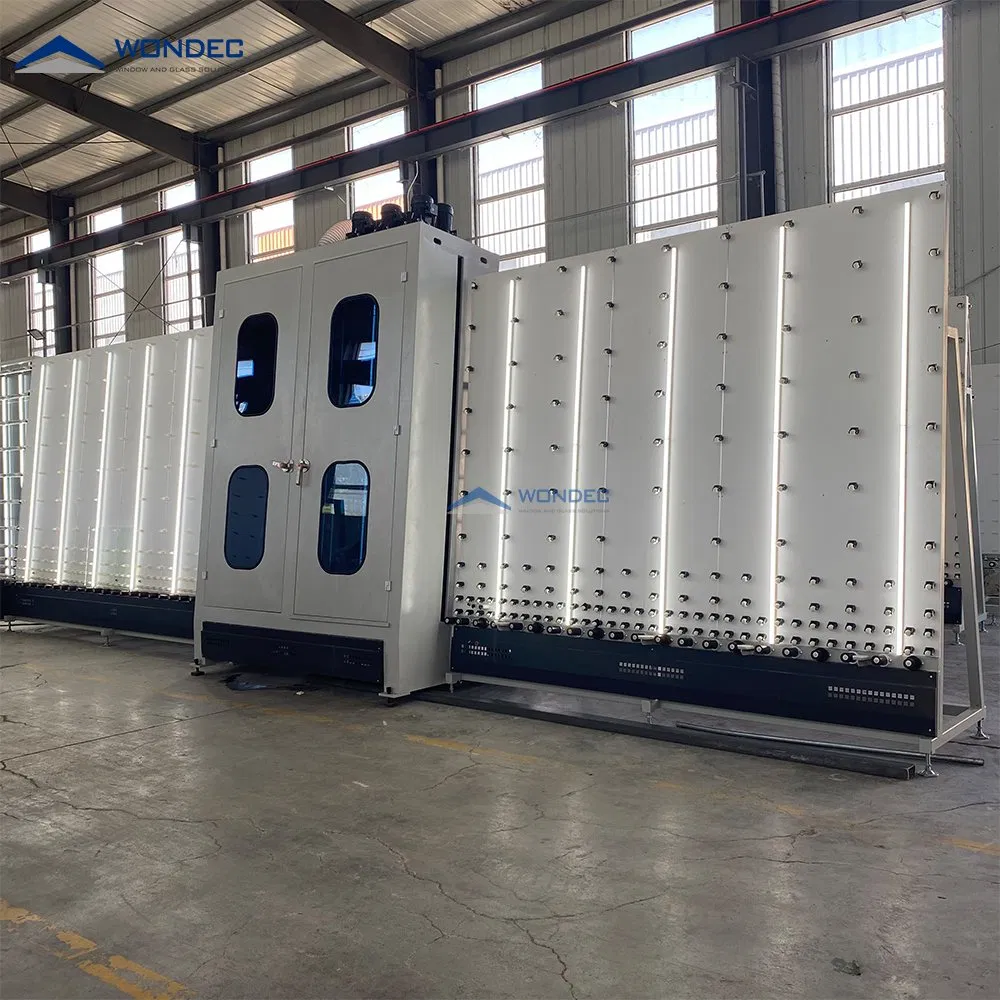

This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

• Stainless steel material and corrosion-resistant material adopted for all washing area, water tank, and waterway system.
• The 6 brushes are driven by 6 motors independently.
• The brush motor and brush are directly connected by coupling to prevent slip.
• Front 3 brushes are soft (0.1 mm) for Low-E glass; back 3 brushes are hard (0.2 mm) for ordinary glass.

Adopts dual motors to drive the transmission section. Two small glasses can be parked at the same time to improve work efficiency.

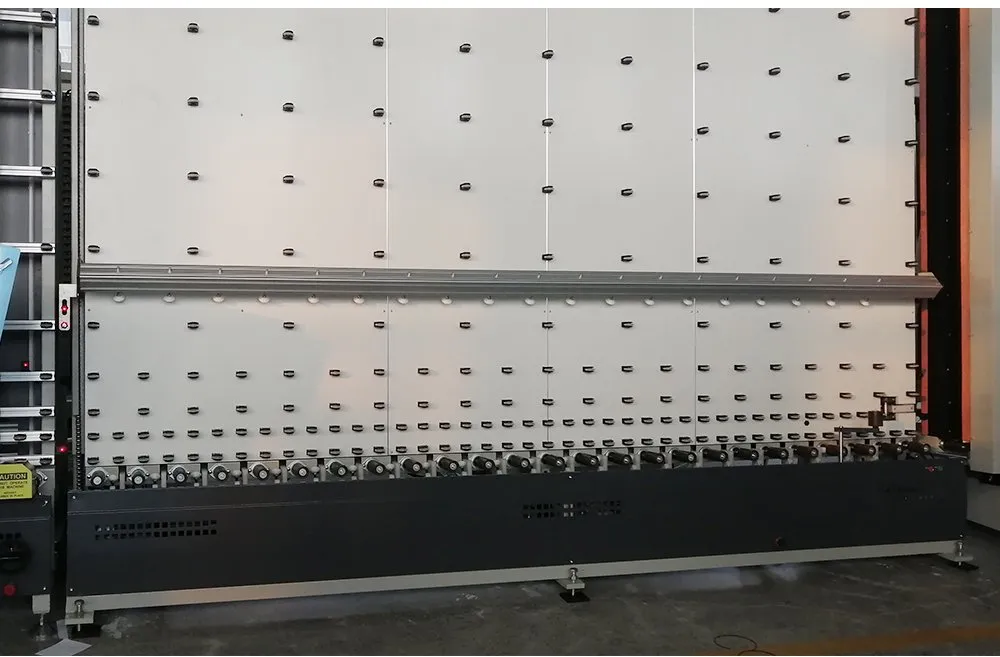

Be made of aluminum-alloy profiles with high quality LED lamps adopted for light inspection and energy saving. Features a movable door for easy cleaning checks.

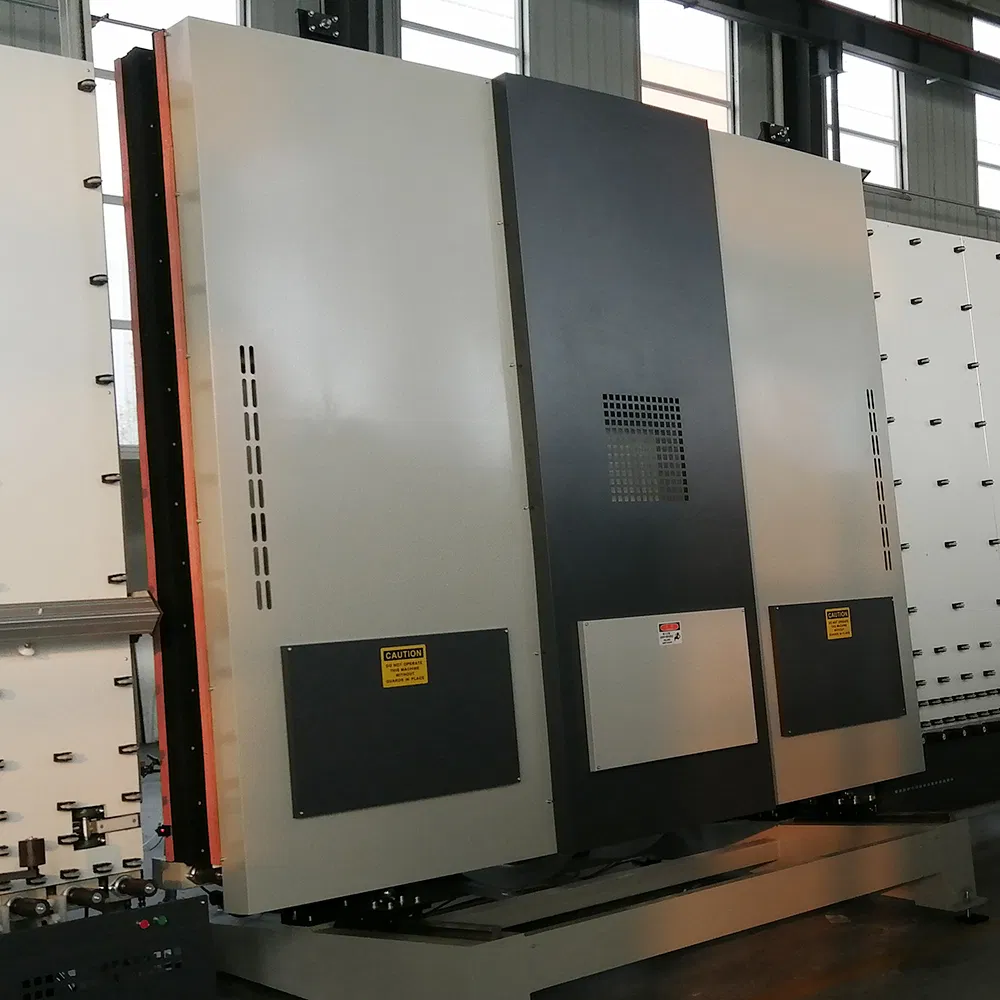

Fast and efficient assembly with a low failure rate.

• Denser steel frame for a stronger machine body.

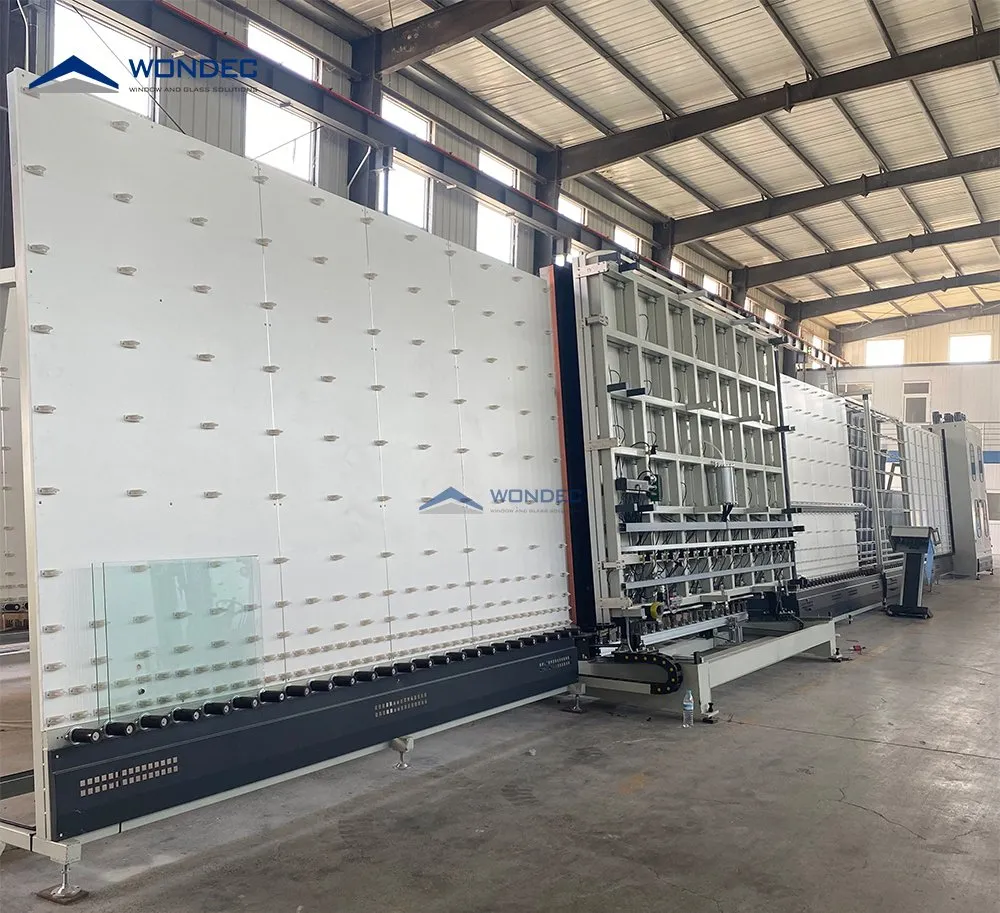

• Panel press controlled by Servo motor.
• Front pressing plate steel frame with two layers for best flatness.
• Suction cups work partitioned according to glass size via logic valves.
• Automatic online gas filling for double & triple IGU from bottom side.

Used to transmit and store glass units to improve efficiency, especially when connected with a sealing robot.

Available Models: WLBZ2030-C, WLBZ2535-C, WLBZ2540-C, WLBZ2545-C, WLBZ2550-C. Customization is available.
