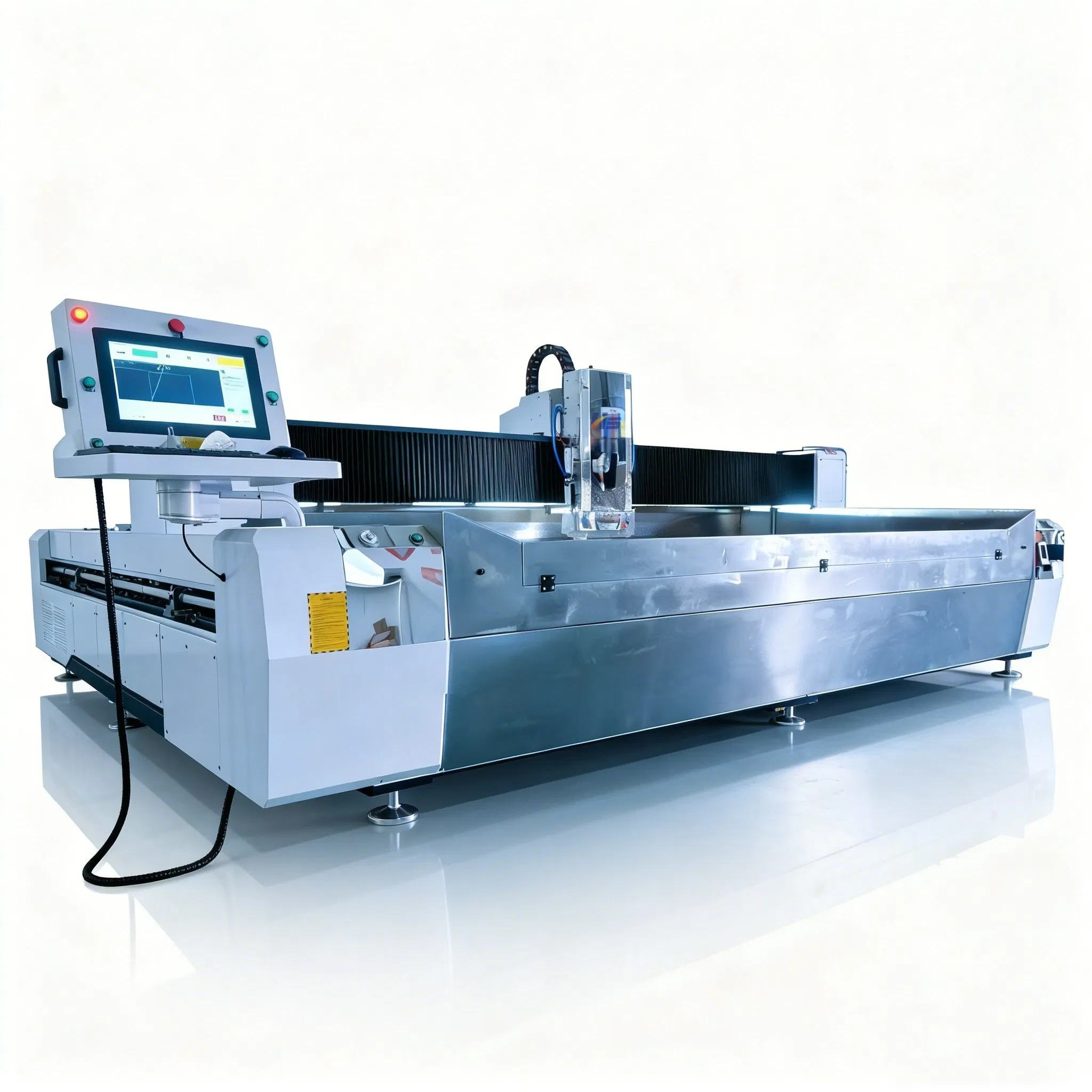

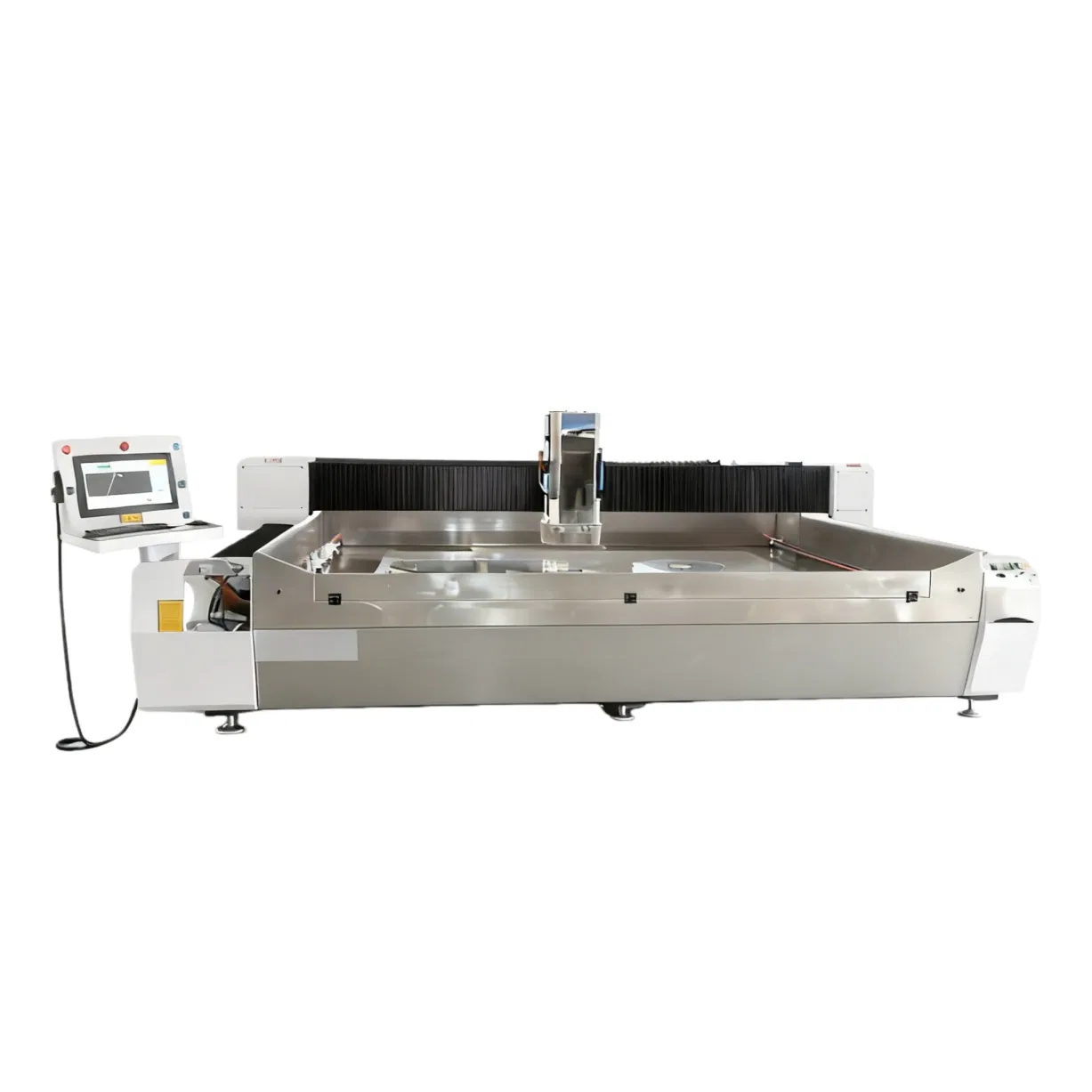

Double-Side Edging Polishing Machine CNC Glass Processing Center

1 / 5

Double-Side Edging Polishing Machine CNC Glass Processing Center

Certification:	CE, ISO
Glass Thickness:	2-19mm
Voltage:	380V

Send Inquiry

Product Description

📊 Basic Information

Model NO.	3015
Warranty	1 Year
Working Area	3000*1500mm

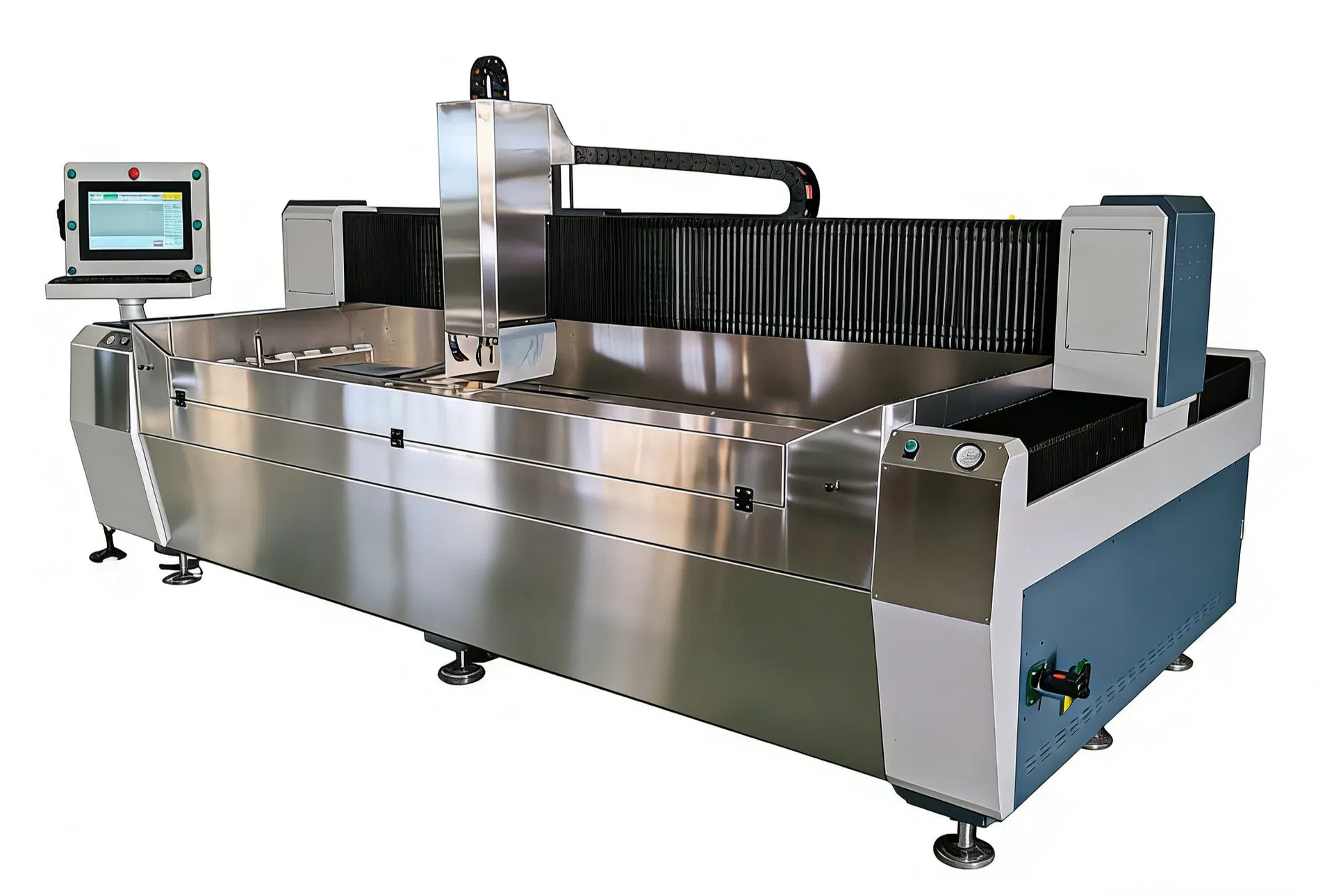

Equipment Size	520022501800mm
Cooling System	Water Cooling

Transport Package	Wooden Crate or Wrapping Film
Specification	3000*1500mm
Origin	China
HS Code	8464201000

💎 Product Description

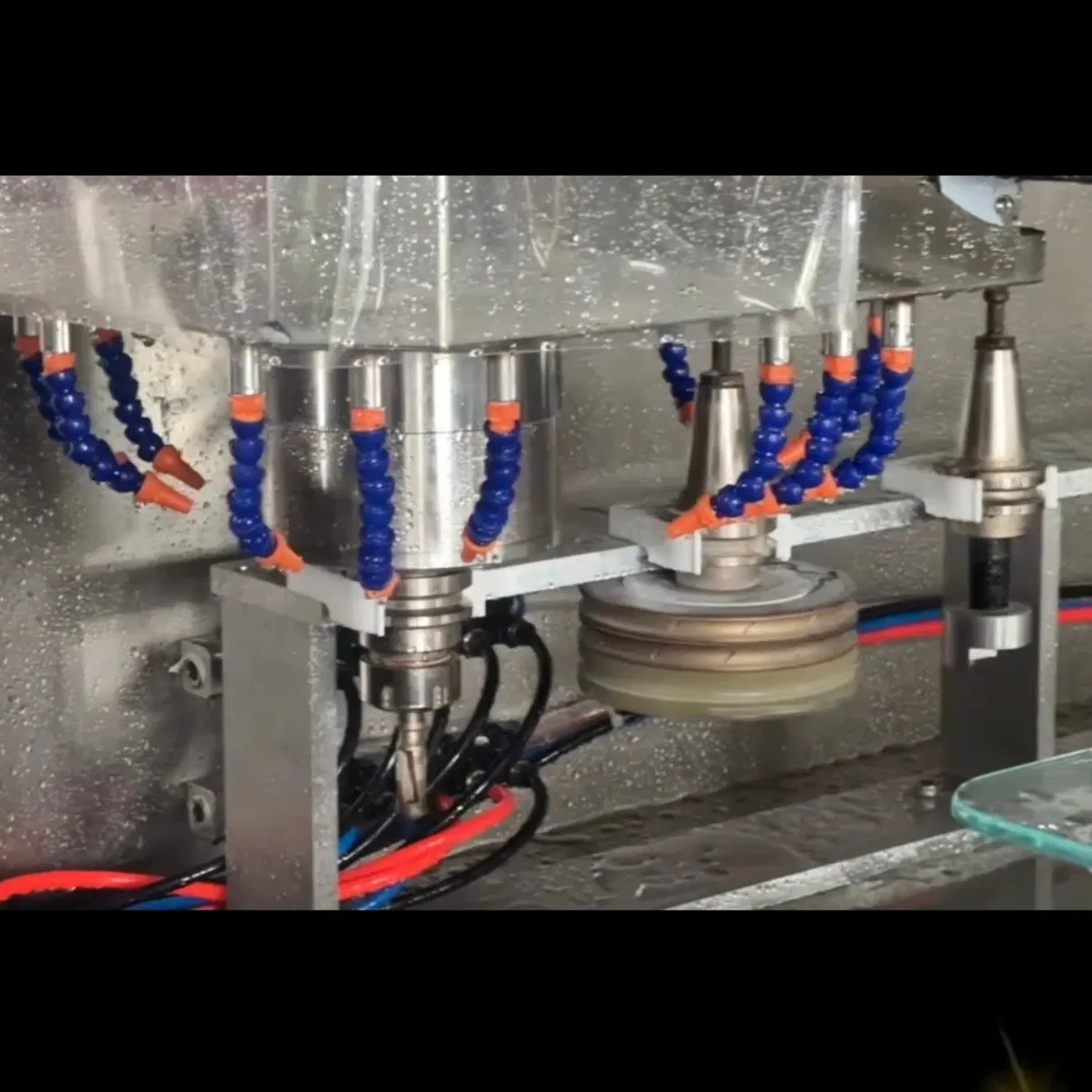

⚙️ Core Functions

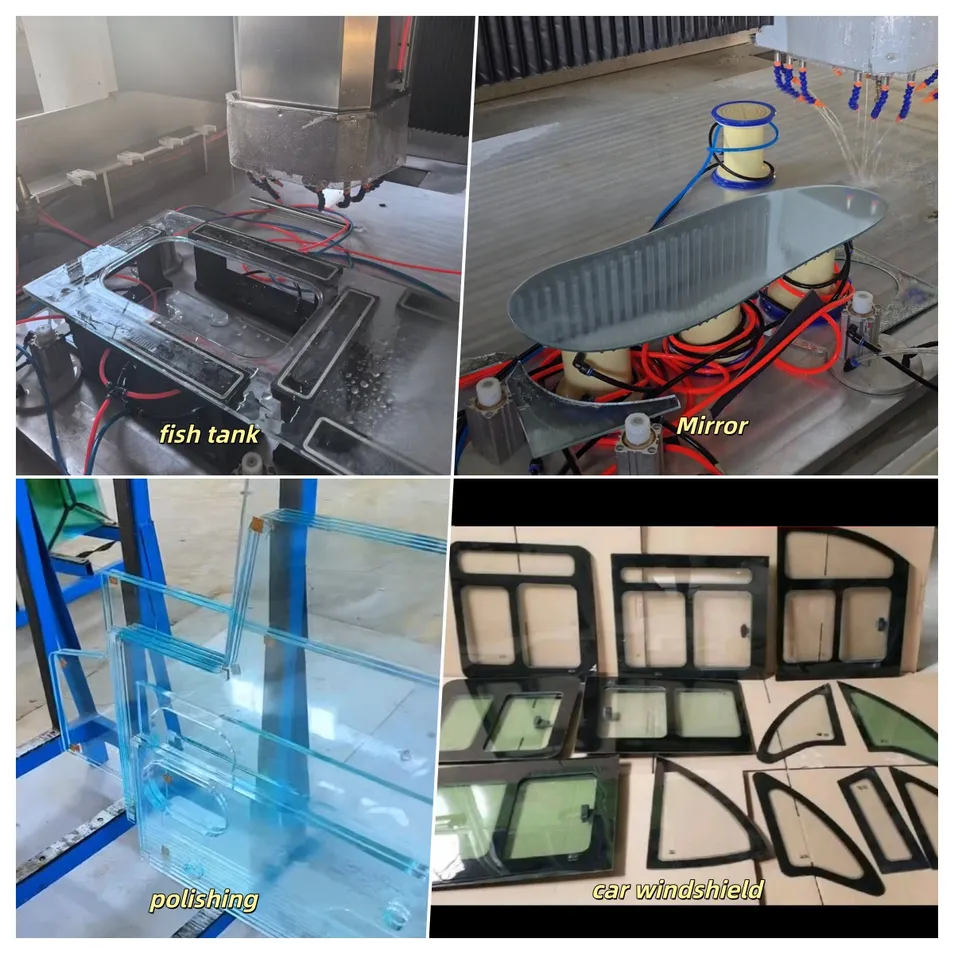

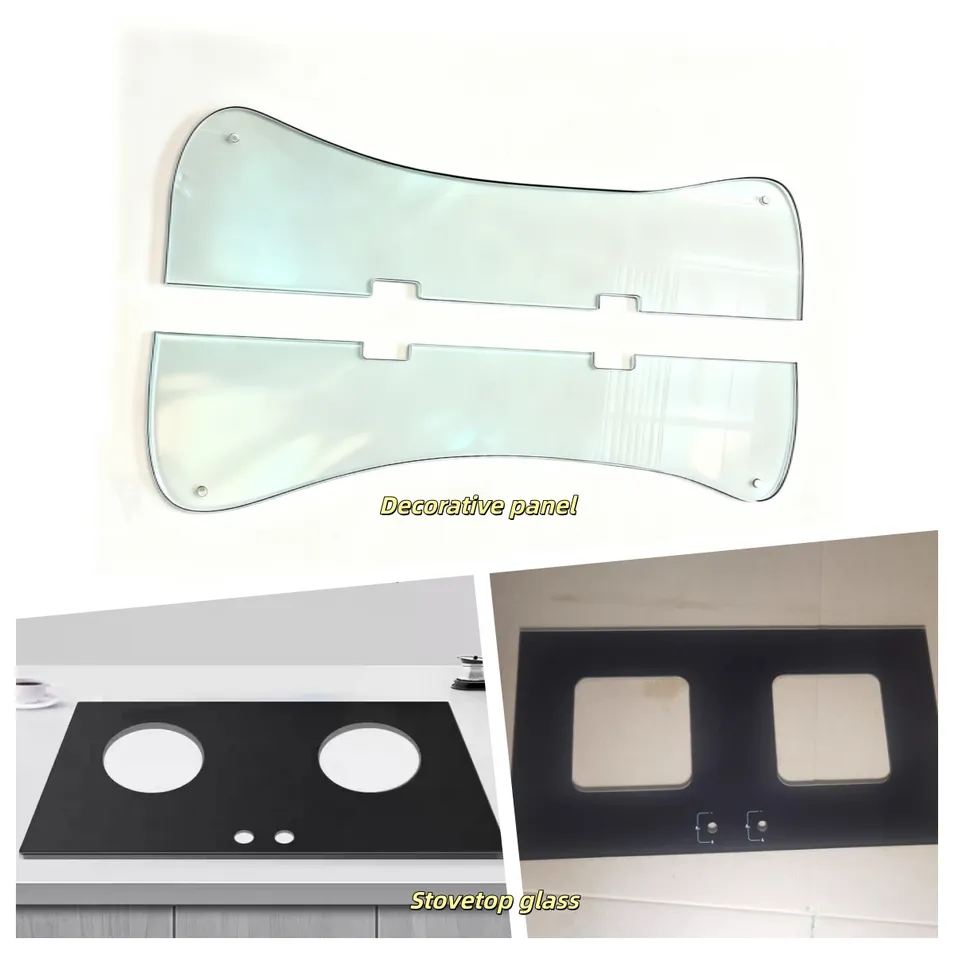

DrillingCircular or oval holes for hinges, handles, and accessories in door, window, or cabinet glass.
GroovingCreating slots on the edge or surface for glass splicing or hardware fixing.

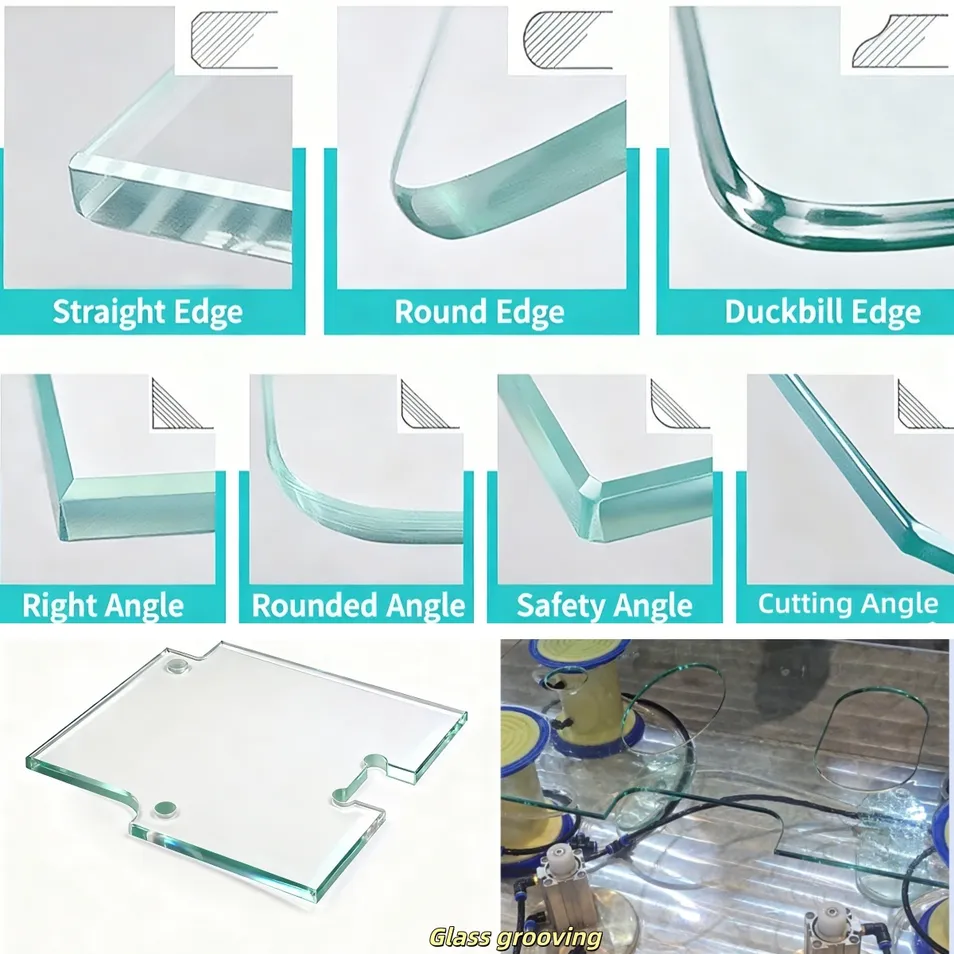

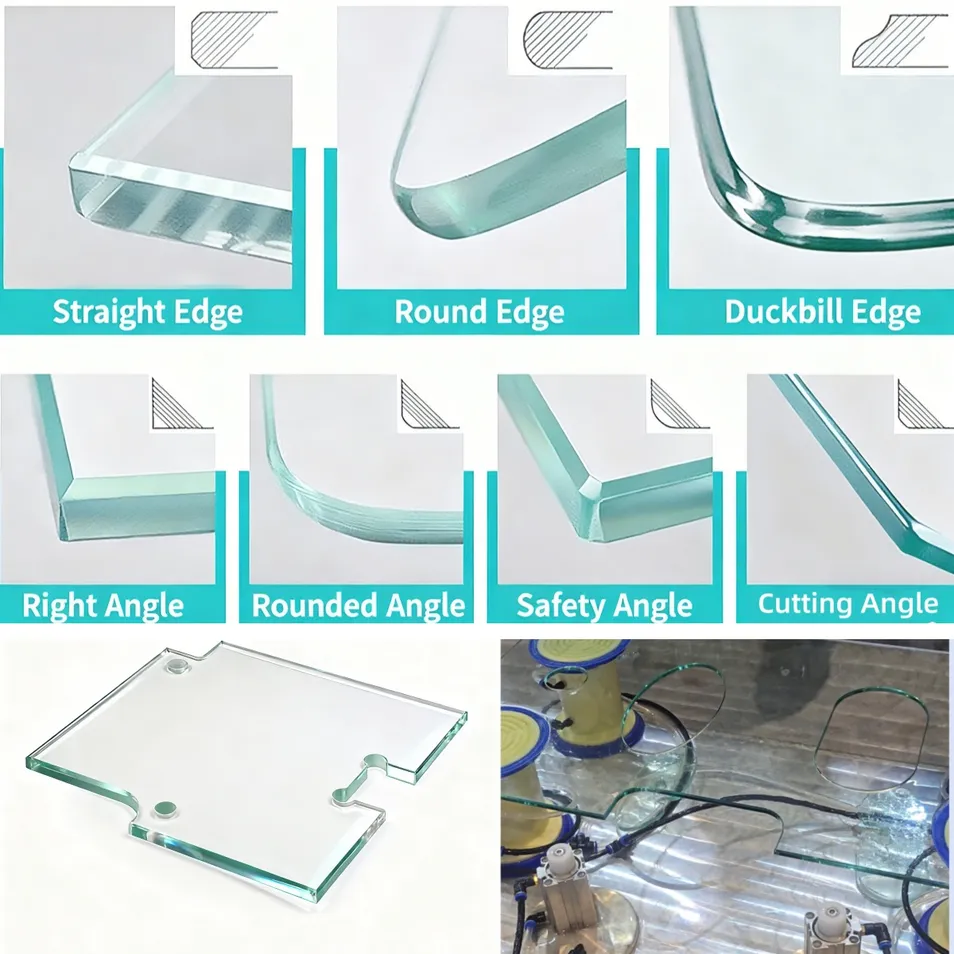

Edge GrindingStraight, round, bevel, and duckbill edge grinding to specific requirements.
ChamferingRounding edges and corners to prevent scratches and meet fitting needs.
PolishingHigh-gloss treatment for mirror-like effects on decorative or appliance glass.

🚀 Product Advantages

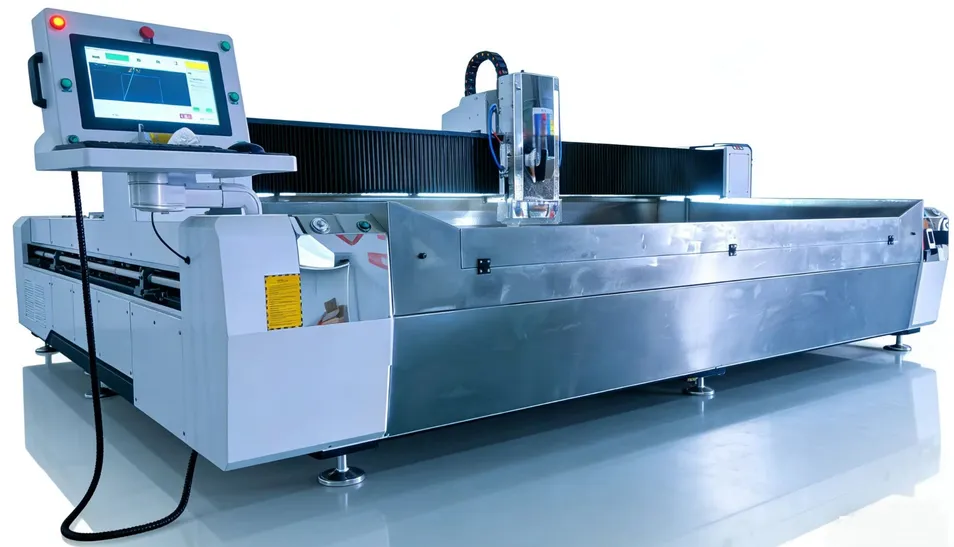

Mechanical Structure Horizontal structure for easy loading. Constructed with thick-walled square tubes and five-axis machining for long-term stability.

High-Power Spindle Electric spindle with ultra-high speed. Positioning accuracy reaches ±0.01mm; repeatability is ±0.005mm.

Corrosion Resistance All water-contact parts are made of stainless steel to increase service life and reduce maintenance.

🛠️

Automatic Tool Changer Equipped with a 6-tool magazine for automatic tool changing, meeting the requirements of various glass processing techniques efficiently.

📋 Technical Specifications

(Custom configurations available upon request.)

Model	2515	3015	3020
X Axis Travel	2500mm	3000mm	3000mm
Y Axis Travel	1500mm	1500mm	2000mm
Z Axis Travel	350mm	350mm	350mm
Working Area	2500*1500mm	3000*1500mm	3000*2000mm
Max Loading	300KG
Spindle Motor	15KW
Feed Speed (X,Y)	20000mm/min
Glass Thickness	2-19mm
