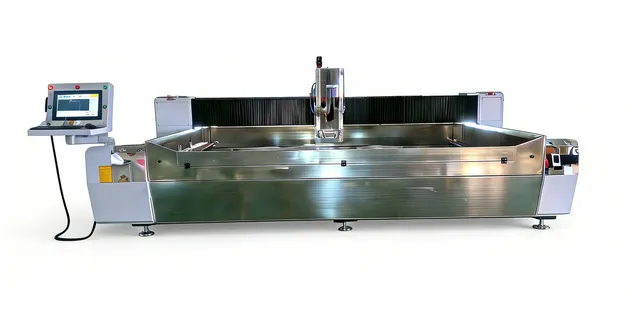

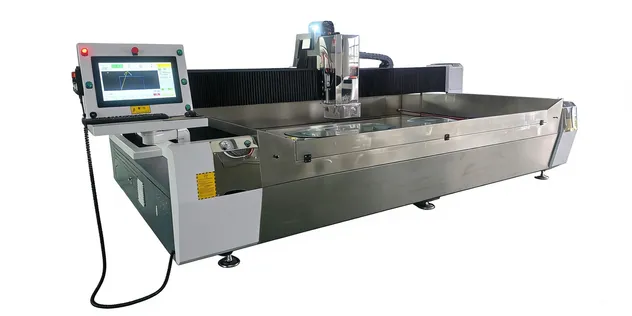

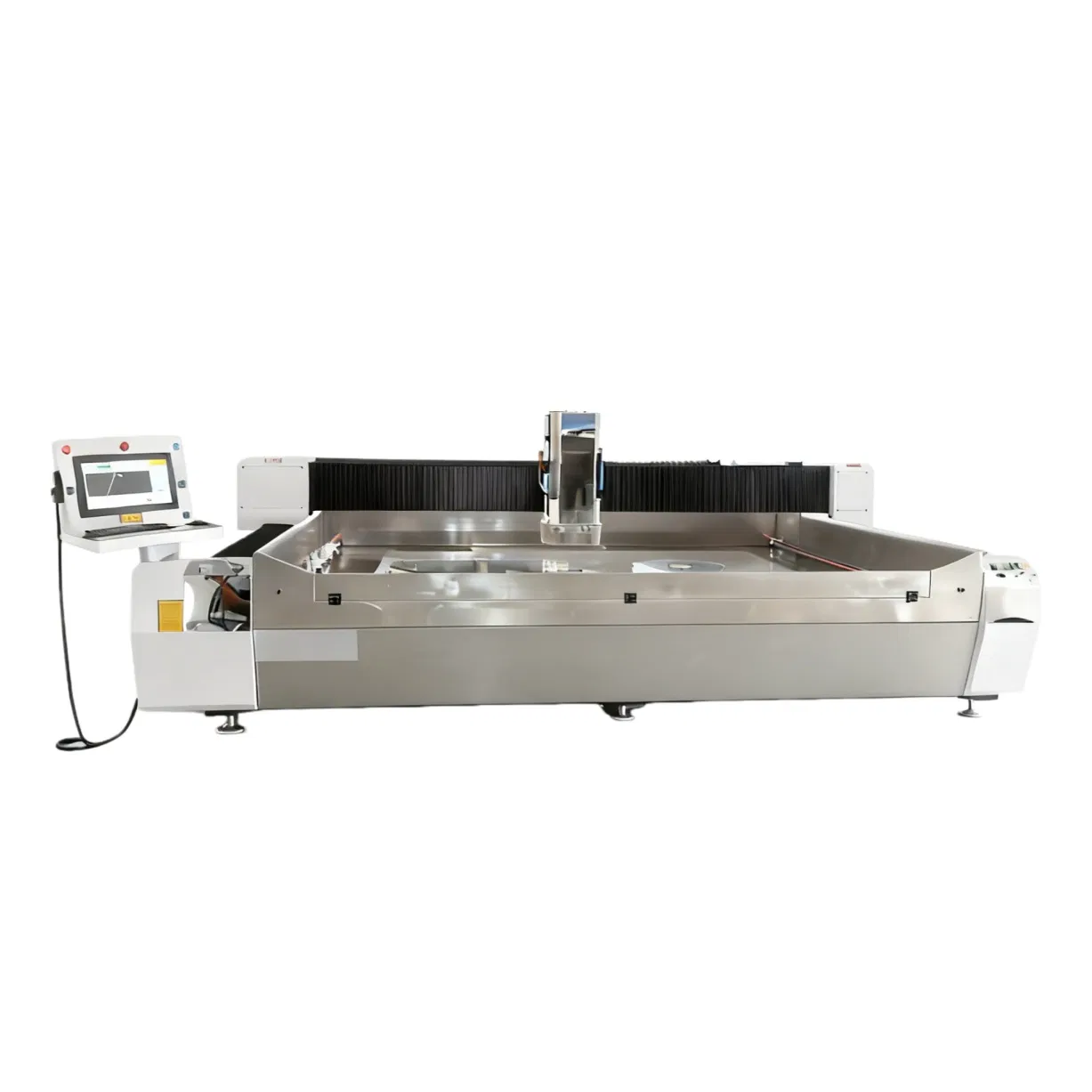

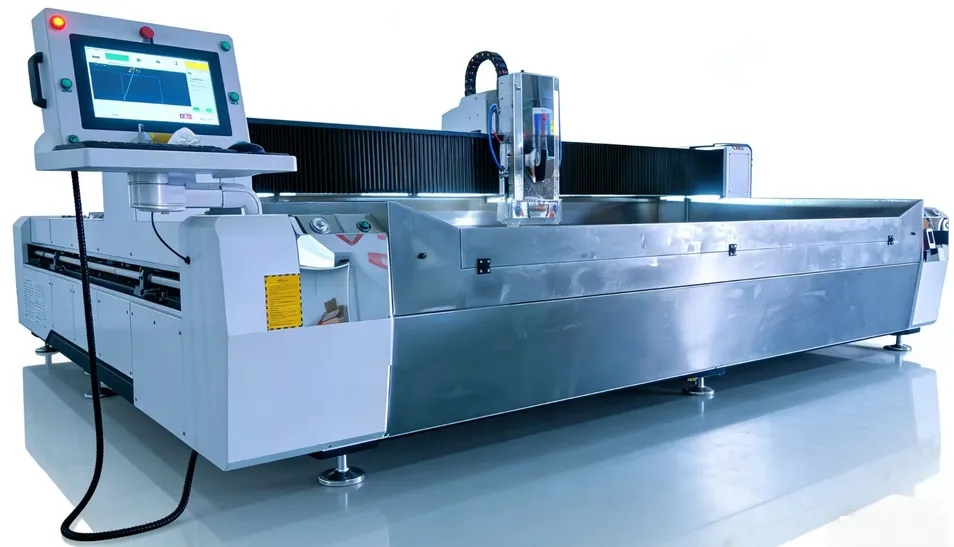

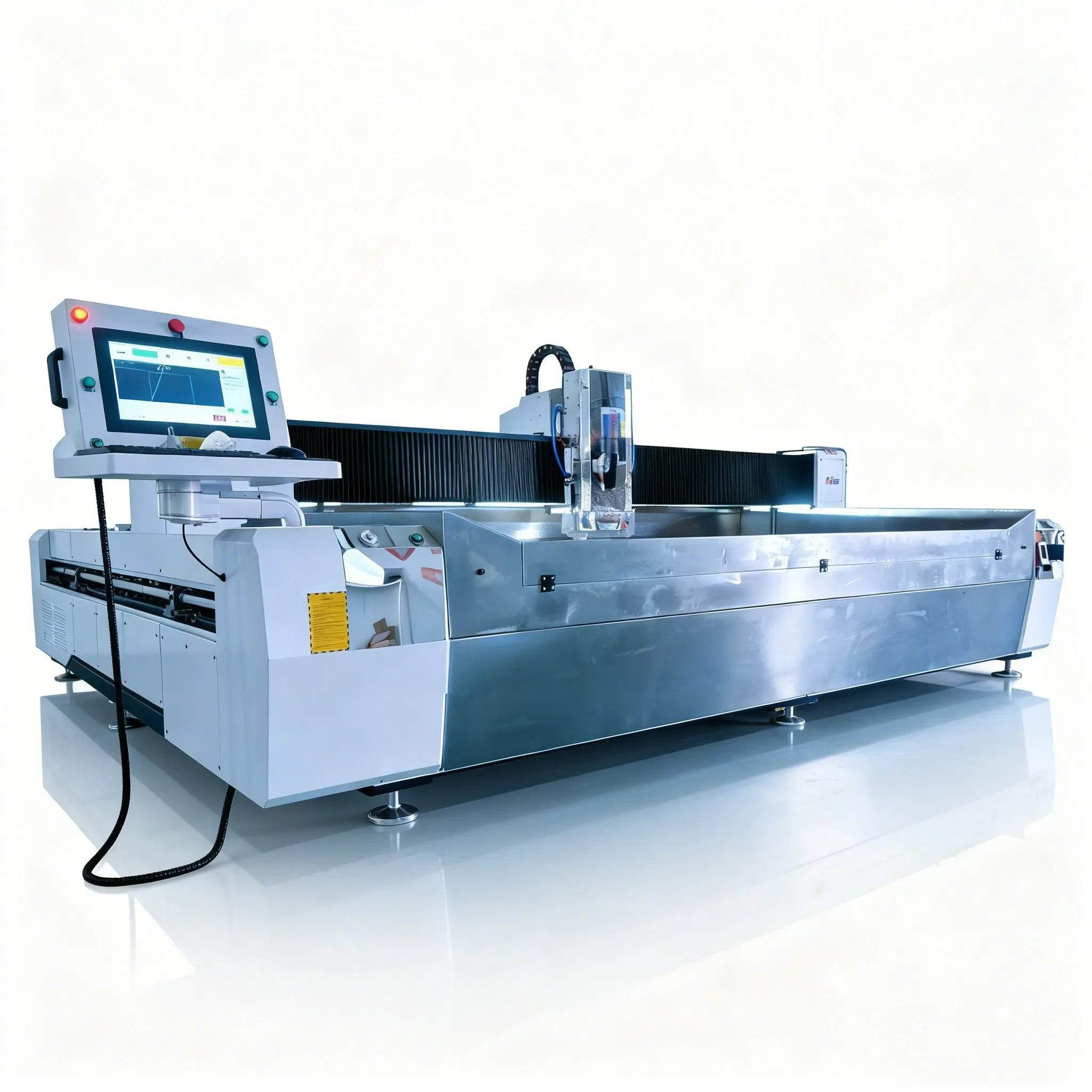

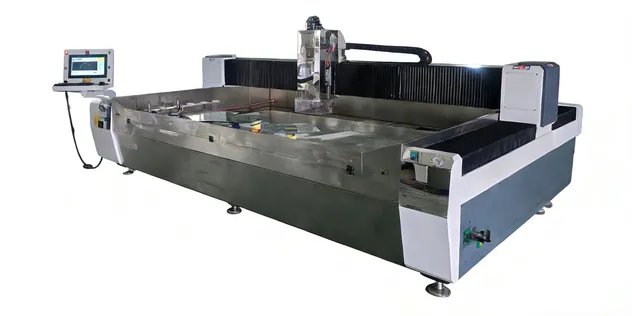

Double-Side Glass Processing Center for Drilling Edging Polishing Machine

Certification:	CE, ISO
Glass Thickness:	2-19mm
Voltage:	380V

📊

Basic Specifications

Model: 3015

Warranty: 1 Year

Working Area: 3000*1500mm

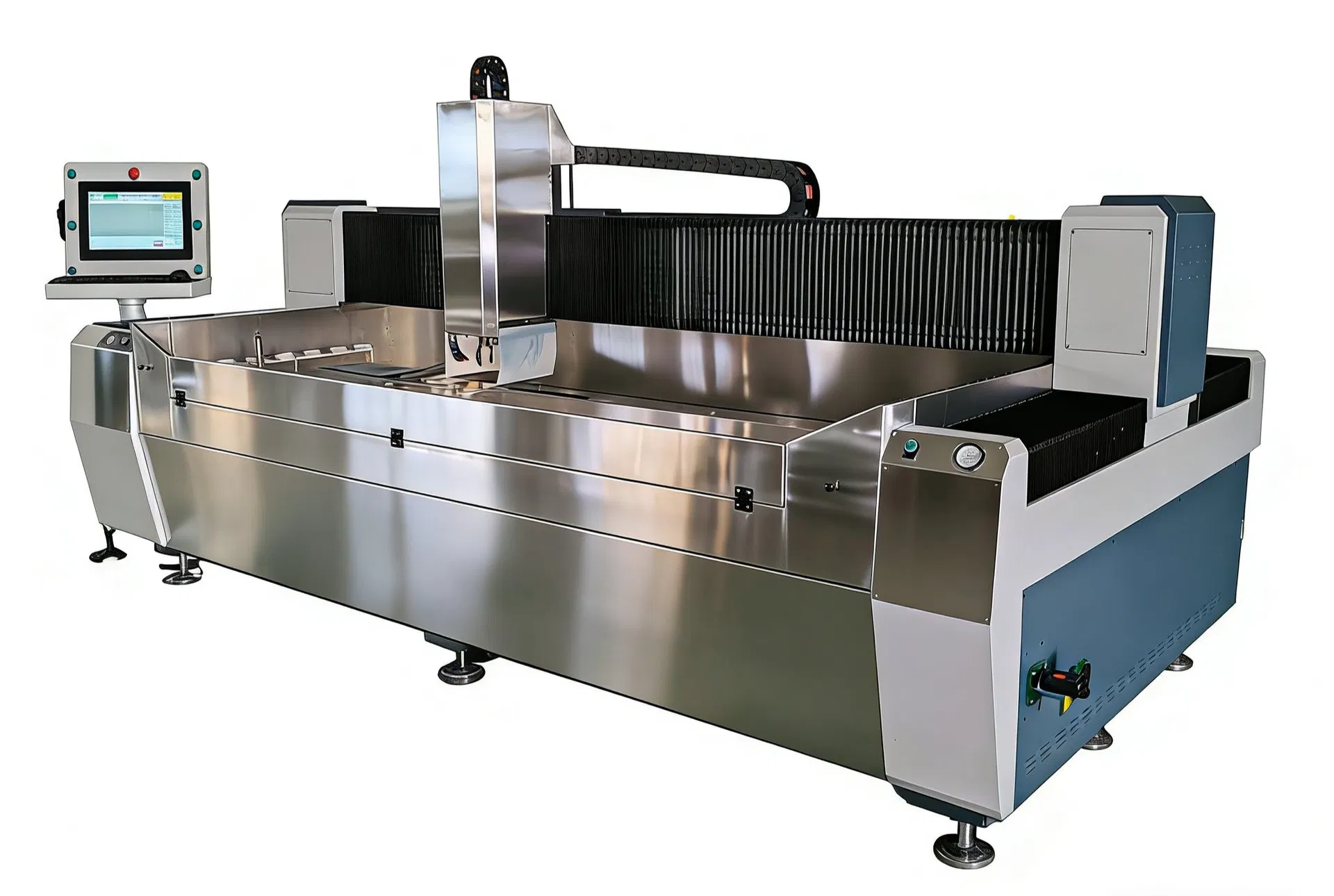

Equipment Size: 5200*2250*1800mm

Cooling System: Water Cooling

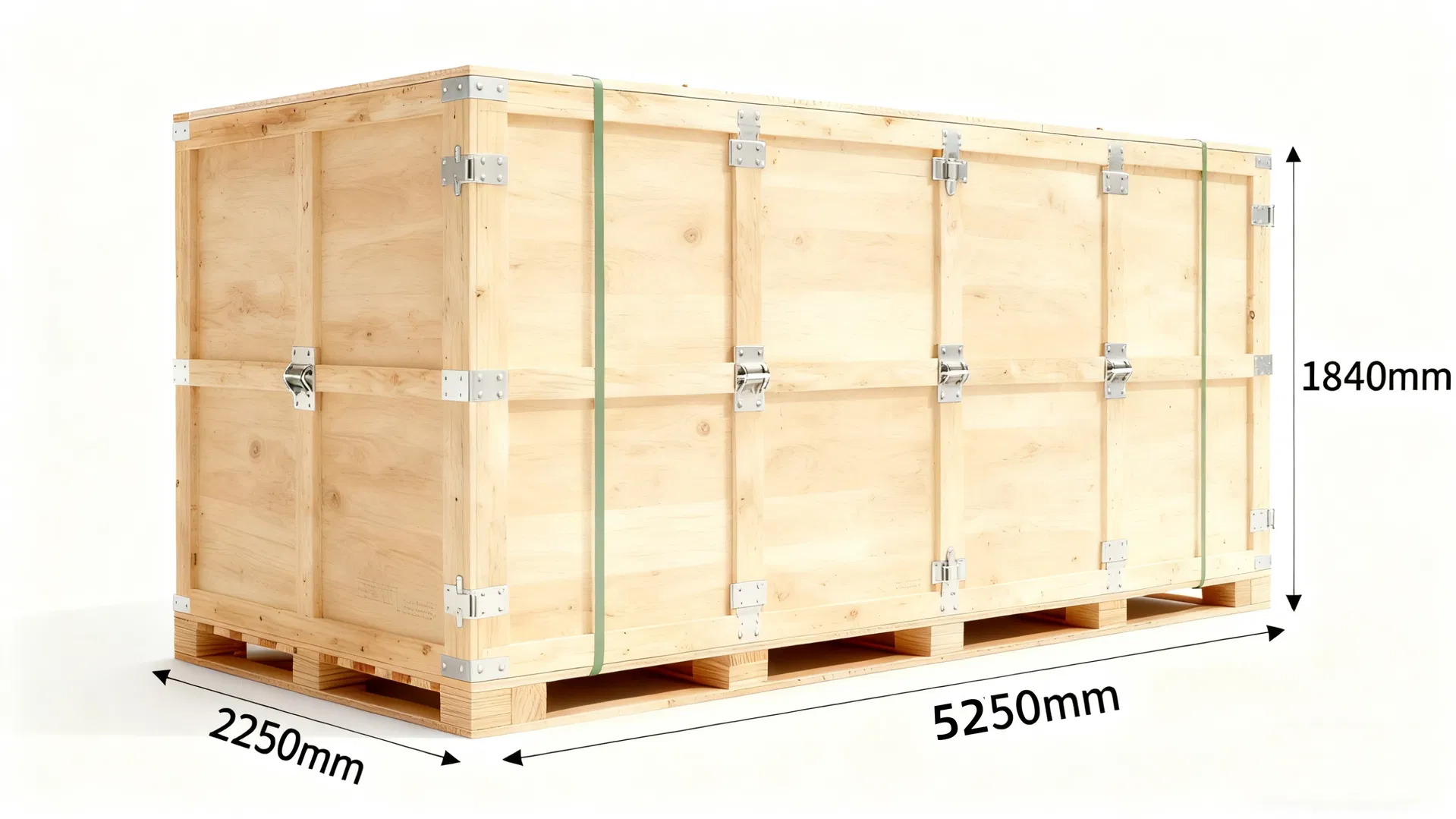

Package: Wooden Crate or Film

HS Code: 8464201000

⚙️

Product Functions

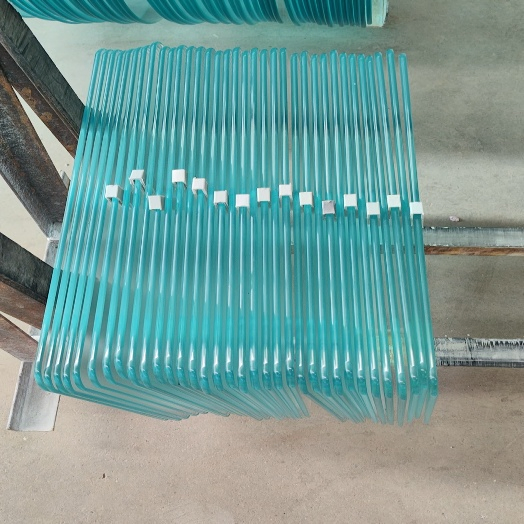

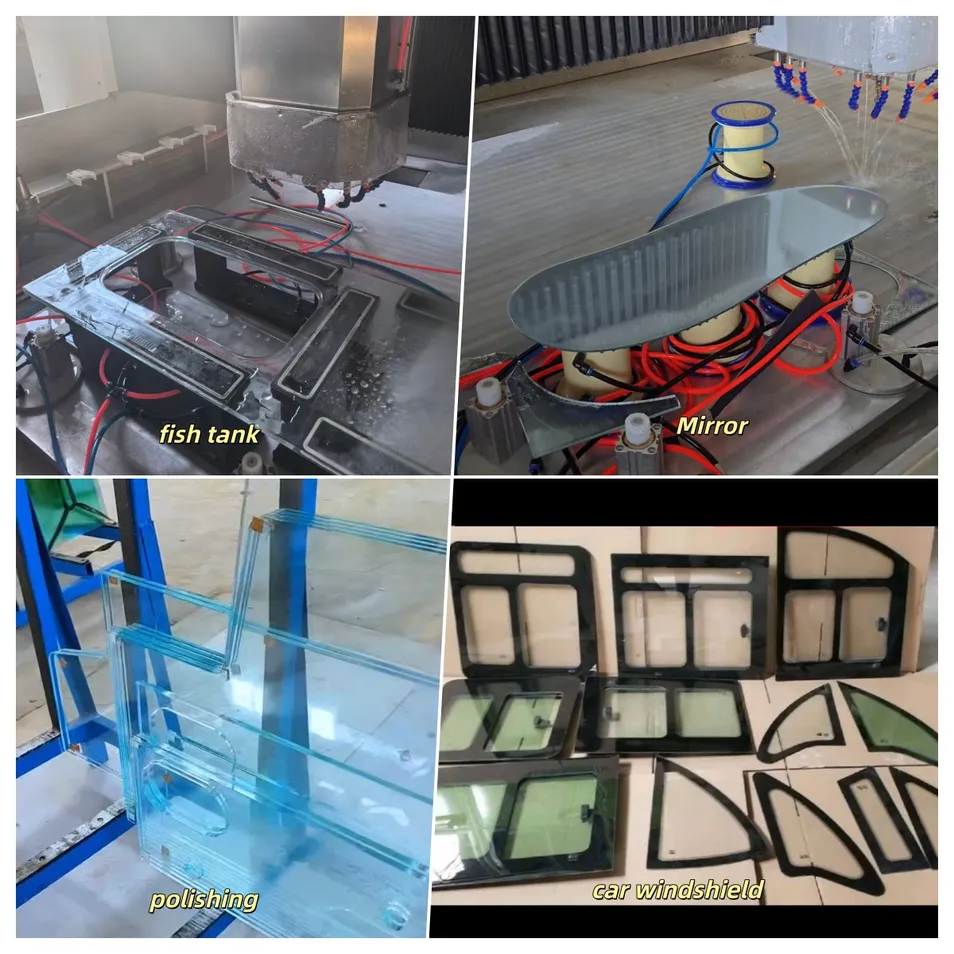

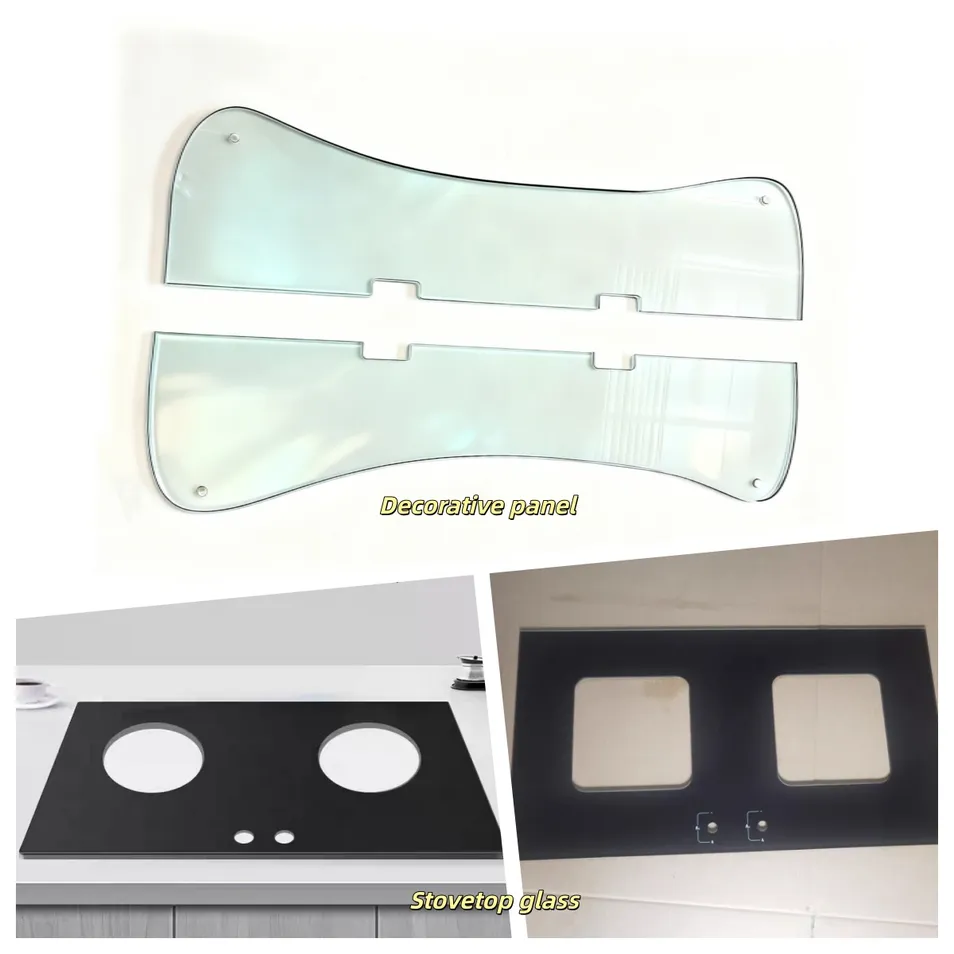

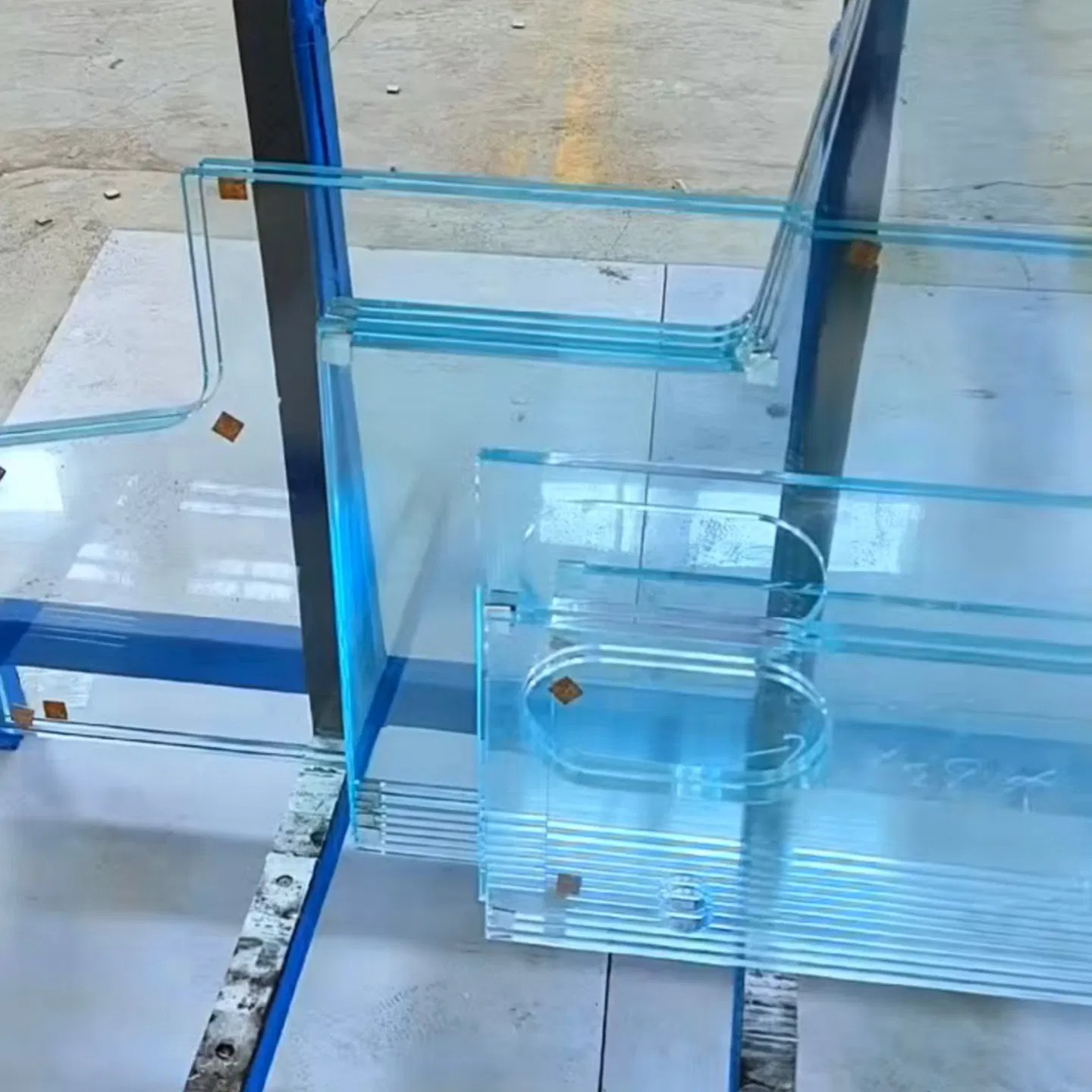

Drilling Drilling circular or oval holes for hinges, handles, and screws in door, window, or cabinet glass.

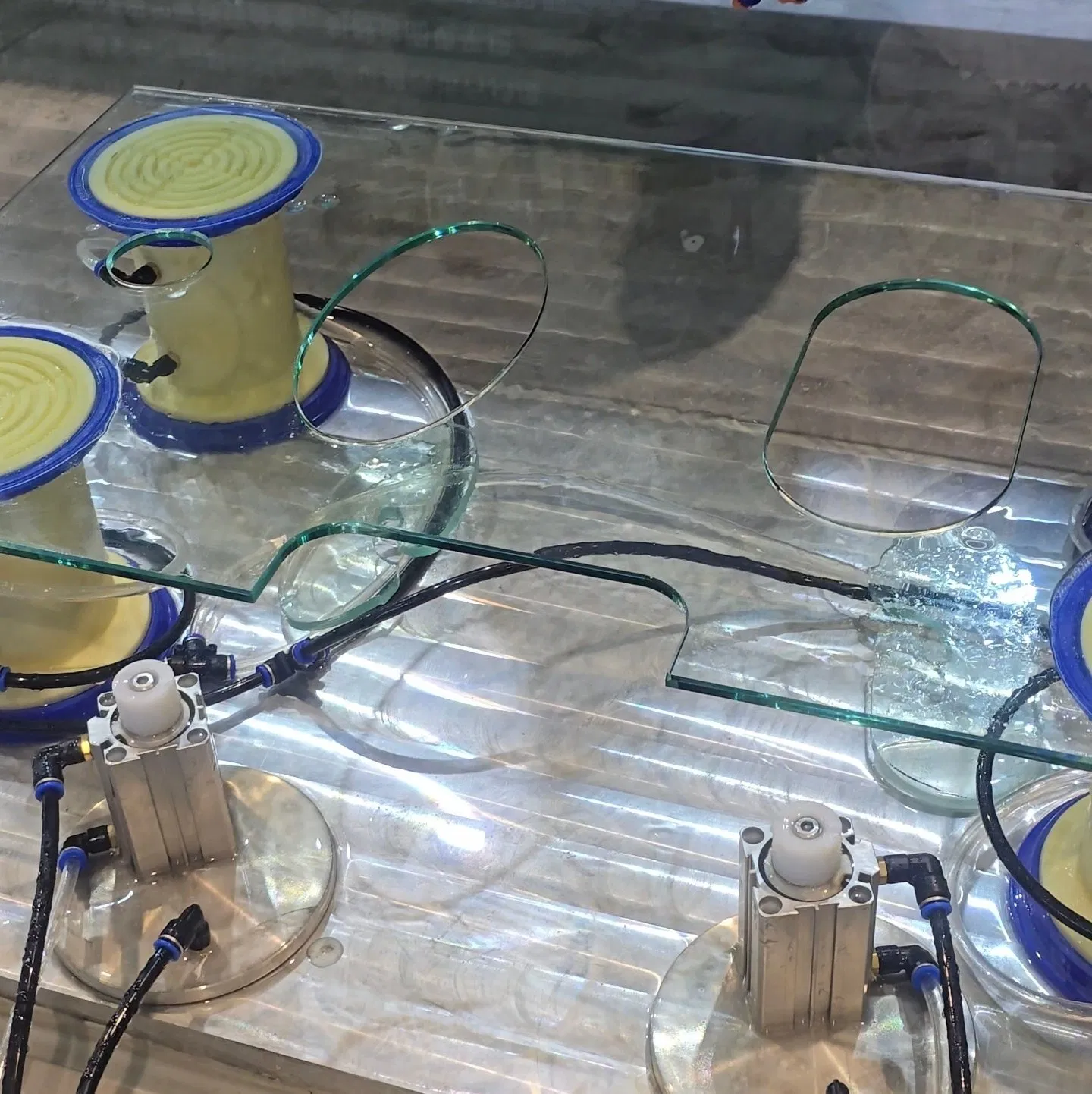

Grooving Creating slots on the edge or surface for glass splicing, inlaying, or hardware fixing.

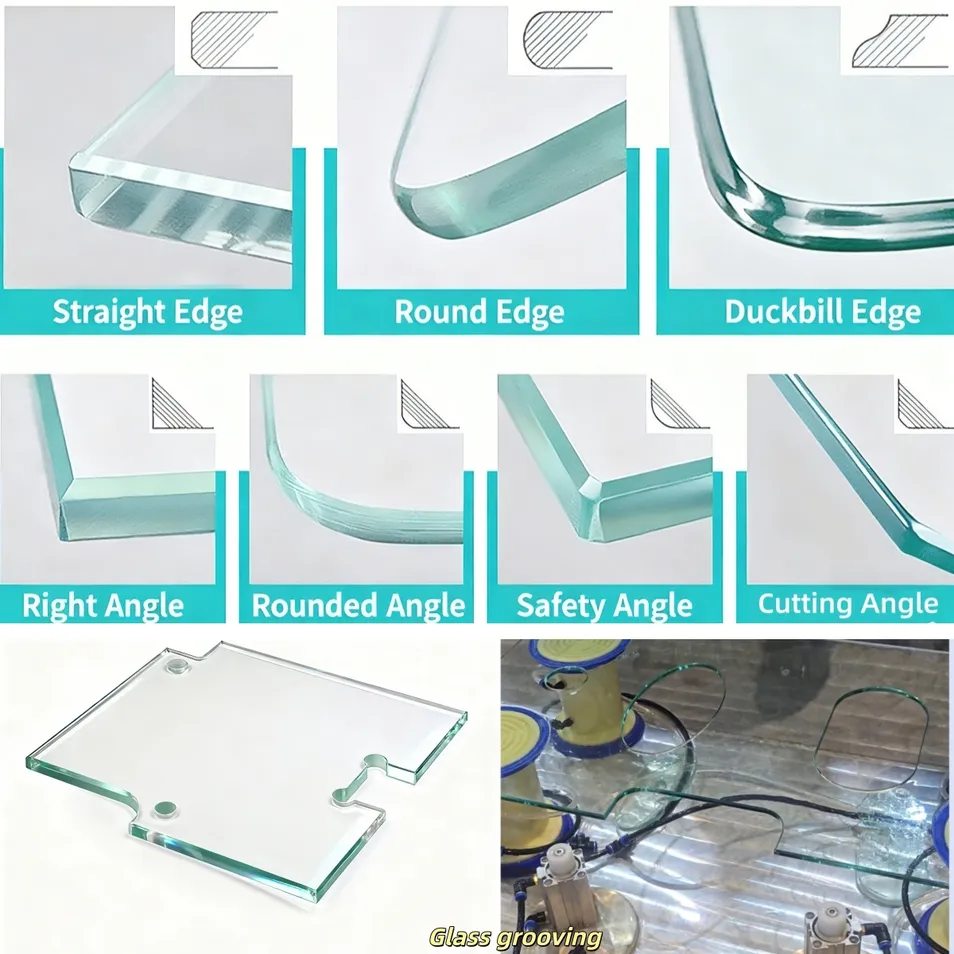

Edge Grinding & Polishing Supports straight, round, bevel, and duckbill grinding with high-gloss mirror effect finishing.

Chamfering Rounding edges and corners to prevent scratches and meet fitting requirements.

🚀

Technical Advantages

Mechanical Structure Horizontal structure for easy loading. Built with thick-walled square tubes and five-axis machining, treated with high-temperature annealing for long-term stability.

High-Power Spindle Electric spindle with ultra-high speed. Positioning accuracy reaches ±0.01mm, repeatability ±0.005mm.

Motion & Corrosion Resistance High-precision servo motion system. All water-contact parts are made of stainless steel to increase machine life.

Automatic Tool Changer Equipped with a 6-tool magazine to handle various processing techniques automatically.

📋

Technical Parameters

Standard models shown below. Size and configuration can be customized.

Model		HS-2515	HS-3015	HS-3020
Travel	X Axis	2500mm	3000mm	3000mm
	Y Axis	1500mm	1500mm	2000mm
	Z Axis	350mm	350mm	350mm
Table	Area	2500*1500mm	3000*1500mm	3000*2000mm
Table	Max Load	300 KG
Spindle	Power	15 KW / 9000-12000 RPM
Precision	Positioning	±0.05mm
Precision	Repeatability	±0.03mm
Glass	Thickness	2 - 19 mm
