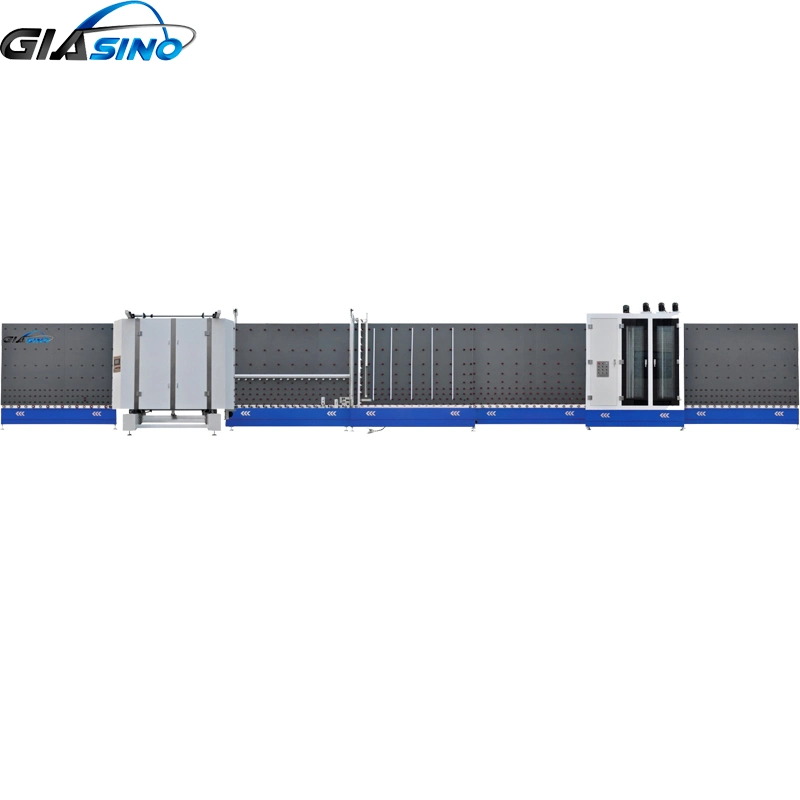

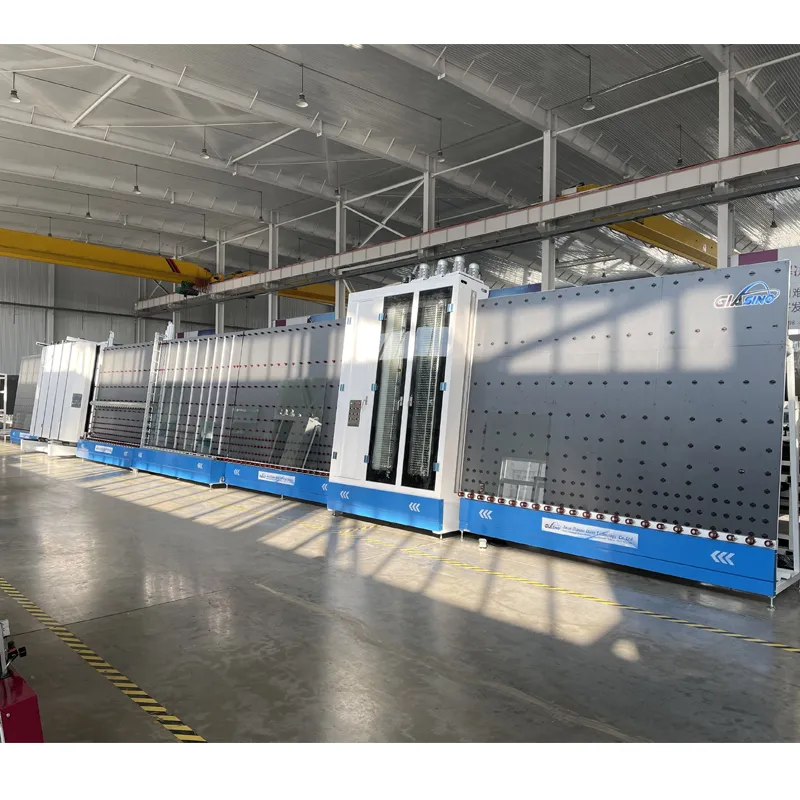

Double Glazed Washing Glazing Processing Production Line Price Insulated Warm Edge Superspacer Insulating Glass Gas Filling Machine Machinery

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

Basic Specifications

Model NO.

LB2025

Customized

Available

Glass Thickness

3-25mm

Working Speed

8~45m/Min

Max. Insulating Thickness

50mm

Brush Count

3 Pairs

Equipment Type

Insulating Glass Production Line

Structure

Vertical

Warranty

1 Year

Specification

2500x3600mm

Product Advantages

✔Full PLC control system with man-machine touch interface.

✔Automatic identification of coated and LOW-E glass via Omron detection.

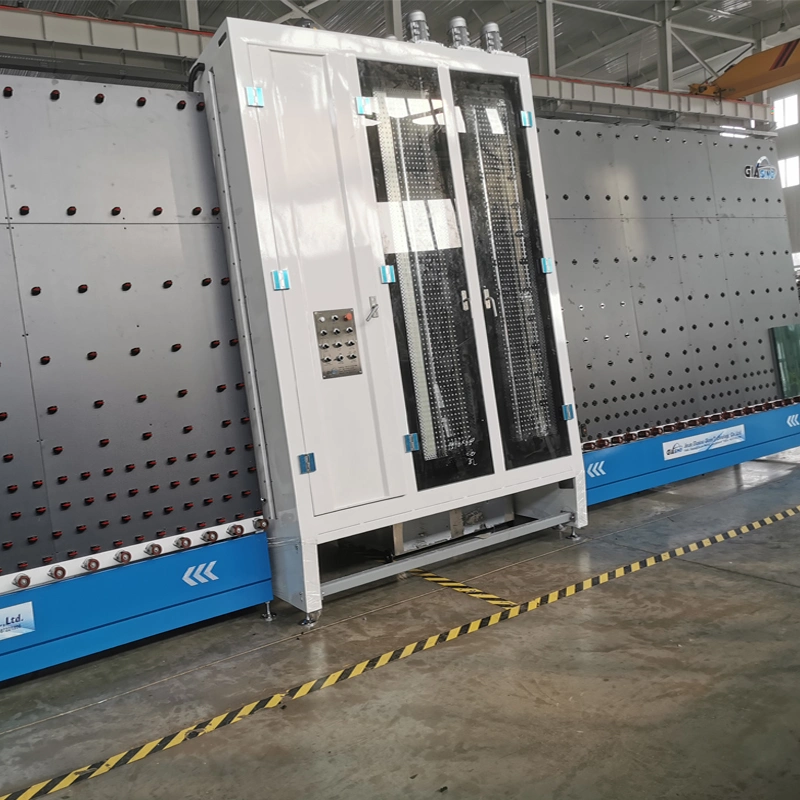

✔High-quality stainless steel washing and dryer shell construction.

✔Upper drive in washing section to prevent water leakage.

✔Six brushes with six separate motor controls for efficiency.

✔Vacuum generator and 19-sucker partition for optimal glass suction.

✔Seven frequency controls for efficient transportation and production.

✔Accurate positioning using Korean Autonics photoelectric switches.

✔Precision casting aluminum reducer and tin bronze turbine materials.

✔Wear-resistant polyurethane conveying wheels for low noise operation.

✔Moisture-proof backup plates for long-term durability.

✔High-quality 1010 nylon yarn brushes for cleaning coated glass.

✔Hydraulic controlled glass pressing and turning for stability.

✔Energy-saving low noise circulating wind system with damper function.

Technical Parameters

Input Voltage	380V, 50HZ
Total Power	24 KW
Max Glass Size	2500 * 1800mm
Min Glass Size	280 * 450mm
Washing Glass Thickness	3 - 18mm
Working Speed	8 ~ 45m/min
Outline Dimensions	19200 * 2400 * 2900mm
Total Weight	5500 kg

Frequently Asked Questions

1. What range of glass thickness can this line process? The production line is designed to handle glass thicknesses ranging from 3mm to 25mm, with the washing section specifically optimized for 3-18mm.

2. Does the system support Low-E or coated glass? Yes, it features a Japanese Omron coating detection switch that automatically identifies coated and Low-E glass to adjust processing accordingly.

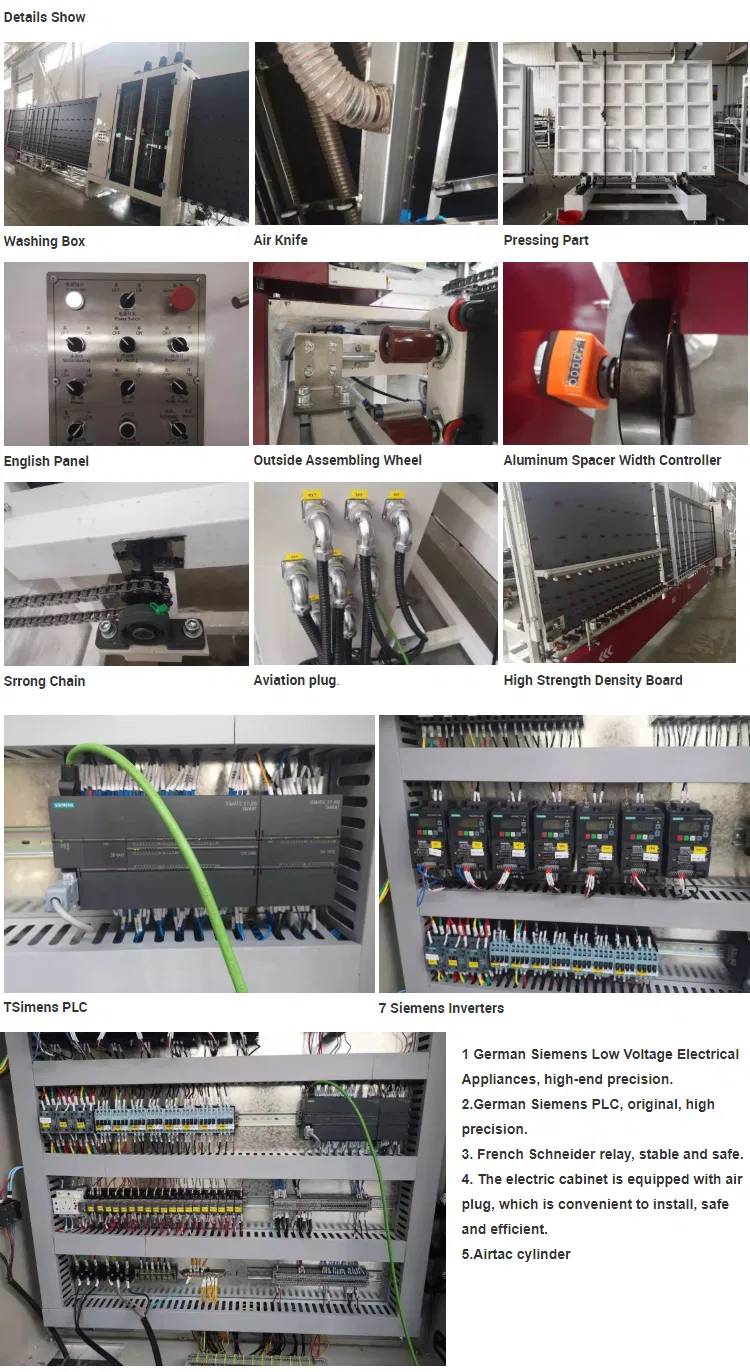

3. What are the main control components used? The system utilizes a PLC control system with a touch screen interface, Korean Autonics photoelectric switches, and American START stepping motors for precision.

4. How many brushes are in the washing section? The washing section is equipped with 3 pairs (6 total) of high-quality 1010 nylon yarn brushes, each powered by an individual motor.

5. What is the maximum glass size for this equipment? The standard maximum glass size capability for this production line is 2500mm x 1800mm.

6. How is the durability of the washing section ensured? The washing machine and dryer shells are made of high-quality stainless steel, and the design uses an upper drive to prevent water leakage and aging of sealing parts.
