Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
1 / 5
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine
Double Function Flat and 45 Degree Arris Edging Glass Machine

Double Function Flat and 45 Degree Arris Edging Glass Machine

Customization: Available
Certification: CE
1.Certificate: Ce
Send Inquiry

Product Description

Basic Information
Model NO.
YD-EM-9-45
Glass Speed
0.8-3.5m/Min
Multifunctional
Pneumatic Control
Sturdy Structure
Easy to Operate
Working Stable
Small Space Occupancy
Application
45 Degree Arris & Flat Glass
Type
Glass Edging Machine
Control System
Industrial Computer
Grinding Heads
9
Production Capacity
20 Sets Per Month
Double Function Flat and 45 Degree Arris Edging Machine
Edging Glass Machine
Main Technical Specification
ModelYD-EM-9-45
Total Motors9
ProfileFlat / 45 degree Arris
ProcessingRough/exact grinding, polish & both side miter finished in one time
After ProcessedGlass smooth as mirror face
Glass Thickness3 ~ 25 mm
Min. Glass Size80 × 80 mm
Glass Speed0.8 ~ 3.5 m/min
Outer Dimension6.5 × 1.2 × 2.6 m
Power18 kw
Weight2700 kg
Relay BrandSchneider
Protecting CoverStainless Steel
Quality Comparison & Workshop Display

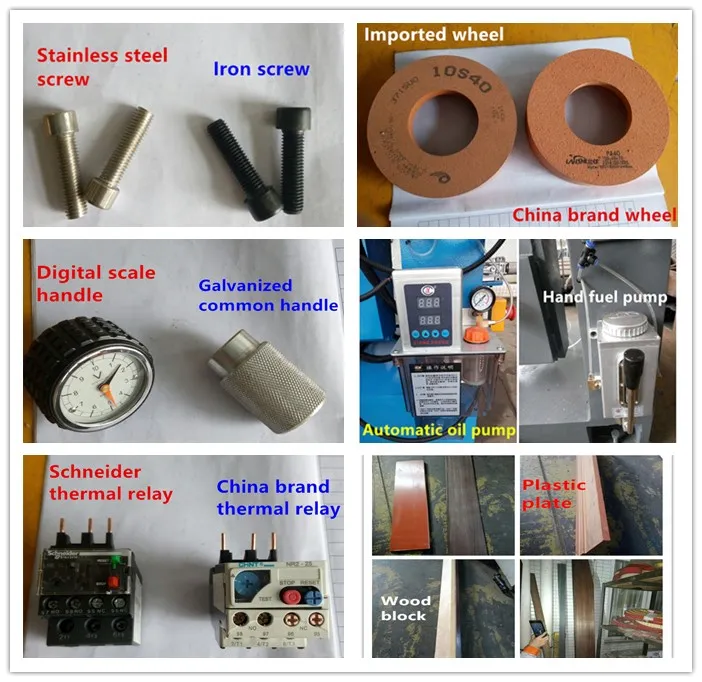

Raw Material Comparison

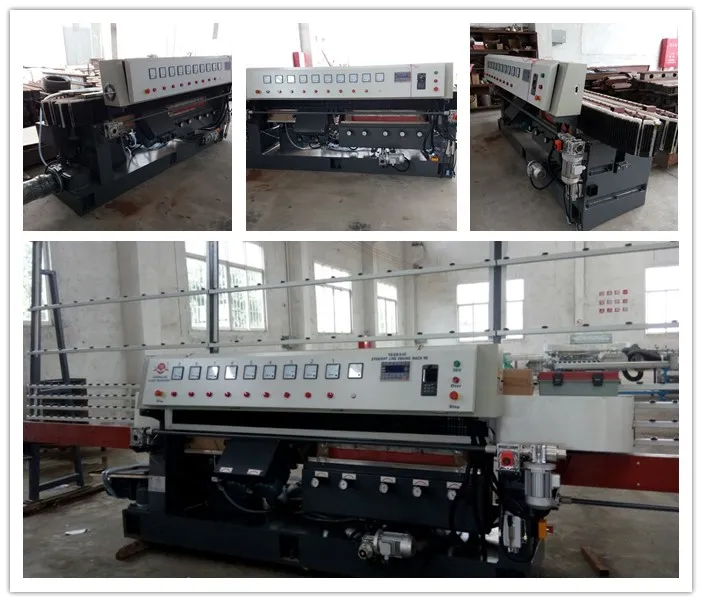

Machines at Workshop
Packaging & Loading

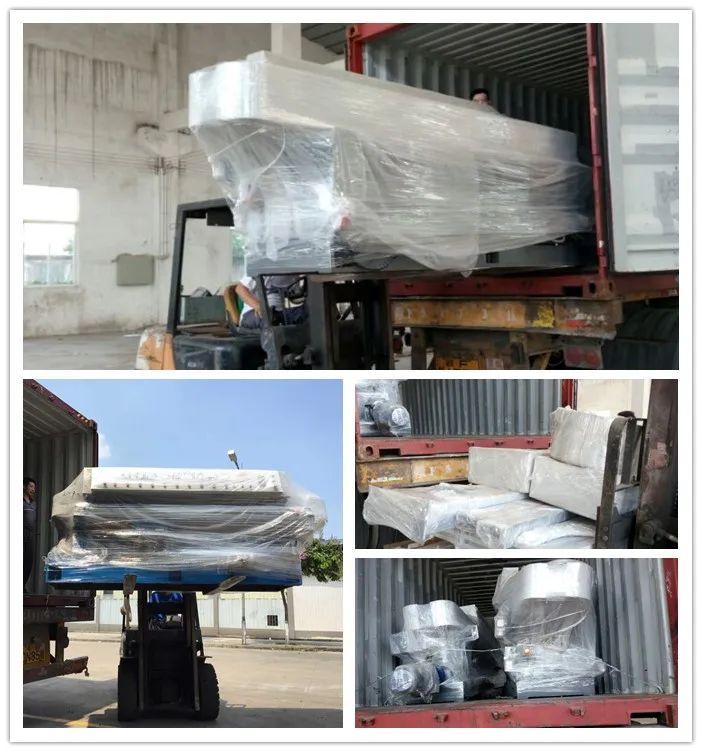

Packaging
Manufacturer established since 2005. Expertise in cutting, edging, sandblasting, drilling, washing, and tempering machinery. Products exported to more than 40 overseas countries.
Ordering Process

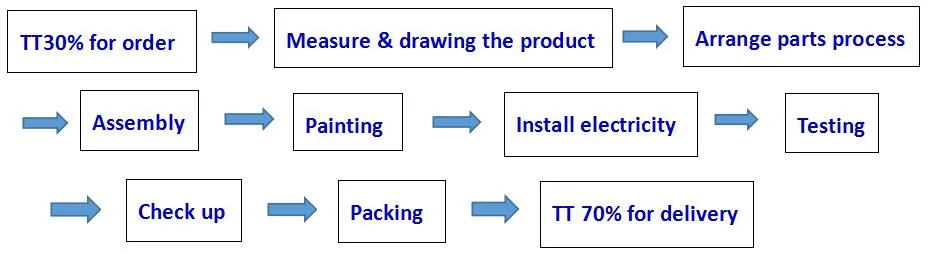

Ordering Steps 1
Ordering Steps 2
Frequently Asked Questions
What is the processing range for glass thickness?
The machine is capable of processing glass with a thickness ranging from 3mm to 25mm.
Can this machine handle both flat edges and miters?
Yes, it is a double-function machine designed for both flat edging and 45-degree arris (miter) processing.
What is the production lead time for this equipment?
The standard production lead time is approximately 30 to 40 days.
What safety and quality certifications does the machine have?
The machine is compliant with European Union CE and SGS standards.
What is the minimum glass size that can be processed?
The minimum processing size for glass pieces is 80mm x 80mm.
How many grinding motors does the YD-EM-9-45 have?
This model is equipped with a total of 9 motors for rough grinding, exact grinding, and polishing.
