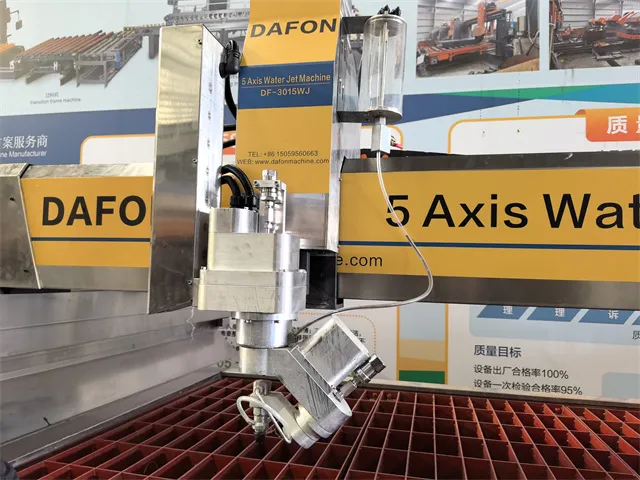

1. The spindle adopts high-frequency processing.
2. The cutting speed is controlled by the inverter to achieve step-less adjustment. Head movements, 360° rotation, and positioning use hydraulic transmission for smooth manual or fully automatic operation.
3. Adopts CNC programmable control system and touch screen combined with Omron high precision encoder positioning.
4. Applicable for cutting valuable and large-sized stone boards across various specifications.

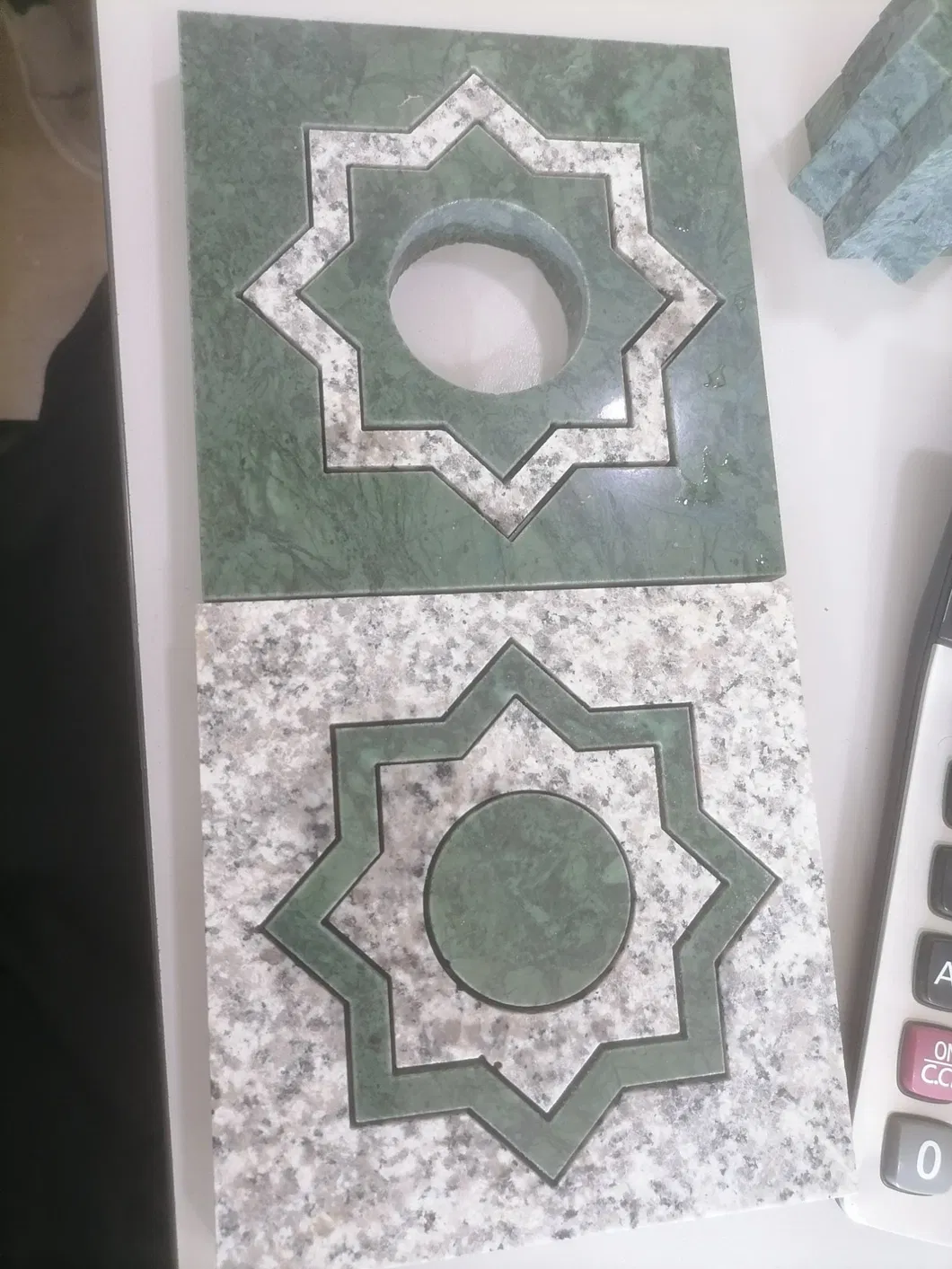

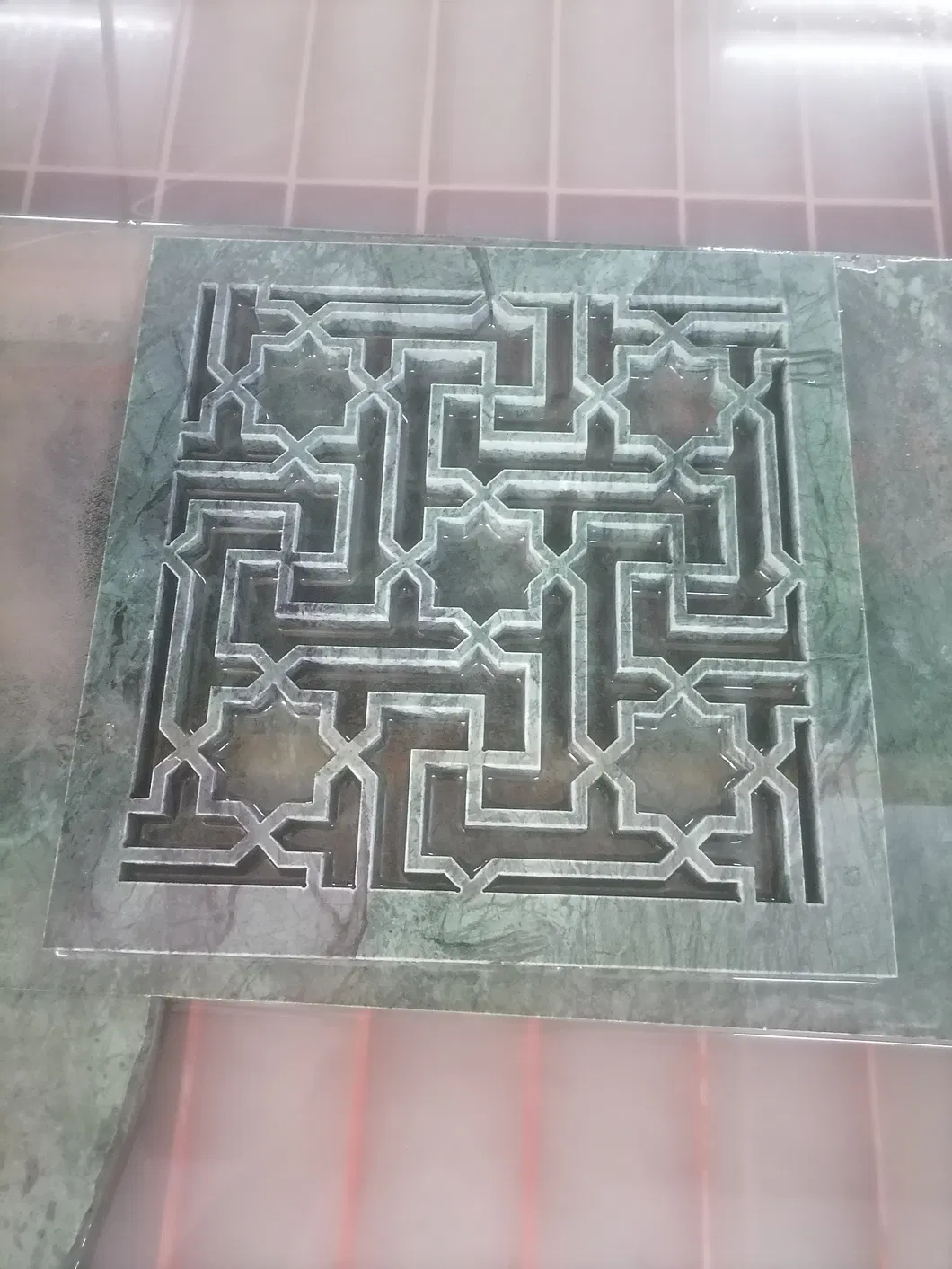

5. Capable of fine processing and complex shapes that conventional machines cannot complete.
| Parameter | Details |
|---|---|

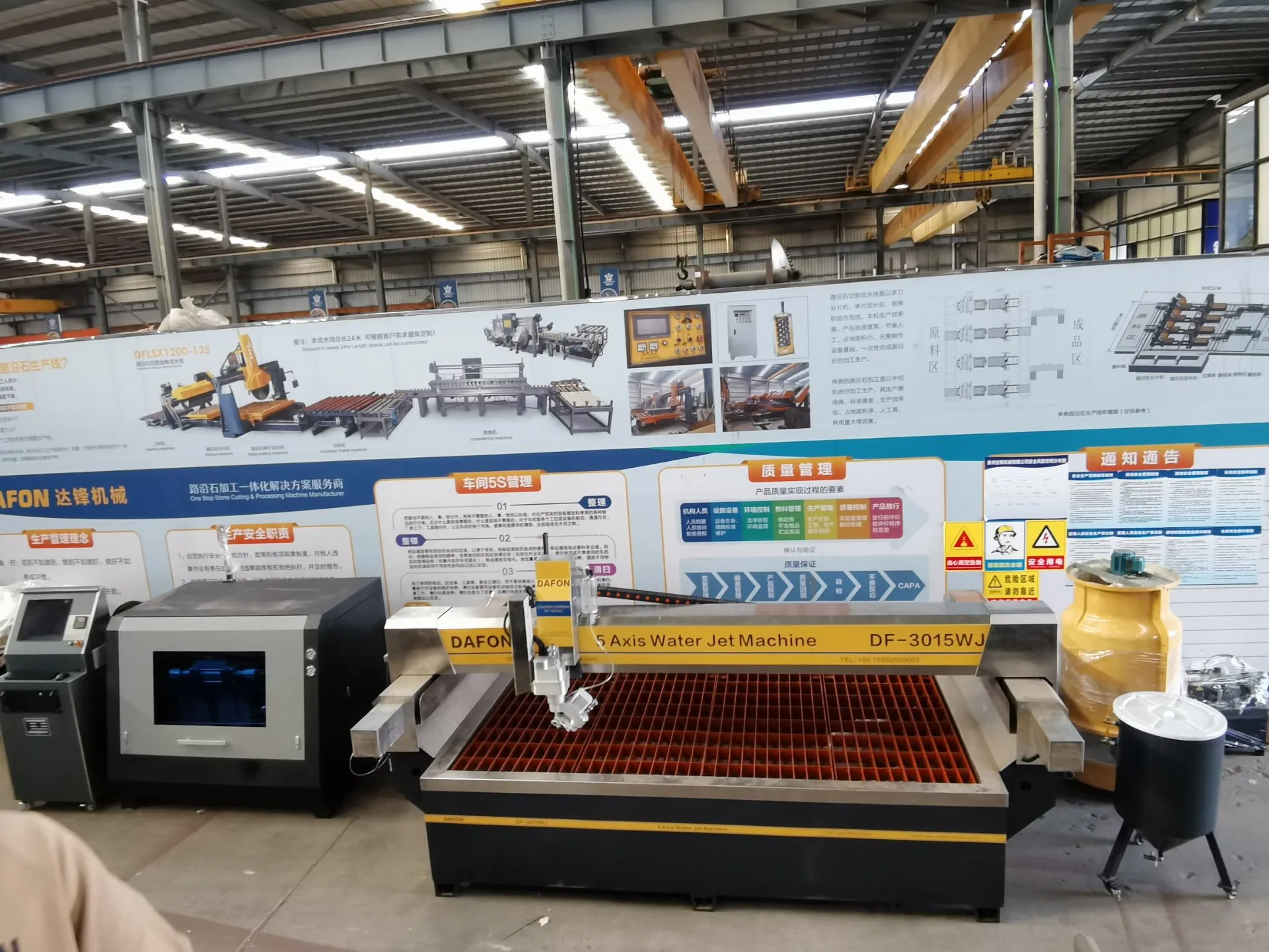

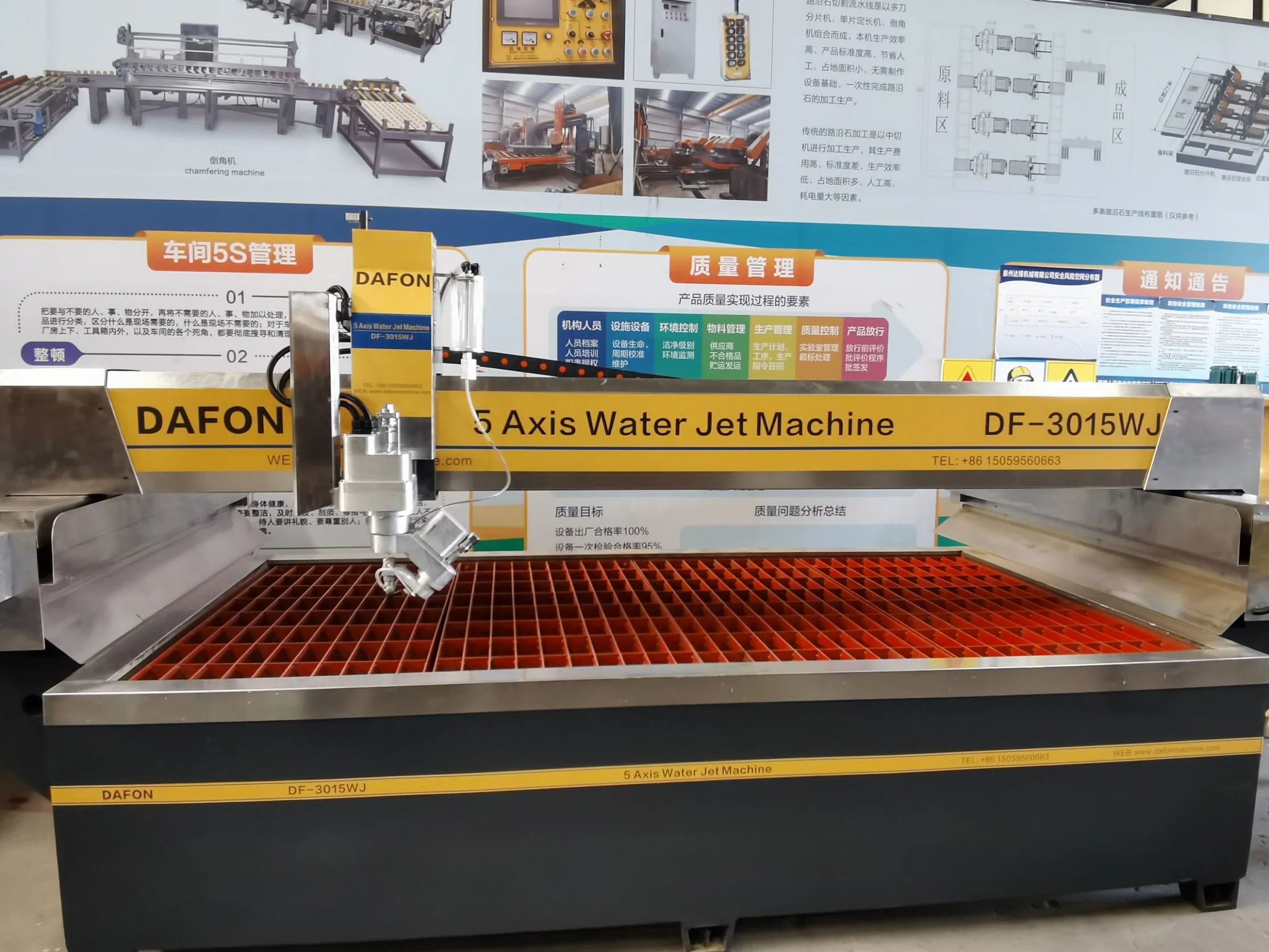

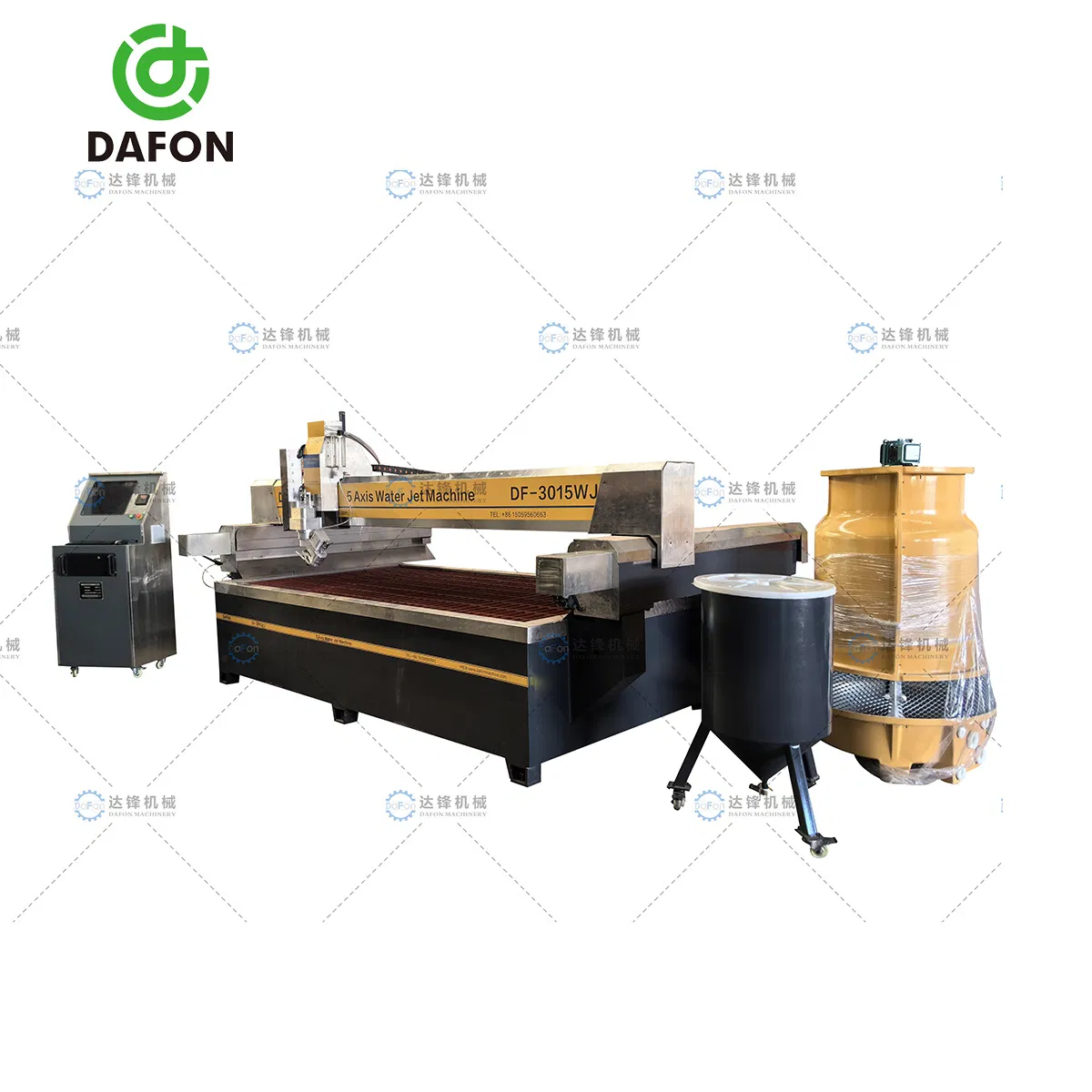

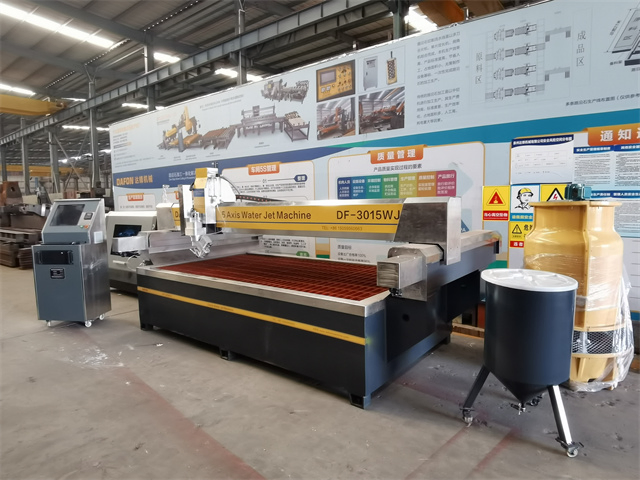

| Model NO. | DF-3015WJ |
| Usage | Ceramics, Jadestone, Cement Brick, Granite, Marble |
| Max Cutting Depth | 170mm |
| Motor Power | 37 Kw |
| Dimension | 6000 × 4800 × 3000mm |
| Weight | 5.2t |
| Production Capacity | 120-200 pieces/Year |

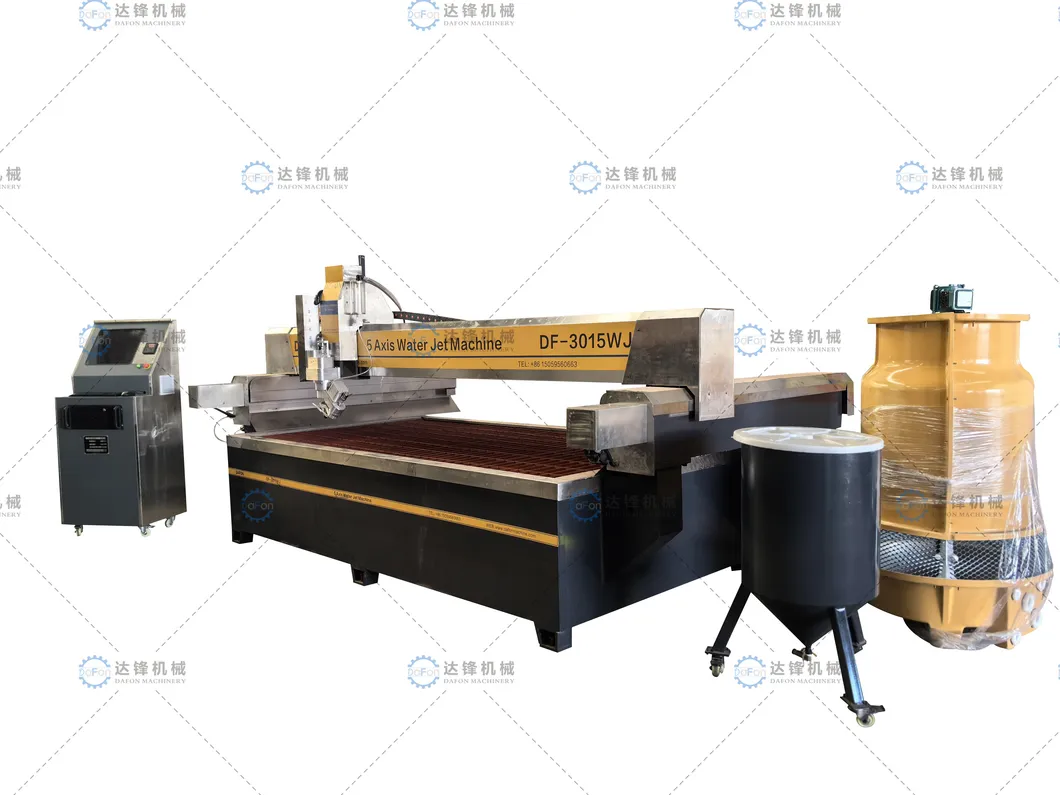

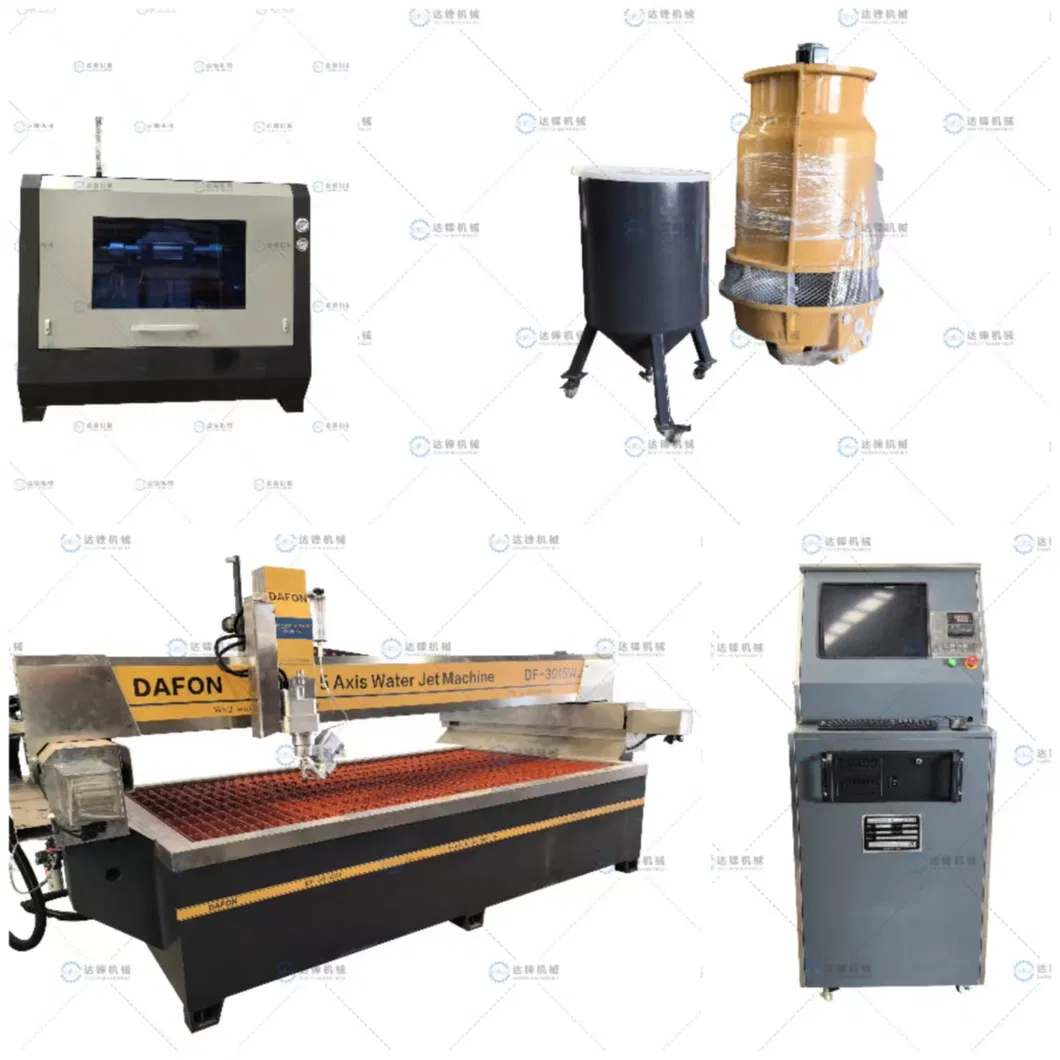

1. Table & Control System: Full range plane curve cutting. Reinforced lathe structure ensures accuracy at high speeds. Features unique injection screw guide rail lubrication (waterproof/dustproof) and stainless steel protective covers.
2. Intelligent Control Cabinet: Automatic material control, trace simulation, and processing budget calculation. Includes breakpoint fallback and automatic parameter loading for high efficiency.
3. Cooling Tower: Effectively controls oil temperature to prolong the service life of seals and high-pressure parts while saving water.
4. Automatic Sand-feeding: Transfers sand to the bucket automatically with a 100KL capacity, ensuring 200-300 minutes of continuous cutting.
5. High Voltage System: 37KW motor, 450Mpa rated pressure, and 3.7L/min flow rate with a 0.33mm nozzle.
• Inquiry and consulting support.
• Configuration of best machine lines.
• Factory viewing availability.
• Installation and operation training.
• Overseas engineering service availability.
• Lifetime free technology maintenance.

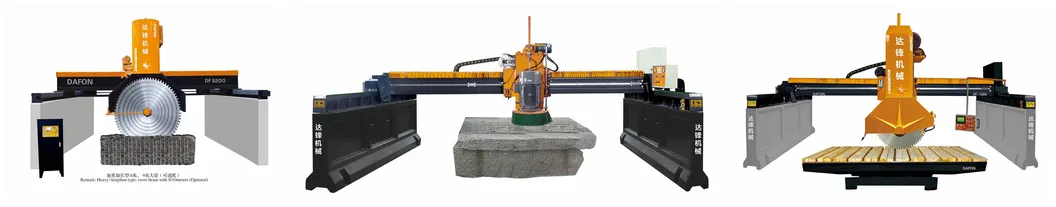

We are a professional stone machinery company that integrates design, manufacture, and sale as a whole. We produce a wide range of equipment including curbstone assembly lines, infrared trimming machines, automatic bridge cutting machines, and high-pressure waterjet cutters.
