| Size of Machine |
Thickness |
Mini Size |
Speed |
Power |
Weight |
Voltage |
| 6500mm×1300mm×2500mm |
3mm-25mm |
80mm×80mm |
1-5.5m/min |
16.5KW |
2200kg |
380V/50HZ |
| NO.#7 |
NO.#6 |
NO.#5 |
NO.#4 |
NO.#3 |
NO.#2 |
NO.#1 |
| POLISH wheel-ARRIS |
Resin diamond-ARRIS |
Polish wheel wheel |
POLISH wheel-ARRIS |
Resin diamOND-ARRIS |
RESIN Diamond wheel |
COPPER Diamond wheel |
Configuration List
| WATER BOX |
WATER PUMP |
WATER PIPE |
TOOL |
CERTIFICATION |
USER MANUAL |
| 1 |
1 |
2 |
1 |
1 |
1 |

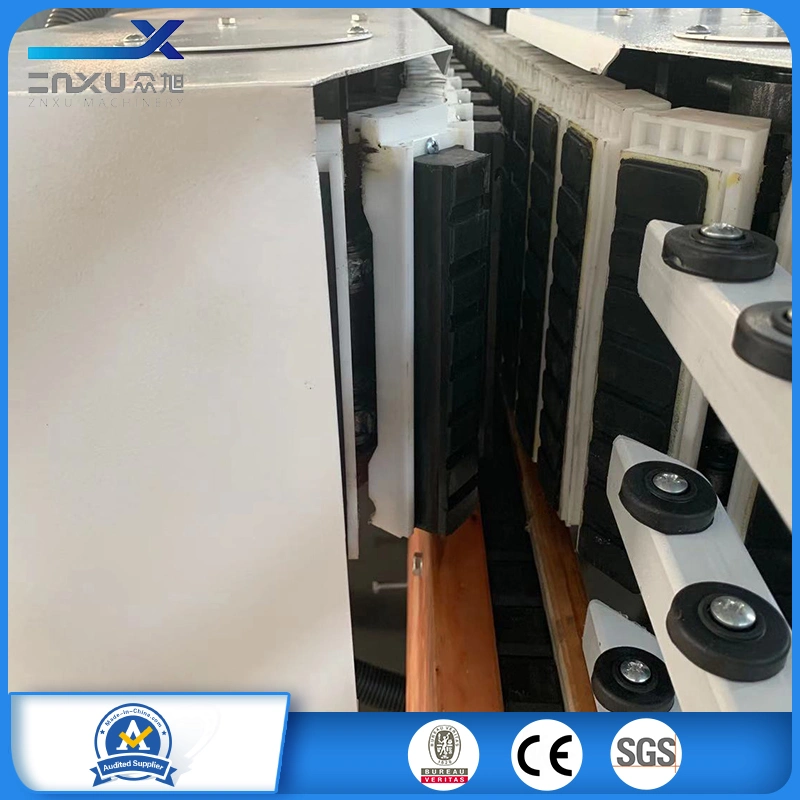

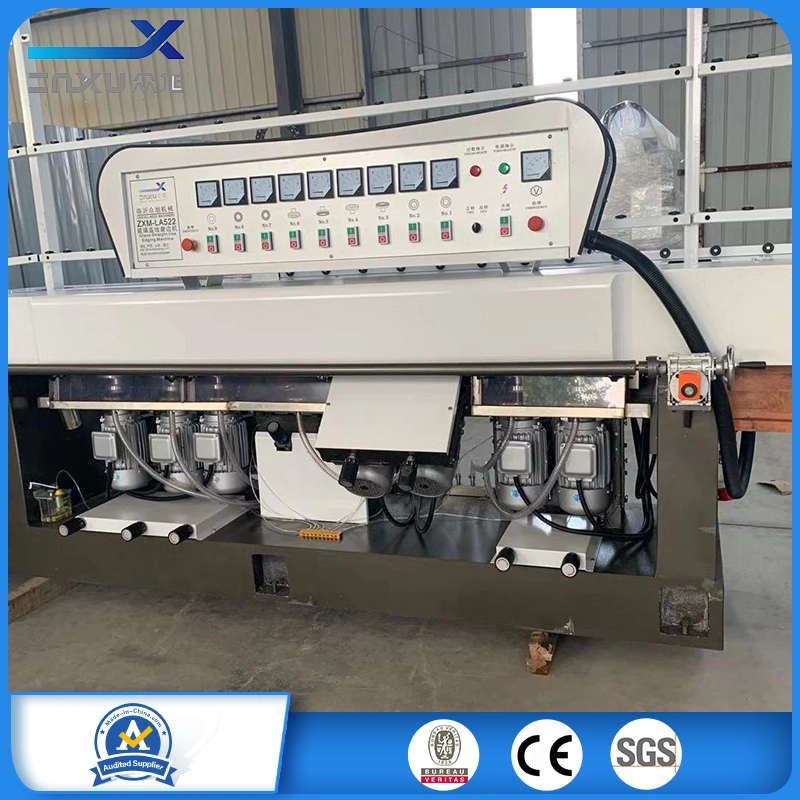

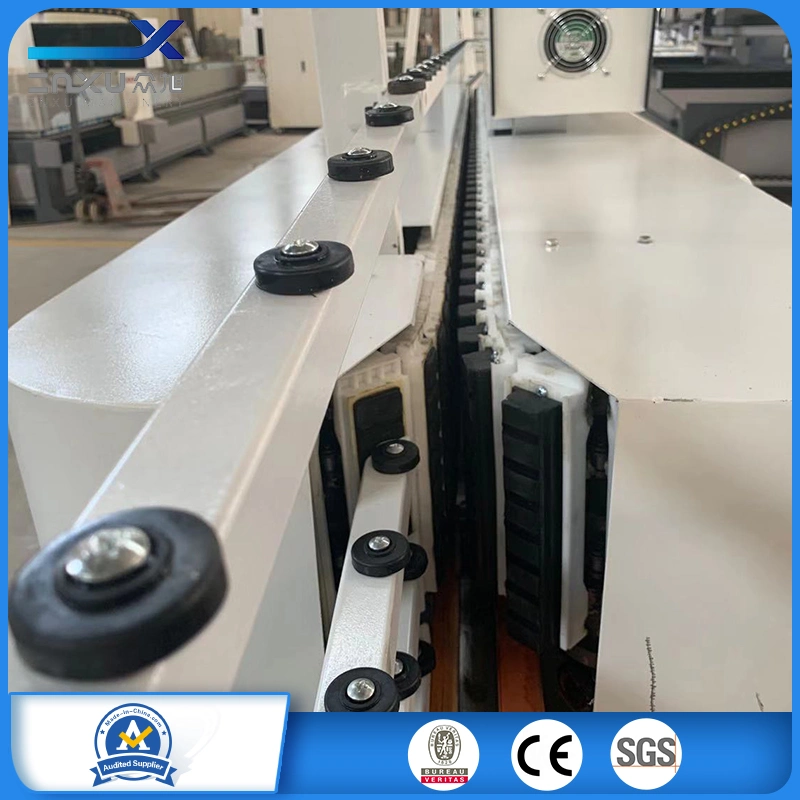

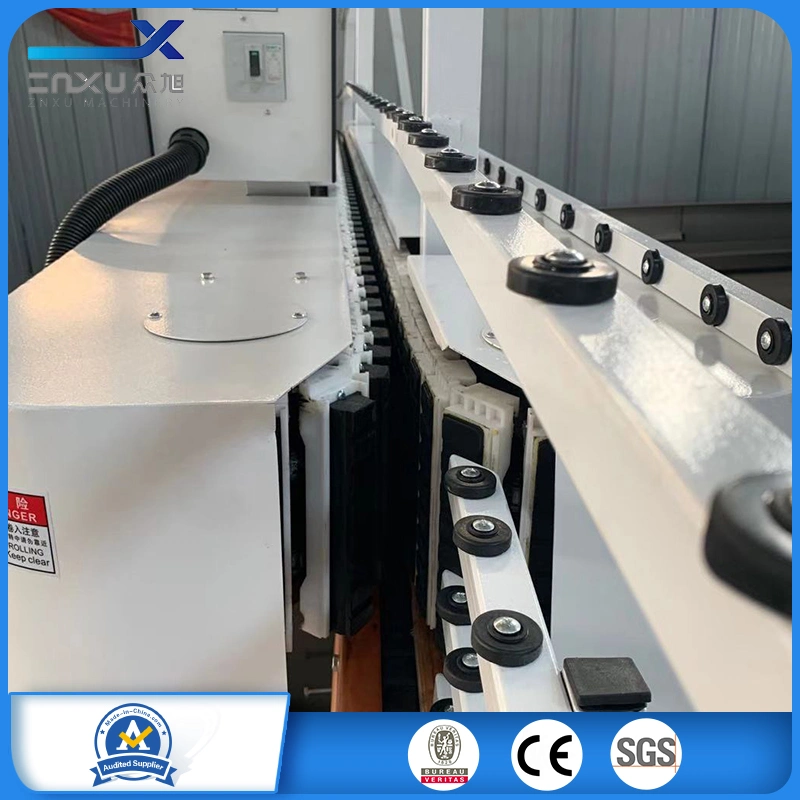

ZXM-LA322 Glass straight line edging machine is used for grinding and polishing straight edges or 45deg.angles on flat glass of different sizes and thickness. Coarse grinding, refine grinding, polishing, and angle-making can be completed in a procession. Speed can be widely adjusted by its stepless regulator. Speed alteration is very smooth. In grinding operation, feeding and operation speed can be adjusted at random. Front rails can be adjusted to fit varied thickness of processed glass. It has feature with high precision, easy handling and high efficiency.
