Honghe Machinery Honghe Machinery

Basic Customization Water Jet Loser Mobile CNC Machine Glass Table Auto Cutting Machine for Glass Nano 2021 Price

Customization: Available
Certification: CE, ISO
Power Supply: 380V 50Hz

Product Description

Basic Information

Product Name

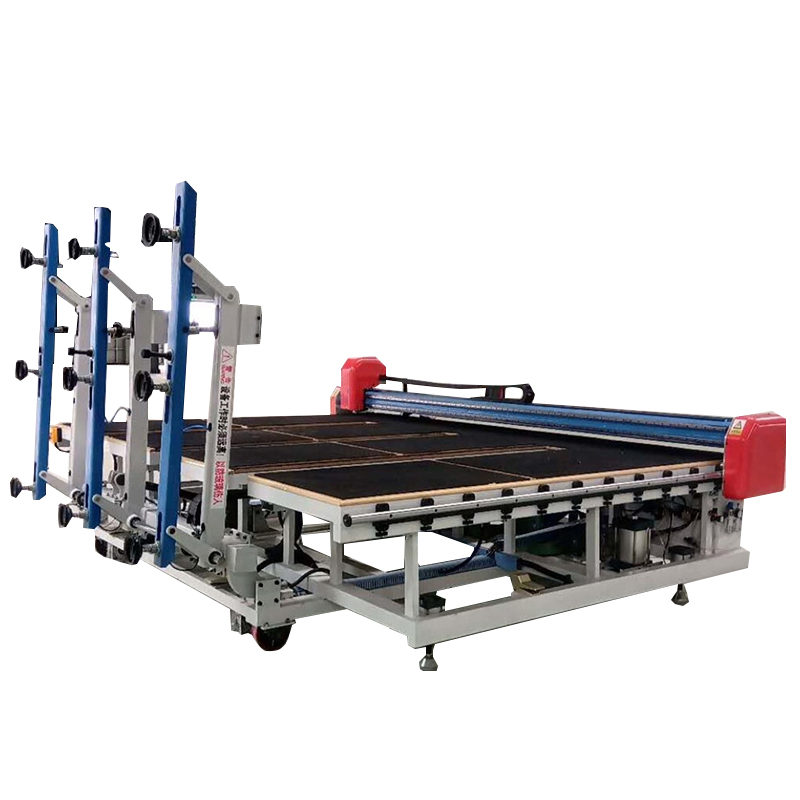

Glass Table Auto Cutting Machine
Function
Glass Loading, Cutting and Breaking
Power
14kw
Max. Glass Size
2600*2000mm
System

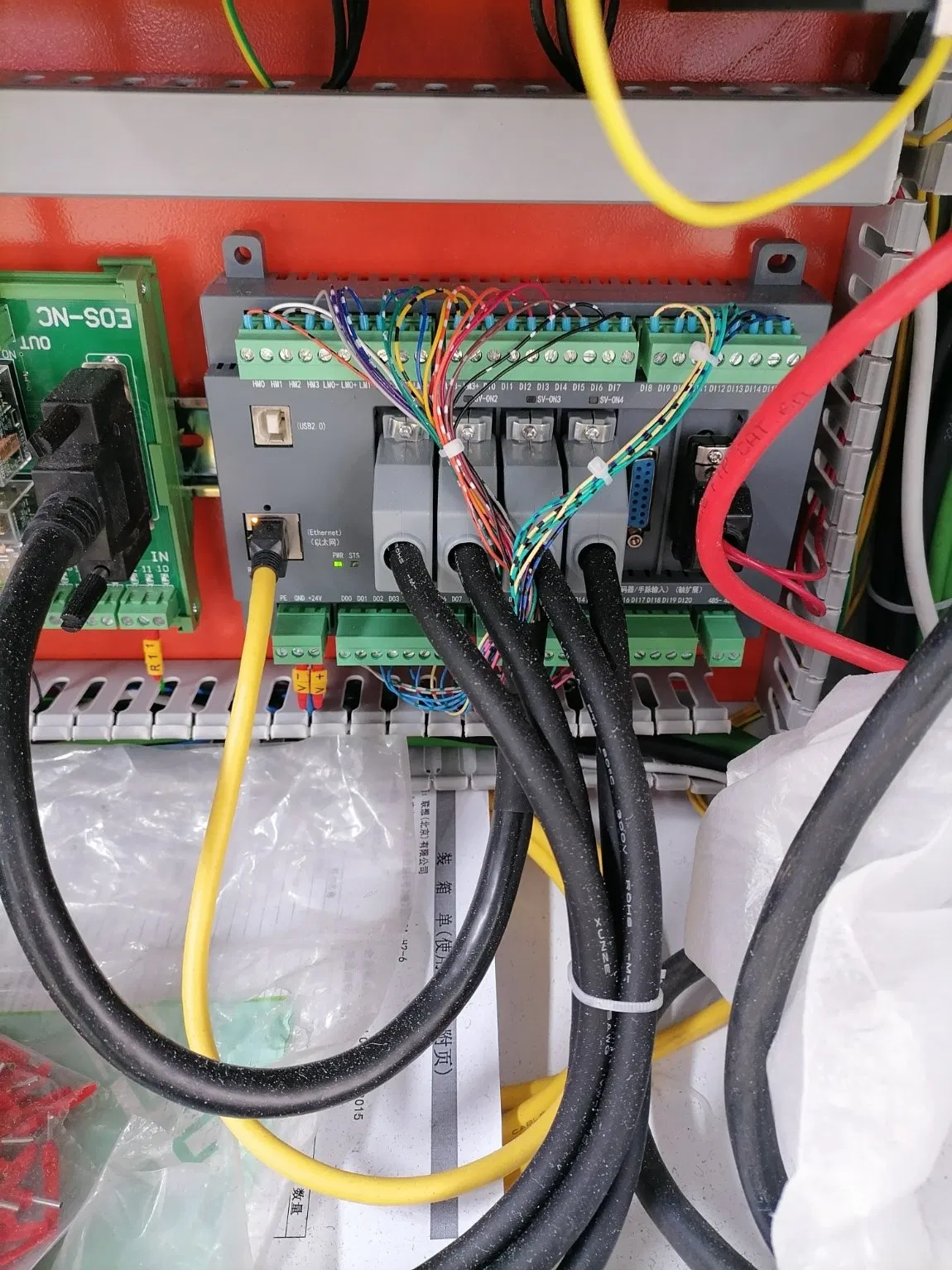

Imported PLC Control
Material
Stainless Steel
Cutting Speed
0-150m/Min
Glass Thickness
3-19mm
Weight
2000kg
Control System
Industrial Computer
Origin
China
Production Capacity
15 Sets Per Month

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
20.000kg
Package Type
Simple Stretch Film or Plywood

Water Jet Loser Mobile CNC Machine Glass Table Auto Cutting Machine for Glass Nano 2021 Price

Glass Auto Cutting Machine

Equipment Features

⚙️
Versatile Application: Used for building glass, window door glass, motor car glass, house hold appliance glass, solar energy glass, mirror and art work glass cutting processes.
🚀
High Efficiency: Features small volume, simple and safe operation, high speed precision, requires less manpower, and can walk freely in the workshop.

Machine Details

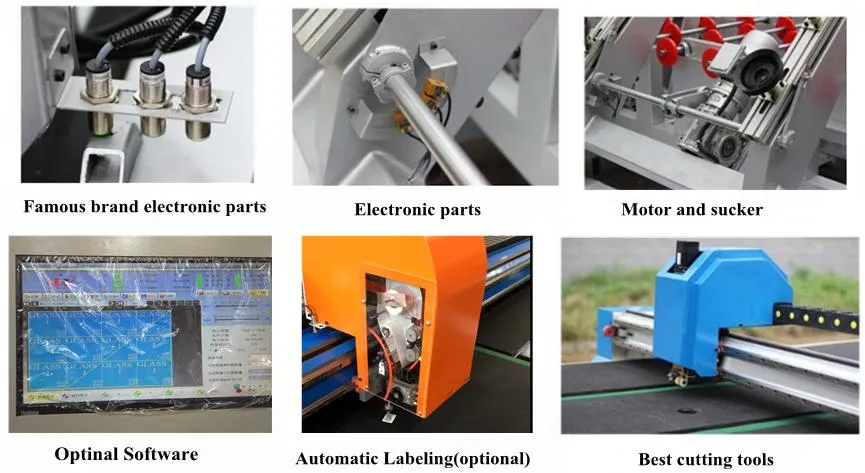

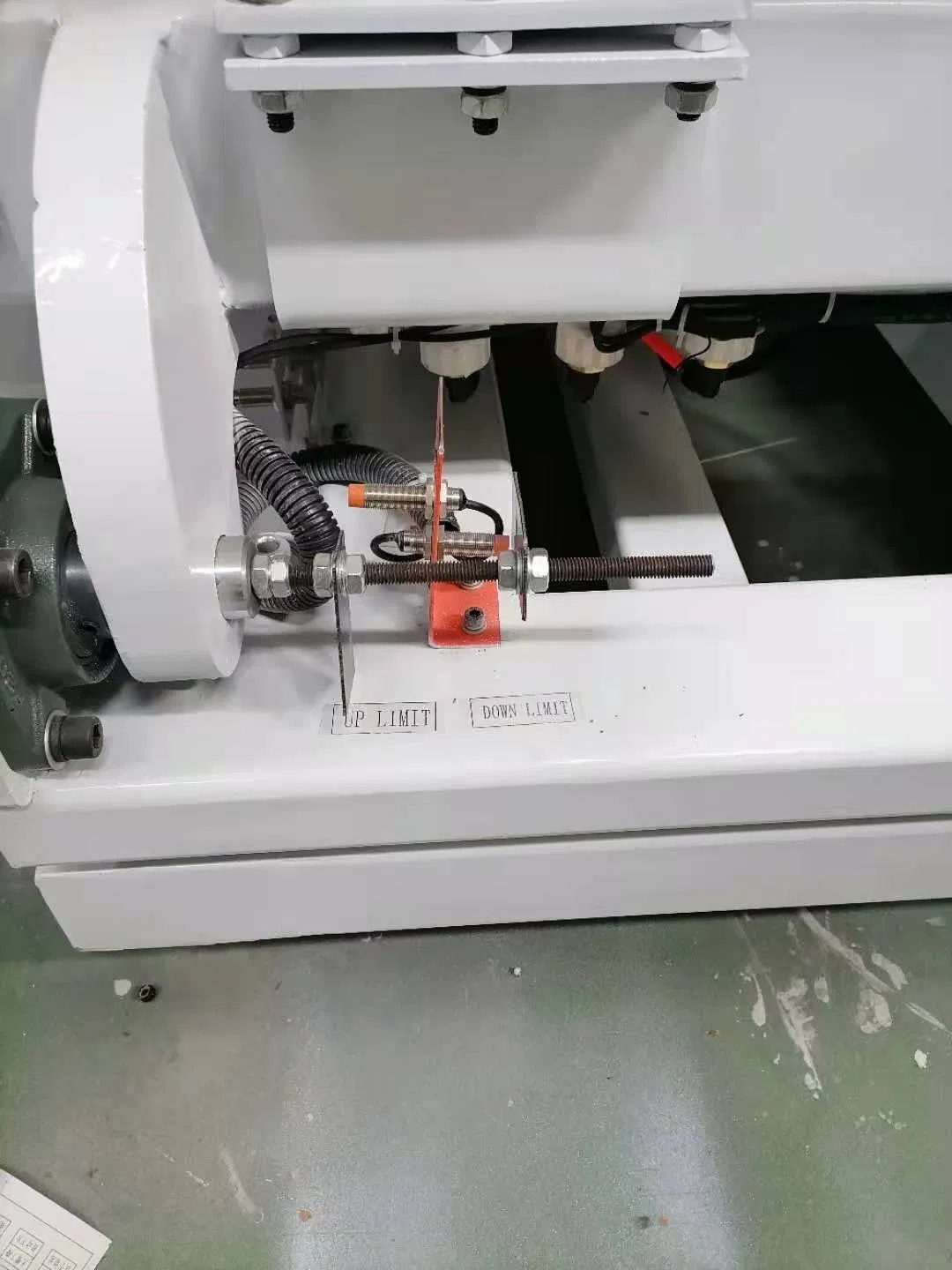

Machine Detail 1

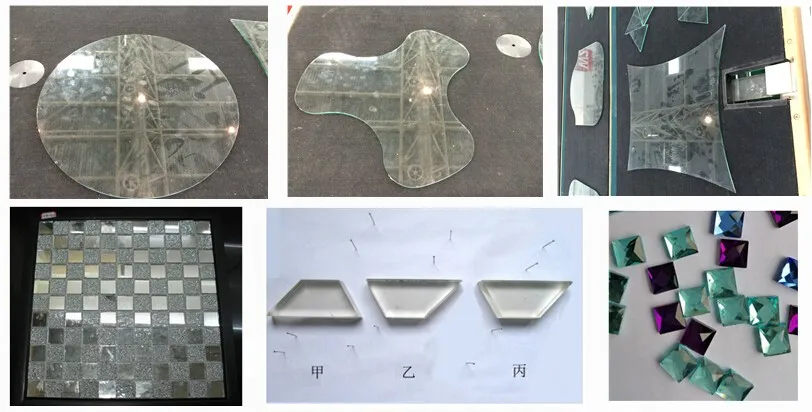

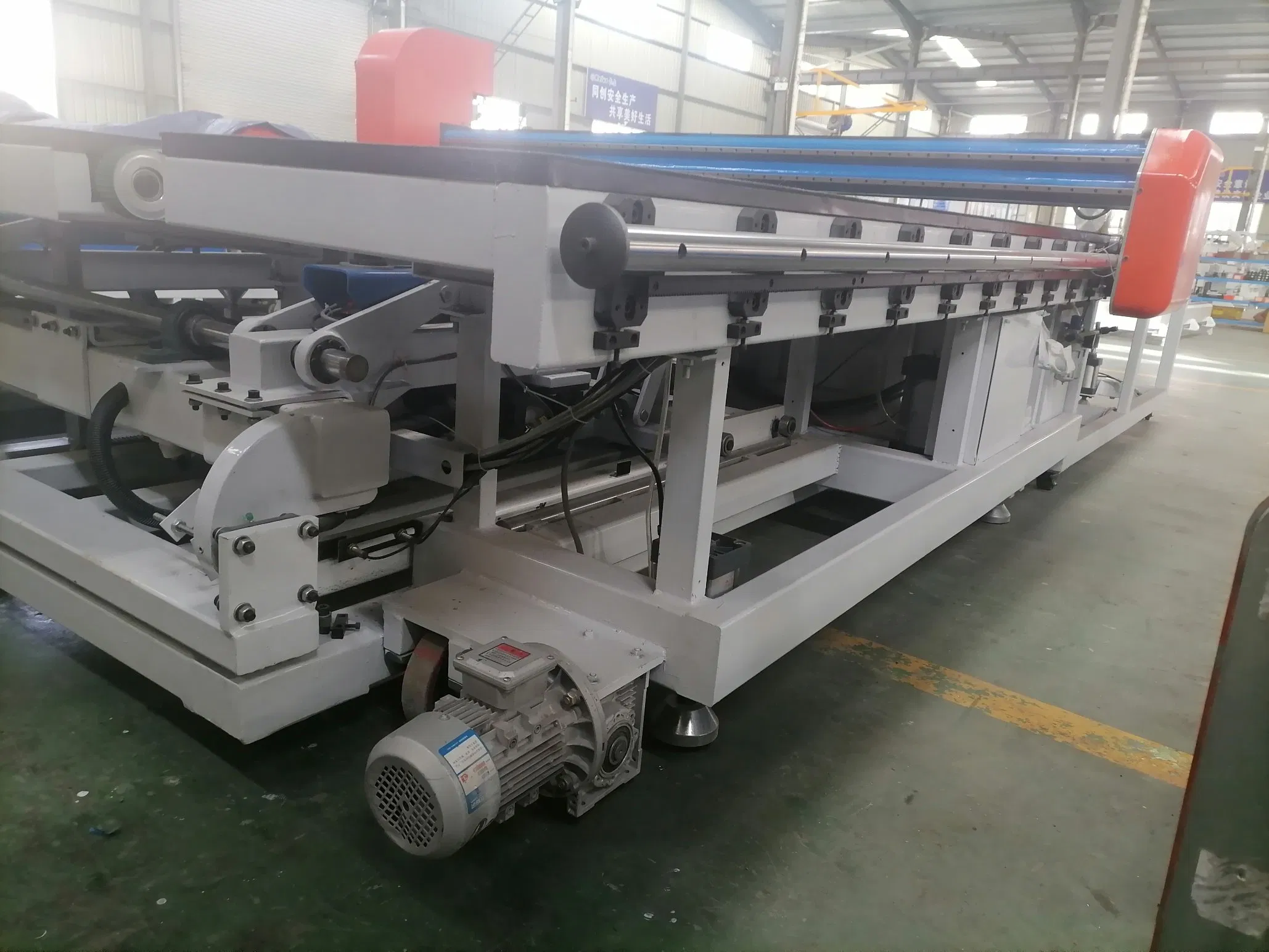

Machine Detail 2

Technical Data

Loading Machine Parameters
The biggest piece of size2600 * 2000 mm
Glass thickness3-19 mm
The fastest cycle20-40 seconds
Max. Loading glass900kg
Arm numberThree arms
Vacuum pads per arm4
Installed power6kw
Cutting Machine Parameters
Glass maximum size2600 * 2000 mm
Table height900+50 mm
Cutting accuracy+/-0.25mm
Cutting speed0~150 m/min. (adjustable)
Power supply380V/50Hz/3phase
Power8kw
Processing View 1
Processing View 2
Processing View 3
Technical Layout

Service & Support

Pre-Sale Service
• Free contact for the most suitable machine
• Free professional design for each customer especially.
After-Sale Service
• 24 hours technical support
• 1 year warranty period
• Overseas installation, maintenance and training.
Payment Terms
• L/C: 30% deposit by T/T, 70% by L/C.
• T/T: 30% deposit, 70% before shipment.
• Western Union or Paypal.

Frequently Asked Questions

When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines may take more than 25 days.
What can you do if my machines have problems?
We can send you free components if your machines are within the guarantee period. We can also send our engineers to repair your machines.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
How many basic machines are needed for insulating glass production?
The number depends on your production scale, but the auto cutting machine is a core component. Detailed machine layouts can be provided based on your requirements.
What is the range of glass thickness this machine can handle?
The machine is designed to process glass with a thickness ranging from 3mm to 19mm.
What is the cutting accuracy of the CNC machine?
The machine offers high precision with a cutting accuracy of approximately +/-0.25mm.

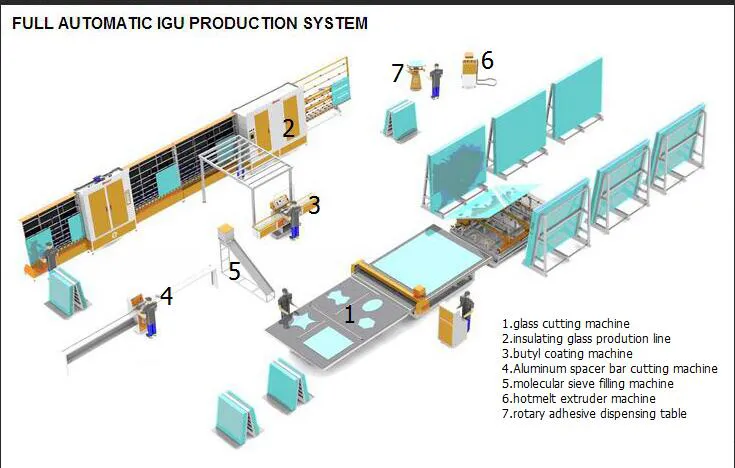

Production Workflow
