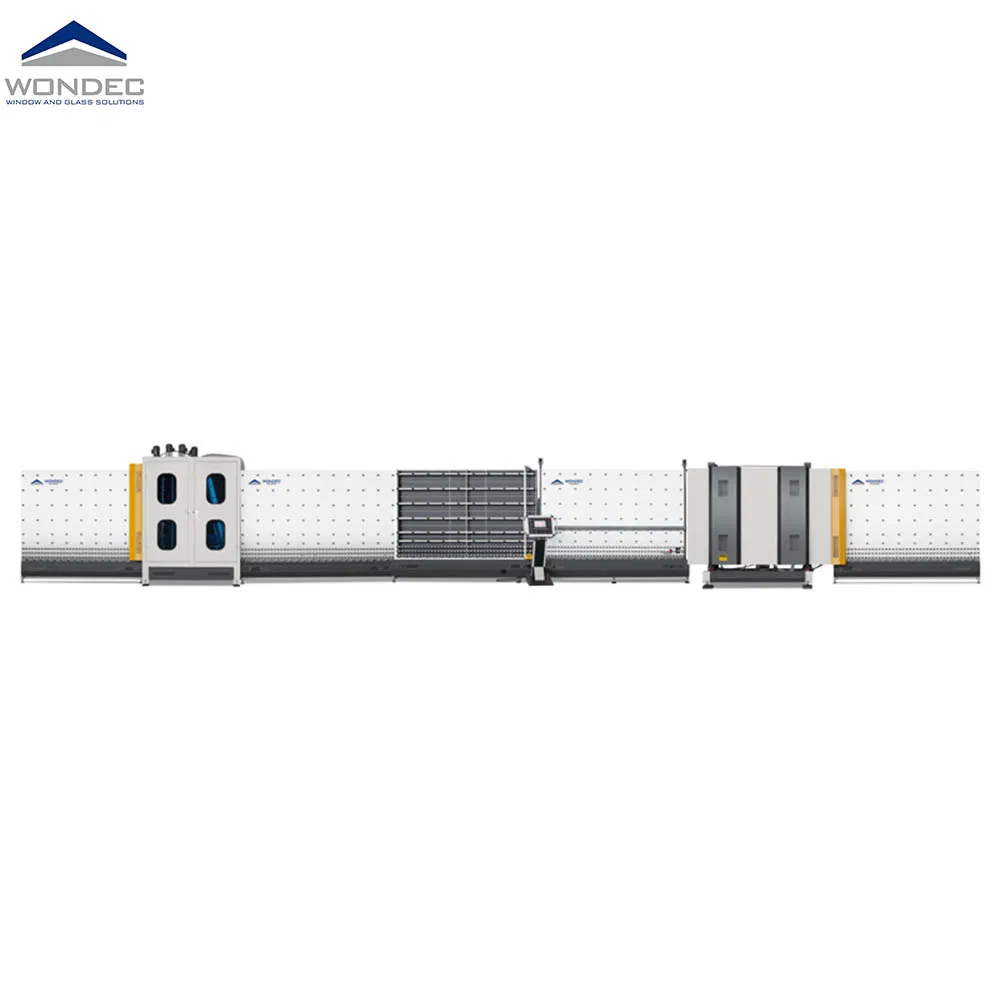

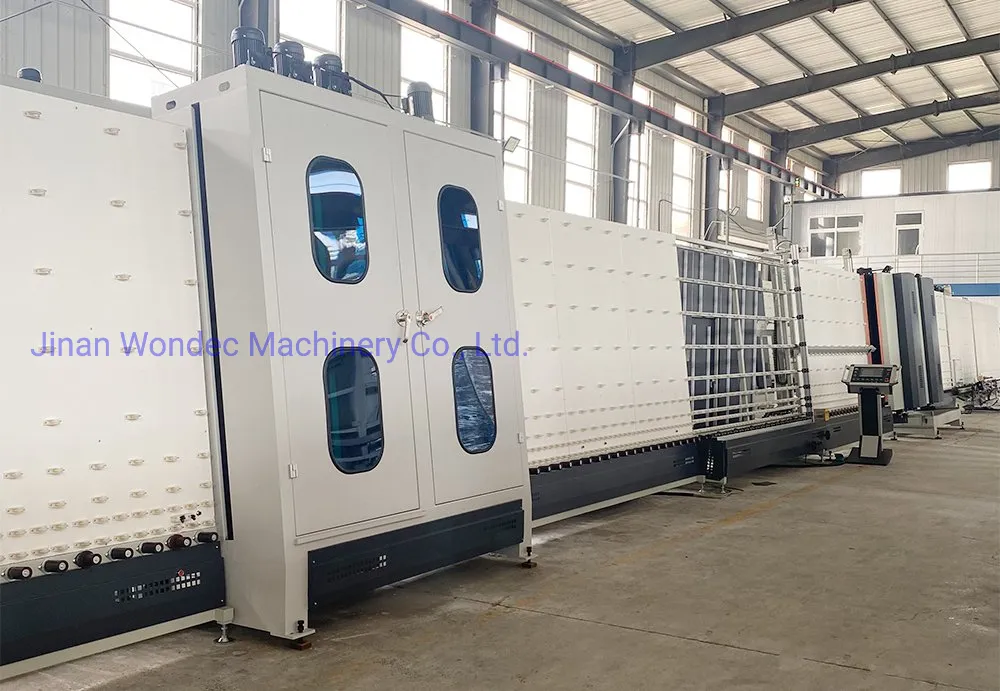

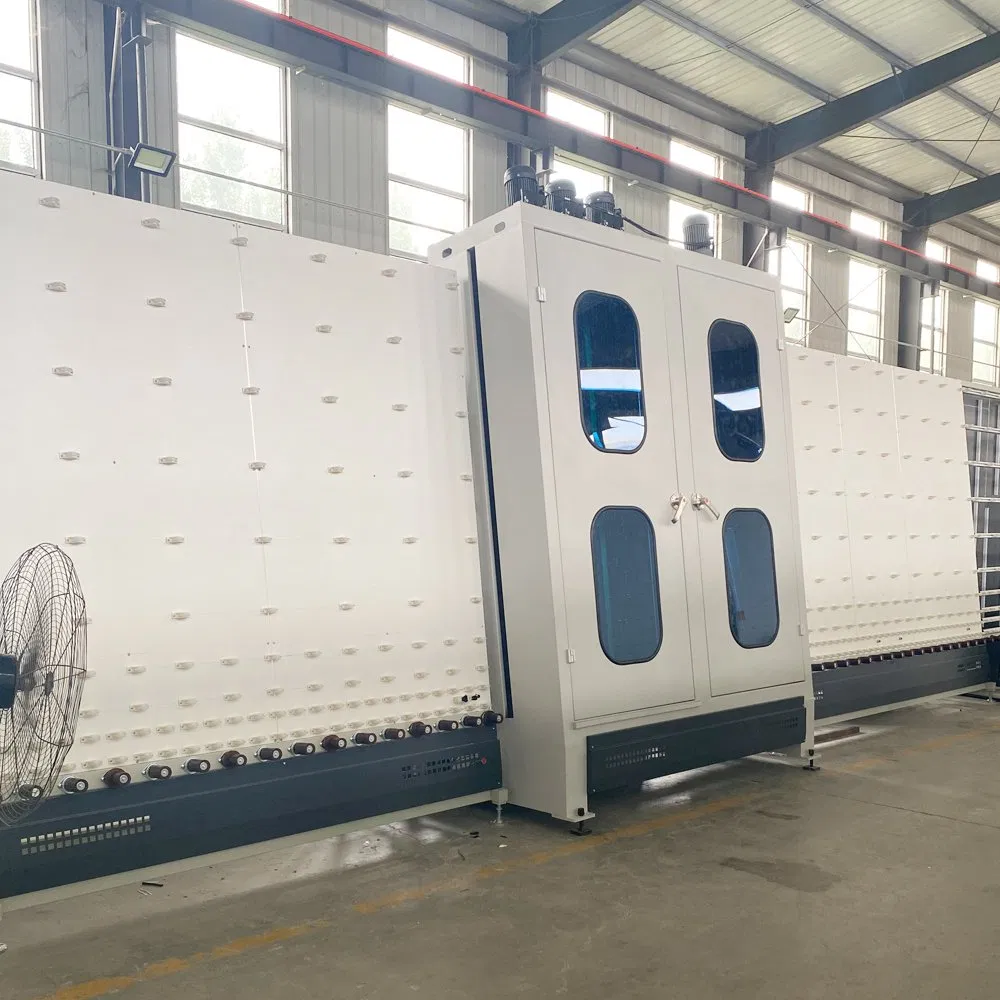

WLBZ2030 Insulating Glass Production Line is designed to produce insulated glass with rigid spacer bars. This Automatic Vertical Insulating Glass Production Line is engineered to vertically wash, assemble, and flat panel press insulating glass units with PLC control. It is designed for mass production and is especially suitable for curtain walls and facades.

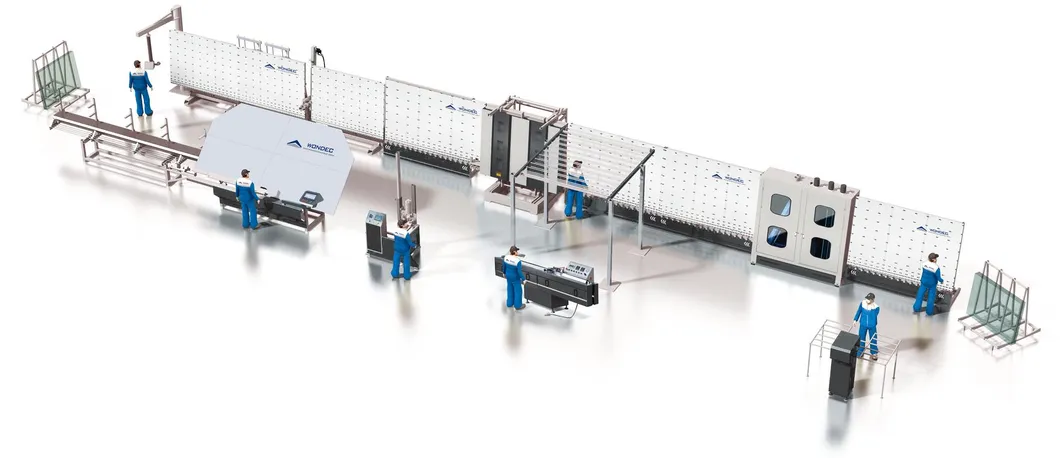

The line is composed of washing, drying, assembly, and pressing. It can process double and triple glazing or even more. It can be upgraded and expanded according to user's requirements.

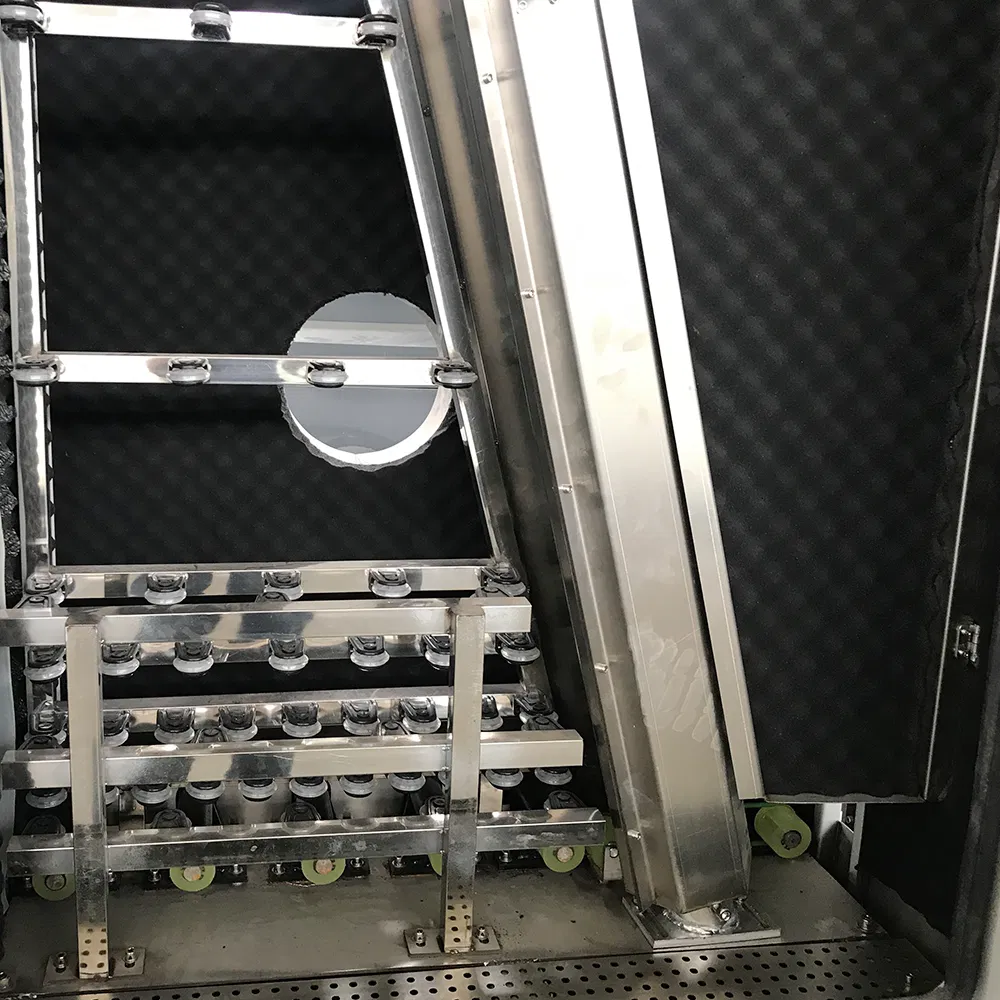

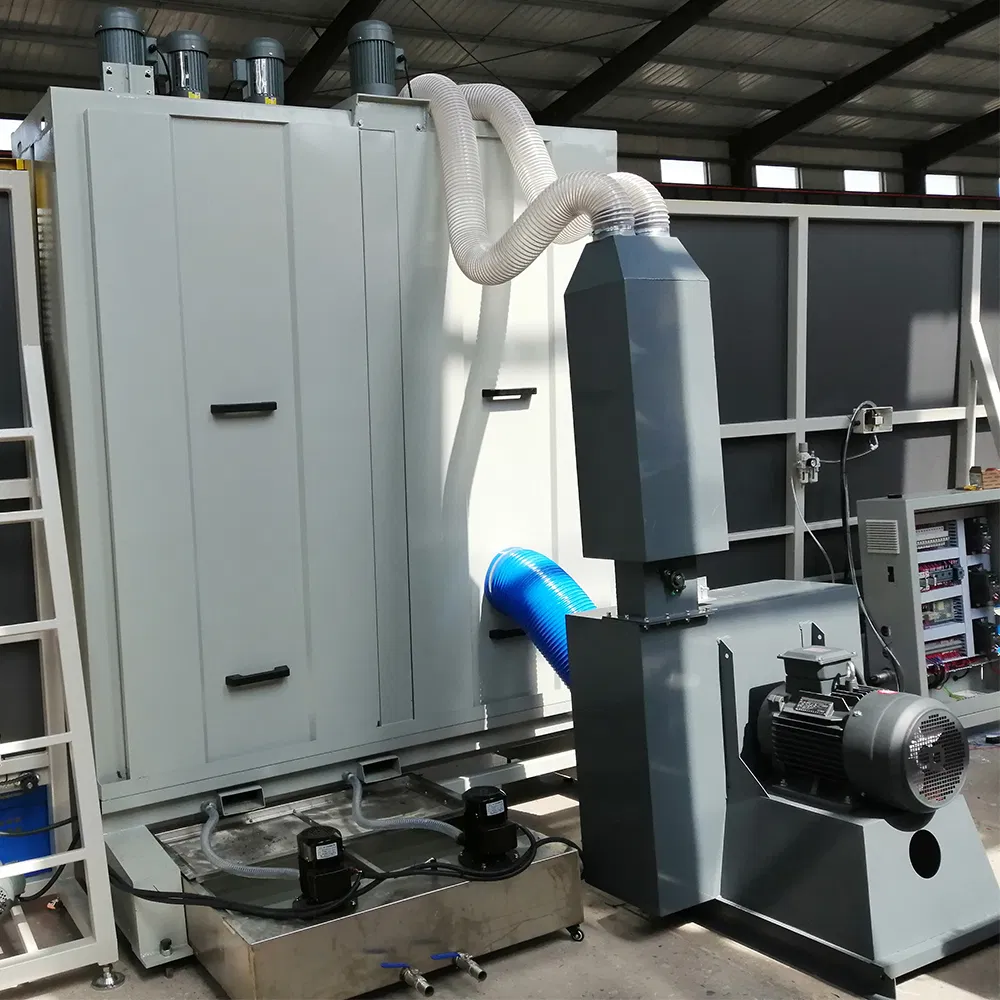

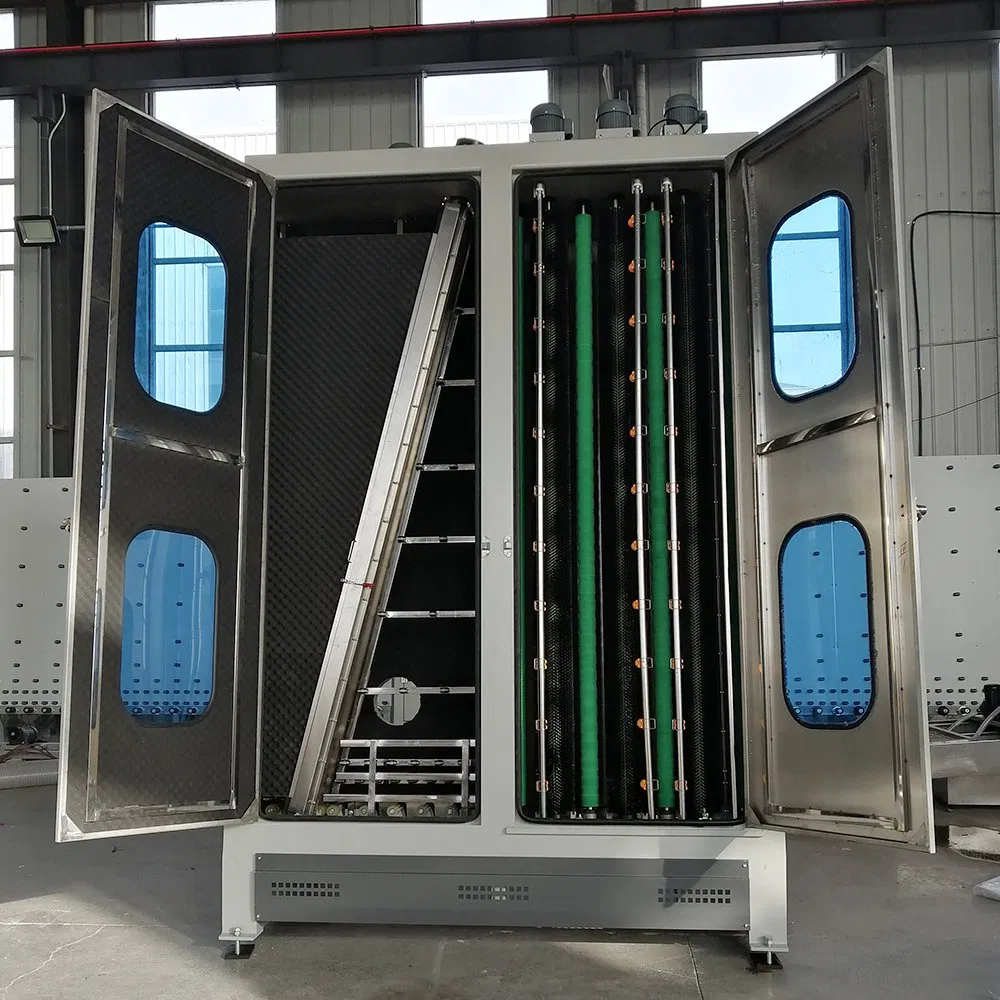

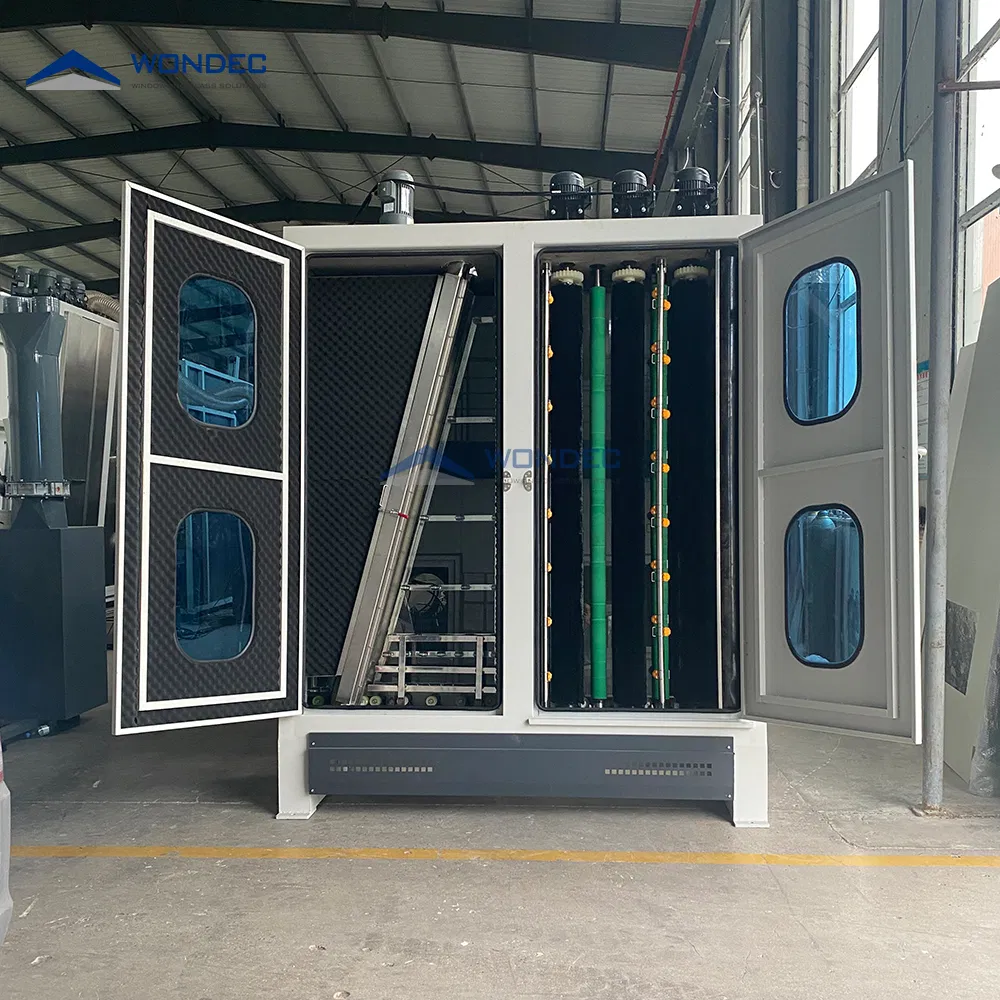

Washing System: Glass is always washed and dried thoroughly before assembly, achieved automatically.

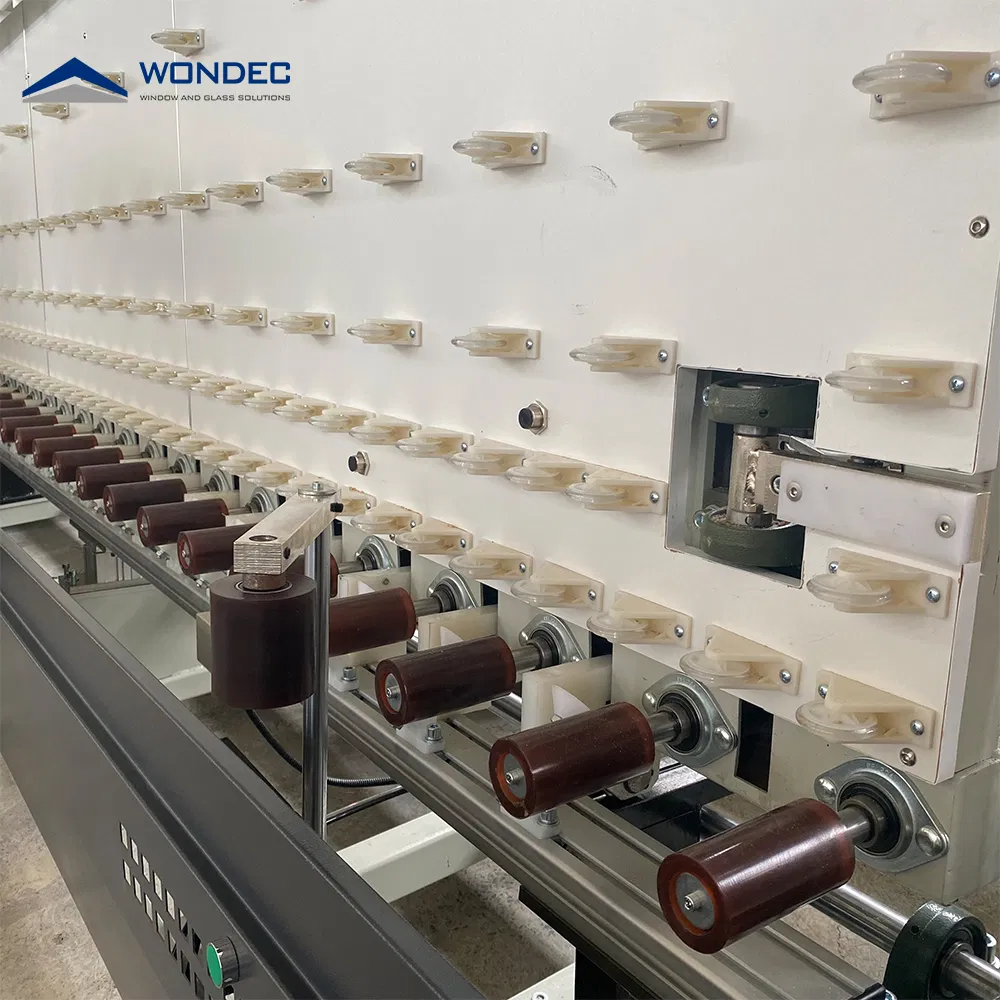

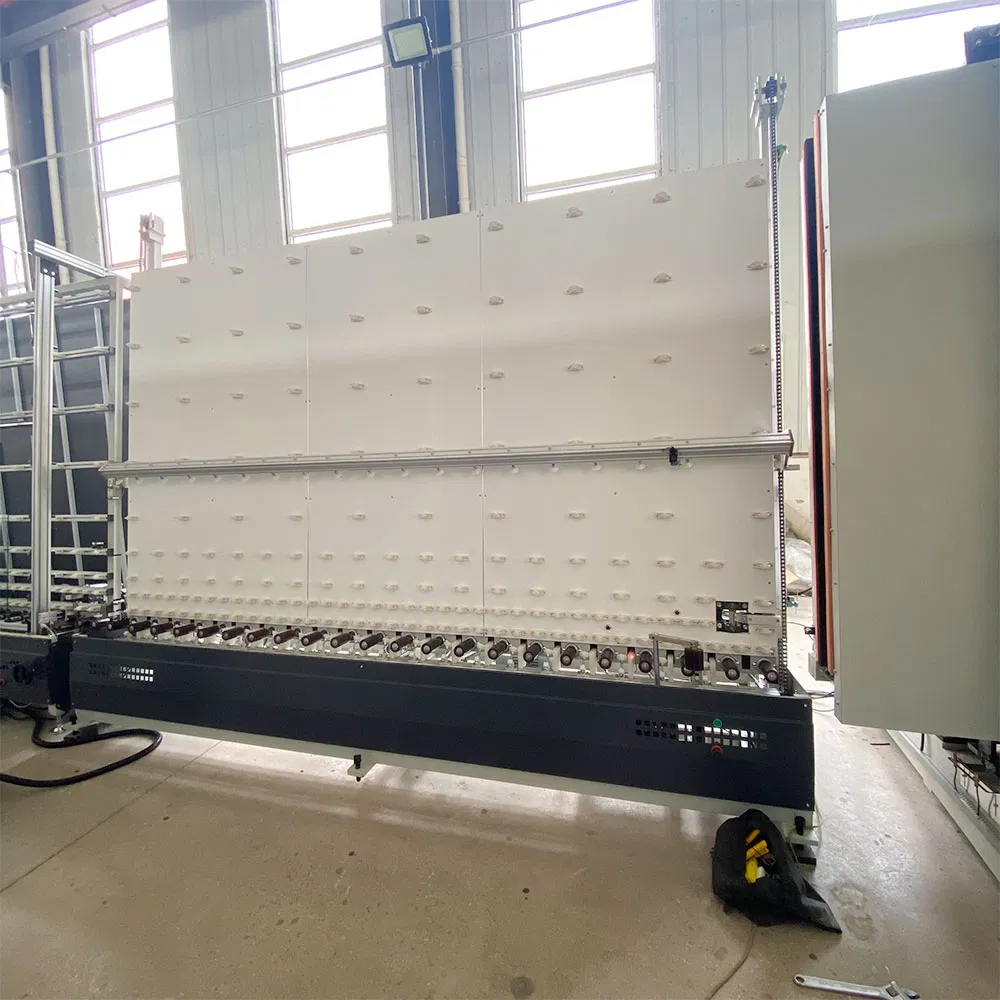

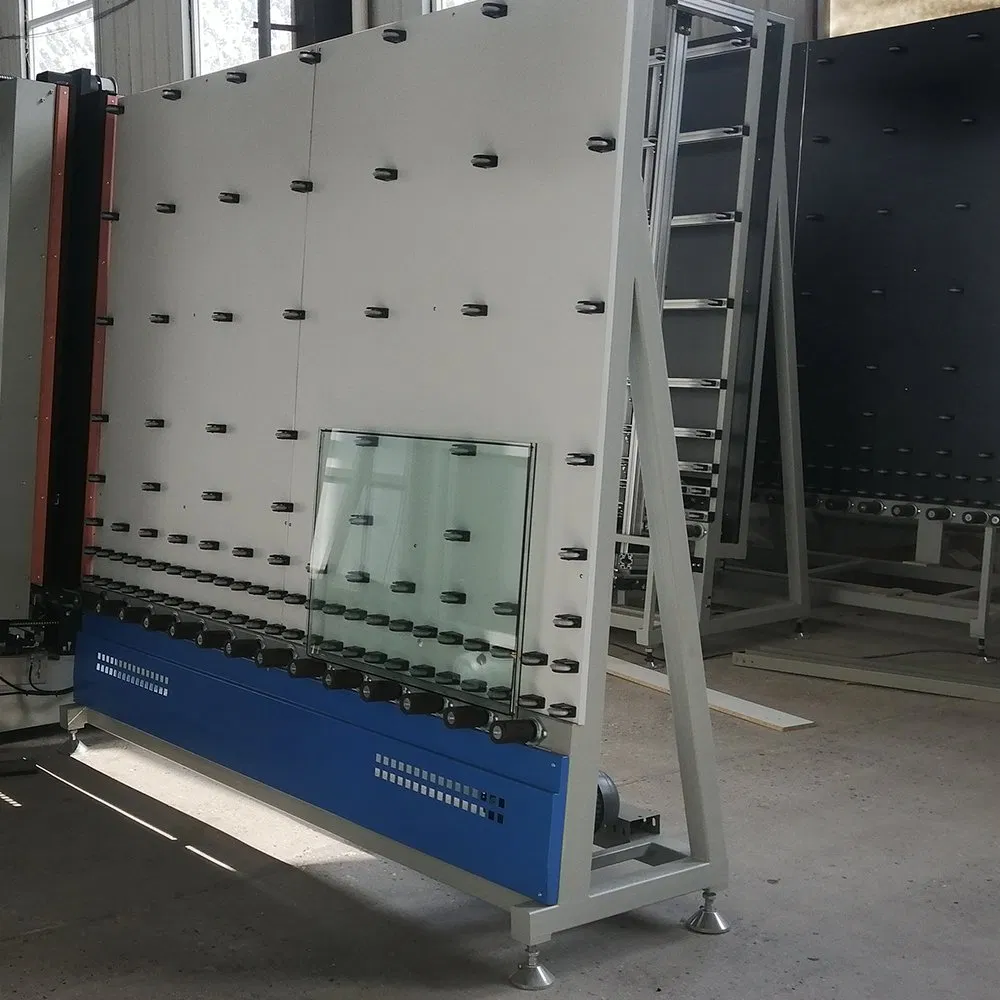

Assembly Unit: Sandwiches butyl coated spacer frames between two pieces of glass vertically for easy alignment.

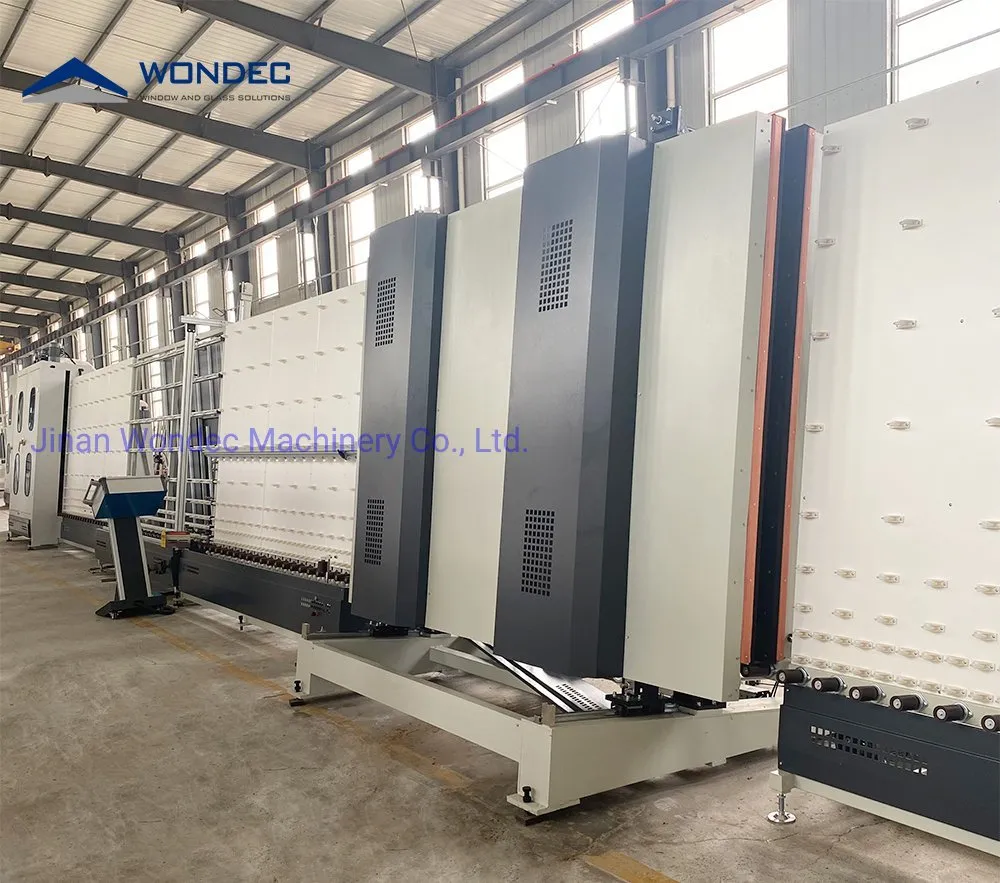

Pressing Unit: Utilizes flat panel or rollers press. After pressing, the insulated glass is ready for final sealing.
Technical Parameters
Input Power
29KW
Max. Glass Size
2000*3000mm
Min. Glass Size
500*300mm
Pane Glass Thickness
3-12mm
Max. IG Thickness
12-80mm
Glass Washing Speed
3-12m/min
Working Speed
2-48m/min
Air Pressure
0.8m³/min
Water Conductivity
≤40µS/cm
Overall Dimension
21300*2500*2900mm
Production Gallery
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with more than 10 years of experience in the glass processing machinery sector.
Can the machine be customized to our local voltage?
Yes, we can customize the electrical system of our machines to match your local voltage requirements.
What is the process after payment is made?
Upon confirming the deposit, we immediately arrange production. After manufacturing and testing, we provide a performance video for your feedback before final packing and shipment.
Can you assist with shipping arrangements?
Yes, we work with experienced shipping partners to provide fast delivery and competitive pricing, handling the logistics based on your needs.
How do we handle machine installation?
All machines come with detailed manuals and instructional videos. Additionally, we provide online technical support via dedicated communication groups to assist with installation and setup.
