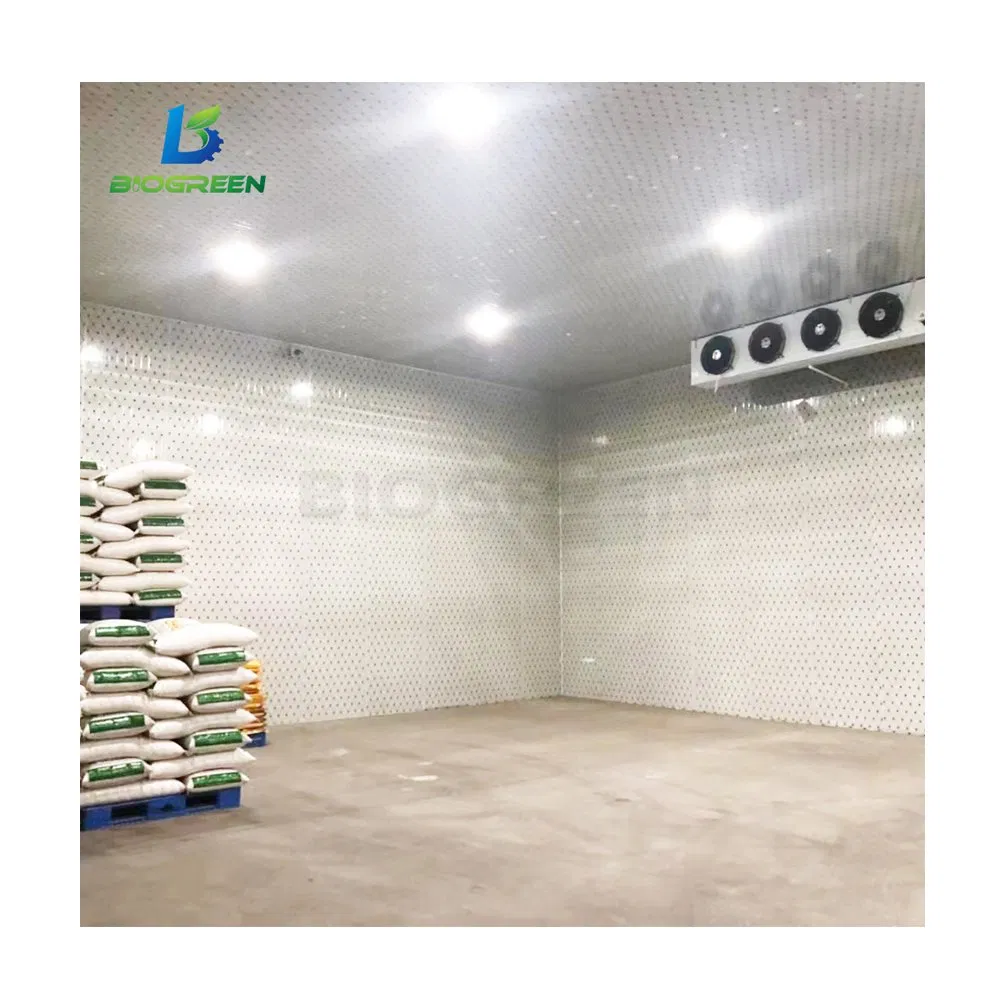

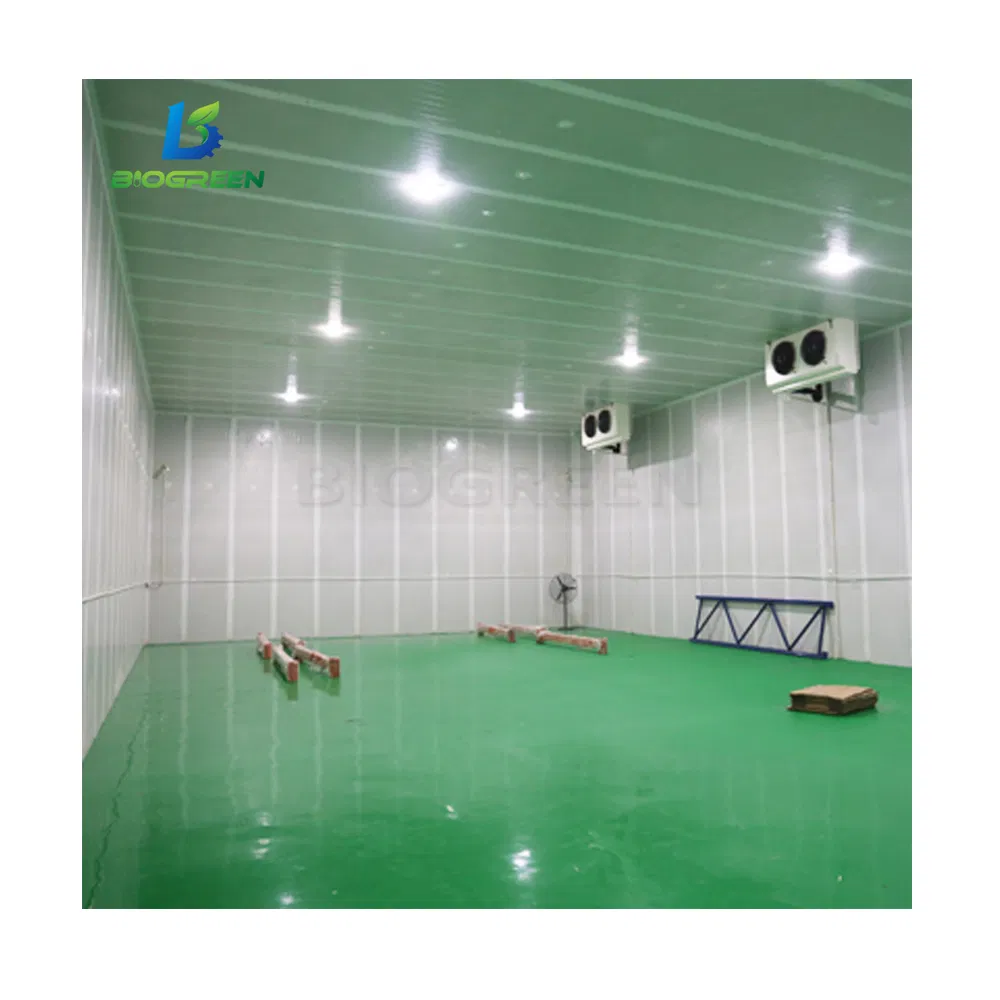

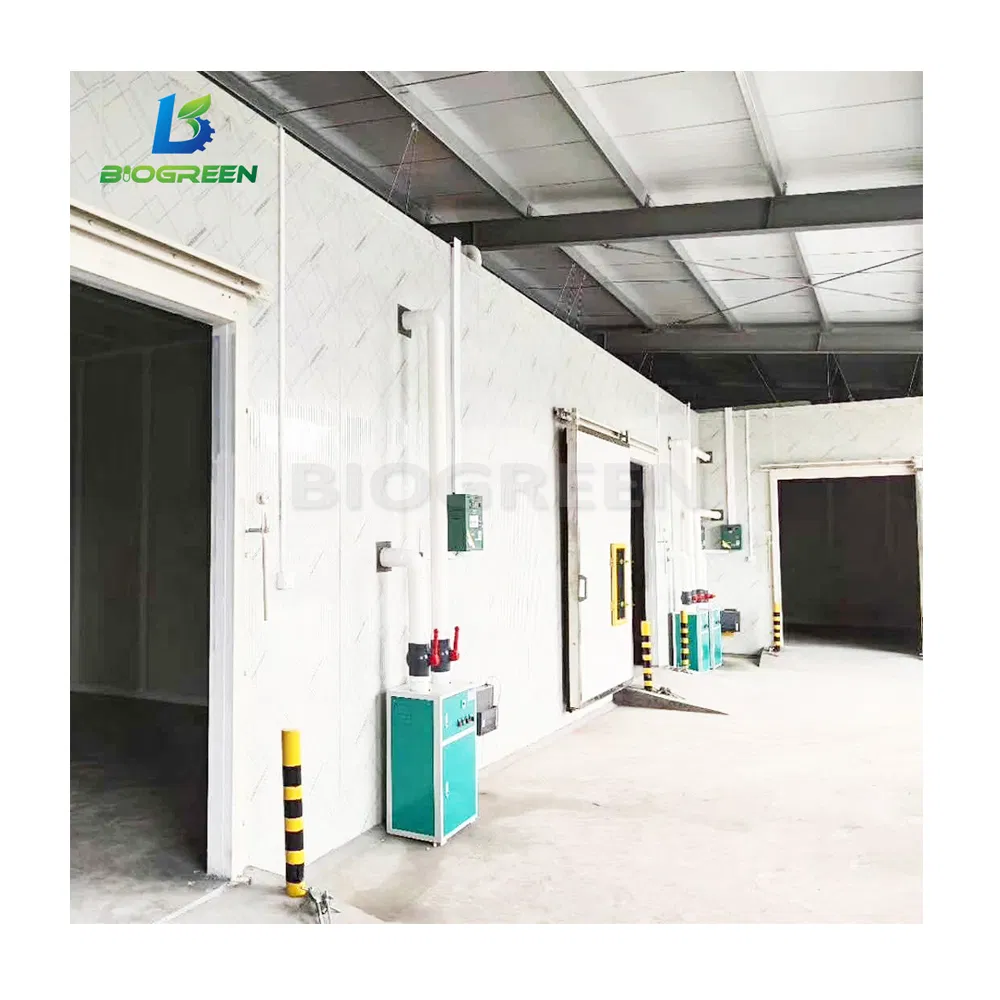

Cold Storage for Frozen Meat, Seafood, Vegetable and Fruits

Basic Specifications

Model NO.

BD-CSR-P

Refrigerant

R404A, R22

Size

Customized

Structure

Customized

Usage

Food, Medicine, Cold Storage, Meat, Sea Food, Fish, etc

Warranty

1-2 Years

Certification

ISO, CE, CCC

Voltage

380V/3p/50Hz or 220V/1p/50Hz

Core Components

Pressure Vessel, Motor, Pump, Engine

Panel Thickness

75, 100, 120, 150mm

Feature

Energy Conservation

Material

Color Steel or Stainless Steel

Introduction

The cold storage is mainly composed of envelope structure and prefabricated sandwich panels. The color panels, aluminum panels or stainless steel panels are adopted on both sides of the sandwich panels, and the middle insulation material is rigid polyurethane. Its weight is lighter than that of conventional building materials by 5%~10%.

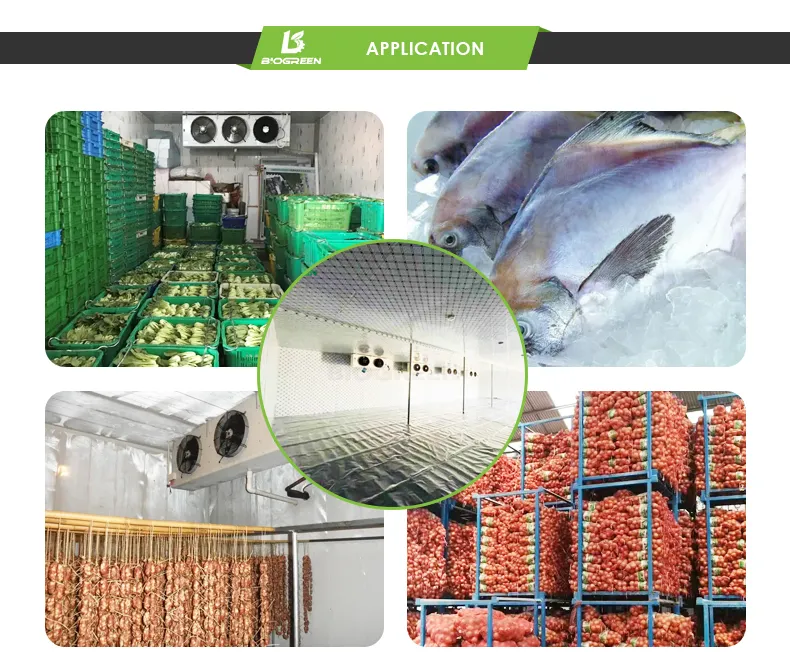

Utilizing Freon as a refrigerant, it can be equipped with various types of refrigeration equipment. It is widely used in the storage of meat, aquatic products, eggs, dairy products, frozen drinks, fruits, vegetables, edible fungi, pharmaceuticals, and industrial raw materials.

Knowledge & Classification

Category	Classification Details	Range / Suitable For
Capacity	Large / Medium / Small	From 1000 ton↓ to 10000 ton↑
High Temp	-2ºC ~ 12ºC	Vegetables, eggs, mushroom
Middle Temp	-10ºC ~ -2ºC	Refrigerated products
Low Temp	-20ºC ~ -10ºC	Frozen beef, mutton, fish, seafood
Freeze Storage	-50ºC ~ -20ºC	Frozen livestock and dairy products

Specifications & Components

Panel Material: Kraft paper, color steel, stainless steel, aluminum

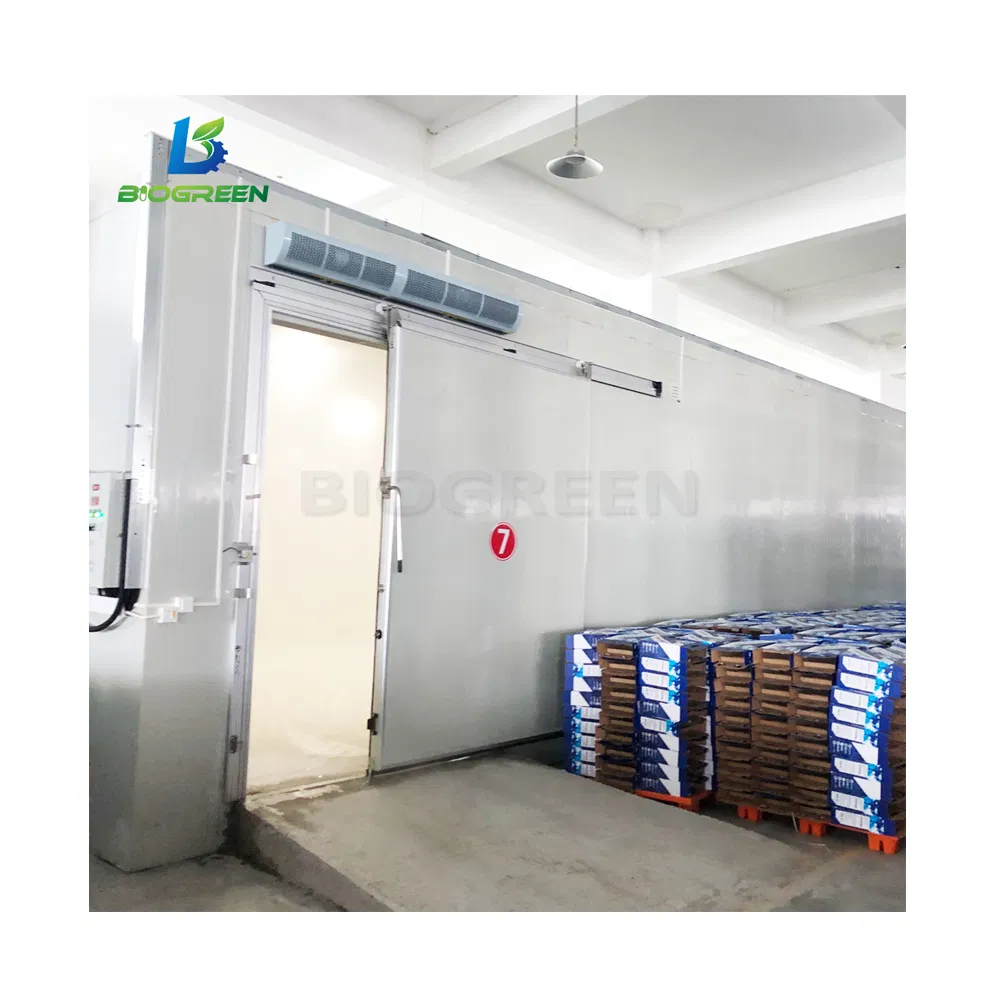

Door Types: Electric/Manual translational, Half/Fully buried, Free-style
Condensing Units: Copeland, Maneurop, Fusheng

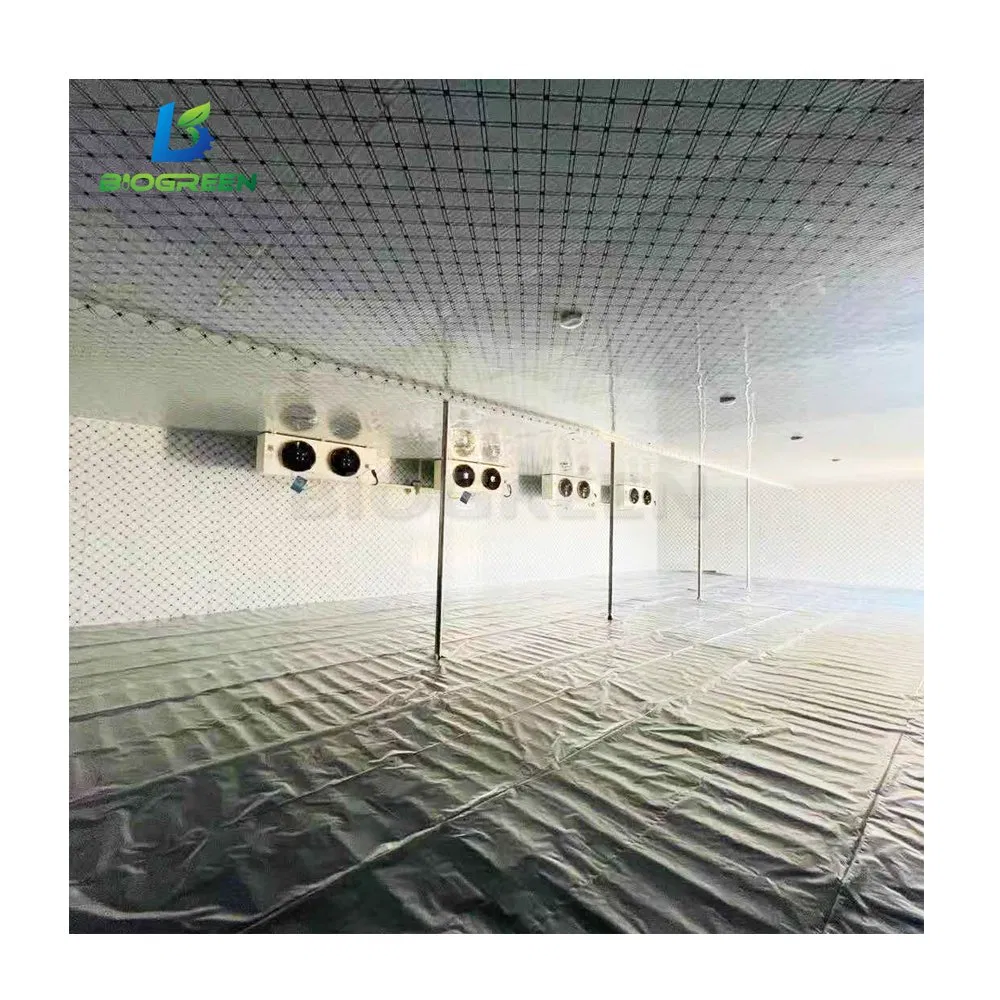

Evaporator: KELTESS Air-cooler
Accessories: World-famous brands (Castle, Siemens, LG, etc.)
Panel Width: ≤960mm or ≤1000mm

Product Gallery

Frequently Asked Questions

What materials are used for the cold room panels?

The panels are made of rigid polyurethane insulation with surface options including color steel plate, stainless steel plate, aluminum plate, or galvanized sheet.

What is the typical installation time?

Due to the internal embedded buckle type connection, assembly is very convenient. A small refrigerator typically takes only 3 to 5 days to complete installation and commissioning.

What temperature ranges can this cold storage support?

The systems can support a wide range from high-temperature storage (up to 12ºC) down to deep freeze storage (-50ºC).

What are the available panel thicknesses?

Standard thicknesses include 50mm, 75mm, 100mm, 120mm, 150mm, and 200mm, depending on the required insulation performance.

Which industries can use this cold storage system?

It is ideal for meat, aquatic products, dairy, frozen drinks, fruits, vegetables, edible fungi, pharmaceuticals, and various industrial raw materials.

What brands of compressors and components are used?

We utilize world-famous brands such as Copeland, Maneurop, Fusheng, Siemens, and LG to ensure high energy efficiency and reliability.
