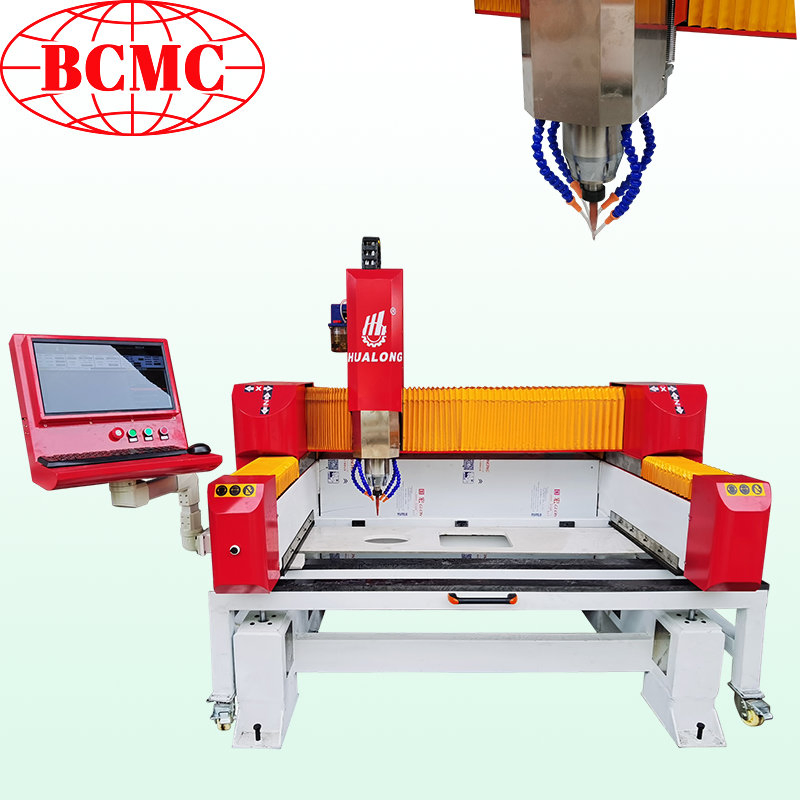

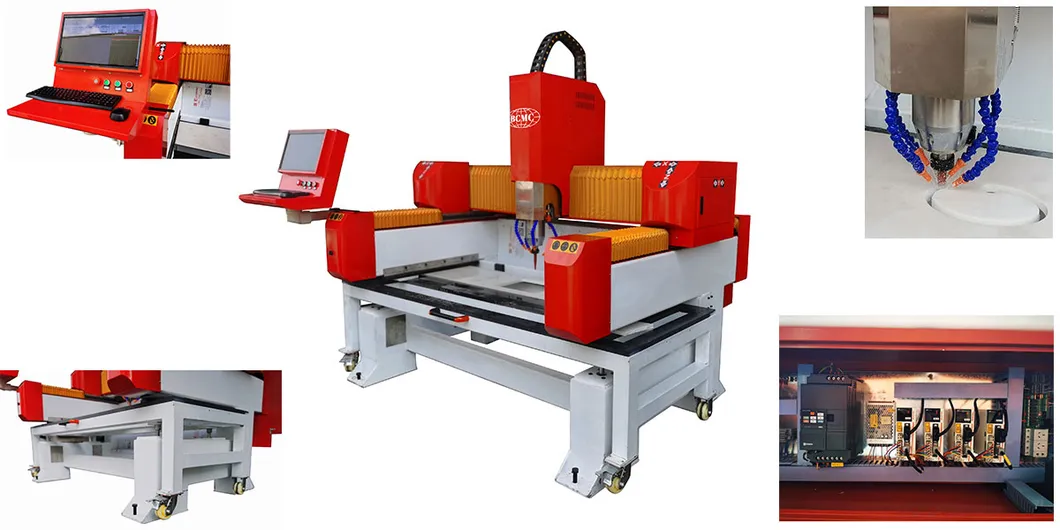

This series is a compact CNC processing center designed for multifunctional use while requiring minimal space. It is primarily utilized for sink and countertop processing. With low investment requirements, it significantly speeds up frequent processes such as granite and marble countertop sink cut-outs or stone sculpture processing. Additionally, it is suitable for carved glass-cutting and engraving melting materials. Its small footprint makes it easy to integrate into even the smallest stone workshops.
| Parameter Item | Unit | Specifications |
|---|---|---|
| Overall Dimensions (L x W x H) | mm | 2800*2200*2400 |
| Work Bench Specifications | mm | 1300*800*400 |
| Control System | - | SLCA100 |
| Servo Motor | - | JMC |
| Water Cooling Spindle | kw | 7.5 kw (0-24000 rpm/min) |
| Guide Rail | - | Hiwin Linear Guide |

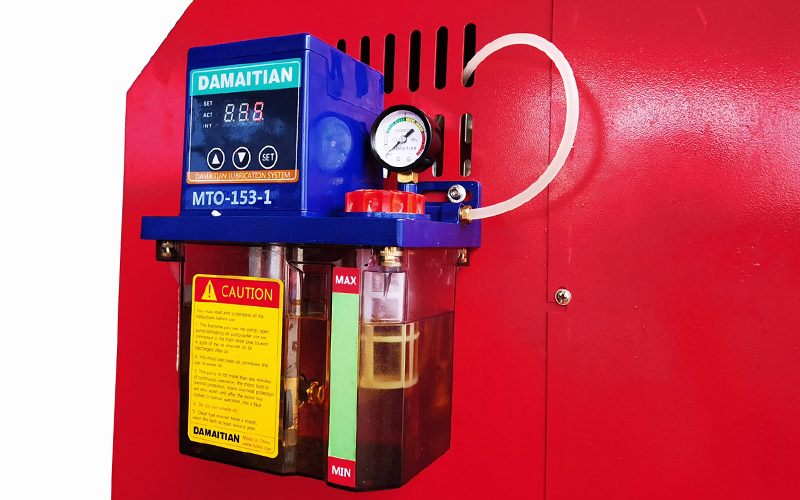

| Lubrication System | - | Automatic oil feeding |
| Processing Precision | mm | 0.003 |
| Reposition Precision | mm | 0.003 |
| Max. Processing Speed | mm/min | 6000 |

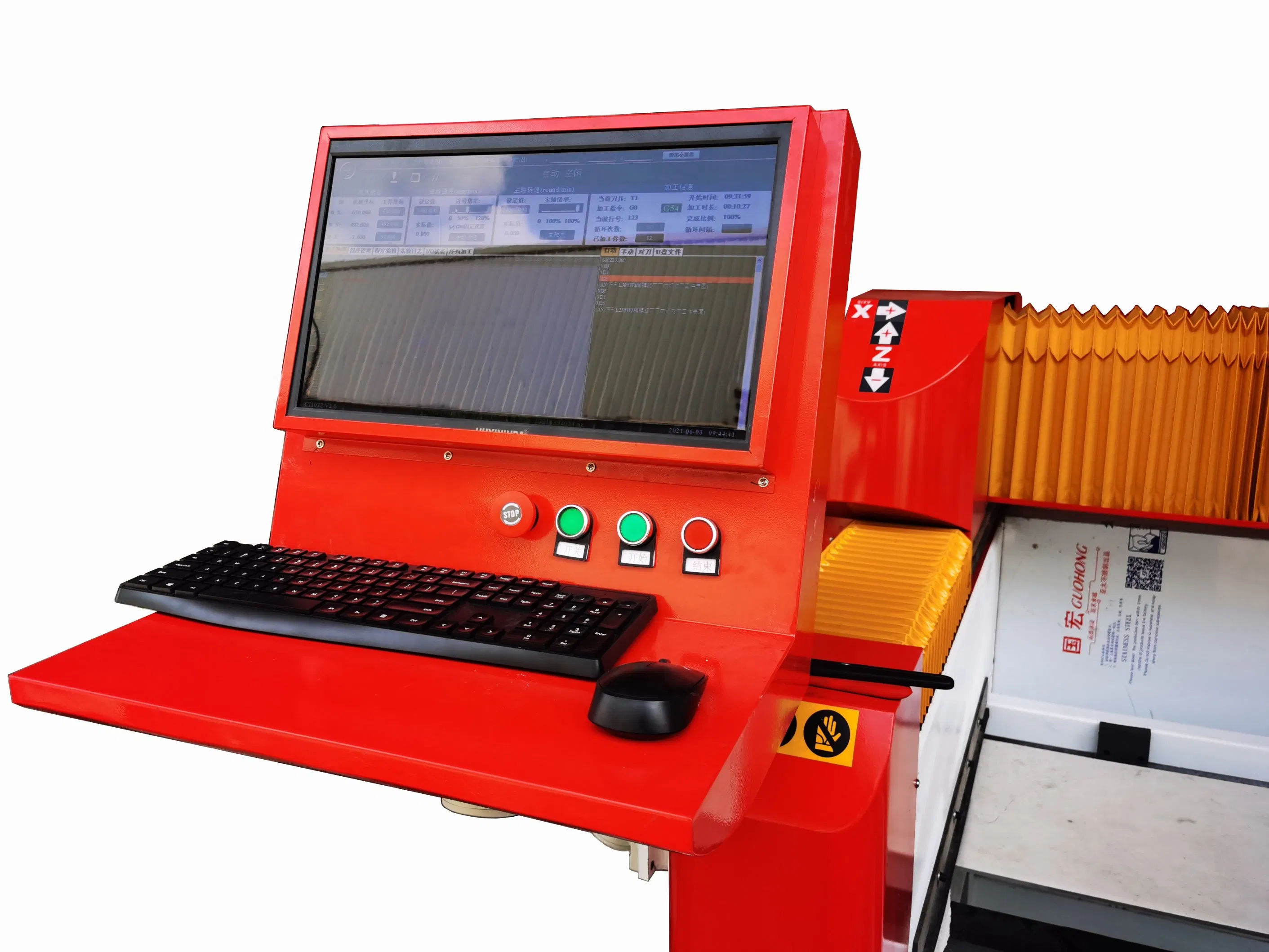

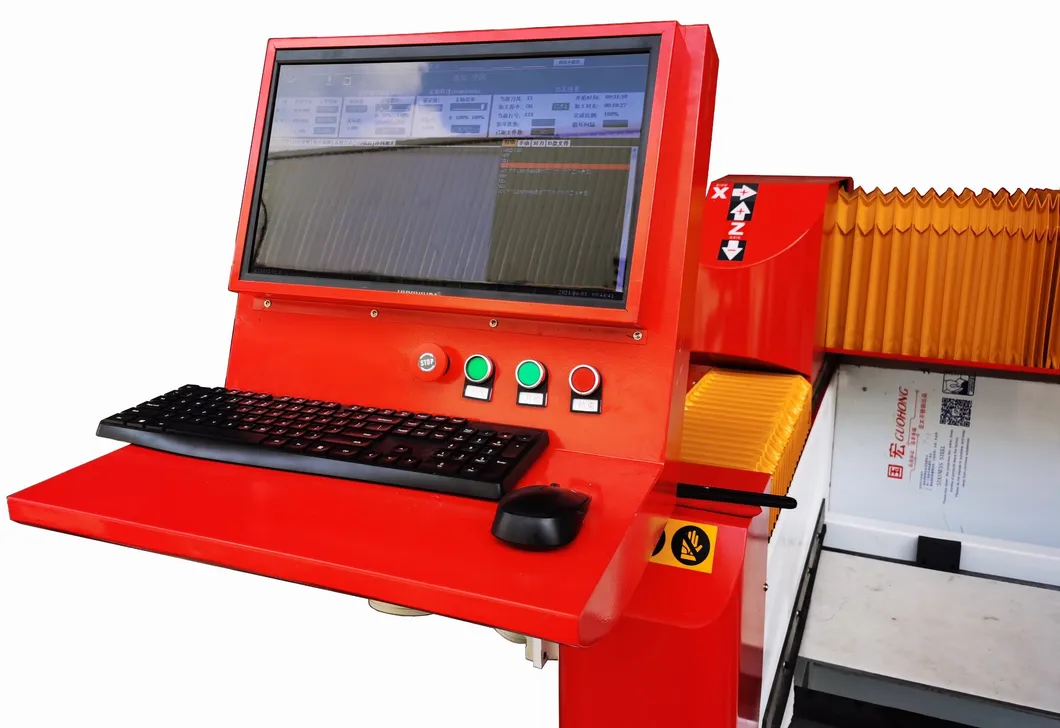

CNC touch screen system SLCA100. Features easy setting with an automatic processing function, making machining jobs highly efficient and straightforward.

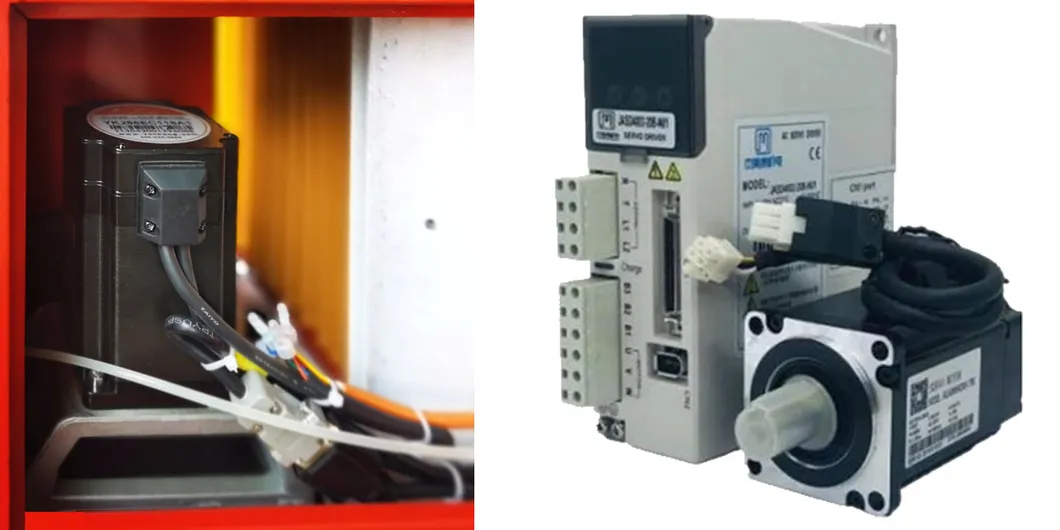

Integrated drive servo motor designed for total digital integration with the CNC control system, providing reliable power for X, Y, and Z axis movement.

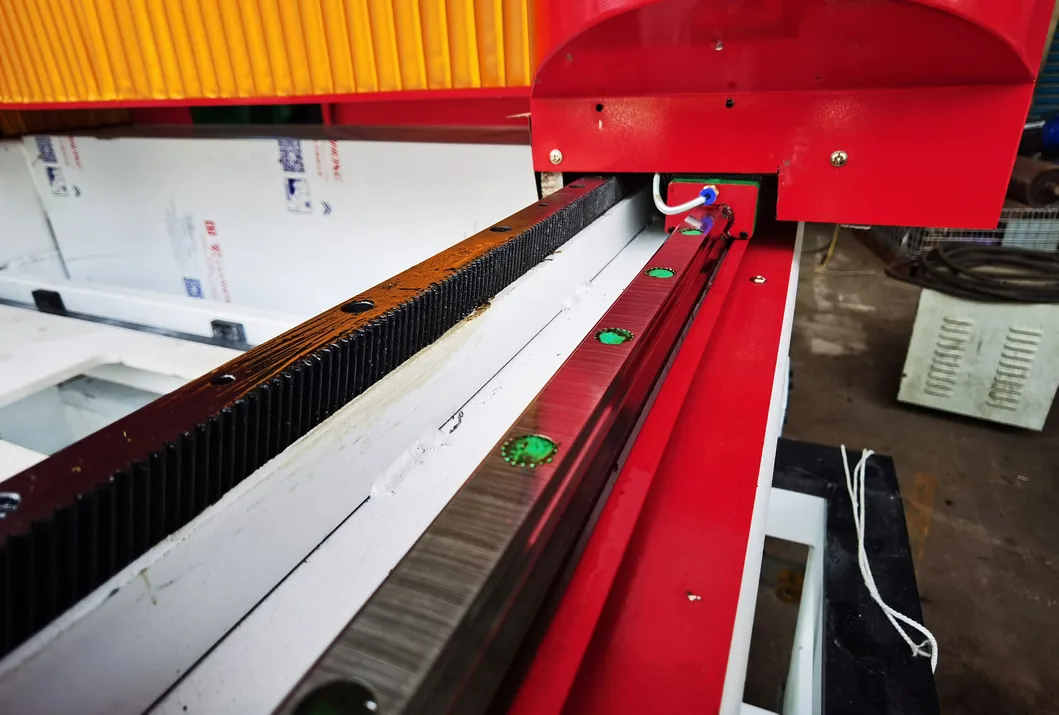

Equipped with top-quality Taiwan Hiwin linear guides to ensure precise movement across all 3 axes. Z-axis uses ball screws; X/Y axis use rack and gear.

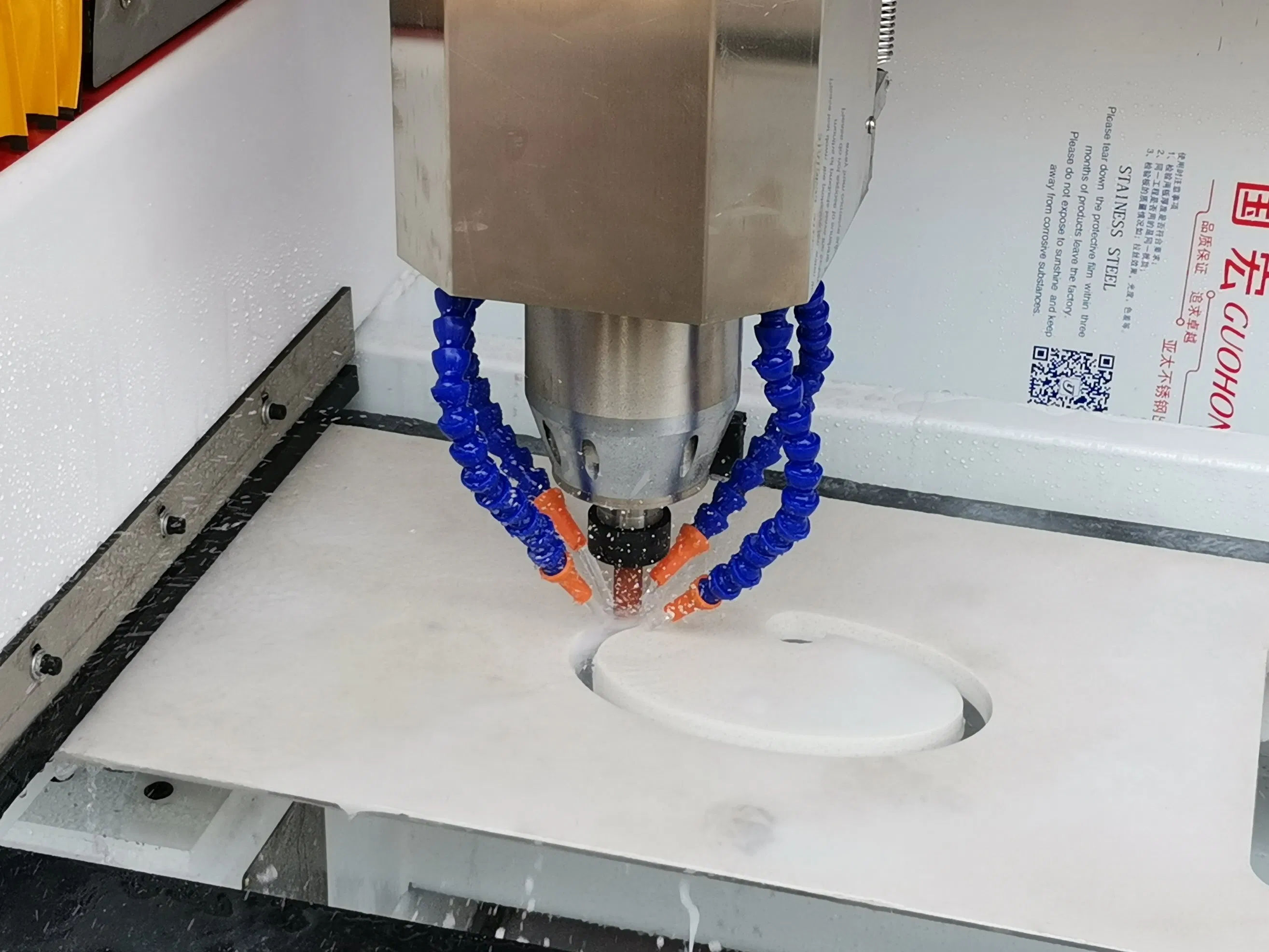

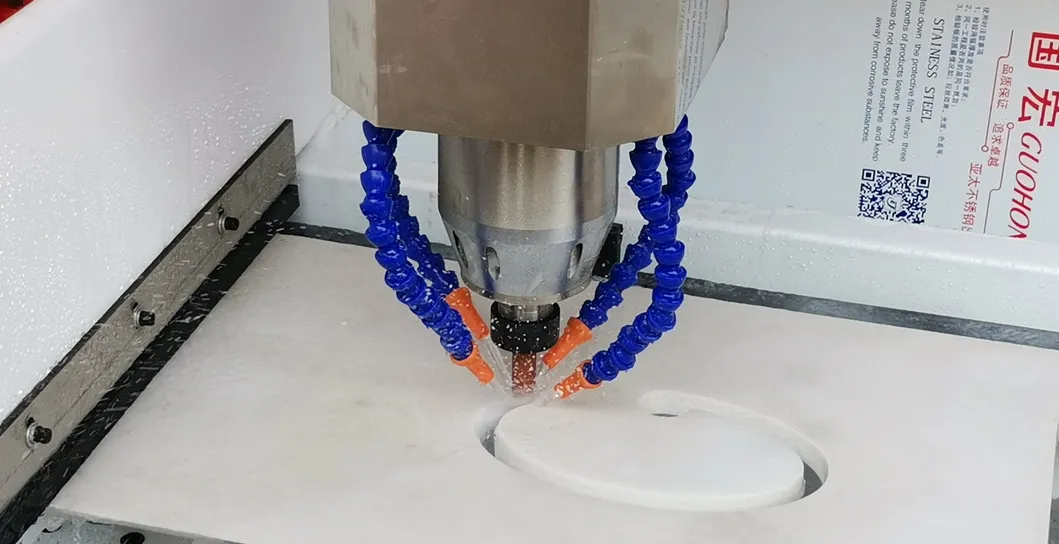

High-speed frequency changing water-cooled spindle with bearing technology. Ensures low noise, fast response, and safeguard stability for long-time work.

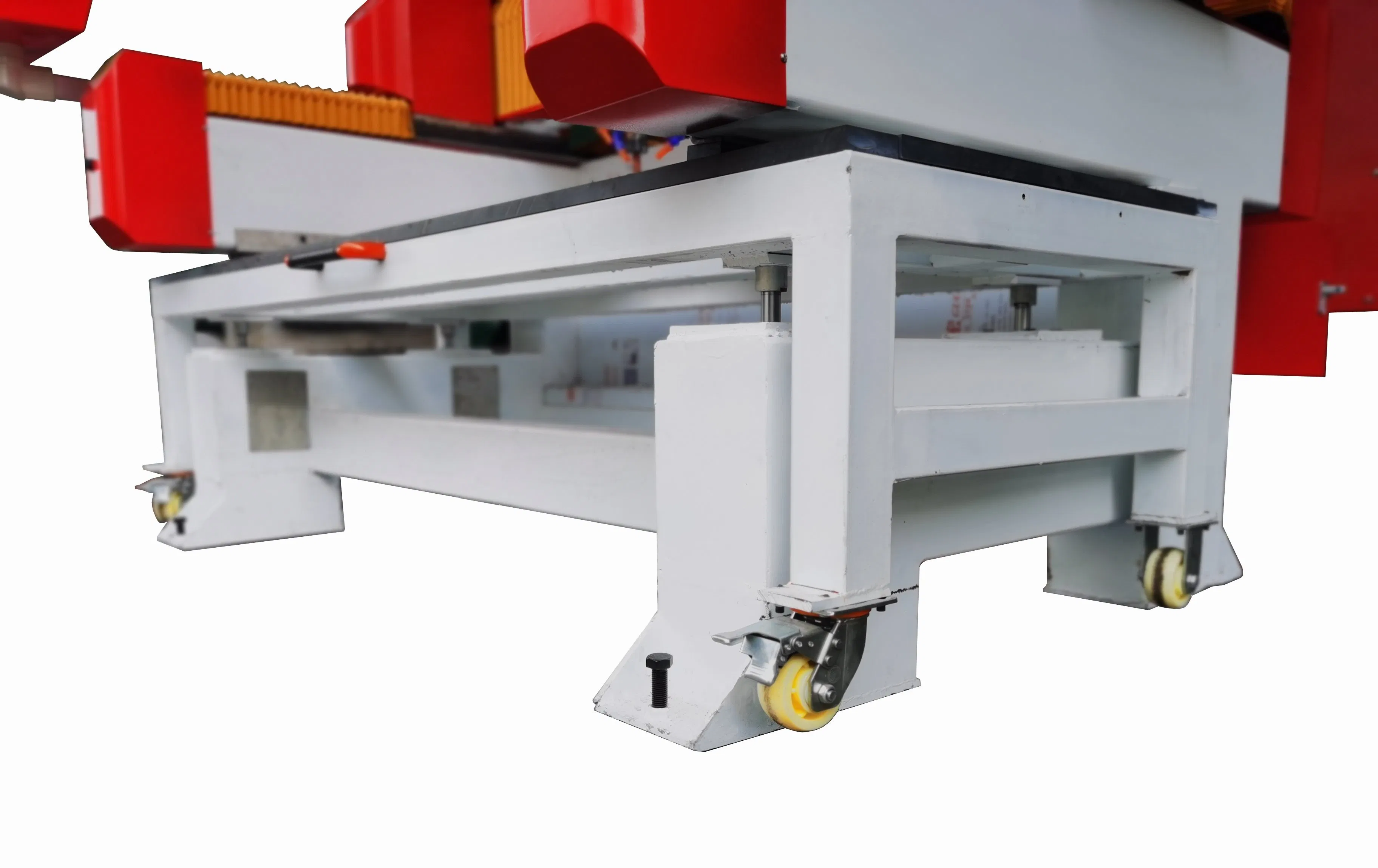

Movable working bench for easy loading and unloading. The open structure allows for slabs of any length, fixed instantly with pneumatic locking pistons.
