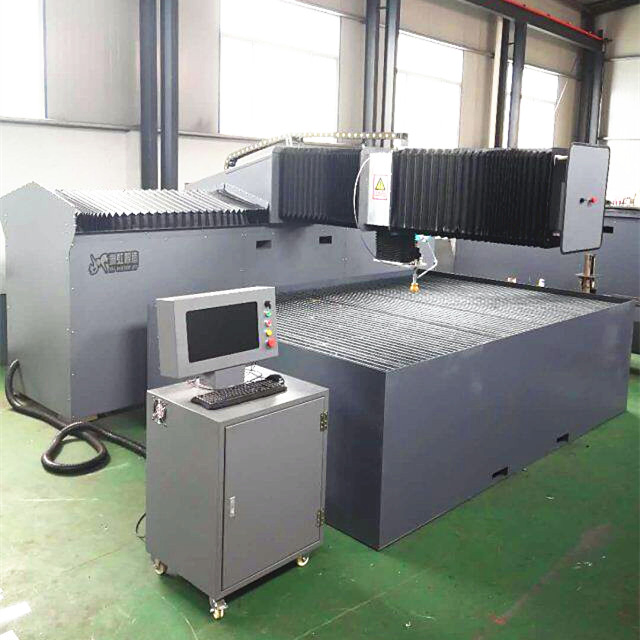

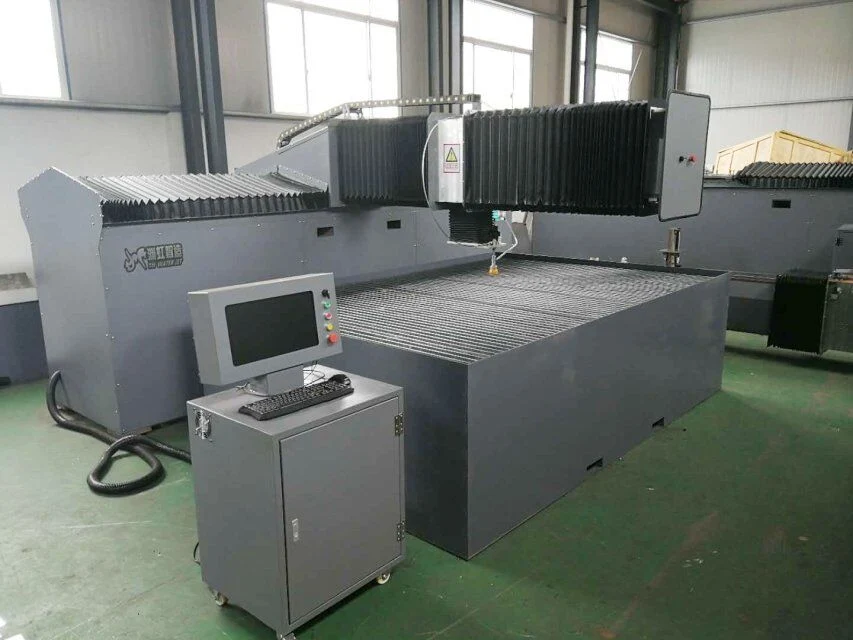

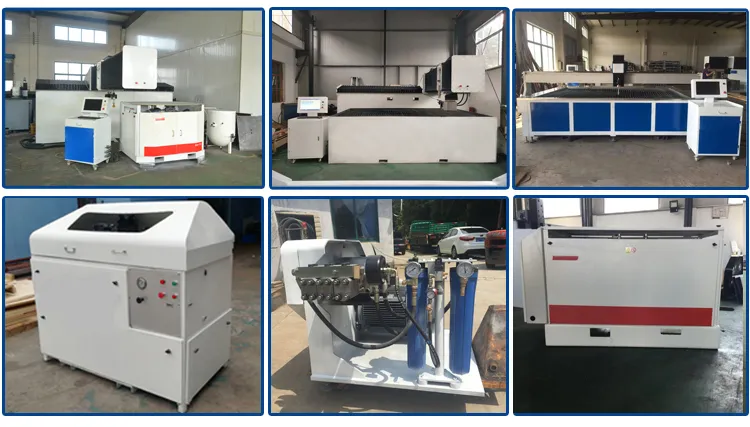

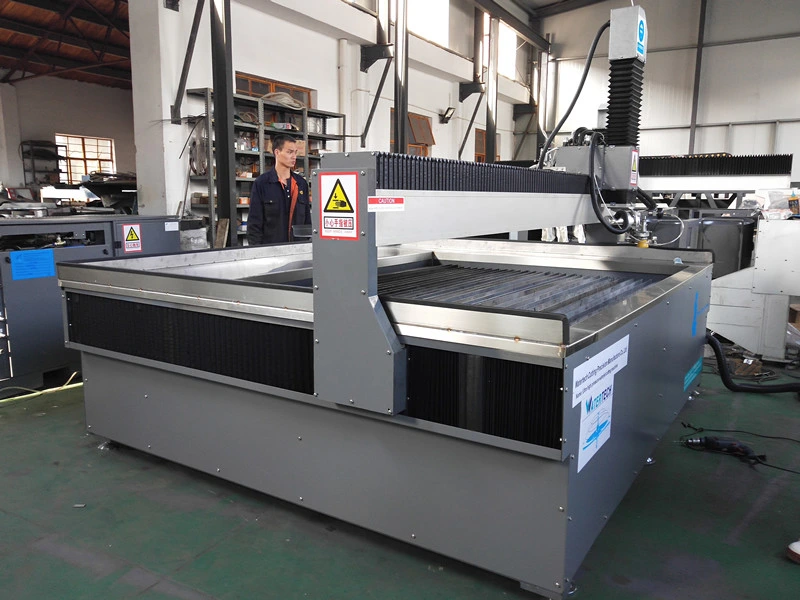

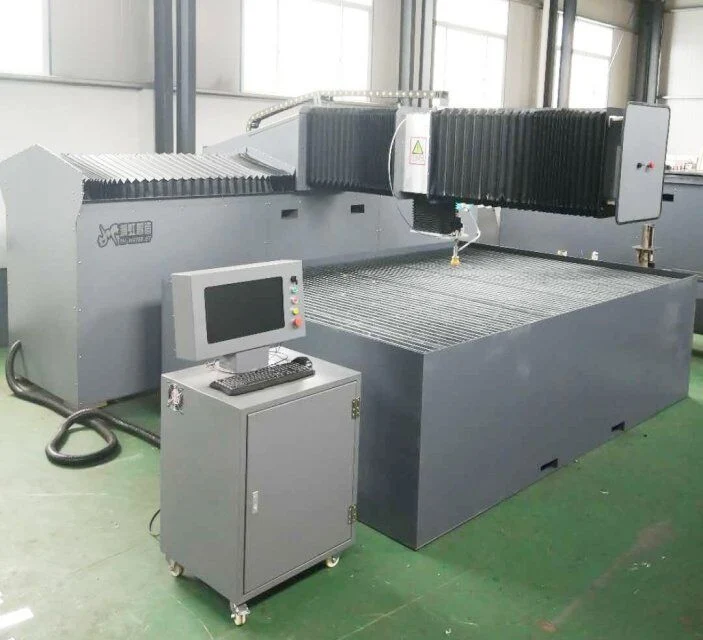

A complete waterjet cutting machine system is composed of four primary high-precision components: the Cutting Table, CNC Controller, Auto Abrasive Feeder, and the Intensifier Pump. This integration ensures seamless operation for complex industrial cutting tasks.
| Cutting Table | Model | 1313 | 2015 | 3020 | 4020 | 6020 | Customized | |
| Structure | Gantry water cutting platform / Cantilever series | |||||||
| Travel | X Axis | 1300mm | 2000mm | 3000mm | 4000mm | 6000mm | - | |
| Y Axis | 1300mm | 1500mm | 2000mm | 2000mm | 2000mm | - | ||
| Speed | Max. Move Speed (X/Y) | 6000mm/min | ||||||
| Max. Move Speed (Z) | 1000mm/min | |||||||
| Accuracy | Positioning Accuracy | 0.127mm | ||||||
| Repeat Accuracy | ±0.076mm | |||||||
| Loading Capacity | 300Kg/m2 | |||||||

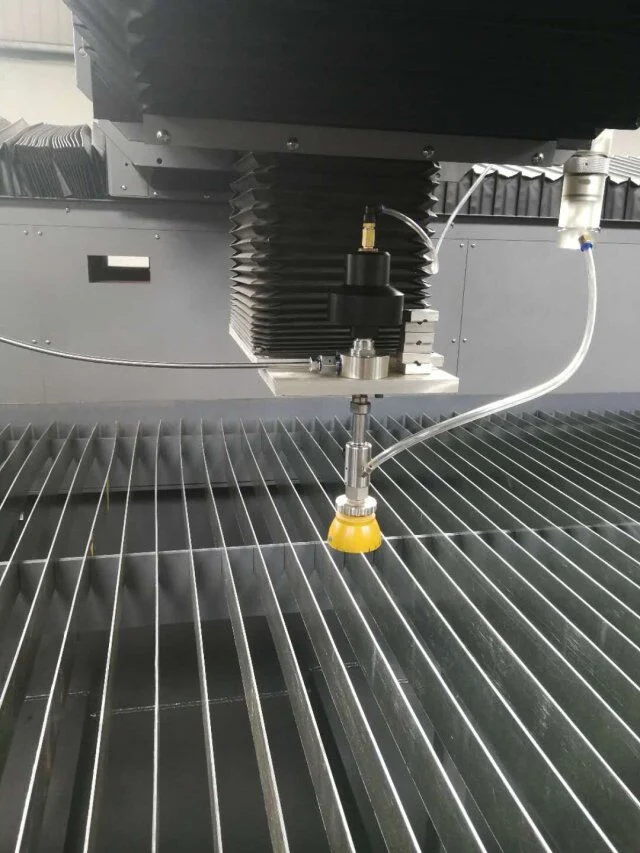

| Cutting Head | 3 axis / 5 axis | Movement: Linear motion / Rotary motion | |||||||
| CNC Controller | 15 inch LCD monitor | Support DXF and NC code | OS: Windows 7 | Shock & Electromagnetic resistance | |||||||
| Abrasive Feeder | Max. Inlet Pressure: 0.2-0.4 Mpa | Capacity: 170 L | Auto control with CNC auxiliary function | |||||||
| Intensifier Pump | Power: 50HP (37 KW) | Max Pressure: 60000psi (4137 bar) | Tank: 114L | Cooling Flow: 11.4L/min | |||||||
Our ultra-high pressure water jet equipment represents the pinnacle of research and development in machining experience. By integrating high-precision electronic equipment manufacturing with advanced vision platform technology, the cutting equipment achieves superior precision, efficiency, and property performance.
A: Waterjet machines are extremely versatile and can cut almost any material, including metal (stainless steel, aluminum, copper), stone, glass, ceramics, and composite materials without heat-affected zones.
A: The intensifier pump uses hydraulic technology to create high pressure, suitable for heavy-duty and continuous industrial use. The direct drive pump is highly efficient, converting electrical energy directly into high-pressure water with a smaller footprint.
A: Our machines feature a positioning accuracy of 0.127mm and a repeat accuracy of ±0.076mm, making them ideal for high-precision industrial components.
A: Yes, while we offer standard sizes like 1313, 2015, and 3020, we can provide customized table dimensions to meet specific production requirements.
A: The controller runs on Windows 7 and supports standard industrial file formats including DXF and NC code, allowing for easy integration with most CAD/CAM software.
A: The system includes a specialized air valve and automatic CNC auxiliary functions to monitor flow and prevent jams, ensuring a smooth and uninterrupted cutting process.
