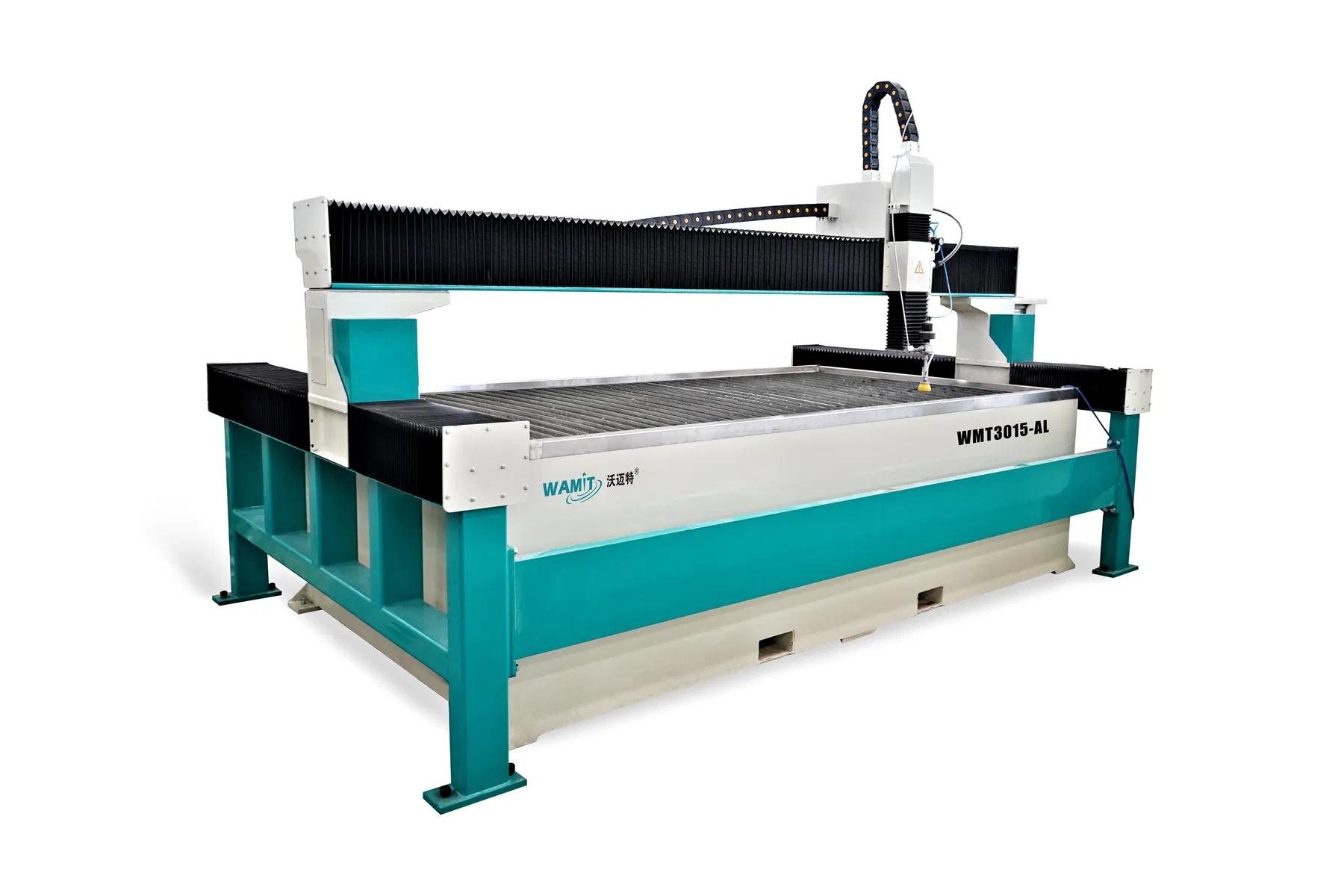

3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
1 / 5
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine
3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine

3 Axis 5 Axis 300mm Water Jet Stone Cutter Laminated Glass Bathroom Door Window CNC Water Jet Cutting Machine

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

Basic Information

Model NO.WMT3020-AL
CertificationCE
ControlAutomatic
ApplicationMetal, Rubber, Ceramic, Glass, Stone, Plastic, Leather
Power SourceElectric
StyleGantry
TypeThree-Axis / Five-Axis
Weight3500 Kg
Maximum Pressure420 MPa
Cutting Accuracy0.1 mm
Motor and PLCSiemens
Rated Power37kw

Product Description

3 Axis / 5 Axis CNC Water Jet Cutting Machine

High-efficiency cutting machine suitable for laminated glass, stone, metal, and bathroom door windows. Features advanced direct drive pump technology which can save 60%-70% electricity costs.

🚀 Key Advantages:

  • CE Certified: Meets international safety and quality standards.
  • High Efficiency: Flow type ECL cutting head increases efficiency by at least 10%.
  • Advanced Technology: Moving speeds up to 30m/min, reducing cutting costs by 20-50%.
  • Durable Components: Soft covers for linear guides and auto-oil feeding system for long-term precision.
  • Global Standard Parts: Features Schneider electric components, Siemens motors/PLC, and Yaskawa servo motors.
  • Robust Construction: 10mm steel for water tank support and 8mm steel for the beam ensures stability.

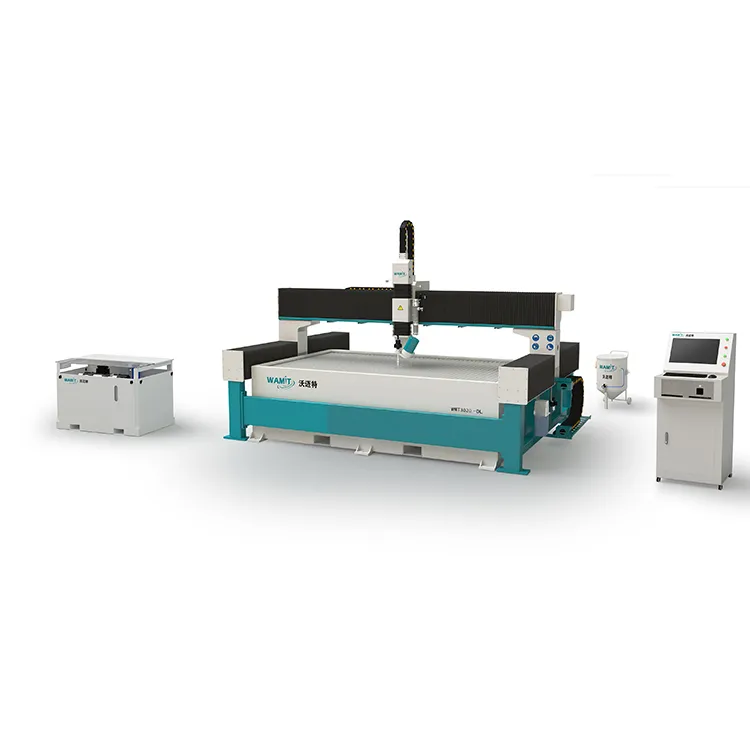

Water Jet Cutter

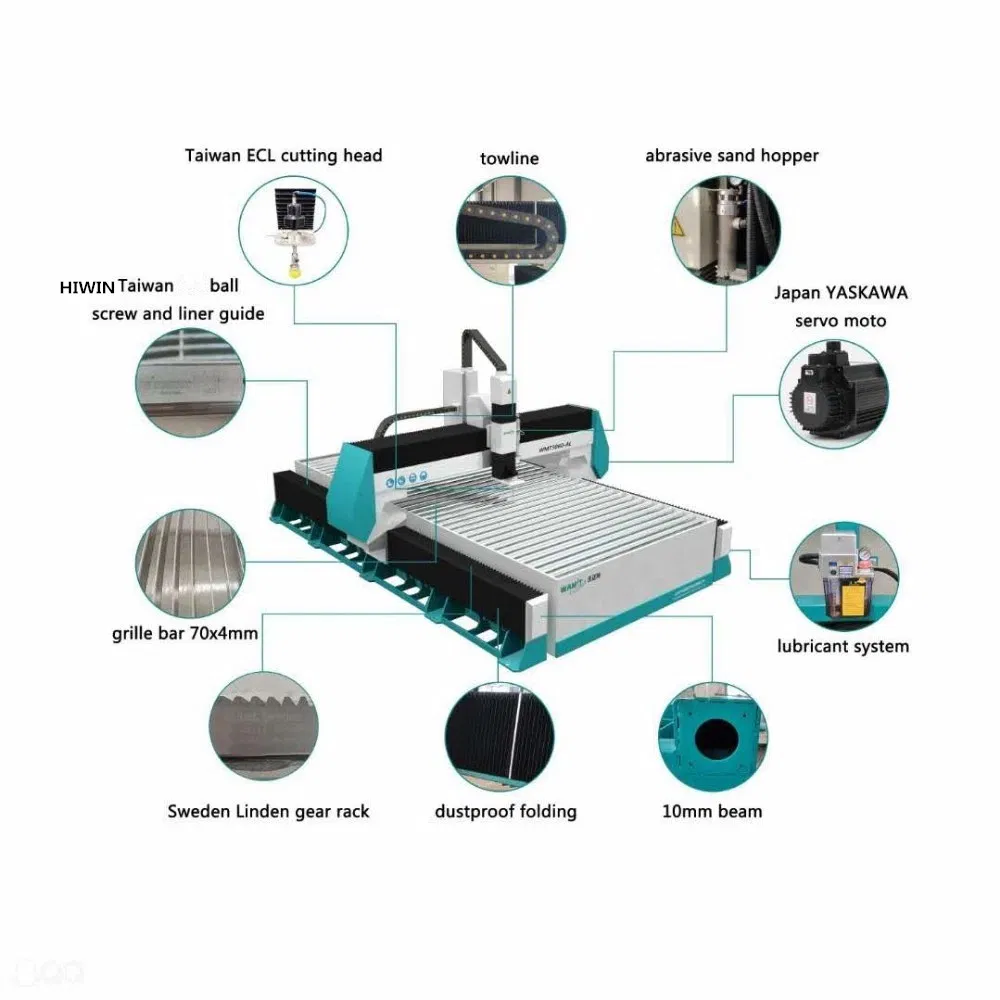

CNC Cutting Process

Technical Features

💎 Cutting Table

  • Gantry type balanced design for maximum stability.
  • Split structure eliminates water gushing influence on precision.
  • Fully enclosed Z-axis prevents corrosion.
  • Integrated automatic lubrication system.

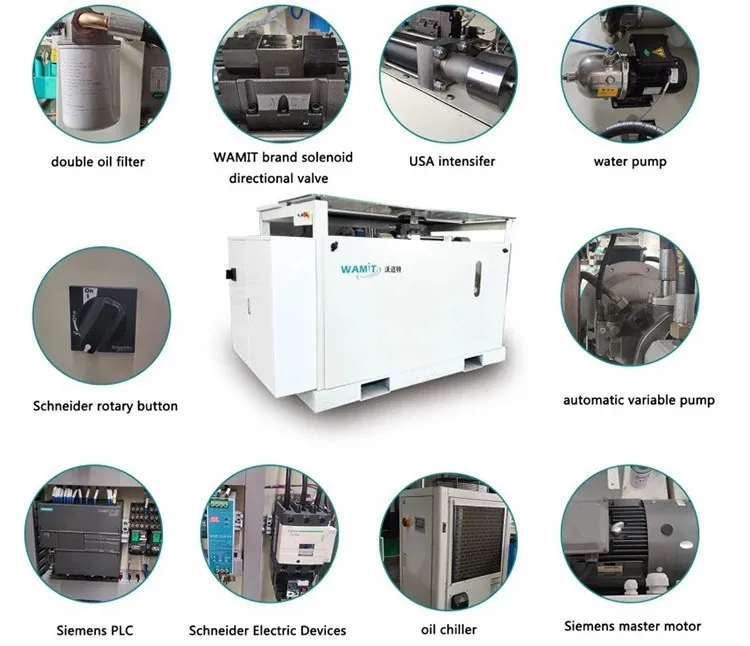

⚡ Intensifier Pump (420MPa)

  • Max. operating pressure: 60,000 psi.
  • Electronic shift type for smooth operation.
  • High-pressure parts imported from the USA.
  • Siemens variable pump reduces power consumption.

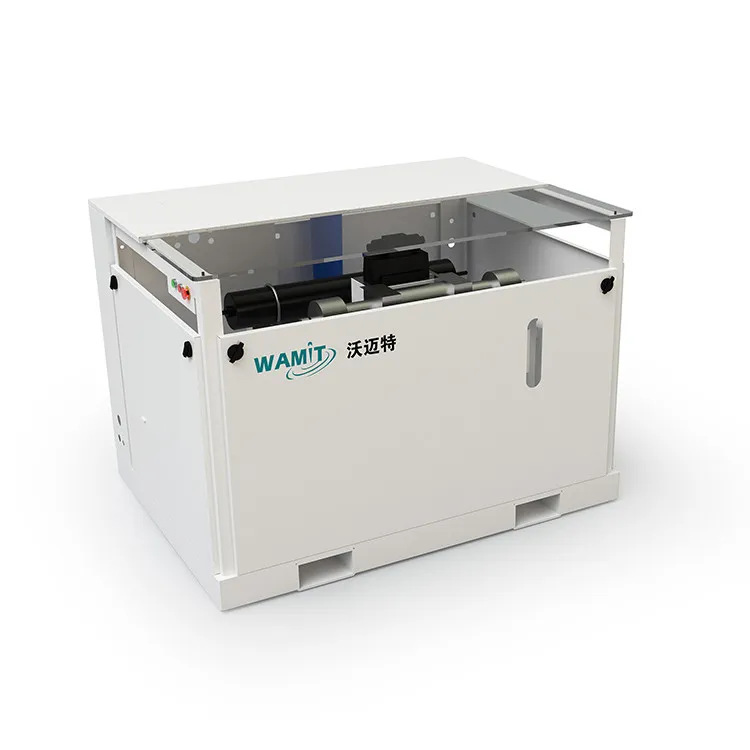

Pump System
Technical Detail

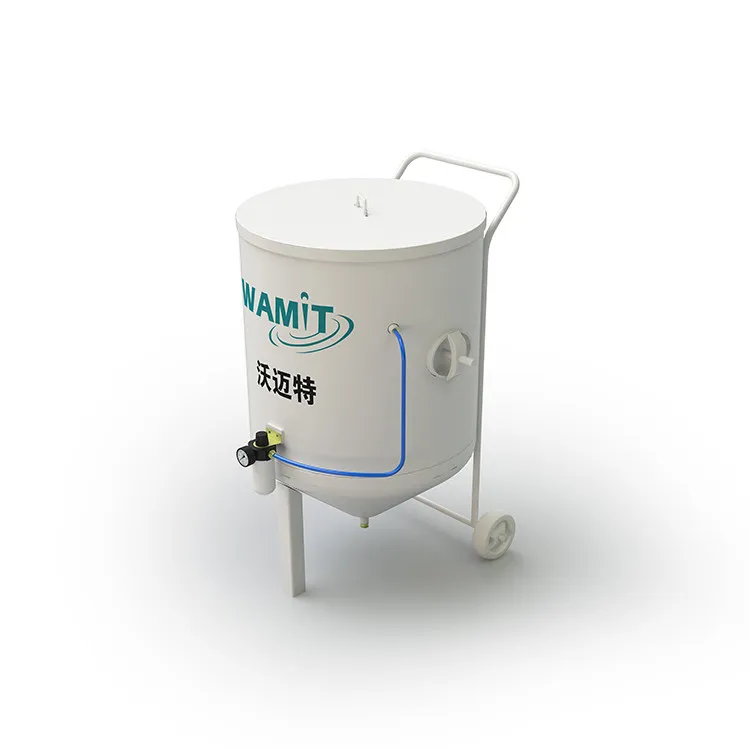

Machine Structure

Cutting Speed Performance

Material Thickness (mm) Servo Direct Drive (mm/min) Hydraulic Pump (mm/min)
Carbon Steel10mm330270
Carbon Steel20mm170110
Aluminum12mm800600
Glass10mm15001100
Ceramic Tile12mm20001500
Marble25mm1000800
Cutting Result 1
Cutting Result 2

Global Service & Support

Service Network
  • Export Excellence: Machines exported to over 20 countries worldwide.
  • On-site Installation: Professional engineers available for factory installation and staff training.
  • Rapid Response: Technical support feedback time guaranteed within 12 hours.
  • Warranty: One-year warranty on main parts and whole-life technical service.

Frequently Asked Questions

What materials can your water jet cutting machine cut?
Our machines can cut a wide variety of materials including stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, titanium, and alloys.
What is the maximum cutting thickness?
For steel, it can cut up to 240mm (150mm for smooth finish). Other materials include: Marble (0-120mm), Tiles (0-40mm), Glass (0-80mm), and Aluminum (0-80mm).
How do you provide after-sales service?
We offer local service in many regions. If not available locally, we arrange engineers for overseas installation and training (typically 7-10 days) and provide detailed videos.
What is the typical delivery time?
Generally, the delivery time is 30 days. If the specific model is in stock, it can be shipped within 7-15 days.
Are your components compatible with international standards?
Yes, we use world-renowned brands such as Siemens (Motors & PLC), Schneider (Electric components), and Yaskawa (Servo drives) to ensure global compatibility and reliability.
Is there a warranty provided?
All machines come with a one-year warranty on main components and whole-life technical support for the entire system.
