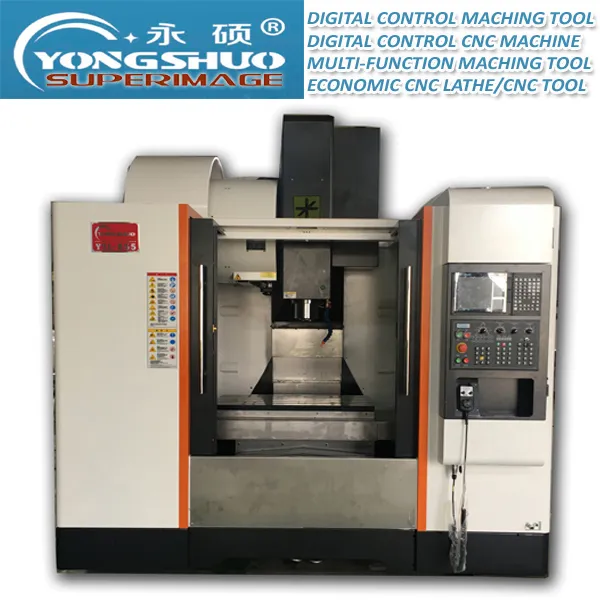

1700*800mm Vertical CNC Machine Center/CNC Lathe/CNC Milling Machine/CNC Milling and Drilling

1 / 5

1700*800mm Vertical CNC Machine Center/CNC Lathe/CNC Milling Machine/CNC Milling and Drilling

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

RAY-XS250#

Application

Glass

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

GS, CE, RoHS, ISO 9001

Production Capacity

1000 sets/Month

Origin

Made in China

Specification

xyz: 1500*800*700mm

⚙️

Product Description

CNC MILLING MACHINING CENTER

This high-precision vertical CNC machine tool is designed for multi-function operations including cutting, milling, drilling, engraving, and turning. It offers high efficiency, high stability, and high rigidity for professional industrial applications.

High Precision & High Rigidity
Multi-function capability for complex parts
Low noise and low consumable cost
Long service life with high stability

🛠️

Key Functions List

Code	Function Description
F1	Spindle Tapping Blowing Device
F2	Spindle Surround Spraying Cooling System
F3	Spindle Constant Temperature Oil Cooling System
F4	Spindle Center Air-curtain Automatical Protection System
F5	Automatically Centralized Lubrication System
F7	Tools Cooling System (Water-cooled, Air-cooled)
F10	Guide Rails Protection System
F15	Automatic Tool Height Setter Function
F19	Work-pieces Automatic Centering Function
F21	Real-time Automatic Tracking and Display Function

🖼️

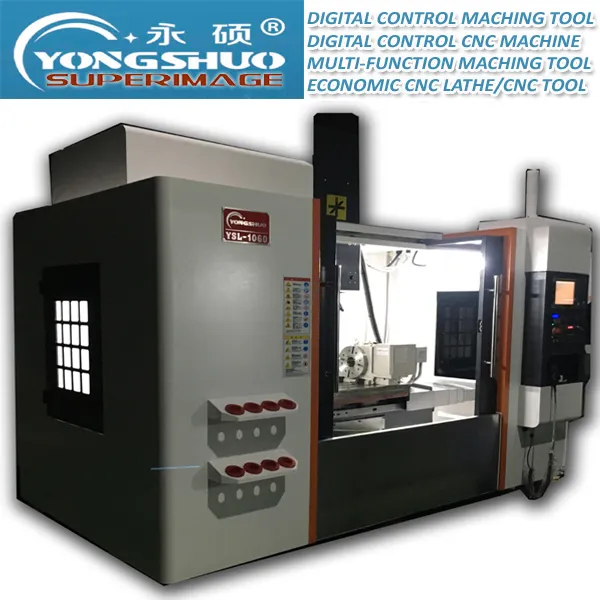

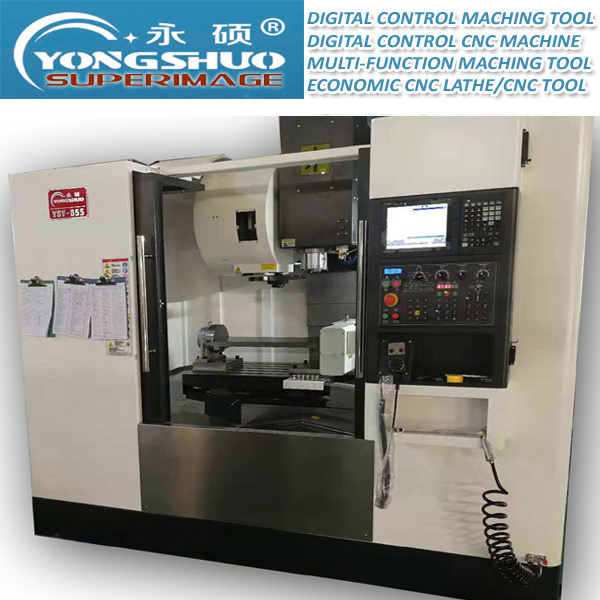

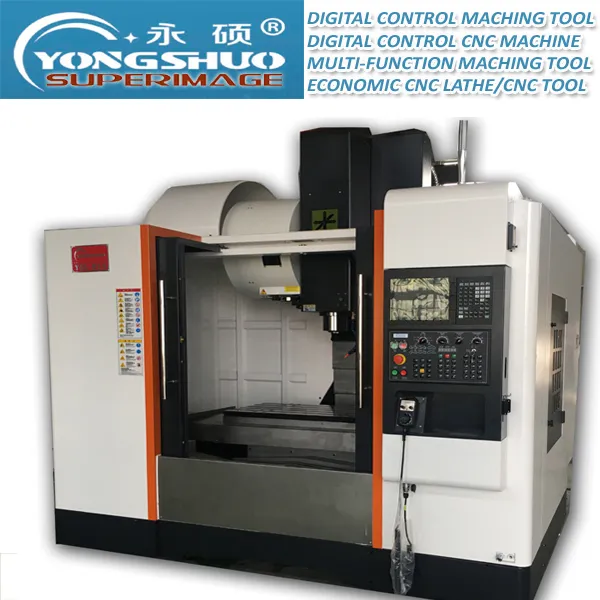

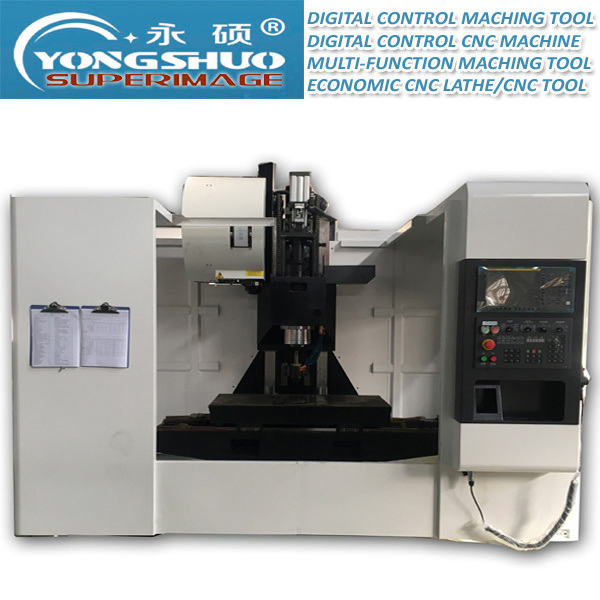

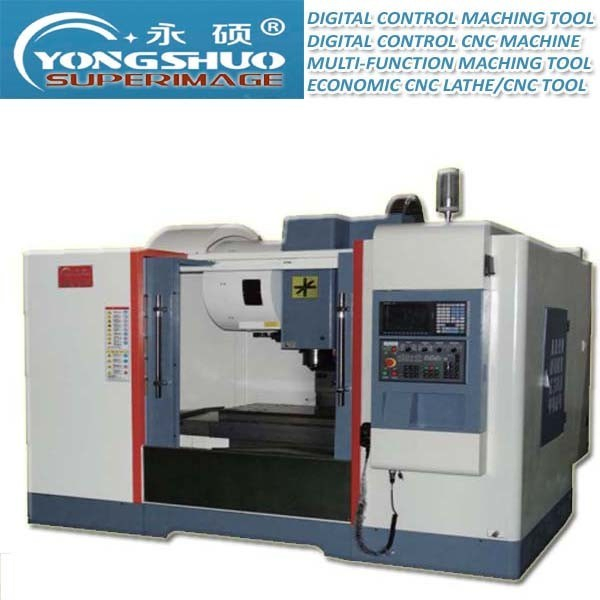

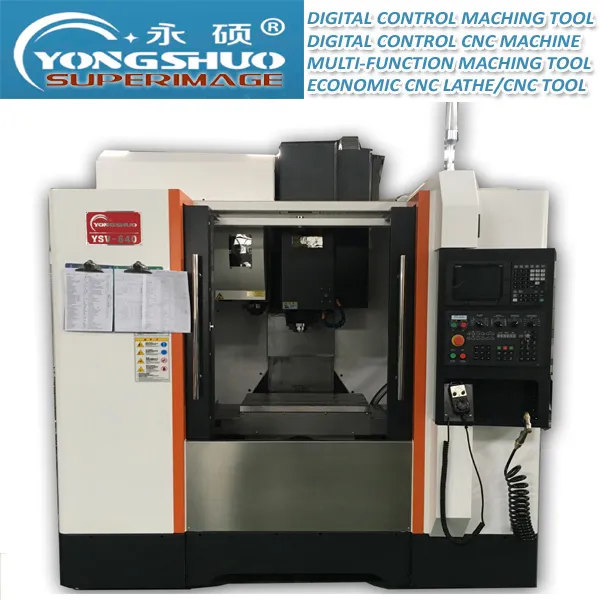

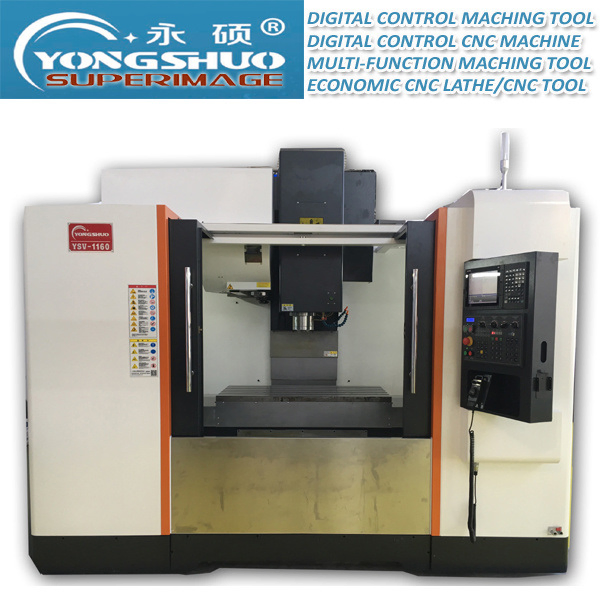

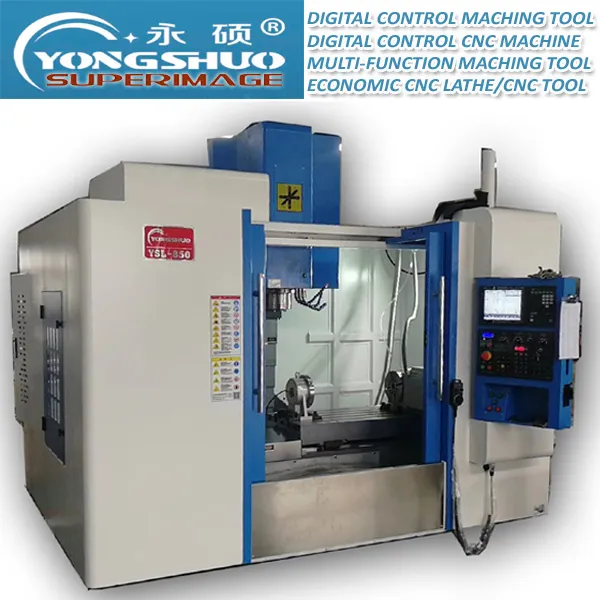

Product Visuals

⭐

Technical Advantages

HT300 Castings: High-grade resin sand molding with tempering and aging treatment to eliminate internal stress.
C3 Ball Screws: Top-quality precision screws from Taiwan ensuring axial operation accuracy.
Ultra-wide Base: Provides stable loading support and integrated guide plate to prevent cutting fluid leakage.
Hand Wheel Guidance: Allows equipment testing via hand wheel to avoid program collisions.
High-Speed Ethernet: Facilitates fast program calling and data transmission with 2G expanded memory.

📊

Technical Data (YSL-1580)

WORKBENCH SIZE	1700*800
X/Y/Z PROCESSING SIZE	1500 / 800 / 700
XYZ AXIS RAIL	XY-Axis Linear Rail, Z-Axis Heavy Rail
SPINDLE SPEED	0-8000/10000 RPM (Belt Connect)
MOTOR POWER	15KW or 18.5KW
CONTROL SYSTEM	FANUC, MITSUBISHI, SIEMENS, SYNTEC
MACHINE WEIGHT	13000 KG

❓

Frequently Asked Questions

What materials can this CNC machine center process?

This machine is multi-functional and can process steel materials, stainless steel, cemented carbide, high hardness metals, copper, aluminum, and even non-metallic materials like acrylic, gypsum, and plastic.

What is the delivery time and payment method?

The standard delivery time is 30 days after receipt of the down payment. Payments are accepted via T/T bank transfer (30% down payment, 70% balance before delivery).

How is the quality of the machine's components ensured?

Key parts are measured by three-coordinate instruments. Before leaving the factory, machines undergo strict testing using RENISHAW laser interferometers and spherical rod testers to guarantee precision.

What control systems are integrated into the machine?

The machines standardly support high-performance systems like FANUC, MITSUBISHI, SIEMENS, and SYNTEC, featuring pre-integrated 4-axis and 5-axis interfaces for easy upgrades.

What kind of operator training is available?

Comprehensive training is provided covering machine operation, programming (G/M/S/T instructions, coordinate systems), and daily maintenance/troubleshooting procedures.

What are the environmental requirements for using the machine?

The machine should be used in an ambient temperature of 0-40°C with humidity below 80%. The electronic control cabinet is sealed and dustproof (IP65) for industrial reliability.
