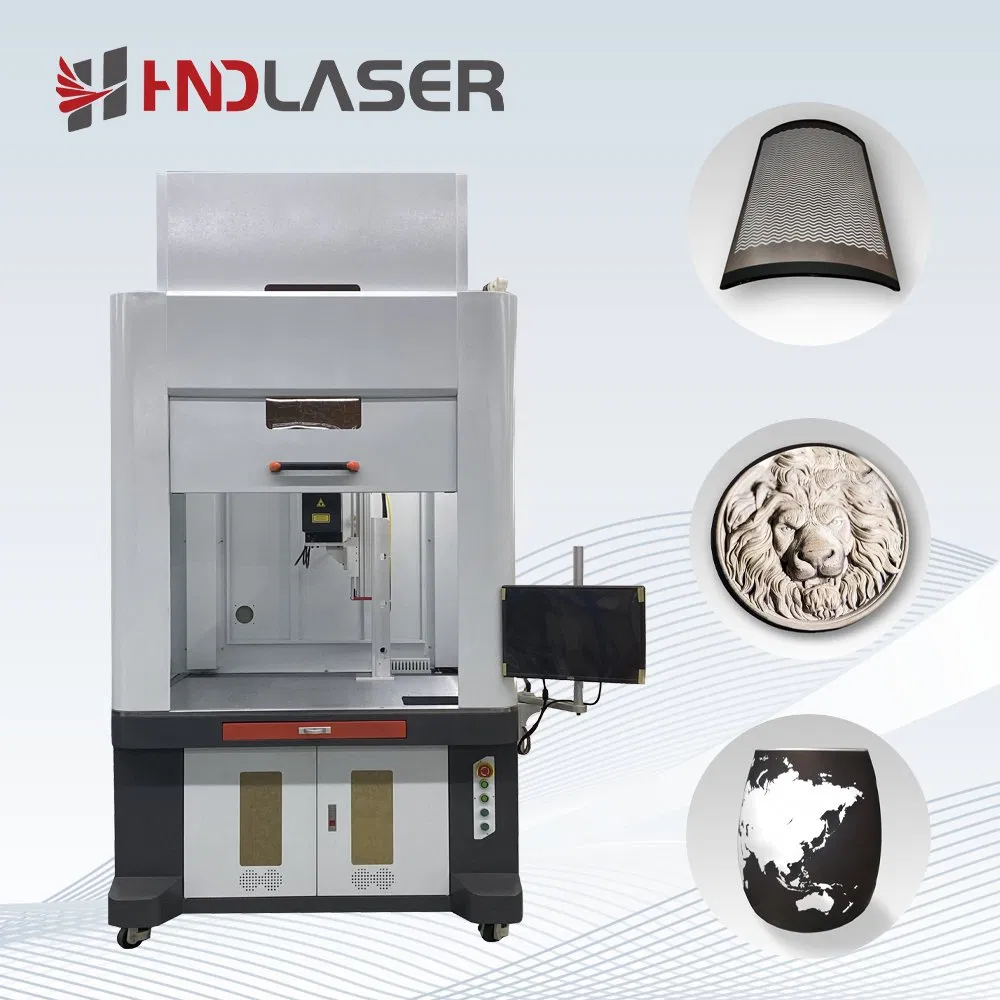

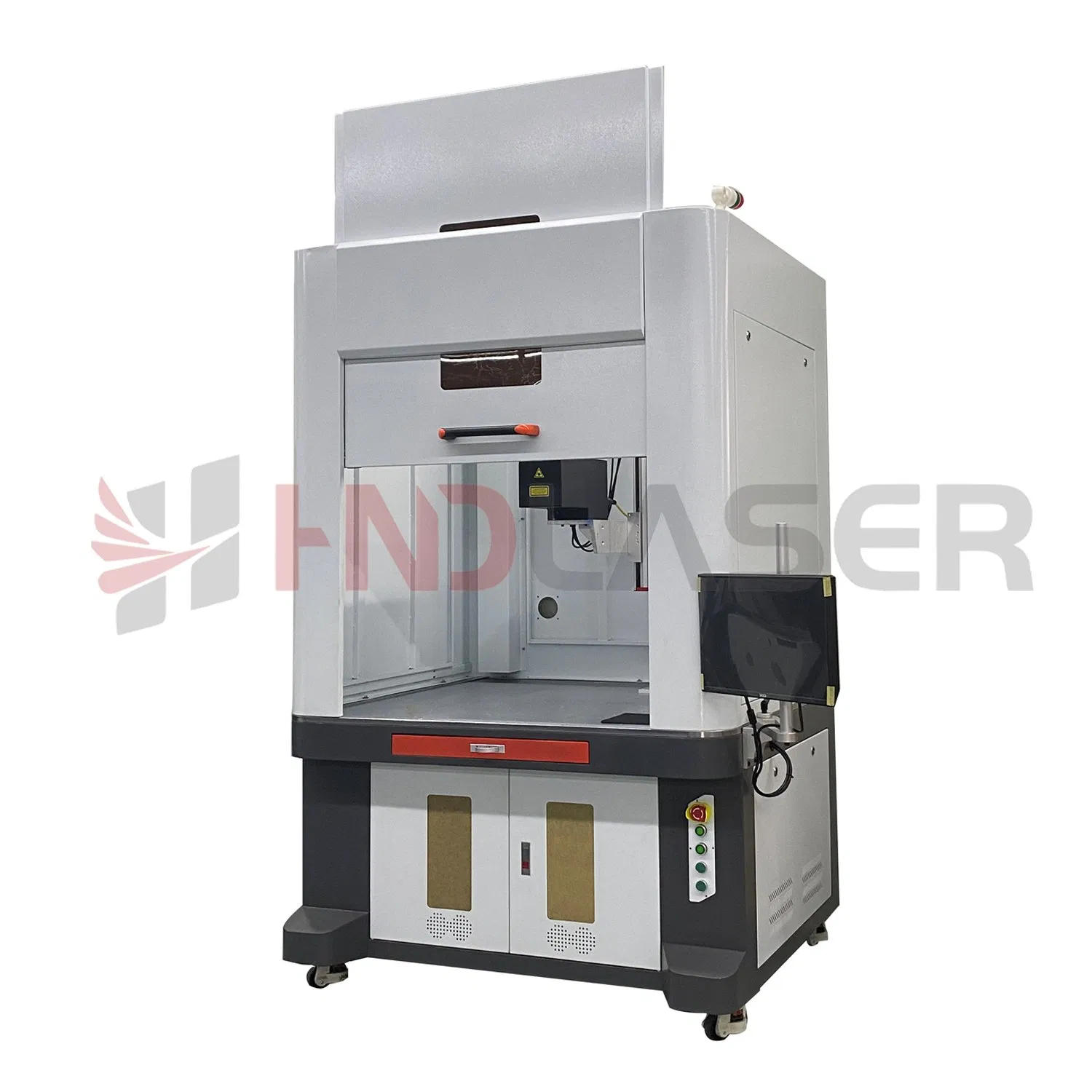

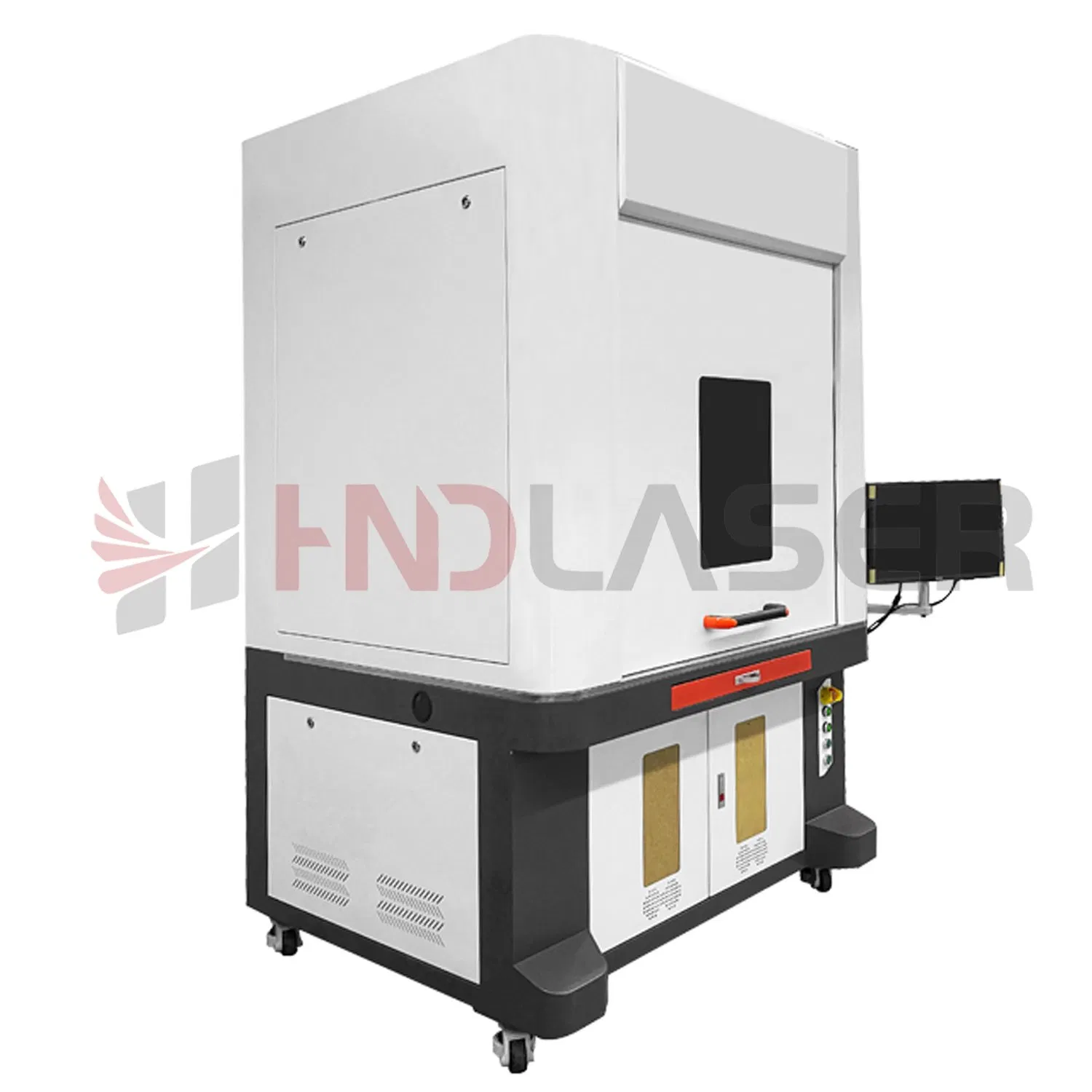

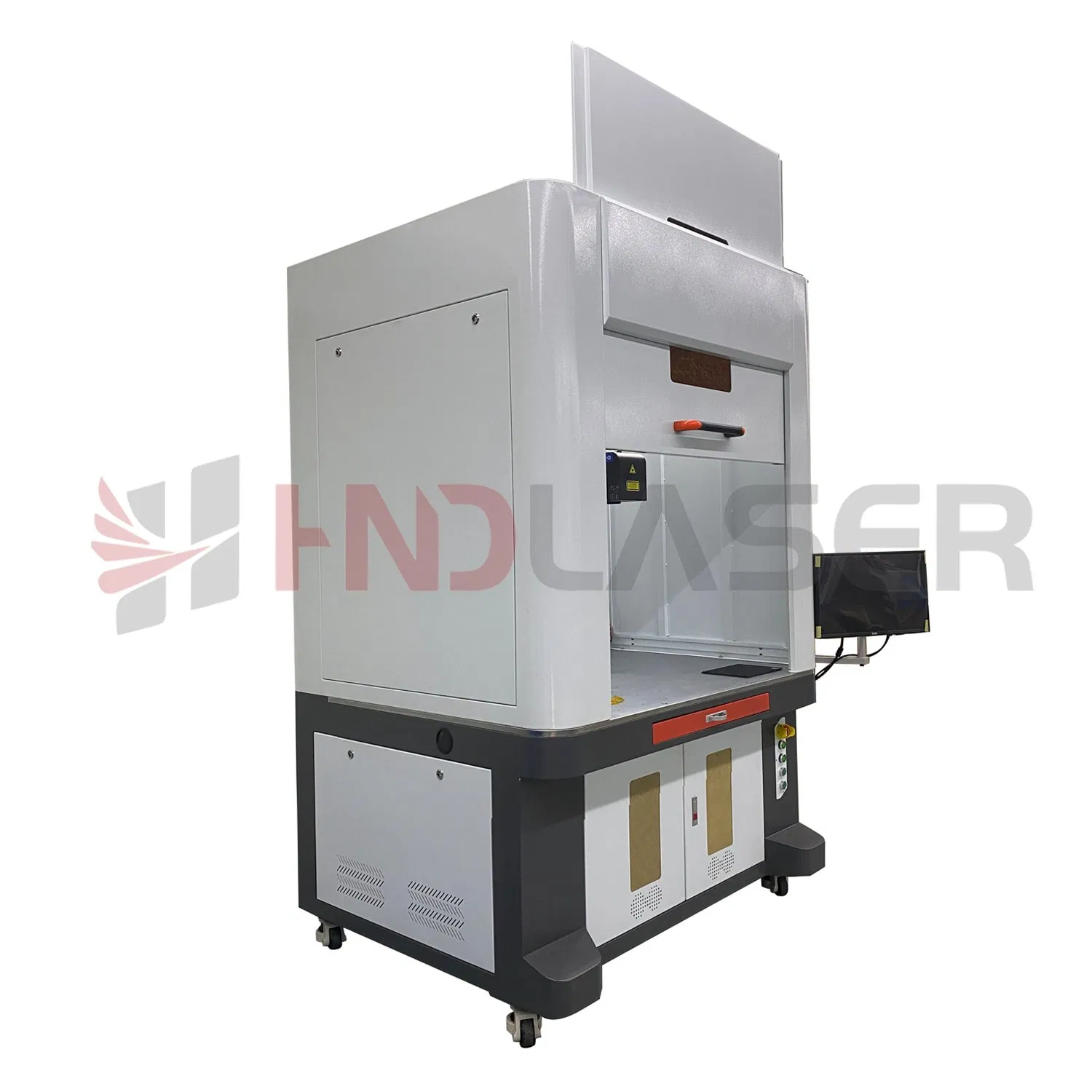

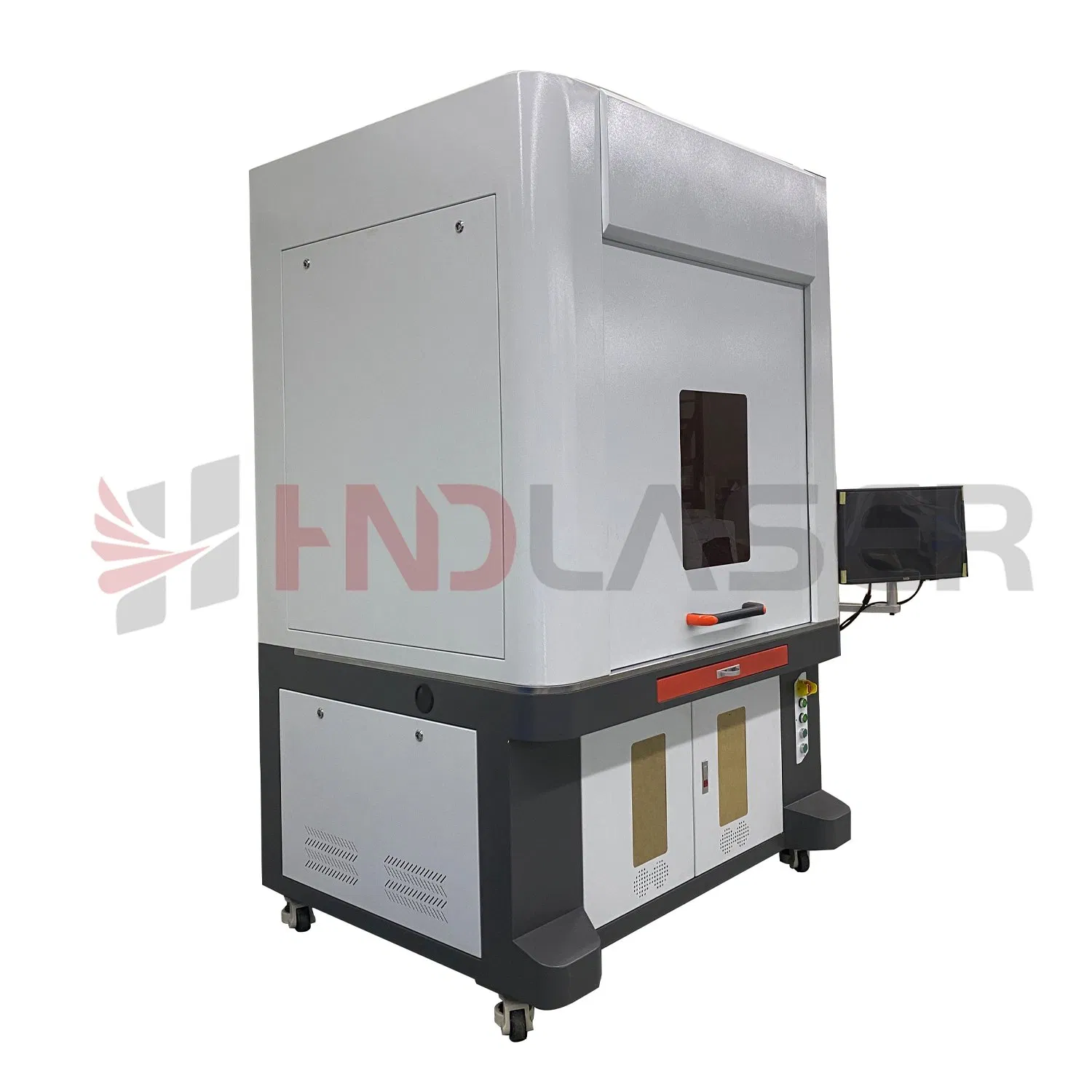

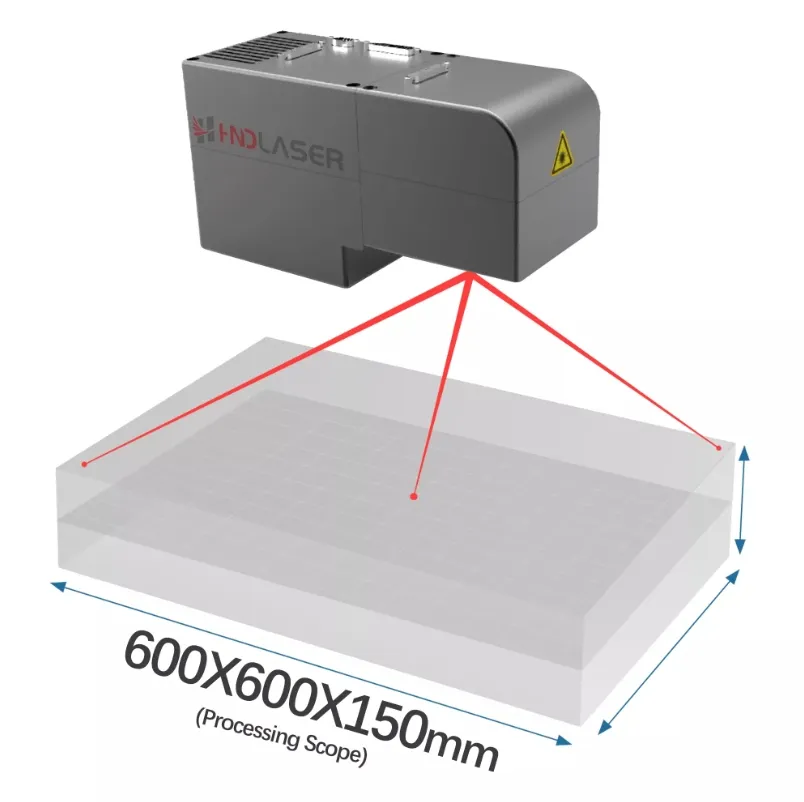

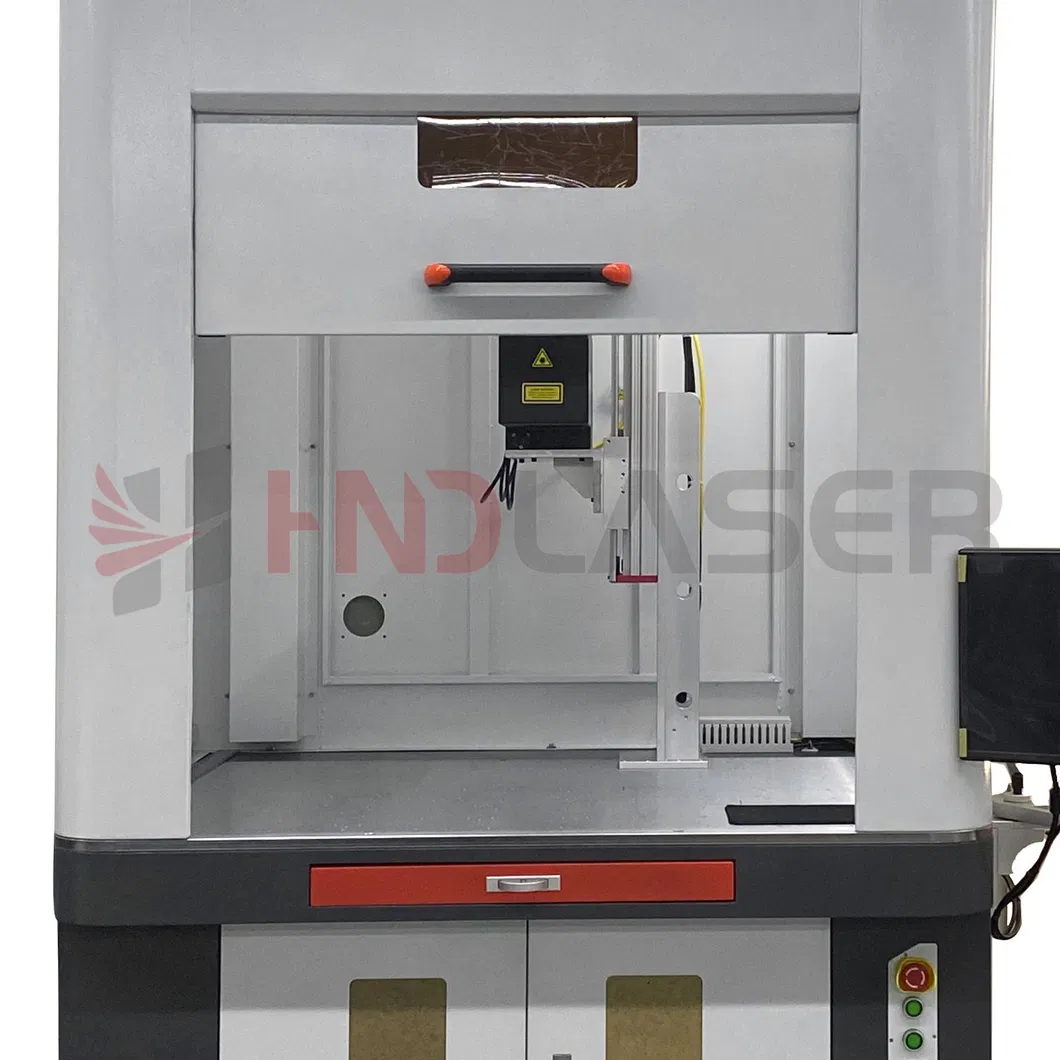

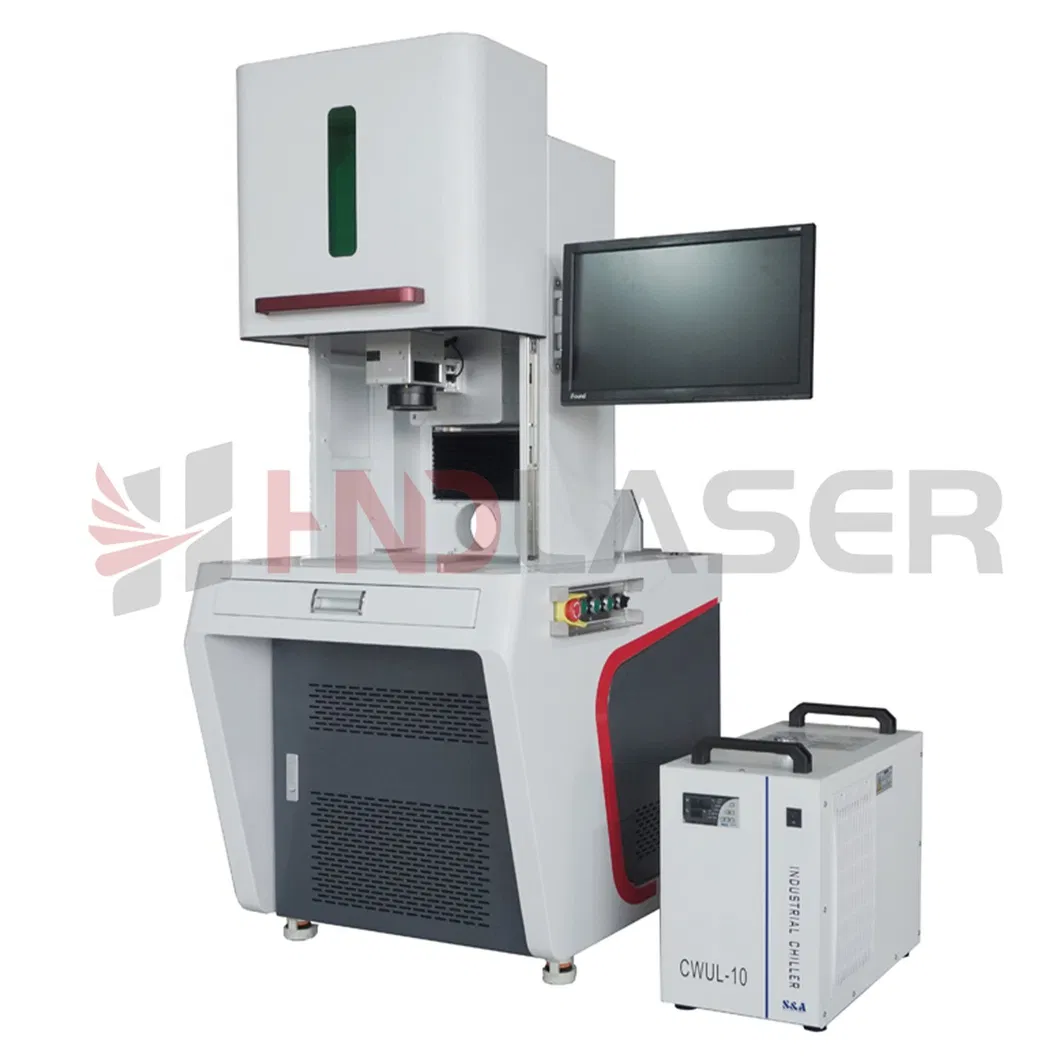

High-power laser engraving system, which can be equipped with a maximum of 4KW laser and a water-cooled 3D galvanometer, can efficiently process large-format products. The commonly used 3D galvanometer has a marking range of 600mm×600mm and a Z-axis adjustable range of 0-150mm. This enables it to engrave in both the negative and positive focal directions, greatly broadening its application areas.
1. Key performance of 3D galvanometer system
| NO. | Project | Parameter |
|---|---|---|
| 1 | Laser power | 30W/50W/100W/200W (Optional) |
| 2 | Laser level | Class IV (IEC 60825-1) |
| 3 | Wavelength | 1064nm |
| 4 | Marking field | 100/150/200/300/400/500/600 (Optional) |
| 5 | Marking speed | ≤10000mm/s |
| 6 | Min character size | 0.015mm |
| 7 | Expected life | >100,000 hours |
| 8 | Cooling method | Air-cooled/Water-cooled |

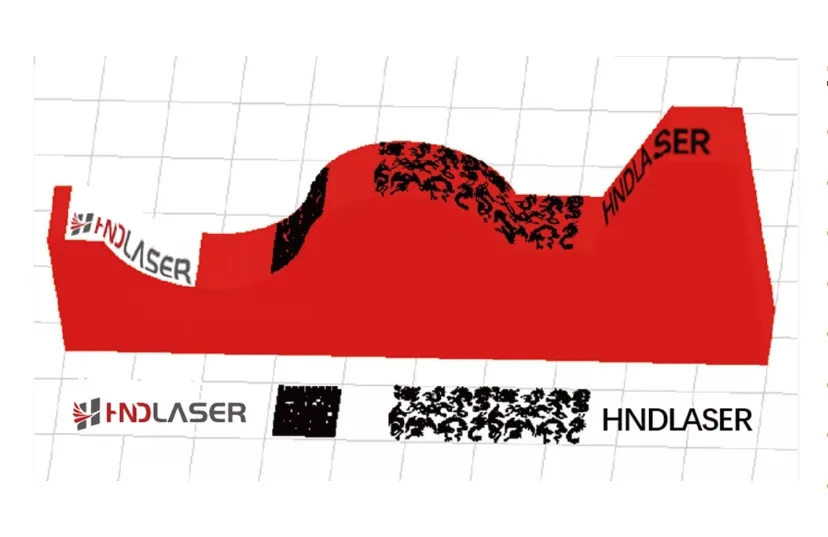

Complex curved surface marking: Automatically adjust focus according to the height change of the curved surface. Suitable for automotive parts and aerospace equipment.
Deep marking: Achieves multi-level deep marking for metal and stone materials.
| Metal Material | Reaction | Plastic Material | Reaction |
|---|---|---|---|
| Stainless steel | √√ | PE | √ |
| Aluminum | √√ | PVC | √√ |
| Brass | √√ | ABS | √ |
| Gold/Silver | √ | Nylon | √ |
*√√: Exceptional, √: Admirable, -: Unsatisfactory
Reliant solely on electrical power. One-time robust investment with maintenance-free operation.
Ink-free, solvent-free, and odorless operation. Non-toxic, safe, and non-corrosive.
Resistant to oxidation and color degradation. Enhancing traceability with safety and reliability.
