| Model NO. | JBQ-CNC-3826 |
|---|---|
| Maximum Cutting Thickness | 10 mm |
| Power Supply | 220V |
| Safety Features | Emergency Stop Button, Overload Protection, Safety Sensor |
| After-Sales Service | Remote Guidance, Door-to-Door Service, Operation Video |
| Product Name | Laminated Glass Cutting Machine |
| Working Air Pressure | 0.5~0.8 MPa |
| Max. Cutting Size | 3660mm X 2440 mm |
| Min. Cutting Size | 200mm X 200mm |
| Cutting Thickness Range | 3+X+3mm --- 8+X+8mm |
| Cutting Accuracy | +/- 0.5 mm |
| Diagonal Accuracy | +/- 1mm |
| Gantry Head Speed | 0-80m/Min |
| Production Capacity | 100 Sets / Year |

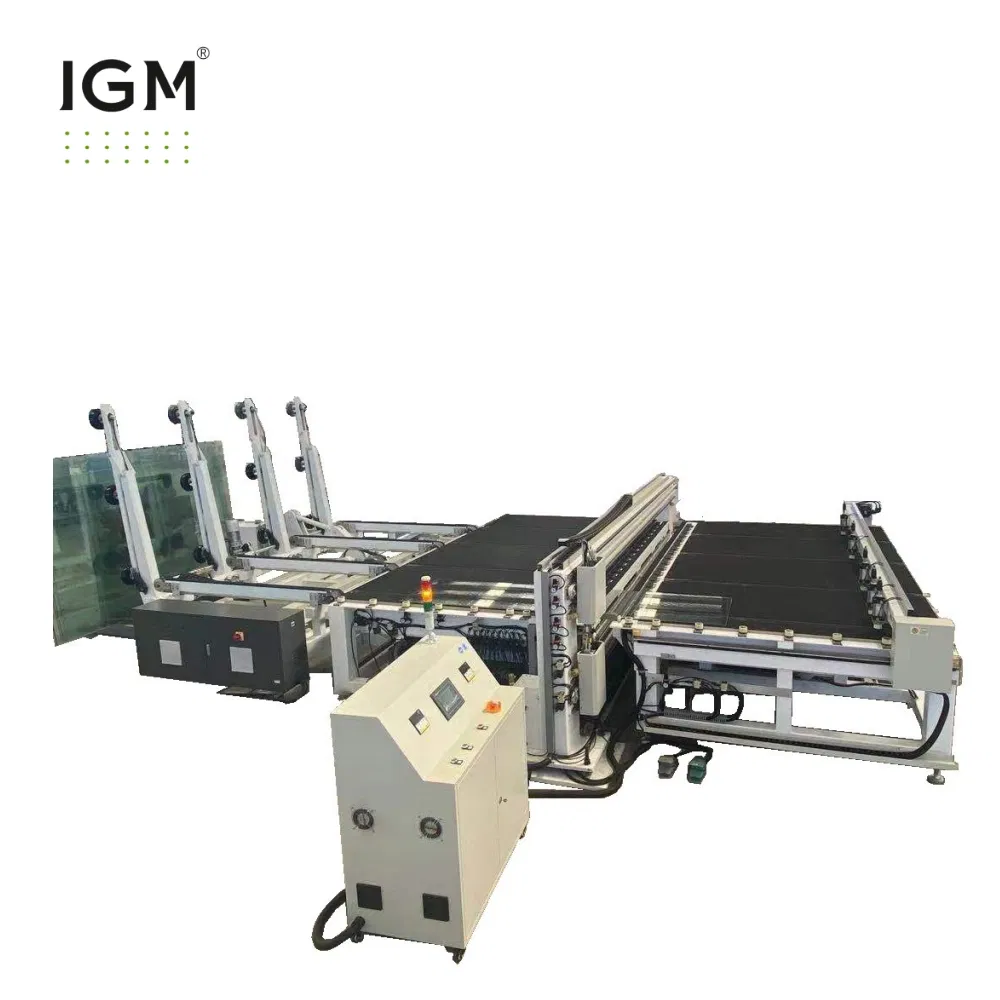

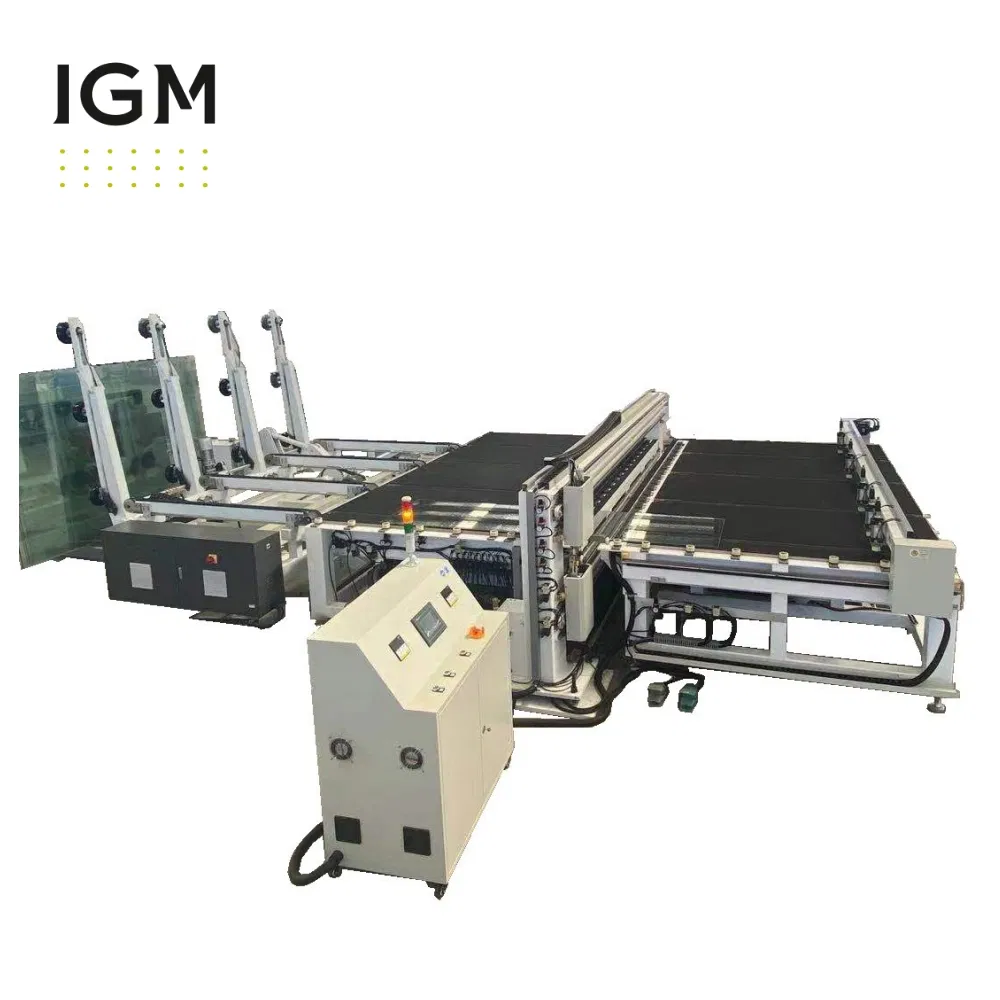

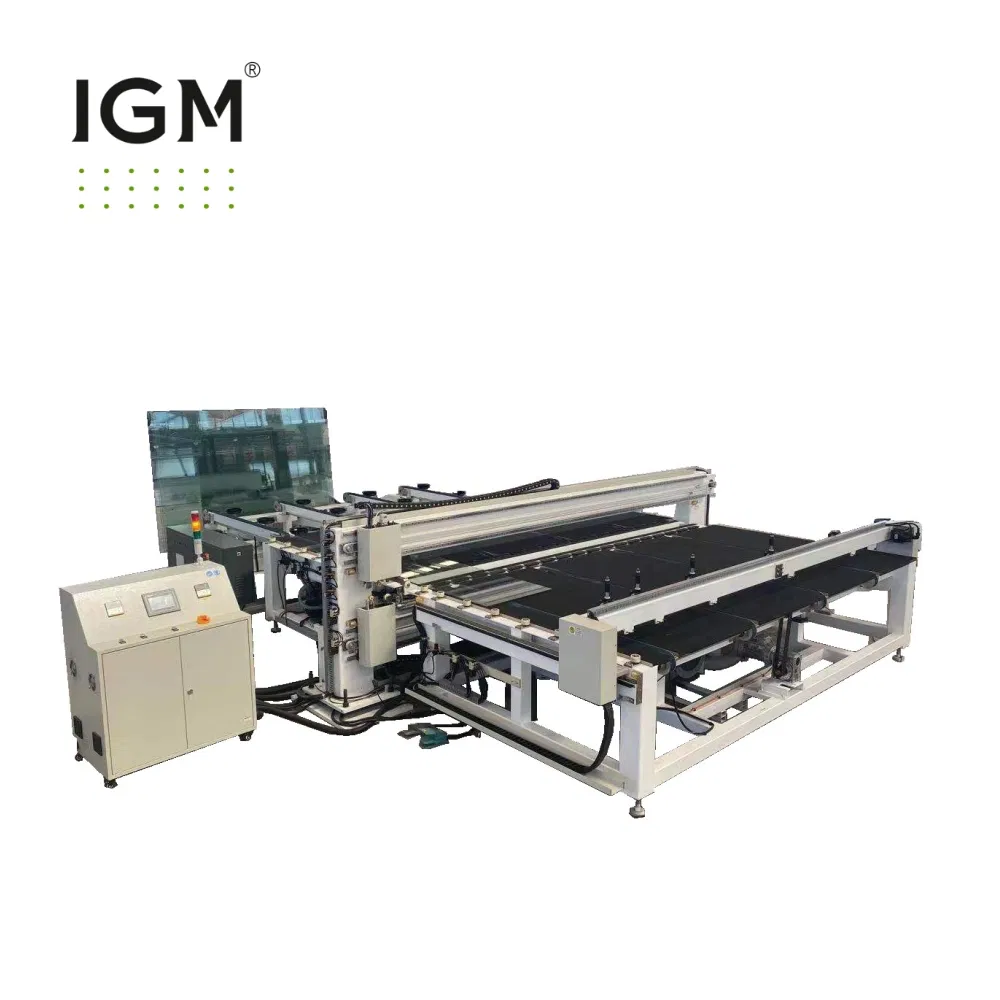

CNC Laminated Glass Cutting Machinery is specifically designed for high-precision processing in the glass industry. This model JBQ-CNC-3826 offers an automated solution for making laminated glass with superior efficiency.

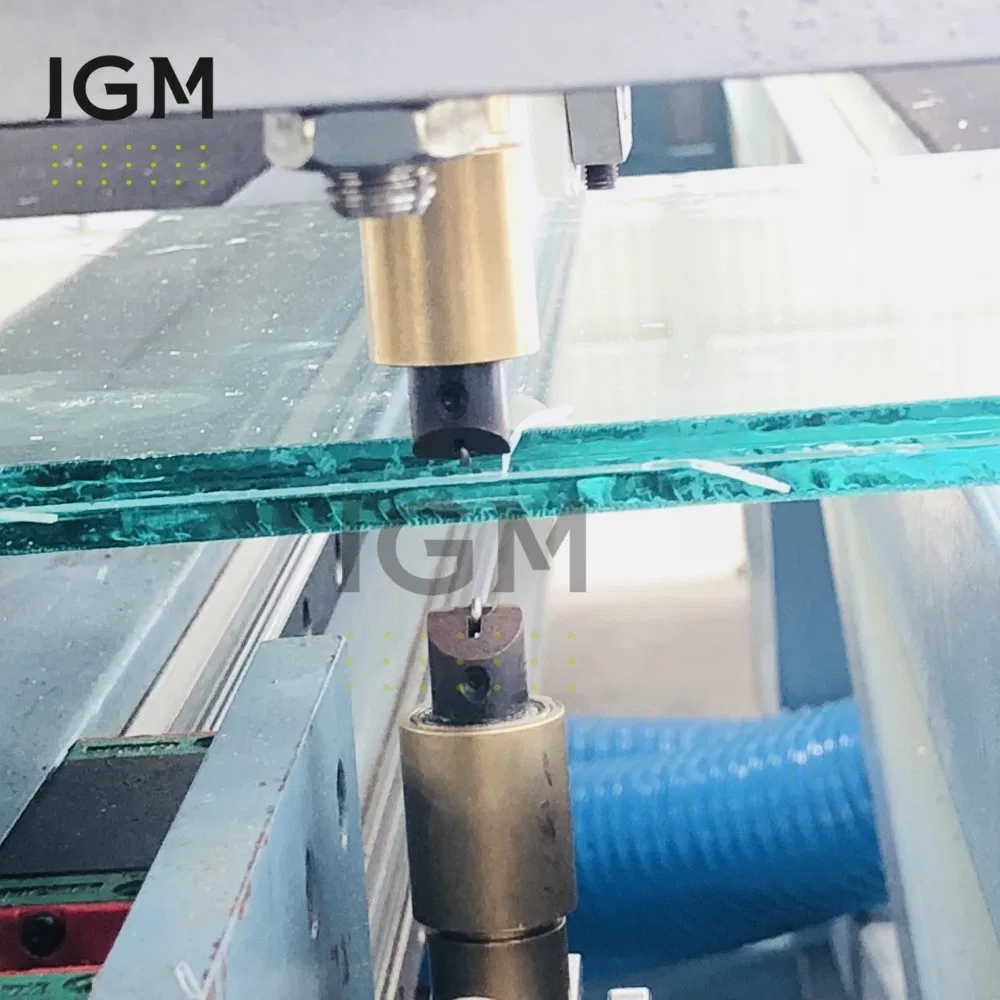

The glass is placed on the synchronous conveyor area and automatically positioned. The pneumatic knife lowers for upper and lower cutting. After cutting, pressure wheels break the upper and lower surfaces. The heating rod activates, vacuum cups pull the slit open, and the specialized knife cuts the internal film. The entire process ensures a clean edge without fragments.
| Input Power | 10-15 Kw |
|---|---|
| Heating Temperature | Manually Set |
| Servo Motor & Driver | Taiwan Delta |
| PLC & Touch Screen | Taiwan Delta |
| Electrical Components | Chint |
| Knife Wheel | Imported |
| Tabletop Material | Composite Board with Industrial Felt |
| Overall Size | 6735*5640*1412mm |
| Weight | 3000 kgs |

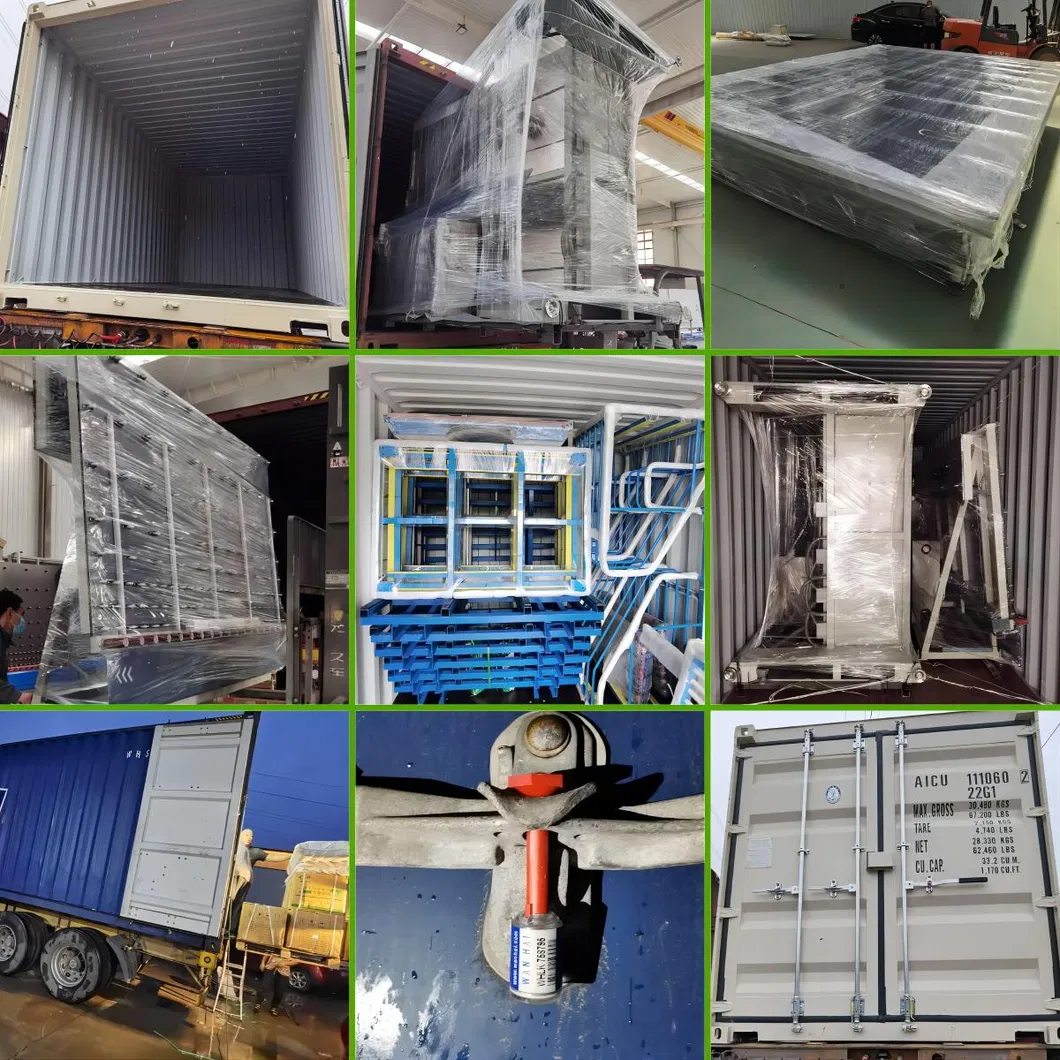

FCL (Full Container Load): The machine is wrapped in robust plastic film and secured inside a 40-foot container using steel wire or specialized packaging tape. For extra protection, fumigation-free wooden boxes are available. We optimize container space to ensure safety and reduce transportation costs.
