Home > Laminated Glass Cutting Machine > CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter

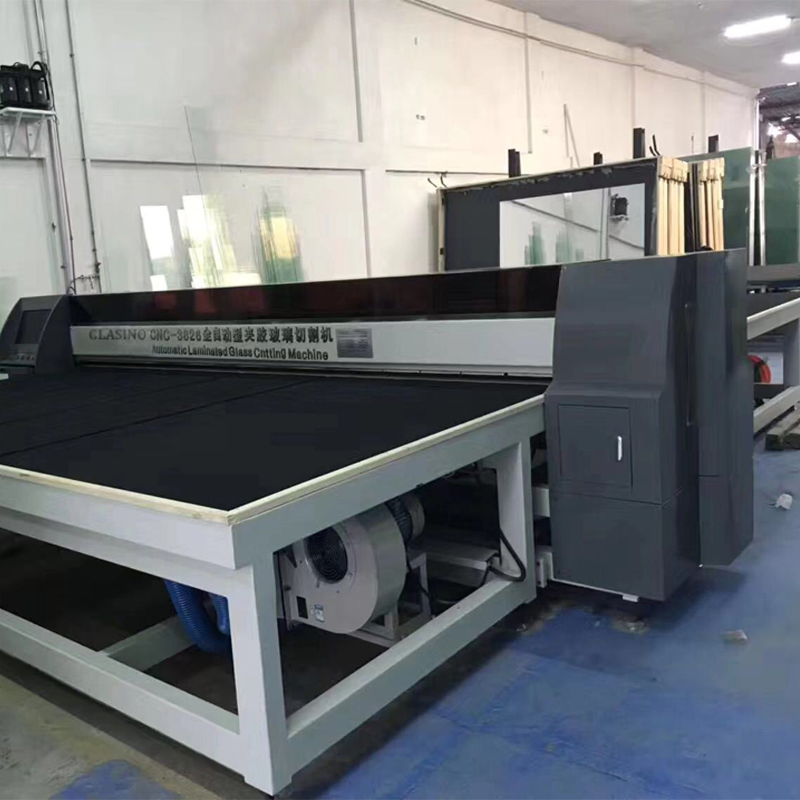

CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
1 / 5
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter
CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter

CNC Laminated Glass Cutting Machine with Air Flotation Table Automatic Insulating Glass Processing Machine with Sharp Cutter

Customization: Available
Certification: CE, ISO
Name: Automatic Laminated Glass Cutting Machine
Send Inquiry

Product Description

Technical Specifications

ModelGS-LM3826
FunctionCutting Laminated Glass
Power15kw
Weight3000 Kg
Glass Thickness3-19mm / 3+3 to 12+12mm
Max Sheet Size3700*2500mm
Control SystemPLC Control
ConditionNew

Automatic Laminated Glass Cutting

  • Easy operation with high cutting precision.
  • International standard steel with perfect surface treatment.
  • Annealed and milled key areas for high stability and intensity.
  • Adjustable cutting and breaking pressure.
  • Adjustable far-infrared heating temperature and time.
  • Three sections including bridge frame, loading area, and auto location system.
  • Third section handles glass stretch and breaking functions.
  • Bridge frame features up/down double cutters, upper clamp, and film infrared cutting.

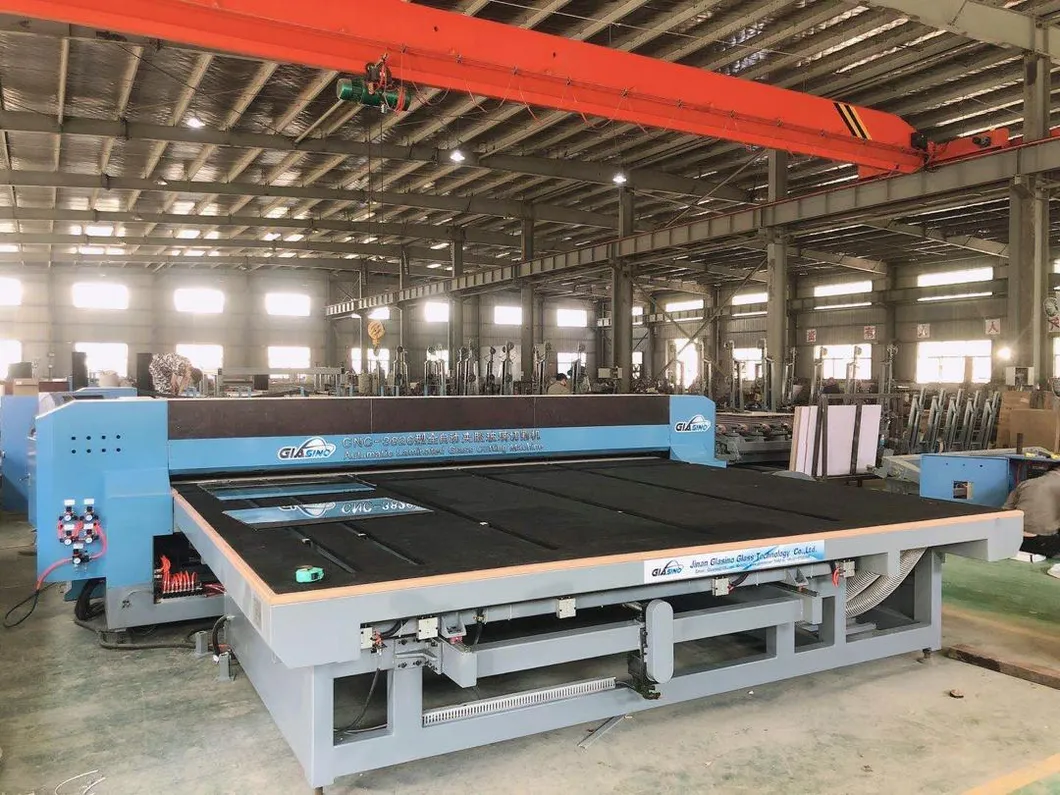

Laminated Glass Cutting Machine Overview
Automatic Processing System

Detailed Performance

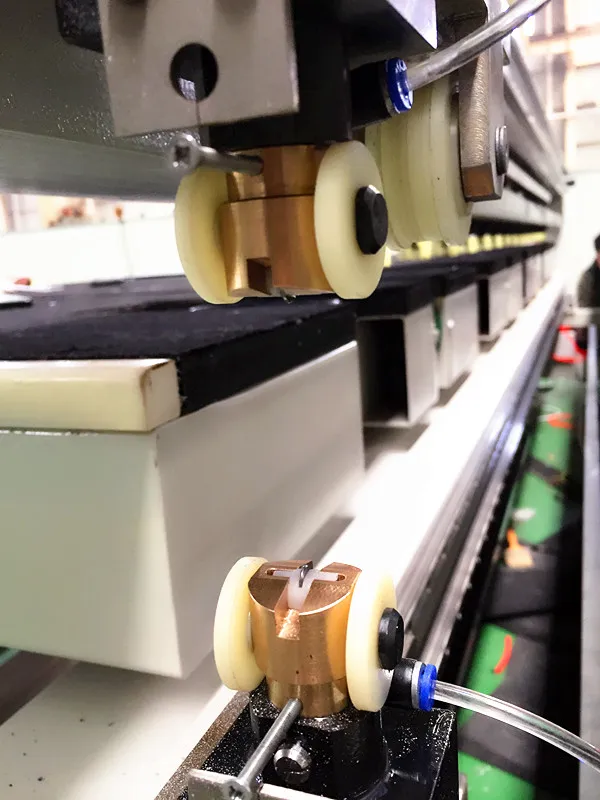

Double Cutters System

Precision Cutting: Simultaneous upper and lower cutters with automatic oil filling controlled by a proportional valve.

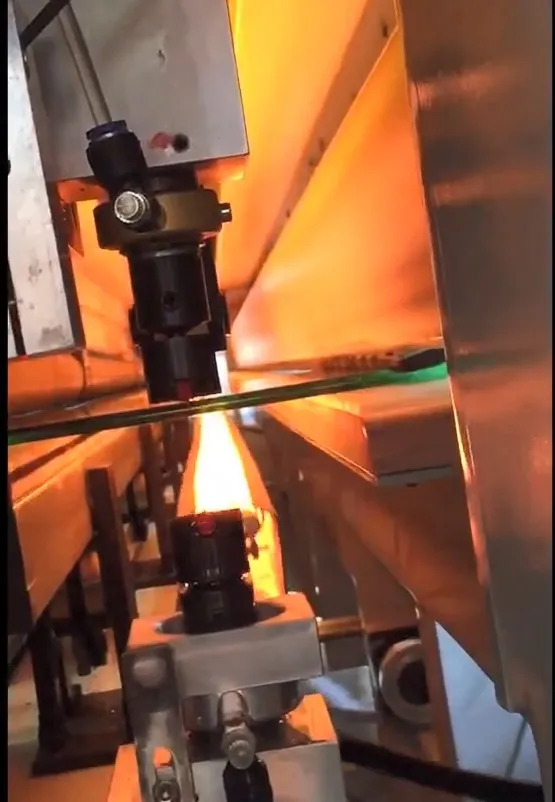

Automatic Glass Separation

Auto Separation: Integrated heating tube and rubberized blade system for automated glass shards separation.

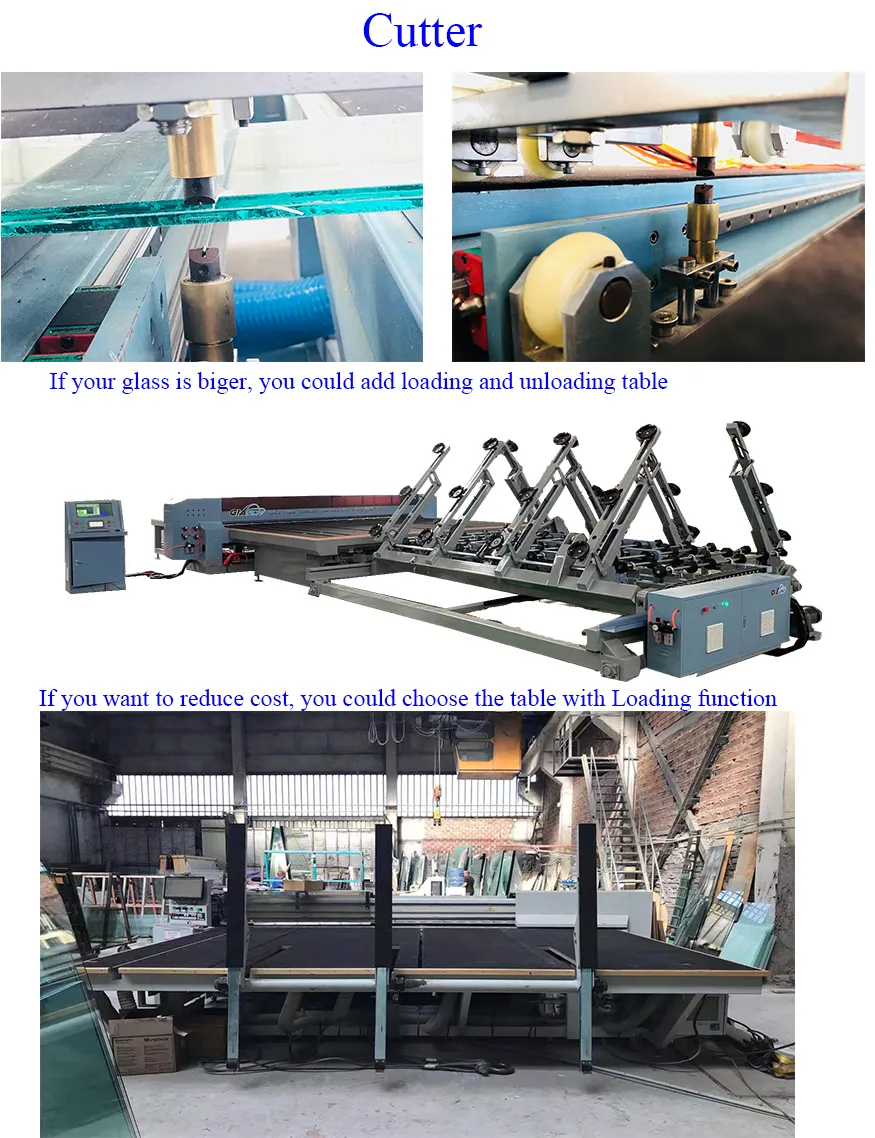

Technical Drawing

Parameter List

Item Description Technical Value
Machine NameAutomatic Laminated Glass Cutting Machine
Model NumberGS-LM3826
Max Glass Sheet Size3700*2500mm
Min Glass Cutting Size400*350mm
Glass Thickness Range3+3mm to 12+12mm
Heating Temp & TimeManual/Automated Set
Max Cutting Speed120m/min
Dimensions7100*4500*1500mm
Machine Weight3000KG

Operational Samples

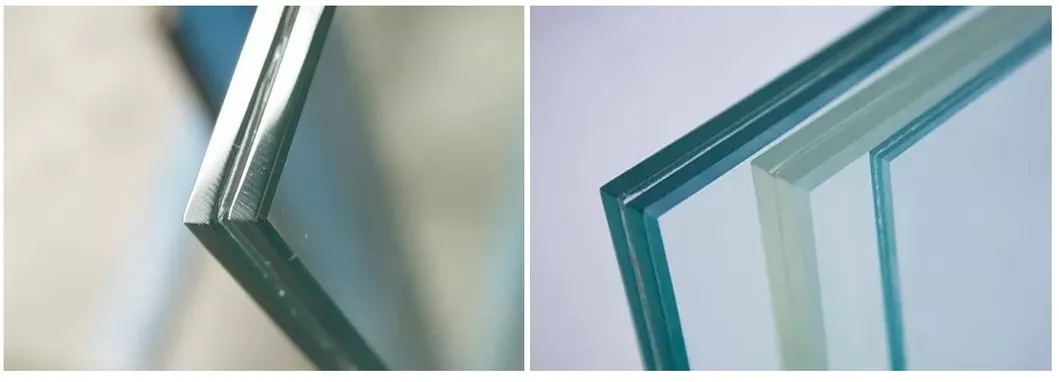

Cutting Samples Display

Our production facility specializes in high-tech glass processing solutions, including CNC cutting lines, tempering furnaces, and insulating glass production. We adhere to European CE standards and ISO 9001 quality control systems to ensure outstanding durability and precision in every machine.

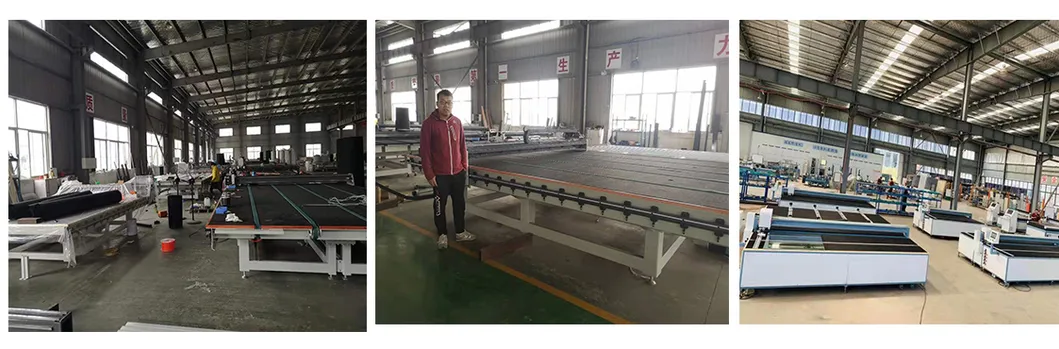

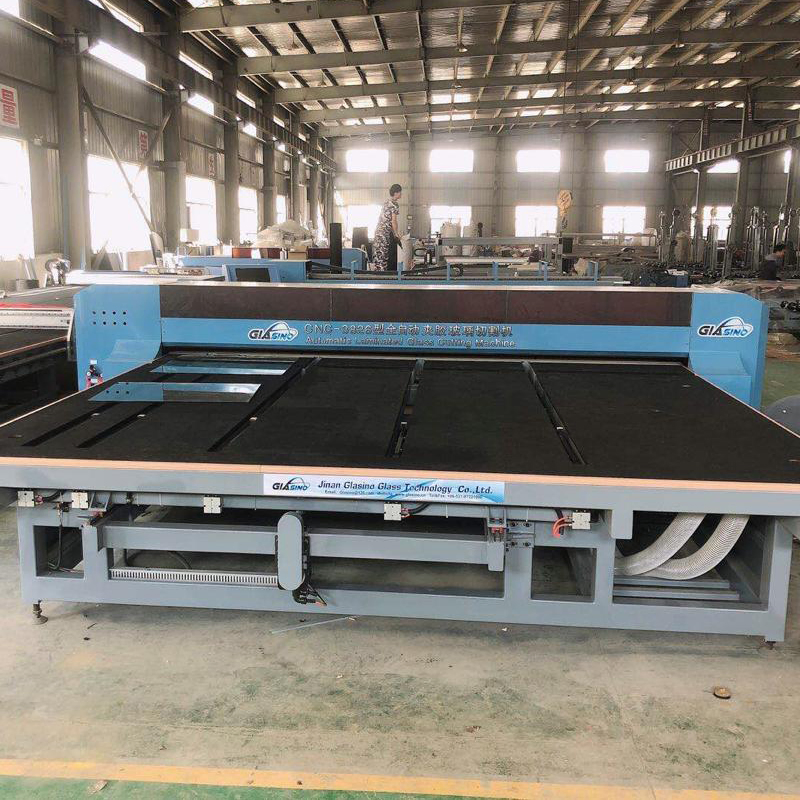

Factory Workshop

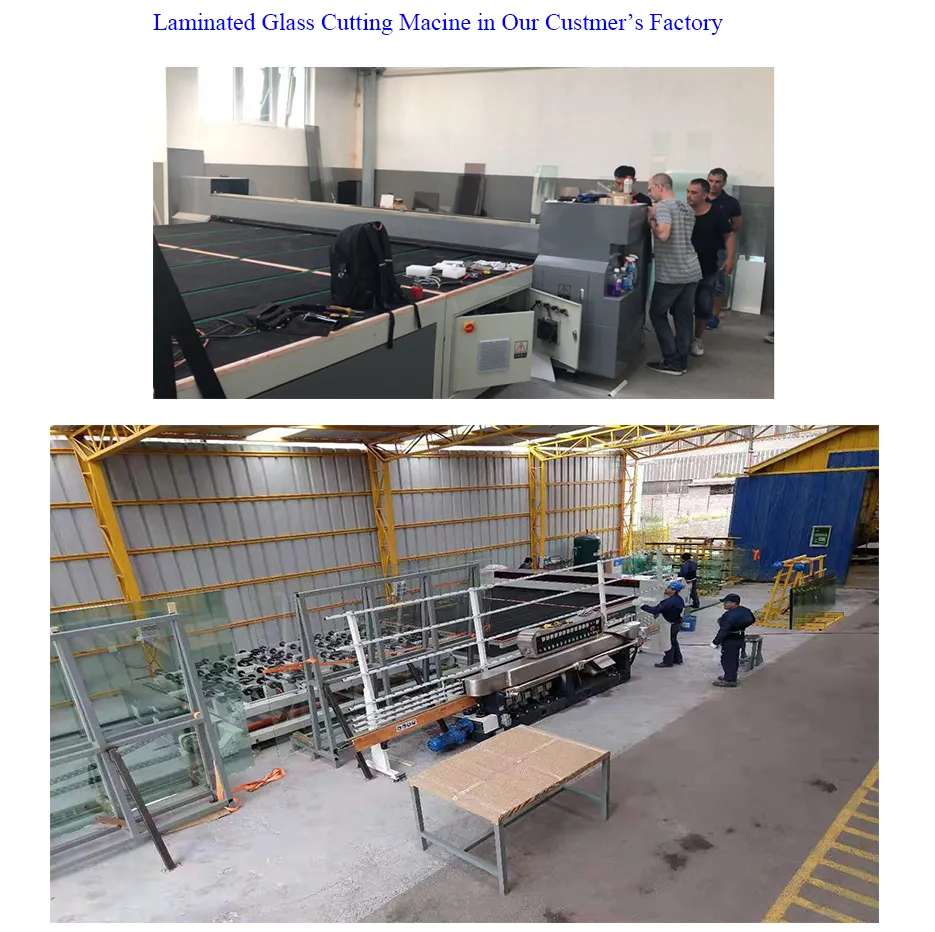

Installation at Customer Site

Frequently Asked Questions

What is the maximum glass size this machine can handle?
The GS-LM3826 can handle a maximum laminated glass sheet size of 3700mm x 2500mm.
What thicknesses of laminated glass can be cut?
It is capable of cutting glass thicknesses ranging from 3+3mm up to 12+12mm, including PVB and EVA film layers from 0.38mm to 1.52mm.
Is the cutting pressure manually adjusted or automated?
The cutting pressure is controlled via a proportional valve and PLC system. You simply input the glass thickness into the interface, and the machine adjusts the pressure automatically.
Does the machine include a heating system for the film?
Yes, it features a far-infrared heating system where both the temperature and heating time are fully adjustable to ensure clean film separation.
What is the warranty and after-sales service period?
The machine comes with a 12-month warranty and 24-hour after-sales support to ensure continuous production stability.
What certifications do your glass machines hold?
Our equipment is certified with European CE, Switzerland SGS, and ISO 9001:2008 quality control standards.
