| Model NO. | ZK-4428 | Power Supply | 380V / 400V / 220V |
|---|---|---|---|
| Max Cutting Size | 4200 × 2800mm | Thickness Range | 3~19mm |
| Linear Accuracy | ± 0.15mm | Abnormity Accuracy | ± 0.20mm |
| Cutting Speed | 0-180m/Min | Conveying Speed | 0-25m/Min |
| Total Power | 8kw / 22kW / 34kW (Varies by model) | Equipment Weight | 2600kg - 20000kg |
| Air Pressure | 0.6-0.8Mpa | Origin | China |

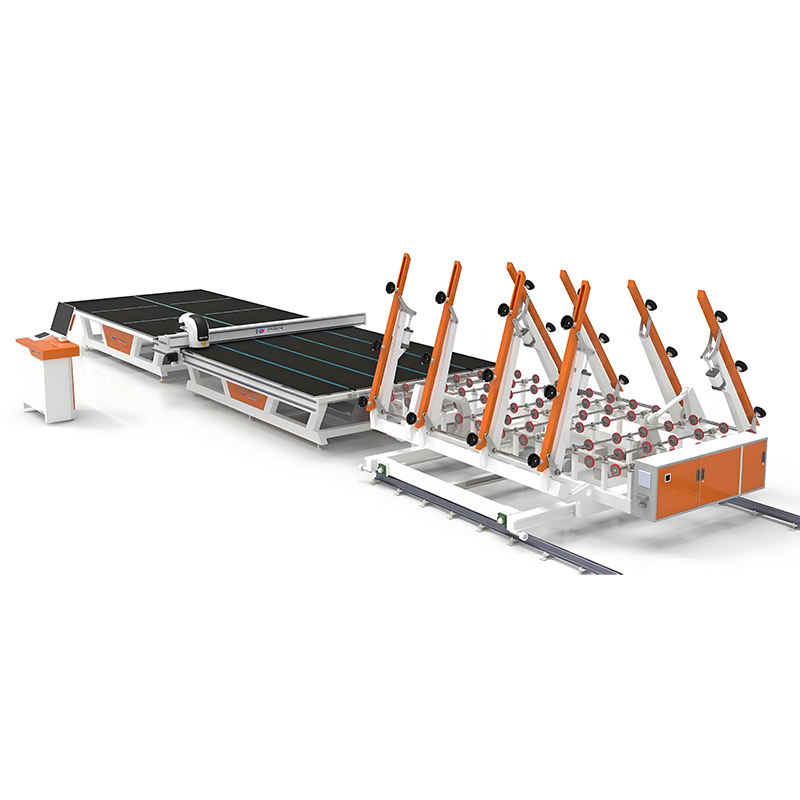

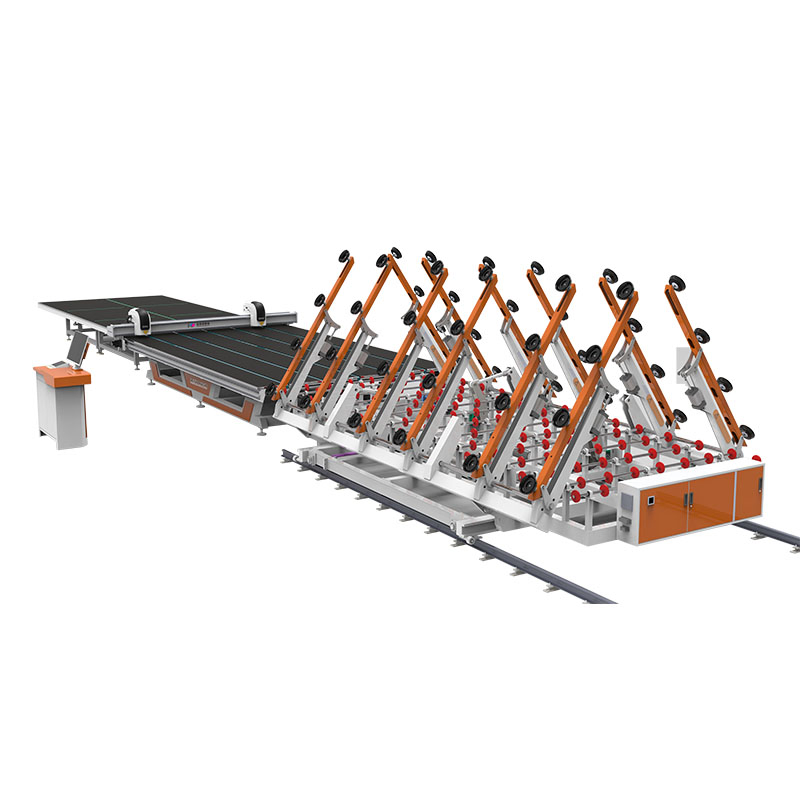

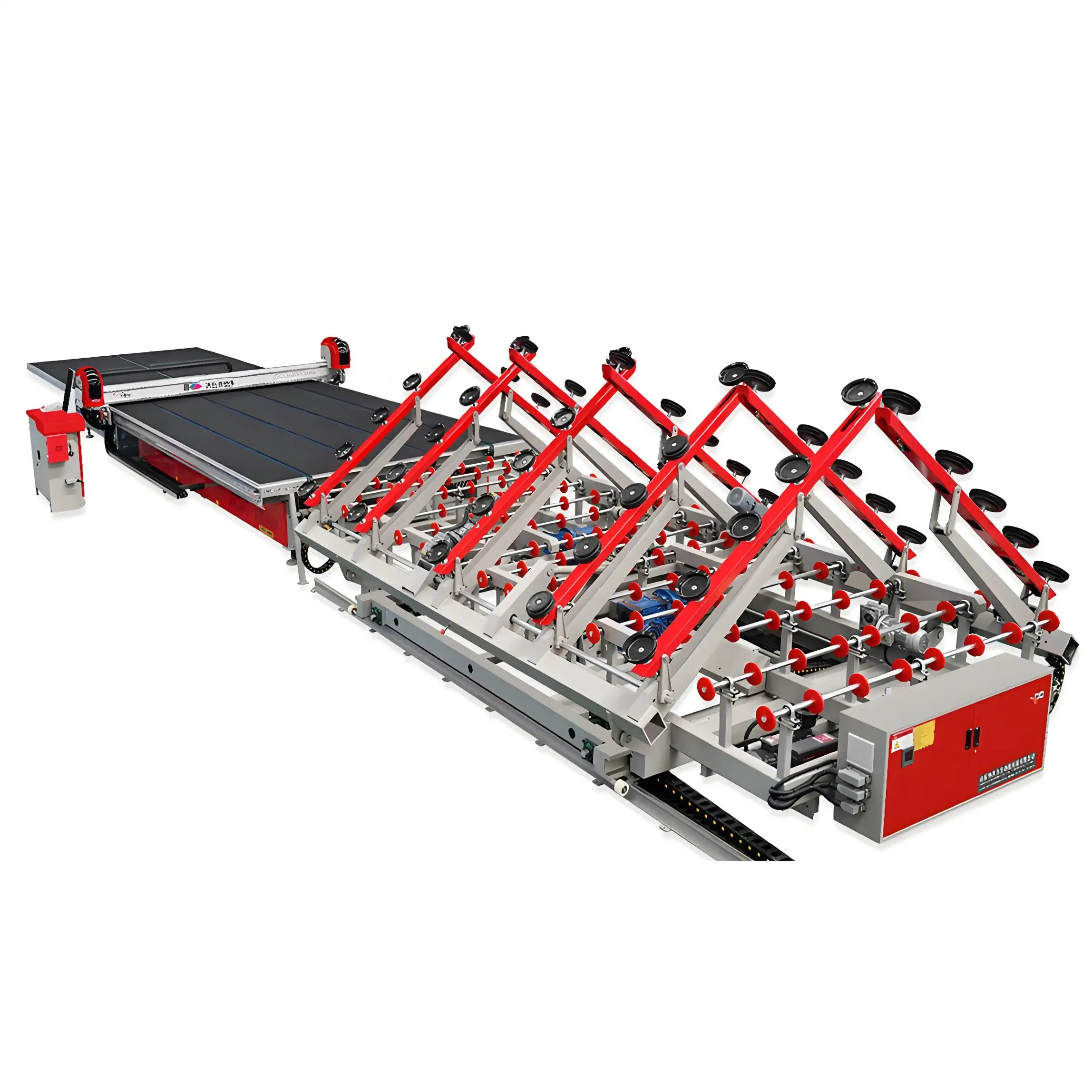

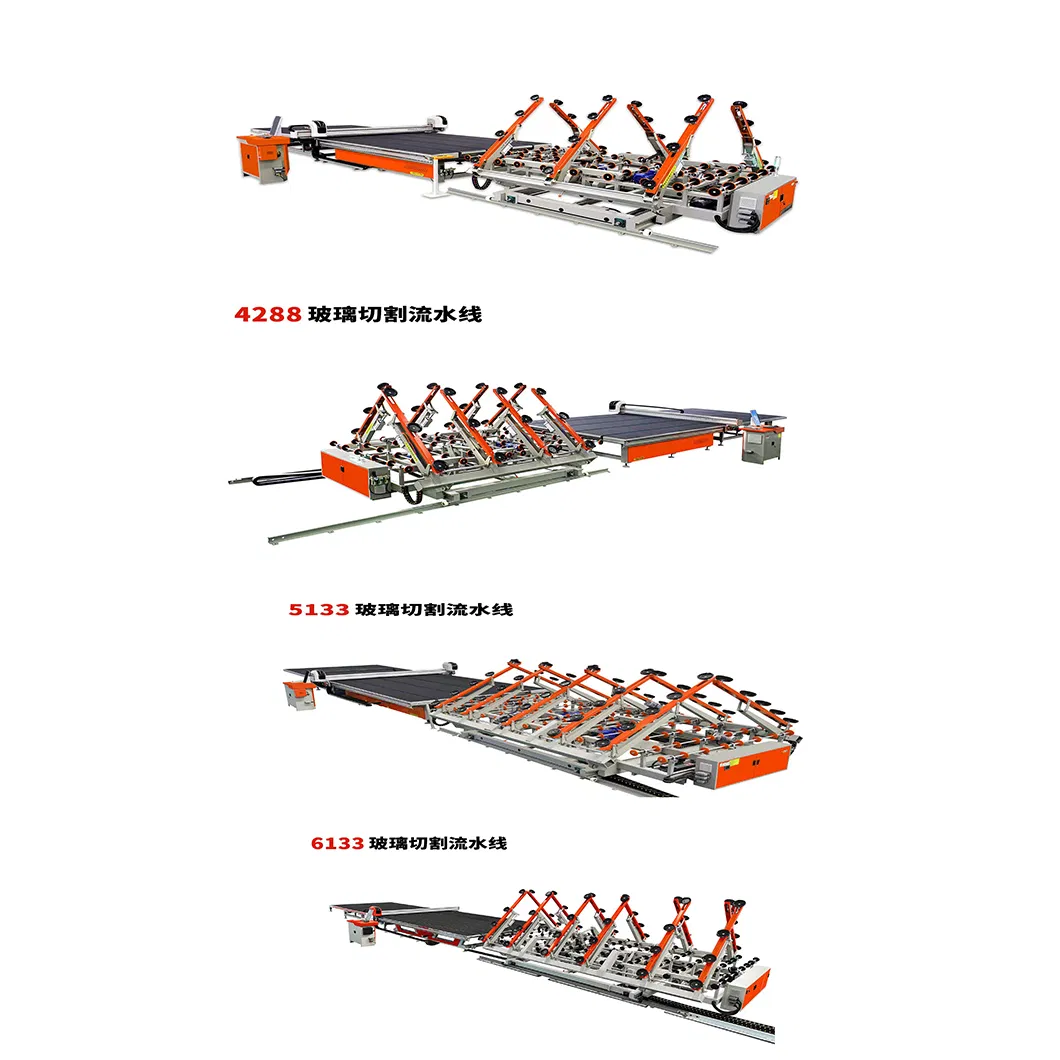

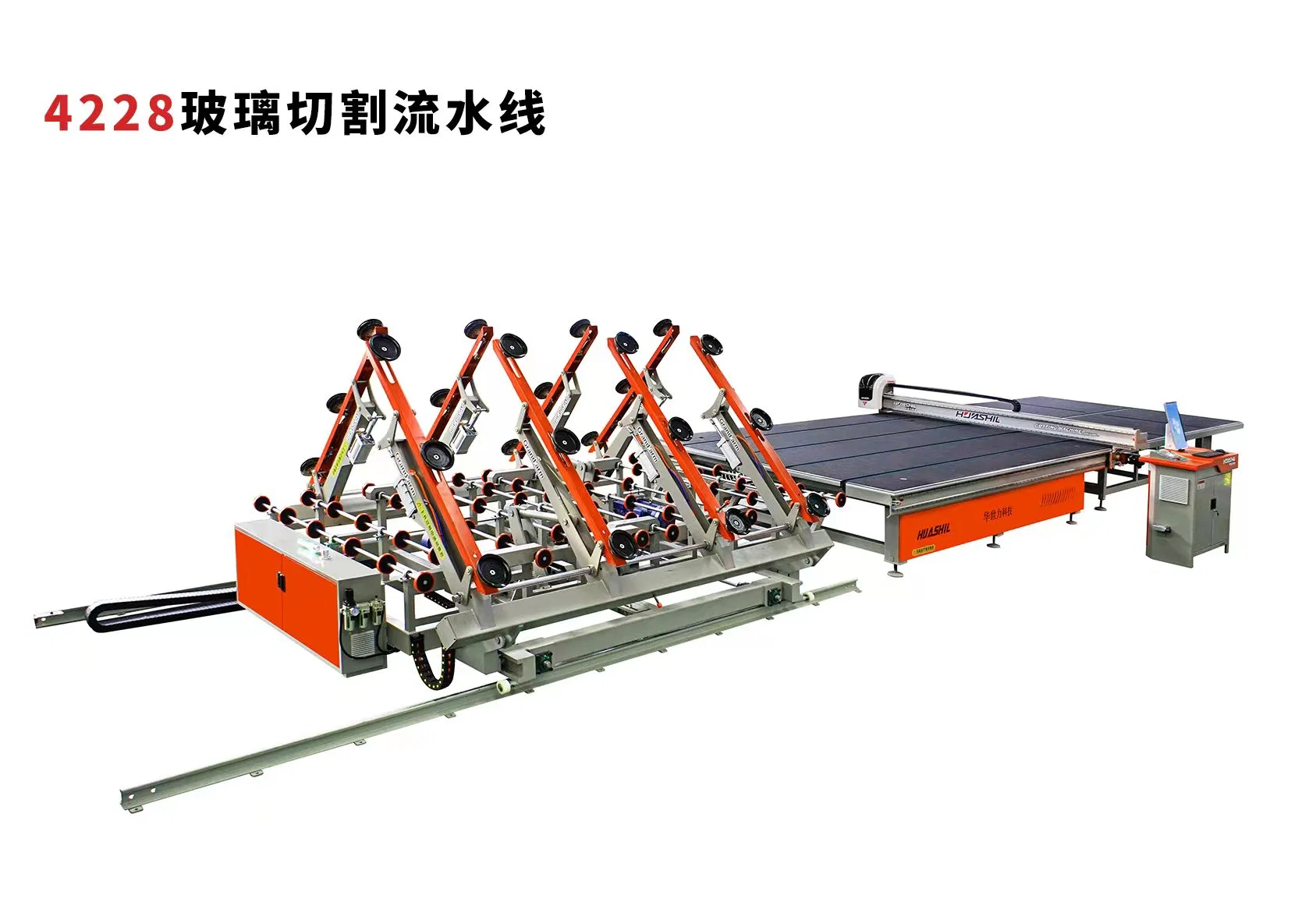

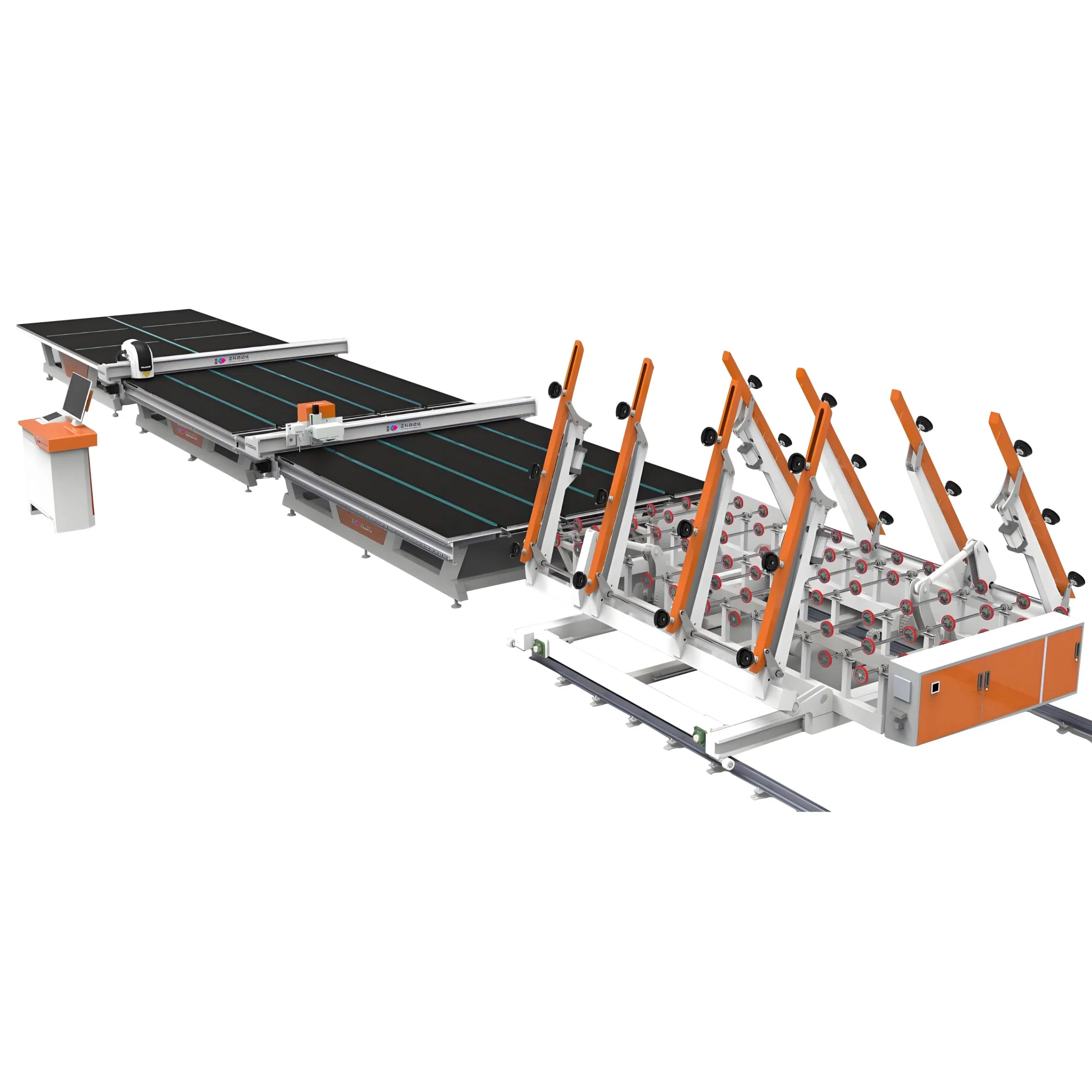

The intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table. The process is fully automated, performing picking, cutting, and air floating table breaking with high precision. Suitable for straight and irregular cutting of flat glass in construction, decoration, home appliances, and mirrors.
Telescopic arms automatically find and suction the glass, placing it securely on the table.
One-button control manages loading, cutting, and labeling simultaneously.
Optimization software ensures a rate up to 99% with fast, high-accuracy cutting.
Real-time alarm system identifies and uploads fault causes for quick resolution.

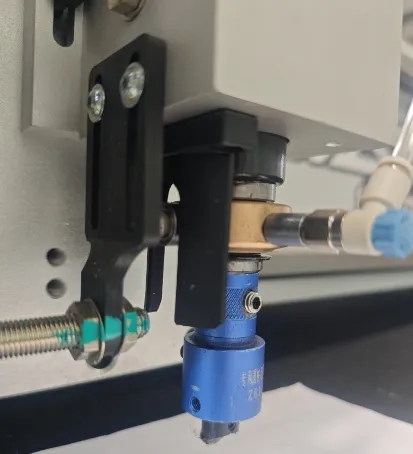

The cutting head pressure is controlled by an electromechanical precision valve. The uniform output allows the head to perfectly fit the glass surface, avoiding issues caused by glass quality. Oil is automatically filled using pneumatic pressure synchronized with the PLC system.

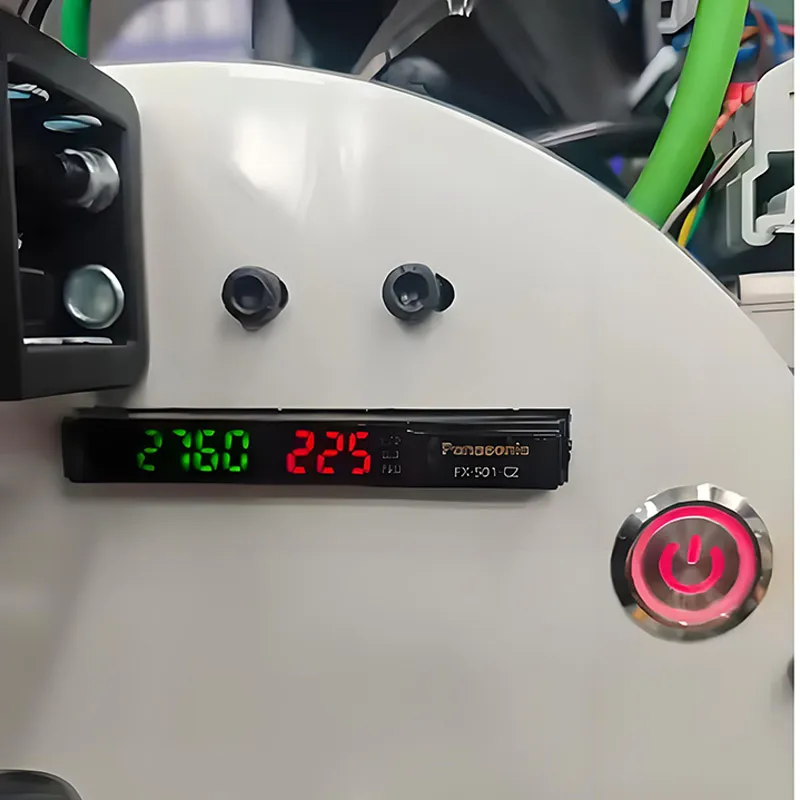

Automatic Edge-finding: Detects the actual position and deflection angle of the glass to adjust the path automatically.

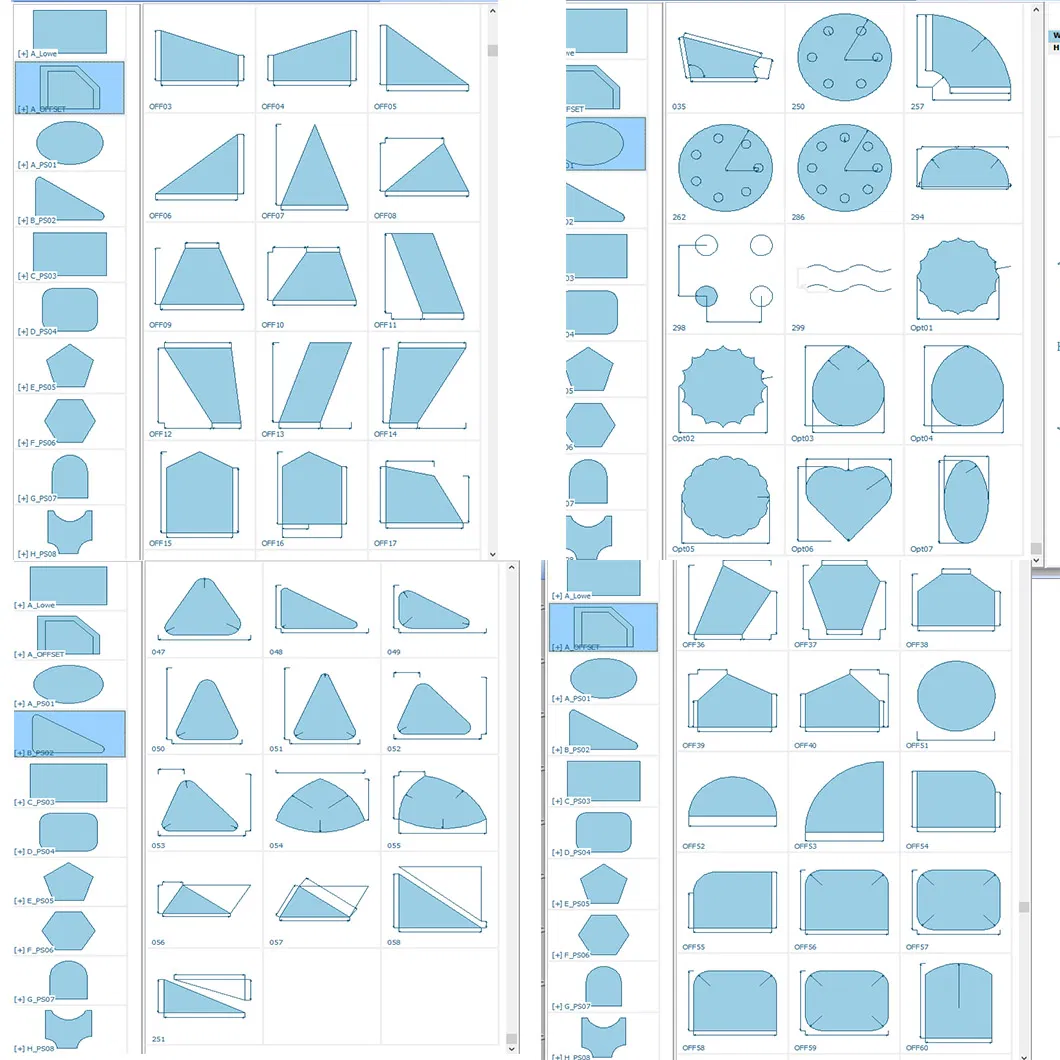

Irregular Scanning: Intelligently scans special-shaped templates to generate graphics automatically.

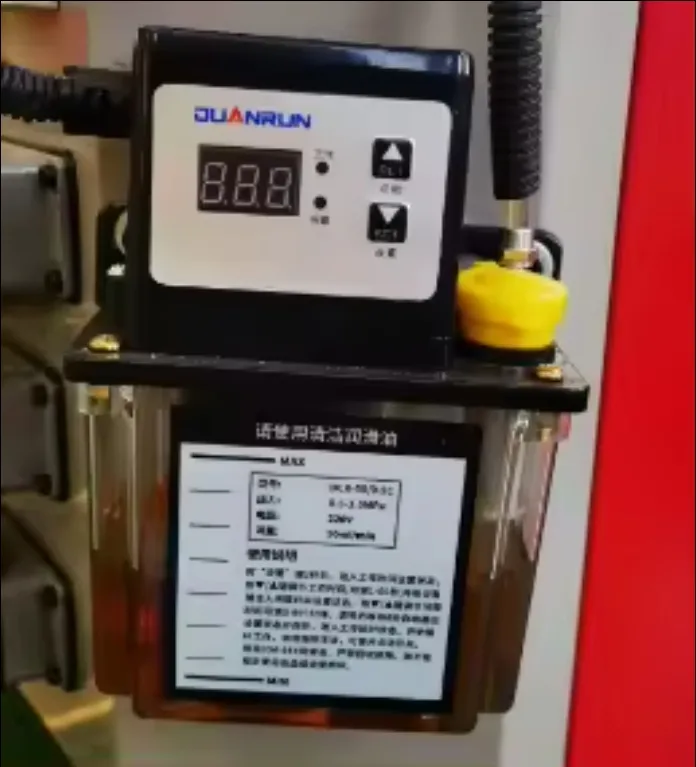

Compatible with standard G code from Italian OPTIMA and Guiyou software. Features an automatic rail lubrication system to reduce manual intervention and improve reliability.
Specializing in high-tech glass machinery including cutting, edging, washing, and tempering equipment. With independent technology design and research teams, we provide comprehensive solutions for terminal customers worldwide.
