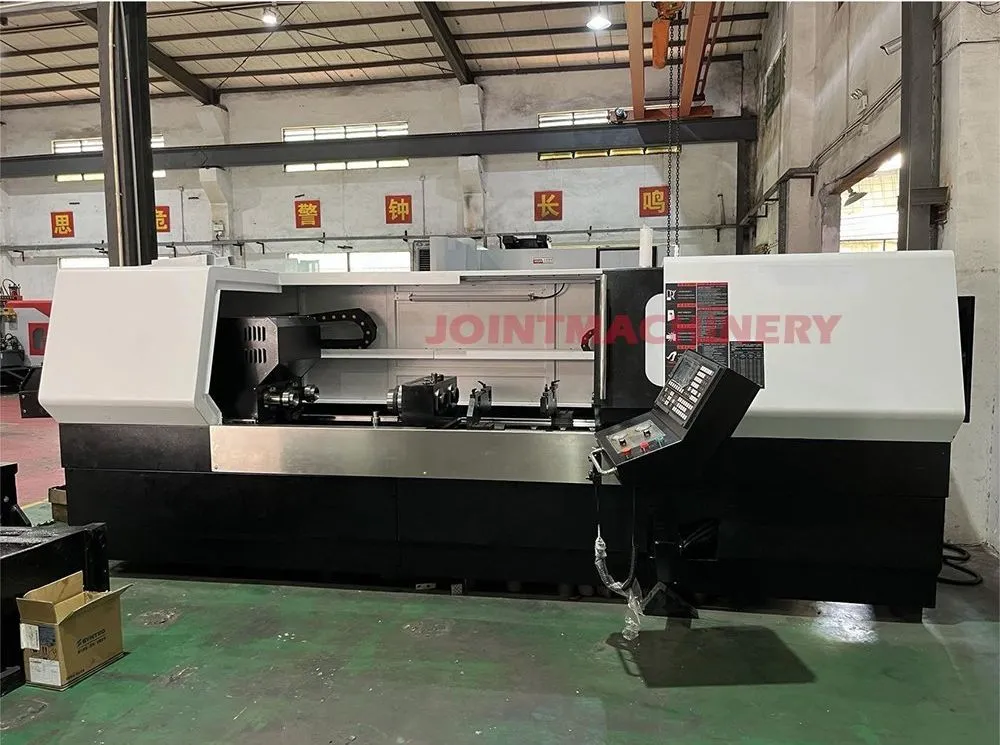

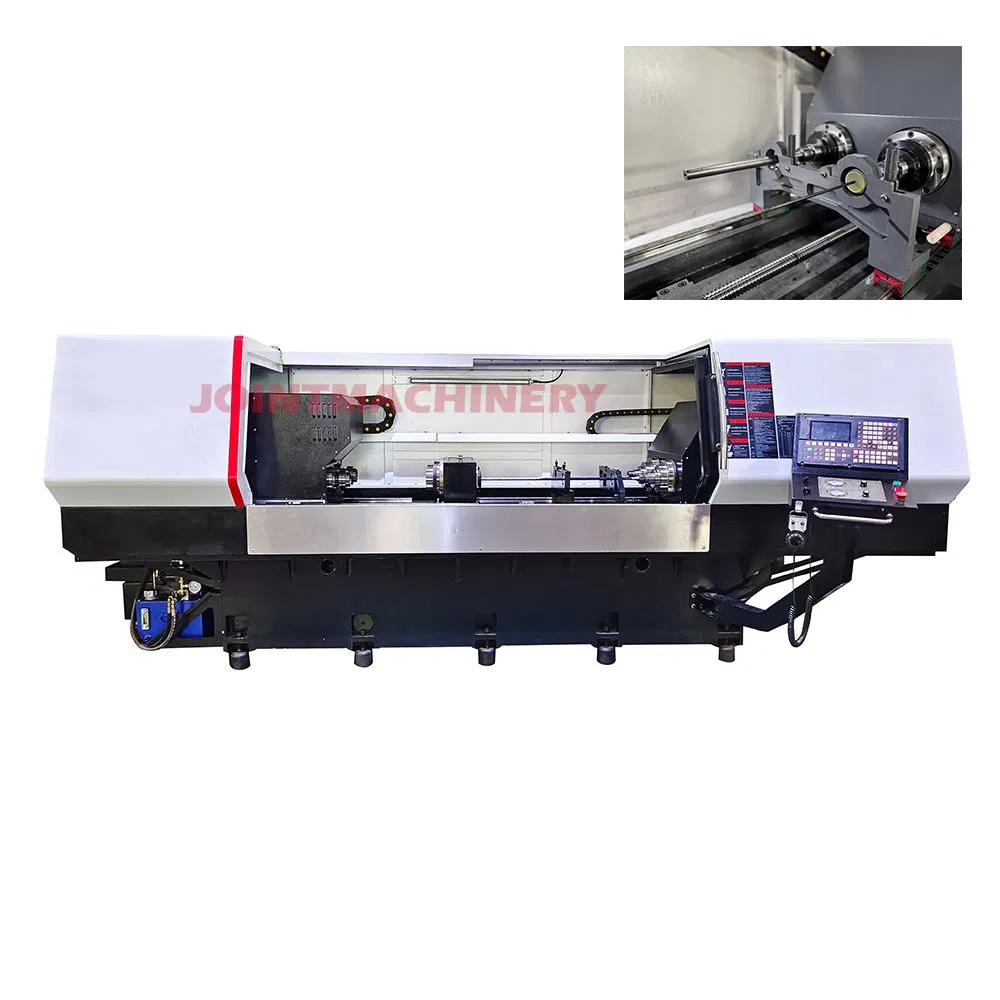

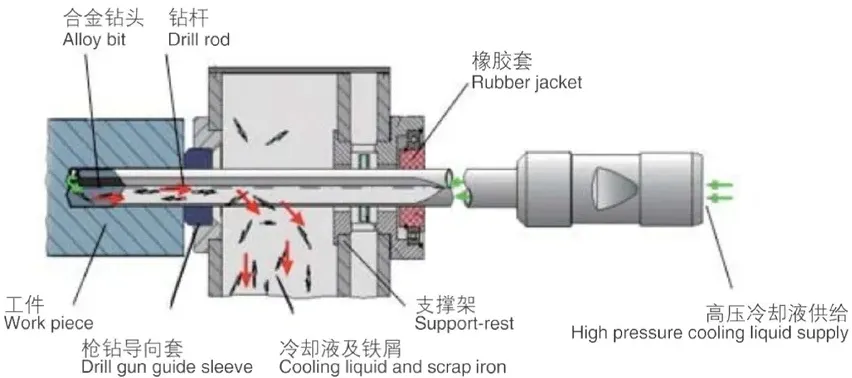

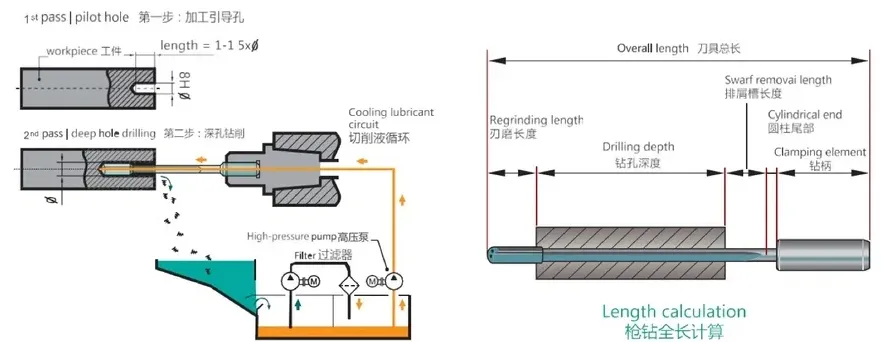

Drilling is the most basic process in machining operation and has the widest range of application. Traditional equipment like bench drills and radial drills often bind laborers to repetitive tasks. With the arrival of the CNC era, the birth of the CNC depth drill has thoroughly changed the situation. It not only frees laborers' hands but also solves the bottleneck of depth drill processing, enabling one-time drilling to achieve superior quality with automatic chip removal and precision positioning.
| Parameter Item | Unit | Specification |
|---|---|---|
| Inner diameter of drilling | mm | 2.5-25 |
| Maximum depth | mm | 600 |
| Maximum diameter of workpiece | mm | 72 |
| Maximum length of workpiece | mm | 700 |
| Max rotating speed of spindle | rpm | 6000 |
| Spindle feed speed | mm/min | 0-1000 |
| Spindle travel feed | mm/min | 0-5000 |
| Workpiece rotation speed | rpm | 60 |
| Spindle motor power | kw | 7.5 |
| Total power of machine tool | kw | 30 |
| Coolant pressure range | mpa | 3-10.5 |
| Coolant flow range | L/min | 0-64 |
| Machine size | mm | 4000*2000*2200 |
| Load capacity | kg | 4000 |
Our machines integrate cutting-edge core technologies, coupled with advanced production equipment and processes, to deliver unmatched product quality and reliability. Known for superior performance in precision, stability, and dependability, these machines adeptly handle complex and high-demand machining requirements. With a worldwide export footprint, the products have earned widespread recognition across Asia, Europe, South America, and North America.
