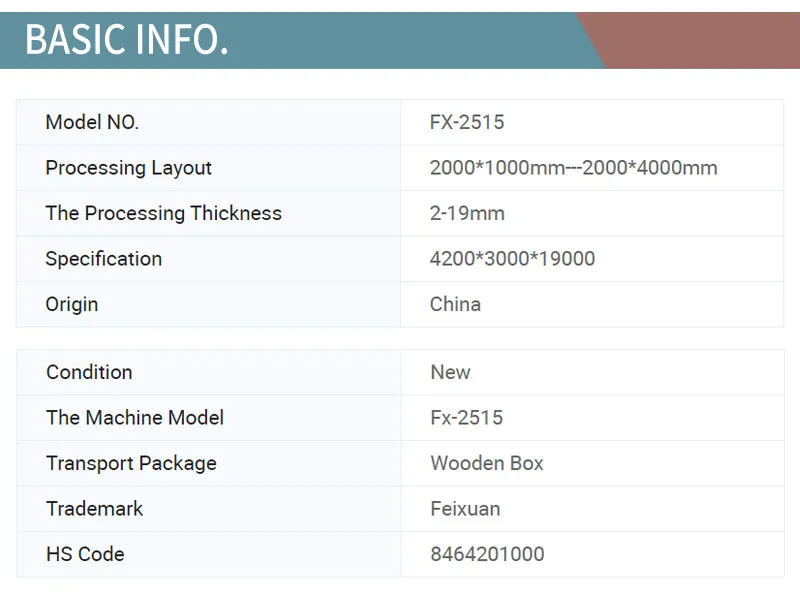

| Model NO. | FX-2515 |
| The Machine Model | Fx-2515 |
| The Processing Thickness | 2-19mm |
| Type | Glass Edging Machine |
| Structure | Horizontal |
| Control System | PLC |
| Condition | New |
| Glass Edging Machine Type | Glass Straight & Round |
| Grinding Head Number | 1 |
| Transport Package | Wooden Box |
| Specification | 4200*3000*19000 |
| Origin | China |
| HS Code | 8464201000 |

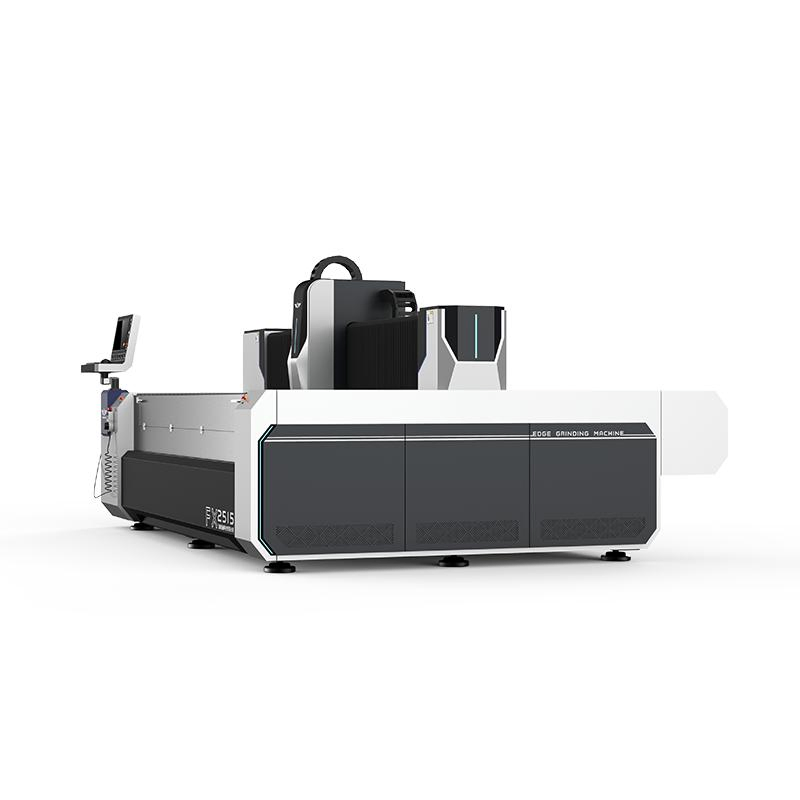

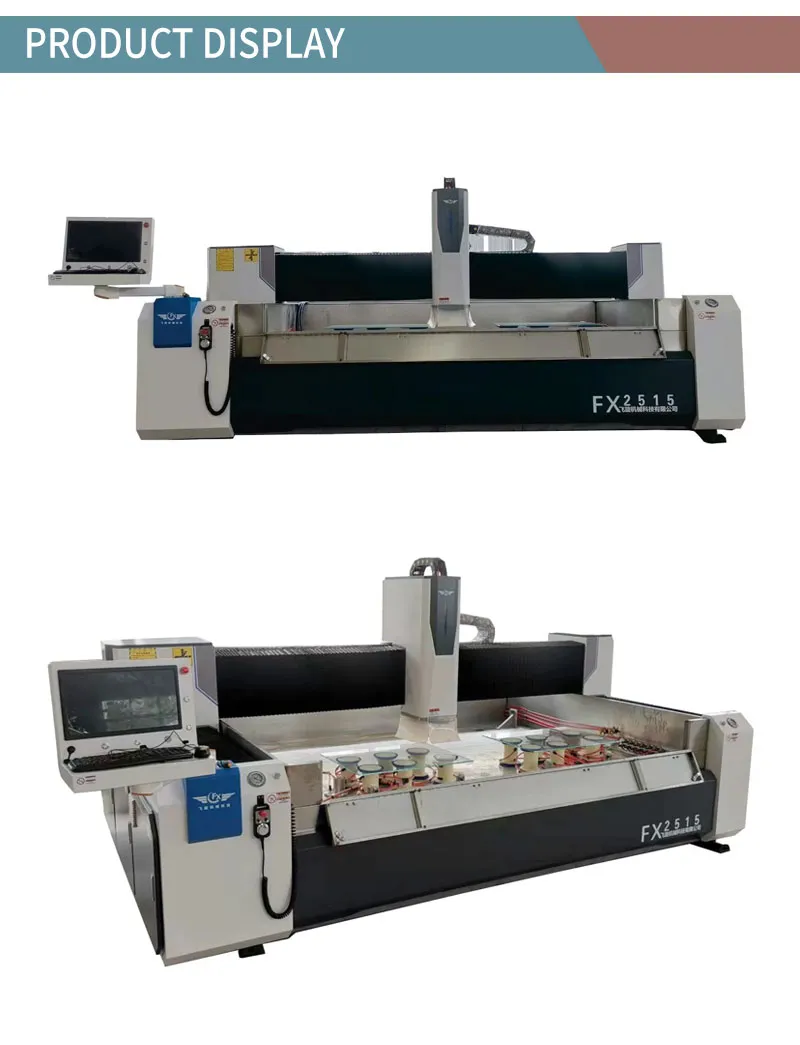

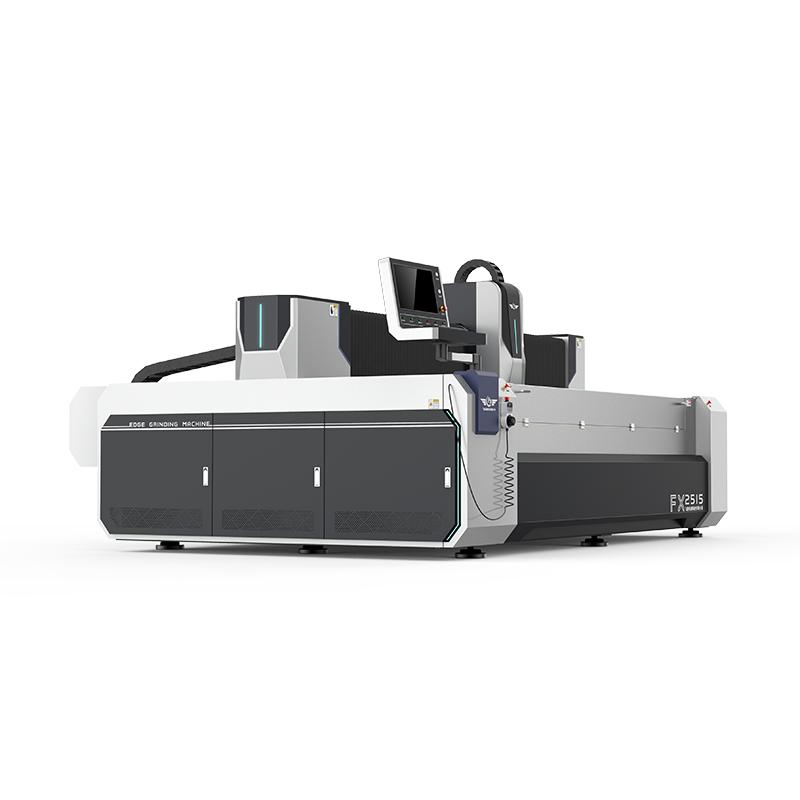

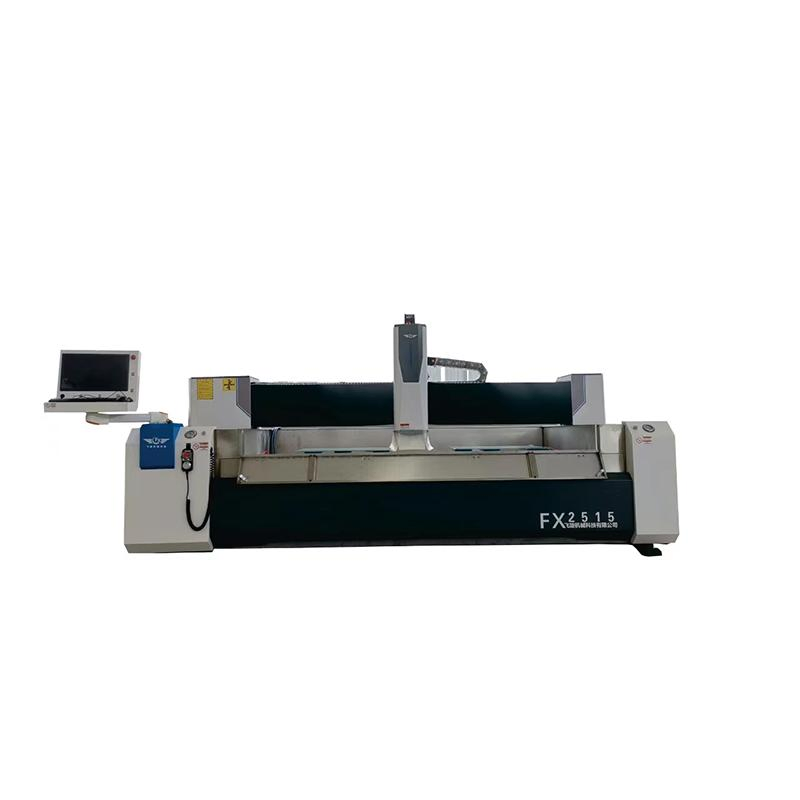

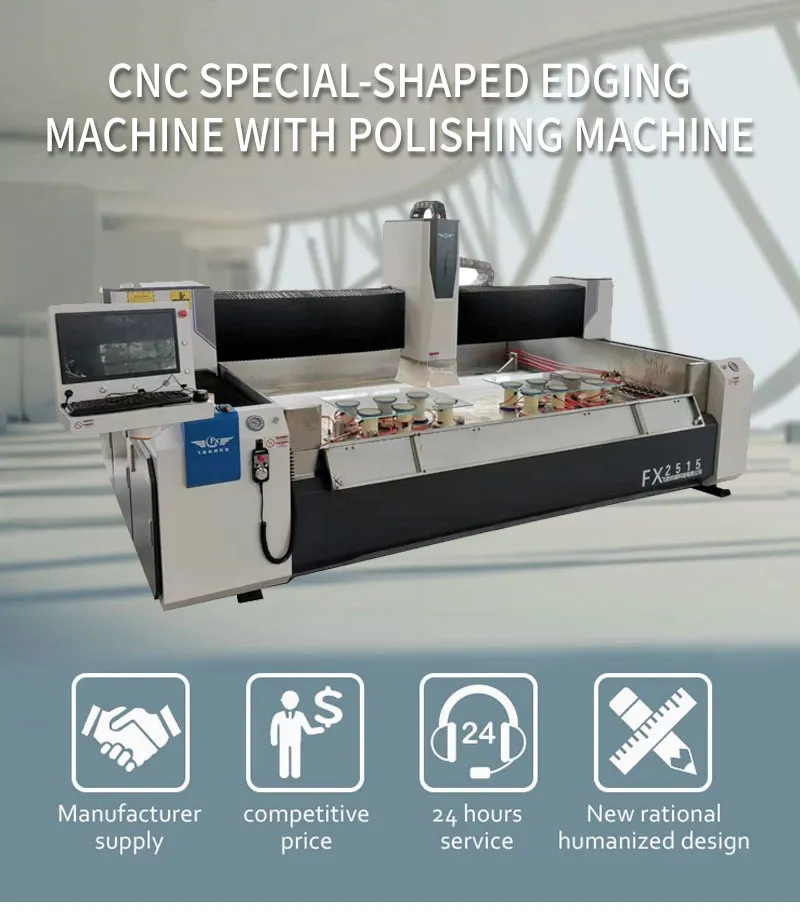

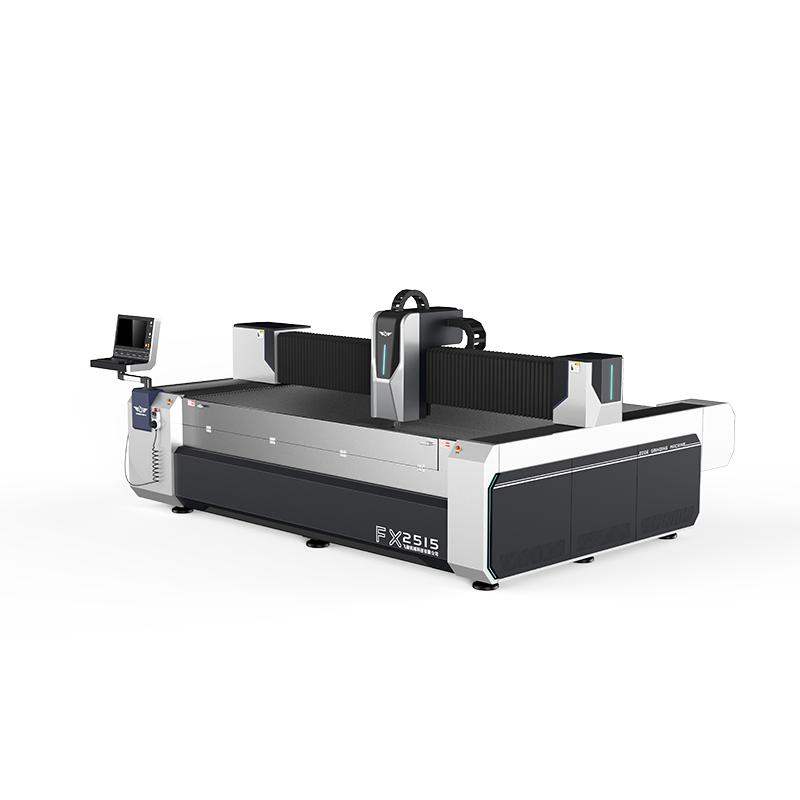

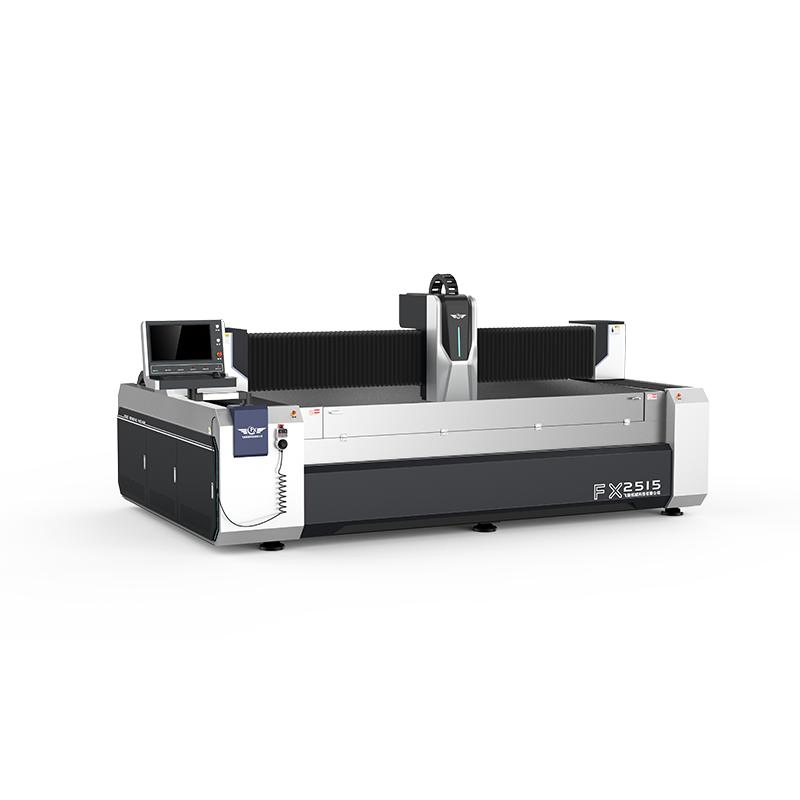

CNC Glass Processing Center

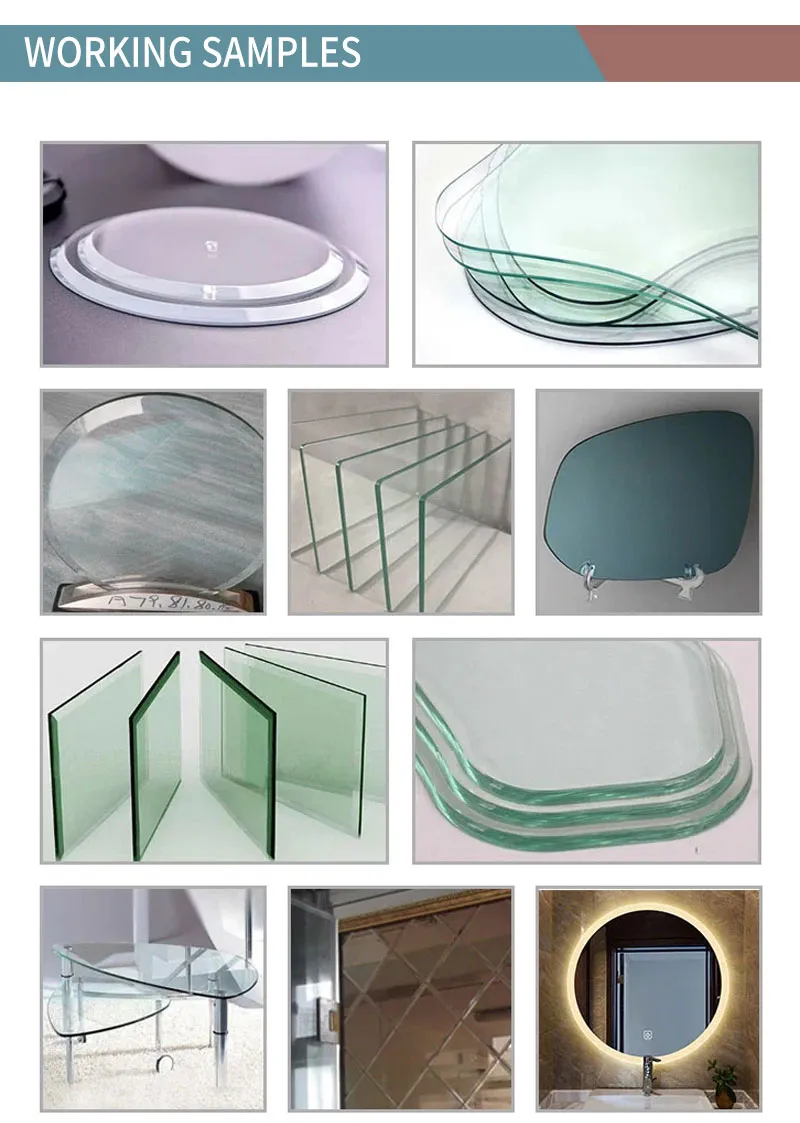

CNC glass machining center is a combination of glass edge grinding, chamfering, polishing, drilling, and milling. Specially designed for grinding from the inside or outside, the equipment features simple operation and applies to machining automotive glass, home appliance glass, furniture glass, shower room glass and mirrors of all descriptions. It is aimed at automating production and thus improving the competitiveness of enterprises.
| Parameter | Specification |
|---|---|
| Machine Model | FX2010, FX2515, FX3015, FX3020, FX4020 |
| Processing Layout | 2000*1000mm to 2000*4000mm |
| Spindle Power | 11KW / 15KW / 18.5KW |
| Spindle Speed | 3000-12000rpm |
| Processing Speed | 6-15M/min |
| Thickness | 2-19mm |
| Precision | ±0.2mm |
| Coverage Area | 4000mm*5000mm |
