CNC Glass Processing Machine Drilling Hole Milling Polishing CNC Glass Working Center Round Grinding Straight Line Edging Machine

1 / 5

CNC Glass Processing Machine Drilling Hole Milling Polishing CNC Glass Working Center Round Grinding Straight Line Edging Machine

Customization:	Available
Certification:	CE
Processing Speed:	3-10m/Min

Send Inquiry

Product Description

📋Overview & Basic Info

Model

ZXX-C2515

Processing Thickness

3-19 mm

Processing Size

2500*1500mm

Voltage

380V, 220V, 415V, 440V, 600V etc.

Main Spindle

11kw

Tool Magazine

5 PCS

Weight

2600kg

Condition

New

⚙️Product Description

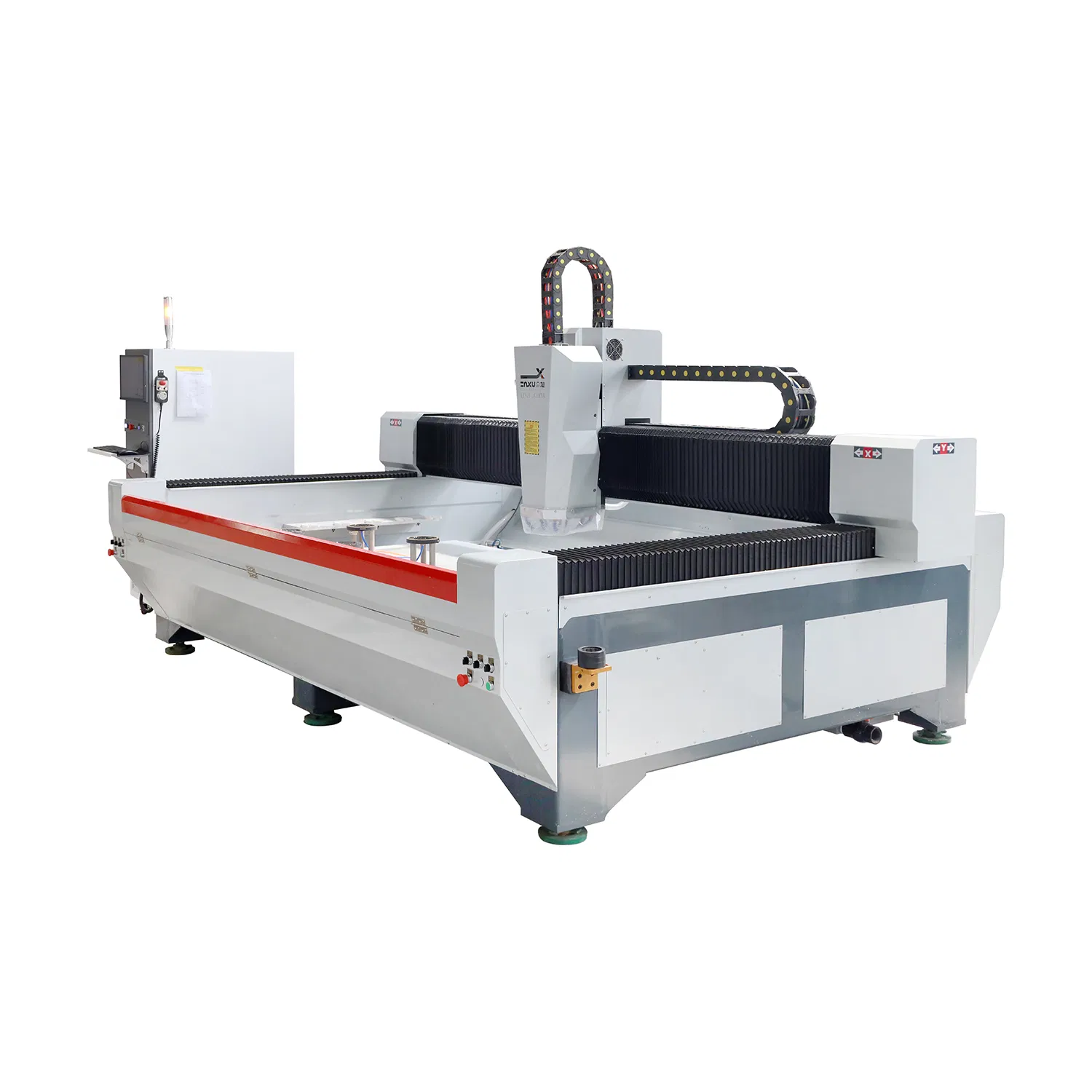

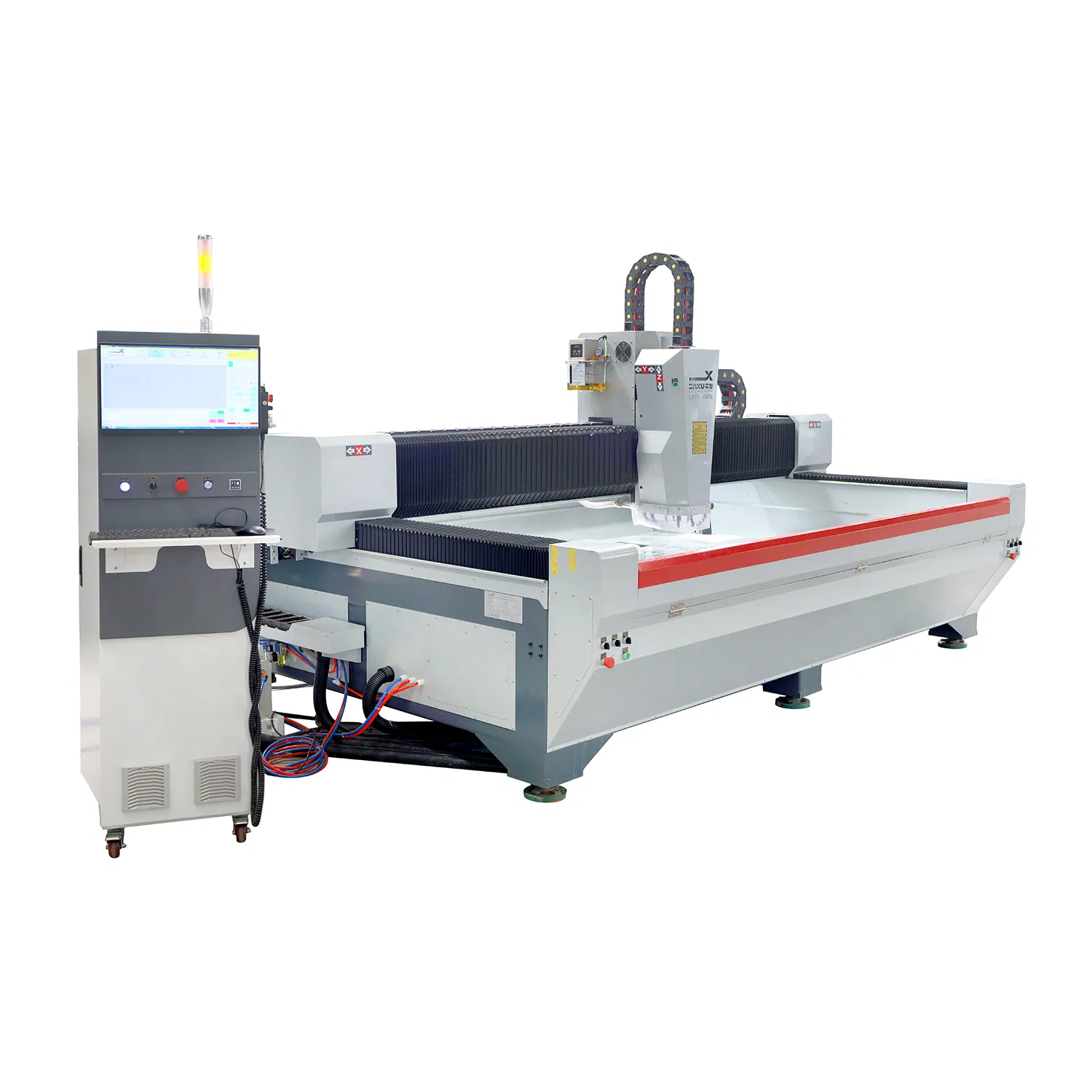

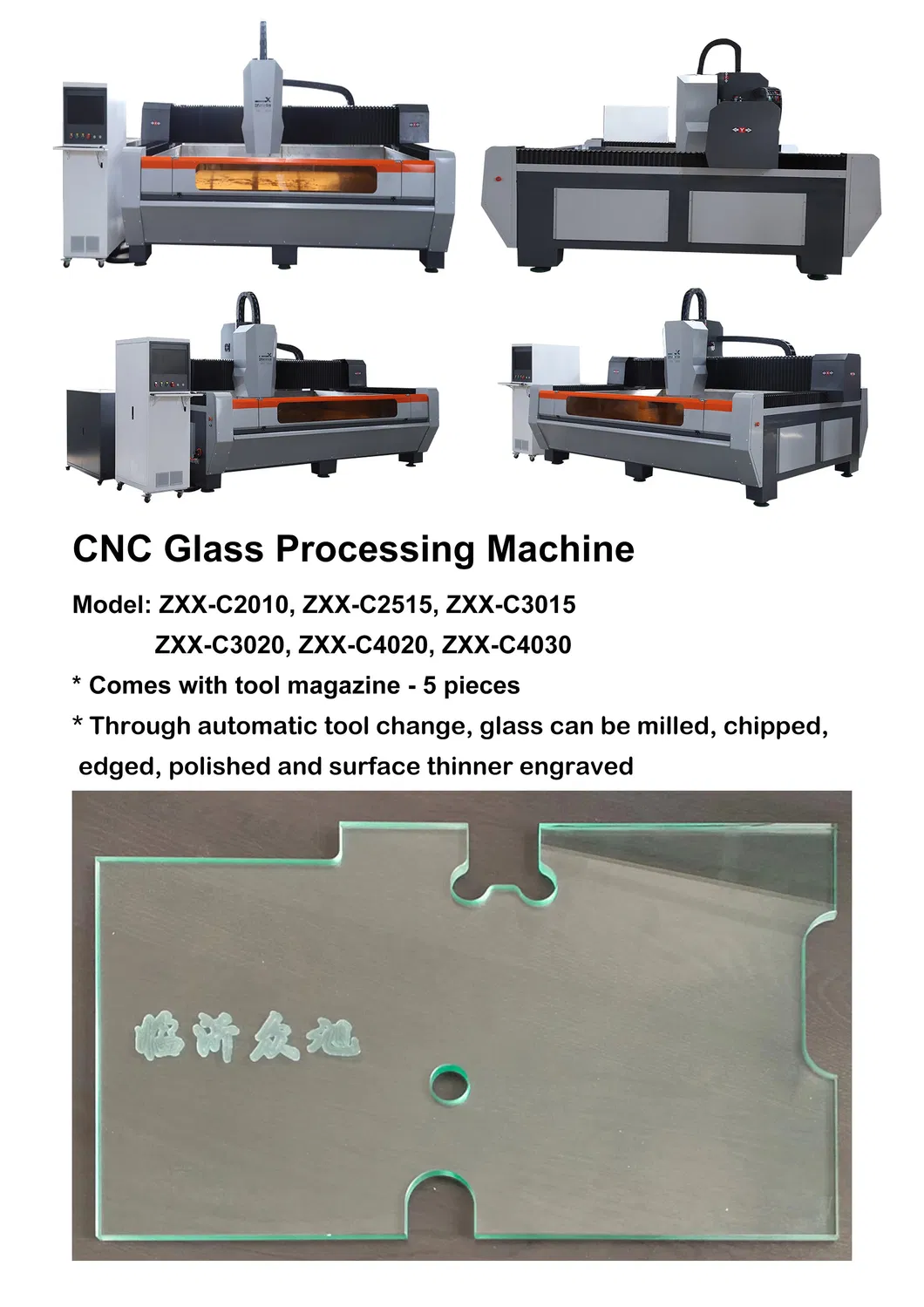

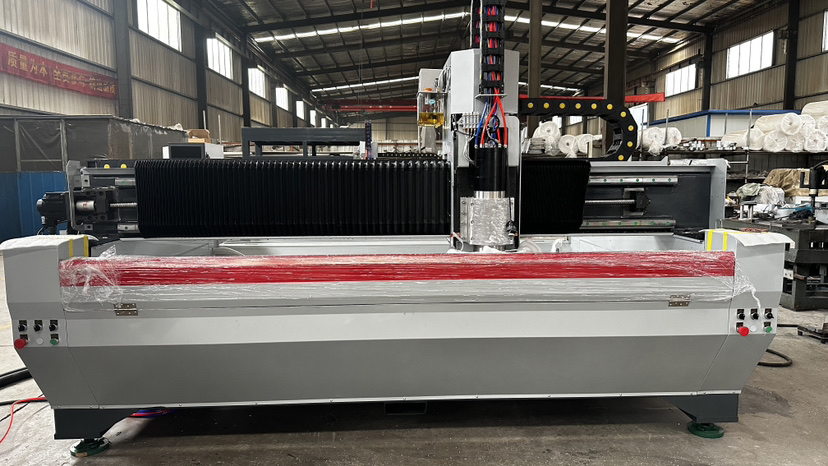

CNC Glass Processing Machine: Drilling, Hole Milling, Polishing, and Round Grinding Straight Line Edging Machine

The PC-based numerical control work center is dedicated to precision glass processing. Cutter heads can be moved across three axes (linkage structure) for versatile operations. The base, columns, and beams are constructed from heavy iron to ensure long-term operational stability.

Key Features:

3-Axes Linkage Control
Fully Automated Processing
Rough/Fine Edging & Polishing
Glass Drilling & Milling
Automatic Tool Changing
Automatic Spindle Cooling
Central Lubricating System
Auto Tool Calibration
Space-Effective Design
Robust Structural Integrity

📊Product Parameters

Machine Bed	Heavy heat treatment bed
Internal Structure	Half Cover / Waterproof design
Main Spindle RPM	12000 RPM (Water Cooling)
Main Spindle Power	15kw
Machine Size	410026502300MM
Table Size	2500*1500MM
Max Grinding Size	2350*1350MM
Position Accuracy	0.1mm
Servo Motor	High-performance Delta System

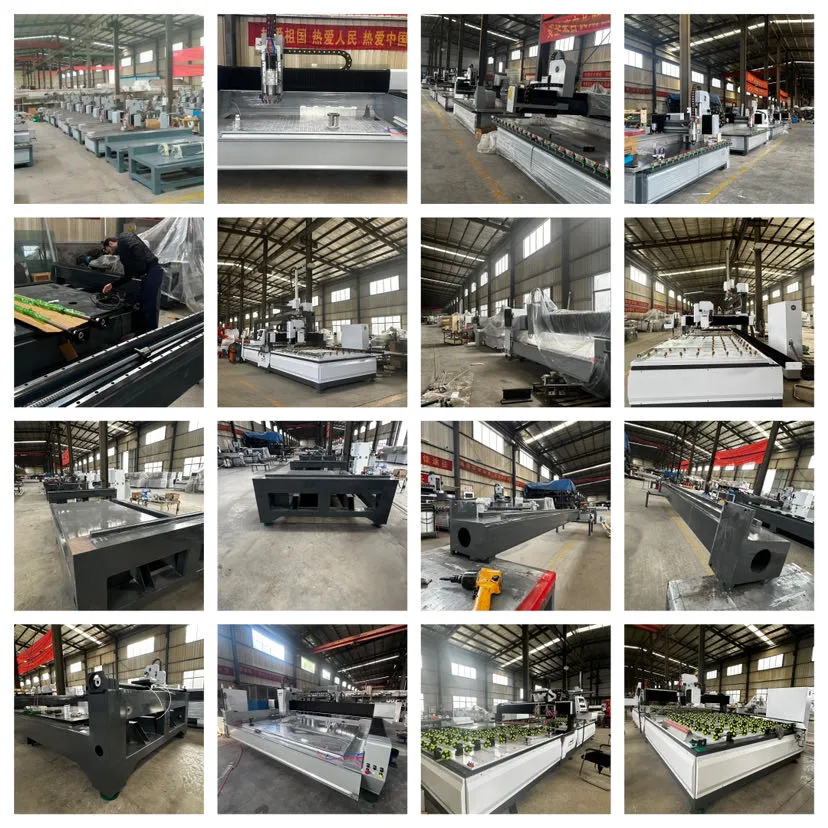

🏭Workshop & Production

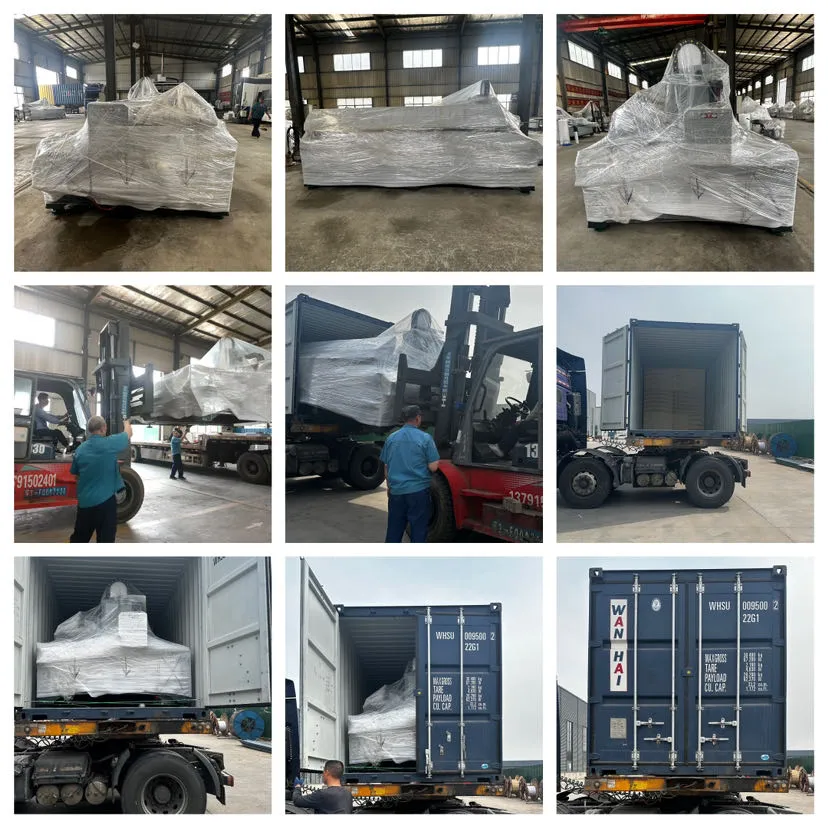

📦Packaging & Shipping

Package Size

4500 * 2200 * 2200 cm

Gross Weight

2750.00 kg

🤝Exhibition and Partners

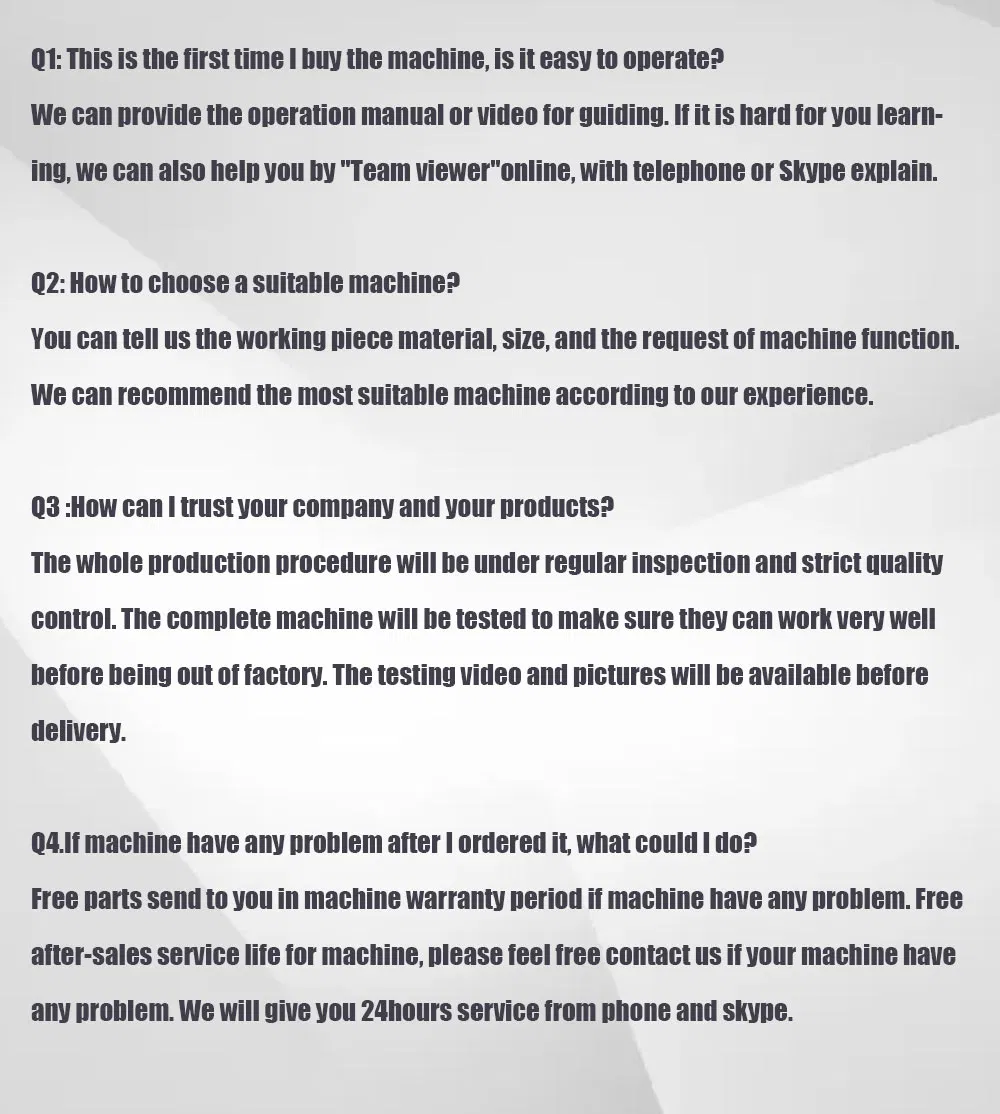

❓Frequently Asked Questions

What is the range of glass thickness this machine can handle?

This CNC glass working center is designed to process glass with a thickness ranging from 3mm to 19mm.

What specific functions does this CNC center perform?

The machine integrates multiple functions including rough edging, fine edging, polishing, glass drilling, and glass milling.

Is the machine compatible with different international power standards?

Yes, the machine voltage can be customized per request, supporting 220V, 380V, 415V, 440V, 600V, and more.

What are the maximum processing dimensions for glass?

The maximum processing size for this model is 2500mm by 1500mm, with a work travel of 2500*1500*380mm.

Does the machine feature an automatic tool-changing system?

Yes, it is equipped with a 5-piece tool magazine and a fully automated tool changing and calibration system.

How is the machine's stability ensured during high-speed operation?

The machine bed, columns, and beams are made of heavy, heat-treated iron to ensure maximum stability and precision during long-term operation.
