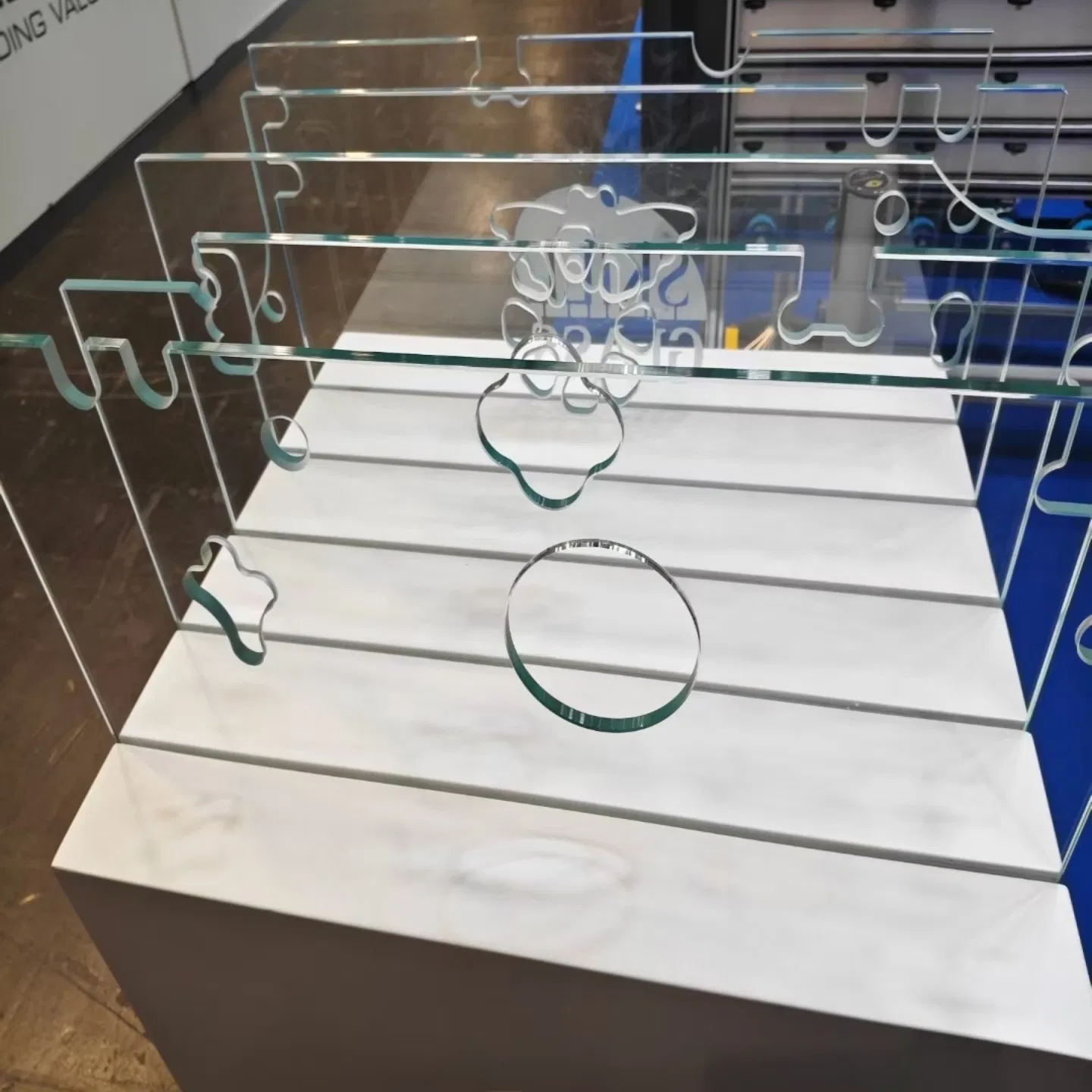

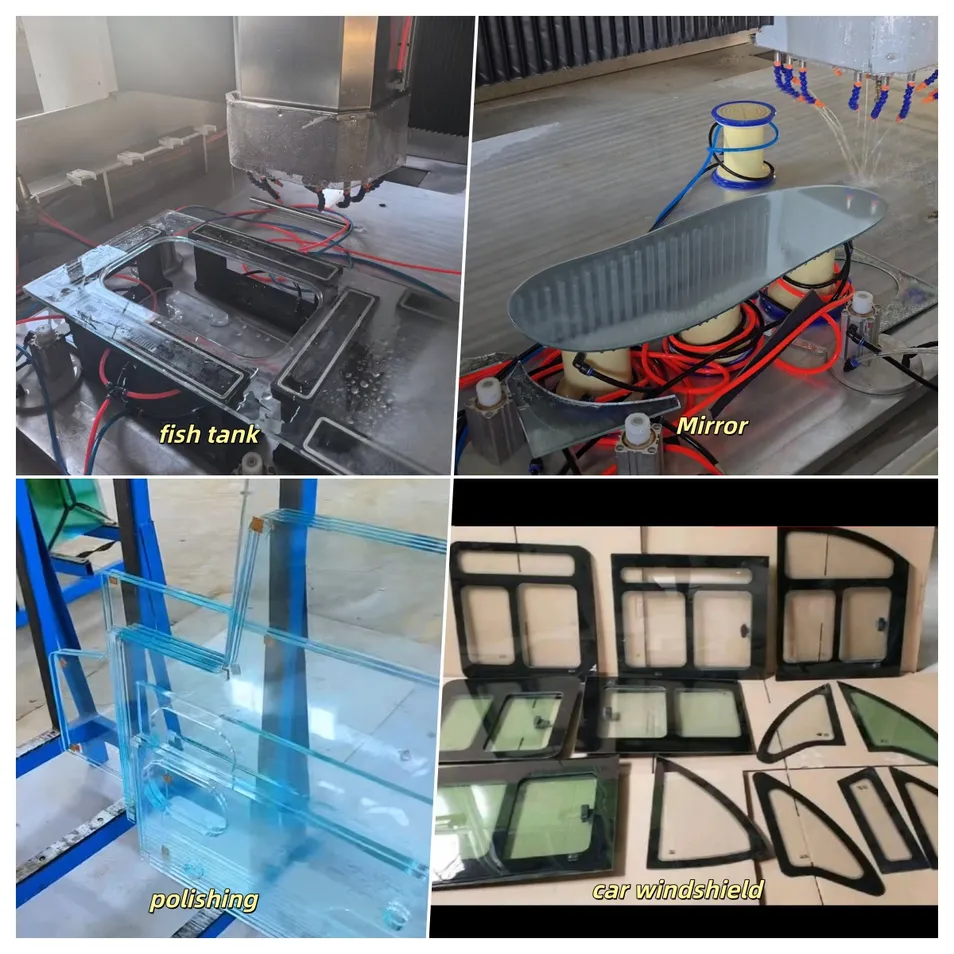

Precise drilling of circular or oval holes for hinges and handles. Expertly creates slots on glass edges or surfaces for hardware fixing and splicing.

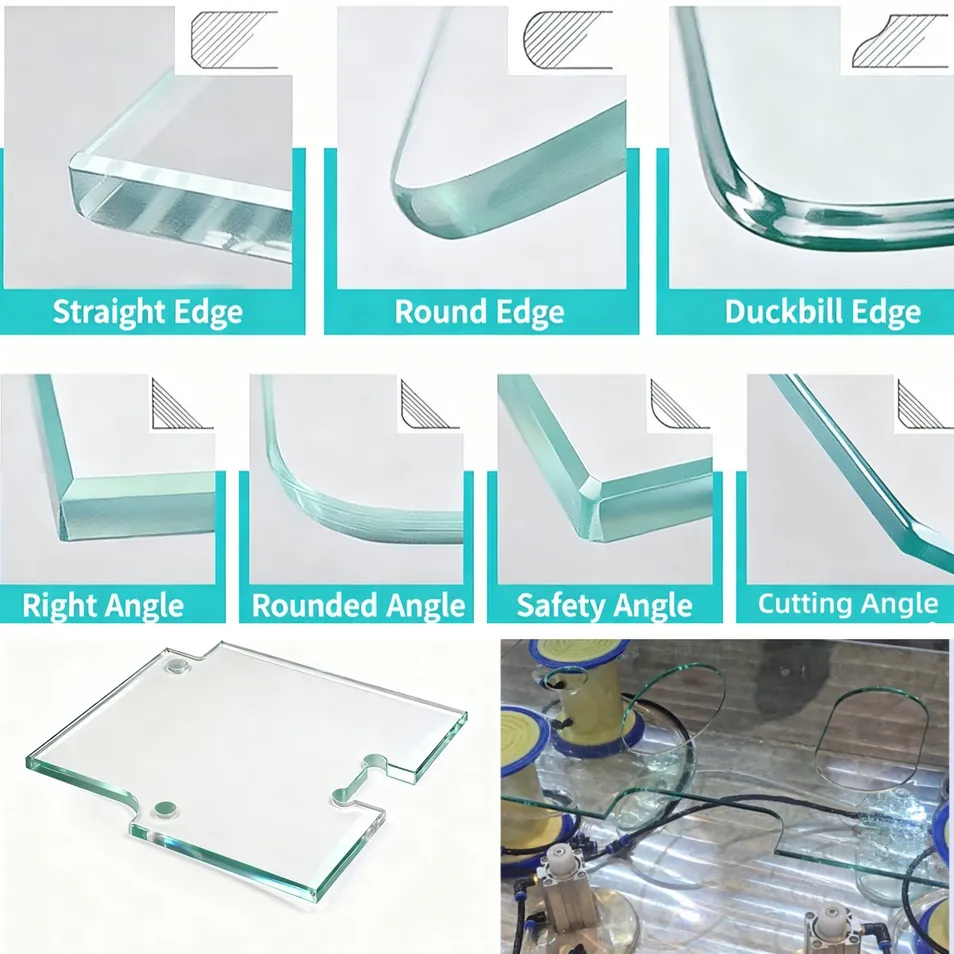

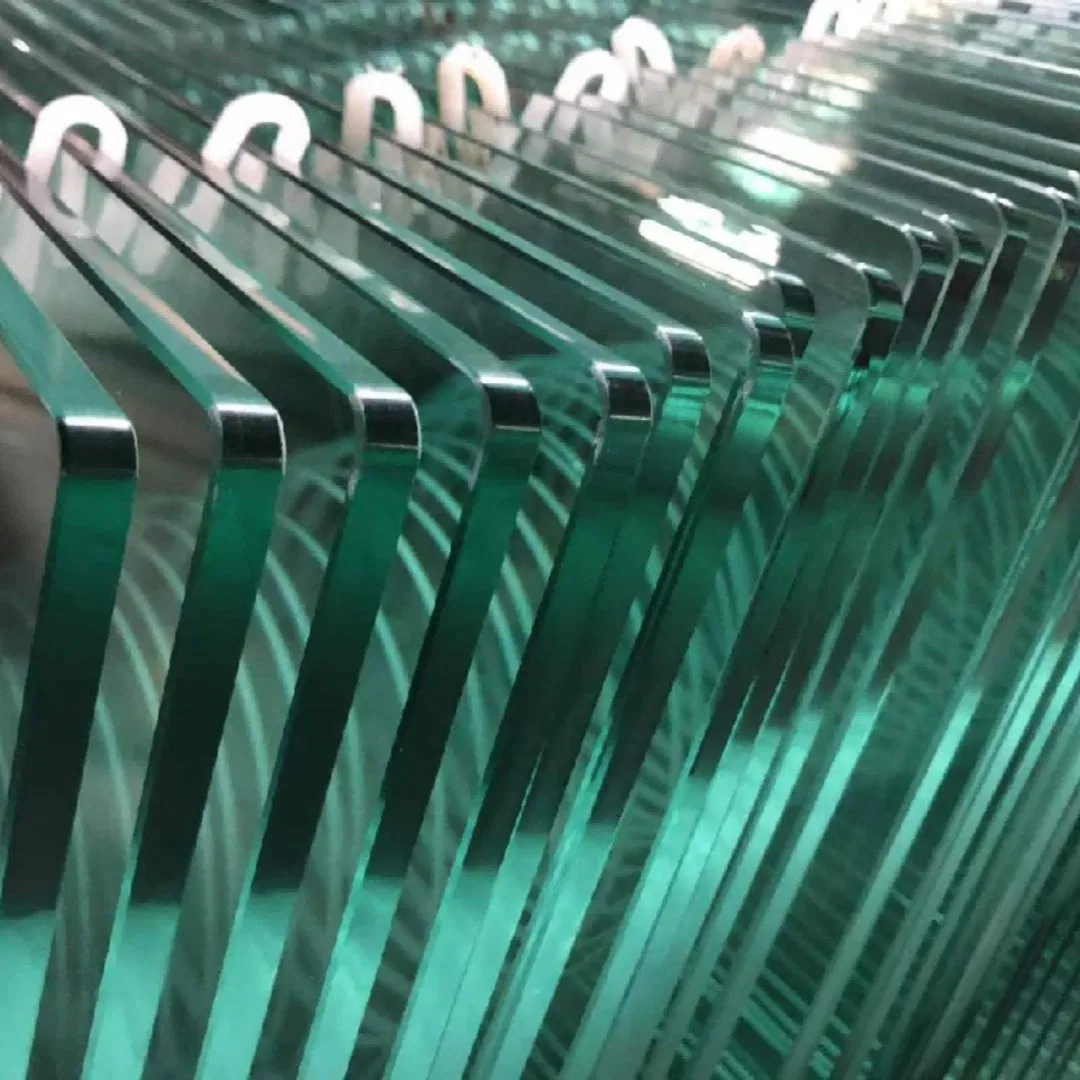

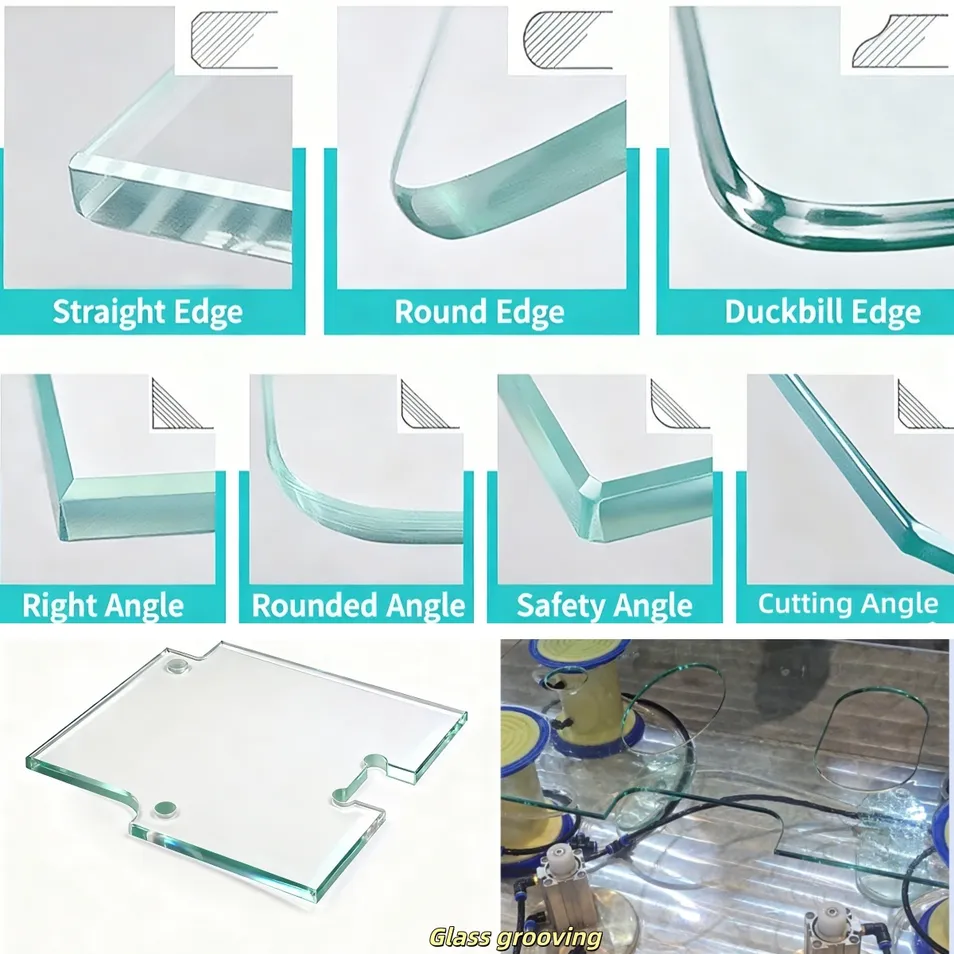

Supports straight, round, bevel, and duckbill edge grinding. Chamfering prevents sharp edges and meets specific fitting requirements.

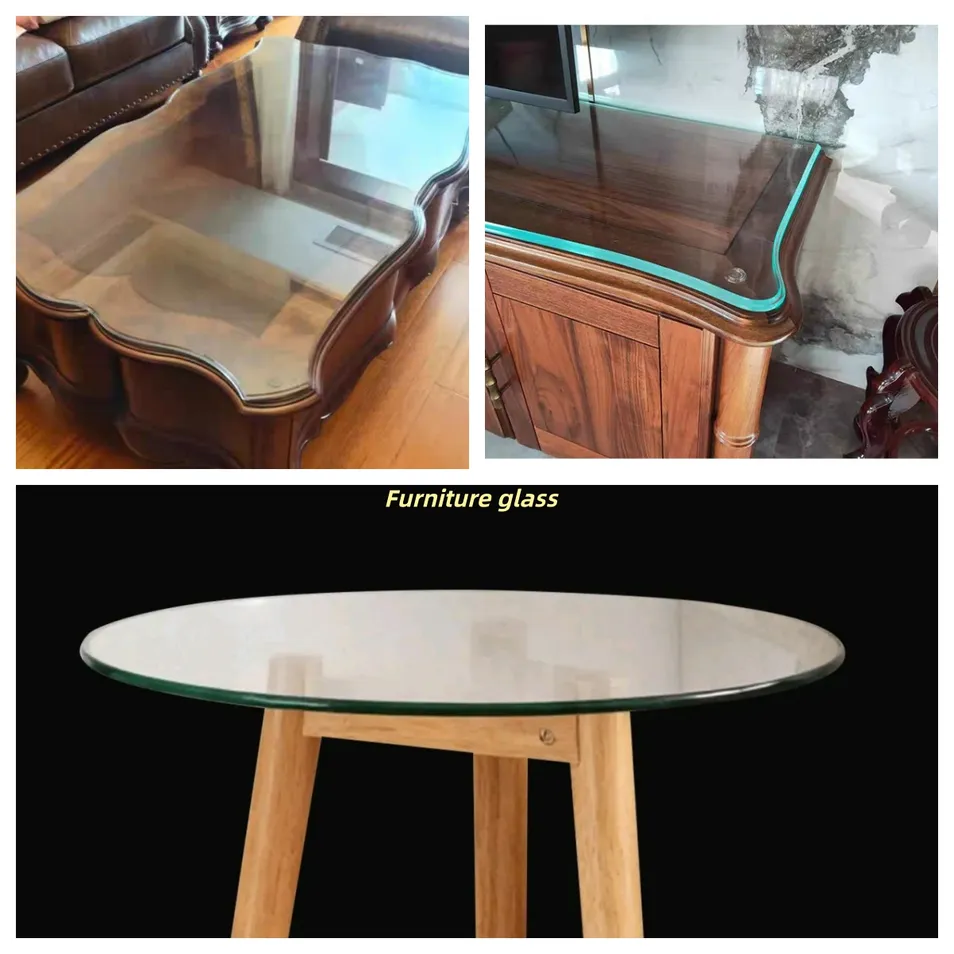

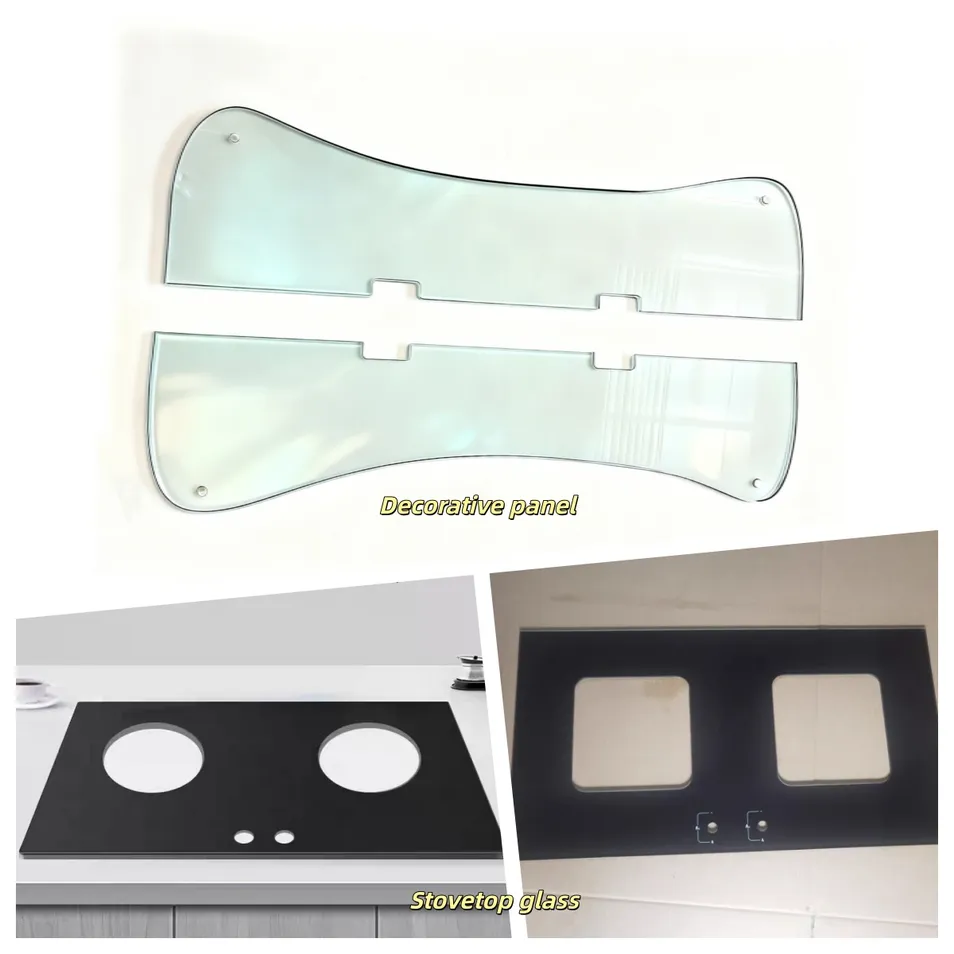

Utilizes polishing wheels for high-gloss treatment, achieving a mirror-like effect suitable for high-end decorative and appliance glass.

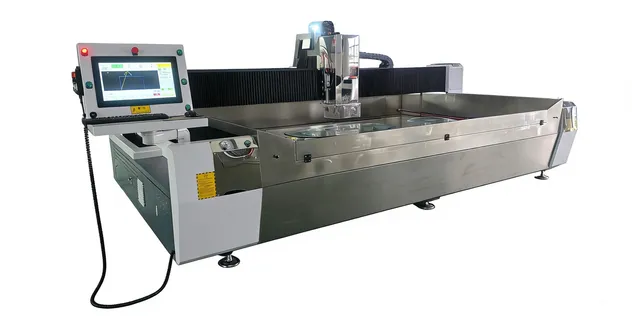

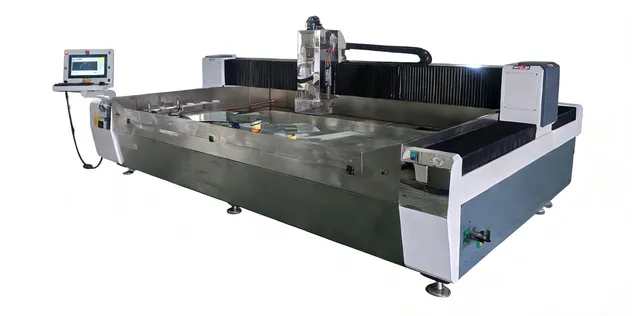

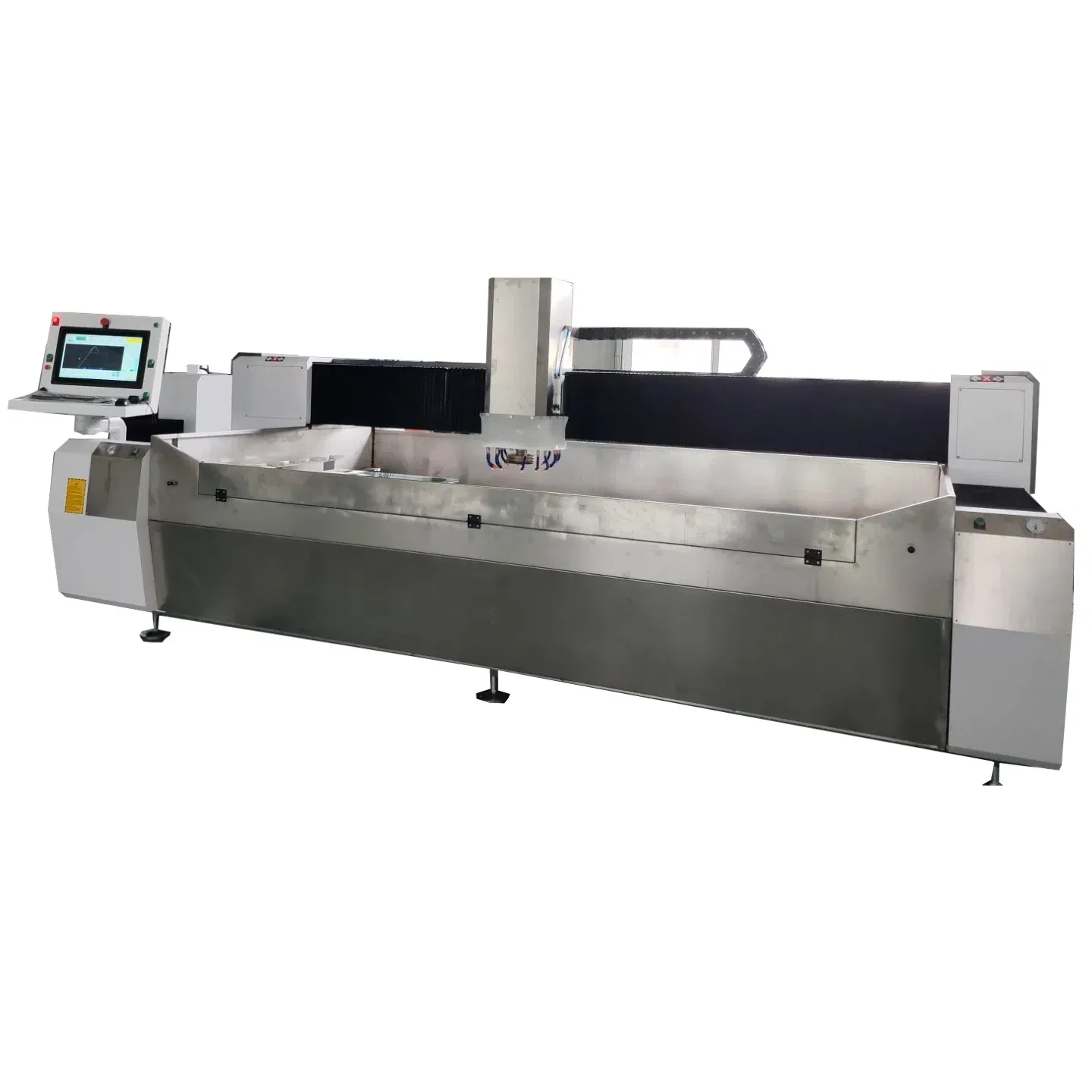

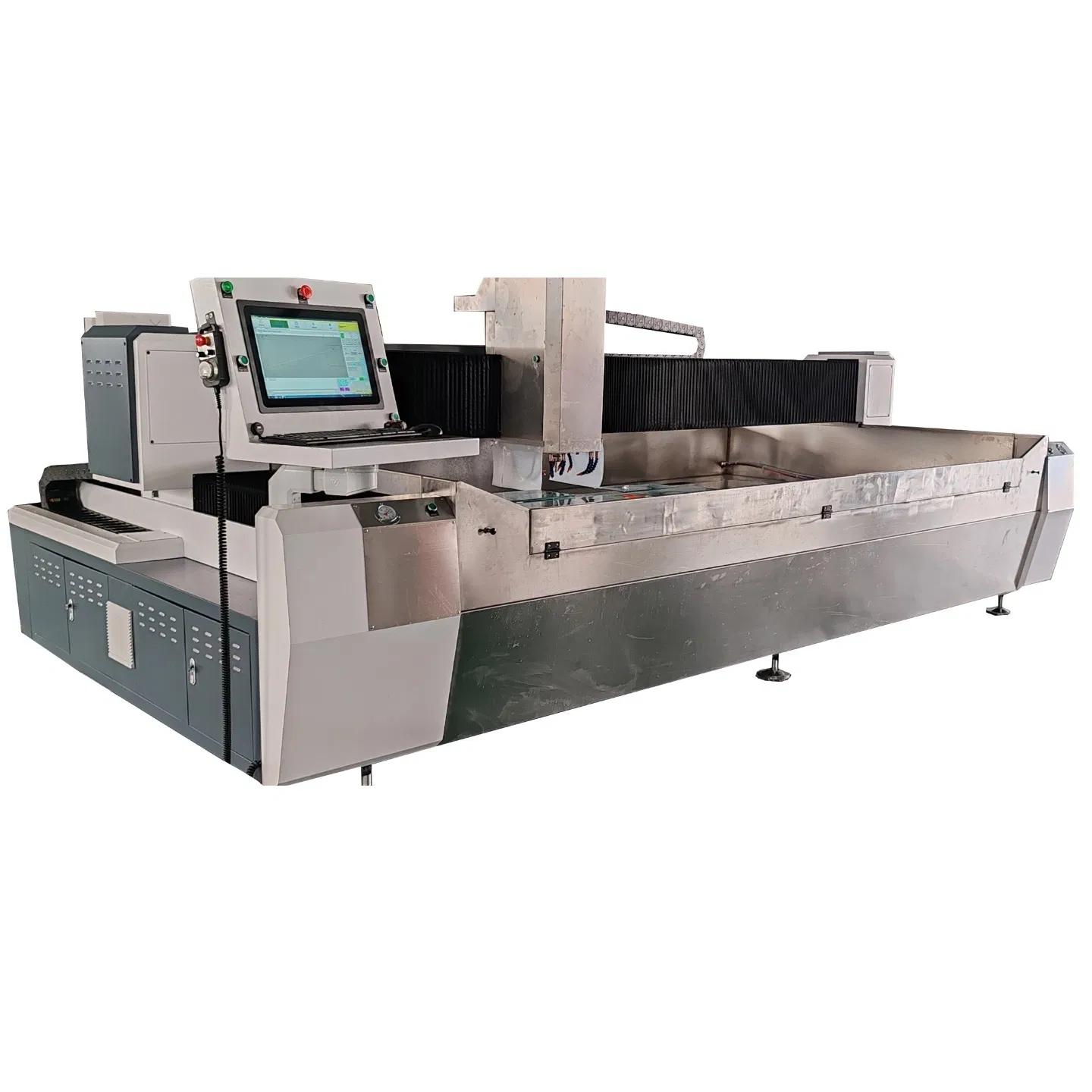

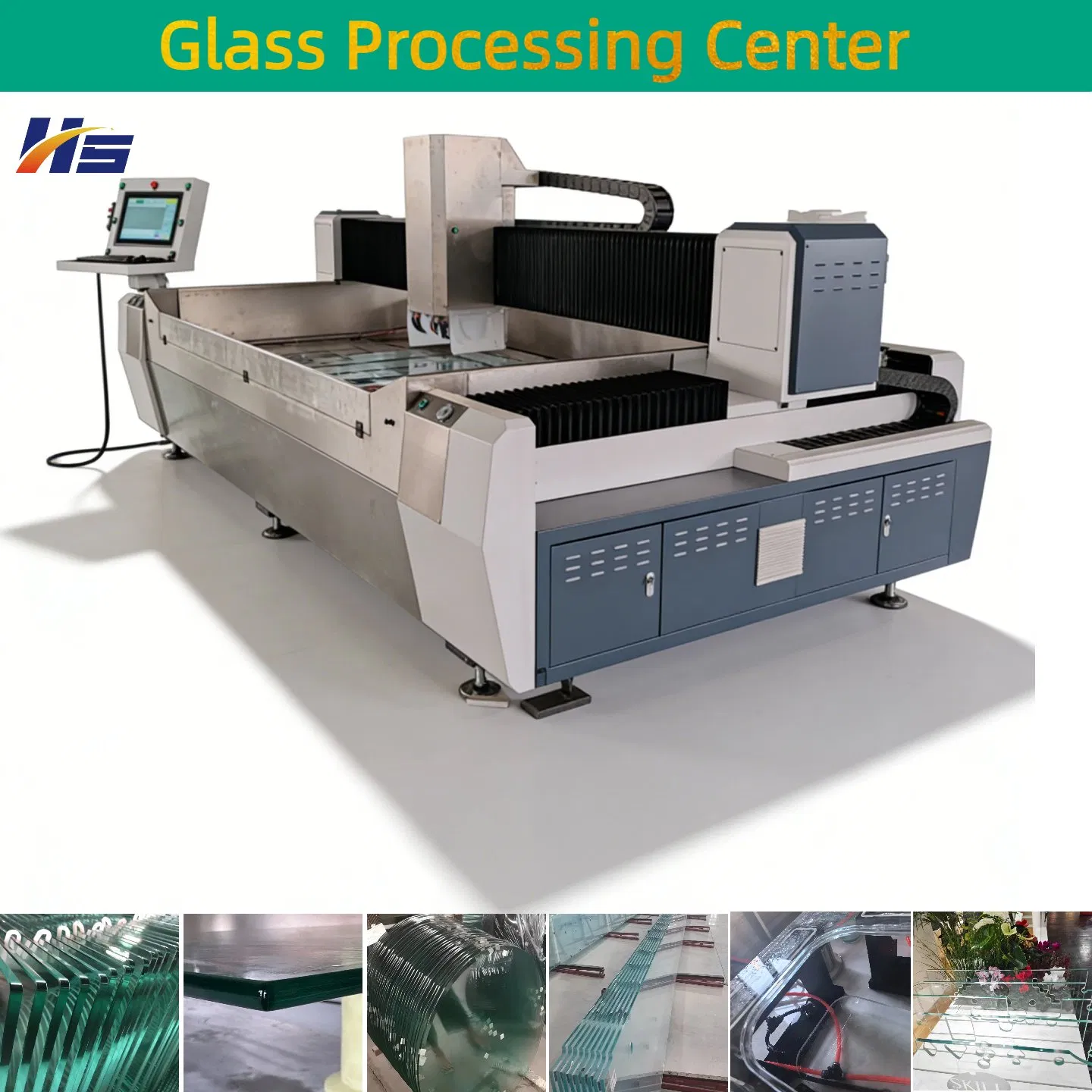

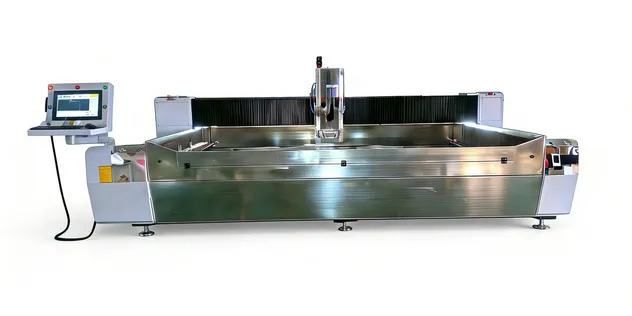

Horizontal design for easy loading. Constructed with thick-walled square tubes and processed on five-axis centers with high-temperature annealing for long-term stability.
Electric spindle with ultra-high speed and stable output. Positioning accuracy reaches ±0.01mm with ±0.005mm repeatability.

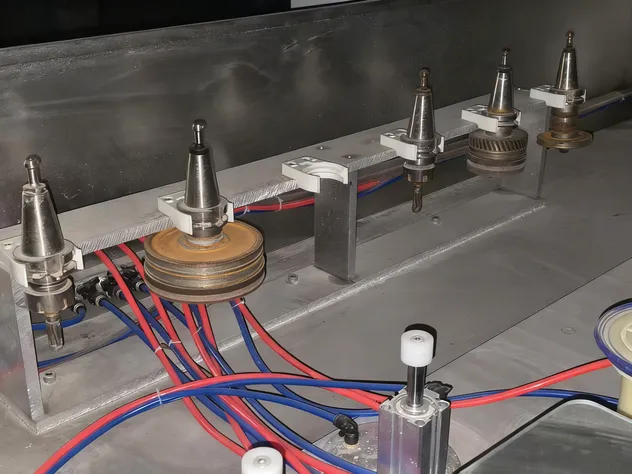

Equipped with a 6-tool magazine for seamless automatic transitions between drilling, milling, and polishing.
| Specifications | Model 2515 | Model 3015 | Model 3020 |
|---|---|---|---|
| X/Y Axis Travel | 2500 x 1500mm | 3000 x 1500mm | 3000 x 2000mm |
| Z Axis Travel | 350mm | 350mm | 350mm |
| Spindle Speed | 9000-12000 RPM | 9000-12000 RPM | 9000-12000 RPM |
| Positioning Precision | ±0.05mm | ±0.05mm | ±0.05mm |
| Glass Thickness | 2-19mm | 2-19mm | 2-19mm |
| Machine Weight | 4000KG | 4800KG | 5600KG |
Warranty: 12 months standard, up to 36 months optional.
Support: 24/7 technical assistance and global spare parts supply.
Training: Comprehensive remote or on-site operation training.

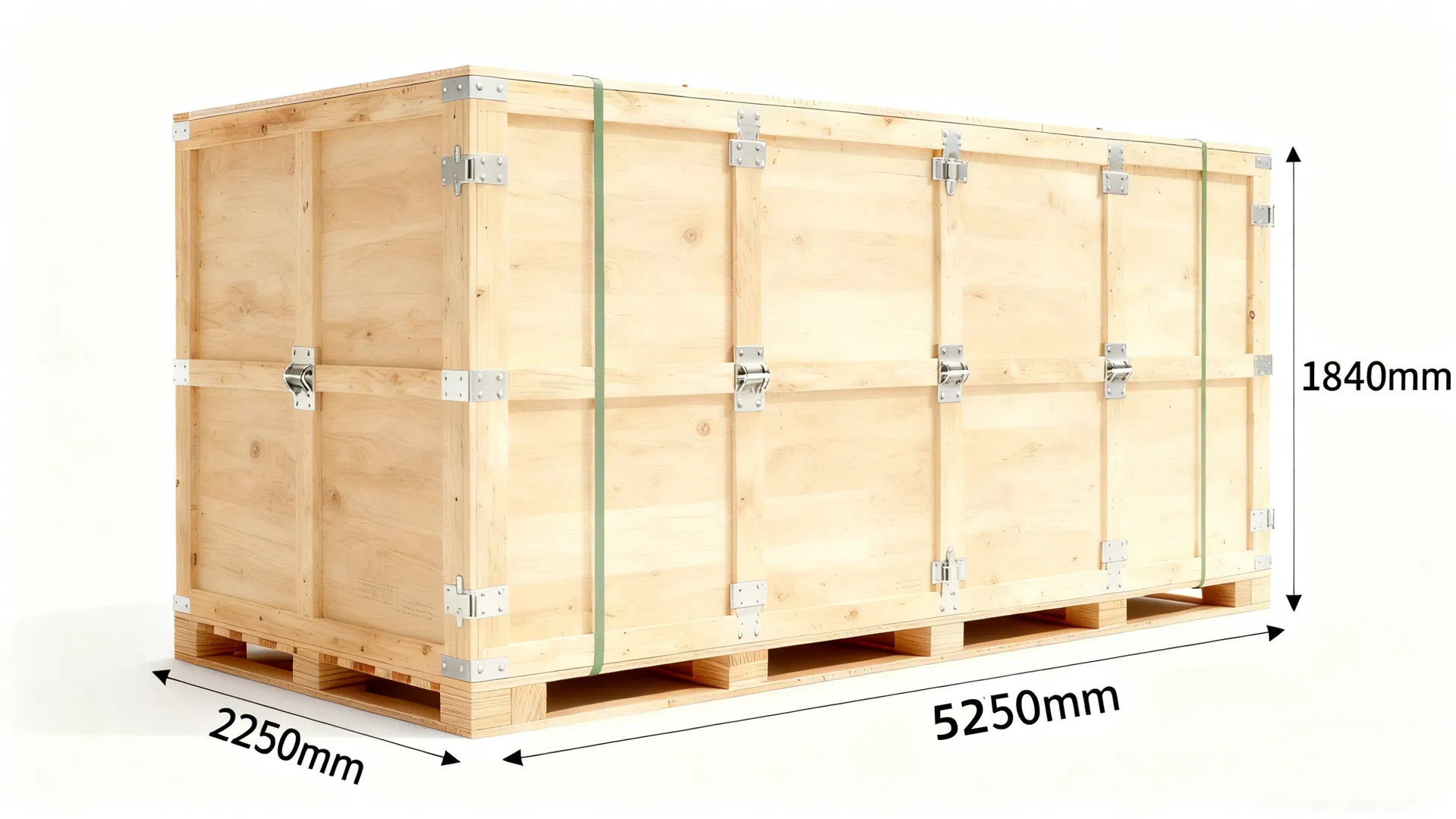

Machines are designed with modular layouts (standard width 2200mm) to fit perfectly into export containers, ensuring safe and cost-effective international transport.
