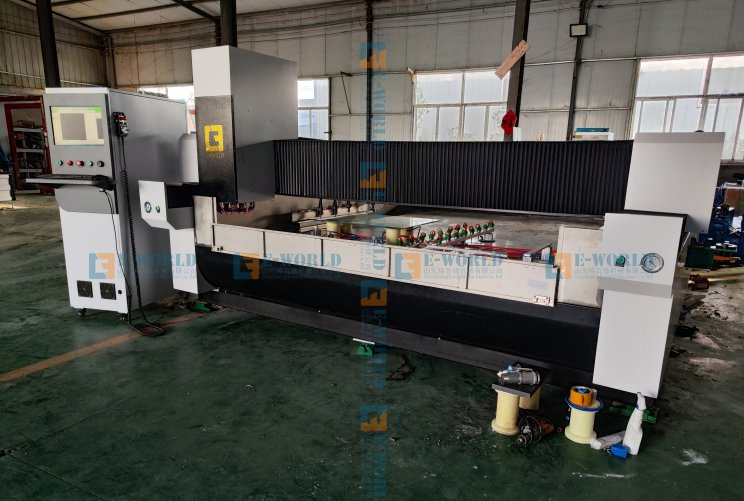

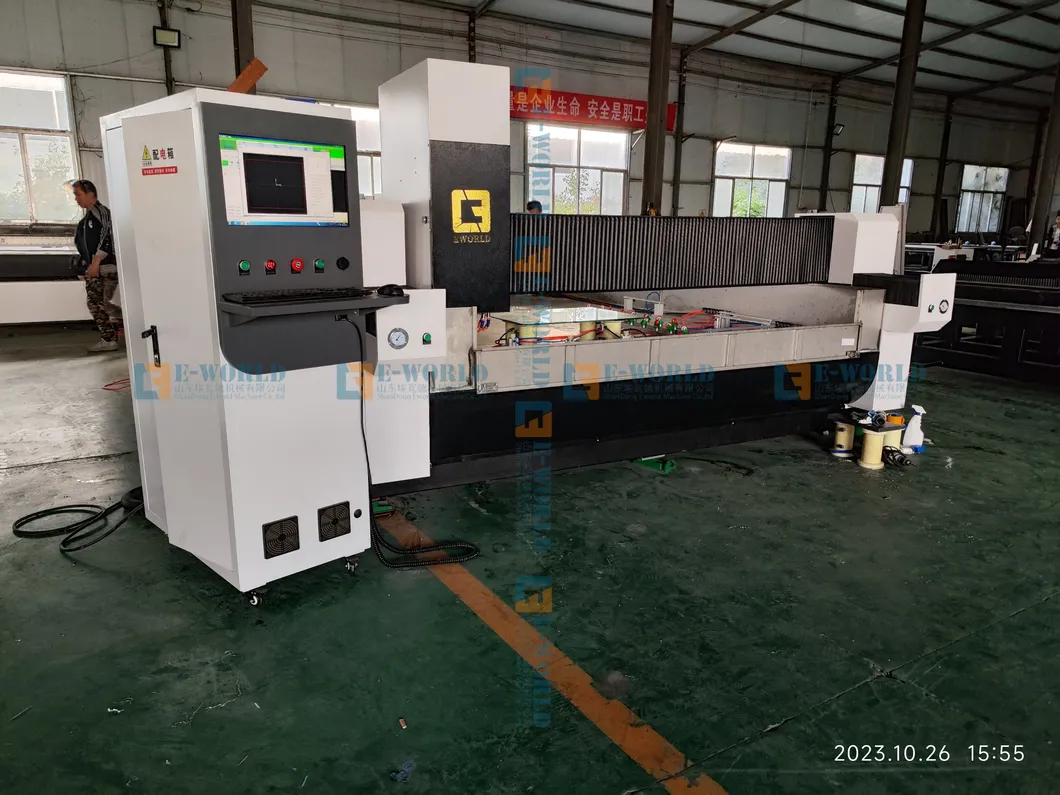

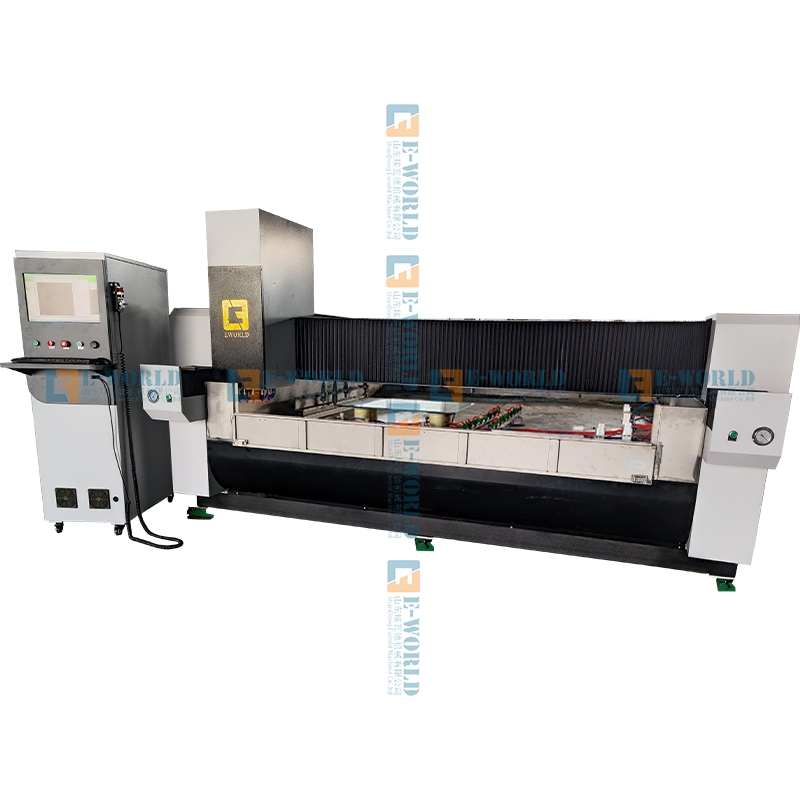

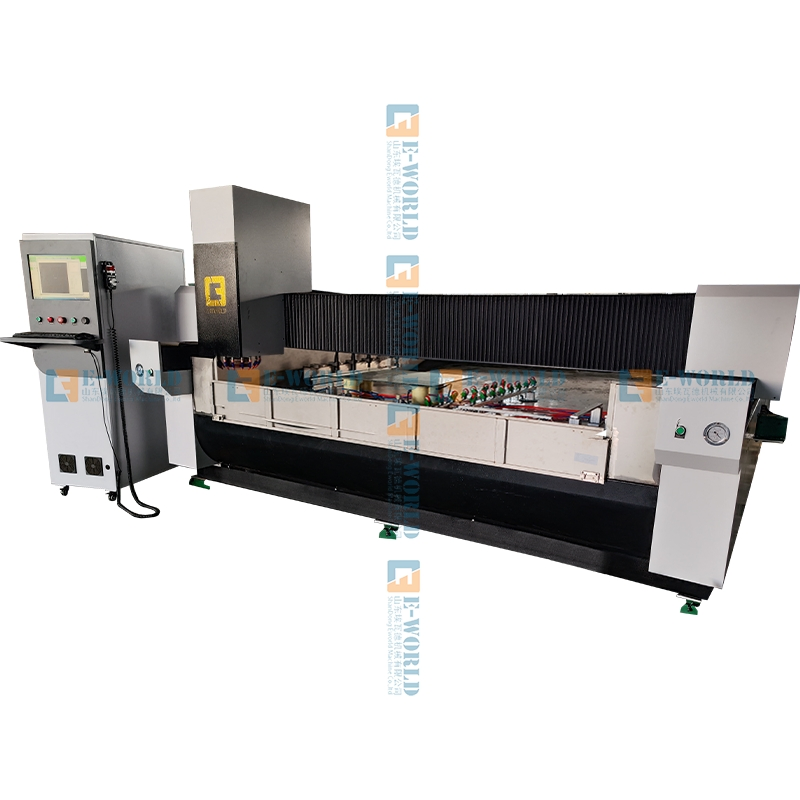

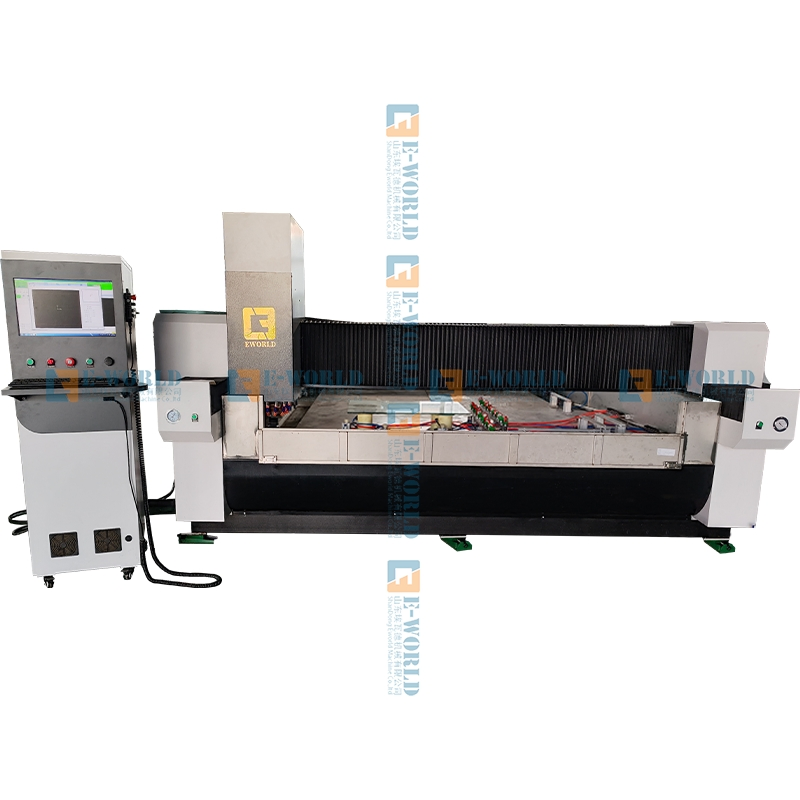

Advanced CNC Glass Processing Center for Cutting, Polishing, and Drilling

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

📊 Overview & Basic Info

Model NO.

WDC1530

Certification

Usage

Glass Processing

Control

Automatic

Drive Type

Hybrid Servo Drive

Spindle

7.5kw

Max Glass Size

3000*1500mm

Glass Thickness

2-19mm

Machine Weight

About 4000kgs

Capacity

10 Set/Month

🛠️ Product Description

Main Application

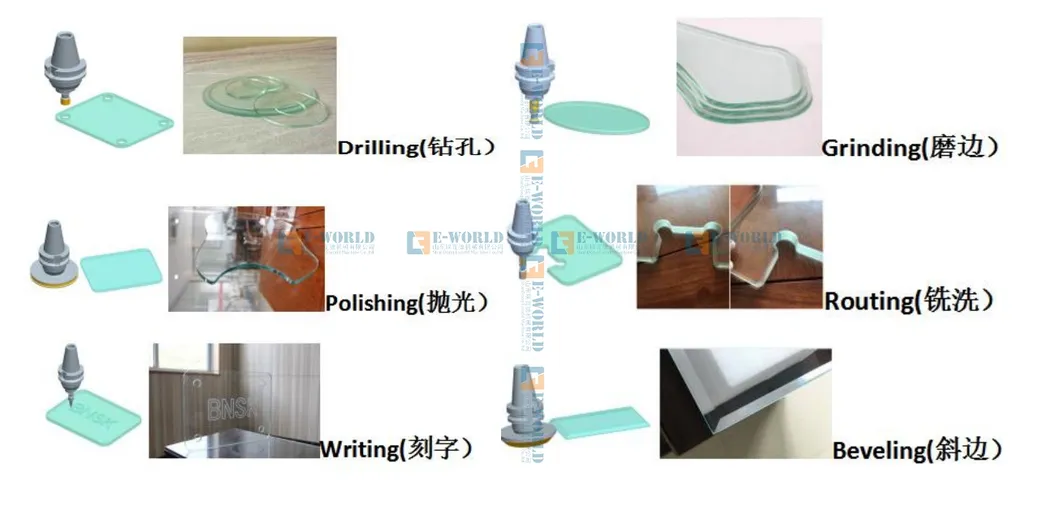

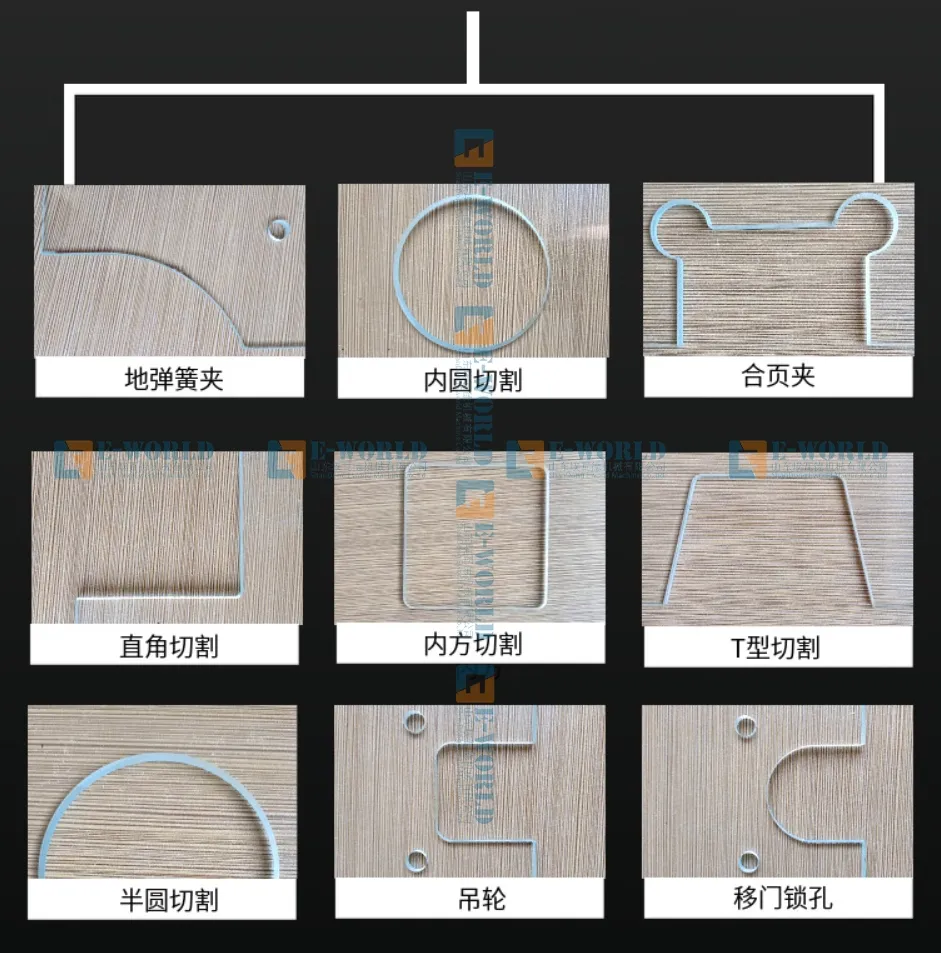

Versatile Functionality: This machine is designed for Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, and Engraving on glass, marble, stone, quartz, and more.

Countertop Processing: Create sinkholes in glass countertops, stove holes, and pipe holes with precision.
Hardware Preparation: Perfect for shower door clamps, hinge holes, and handle hole fabrication.
Cabinet Solutions: Specialized for kitchen door invisible handle holes.
Shaped Glass: High efficiency and precision for grinding and polishing complex glass shapes.

📐 Product Parameters

Transverse Axis (X)	3000 mm
Length Ways Axis (Y)	1500 mm
Vertical Axis (Z)	250 mm
Allocating Accuracy (X,Y,Z)	0.01 * 0.02 * 0.01
Glass Milling Speed	500-600 mm/min
Grinding & Polishing Speed	4000-5000 mm/min
Power Supply	380 V, 50 Hz, 3 Phases
Compressed Air	≥ 0.6 Mpa
Spindle Rotation Speed	0 - 9000 RPM
Tool Capacity	10 pieces (ISO 40 Handles)

Mechanic Transmission: Transmitted via AC servo motor with synchronic belts. Includes an automatic lubricating system for screw nuts and guide-rails.

🖼️ Detailed Photos

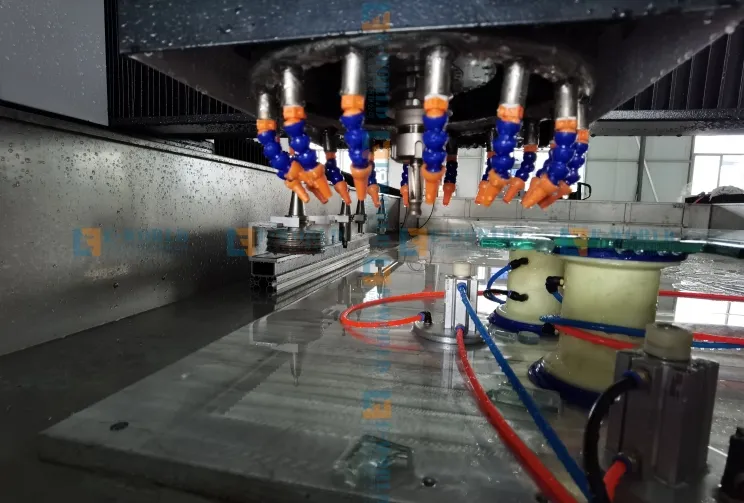

Servo System: Equipped with high-performance AC servo systems and German NEFF series double nut screws.

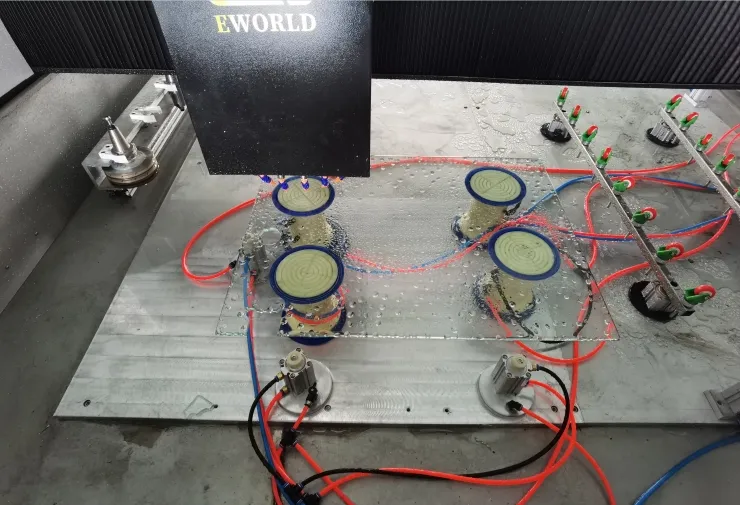

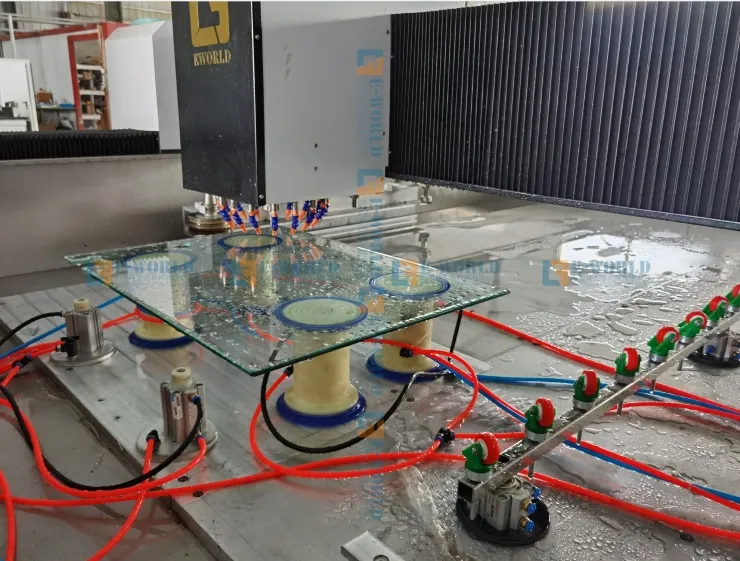

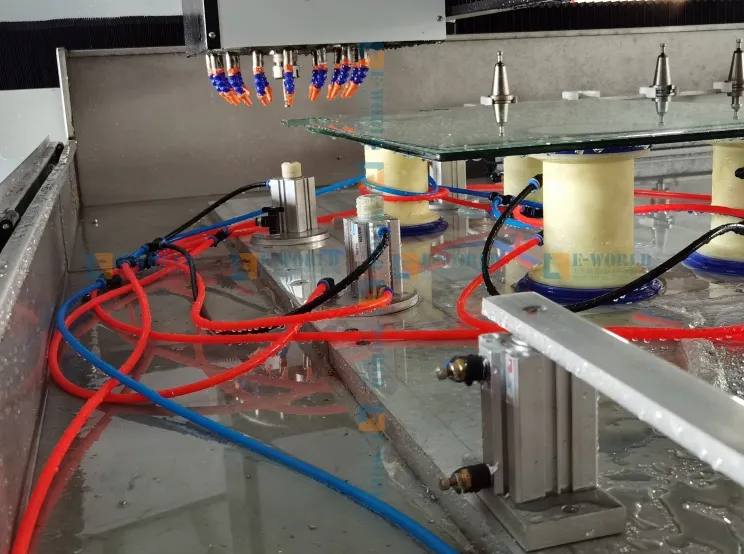

Worktable: Features a large multi-location worktable with automatic precision rubdown to maintain perfect flatness. Includes a tool library with 10 slots (5 on each side).

Safety: IP54 industrial standard electric cabinet with integrated air-conditioning. Automatic fault reminders ensure operational reliability.

🏭 Manufacturing Capability

❓ Frequently Asked Questions

Q1: Are you a professional manufacturer?

Answer: Yes, we are a professional manufacture with more than 5 specialized workshops and over 12 years of experience in the glass machinery field.

Q2: What is the technical support and guarantee?

Answer: We provide an 18-month guarantee on the machine and 2 years of quality assurance for the main structure. Technical support is available 24/7 via email or call, including English manuals and video tutorials.

Q3: Do you provide operation training for the equipment?

Answer: Yes, we can dispatch professional engineers to your site for installation, adjustment, and comprehensive operation training.

Q4: How long is the delivery time?

Answer: Standard machines are delivered within 3-15 days. For customized or non-standard requirements, the timeline is typically 15 to 30 days.

Q5: What makes your machine different from lower-priced alternatives?

Answer: We focus on durability by using famous and reliable internal electric parts. Most machine breakdowns are caused by inferior electrical components, which we avoid to ensure long-term stability.
