Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
1 / 5
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding

Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding

Customization: Available
Certification: CE
Maximum Cutting Thickness: 20 mm
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
ZXX-E1025
Power Supply
350V, 220V, 415V, 440V, 600V etc
Safety Features
Emergency Stop, Overload Protection, Safety Sensor
Function
Glass Cutting, Cutouts, Drilling
Heads No.
1
Process Speed
0-0.8m/Min
Structure
Horizontal
Warranty
1 Year
Origin
China
HS Code
8464901900
💎

Product Overview

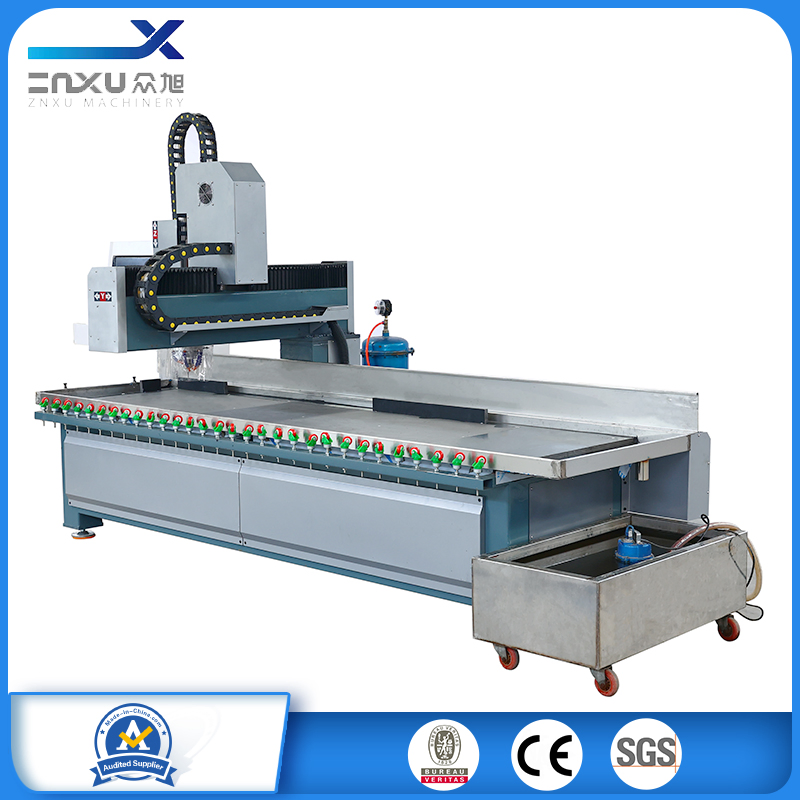

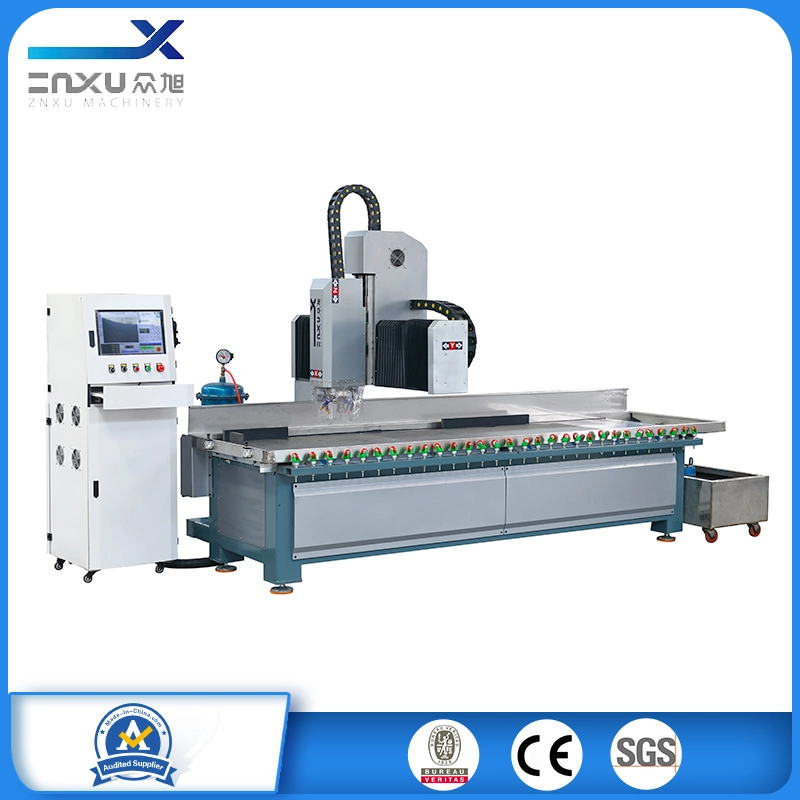

ZXX-E1025 Advanced CNC Glass Milling Machine for Precision Drilling, Cutting, and Grinding
CNC Glass Milling Machine
Precision Glass Cutting

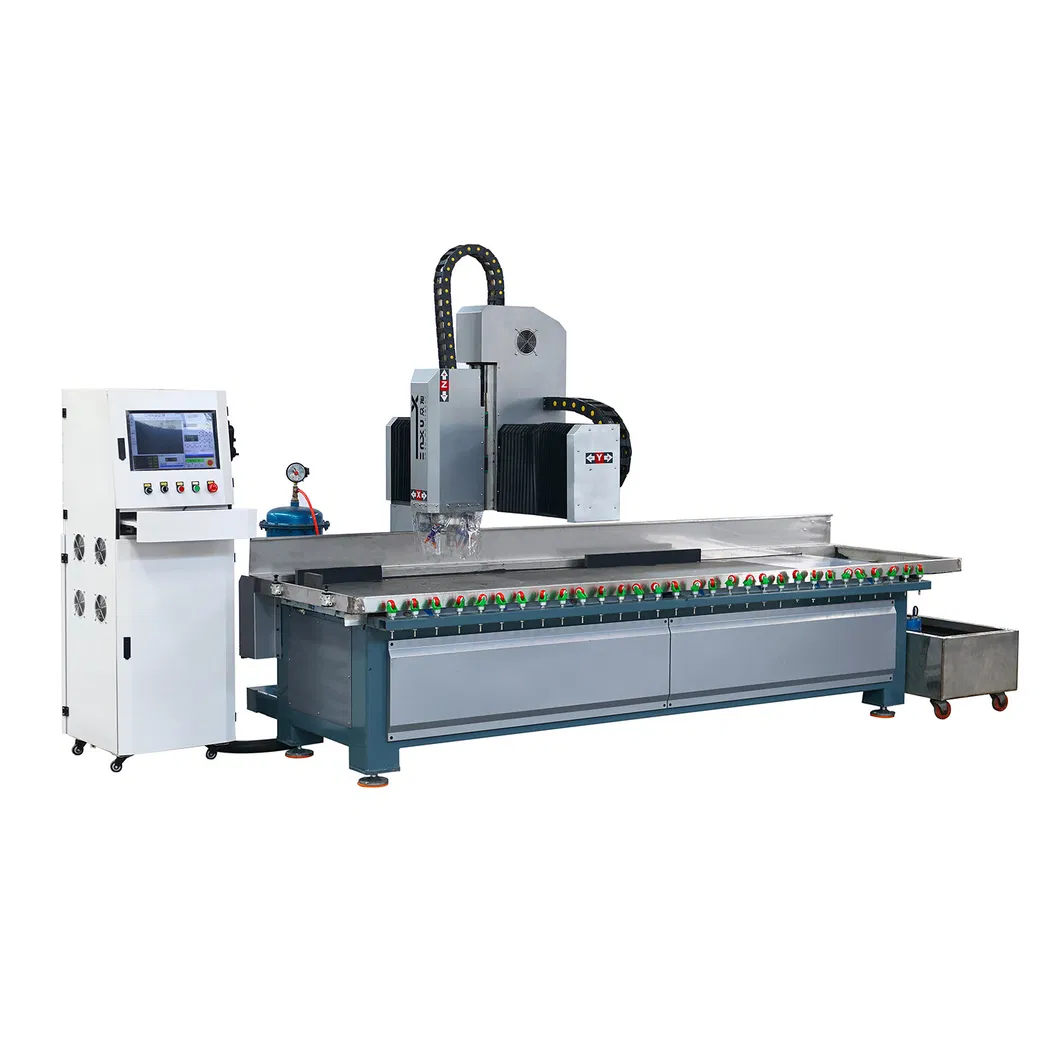

CNC Drilling Equipment

The system adopts a cantilevered three-axis three-wheel drive structure design. The bed is welded with high-quality steel and processed after quenching. The transmission part is driven by H-class precision linear guide and pure servo motor, ensuring maximum accuracy and stability.

Equipped with a high-power high-speed motor, it offers fast milling speed and high processing accuracy. The half-shielded waterproof structure and open working platform make loading and unloading convenient, reducing labor intensity.

⚙️

Technical Parameters

Machine Size3600*1900*2200mm
Head Stroke2500*1000mm
Process Glass SizeNo Limited (Three sides opened table)
Table Size3000*1200mm
Main Spindle7.5kw (24000 RPM/MIN)
Servo Motor0.75*3 JST
Milling Speed0-1 m/min
Accuracy±0.2mm
Glass Thickness3-19mm
Technical Layout
Machine Dimensions
🏠

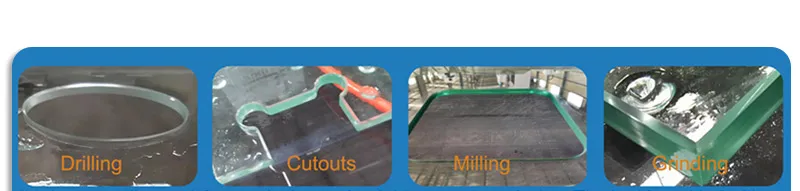

Wide Applications

  • ✅ Sink Holes in Glass Countertops
  • ✅ Stove & Pipe Holes
  • ✅ Shower Door Clamps
  • ✅ Hinge & Handle Holes
  • ✅ Cabinet Door Invisible Handles
  • ✅ Aluminum Profile Processing
  • ✅ Electric Panels
  • ✅ Aquarium Covers

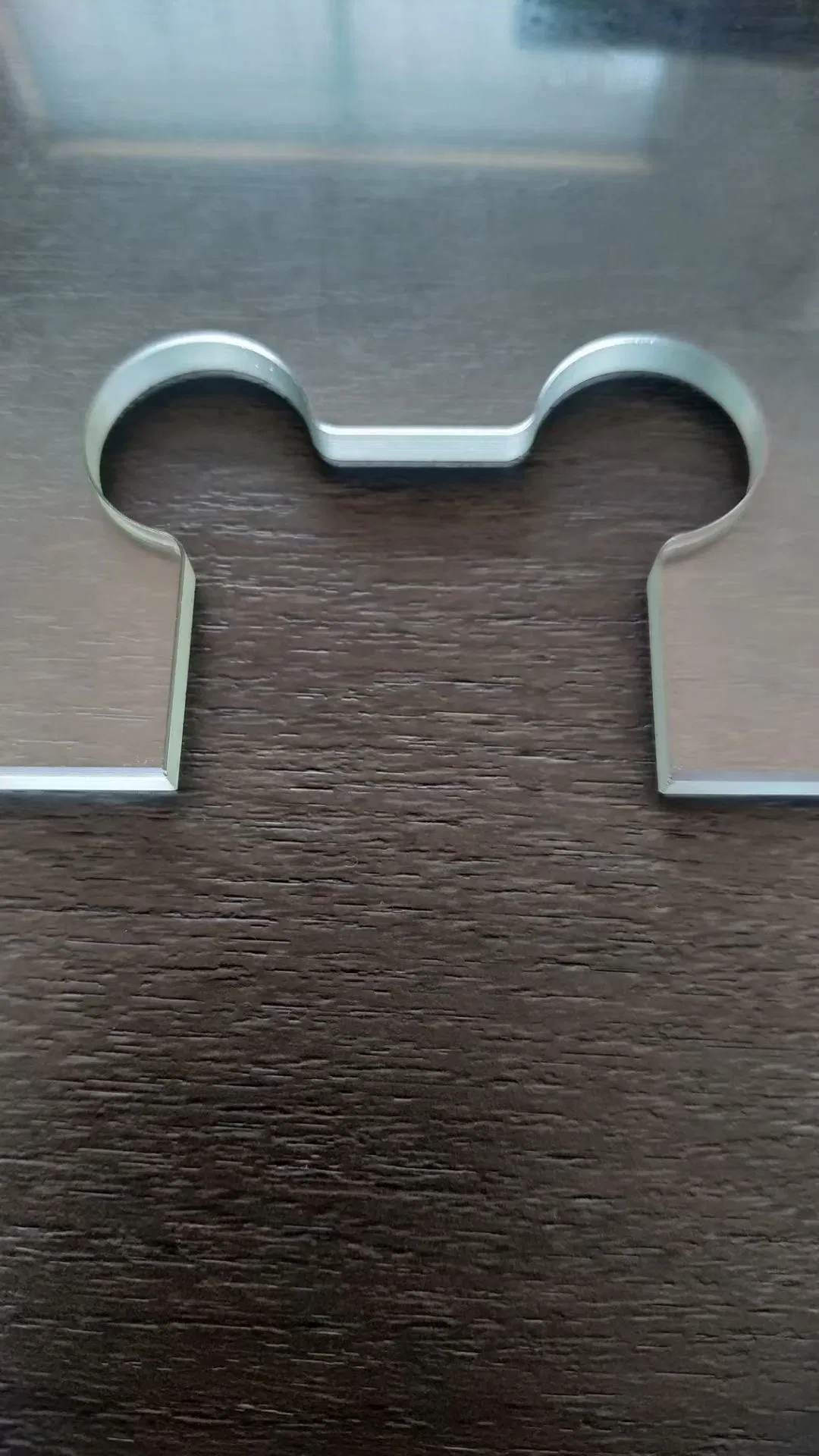

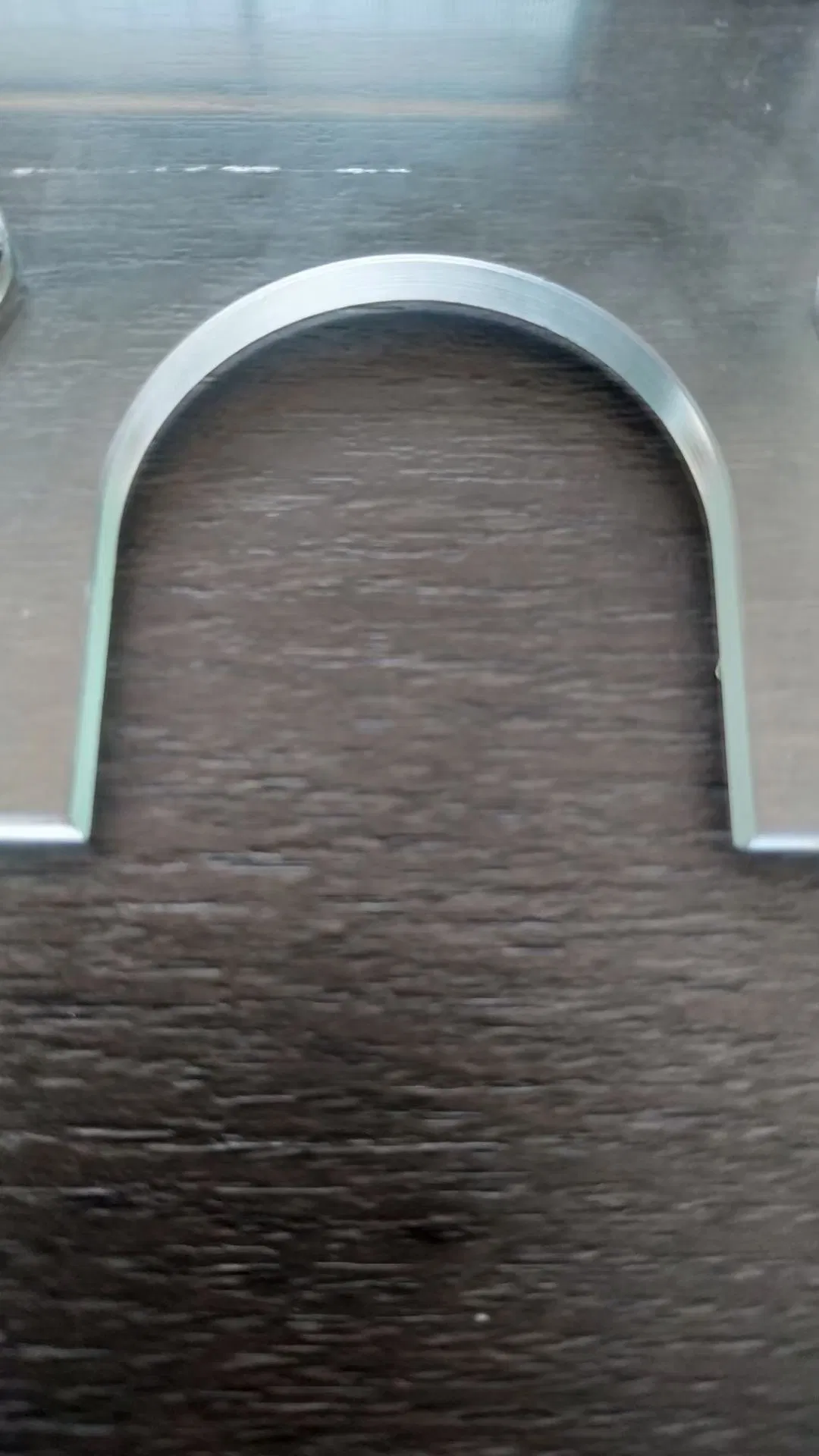

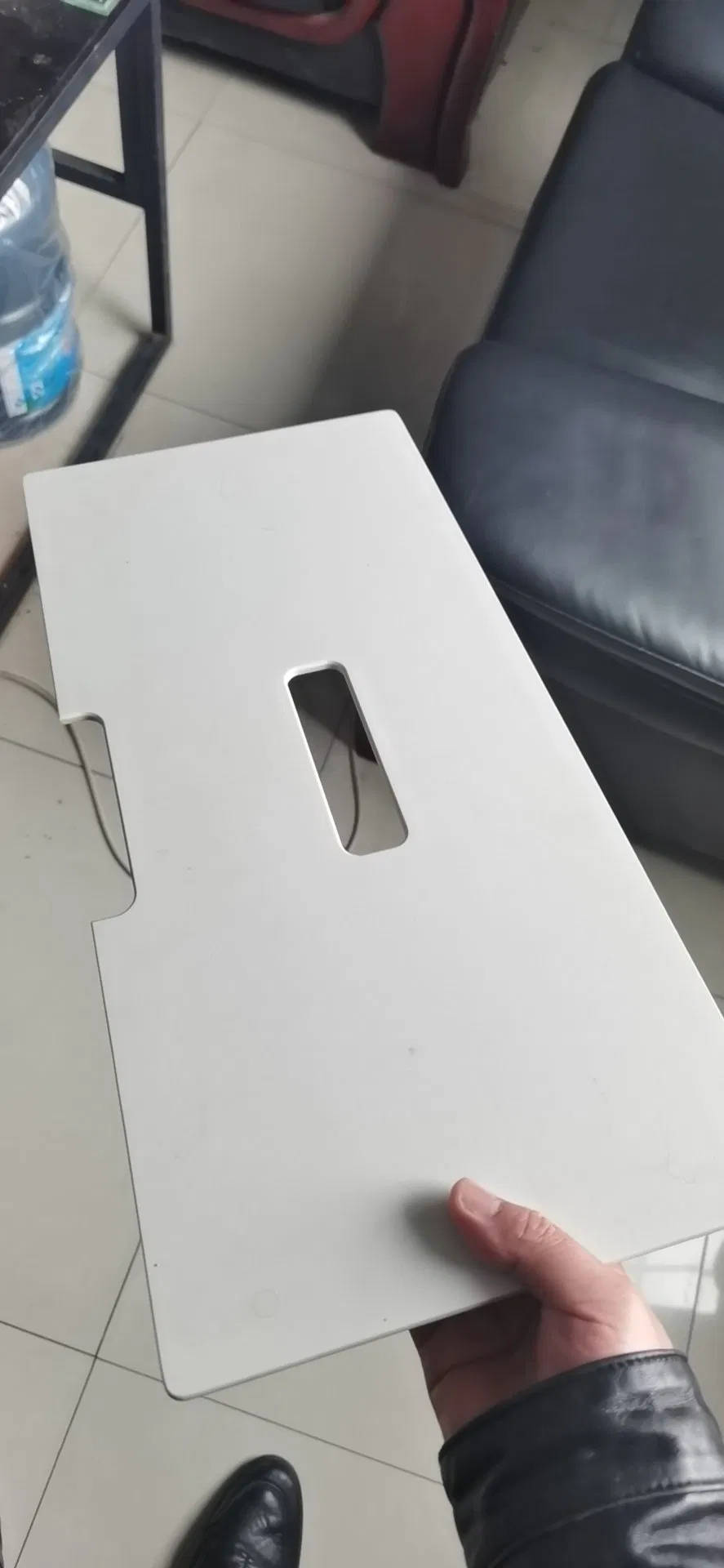

Application Sample 1
Application Sample 2
📦

Packaging & Logistics

Package Size
360.00cm * 200.00cm * 220.00cm
Gross Weight
1600.000kg
Package Type
Standard Export Package
Shipping Package
Delivery
🔄

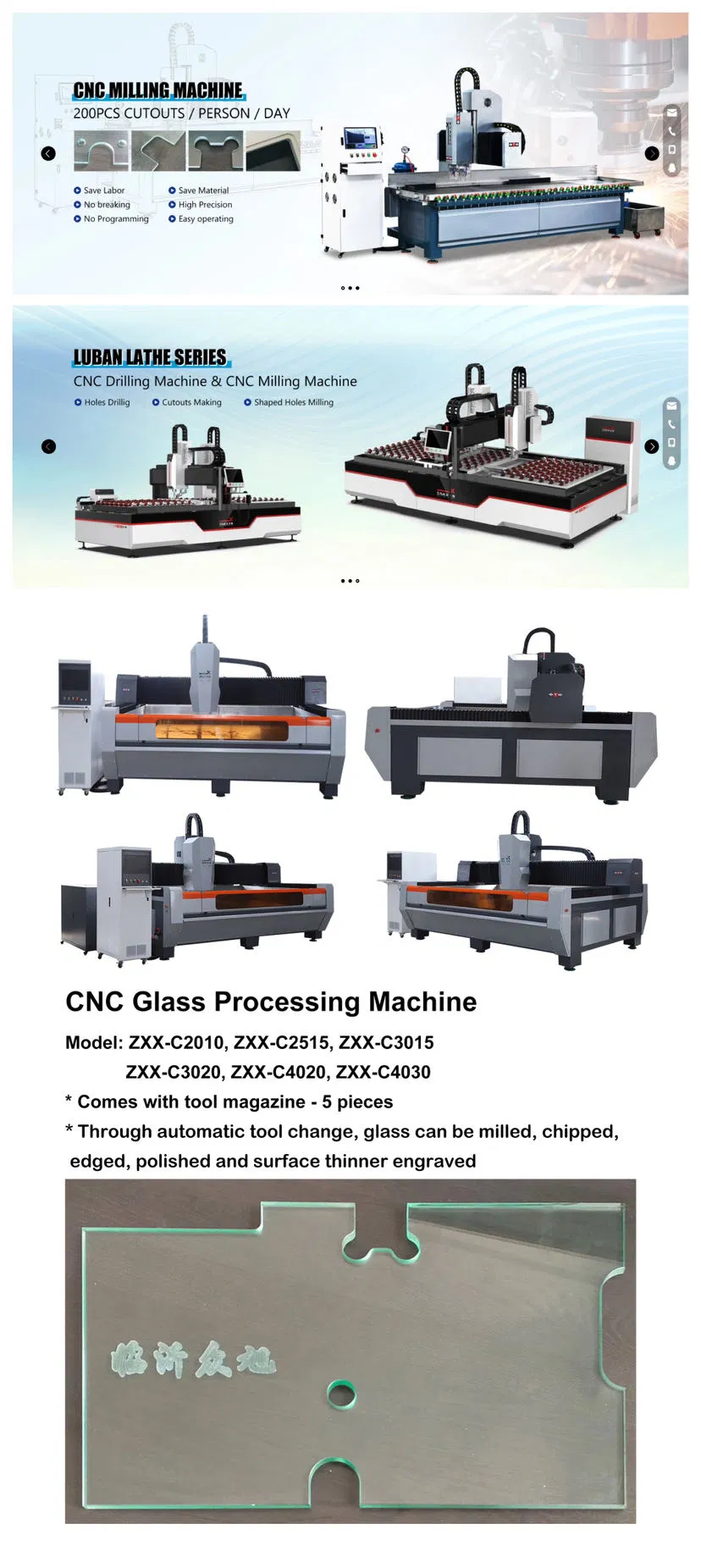

Related Series

Similar Model 1
Similar Model 2

Frequently Asked Questions

Q: What range of glass thickness can the ZXX-E1025 process? A: This CNC milling machine is designed to handle glass and slate with a thickness ranging from 3mm to 19mm.
Q: Is there a limit to the size of glass the machine can process? A: The machine features a three-side opened table design, which means there is no strict limit on the glass sheet size it can accommodate.
Q: What are the primary functions of this equipment? A: It is a multi-functional machine capable of precision glass milling, drilling, cutout making for sinks/hobs, and grinding for hinges and handles.
Q: What is the processing accuracy of the ZXX-E1025? A: Thanks to the H-class precision linear guides and servo motors, the machine achieves an accuracy of ±0.2mm.
Q: Does the machine require special drawings for operation? A: The machine supports standard CAD drawings, making it easy to program complex cutouts and hole patterns.
Q: What safety features are integrated into the system? A: It is equipped with an Emergency Stop Button, Overload Protection, and Safety Sensors to ensure operator safety during high-speed processing.
