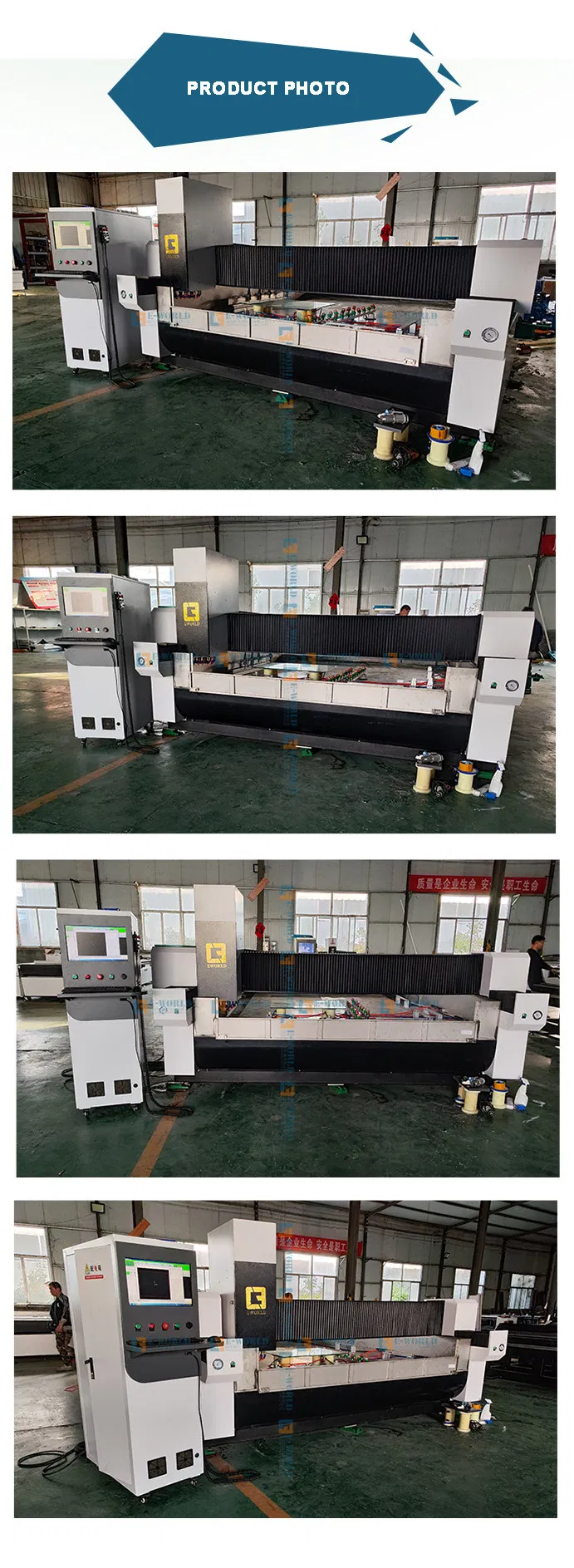

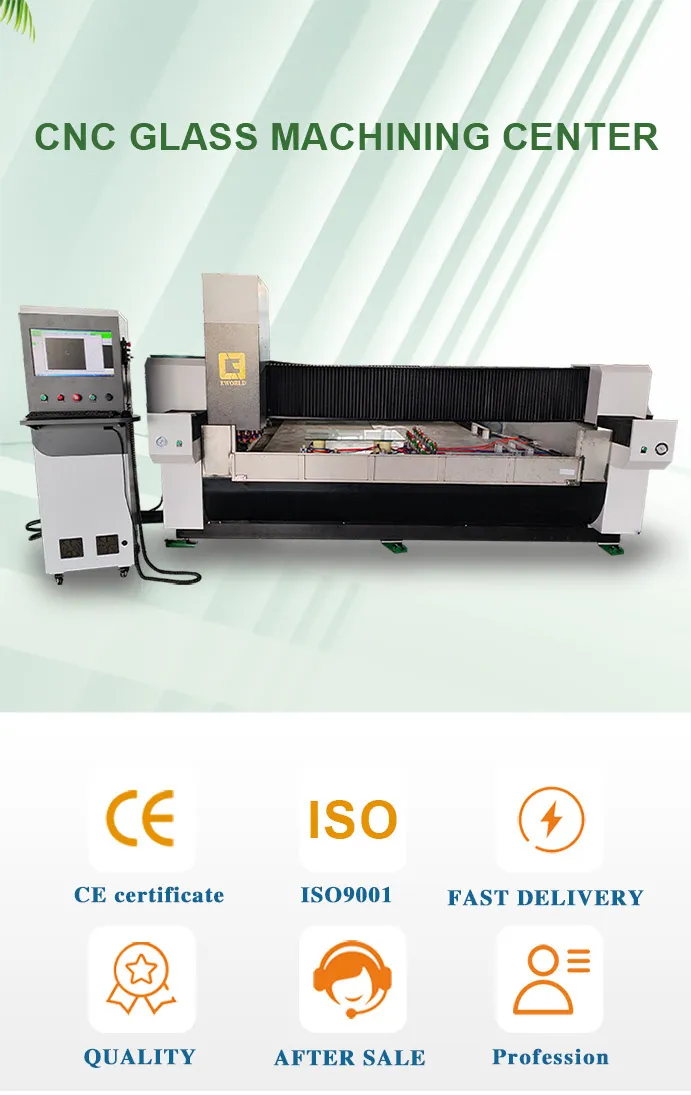

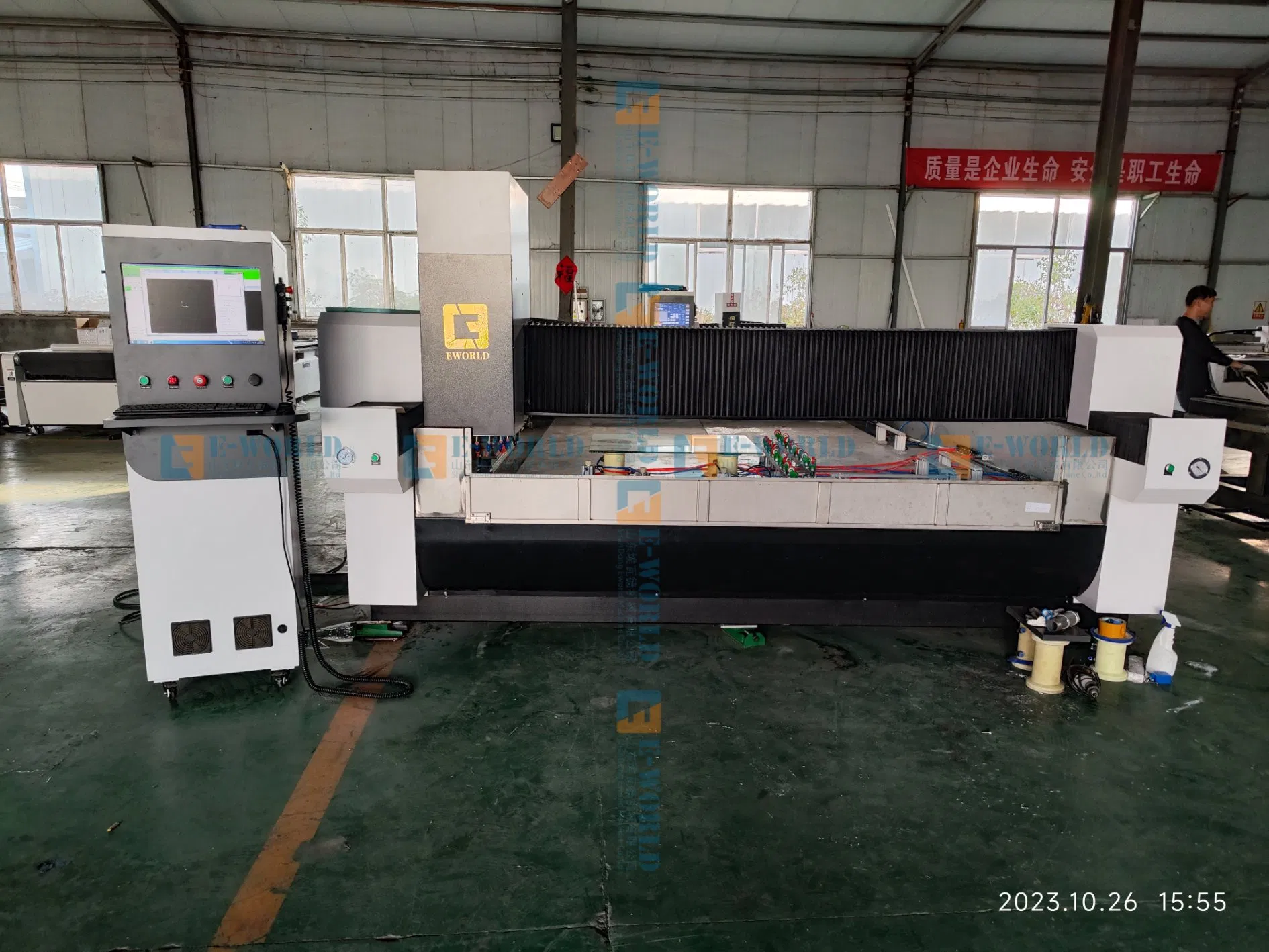

CNC Glass Engraving and Edging Processing Center Wd-1530

1 / 5

CNC Glass Engraving and Edging Processing Center Wd-1530

Customization:	Available
Certification:	CE
Processing Services:	Edging

Send Inquiry

Product Description

Basic Specifications

Model NO.WD-1530

WarrantyOne Year

TransverseAxis X = 3000 mm

Length WaysAxis Y = 1700 mm

VerticalAxis Z = 250 mm

Allocating Accuracy0.01*002*0.01

Speed(X,Y)5m/Minute

Power Supply380 V, 50 Hz, 3 Phases

Compressed Air≥ 0.6 MPa

Control SystemIndustrial Computer

TypeCNC Glass Edge Machine

Production Capacity5 Sets /Month

⚙

CNC Glass Engraving and Edging Processing Center

Equipment Features:

Overall steel structure welding with tempering aging treatment, strongly undeformed.
Adopts Taiwan Linear guide rail with face-to-face bearing for long-term accuracy.
Double-nut automatic disappear gap ball-screw system.
Constant power spindle motor providing powerful cutting capacity and high efficiency.
Break point and break knife resume function for engraving, milling, and polishing.
Intelligent protection for work table and cross-border collision prevention.
Advanced Ncstudio control system for automatic 3D multiple level processing.
High software compatibility with CAD/CAM systems like Type 3, Artcam, and Castmate.
High power frequency water-cooled spindle for hard materials like marble, granite, and glass.

★

Application Area

Perfectly suited for glass processing, stone industry, marble processing, art relief, advertising decoration, and ceramic industries. Compatible materials include marble, granite, jade, bluestone, ceramic, glass, plexiglass, PVC boards, Aluminum panels, and bamboo.

📋

Technical Parameters

Model	WD-1530
X, Y axis travel	1500mm * 3000mm
Max. Z axis travel	260mm
Table Size	1580mm * 2800mm
Spindle speed	0-24000rpm
Working mode	Stepper (Rack-and pinion rotating)
Max working speed	25m/min
Processing precision	±0.05mm
Control system	DSP or Ncstudio
Transmission System	XY Axis rack and pinion, Z Axis ball screw
Working Voltage	AC380/50Hz
Software compatibility	TYP3/Artcam/Castmate/UcancamV9

Frequently Asked Questions

1. What is the warranty period for the WD-1530? The machine comes with a standard one-year warranty covering major components.

2. What types of materials can this CNC center process? It is designed for glass, stone, marble, granite, ceramic, PVC boards, and aluminum panels.

3. What control system does the machine use? It features an advanced Ncstudio or DSP control system for high-precision 3D processing.

4. Can the machine resume work after a power failure? Yes, it includes a break-point and break-knife function to continue engraving or cutting from the last position.

5. What is the maximum working speed? The WD-1530 can reach a maximum working speed of up to 25 meters per minute.

6. Is the software compatible with standard design tools? Yes, it is compatible with Type3, Artcam, Castmate, and UcancamV9 software.
