Honghe Machinery
Honghe Machinery
As a leading single source provider of high-quality flat glass processing machinery, service and supplies, we continue to search for the most innovative and reliable equipment for fabricating, handling and processing flat glass. Each manufacturer specializes in a certain type of machinery characterized by innovative features, long-lasting durability, and high reliability.

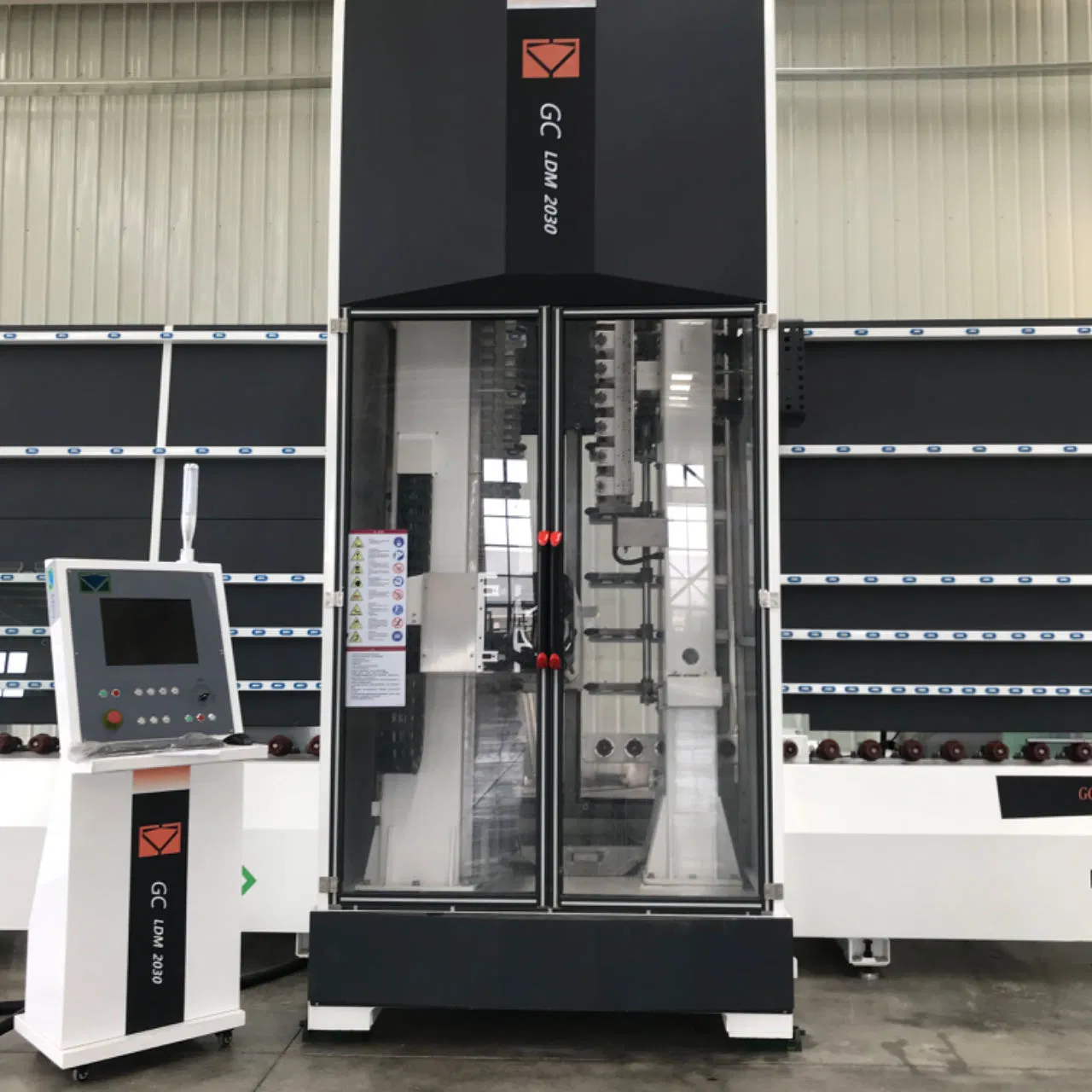

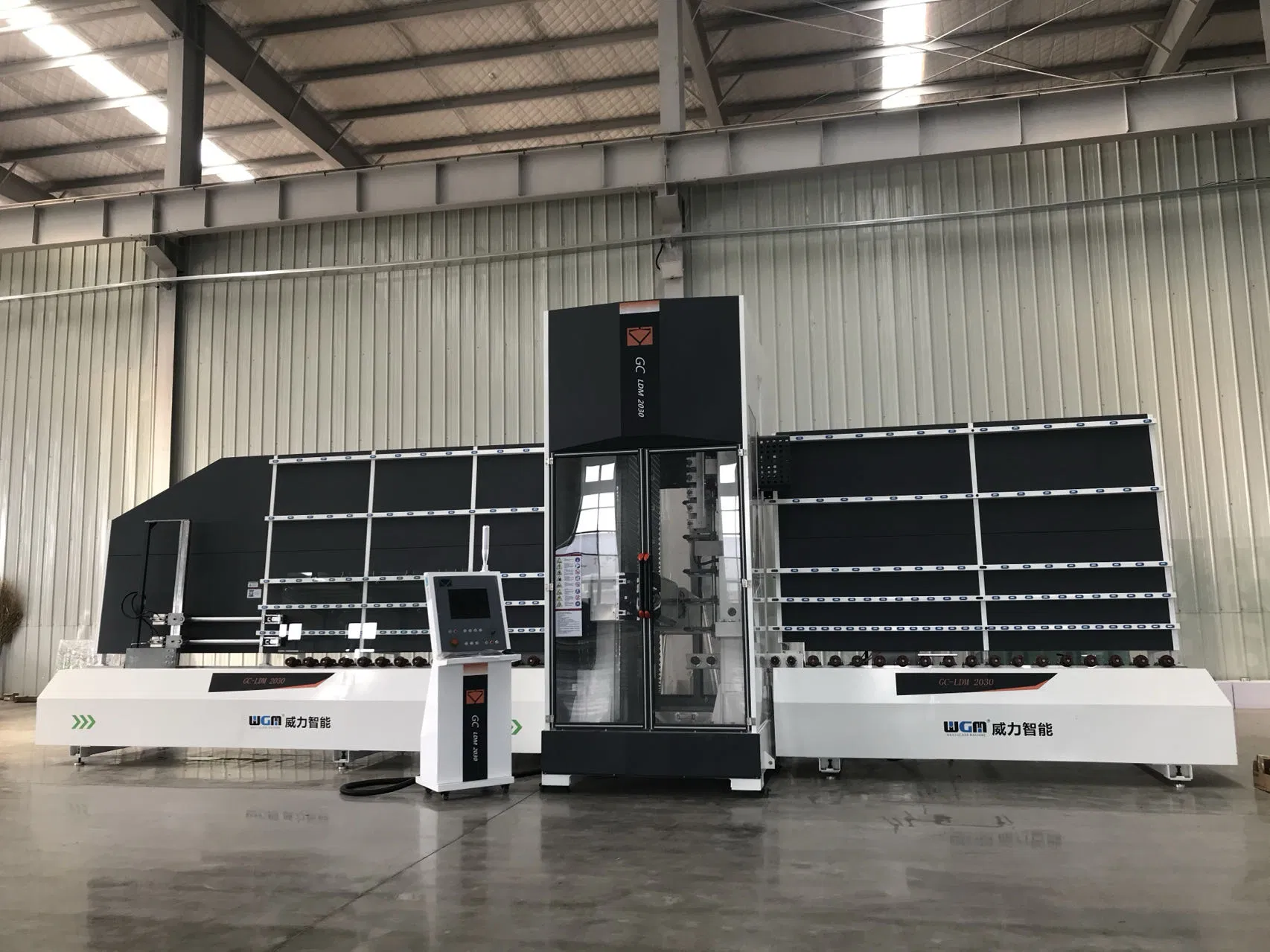

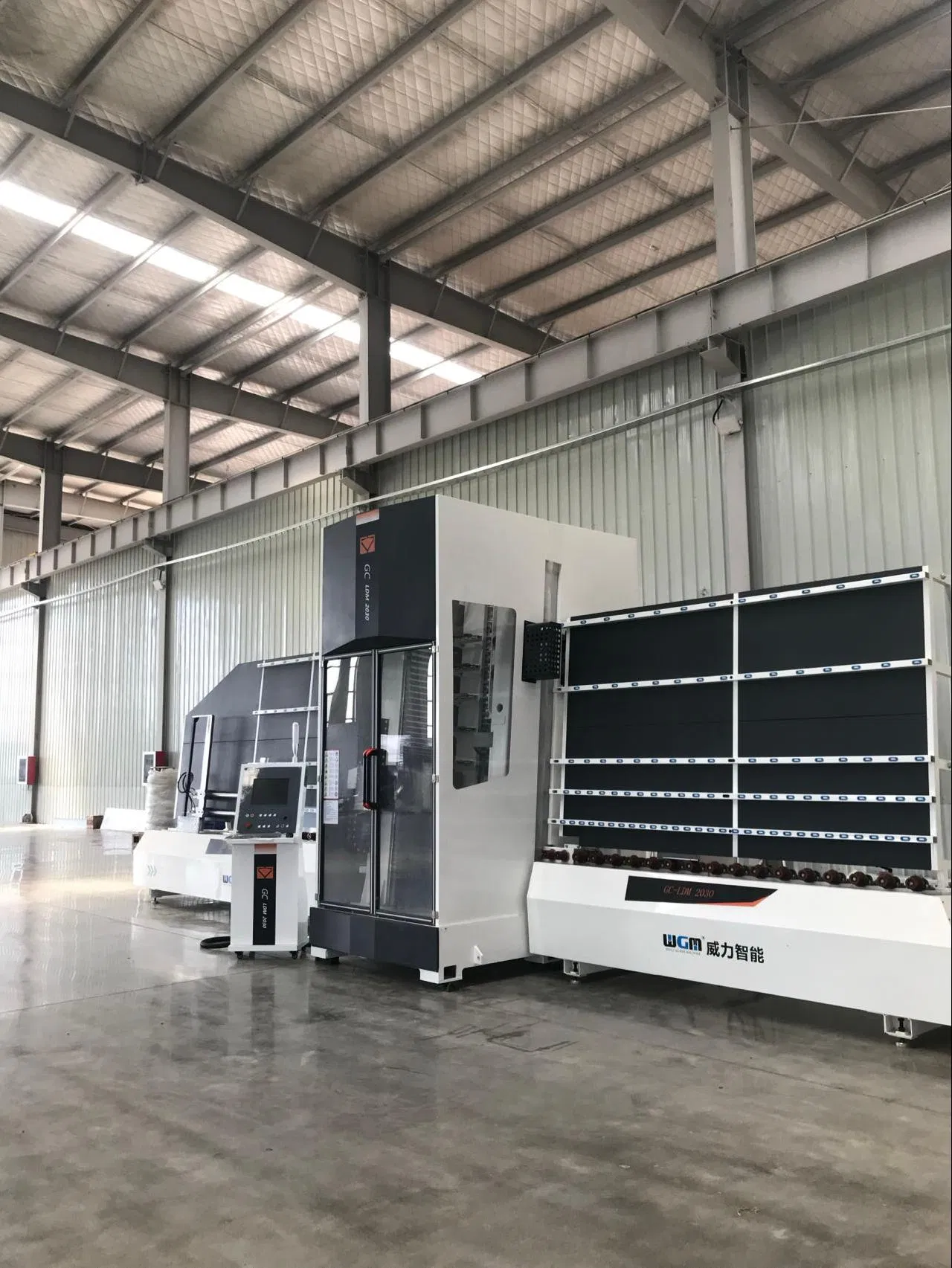

CNC Vertical Drilling and Milling Machine — GC-LDM-III2030
The GC-LDM-II is a high-tech vertical working center for the deep glass processing industry. It can perfectly complete complex work in a short time and process high-quality and high-precision glass, thereby reducing the problem of poor accuracy found in manual drawing and manual cutting.
The machining center adopts an international advanced numerical control system and drive to realize dynamic management of each axis and precise speed control. This machine is suitable for processing structural glass such as frameless doors and glass curtain walls.

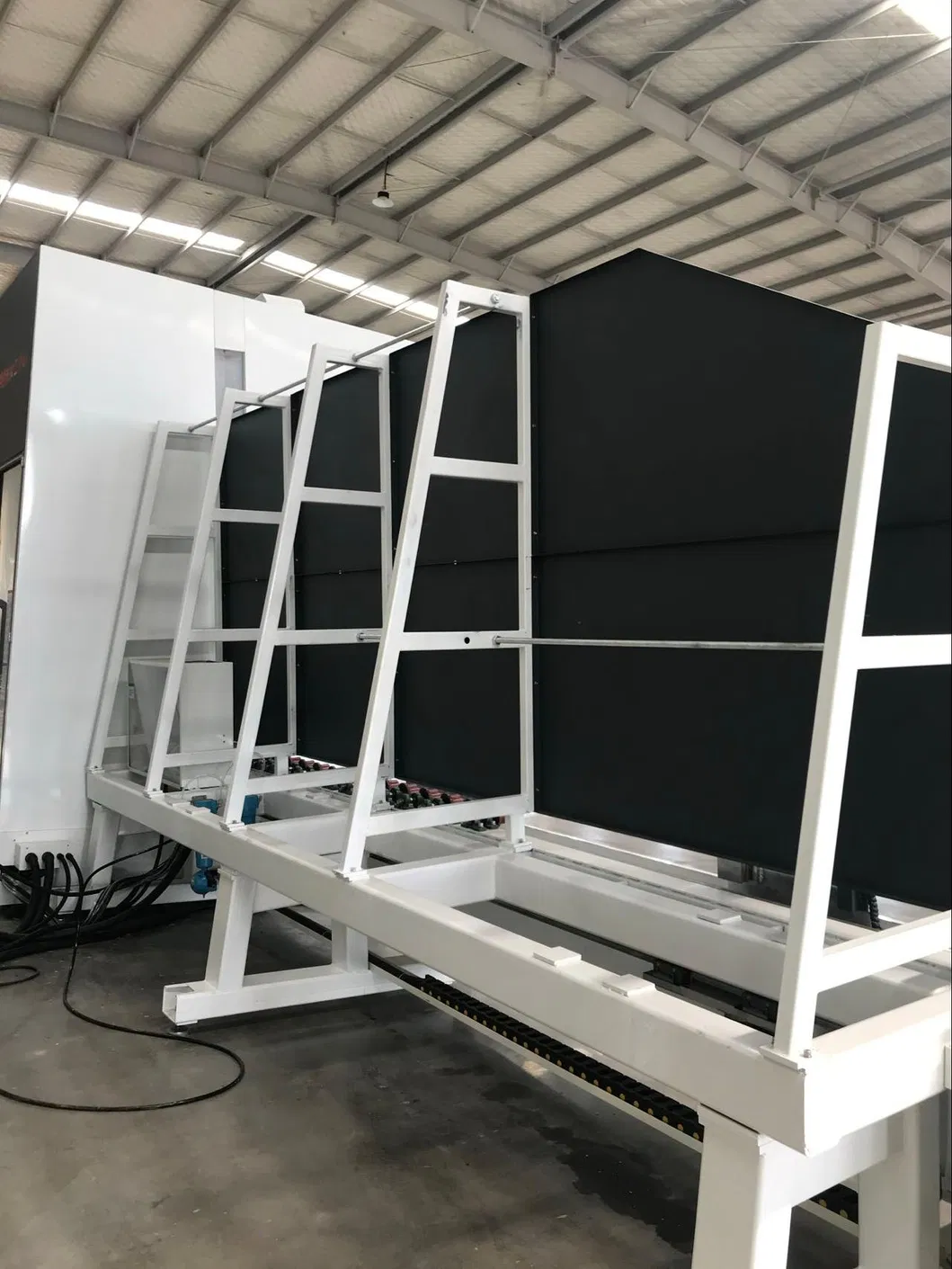

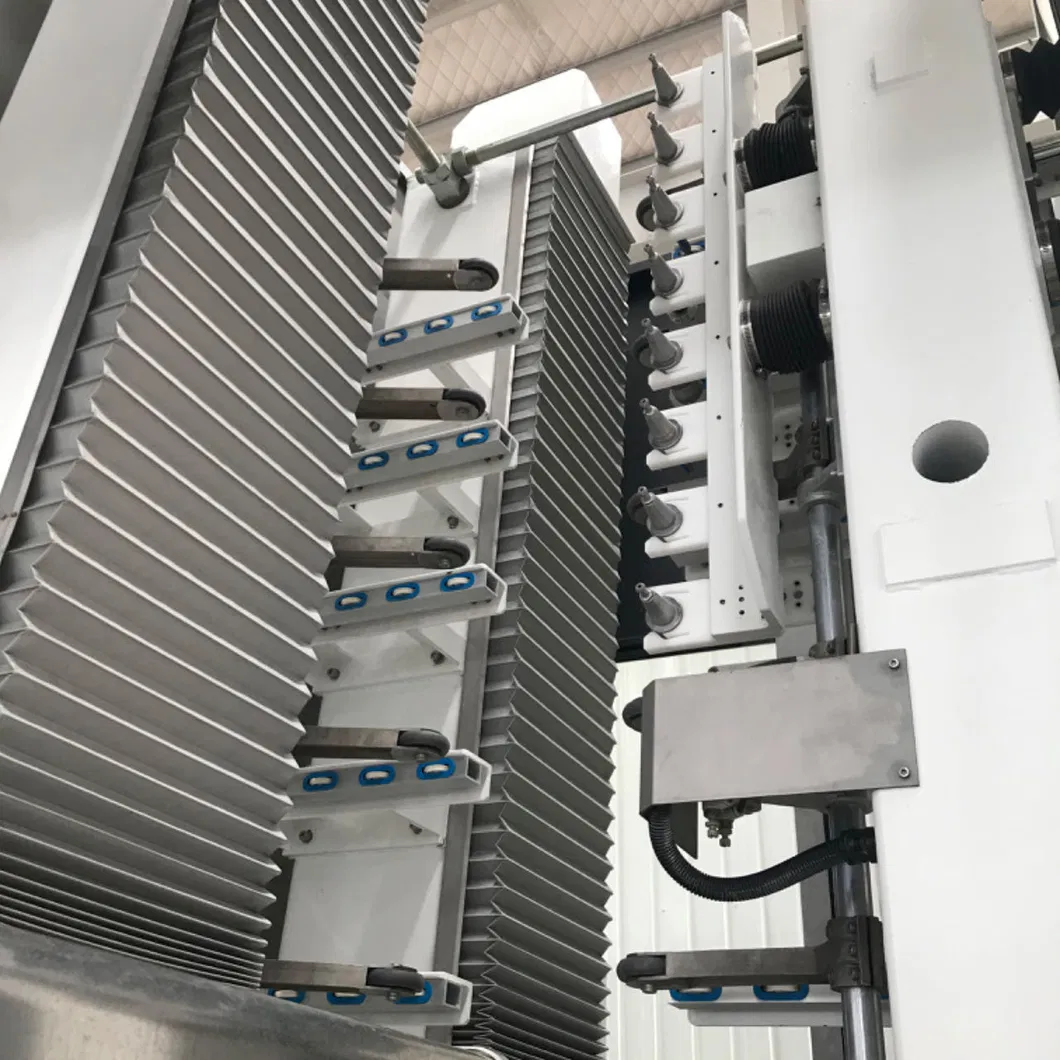

The vertical glass working center structure occupies less area and positioning is simple. It reduces obstruction, facilitates easy processing, and minimizes scratches. Linear axes (X, Y, V, Z, W) are driven by high-precision HIWIN ball screws and slide ways.
| Model No | GC-LDM-II | ||
| Max.Glass | 2000*3000mm / 2500*4200mm / 3000*6000mm | Dimension | 9600*4200*3700mm / 12700*4200*4200mm |
| Min.Glass | 500*500mm | Glass thickness | 5-25mm |
| Speed of Spindle | 0-12000rpm | Spindle power | 7.5KW*2 |
| Total power | 22KW | Tool positions | 6*2 / 8*2 (Optional) |
| Tool taper | BT30 | No. of Axis | 5 Axis |
| Air compression | 0.7Mpa | Voltage | 3*380V/50HZ |
| Component | Brand/Specification | Quantity |
|---|---|---|
| Control System | Mitsubishi (Japan) | 1 set |
| Servo Motor/Drive | Mitsubishi (Japan) | 5 pcs |

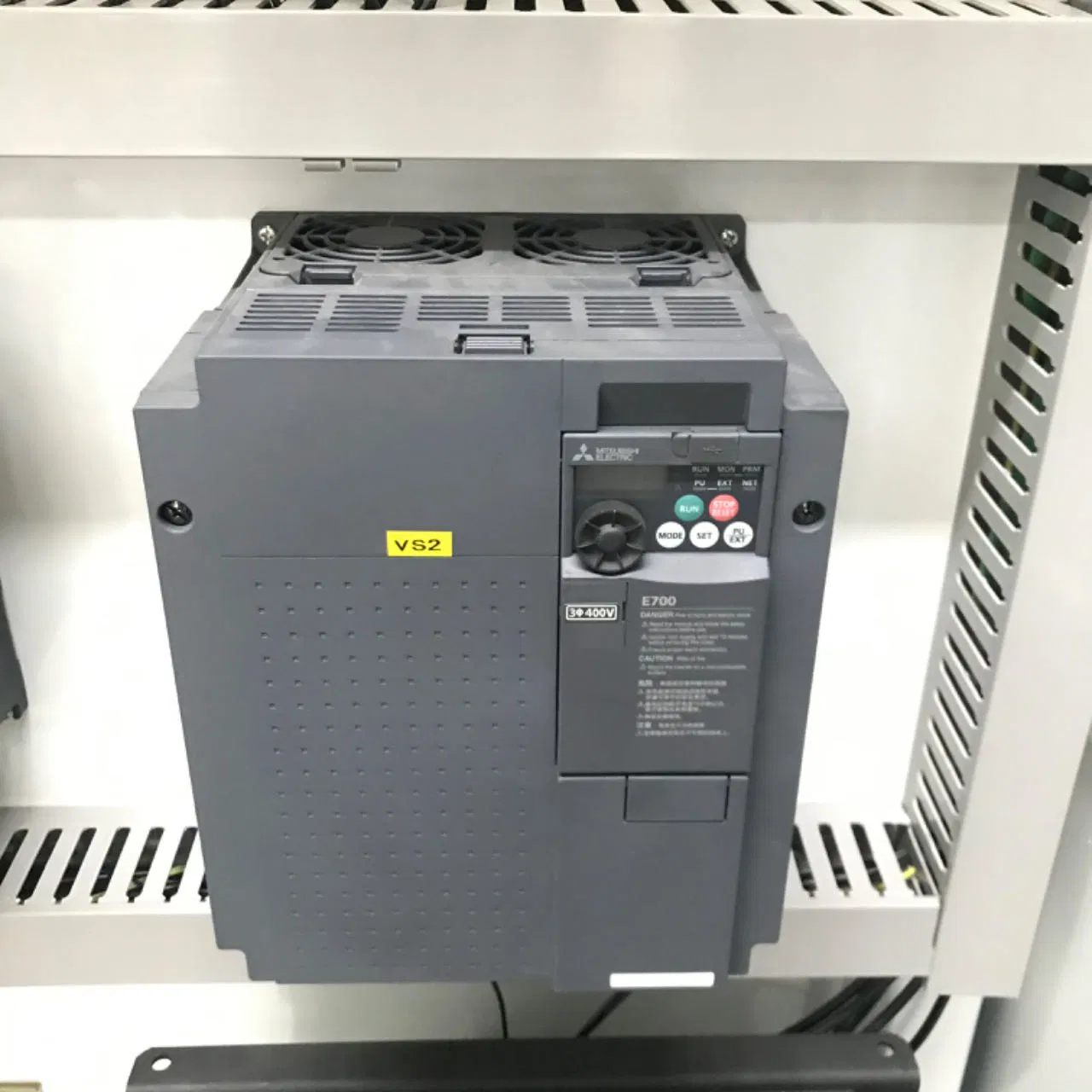

| Inverter | Inovance (China famous brand) | 2 pcs |
| Low Voltage Appliances | Schneider (France) | 1 set |
| Pneumatic Components | AirTAC (Taiwan) | 1 set |
| Linear Guides/Ball Screw | Hiwin (Taiwan) | 1 set |
| Spindles | 0-12000 rpm, 7.5 kw * 2 | 2 pcs |
| Software | Easy CAM (GC) | 1 set |

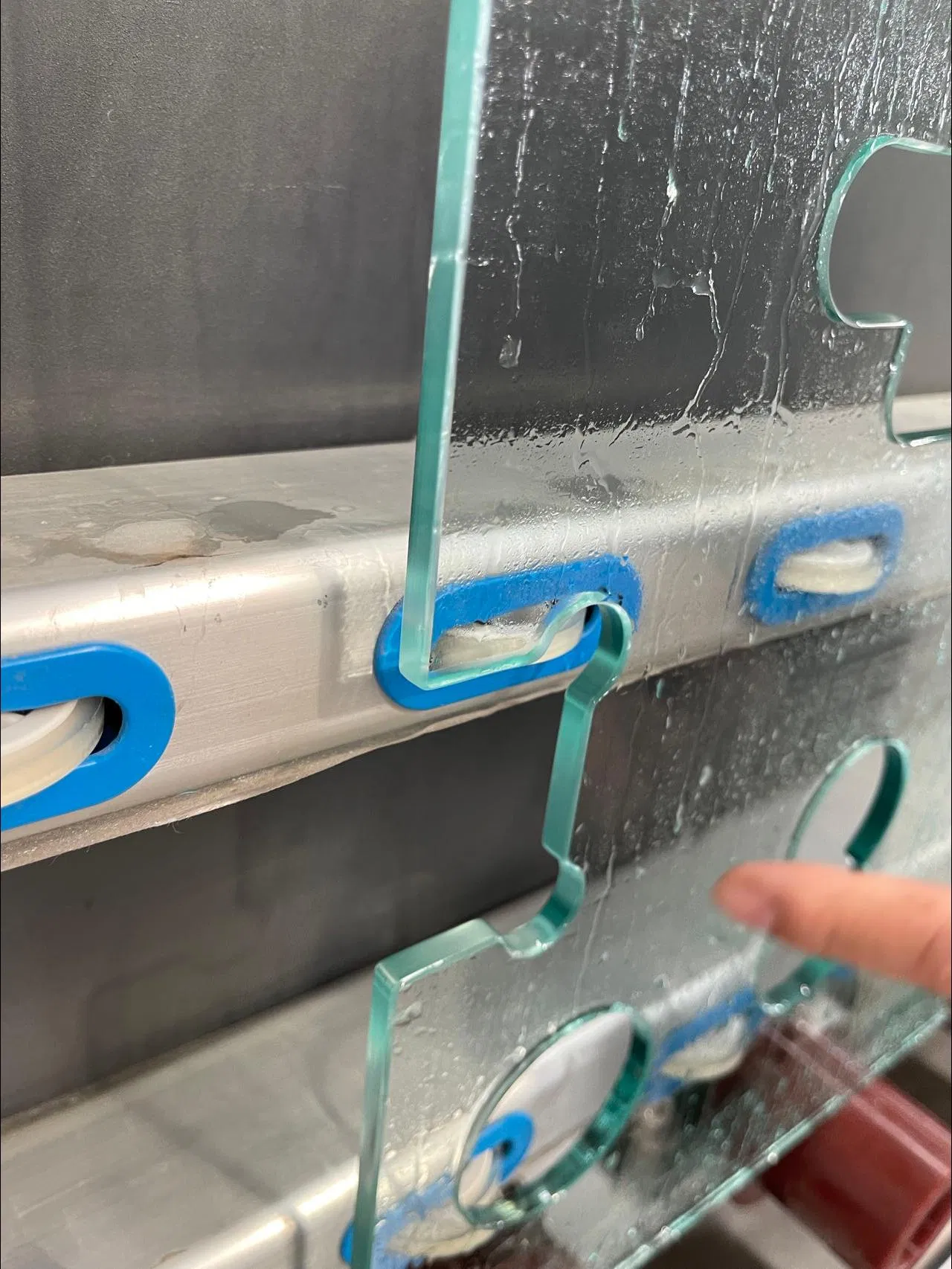

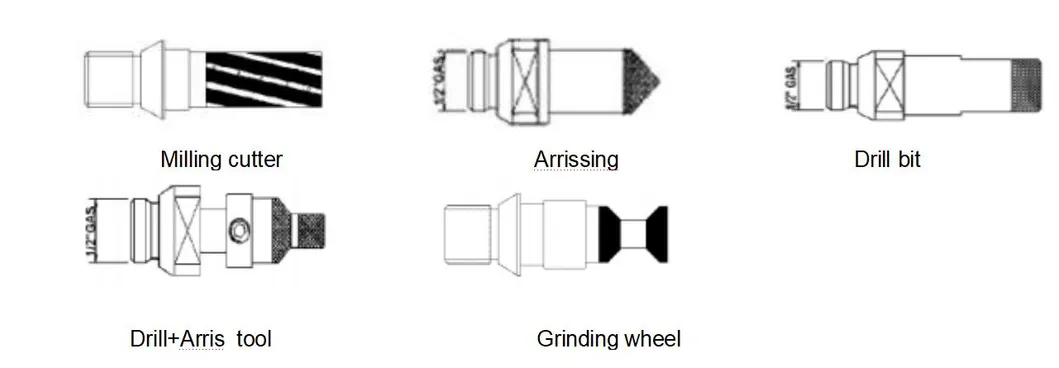

The machine is designed for drilling, milling, grinding, and arrising of flat glass. Polishing functions are also available as an option.
Standard models support up to 2000*3000mm, with larger configurations available for 2500*4200mm and 3000*6000mm.
Yes, it can be equipped with an optional tool magazine featuring either 6*2 or 8*2 tool positions to realize fully automatic changes.
The machine utilizes a high-performance Mitsubishi numerical control system and Mitsubishi servo motors from Japan for precise movement and reliability.
The spindle features a professional water-cooling system that allows it to operate under constant temperature, even at speeds up to 12,000 RPM.
The included LEASY CAM software supports DXF imports and graphic libraries, making it easy to create complex processing paths and simulate operations on Windows systems.
