CNC Glass Cutting Machine Automatic Operation for Mirror and Laminated Glass

1 / 5

CNC Glass Cutting Machine Automatic Operation for Mirror and Laminated Glass

Customization:	Available
Certification:	CE, ISO, SGS
Maximum Cutting Thickness:	20 mm

Send Inquiry

Product Description

🔍 Overview

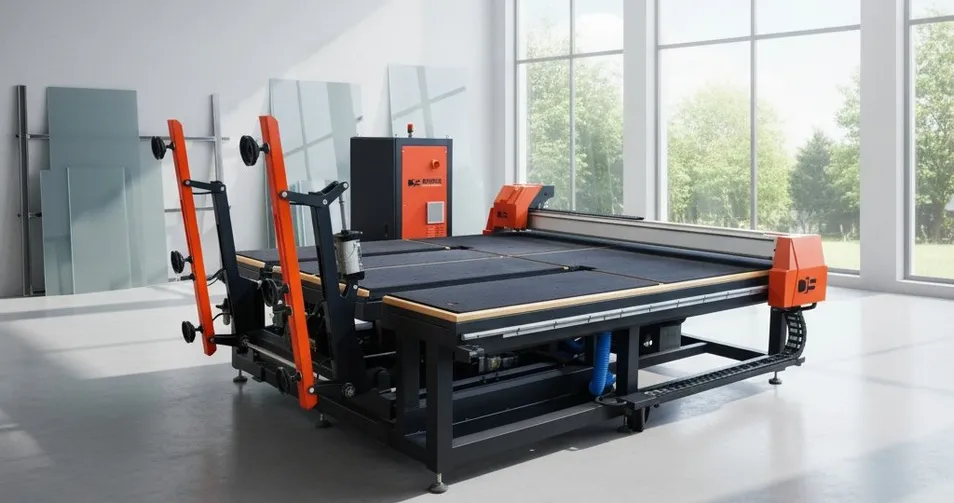

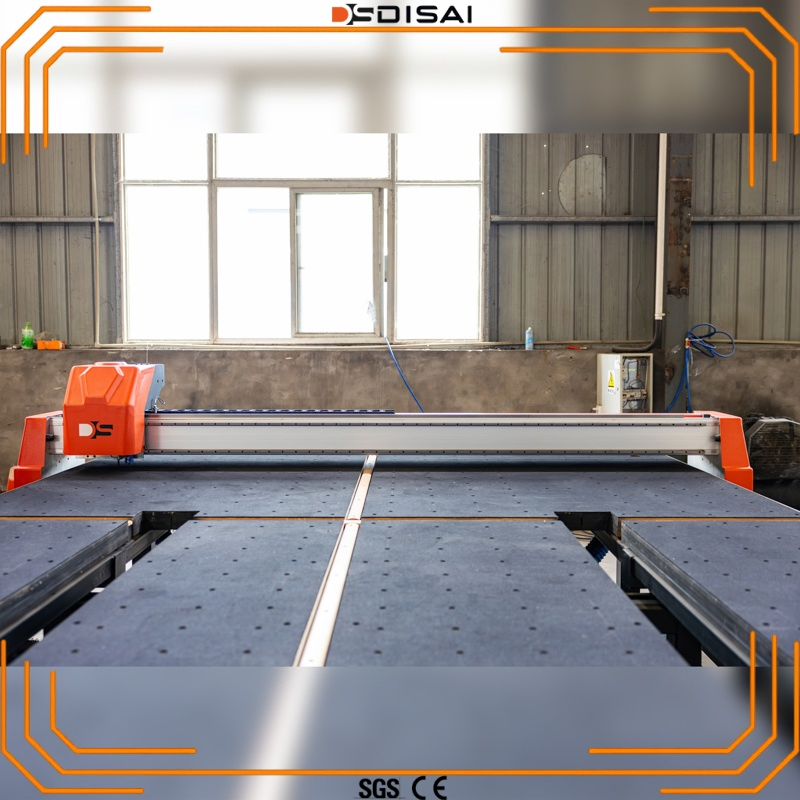

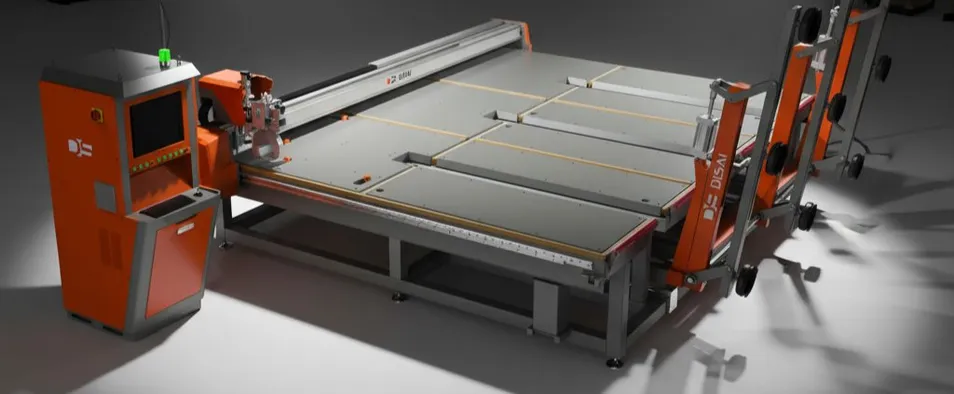

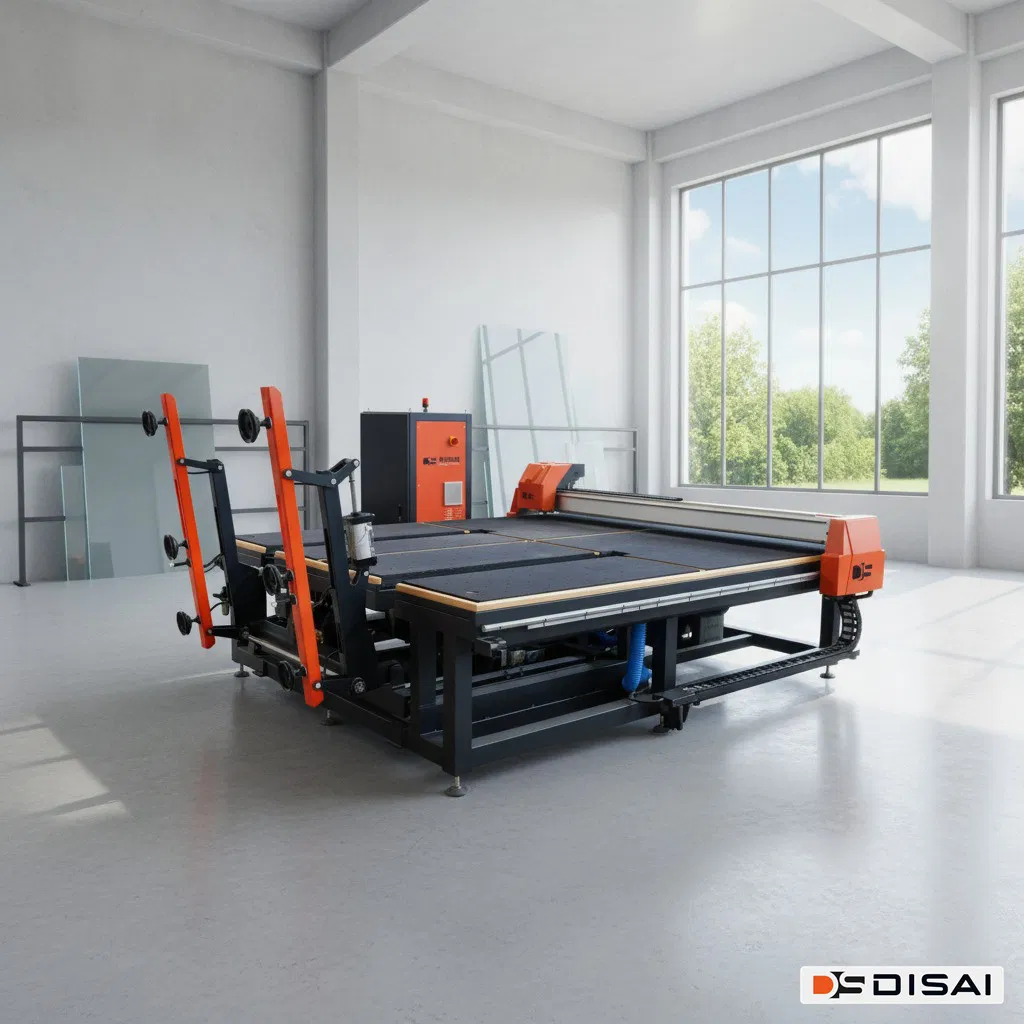

Model: DS-ICT3826-A - Large Format Integrated Glass Cutting Table

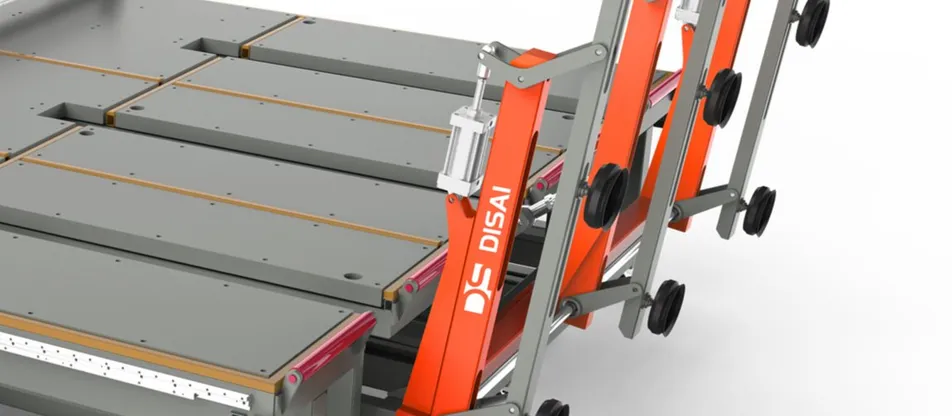

This all-in-one machine is designed for workshops handling larger glass sheets while maintaining a compact, space-saving footprint. It combines a fast 40-50 second loading cycle with a high cutting speed of 160m/min.

📋 Technical Specifications

Model NO.: DS-ICT3826-A

Cutting Precision: ± 0.15mm

Glass Thickness: 3-19mm

Max Cutting Size: 3800 × 2650mm

Power Supply: 380V 50Hz / 13kw

Loading Cycle: ≤45 S

Vacuum Pressure: -70~-99 Kpa

Machine Type: Glass Cutting Machine

⚙️ Key Advantages

Compact All-in-One Design: Significant workshop space savings.
High Precision: ±0.20mm for consistent quality results.
World-Class Components: Panasonic servo motors, Siemens PLC, and Delta Tau motion controllers.
Intelligent Software: Italian optimization software to reduce material waste.

💎 Key Component Brands

Component Name	Brand	Origin
Motion Controller	Delta Tau (PMAC)	USA
Servo Motor/Drive	Panasonic	Japan
PLC/Inverter	Siemens	Germany
Pneumatic Parts	CKD/SMC	Japan
Guide Rail	HIWIN/SHAC	Taiwan
Industrial PC	EVOC	China

🏢 Application Scenarios

Architectural Facades

Automotive Glazing

📜 Certifications

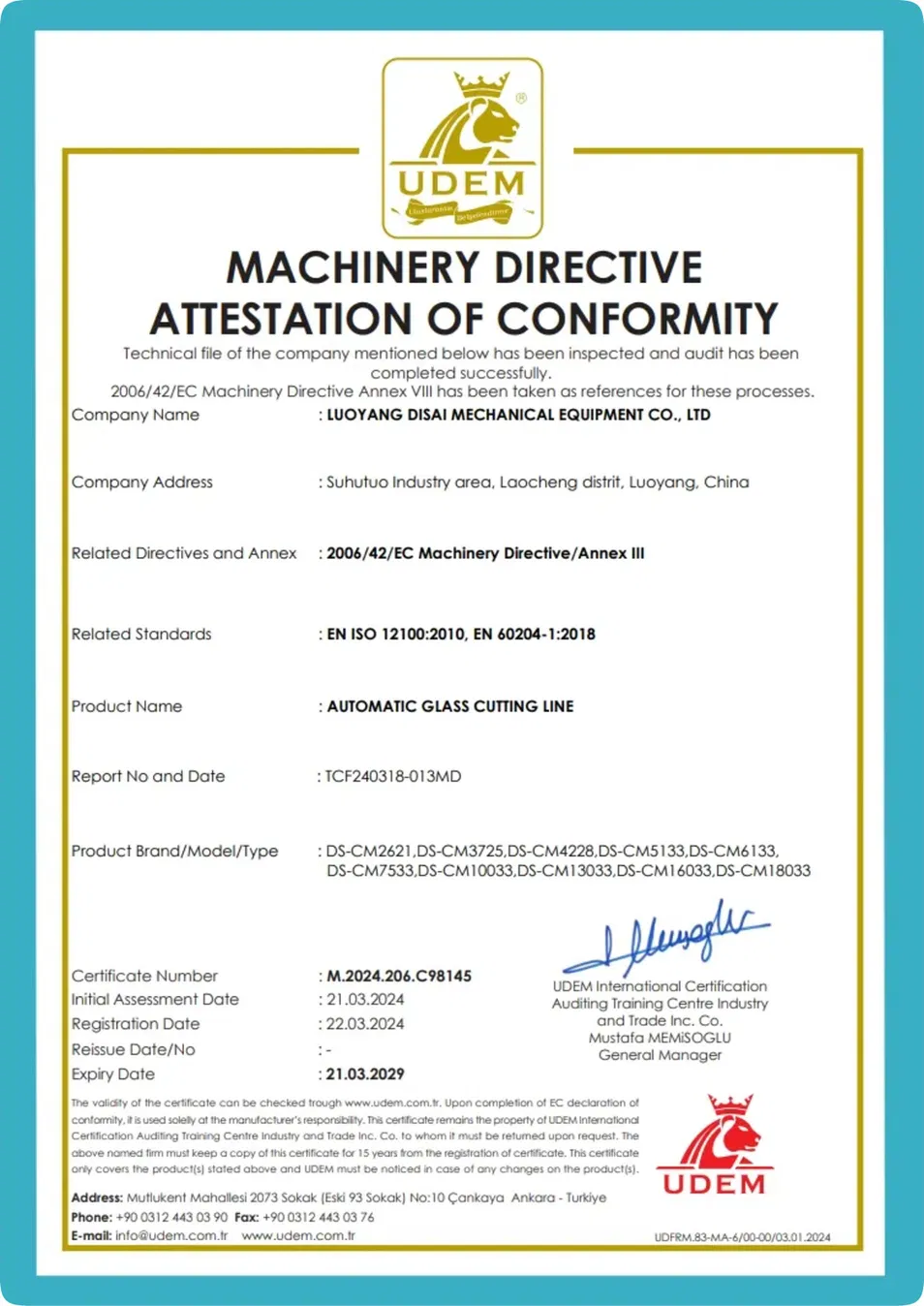

Our equipment strictly complies with CE Machinery Directive (2006/42/EC). This ensures comprehensive safety assurance, electrical reliability (EN 60204-1), and world-class quality benchmarks for international markets.

❓ Frequently Asked Questions

1. What types of glass can the machine cut?

It cuts various types including float, Low-E, coated, and mirrored glass, with thicknesses from 3mm to 19mm (optionally up to 25mm).

2. How accurate is the cutting process?

We guarantee a precision of ±0.15mm, ensuring edges are perfectly prepared for tempering or laminating.

3. Is the machine difficult to operate?

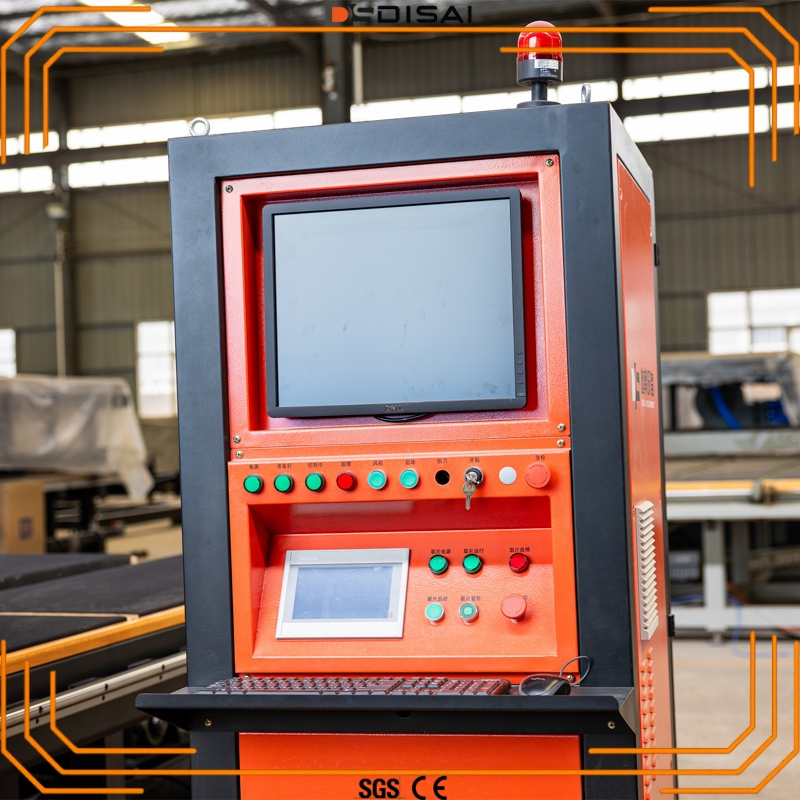

No. It features an intuitive touchscreen interface, supports CAD/CAM file imports, and uses automatic nesting software for ease of use.

4. What is the installation and training timeline?

Standard setup takes 2-3 days for installation and 1-2 days for operator training, supported by both on-site and online assistance.

5. What certifications does the equipment carry?

All machines are CE certified and manufacturing processes follow ISO 9001 standards. SGS reports are available upon request.

6. How do you handle after-sales support?

We provide 24/7 support including remote diagnostics for quick software fixes and maintain a full inventory of spare parts for immediate shipment.
