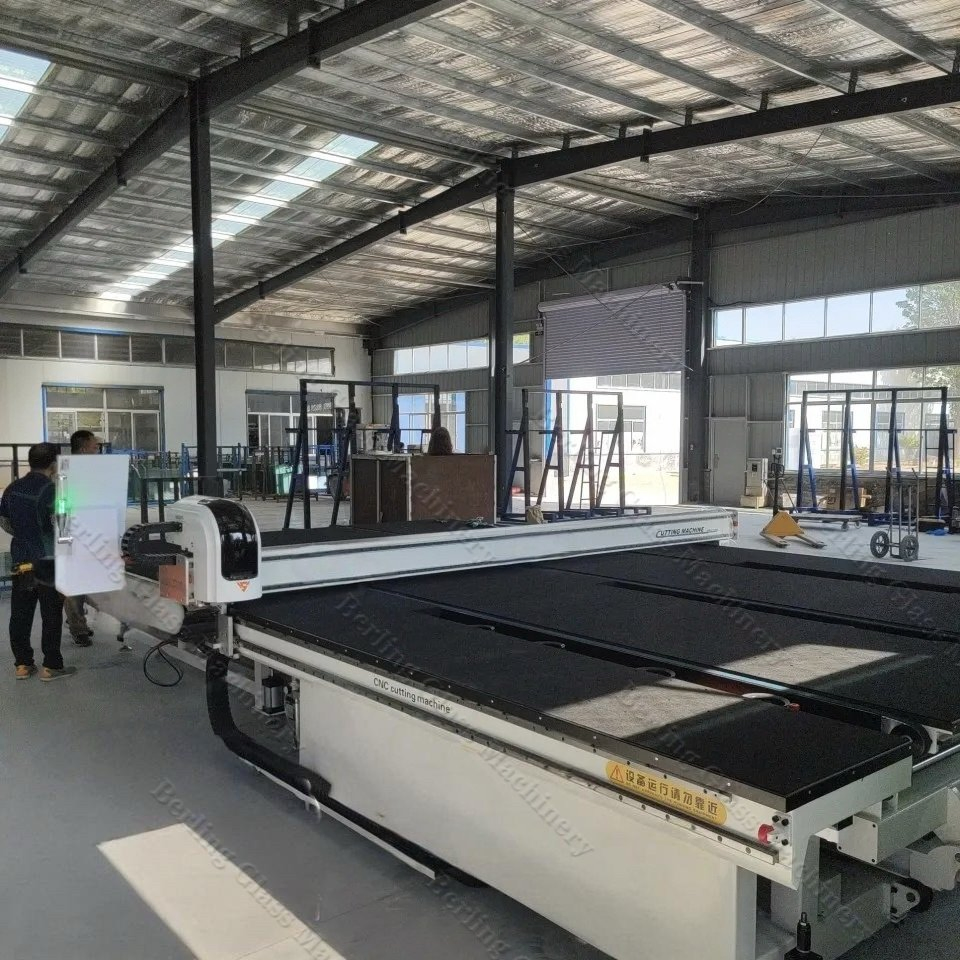

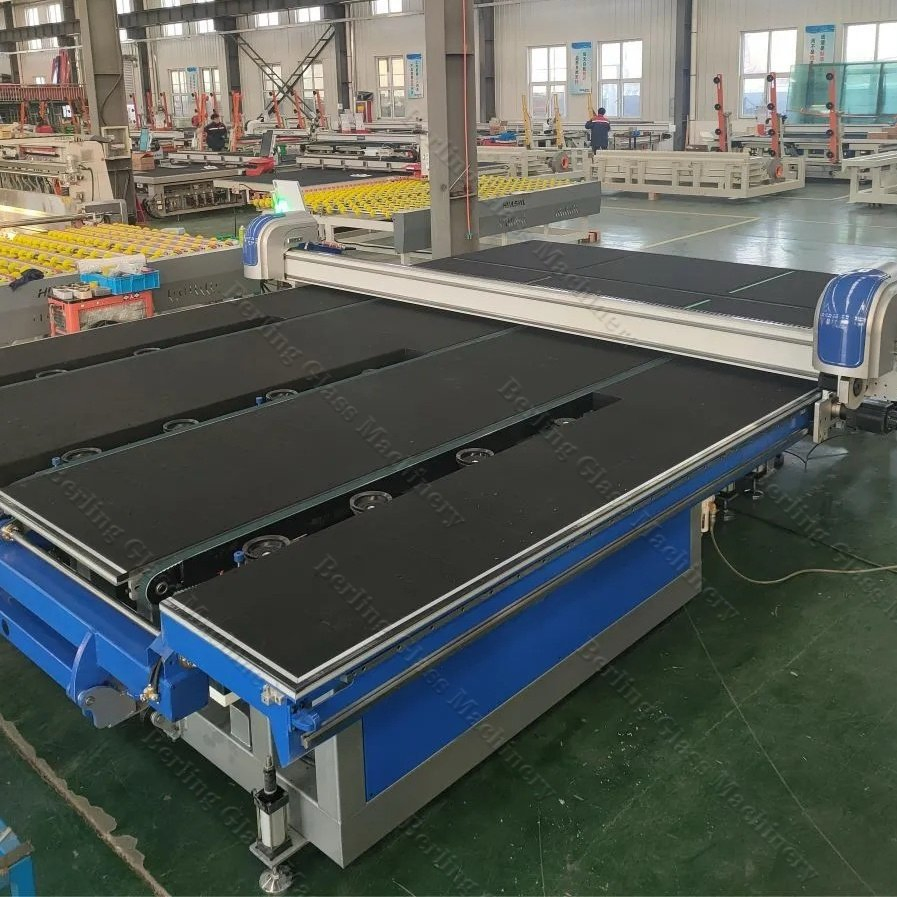

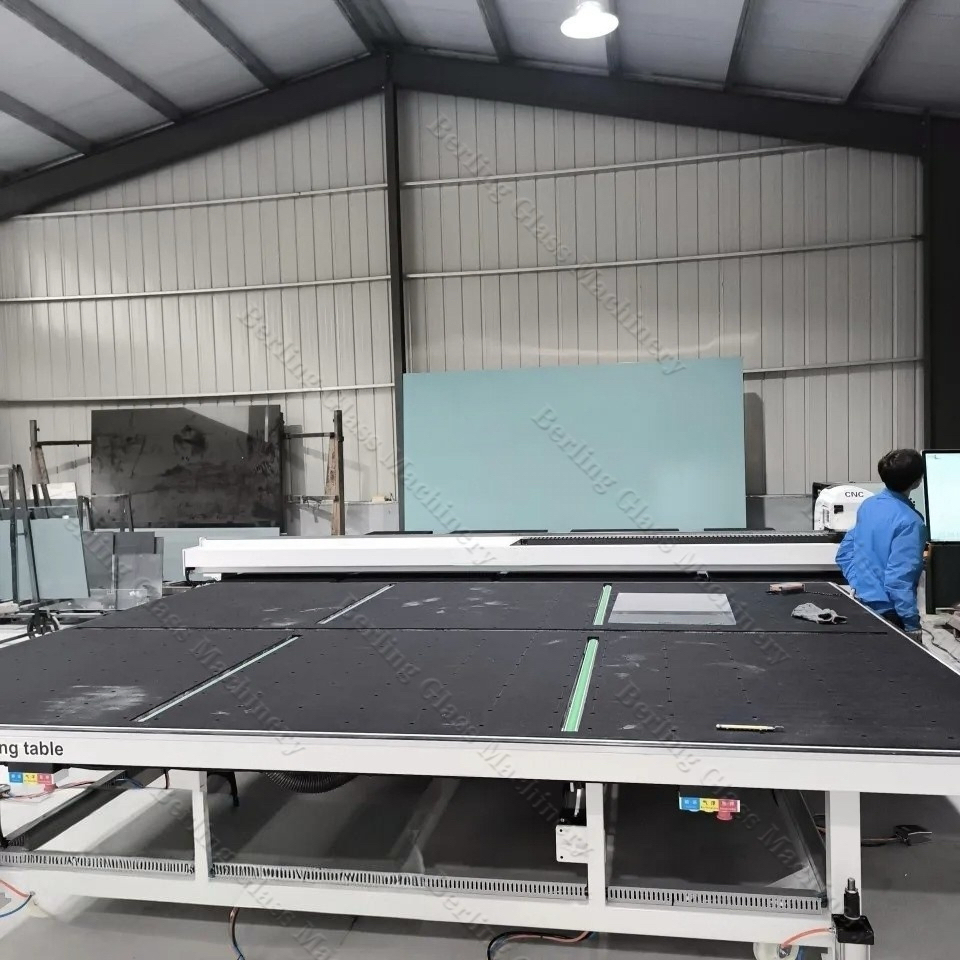

Glass Cutting Machine with Automatic Loading System
The Glass Cutting Machine with Automatic Loading is an advanced, high-efficiency solution designed for precise glass cutting and intelligent material handling. Integrating an automatic glass loading system with a CNC glass cutting table, it significantly reduces labor costs, improves safety, and increases production efficiency.
| Model | Max. Glass Size | Thickness | Dimensions (L*W*H) | Max. Speed | Air Pressure | Table Height | Loading Speed |
|---|---|---|---|---|---|---|---|
| BLCM-2420 | 2440*2000mm | 3~19mm | 3100*2400*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-2621 | 2600*2100mm | 3~19mm | 3100*2400*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-2721 | 2700*2100mm | 3~19mm | 5700*4860*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-3826 | 3660*2440mm | 3~19mm | 5700*4860*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-3829 | 3660*2800mm | 3~19mm | 6000*4400*1630mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |

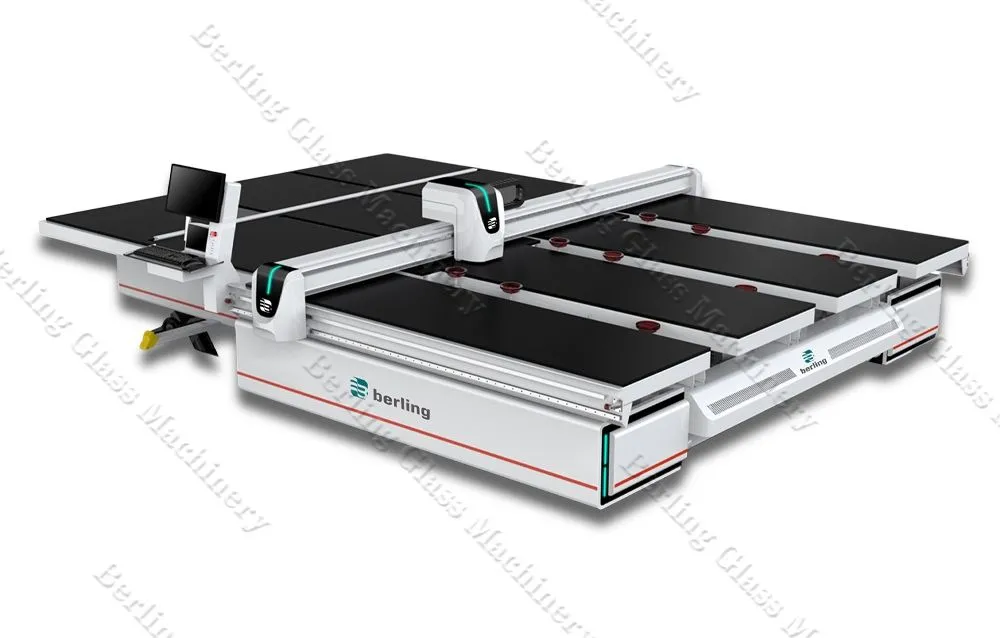

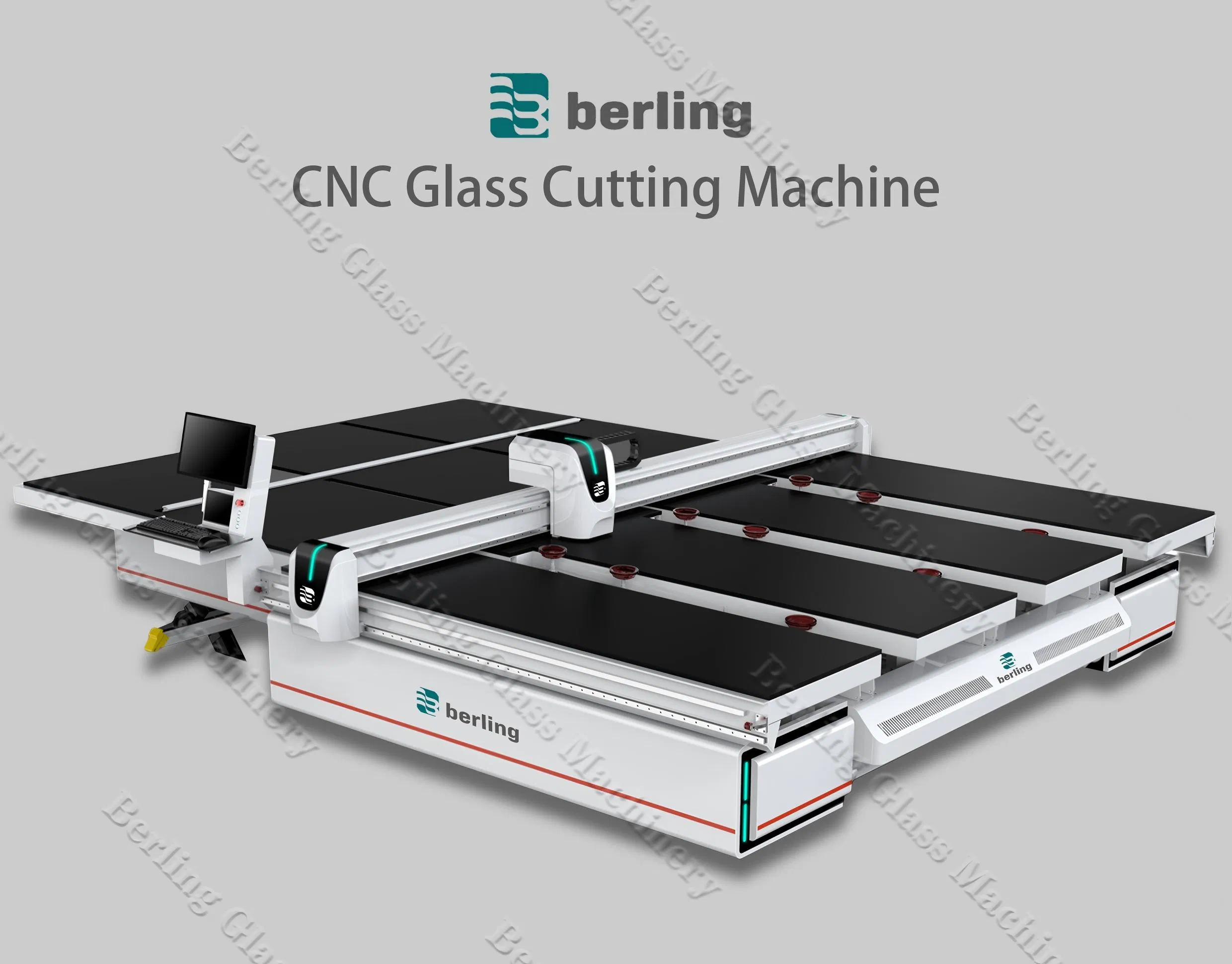

The CNC glass cutting machine integrates high precision, automation, and intelligence. Uses computer numerical control for precise lines, curves, and patterns. Positioning accuracy of ±0.01mm.

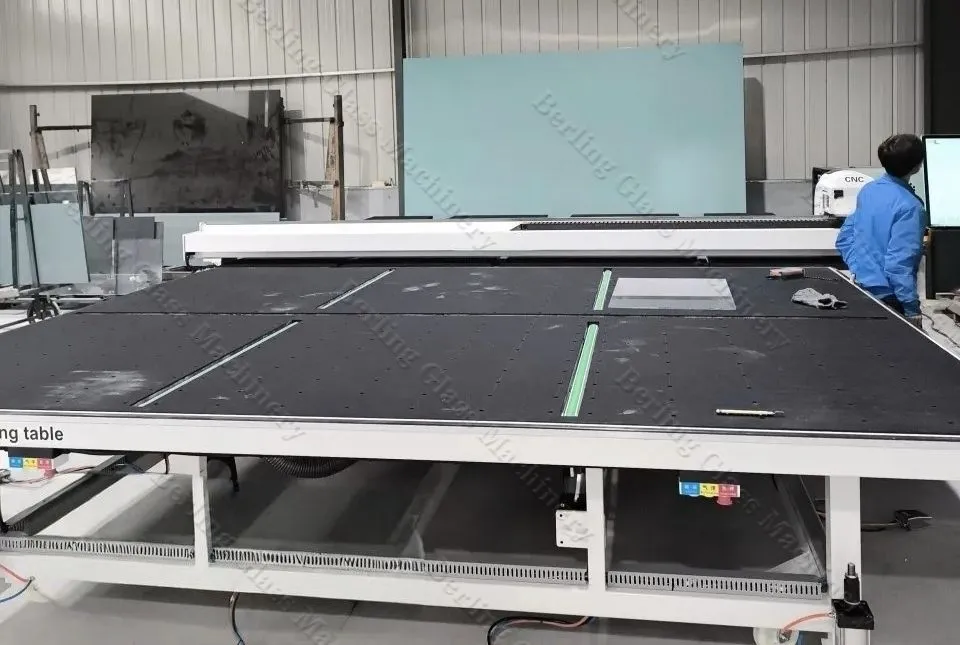

Driven by servo motors with speed up to 180m/min. Intelligent layout optimization reduces material waste and ensures smooth edges for high-quality products.
⚙️ Flexibility: The mobile device inside the machine can be moved to any position for loading, cutting, and crushing.
🛡️ Safety: Remote control operation prevents personal injury. Equipped with automatic detection and electrical protection devices.
💰 Economically: Replaces traditional lines requiring four people; our equipment requires only one operator to handle loading, cutting, and breaking.
We strive to provide Glass-Processing Machinery, Glass Tools, Consulting, and Mechanical services for all glass processing needs. We support selection of individual machines, planning of full production lines, and parts support for maintenance and repair.
