Easy operation, high cutting precision
●
International standard steel with perfect surface treatment
●
Key area was annealed and milled, which ensures the high stability and intensity
●
Cutting and breaking pressure adjustable
●
Far-infrared heating temperature and heating time adjustable
●

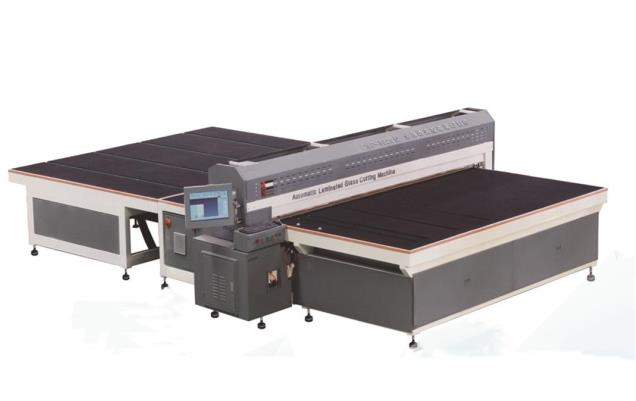

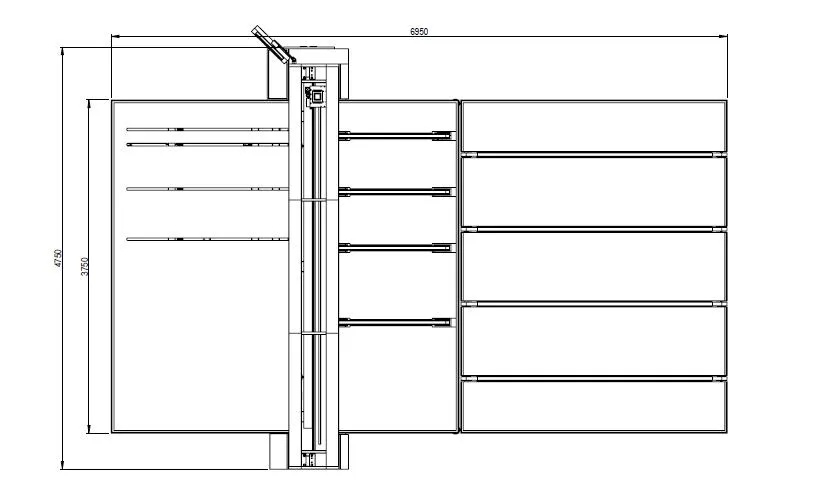

Machine includes three sections and bridge frame
●
The first two sections are glass loading and transfer area with auto location system and mechanical location device
●
The third section has functions of glass stretch and glass break
●

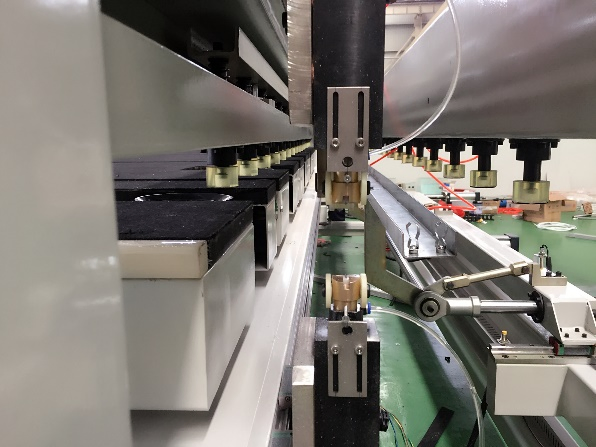

Bridge frame is the center of the cutting system, which includes up and down double cutters, upper clamp and film far-infrared cutting
Product FAQ
Q1: What range of glass thickness can this machine handle?
The HG-LM-3826 model is designed to cut laminated glass thicknesses ranging from 3+3mm up to 10+10mm.
Q2: What is the maximum cutting speed and precision level?
The machine offers high cutting precision with a maximum speed of up to 100m/min, ensuring efficient production cycles.
Q3: Are the heating parameters adjustable for different glass types?
Yes, both the far-infrared heating temperature and the heating time are fully adjustable to suit various laminated glass specifications.
Q4: Which international components are used in the machine's construction?
We use premium components including KHK Japan rack and rails, Hiwin Taiwan guide rails, and Bolhe Germany cutter holders for maximum reliability.
Q5: Does the machine come with an automated loading system?
Yes, the first two sections include an auto-location system and mechanical location device for glass loading and transfer.
Q6: What is the total power requirement and weight of the machine?
The machine has a total power consumption of 15KW and a robust weight of approximately 3000KG for stable horizontal operation.
