Basic Info.
Model NO.SKQ-8080
UsageGlass Cutting
Min Glass Size100*100mm
OperationAutomatic Control
Key WordsCNC Glass Cutter
Processable Glass TypeNormal Glass
MotorStepper Motors
ApplicationGlass Mirror/Car Mirror/Make-up Mirror
Max Moving Speed40000mm/Min
Max Cutting Speed20000mm/Min
Body StructureThicken Steel Made Lathe
RailsTaiwan Hiwin Square Rails
Transmission TypeTaiwan Tbi Ball Screw
Working Area800*800mm/as Needed
TypeGlass Cutting Machine
StructureVertical
Glass Washing TypeUltrasonic
ConditionNew
WarrantySupply
Control SystemNC-studio
Production Capacity200sets/Month
Product Description

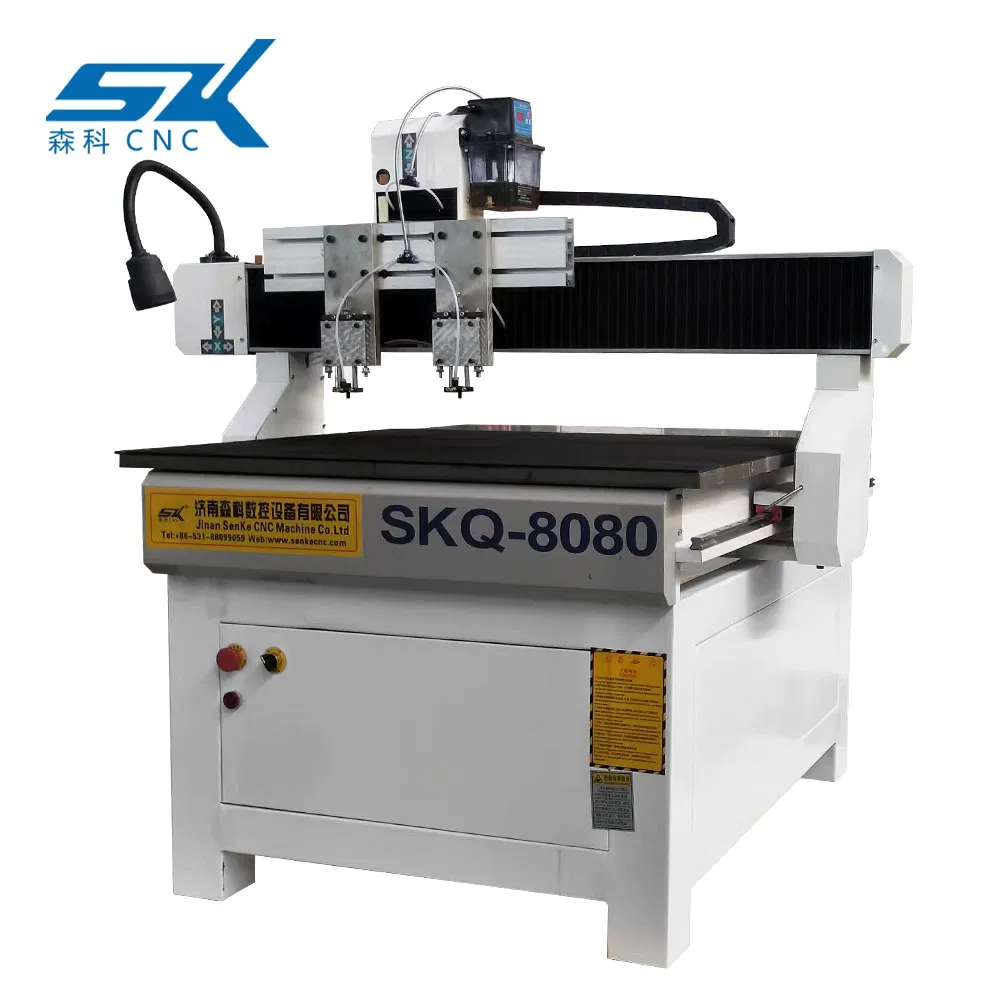

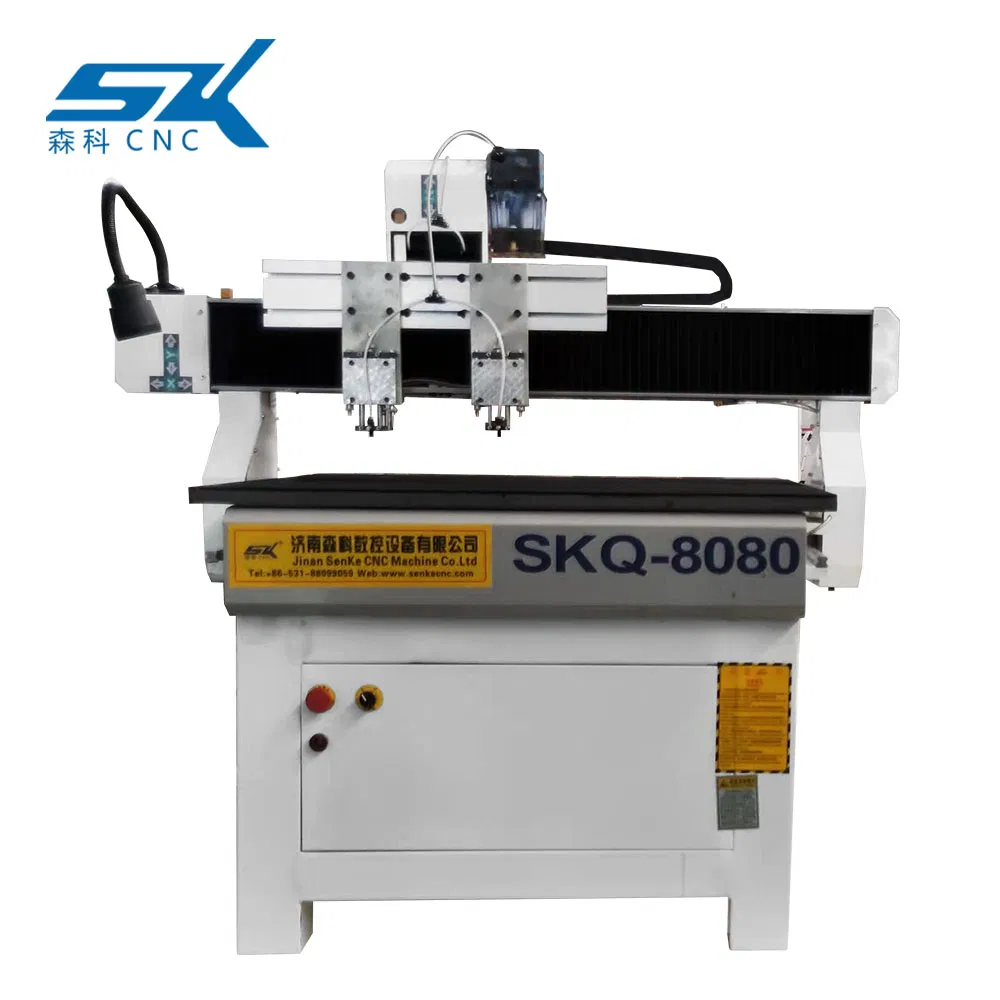

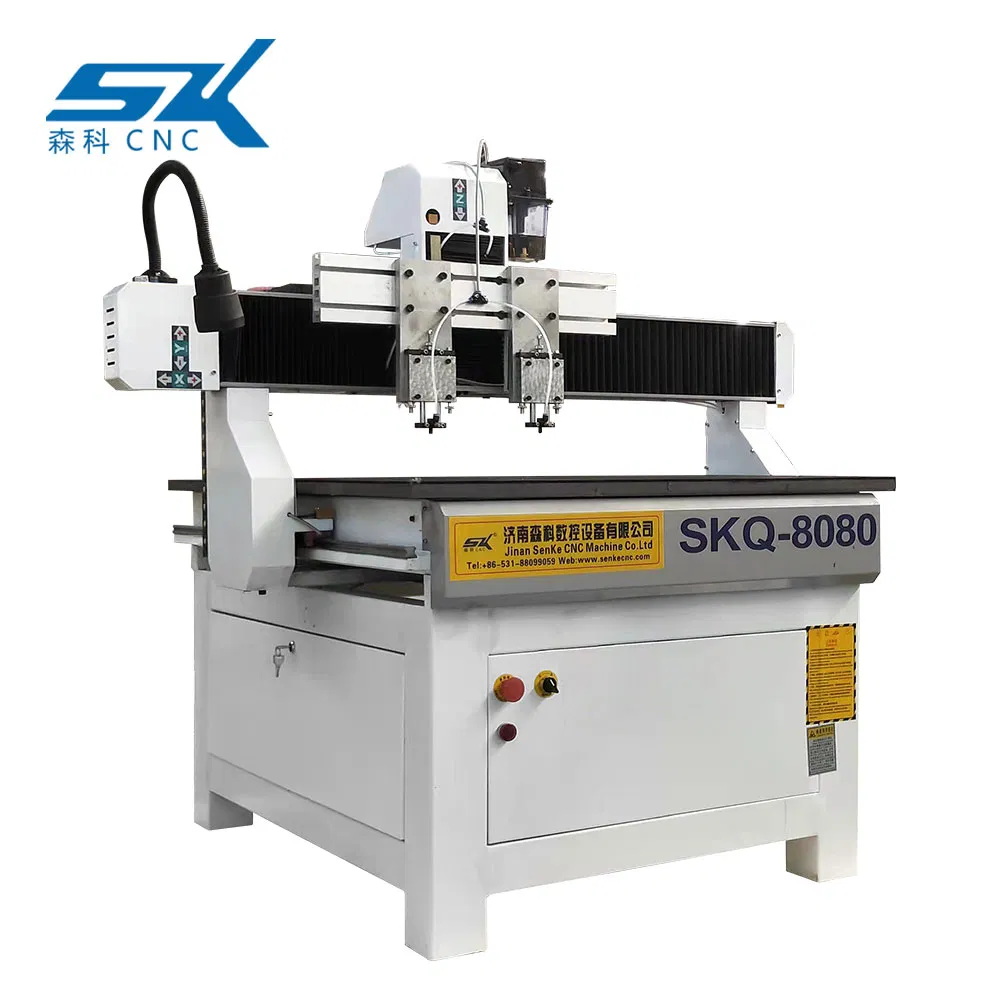

Small Size 8080 Mirror Glass Sheet CNC Cutting Machine Full Automatic Glass Cutting Cutter for Round Circle Mirror Glass
Technical Parameters
| Parameter |
Detail Specification |
| Model | SKQ-4545/6090/8080 |
| Working area | 450*450mm/600*900mm/800*800mm |
| Body Structure | Thicken Steel Made Lathe |
| Rail | Taiwan HIWIN Square Rails |
| Transmission Type | Taiwan TBI Ball Screw |
| Max Moving Speed | 40000mm/min |
| Max Cutting Speed | 20000mm/min |
| Interface | USB |
| Voltage | 220V/single phase (Customizable) |
| Drive Type | Stepper Motor & Leadshine Drivers |
| Operating System | NC-studio Control System |
| Software | Artcam 8.1 (Free supply) |
| Oil Lubricator | YES, Include |
| Wire Protect | YES, Include |
Main Features
Stable Structure: Welded with seamless steel structure, high temperature annealing and vibrating stress relief for a stable lathe body that will not deform.
High Precision Rails: Three axes adopt Taiwan brand linear guide rails for high precision performance.
Premium Ball Screw: Z axis adopts imported Germany or Taiwan made ball screw, ensuring high precision and long lifetime.
Fast Transmission: X and Y axis are transmitted by helical rack and pinion, allowing faster work and larger cutting force.
Excellent Compatibility: Supports CAD/CAM software such as type3, castmate, wentai, artcam, etc.
Smart Recovery: Features re-carving after breakpoint or power failure and processing time estimation.
Easy Maintenance: Manual/automatic oil-injection system simplifies machine maintenance.
Frequently Asked Questions (FAQ)
1. What is the standard working area of this machine?
The standard working area for the SKQ-8080 model is 800*800mm, but we also offer sizes like 450*450mm and 600*900mm to suit different needs.
2. What types of glass can be processed with this CNC cutter?

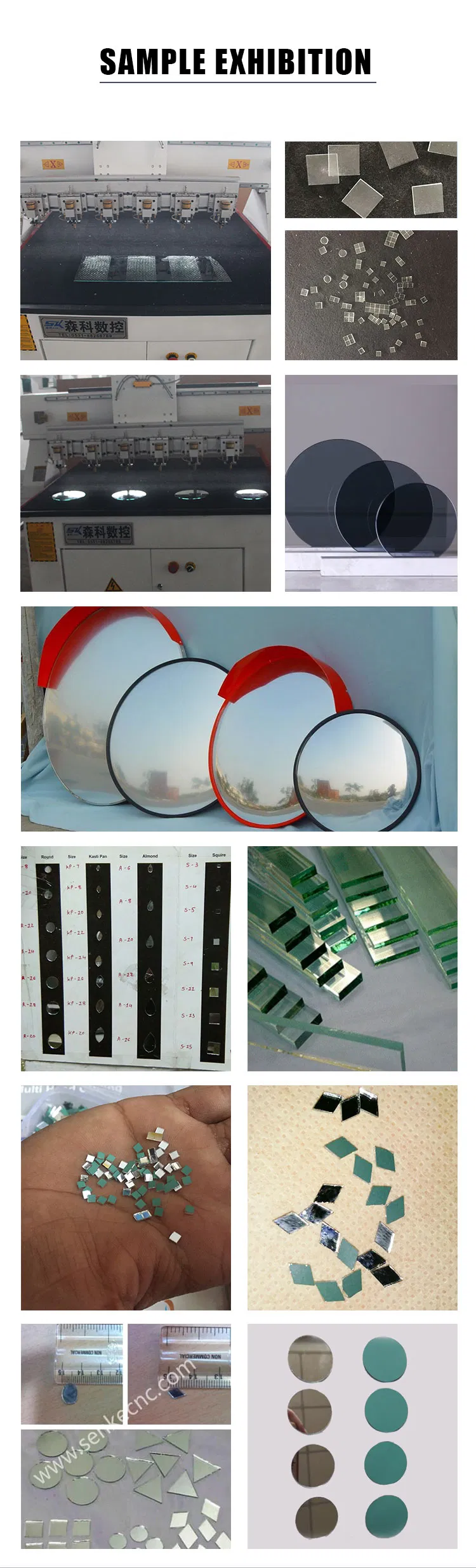

This machine is ideal for cutting normal glass, mirror glass, car mirrors, and make-up mirrors, specifically for round and circle shapes.
3. Does the machine support automatic lubrication?
Yes, the machine comes with an integrated manual/automatic oil-injection system to make maintenance easier and more efficient.
4. What control system is used for operation?
The machine utilizes the NC-studio Control System, which provides stable and precise control over the cutting process.
5. Can the machine continue work after a power failure?
Yes, it features a breakpoint memory function that allows for re-carving and resuming operations after a power interruption.
6. What is the maximum cutting speed of the SKQ-8080?
The machine can reach a maximum cutting speed of 20,000 mm/min with a moving speed of up to 40,000 mm/min.
