Honghe Machinery
Honghe Machinery
| Model NO. | Glass Machinery |
| Keyword | Glass Working Center |
| Product Name | CNC Glass Working Center |
| Processing Layout | 2000*1000mm - 2000*4000mm |

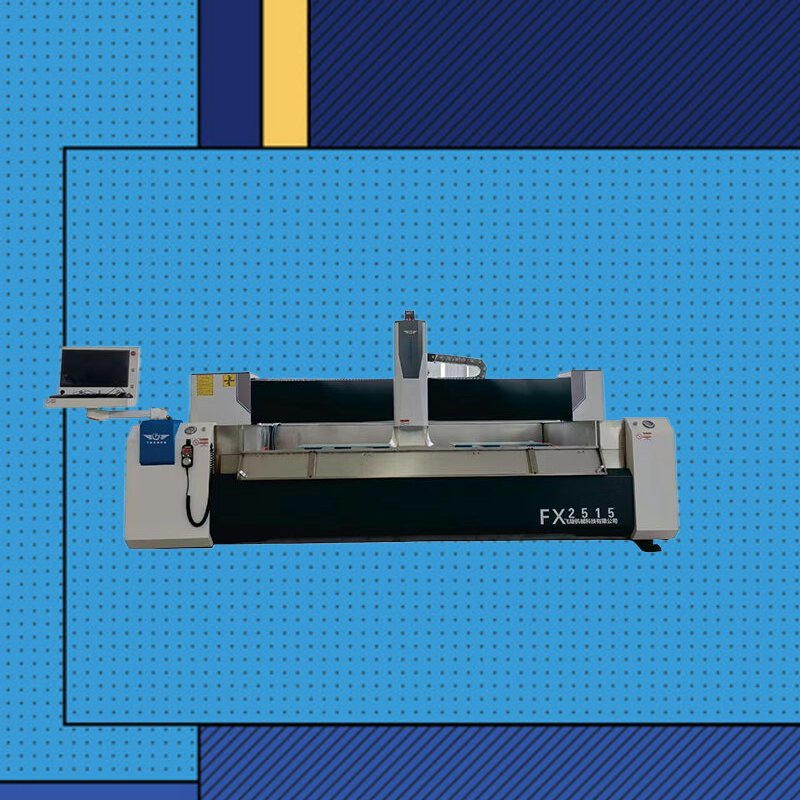

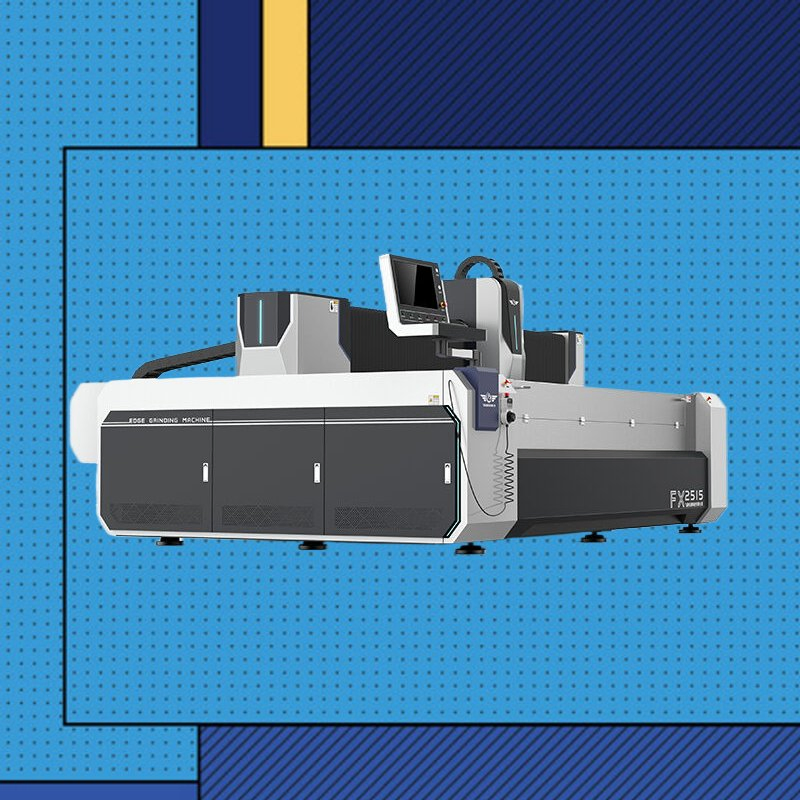

| The Machine Model | Fx-2515 |
| Processing Thickness | 2-19mm |
| Power | 17kw |
| Weight | 4000 Kg |
| Key Selling Points | High-Accuracy |
| Core Components | Pump, Spindle, Linear Guide, Servo Motor, Reducer |
| Operation | Automatic Control |

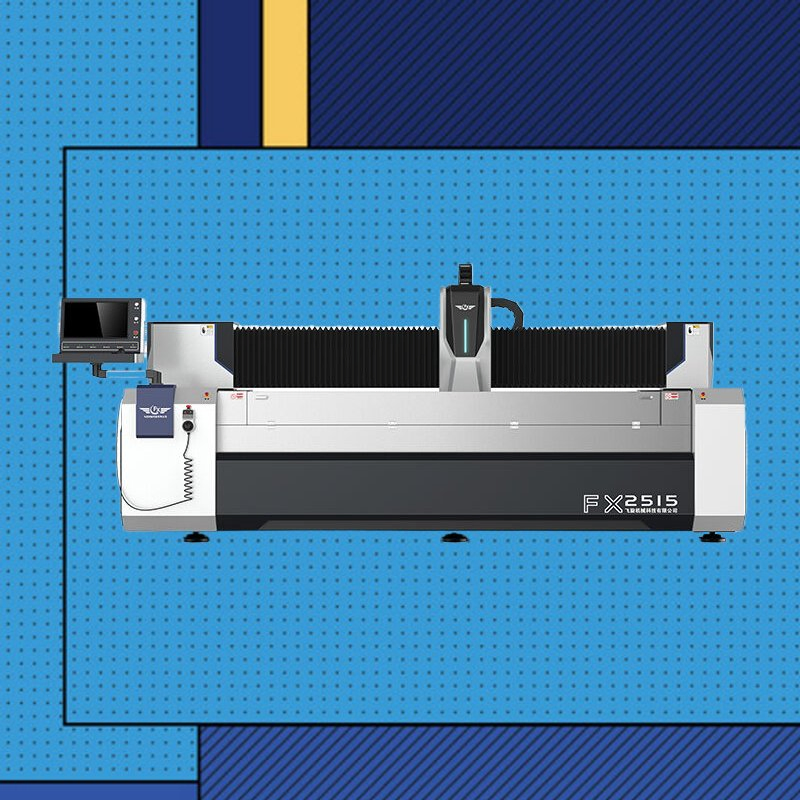

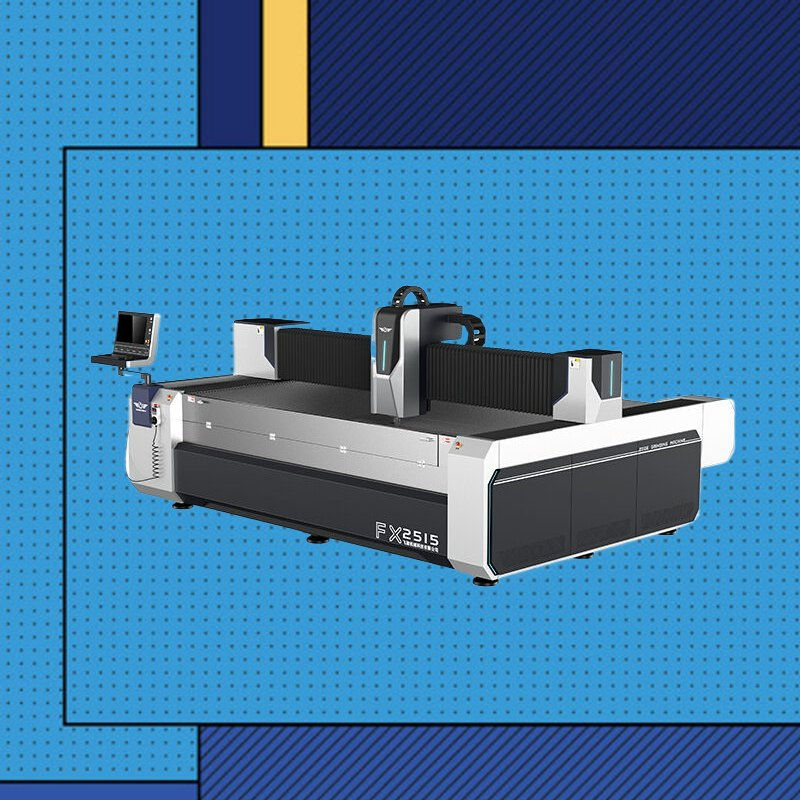

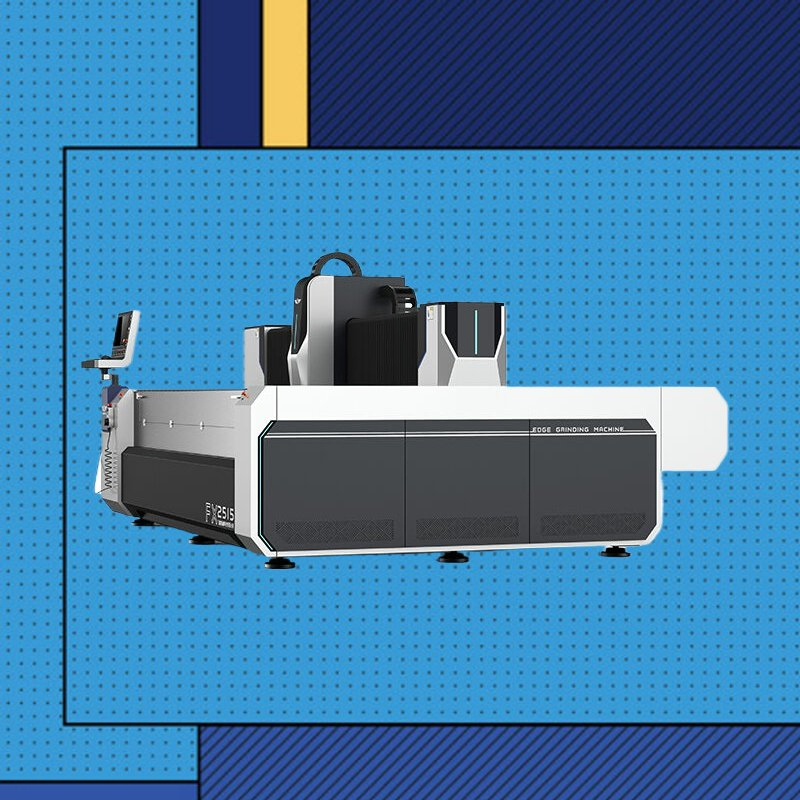

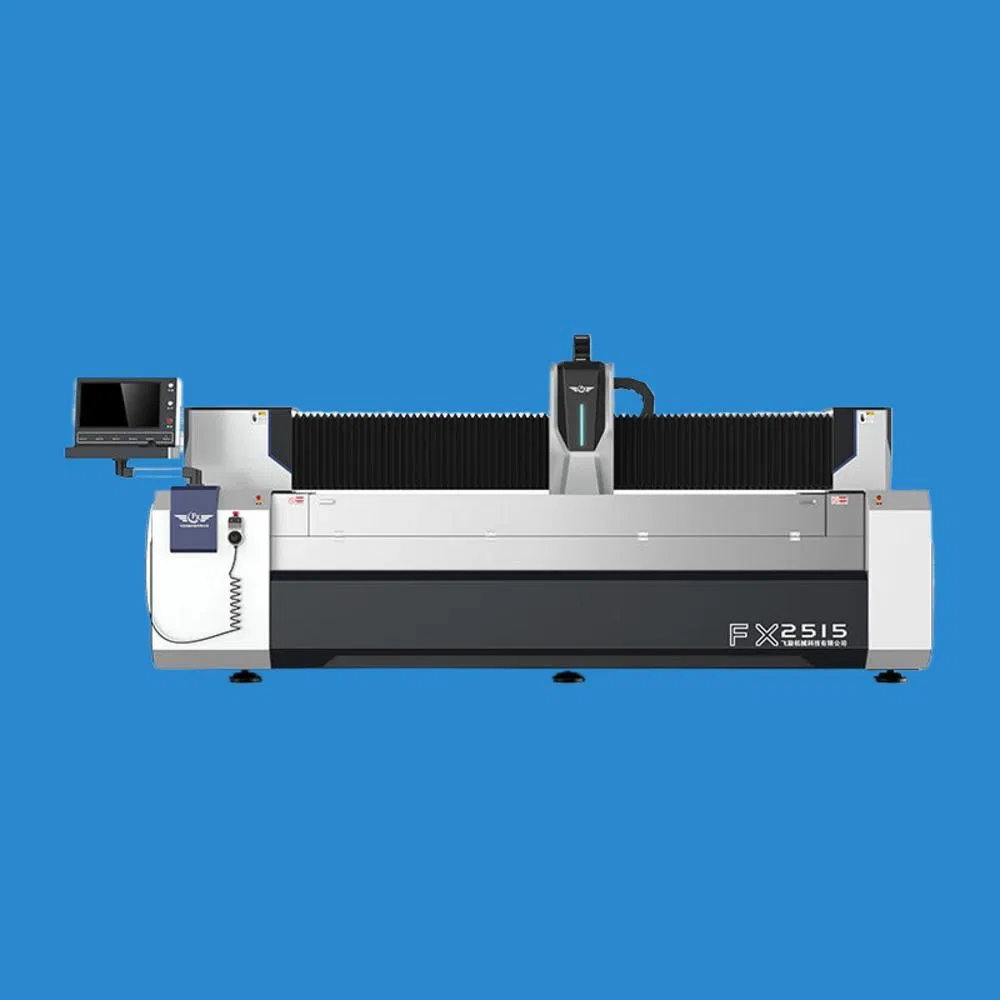

CNC Glass Processing Center

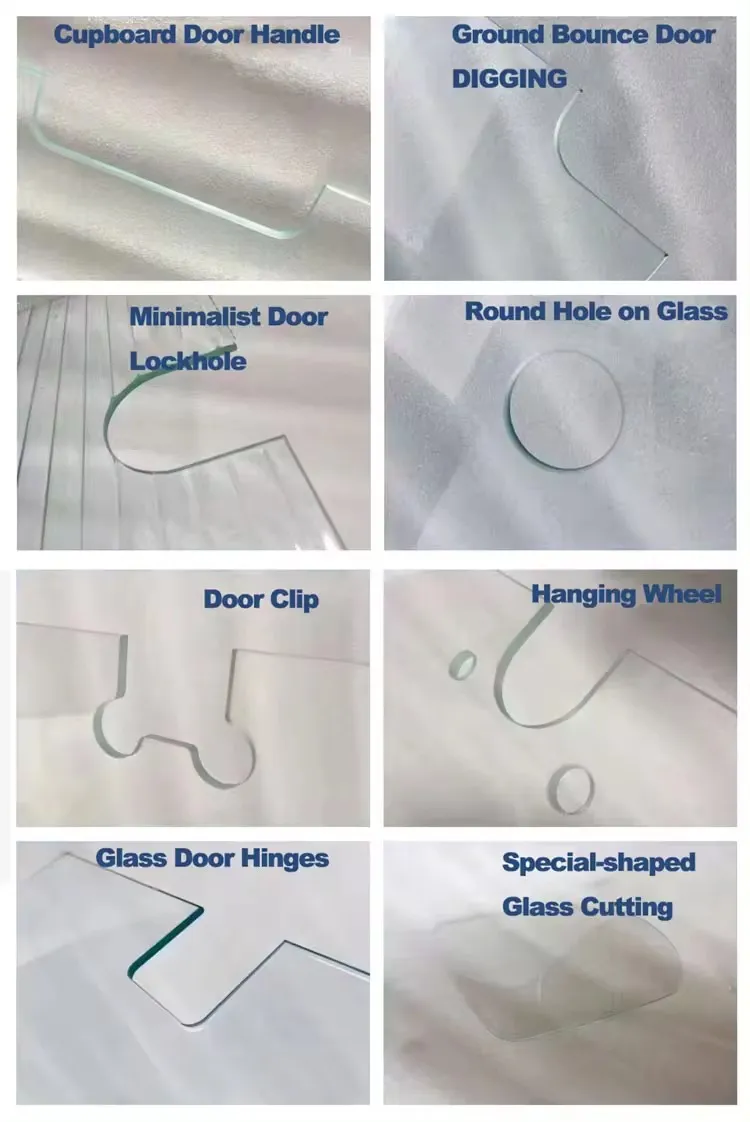

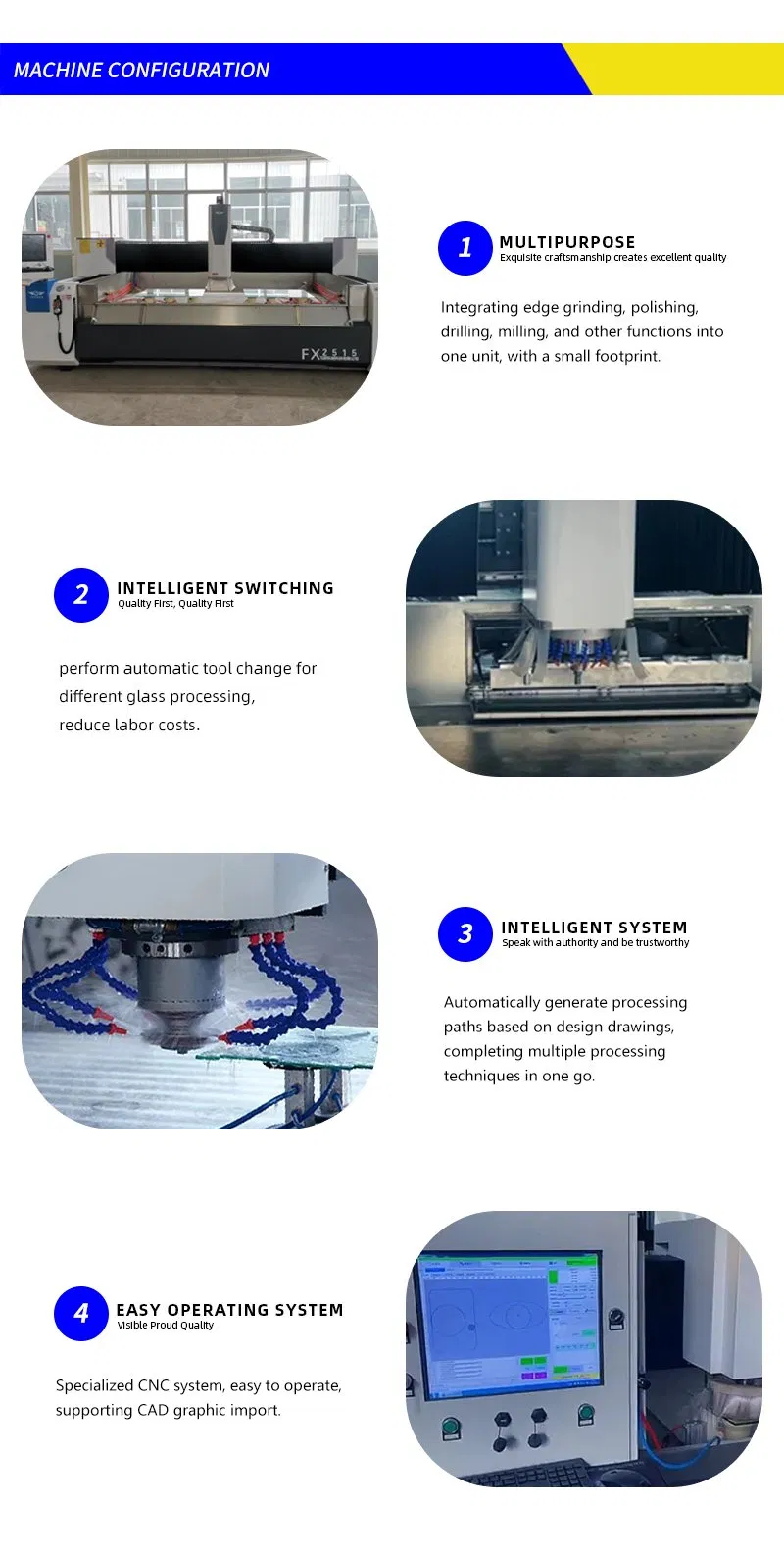

The CNC glass machining center is a sophisticated combination of glass edge grinding, chamfering, polishing, drilling, and milling. Specially designed for high-precision machining from both inside and outside, this equipment features simple operation and applies to machining automotive glass, home appliance glass, furniture glass, shower room glass, and high-end mirrors. It is designed to automate production and significantly improve processing efficiency.
"Highly automated for diverse glass types including home appliances and furniture components."
| Model Variants | Specifications |
| Machine Models | FX2010, FX2515, FX3015, FX3020, FX4020 |
| Spindle Power | 11KW / 15KW / 18.5KW |
| Spindle Speed | 3000-12000 rpm |
| Processing Speed | 6-15 M/min |
| Precision | ±0.2mm |
| Service Duration | 7*24 Hours (All Weather Service) |
| Warranty Period | 1 Year |
| Package Type | Standard Wooden Box Export Packaging |
