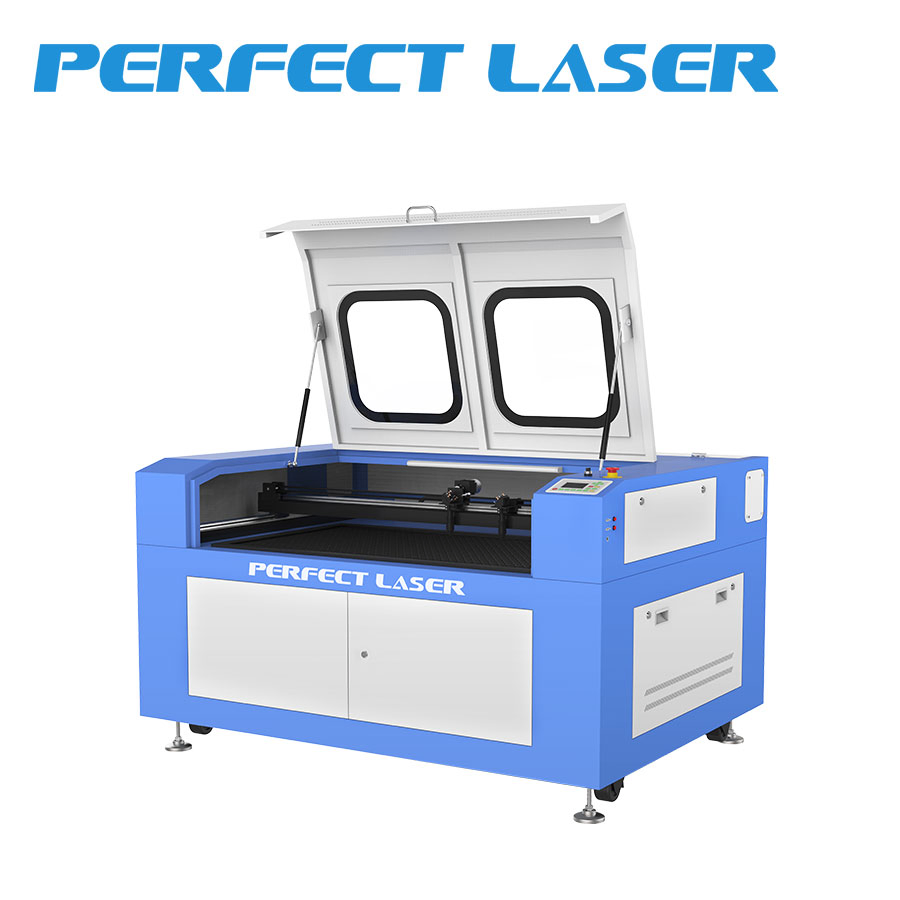

80W 100W 120W 150W 180W CNC Wood/Acrylic/Plastic/Glass/Fabric/Textile/Leather 1390 CO2 Laser Engravers Cutters Engraving Cutting Machines Price

1 / 5

80W 100W 120W 150W 180W CNC Wood/Acrylic/Plastic/Glass/Fabric/Textile/Leather 1390 CO2 Laser Engravers Cutters Engraving Cutting Machines Price

Customization:	Available
After-sales Service:	Engineer 24h Support
Warranty:	2 Year Warranty

Send Inquiry

Product Description

📋

Basic Specifications

Model

PEDK-13090

Laser Power

100W / 120W / 130W / 150W

Working Area

1300 x 900mm

Cooling System

Air / Water Cooling

Applicable Material

Non-metal Materials

Engraving Speed

1-60,000mm/min

Cutting Speed

1-10,000mm/min

Accuracy

± 0.0125mm

🔍

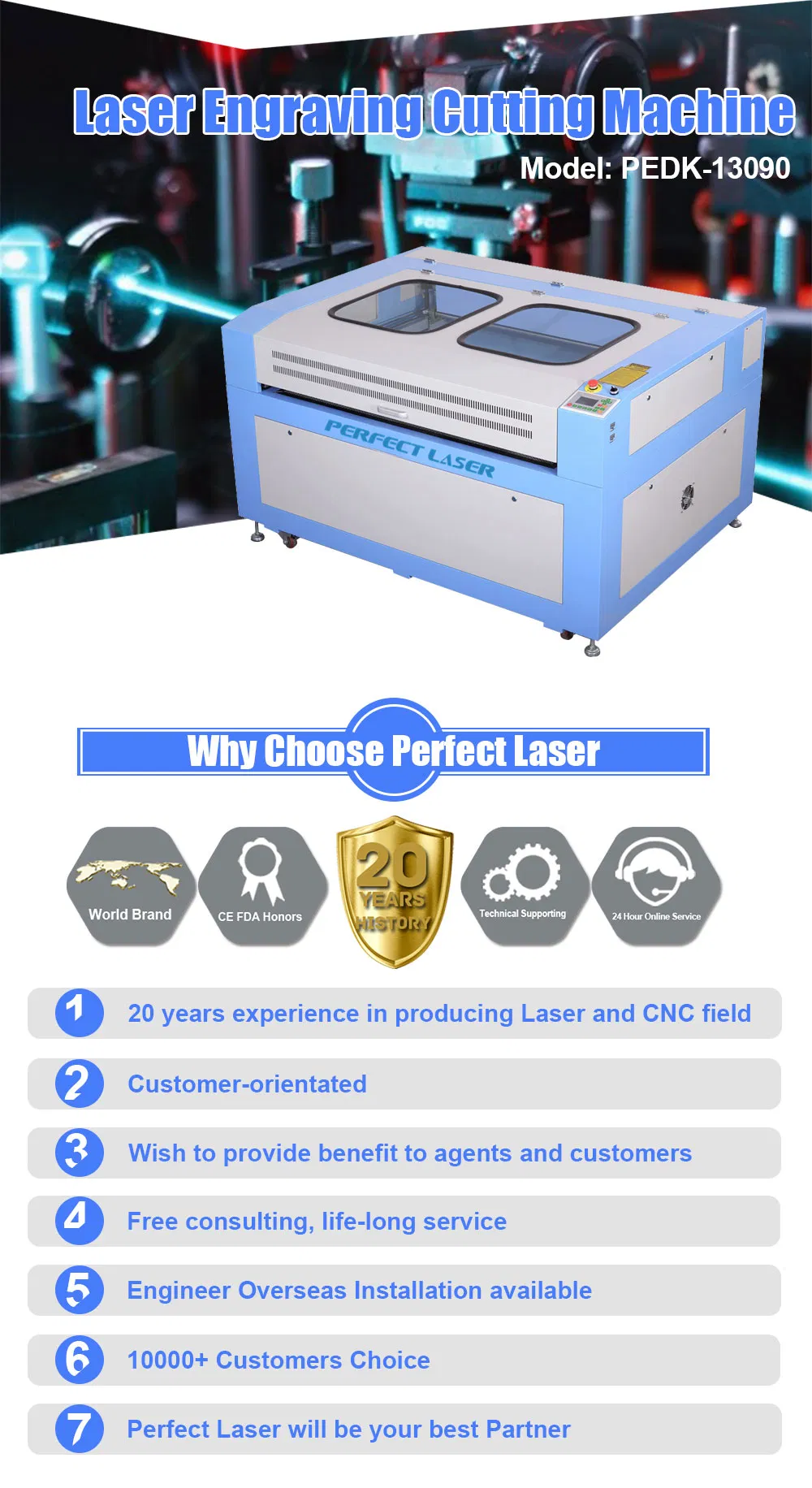

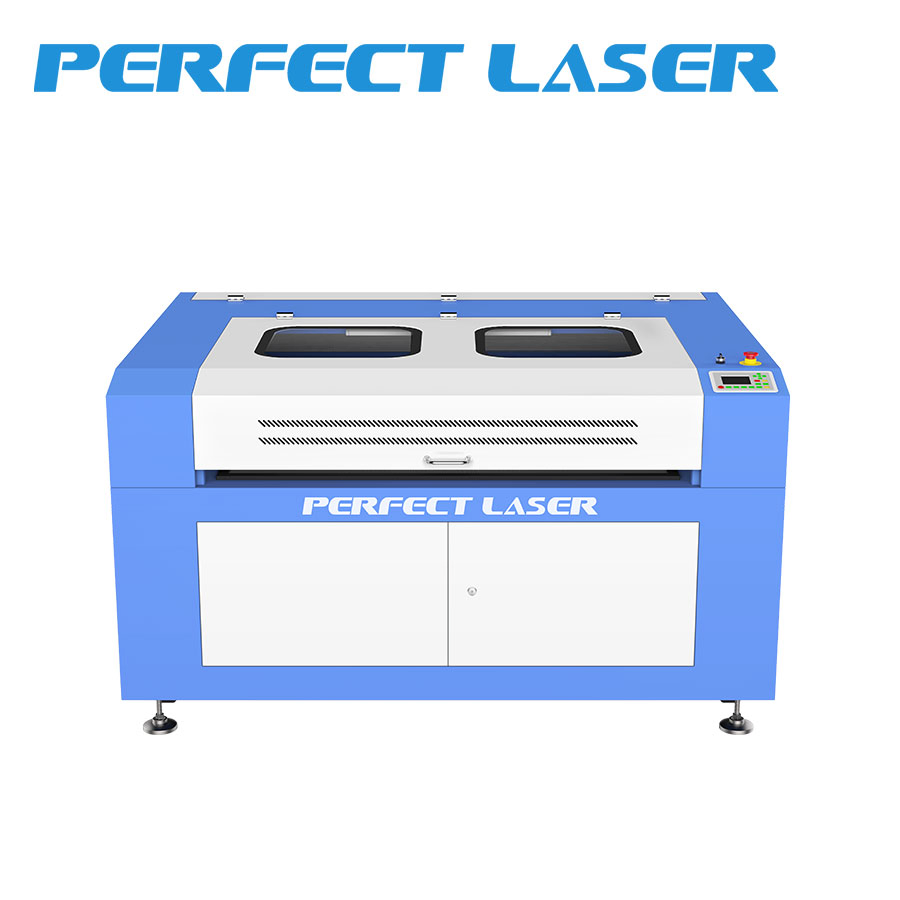

Product Overview

The CNC CO2 Laser Engraving and Cutting Machine is a high-performance solution for precision processing. Featuring a large 1300mm by 900mm working area, it is designed for compact nesting and convenient material storage. This model is ideal for industries requiring versatile cutting and engraving capabilities across various non-metal substrates.

🛠️

Applications & Materials

Widely used in advertisement, arts and crafts, toys, clothing, and electronics industries. It excels at processing:

Materials: Acrylic, Wood, Fabric, Leather, Rubber, PVC, Paper, and Glass.
Industries: Home Appliances, Textile Machinery, Woodworking, and Advertising.

⭐

Core Product Features

Automatic Crawler Platform: Stainless steel crawler design for large-format cutting and automatic feeding.
High Precision: Imported linear guide rails ensure superior engraving quality and machine longevity.
DSP Offline Control: Advanced LCD Touch Screen with USB support; operates without a permanent computer connection.
Advanced Cooling: Water cooling system with alarm protection (CW-3000) to monitor temperature and protect the laser tube.
Red Light Pointer: Realizes exact positioning for high-accuracy workflows without wasting material.
Versatile Worktables: Choose between Honeycomb or Strip platforms based on material requirements.

📊

Technical Data

Laser Type	Hermetic and Detached CO2 Laser Tube
Laser Power Controlling	1-100% Manual Adjustment and Software Controlling
Voltage	220V(±10%) 50Hz
Graphic Formats	BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Repeat Accuracy	± 0.0125mm
Support Software	Professional Engraving & Cutting Software
Operating Temp	0-45℃

💡

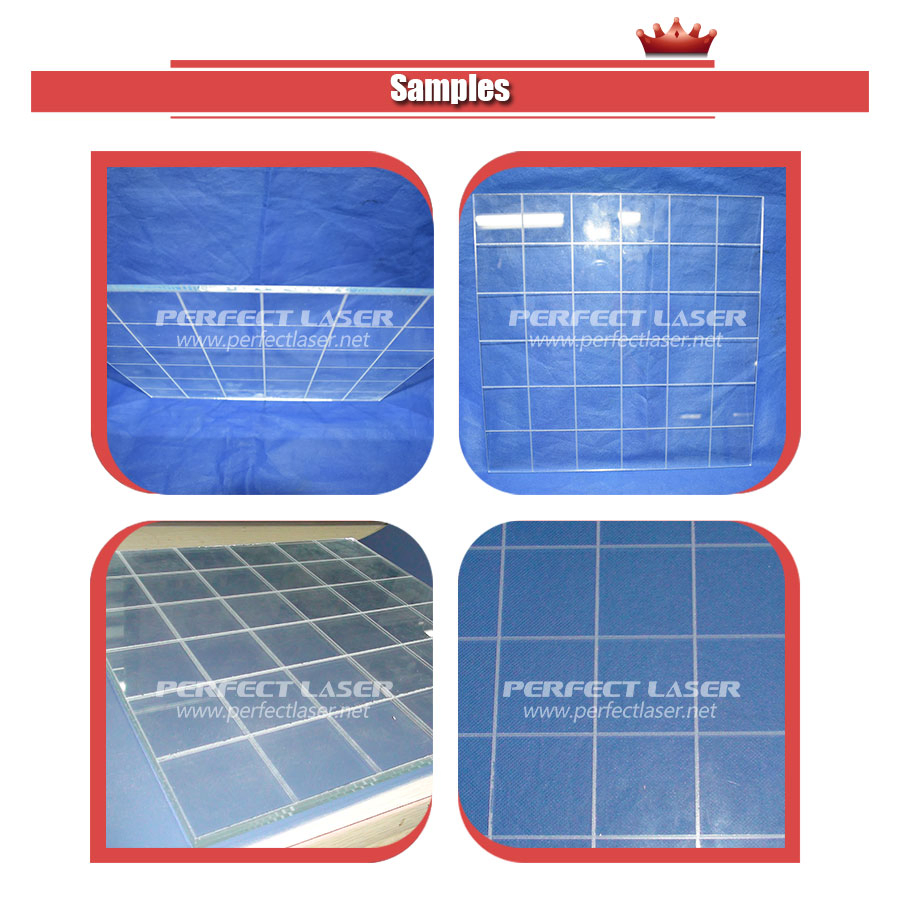

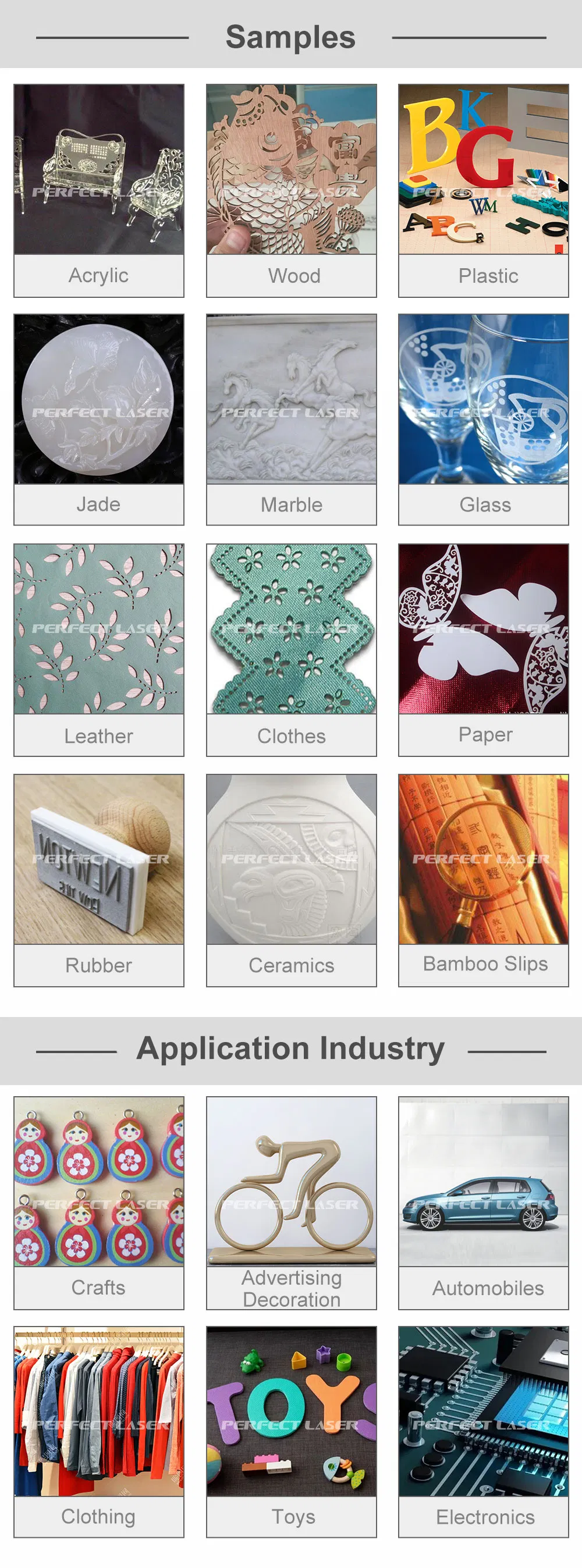

Gallery & Samples

Frequently Asked Questions

What is the maximum thickness this machine can cut?

Cutting depth depends on the laser power (60W-150W) and the material. For example, a 150W tube can cut thicker acrylic or wood compared to a 60W tube.

Can this machine engrave on glass?

Yes, CO2 lasers are excellent for engraving on glass, creating a frosted effect. However, they are not used for cutting glass.

Is special software required to operate the laser?

The machine comes with professional CNC control software and supports standard formats like DXF, BMP, and AI from programs like CorelDraw or AutoCAD.

How does the water cooling system work?

It uses a water chiller (like the CW-3000) that circulates water through the laser tube to maintain optimal temperature and includes an alarm to prevent overheating.

Can it operate without being connected to a computer?

Yes, the machine features a DSP offline control system, allowing you to load files via a USB flash drive and control the operation via the LCD touch screen.

What materials are NOT suitable for this CO2 laser?

Standard CO2 lasers are designed for non-metal materials. They cannot cut metals without special configurations, and materials containing PVC/Vinyl should be avoided due to toxic fumes.
