🚀 Flexibility: Integrated mobile device allows the machine to be moved to any glass location for versatile operations.
🛡️ Security: Remote control operation effectively avoids personal injury. Includes automatic computer-detected electrical protection.
💰 Economy: Replaces a 4-person team with just one operator. Eliminates safety risks and applies to multiple glass sizes with one machine.
| Max Cutting Size | 3660*2600mm |
| Glass Thickness | 3-19 mm |
| Fastest Cycle | 20-40 seconds |
| Cutting Accuracy | Parallelism: ≤±0.15mm/m |
| Cutting Speed | 150m/minute (adjustable) |
| Transmission System | X, Y, Z Axis equipped with reliable motors |

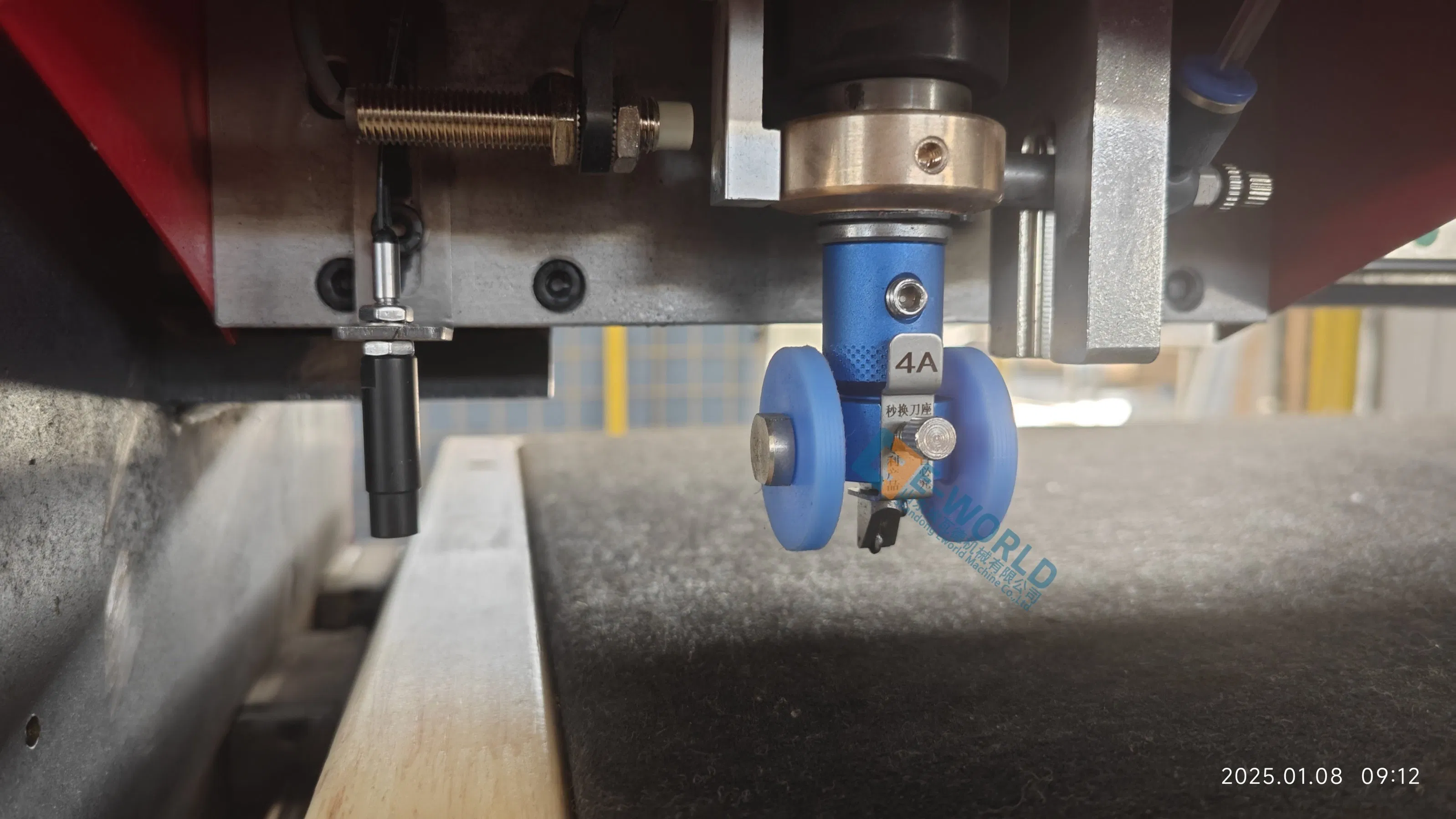

| Cutter Block | Pneumatic and spring system; 360° rotation for any shape |
| Installed Power | 12kw (380V/50Hz/3phase) |
| Weight | 2350kg |

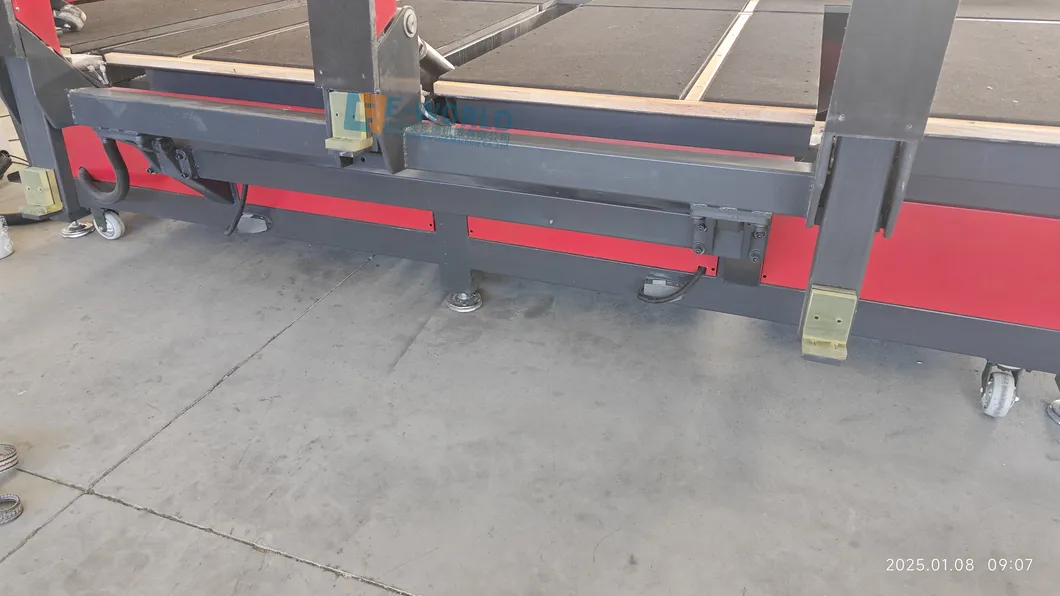

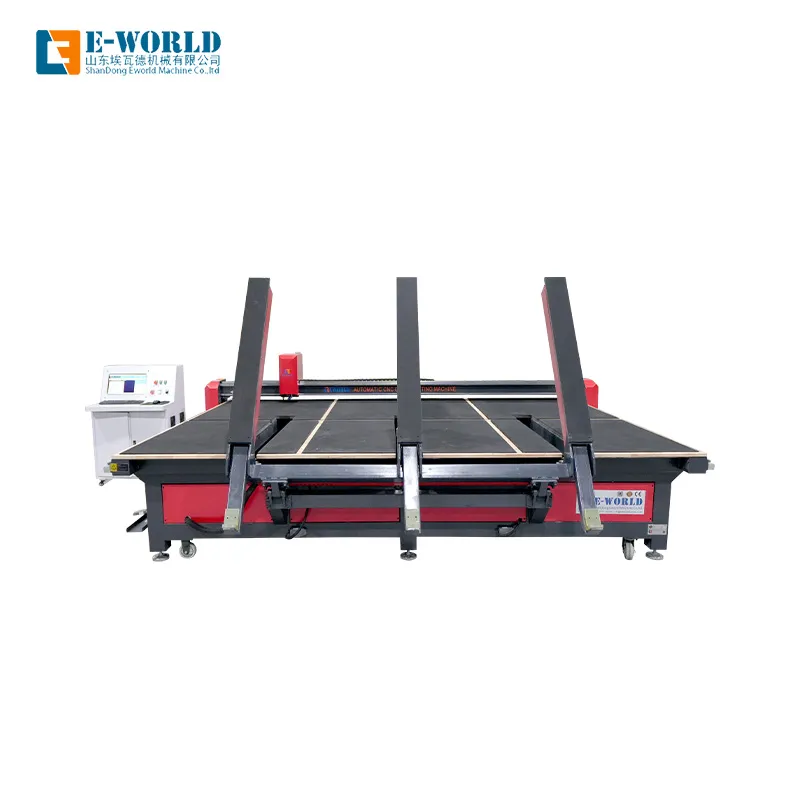

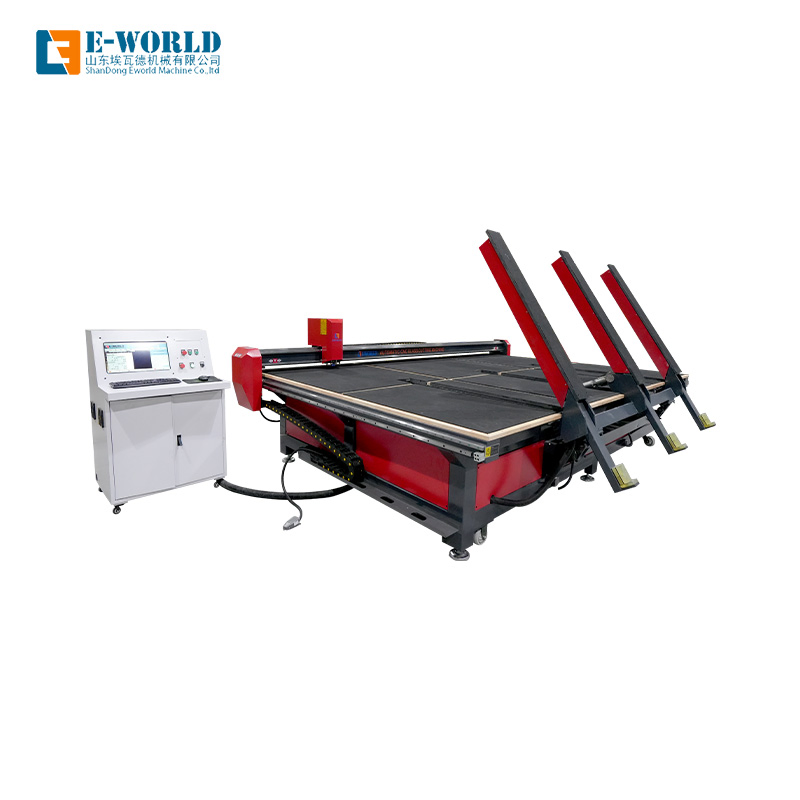

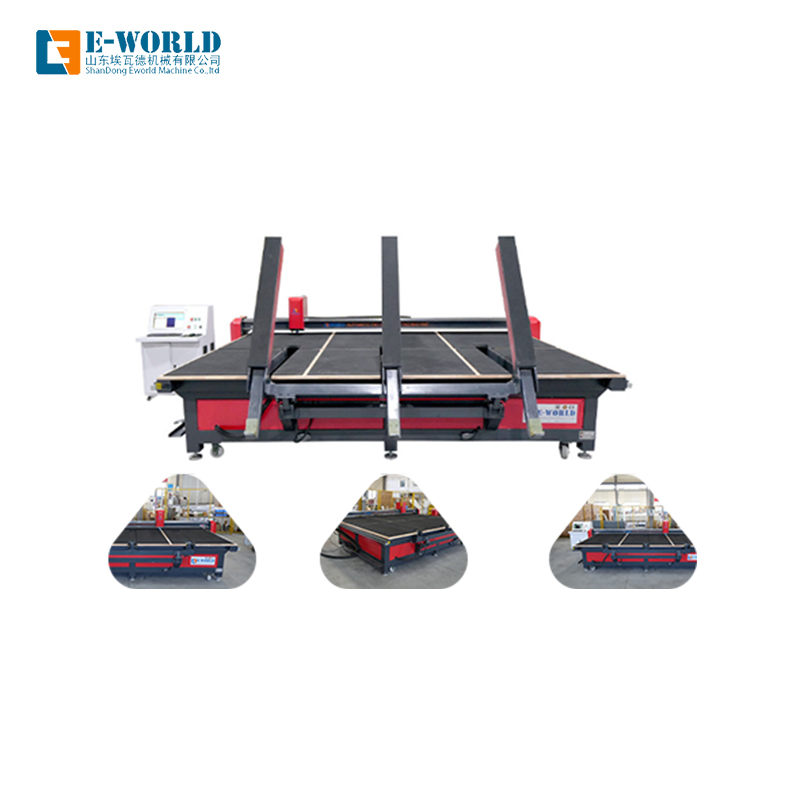

The three loading arms provide safe support. The base is made of a single piece to ensure it won't deform or break under heavy loads.

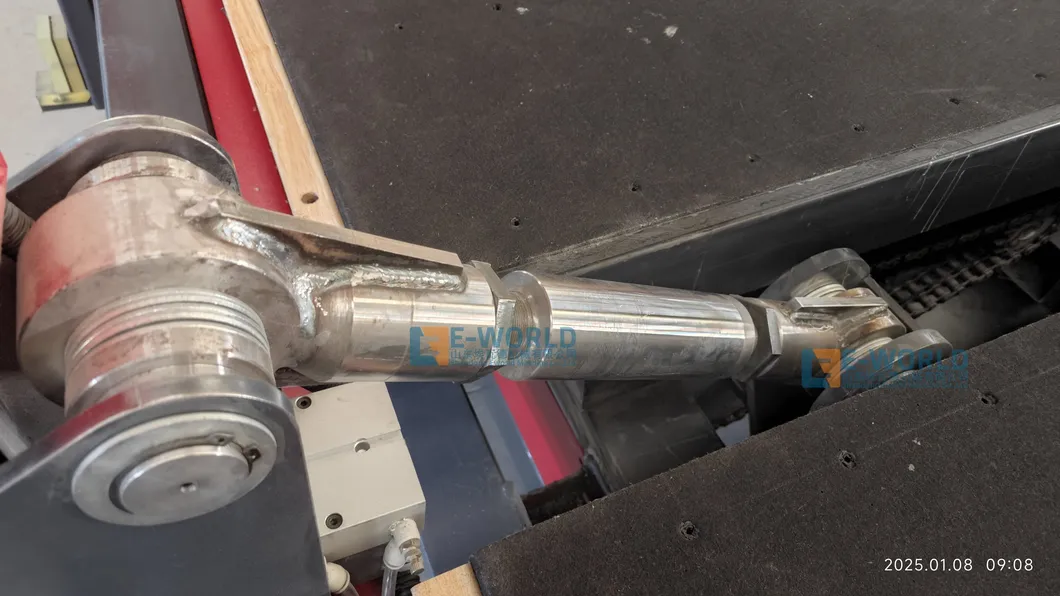

Driven by a powerful motor rather than pneumatic systems, allowing for stable lifting of heavy glass even during sudden power cuts.

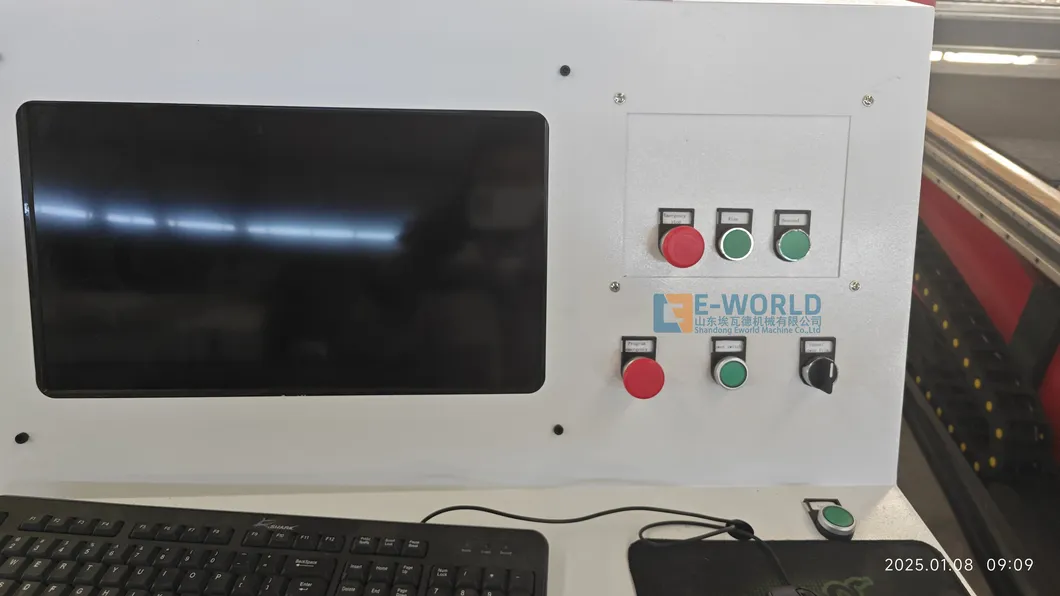

Easy handling with one-button operation to start lifting the loading arms, reducing operator training time.

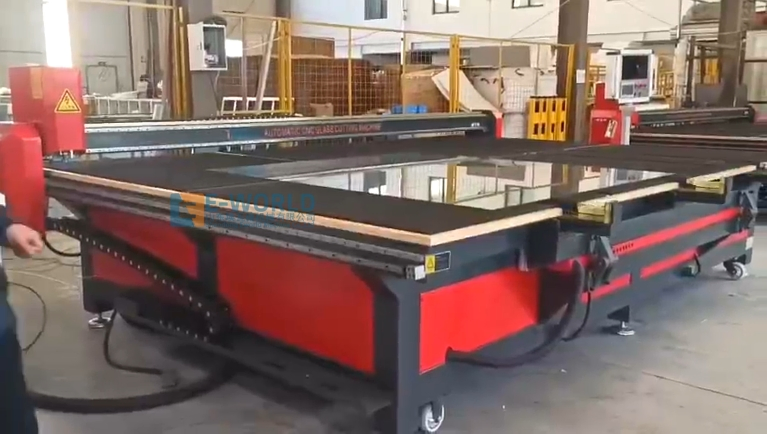

Stretchable arms transfer glass easily. A 4KW blower provides air flotation to move heavy sheets effortlessly across the table.
Photoelectric equipment allows the cutting head to find the glass position automatically, eliminating manual adjustment.

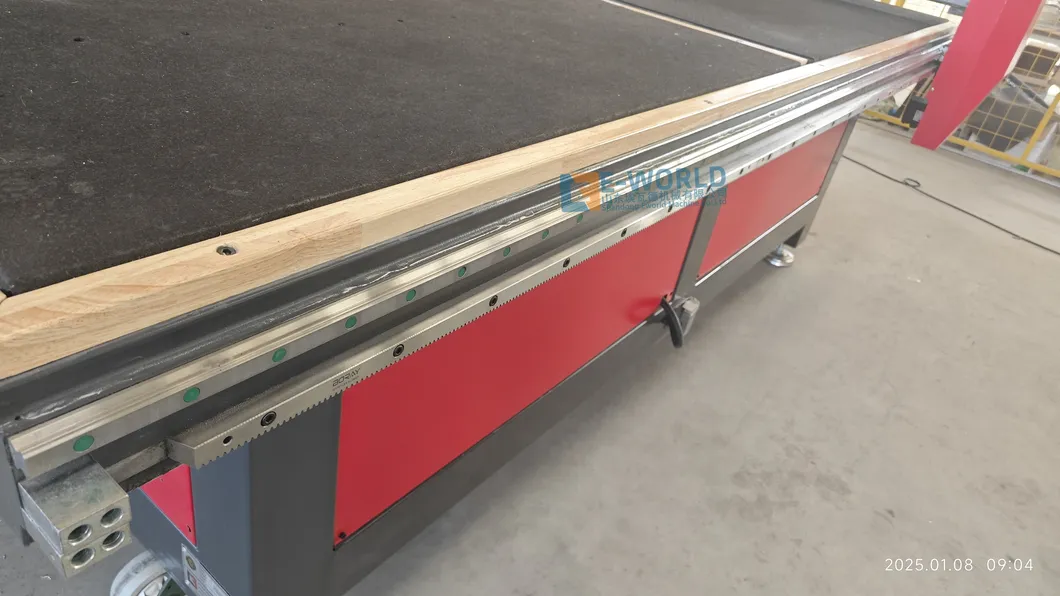

Square guide rails ensure precision. Features emergency stop and power-off self-locking functions to prevent glass breakage during faults.
