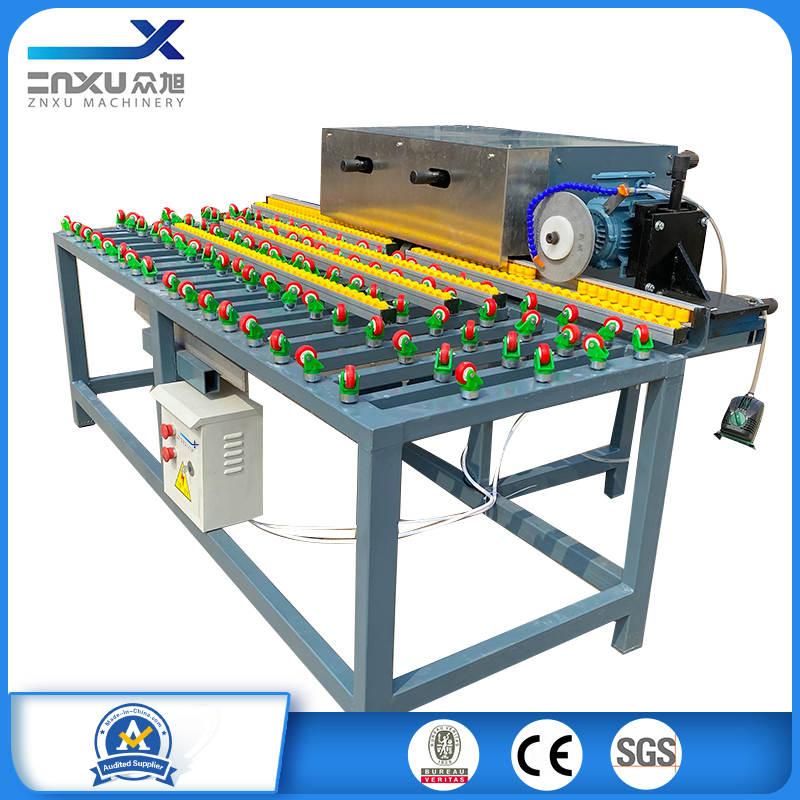

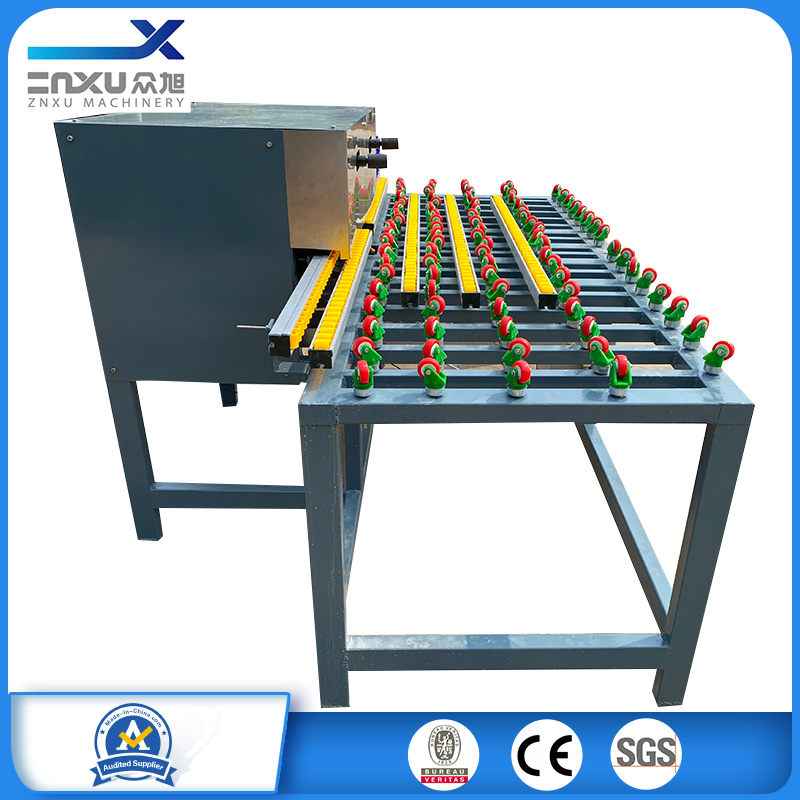

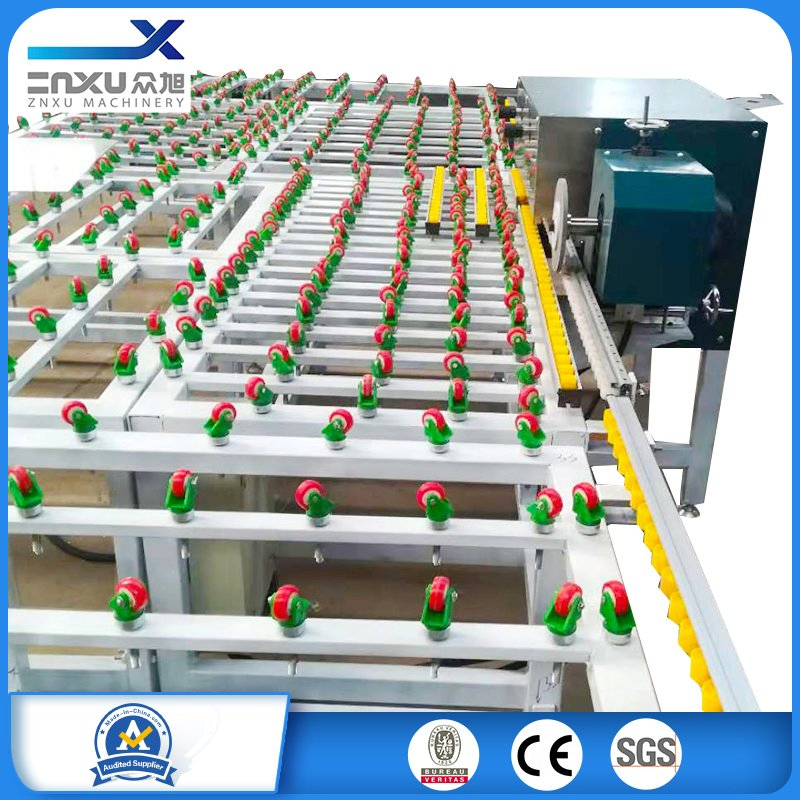

Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
1 / 5
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275

Chinese Manufacturer Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275

Customization: Available
Certification: CE
Product: Glass Tempering Machine Four Sides Edging Machine
Send Inquiry

Product Description

Basic Specifications

Model NO.ZXM-C0275
TypeGlass Edging Machine
Glass Thickness3-19mm
Mini Size100*100mm
Max Size2500*2500mm
FunctionsGrinder, Chamfer, Film-Removal
Wheels Number1 or 2
Control SystemElectric
StructureHorizontal
ConditionNew
Capacity30 sets / Month
OriginChina

Technical Description

Glass Edge Grinding Machine
Model NoZXM-C0275
Wheels No2 PCS
Power1.75kw
Voltage380V/50HZ, 3 Phase (220V/60HZ, 440V/50HZ as per request)
Processing Thickness3-19mm
Min Glass Size200x200mm
Max Glass Size1200x1500mm
Rotation Rate2800r/min
Wheel SizeD=150mm, d=22mm

Product Showcase

Processing Detail 1
Processing Detail 2
Processing Detail 3
Machine Structure
Machine Overview
Glass Processing
Final Product Result

Frequently Asked Questions

Q1: What is the maximum glass size this machine can process? A: The standard maximum processing glass size is 1200x1500mm, but it can handle up to 2500x2500mm with an additional table.
Q2: What range of glass thickness is compatible with the ZXM-C0275? A: This machine is designed to process glass with a thickness ranging from 3mm to 19mm.
Q3: Does the machine support customized power requirements? A: Yes, while the standard is 380V/50HZ, we can provide 220V/60HZ or 440V/50HZ options upon request.
Q4: What are the primary functions of this glass edging machine? A: The ZXM-C0275 performs grinding, chamfering, and film-removal (as an optional feature).
Q5: How many grinding wheels are included in the system? A: The machine features 2 wheels: one Copper Diamond Wheel and one Polish Wheel for a smooth finish.
Q6: What type of control system does the machine use? A: The machine utilizes an electric control system and is operated by hand for precise processing.
