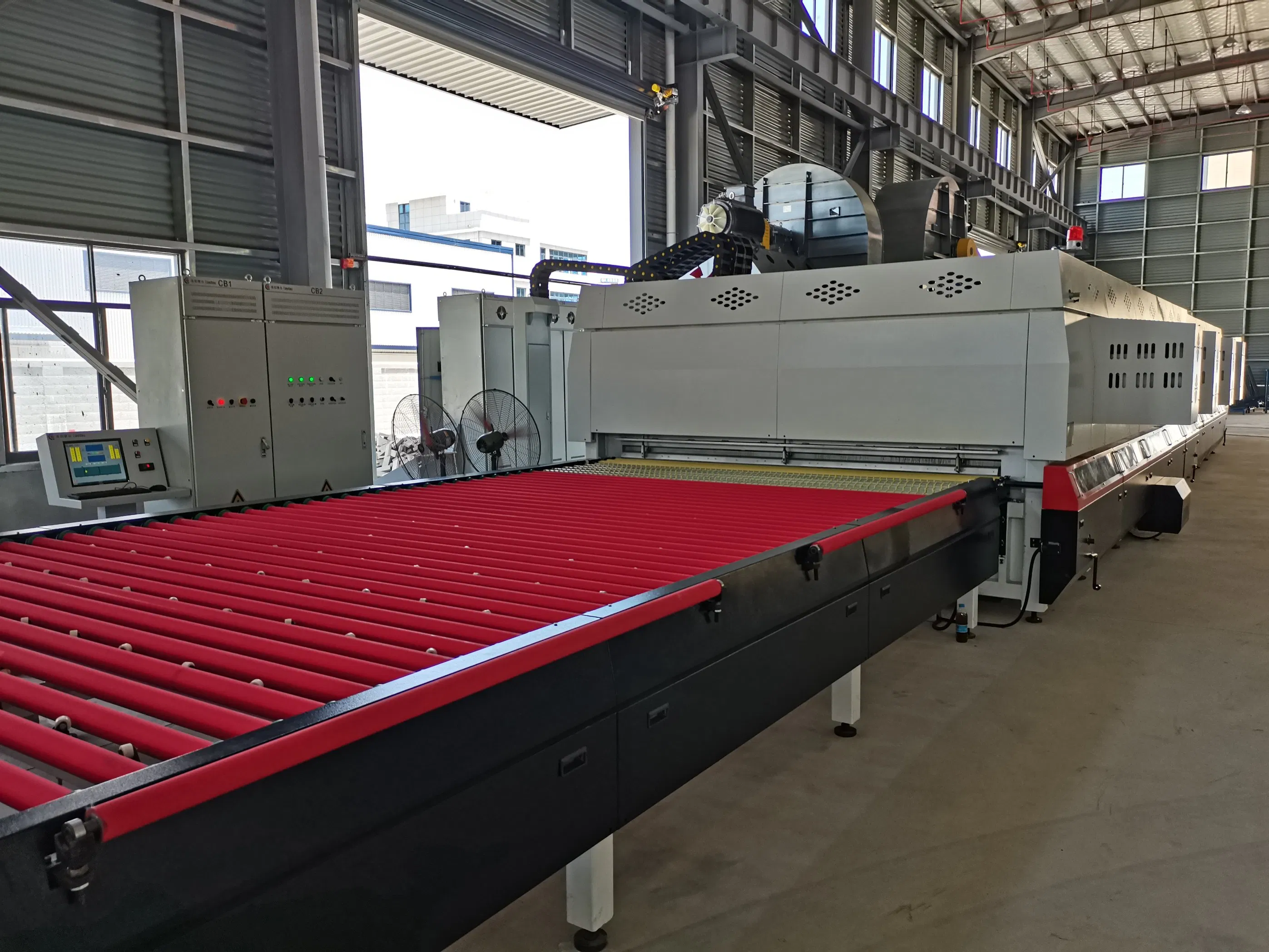

China Best Brand Flat Glass Tempering Furnace with Forced Convection System

Customization: Available
Certification: CE, ISO
Control System: PLC

Product Description

📋

Basic Specifications

Model NO.
FA2860
Type
Glass Tempering Furnace
Structure
Horizontal
Warranty
1 Year
Features
Energy Saving
Voltage
Customizable
Tempering Thickness
Customizable
Productivity
Customizable
Condition
New
HS Code
8475291900
💎

Product Overview

Flat Glass Tempering Furnace

⚙️ Technical Specifications:

  • Dimensions: L 27500mm × W 3700mm × H 2300mm (Excluding air path and blower room)
  • Glass Thickness Range: Tempering 5 - 19 mm
  • Max Flat Glass Size: 2,800 mm x 6,000 mm (for 6-19mm)
  • For 5mm Glass: Max size 2,440mm x 3,660mm
  • Min Glass Size: 100 x 300 mm
  • Finished Product Rate: Over 5mm not less than 98%

📊 Productivity / Process Cycle Time:

Thickness (mm) Common Flat Glass (load/h) Notes
516-18/
614-15
810-11
108-9
127-8
153-4
192-3

✔️ Suitable Glass Sorts:

  • Clear float glass
  • Coated glasses
  • Patterned glass
  • Tinted glass
  • Low-e glass (e value 0.15-0.02)
🖼️

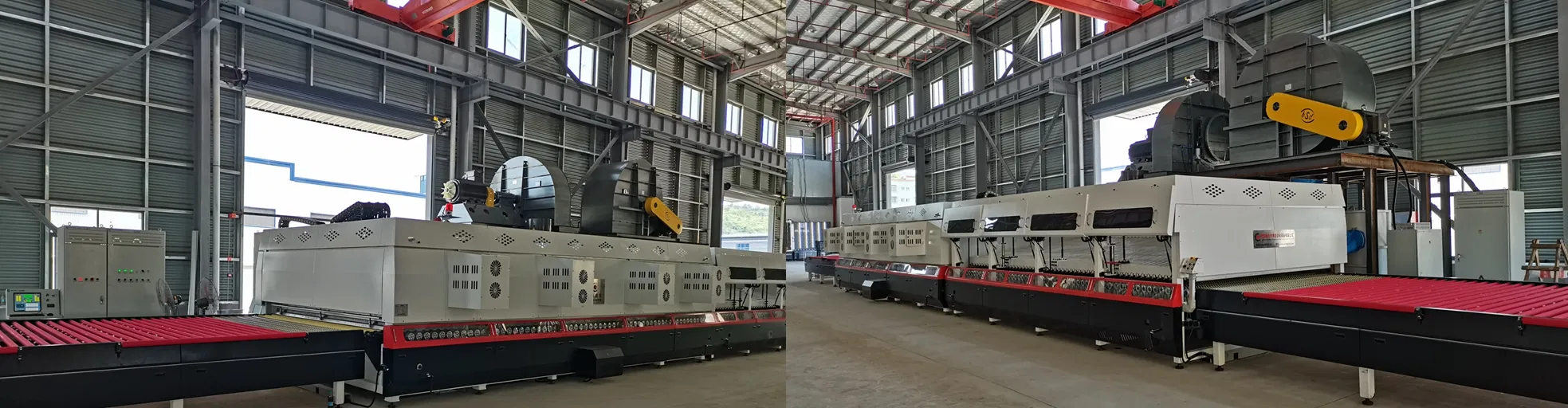

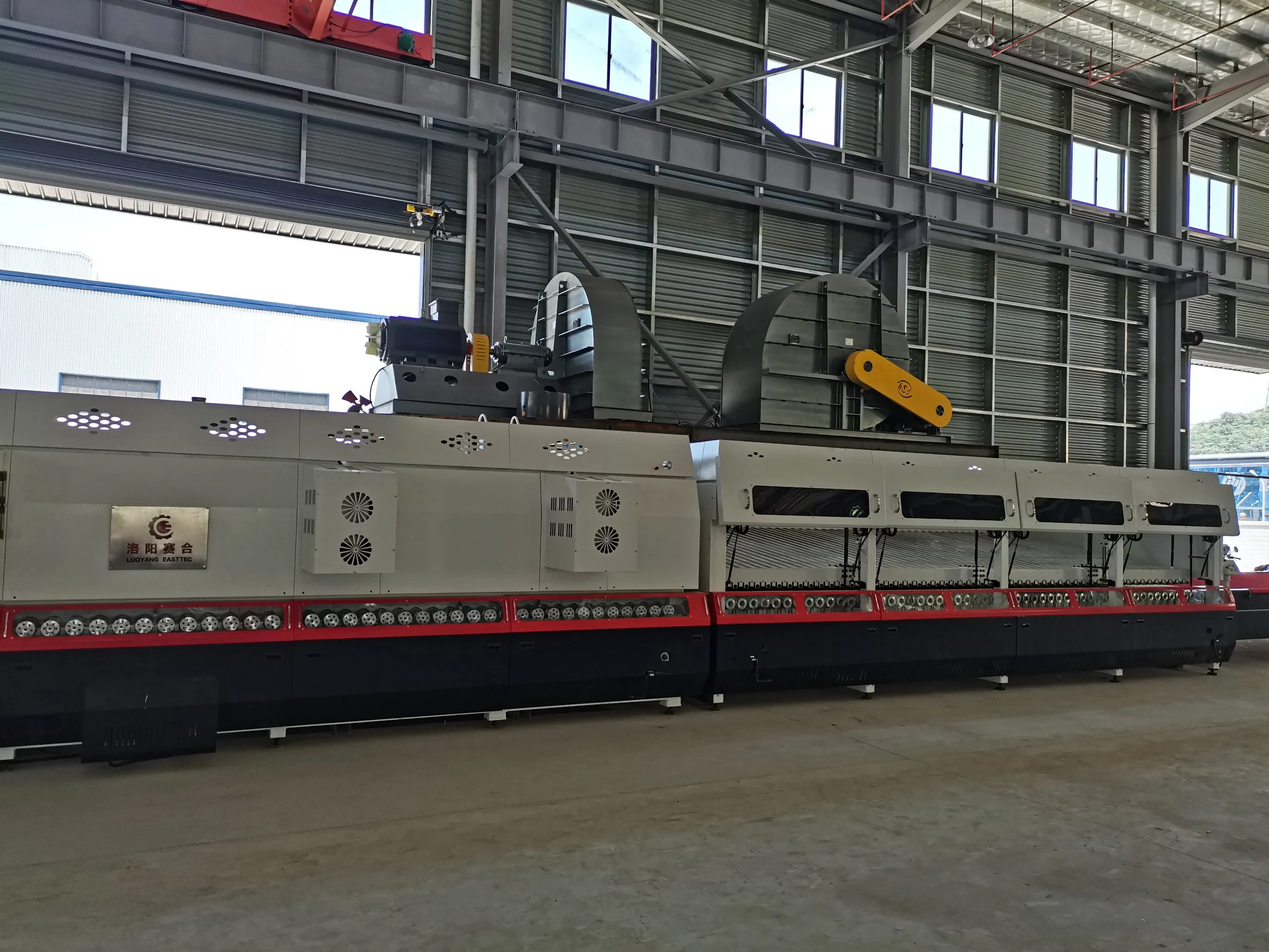

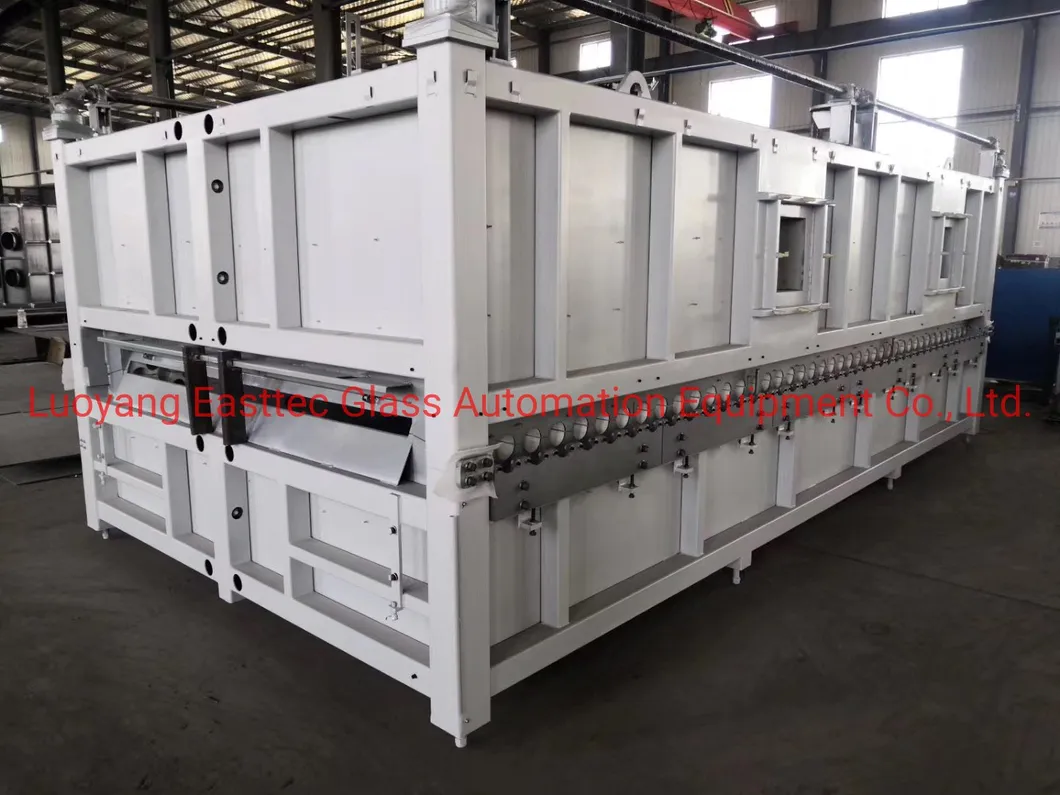

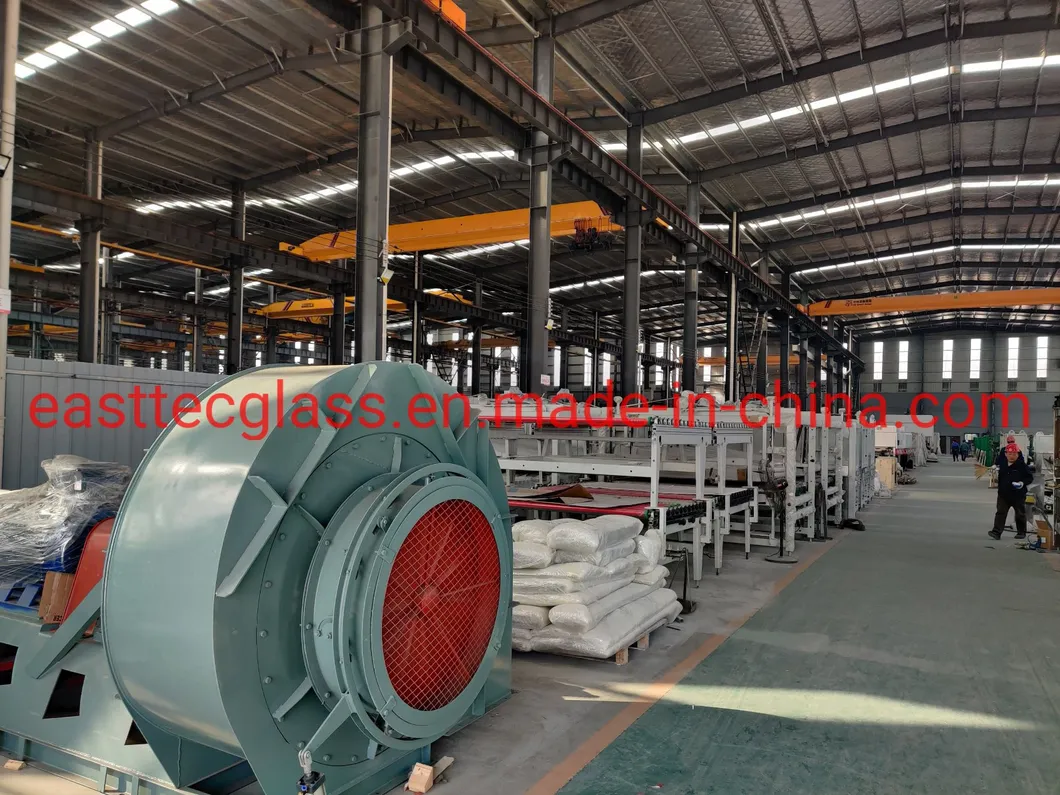

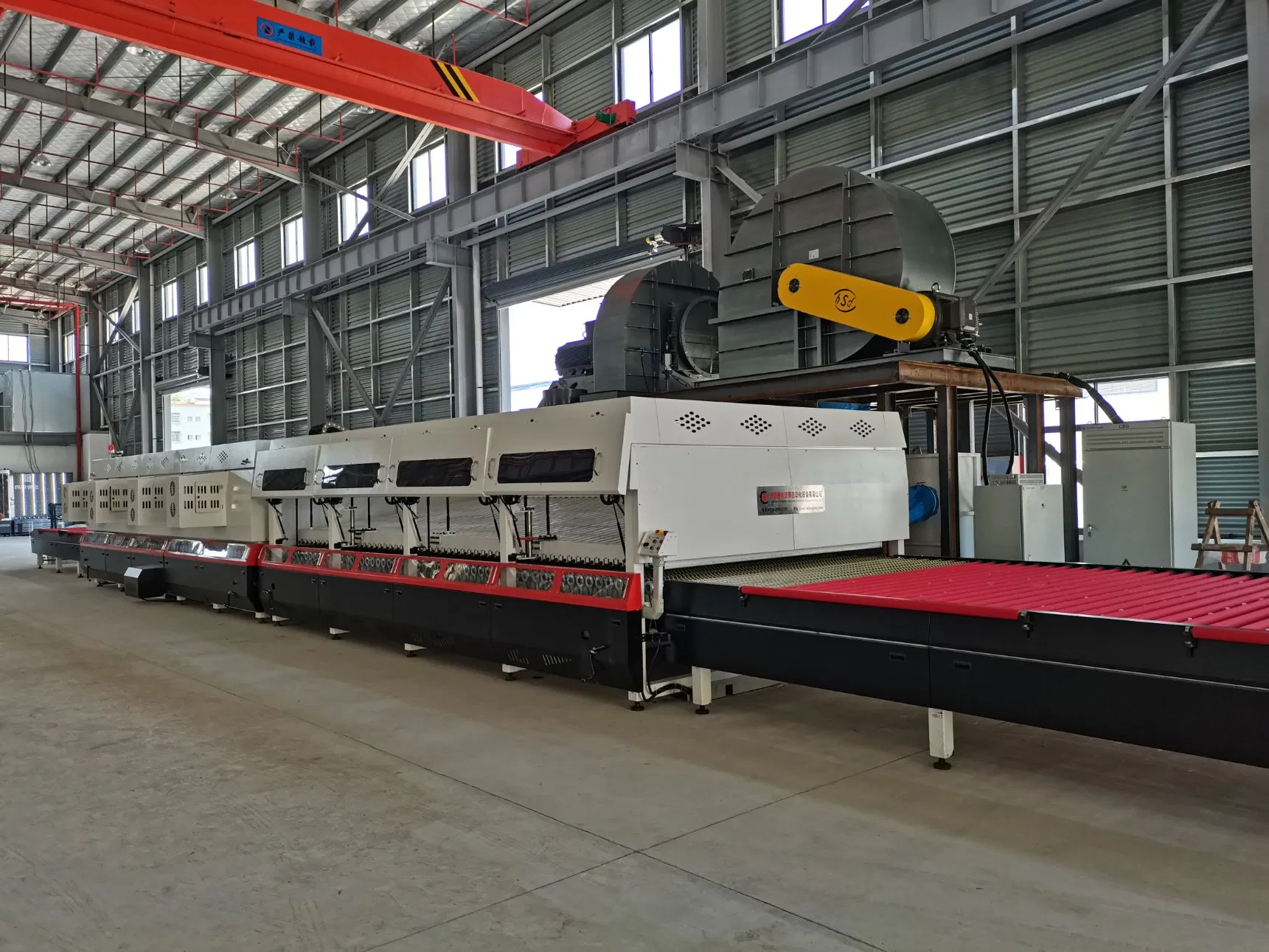

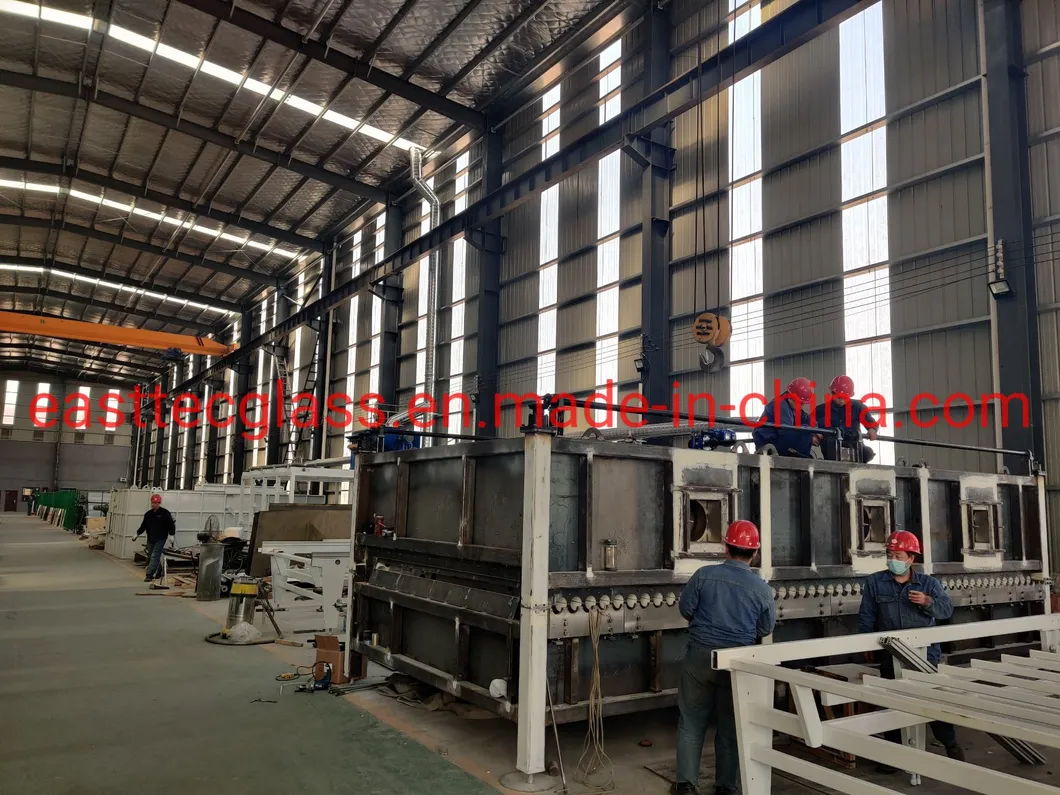

Equipment Display

🏢

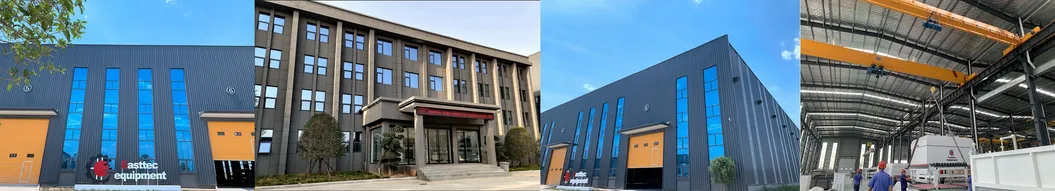

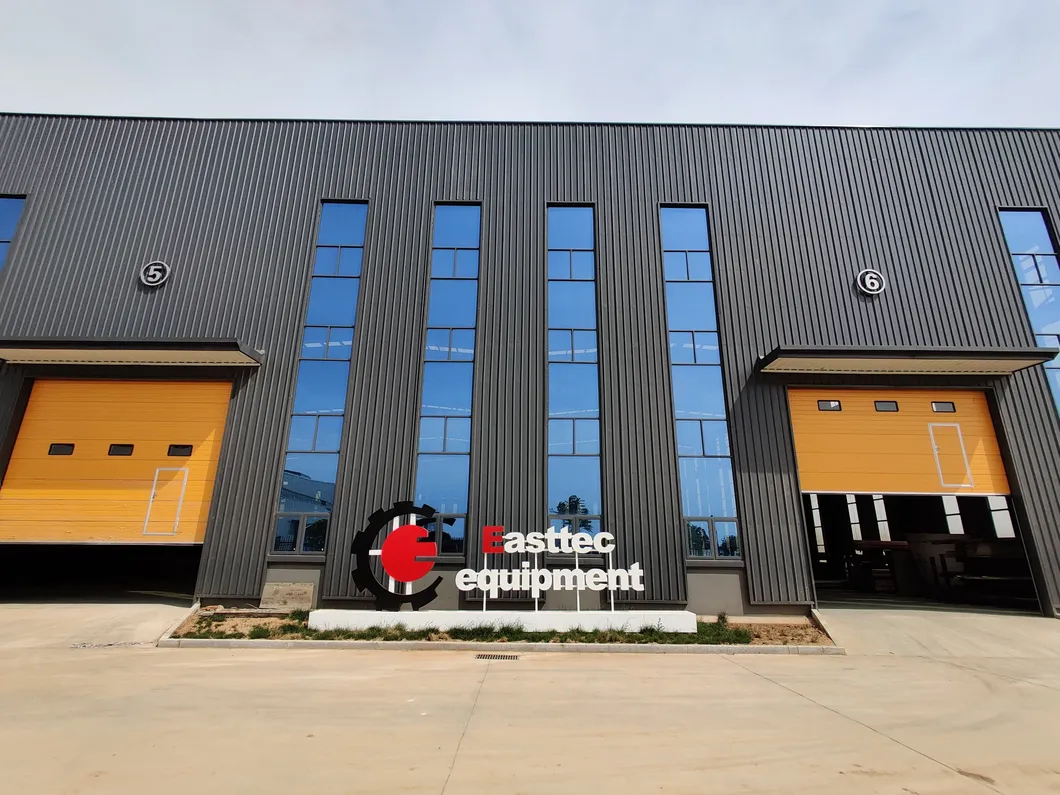

Technical Expertise

A high-tech enterprise specializing in the design, manufacture, and sales of glass thermal processing equipment. With professional technicians engaged in glass deep-processing equipment for more than twenty years, the company combines rich experience with ongoing innovation and exquisite design to produce glass processing equipment featuring excellent quality, reliable performance, and reasonable pricing.

Frequently Asked Questions

What is the maximum glass size this furnace can handle?
The furnace can process flat glass up to a maximum size of 2,800 mm x 6,000 mm for thicknesses between 6-19mm. For 5mm glass, the maximum size is 2,440mm x 3,660mm.
What types of glass are suitable for this tempering furnace?
This equipment is suitable for clear float glass, coated glasses, patterned glass, tinted glass, and Low-E glass with an e-value between 0.15 and 0.02.
What is the thickness range for glass tempering?
The furnace is designed to temper glass with a thickness ranging from 5mm to 19mm.
Is the voltage and exterior color customizable?
Yes, both the operating voltage and the exterior color of the machine can be customized according to the customer's specific requirements.
What is the productivity rate for 6mm glass?
For common 6mm flat glass, the productivity rate is approximately 14 to 15 loads per hour.
What is the finished product yield rate?
The finished product rate for glass over 5mm thickness is guaranteed to be not less than 98%.
