| Model NO. | VGM2500 | Power | 31kw |
| Washing Brush | Three Pairs | Parts Material | Stainless Steel or Copper |
| Max. Glass Size | 2500*4000mm | Min. Glass Size | 200*400mm |
| Transmission Speed | 2~50m/Min | Air Pressure | 0.6~0.8MPa |

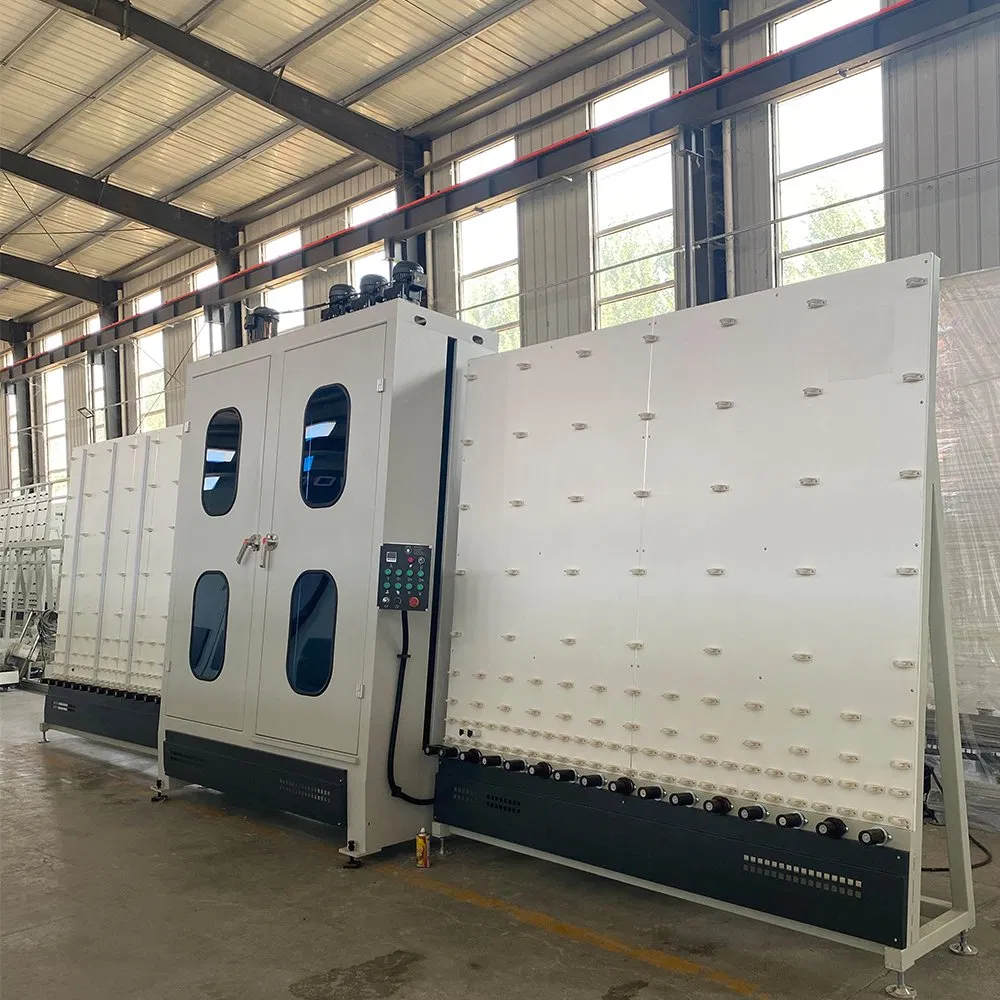

| Type | Glass Washing and Drying Machine | Structure | Vertical |
| Control System | PLC | Warranty | 1 Year |
| Condition | New | Origin | China |
Carbon fiber conductive brushes are used for coating detection, capable of automatically detecting Low-e glass.

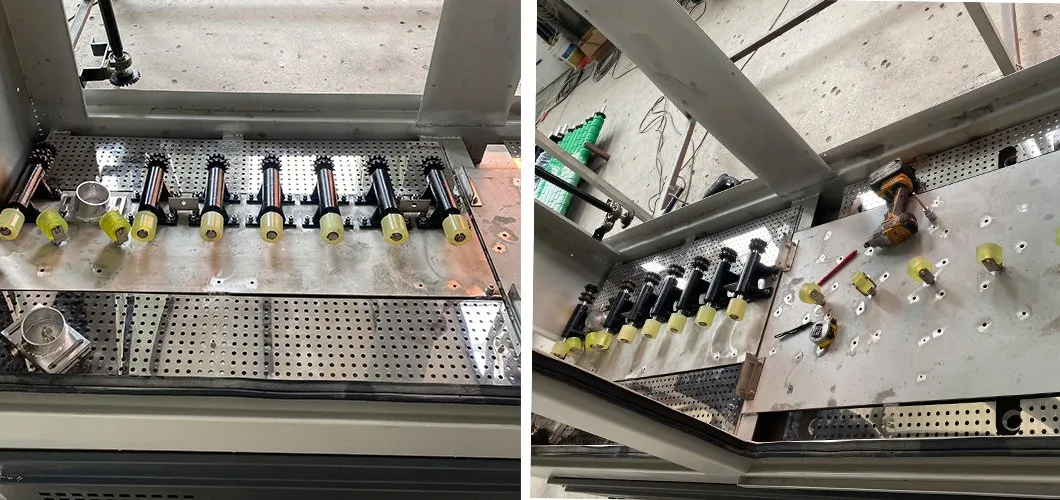

The overall material is 304 stainless steel, including all bearing bases and seats.

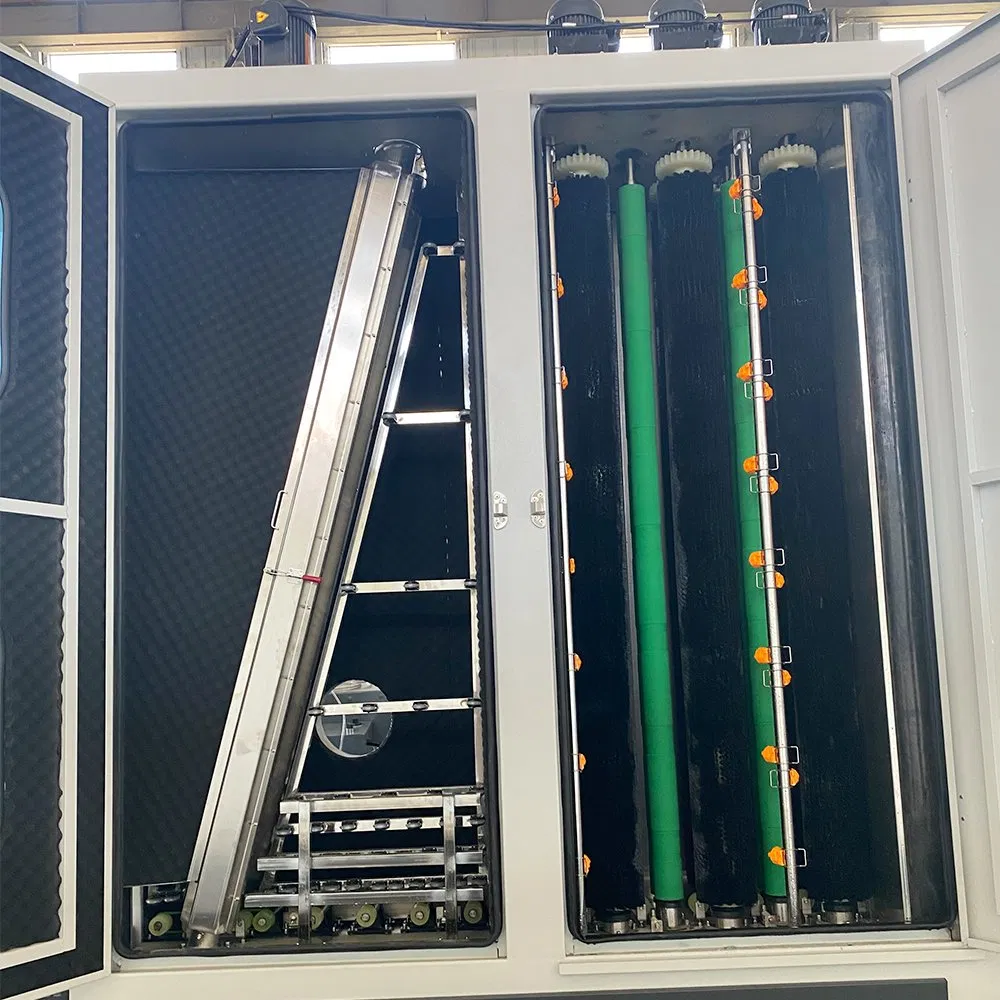

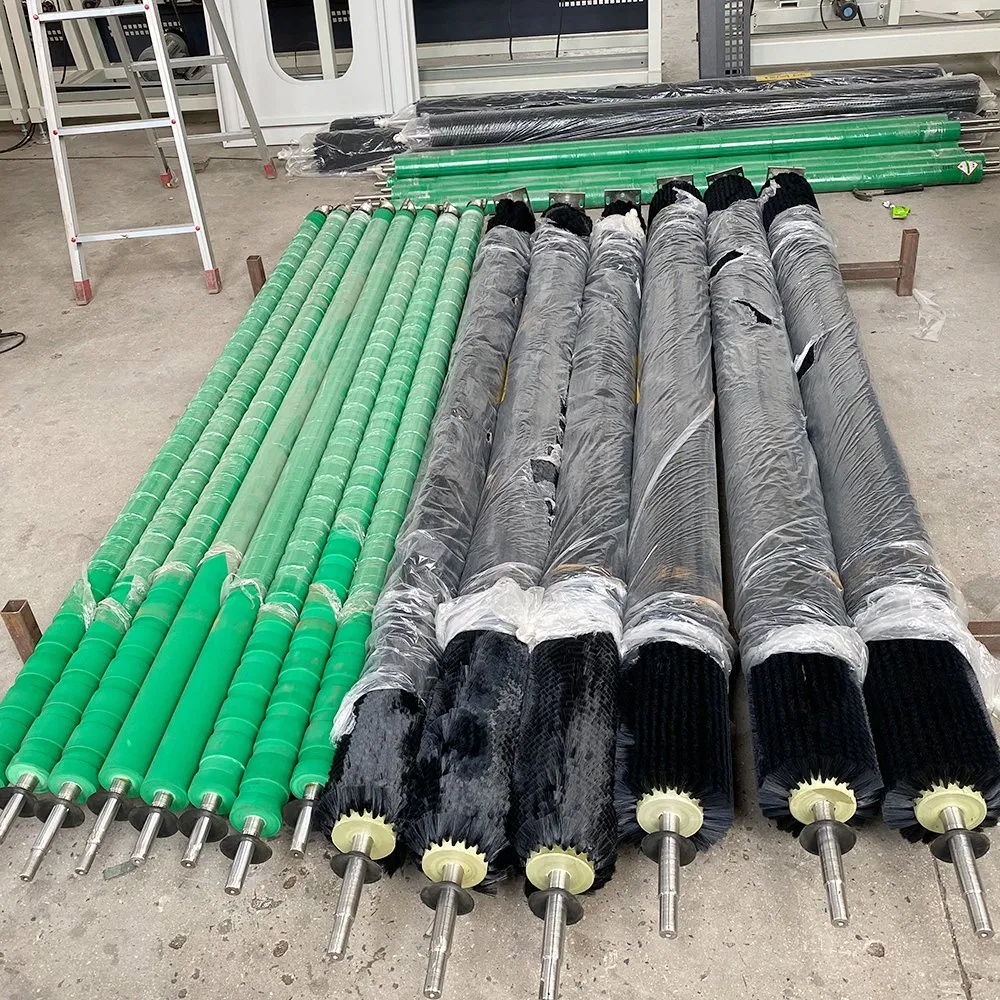

A. Total 3 pairs of brushes. Soft brushes (0.1mm) and back brushes (0.2mm) ensure easy washing of Low-e glass.
B. 3 sets of motors drive 3 pairs of brushes via coupling connection, ensuring stability and reducing wear compared to belts.
C. Motors are controlled separately by 3 independent circuits for reliability.

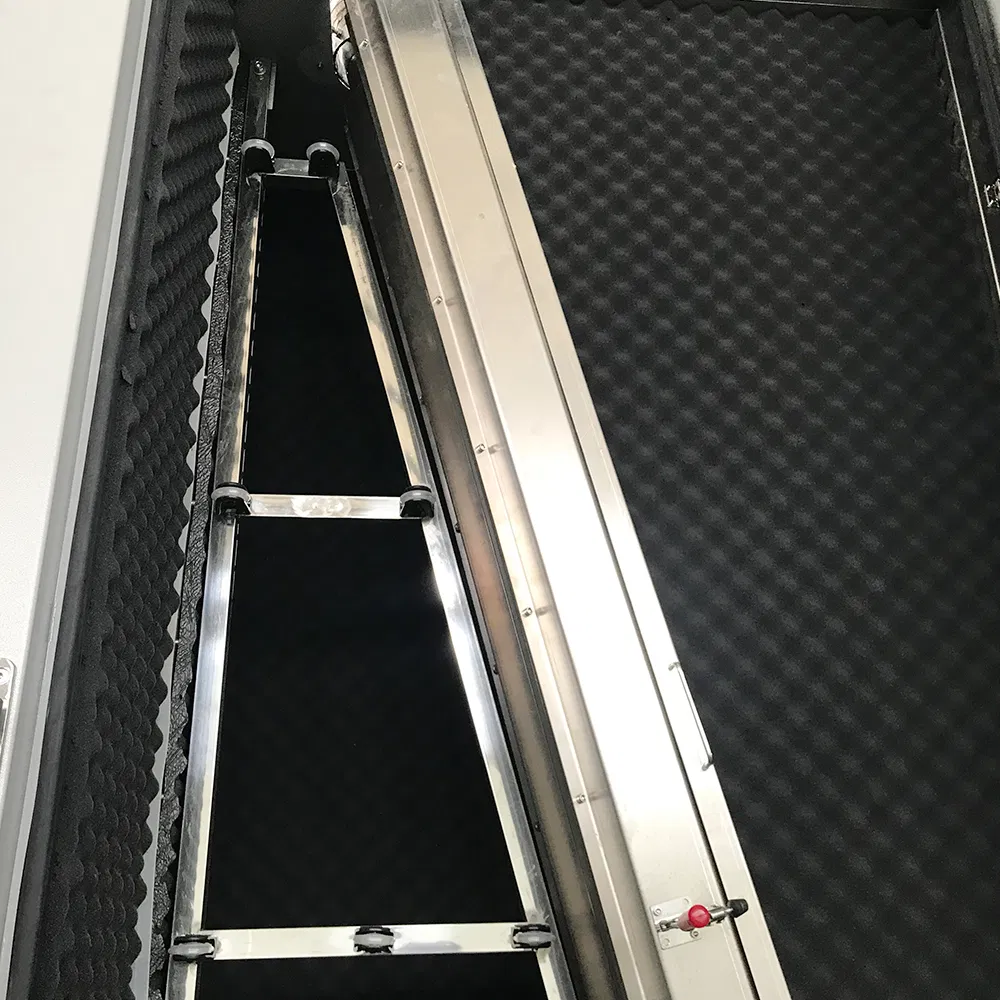

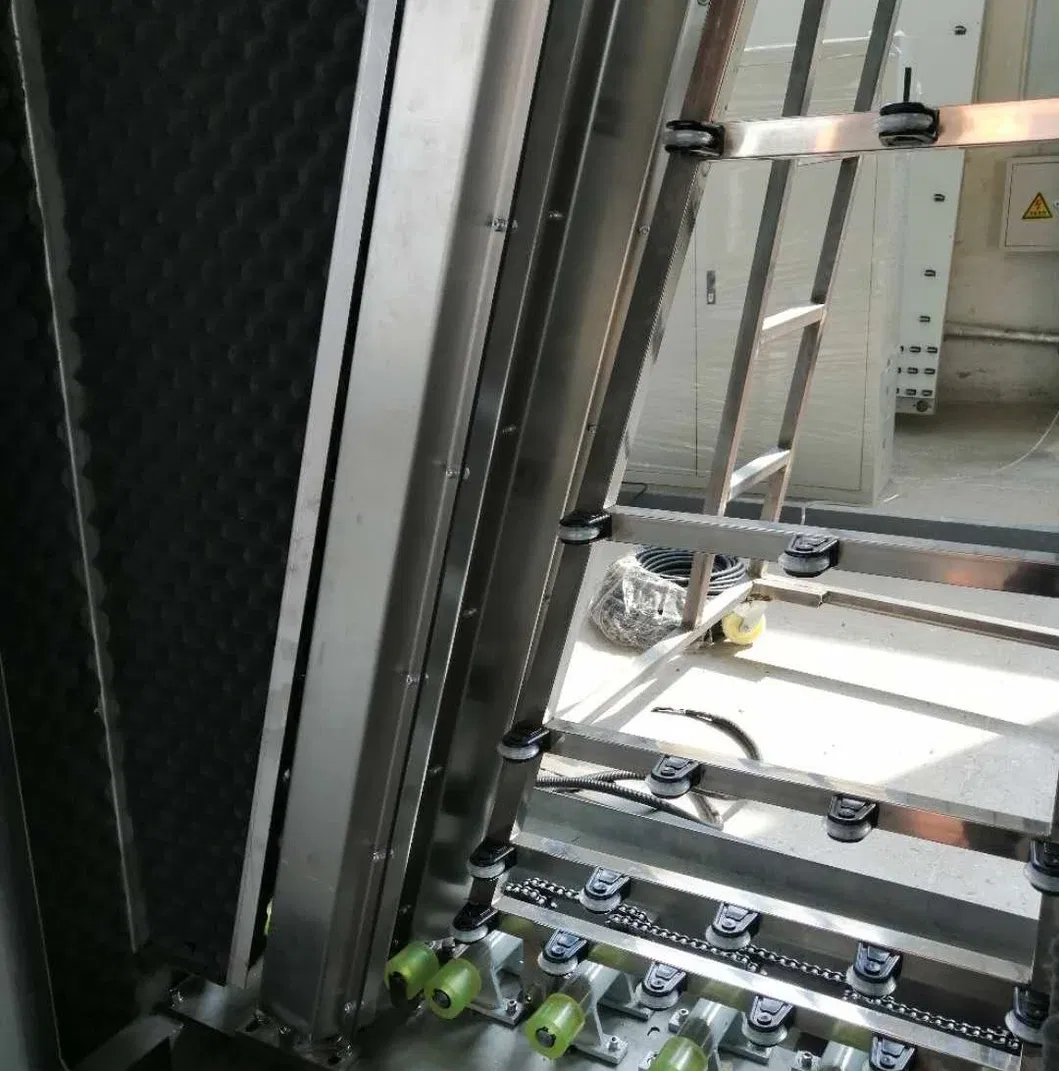

Air Knife: Hexagonal design provides strong wind for fast and superior glass drying.

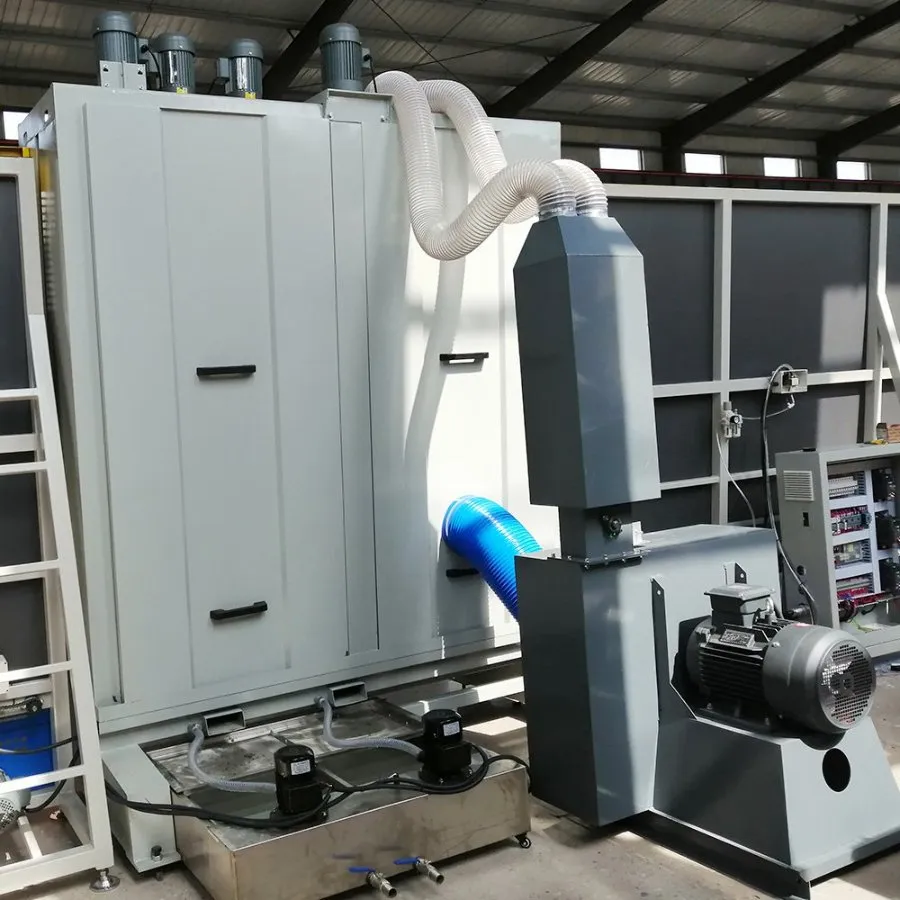

Water Tank: Made of 304 stainless steel with heating function for effective cleaning in cold weather.
| Model | VGM2500 |
| Input power | 31KW |
| Max. glass size | 2500*3500mm |
| Min. glass size | 200*400mm |
| Glass thickness | 3-16mm |
| Washing speed | 2-12m/min |
| Transmission speed | 2-50m/min |
| Air pressure | 0.6-0.8 Mpa |
| Overall dimension | 9300*2300*3400mm |
