Product Description

⚙️ Basic Info.

Model NO.

WLBZ2030

Power

37kw

Type

Insulating Glass Production Line

Structure

Vertical

Washing Type

Ultrasonic Glass Washing Machine

Edging Type

Double Edging Machine

Grinding Heads

Condition

New

Warranty

1 Year

Capacity

20sets/Month

HS Code

84752990

Dimensions

28600*2500*2900mm

📄 Product Description

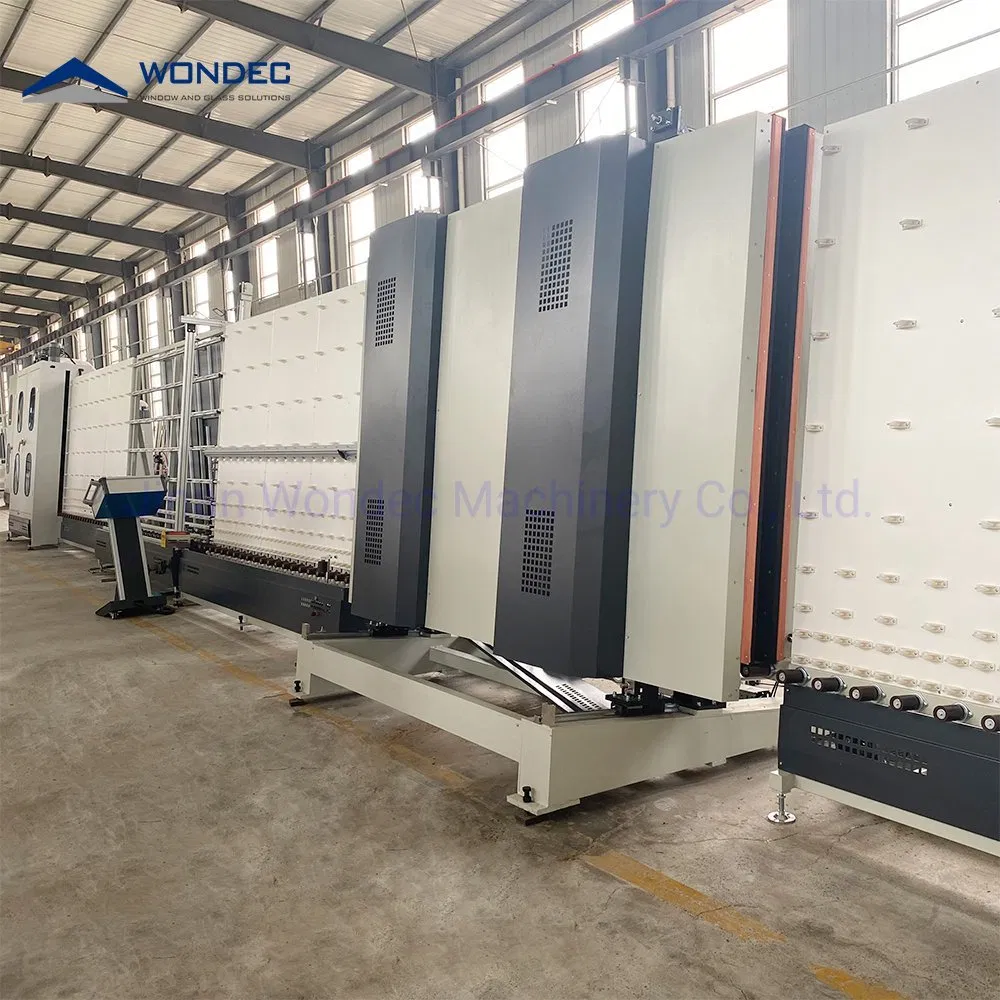

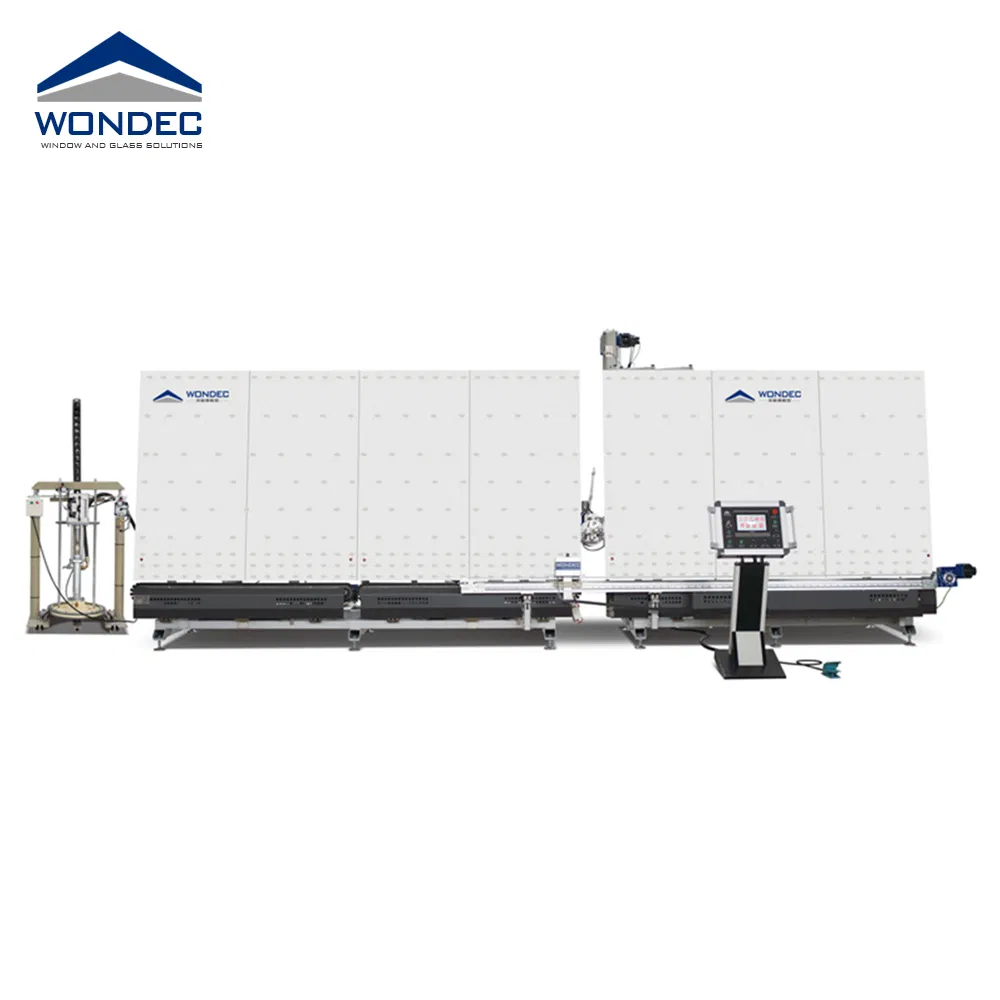

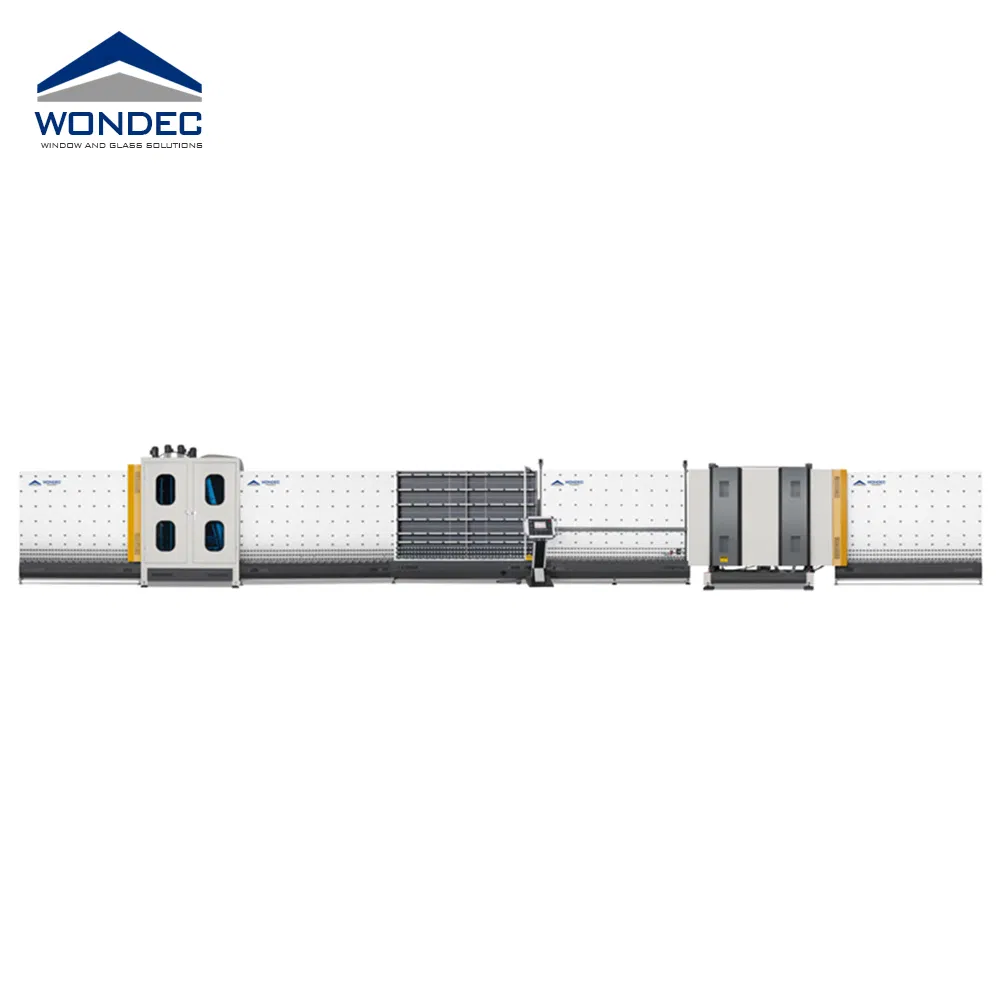

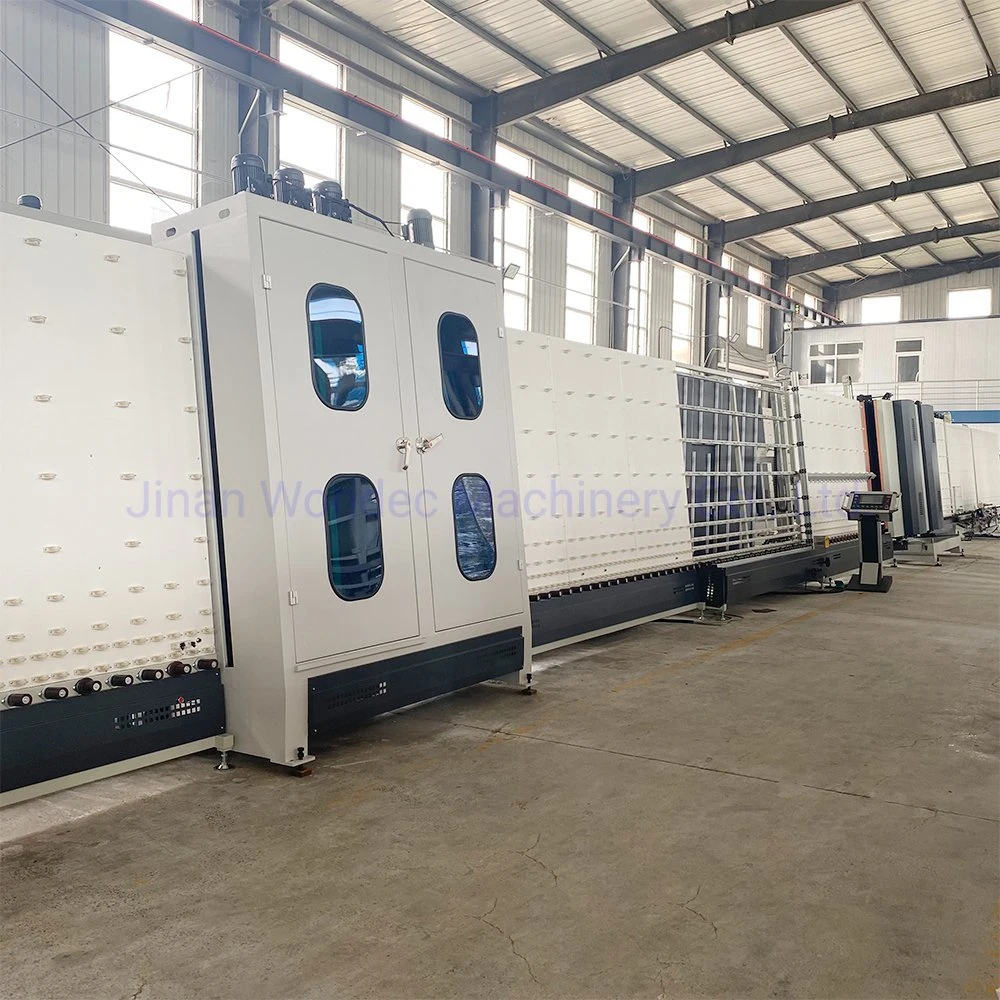

Automatic Vertical Insulating Glass Production Line Machine With Sealing Robot

This line is designed for high-efficiency mass production, capable of producing both ordinary insulating glass and Low-E insulating glass. It features a high degree of automation, ease of operation, and simplified maintenance.

The system is highly flexible and can be upgraded or expanded according to specific user requirements.

📊 Technical Parameters

Production Line Specifications

Input power	29KW
Max. glass size	2000*3000mm
Min. glass size	500*300mm
Pane glass thickness	3-12mm
Max. Insulating glass thickness	12-80mm
Glass washing speed	3-12m/min
Working speed	2-48m/min
Air pressure	0.8m³/min
Overall dimension	2130025002900mm
Weight	About 8000kgs

Sealing Robot Specifications

Total power	10KW
Max. glass size	2000*3000mm
IG Unit thickness	12~60mm (80mm optional)
Coating depth	3~18mm
Coating speed	5~40m/min
Aluminum frame width	6~27mm
Air pressure	0.6~0.8Mpa
Overall dimension	730025002900mm

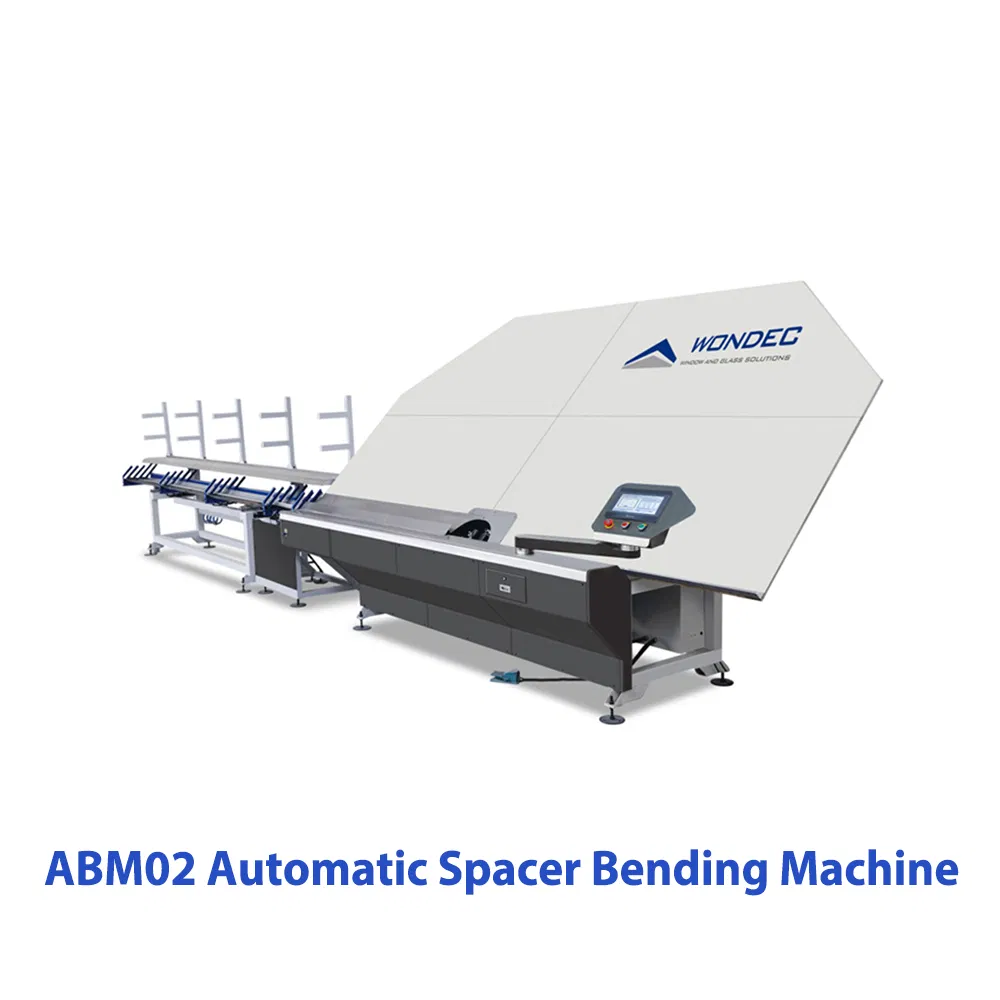

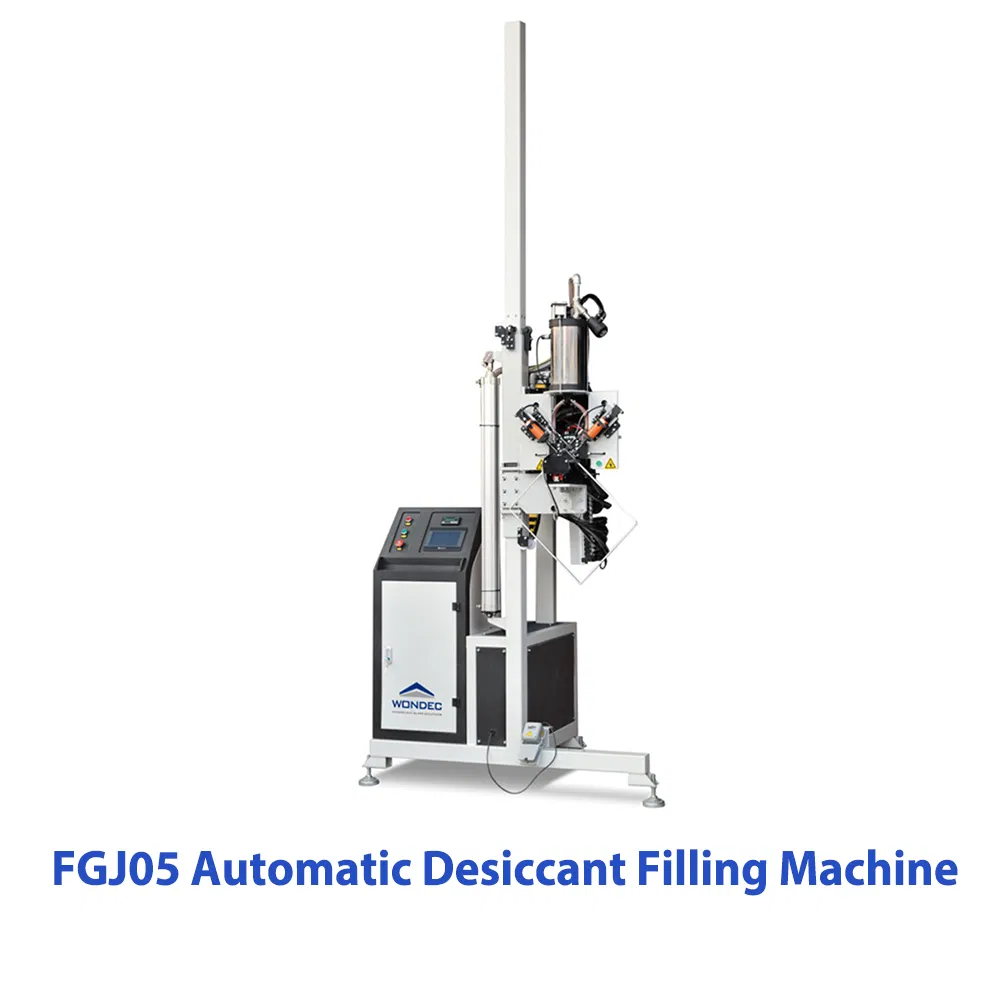

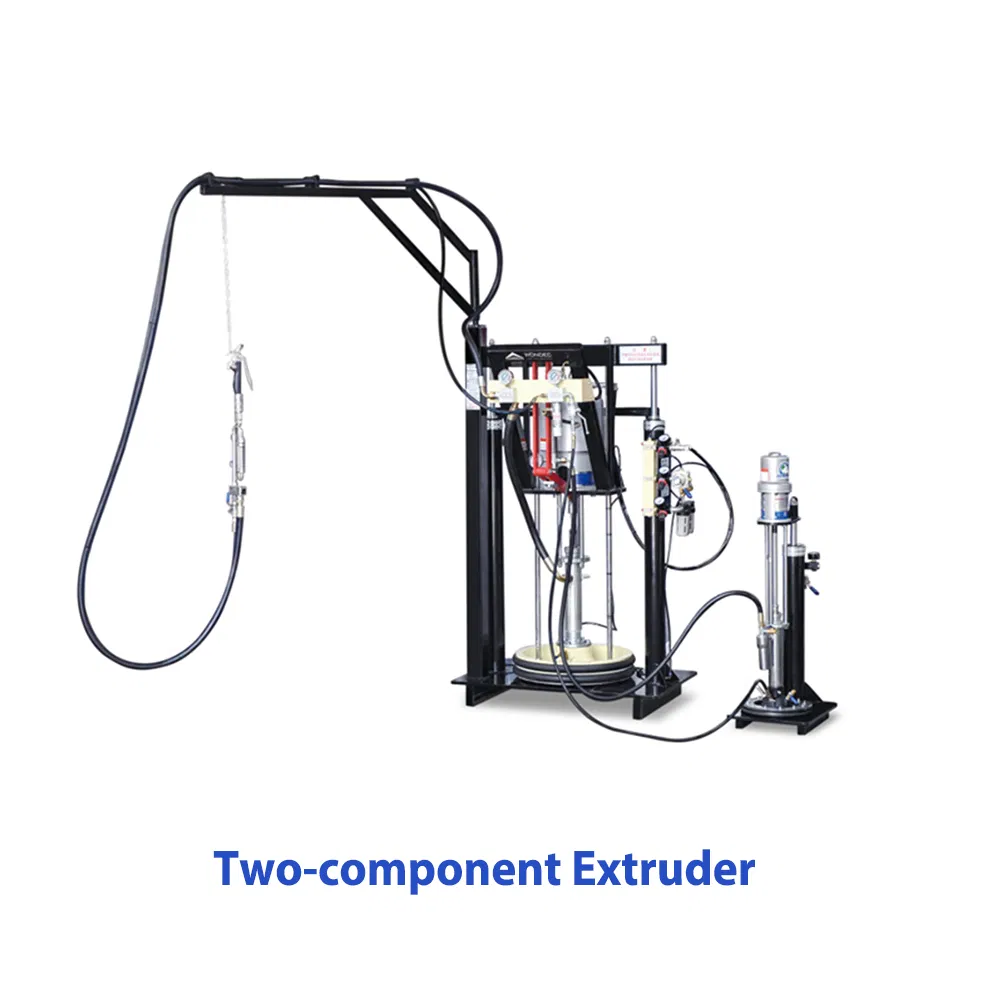

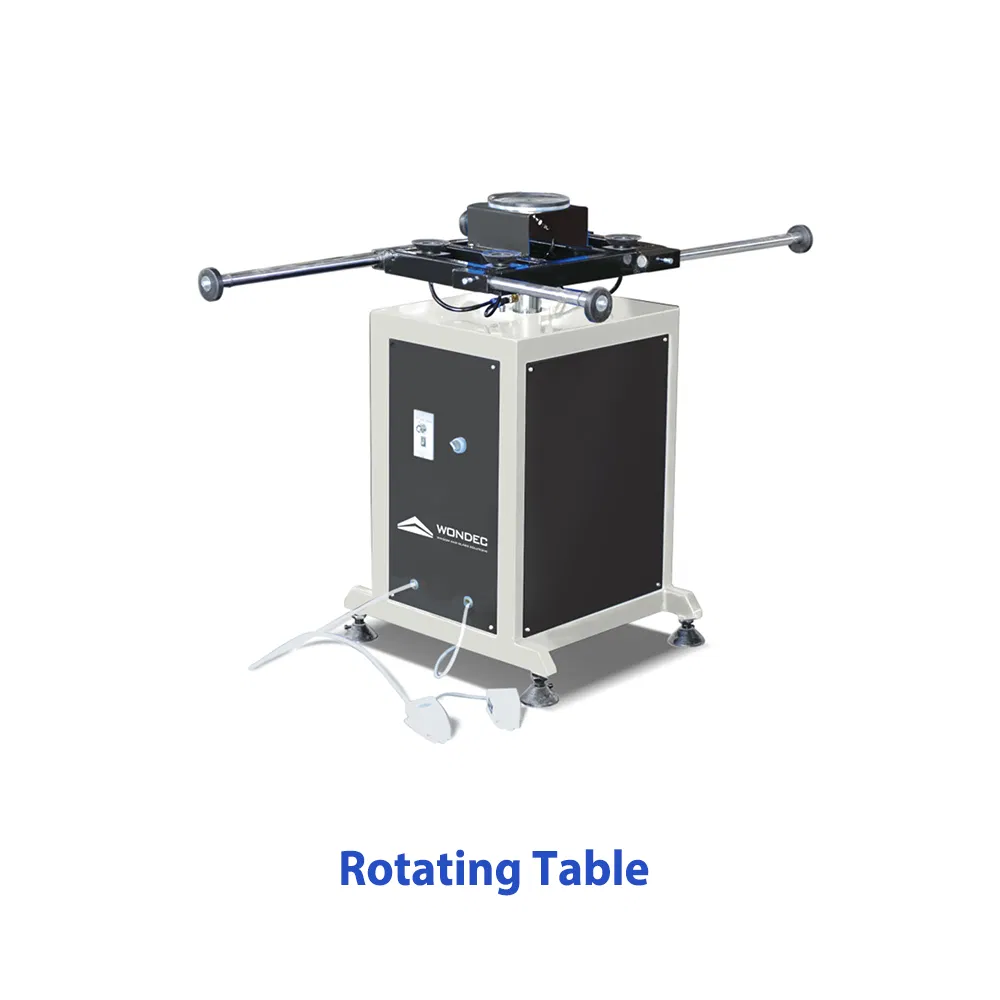

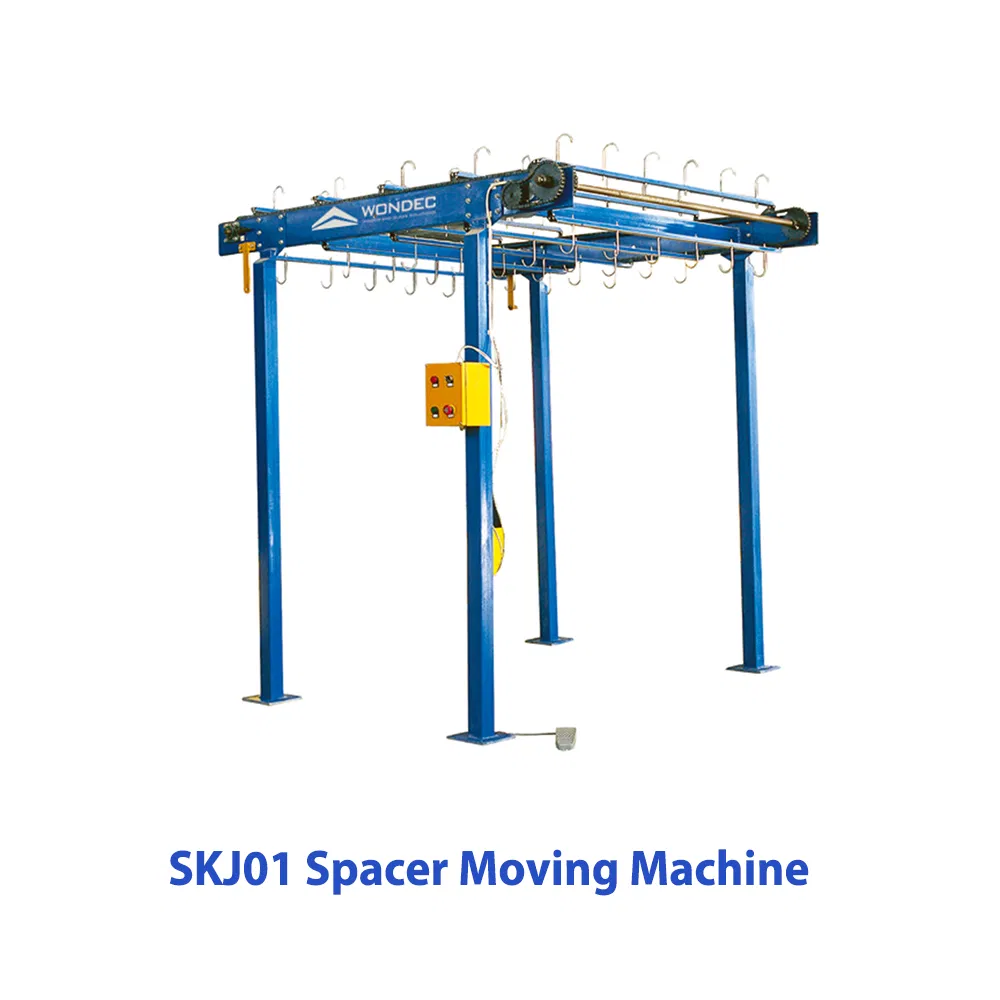

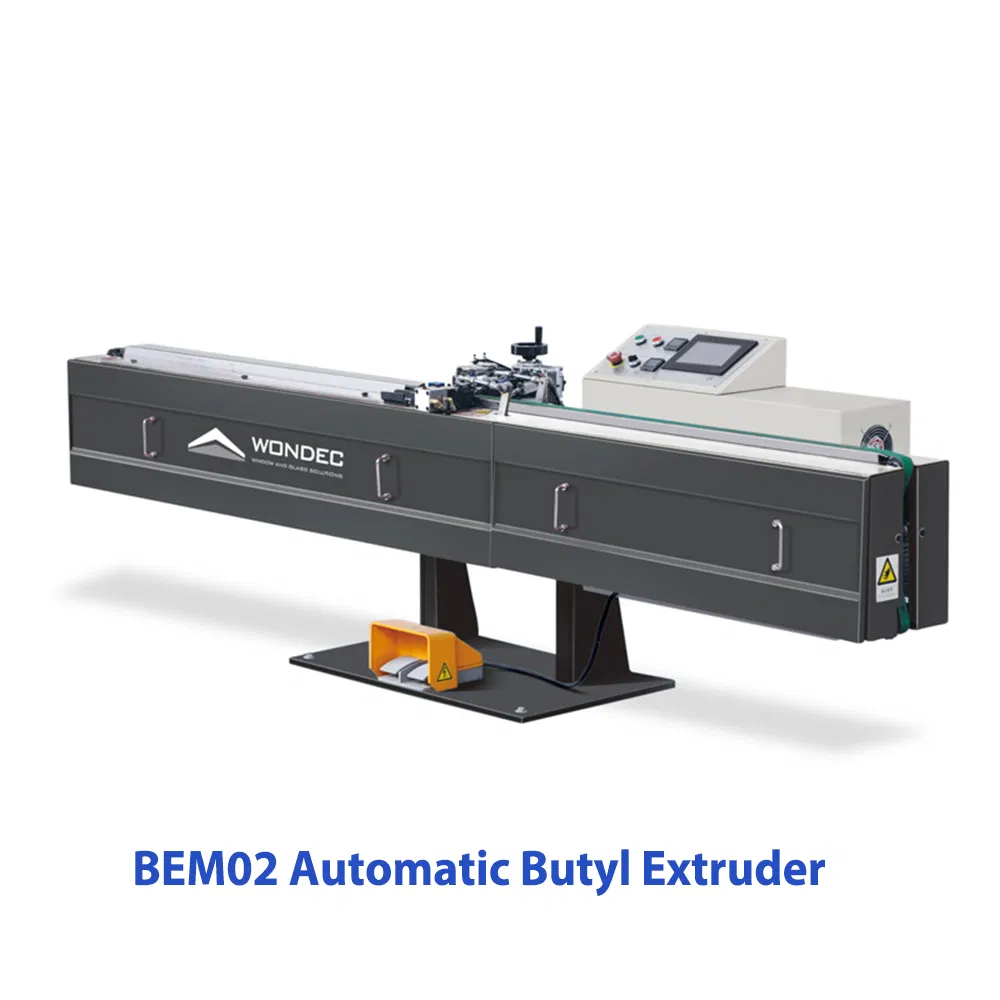

💡 Recommended Auxiliary Equipment

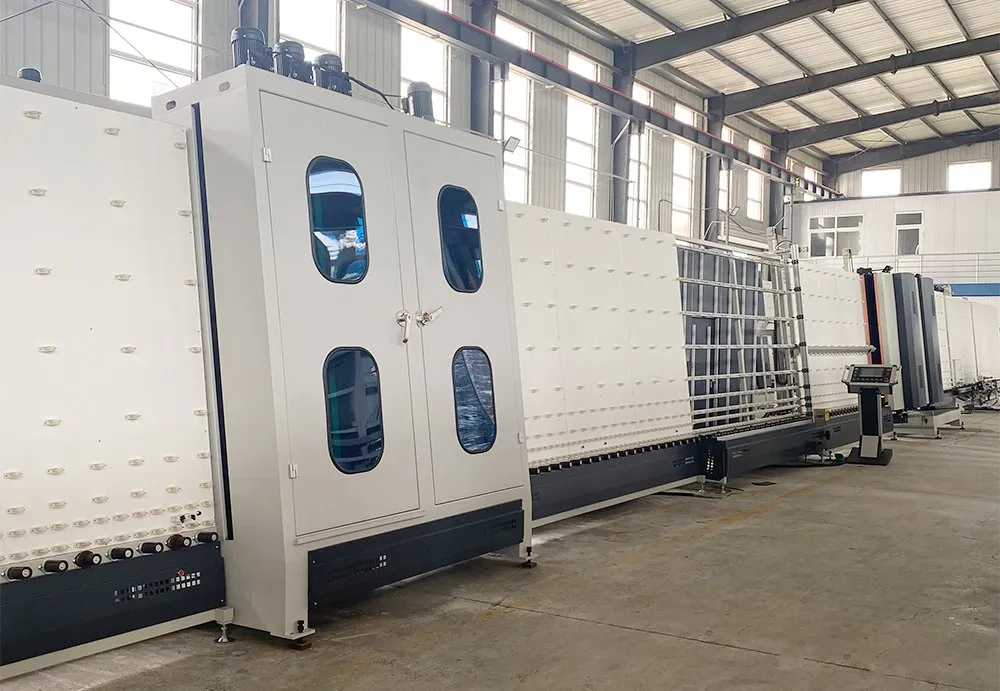

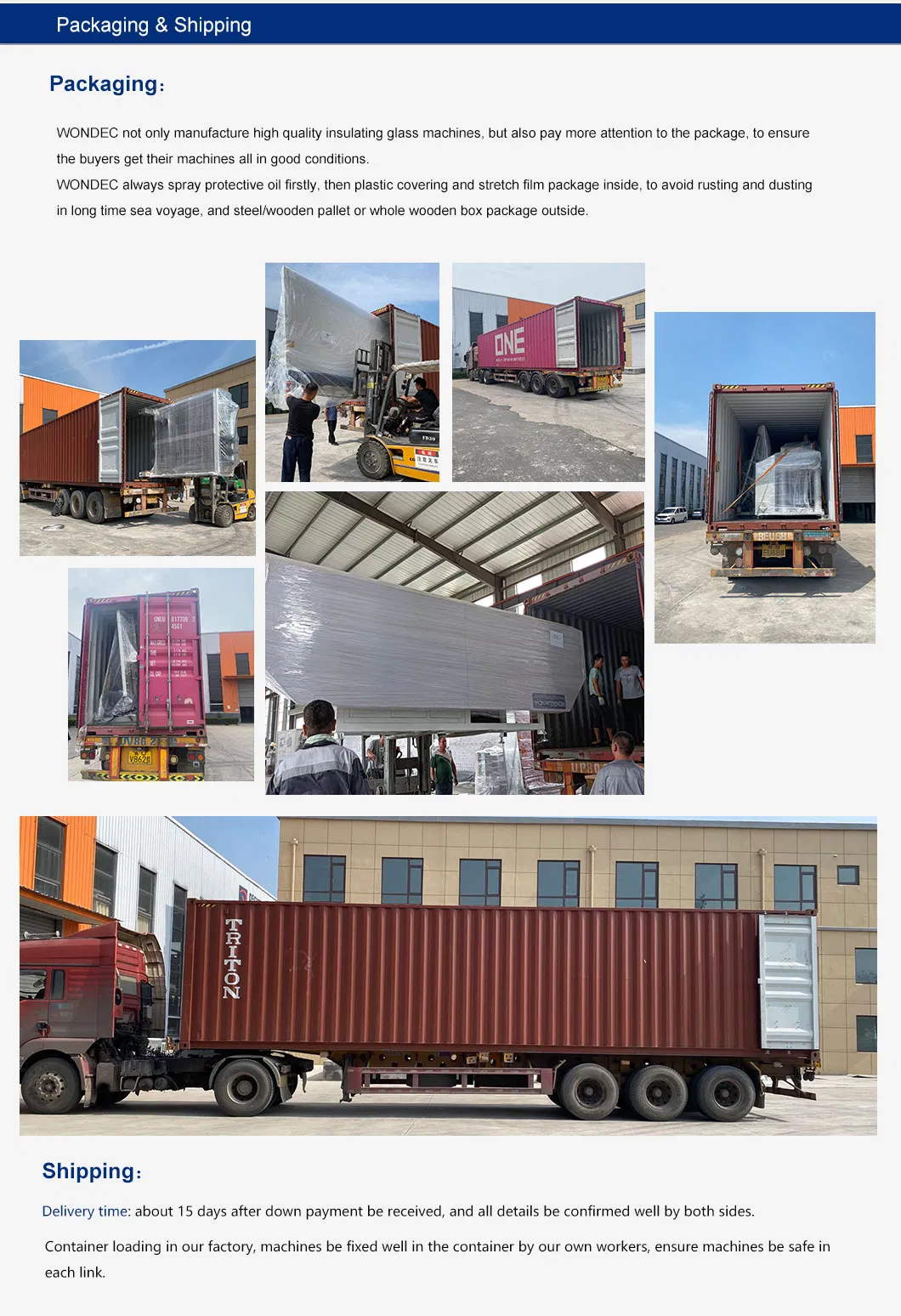

🏭 Production & Details

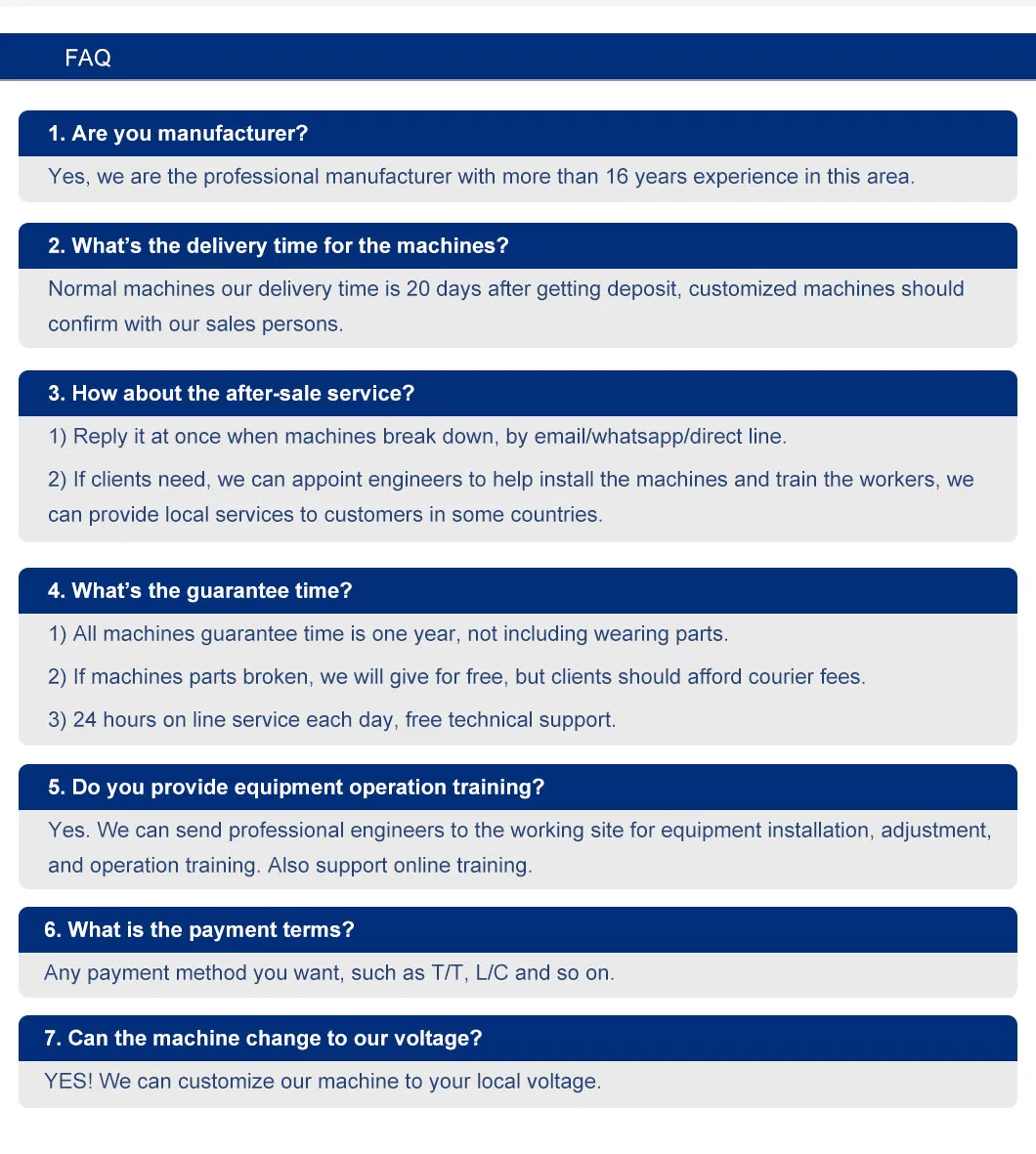

Frequently Asked Questions

What types of glass can this production line process?

The line is designed to process both ordinary insulating glass and high-performance Low-E insulating glass.

What is the maximum glass size supported?

The maximum glass size for this specific model (WLBZ2030) is 2000mm * 3000mm.

Can the machine be upgraded in the future?

Yes, the production line is designed with modularity in mind and can be upgraded or expanded based on your production requirements.

What is the washing speed of the system?

The glass washing speed ranges from 3 to 12 meters per minute, ensuring thorough cleaning before processing.

Does the system include automatic sealing?

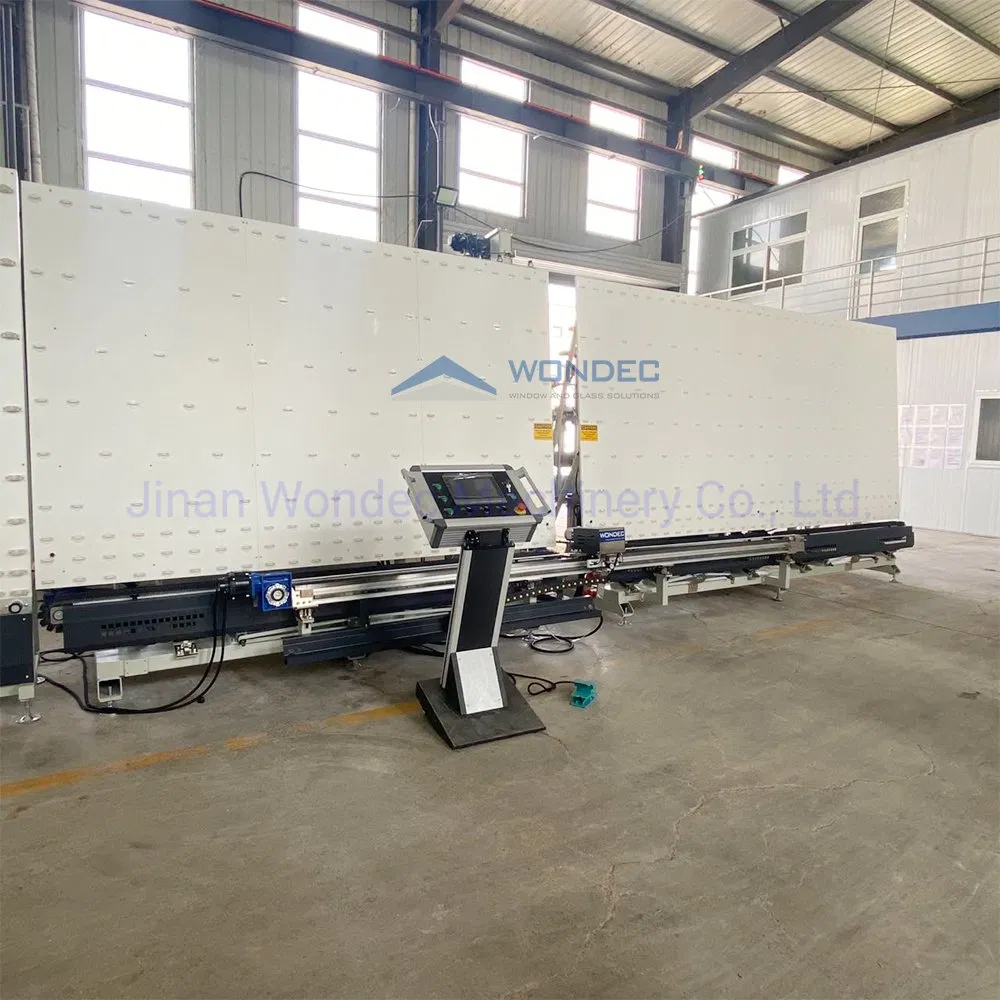

Yes, this production line includes an automatic sealing robot for high-precision and consistent sealant application.

What are the power requirements for the full line?

The total input power for the production line is approximately 29KW, with the sealing robot requiring an additional 10KW.
