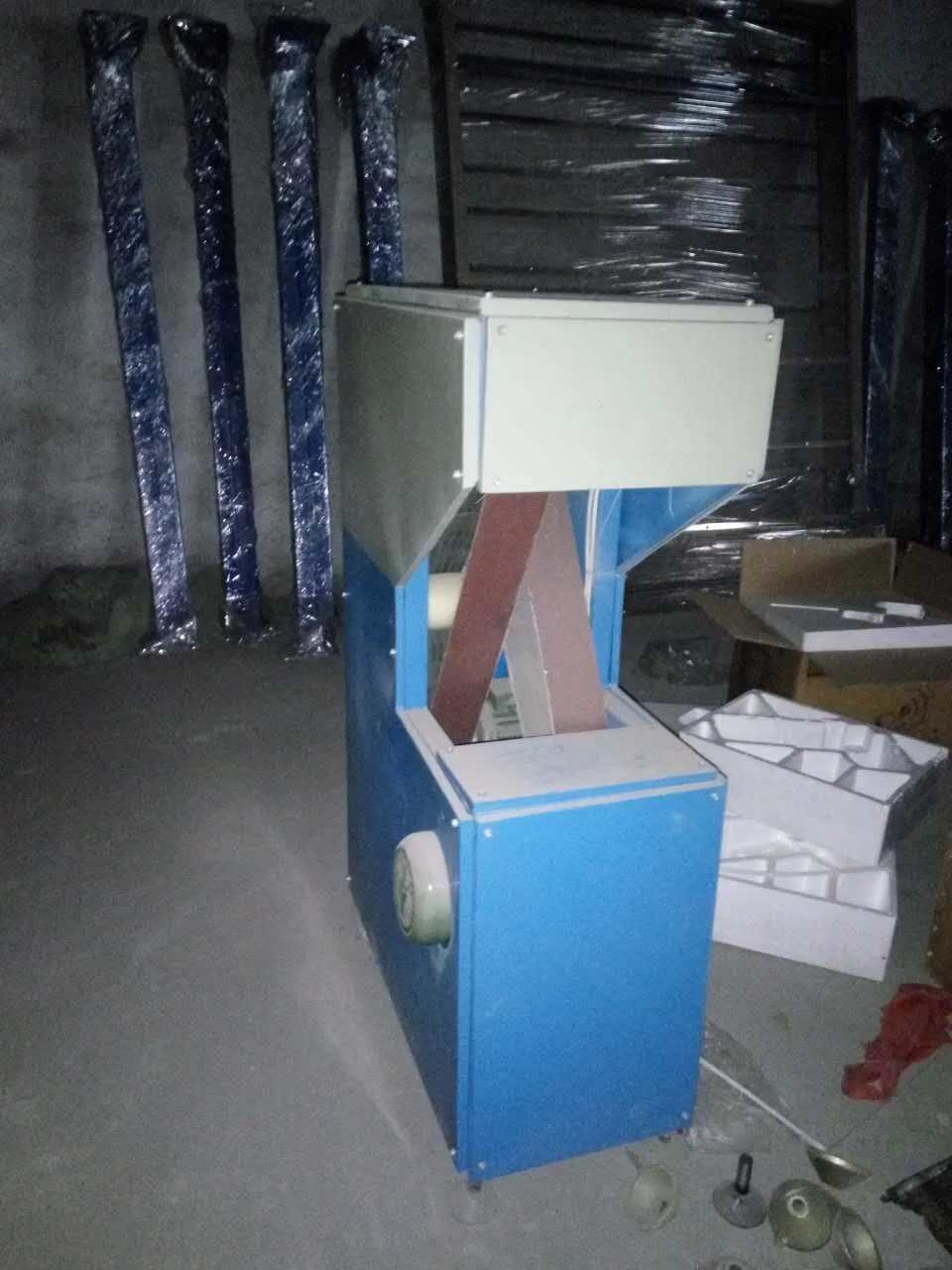

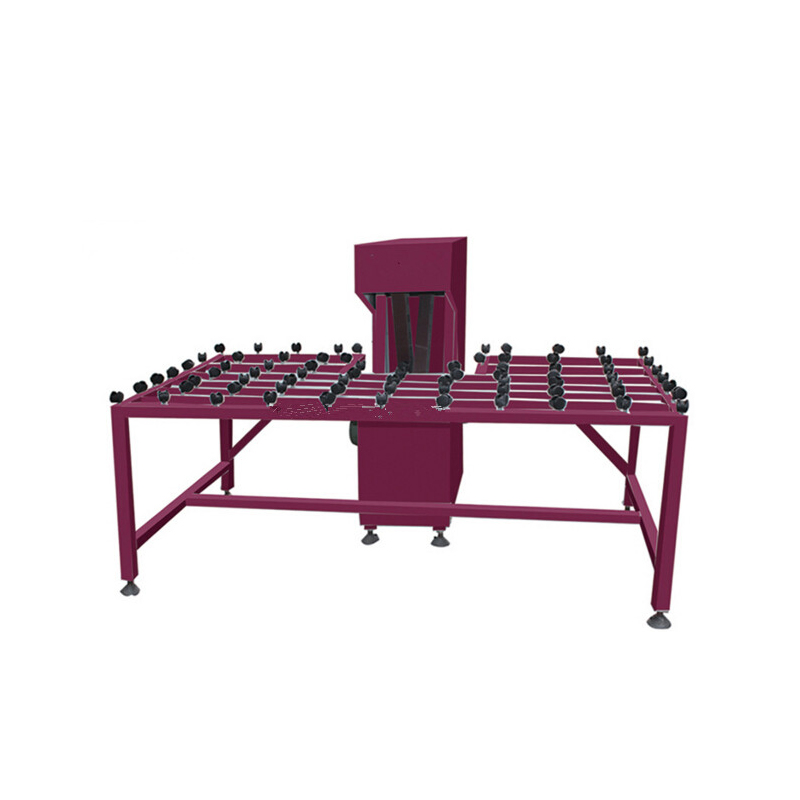

Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
1 / 5
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray
Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray

Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray

Customization: Available
Certification: CE, ISO, FDA, UR, PCI, PDA
Power(W): 2.2kw
Send Inquiry

Product Description

Insulating Glass Production Machinery Belt Type Glass Edging Machine with Water Spray

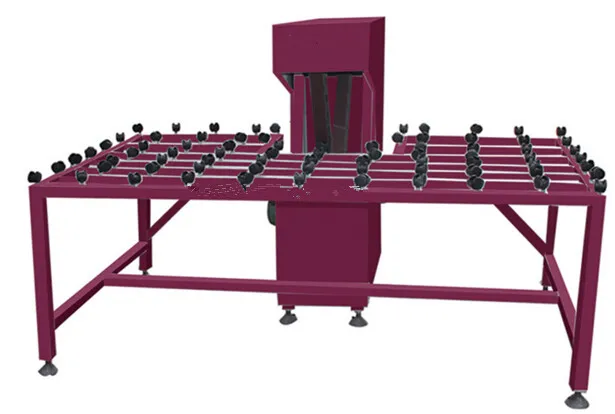

Belt Type Glass Edging Machine
⚙️

Detailed Information & Main Features

✓ Professional insulating glass machine specifically designed for glass border processing.
✓ High-efficiency rough grinding and polishing for single glass sheets.
✓ Equipped with two high-quality abrasive belts for simultaneous grinding of top and bottom edges.
✓ User-friendly operation: Change abrasive belts easily via the rear hand wheel, saving significant effort.
📊

Technical Specifications

Model JYM-01
Total Power 2.2Kw
Power Supply 380V 50Hz
Motor Running Speed 1400r/min
Thickness of Glass 3-19mm
Max Polishing Size 2000 * 1200mm
Min Polishing Size 400 * 400mm
Size of Belt 1890 x 95mm
Grinding Head Number 16
Weight 350kg
Dimensions 780 * 386 * 1270mm
Control System PLC
Production Capacity 15 Set/Sets Per Month
🖼️

Product Display

Glass Edging Machine Detail 1
Glass Edging Machine Detail 2
Glass Edging Machine Detail 3

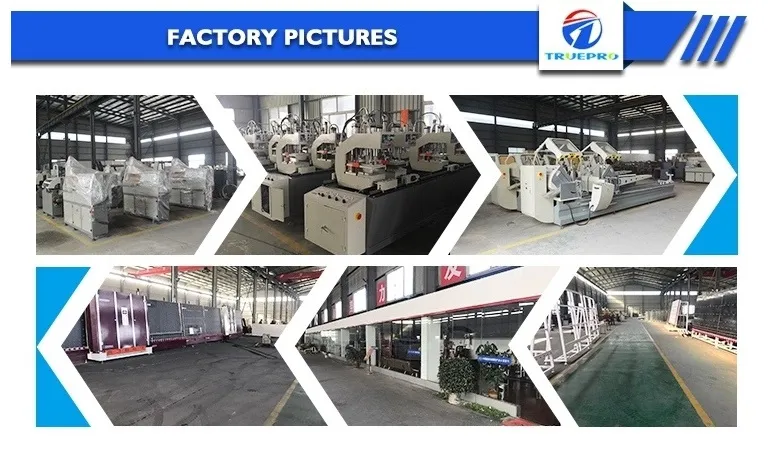

Glass Edging Machine Detail 4
Glass Edging Machine Detail 5
❓

Frequently Asked Questions

Q1: What type of glass is this machine best suited for?
A: This machine is designed for rough grinding and polishing of single glass borders. It is ideal for insulating glass production but is not intended for art glass grinding.
Q2: What glass thickness range can the machine handle?
A: It can process glass with a thickness ranging from 3mm up to 19mm.
Q3: How difficult is it to replace the abrasive belts?
A: The replacement is very simple. You can change the belts by turning the hand wheel located at the back of the machine, which is designed for easy operation.
Q4: What are the maximum and minimum glass sizes for polishing?
A: The maximum polishing size is 2000 * 1200mm, and the minimum polishing size is 400 * 400mm.
Q5: What is the power requirement for this edging machine?
A: The machine requires a 380V 50Hz power supply and has a total power consumption of 2.2Kw.
Q6: Does the machine include a control system?
A: Yes, the machine is equipped with a PLC control system for stable and precise operation.
