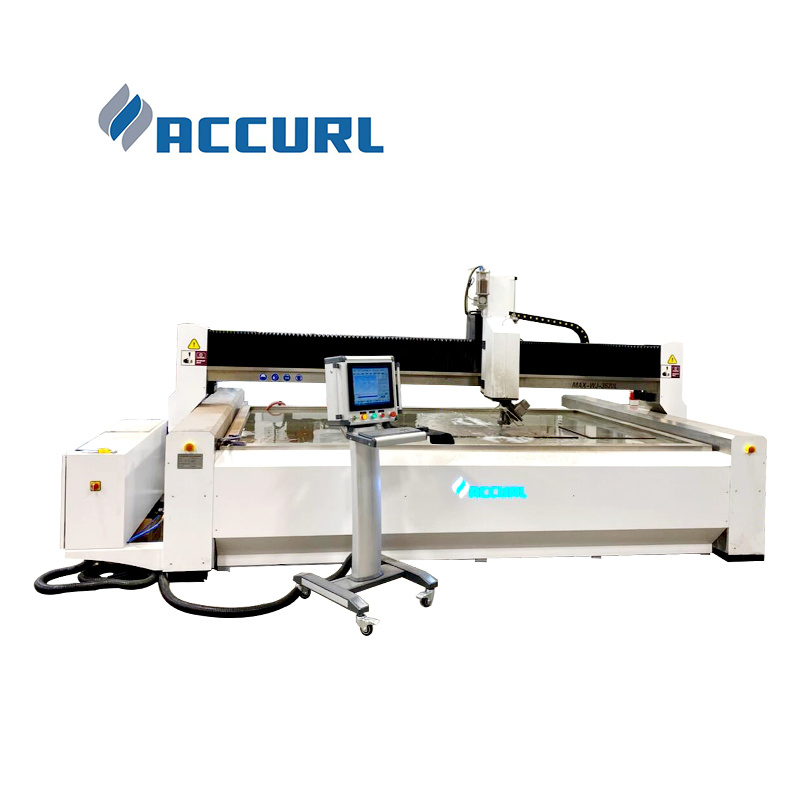

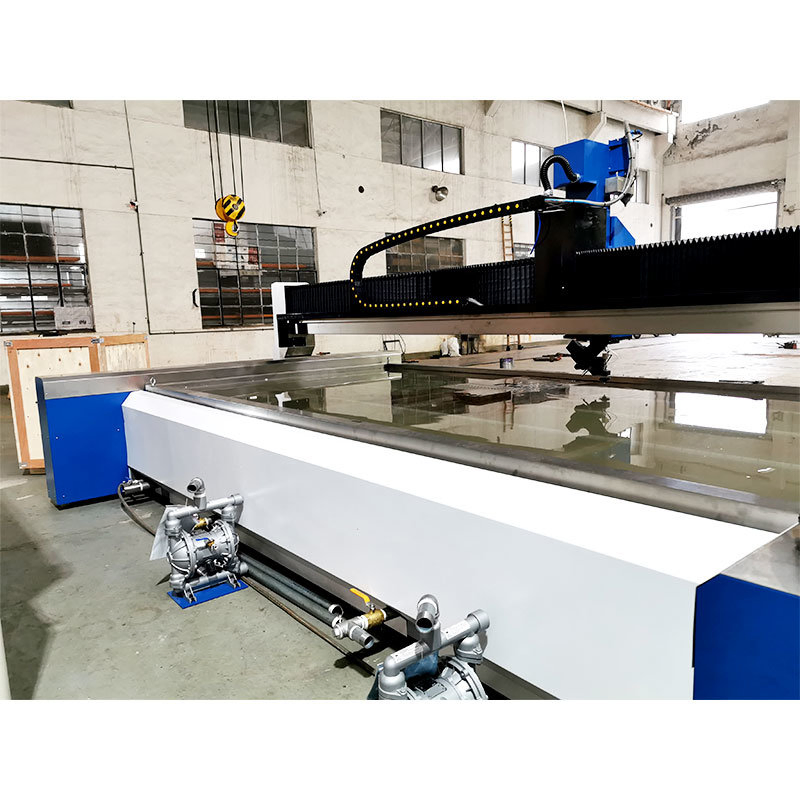

The MAX-WJ CNC waterjet cutting series provides a vigorous industrial design and rigid construction that combines precision and simplicity. The MAX-WJ model is made to handle high production for versatile applications. This series provides a vigorous industrial design and rigid construction that combines precision and simplicity.

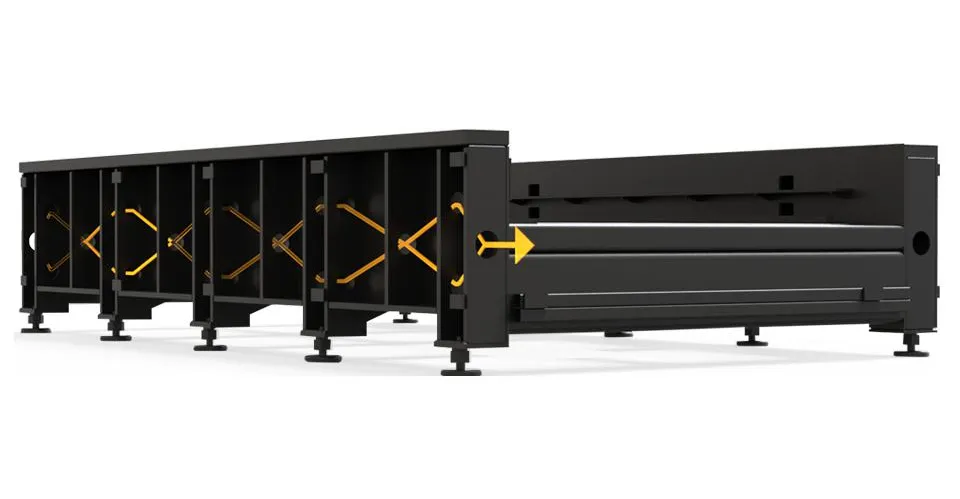

FULLY ANNEALED FRAME

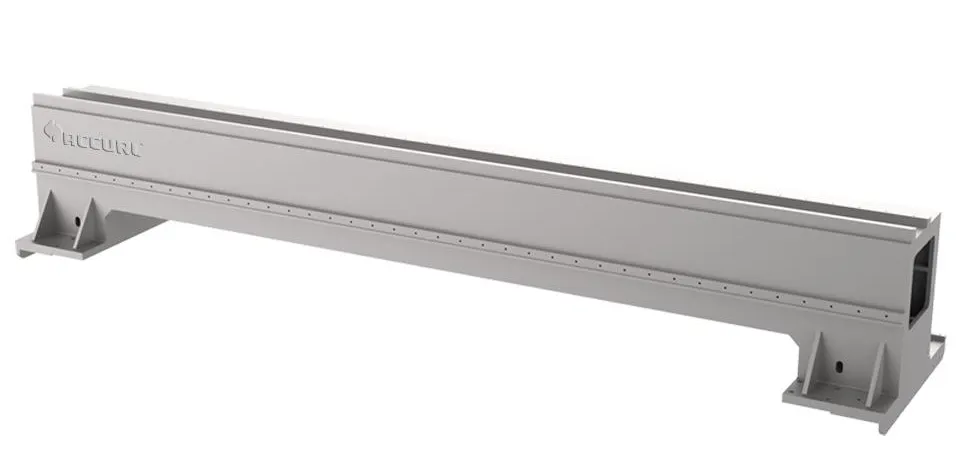

CAST ALUMINIUM GANTRY

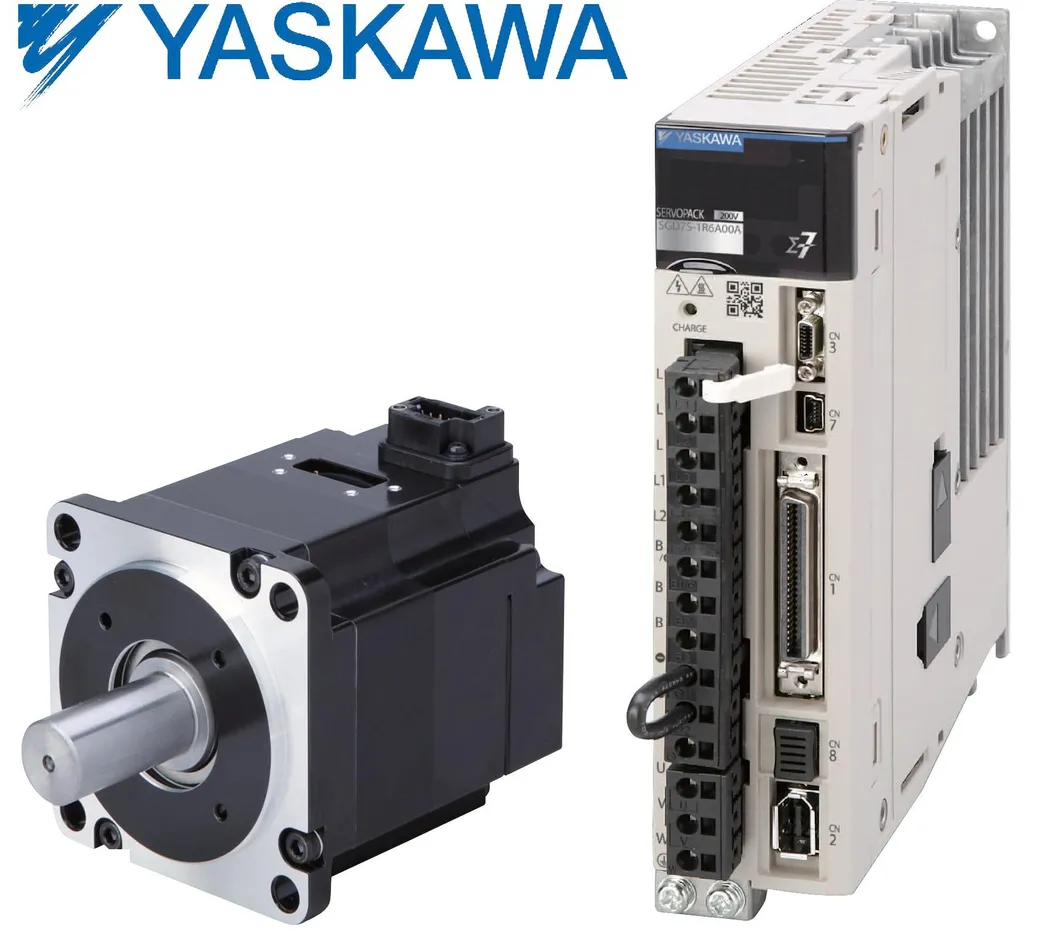

High-speed EtherCAT communication, brushless three-phase motors, and highly dynamic behavior for extreme precision.

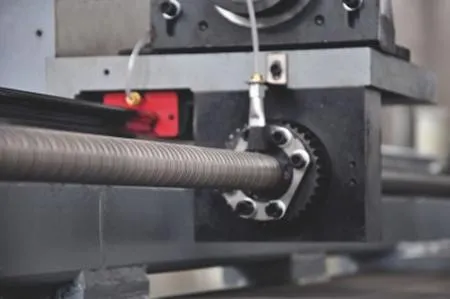

X, Y-Axis with linear guide and Ball Screw. Less noise, greater durability, and unprecedented positioning repeatability.

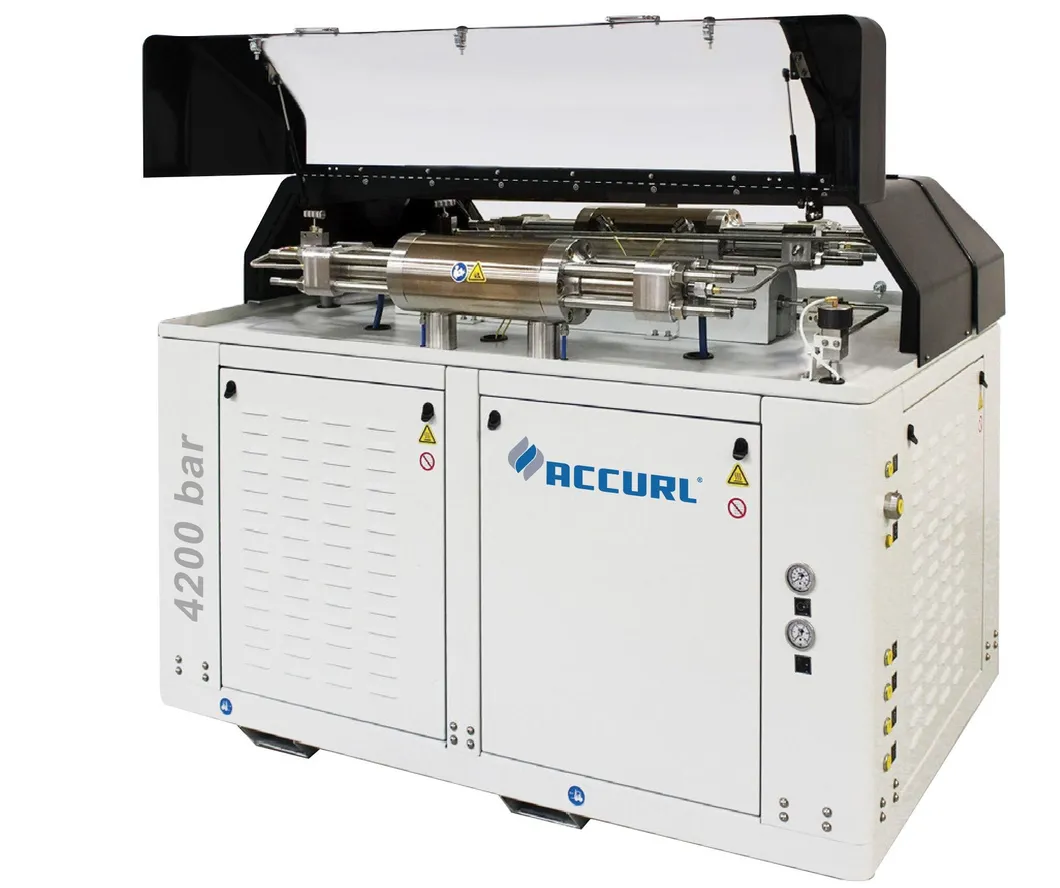

Generates working pressures up to 4200 bar. Single intensifier design reduces maintenance costs and noise.
| Technical Specifications (Pump) | Features | |
|---|---|---|
| Nominal Power | 37 kW / 50 HP | Variable flow hydraulic pump |
| Max Working Pressure | 4136 bar | High/Low pressure selection |
| Max Flow | 4.1 L/min | Noise level below 80dB |
| Hydraulic Tank | 211 L | Leakage detection circuit |

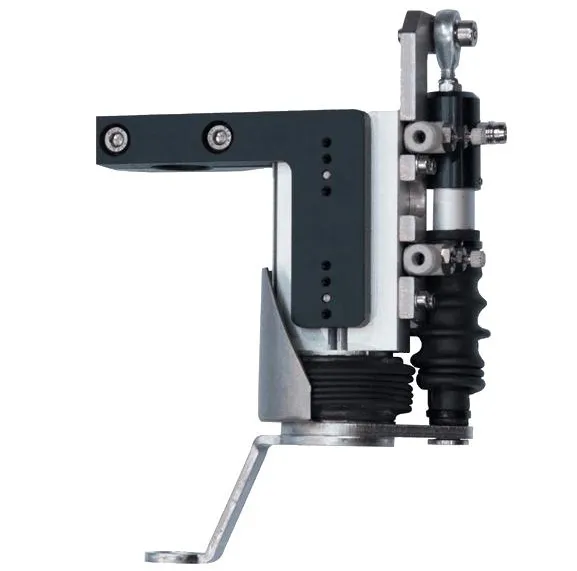

AUTO SULLAGE REMOVAL 2.0

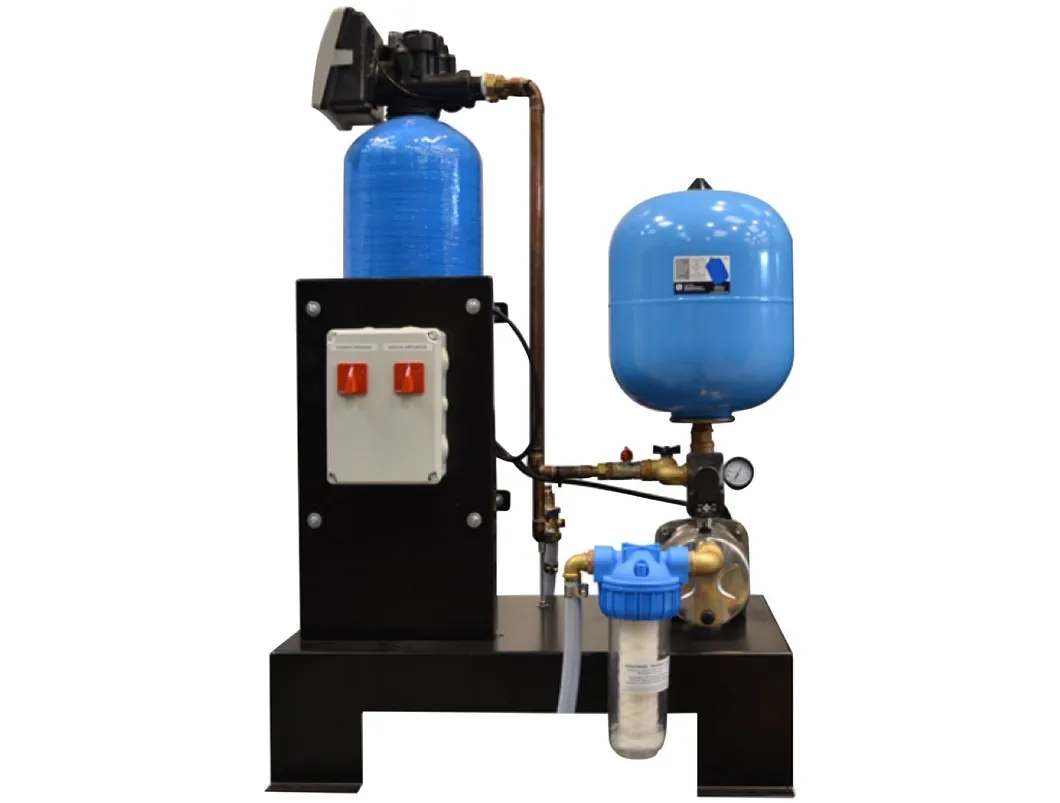

WATER FILTRATION SYSTEM

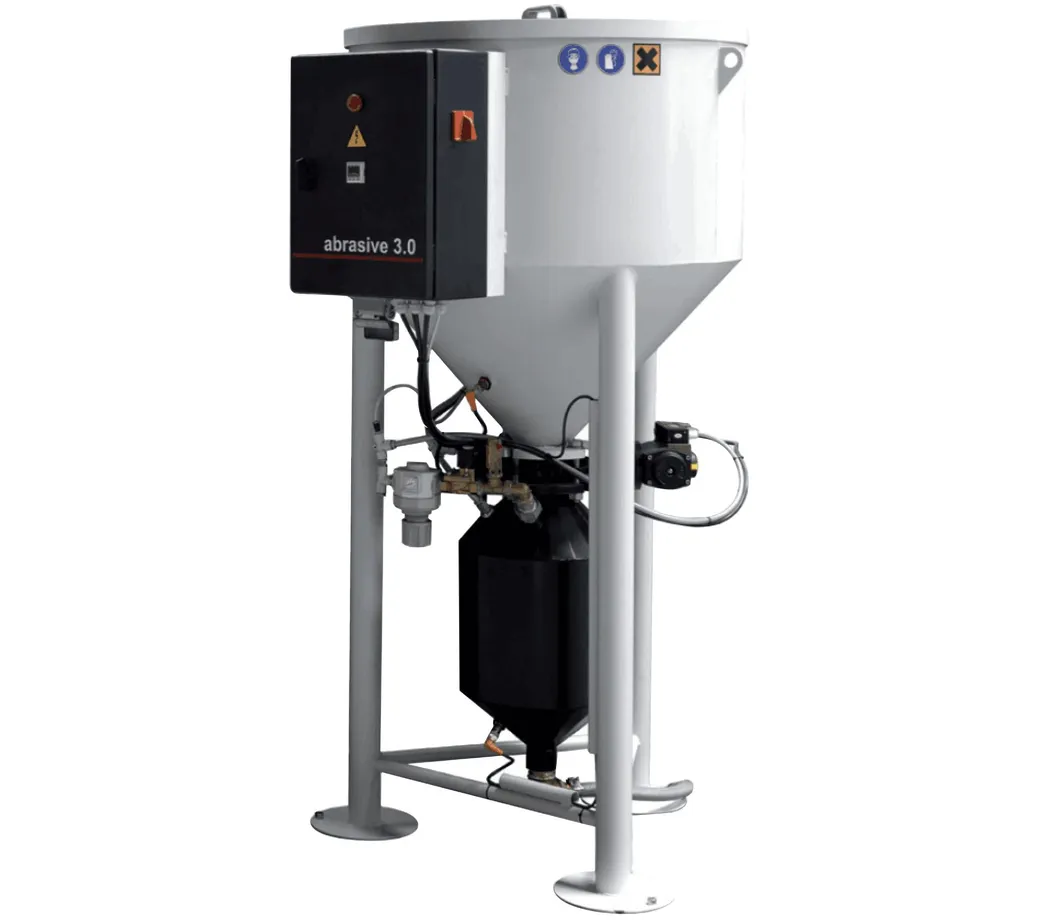

ABRALINE 3.0 FEEDER

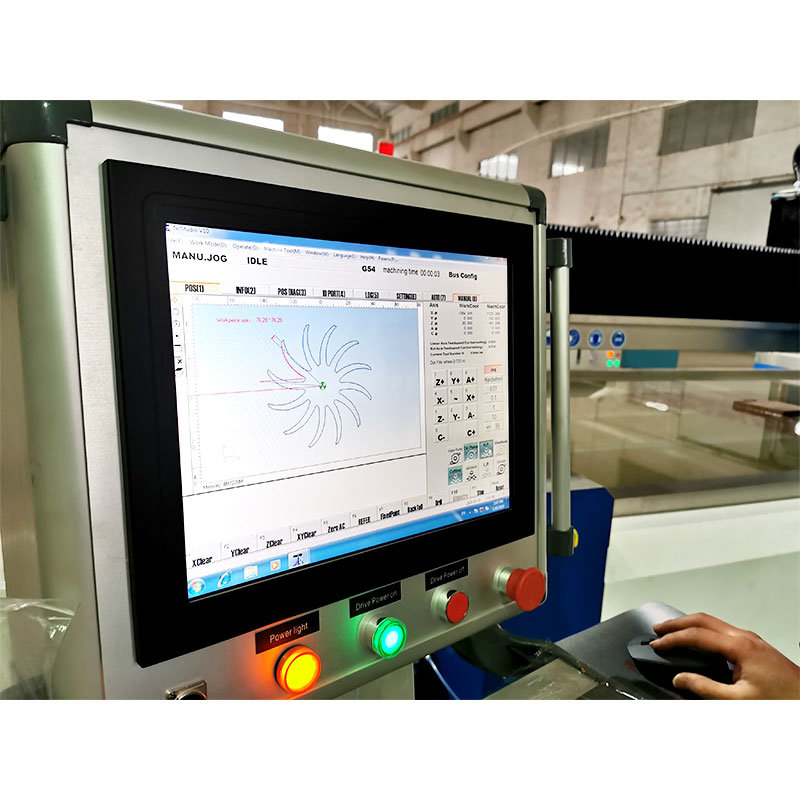

ECS905 CNC CONTROL

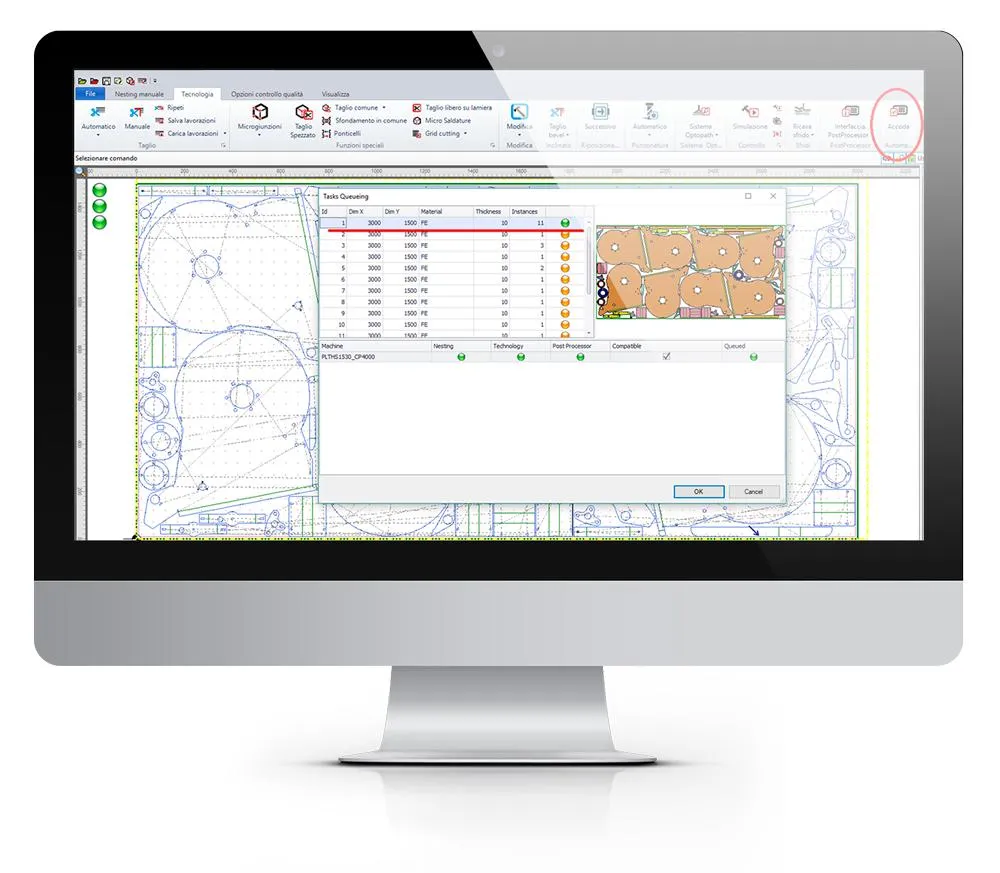

LIBELLULA.CUT SOFTWARE

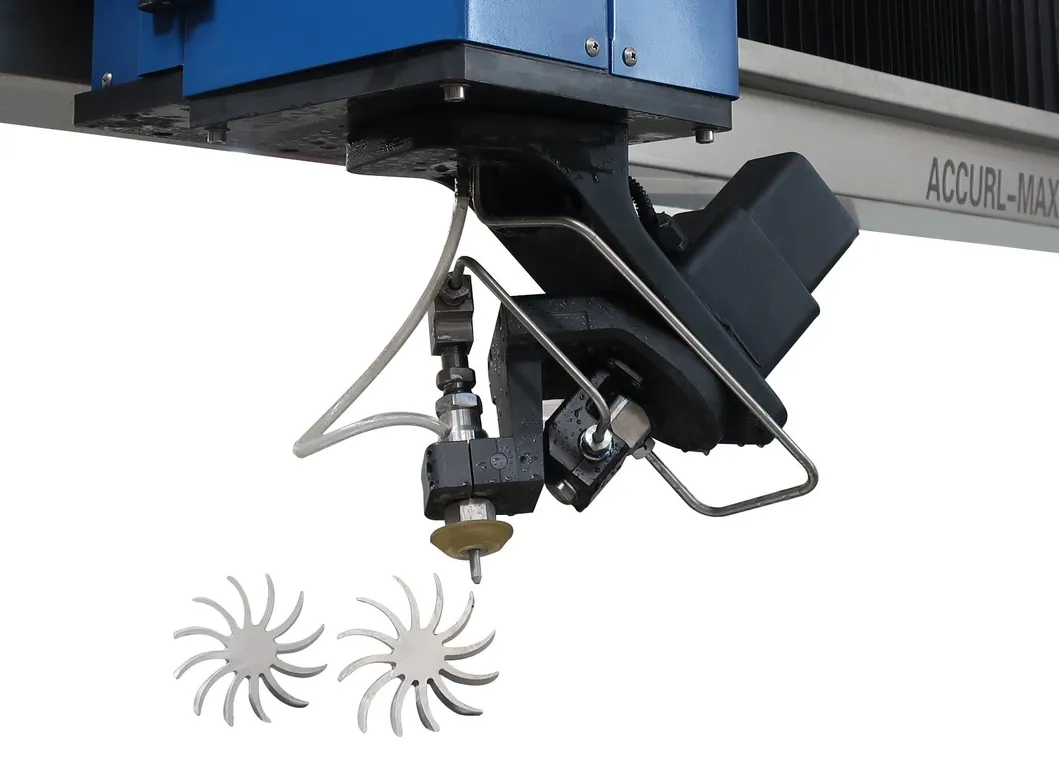

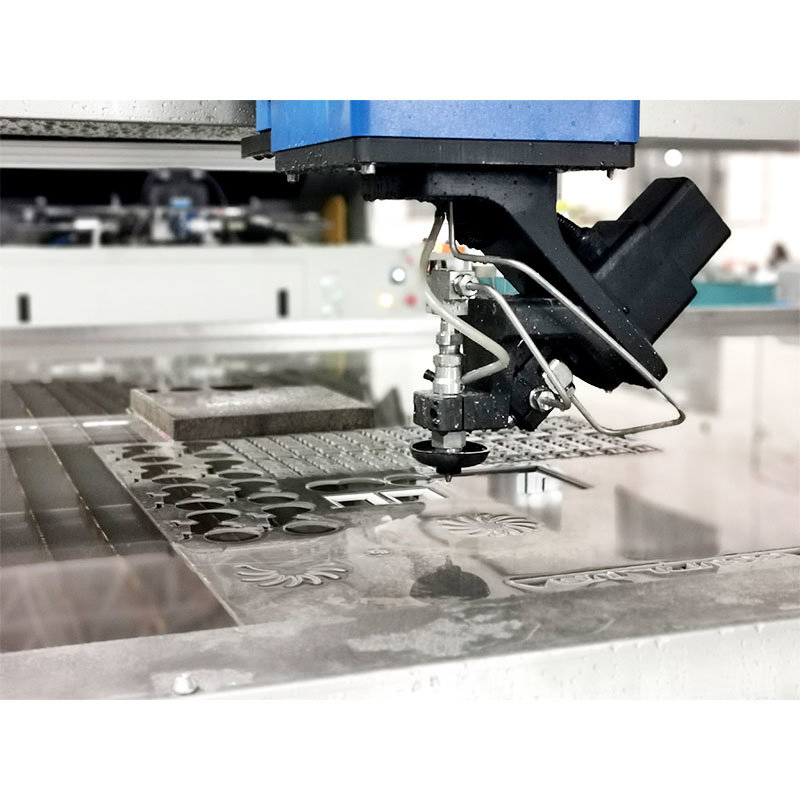

The 3D cutter head features five axes (3 linear and 2 rotating). Designed for pure 3D cuts and 2D beveling. Infinite rotation in the C axis avoids the need to rewind, reducing working times and maintaining high cut quality.
