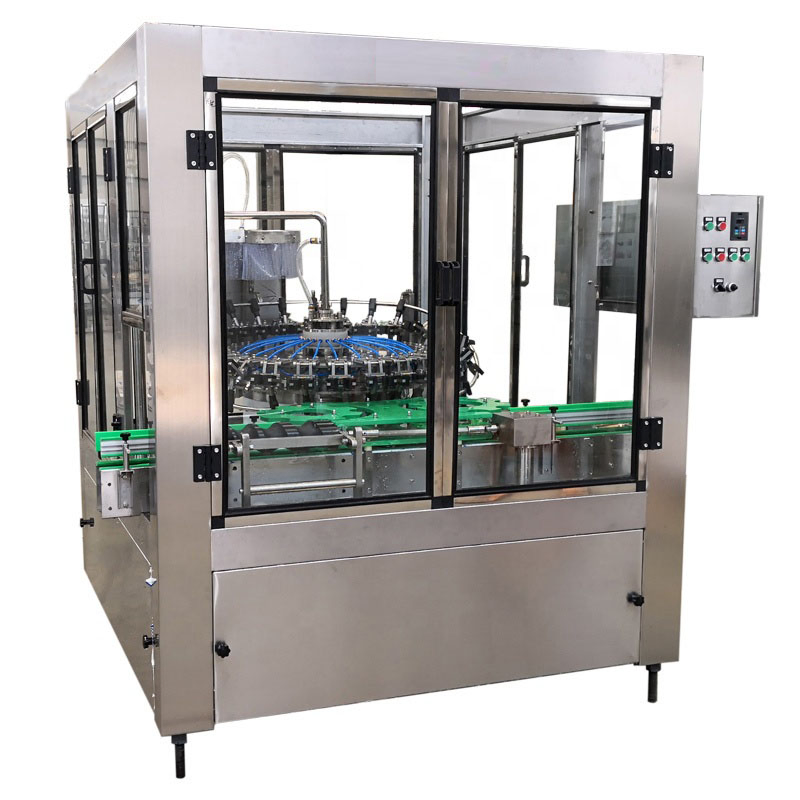

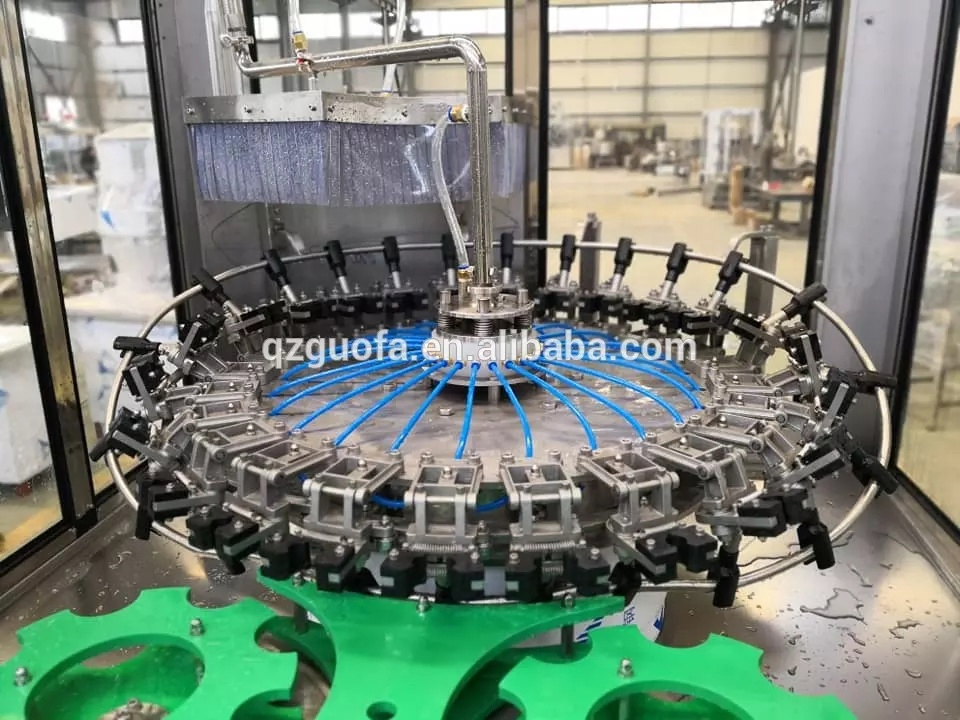

Automatic 18 Head Rotary Beer Wine Vodka Plastic Glass Bottle Washing Machine

Customization:	Available
After-sales Service:	24 Hours Services
Warranty:	12 Months

📋

Basic Specification

Model NO.

CD-18

Type

Volumetric Filling Machine

Automatic Grade

Semi-Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Feed Cylinder Structure

Single-Room Feeding

Dosing Device

Capacity Cup

Filling Principle

Pressure

Structure

Linear

Packaging

Bag

Speed

3500--12000 Bph

Core Components

PLC, Motor, Pump

Power

1.9-5kw

Driven Type

Electric

HS Code

8422303090

Production Capacity

1000sets/Year

⚙️

Production Information

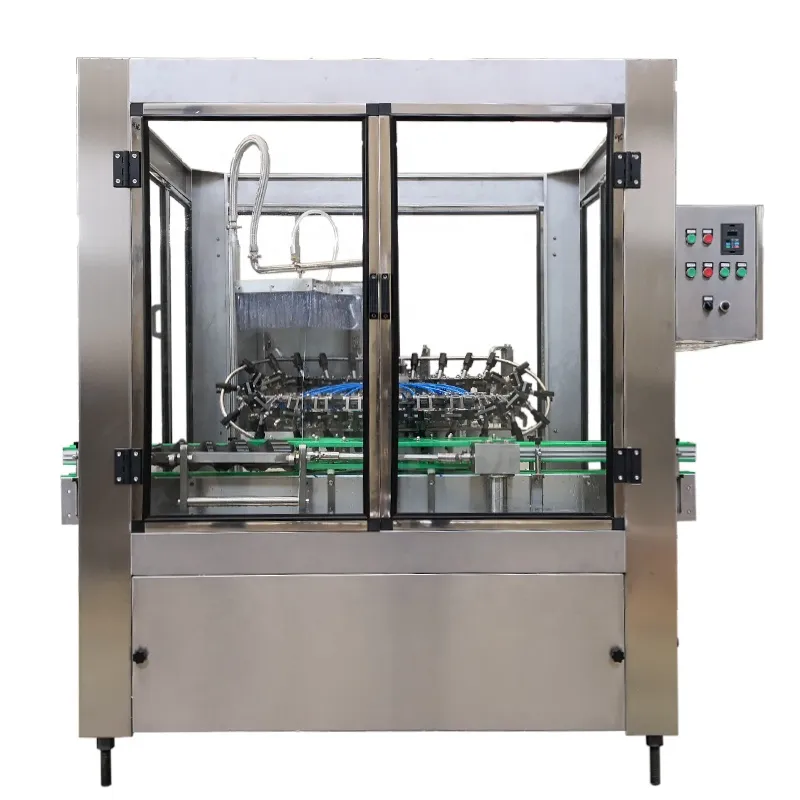

This automatic washing machine is mainly used for cleaning glass bottles, plastic bottles, jars and other kind bottles before filling. The machine will wash bottles inside and outside automatically. It can be combined with filling machine, capping machine, conveyor and other packaging machines to make into a production line. It is widely used in wineries, beverage factories, brewing factories, pharmaceutical factories and other packaging lines.

Machine Details & Features

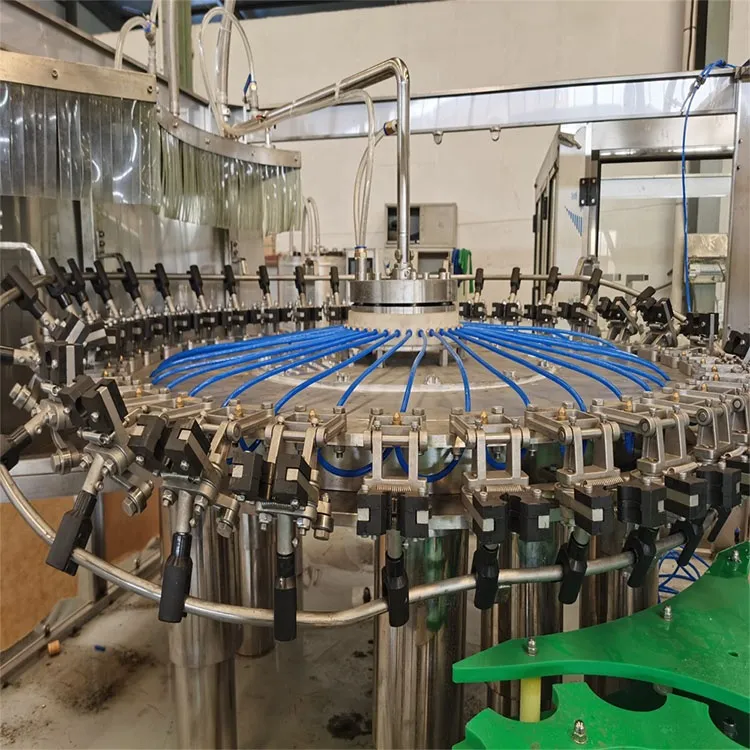

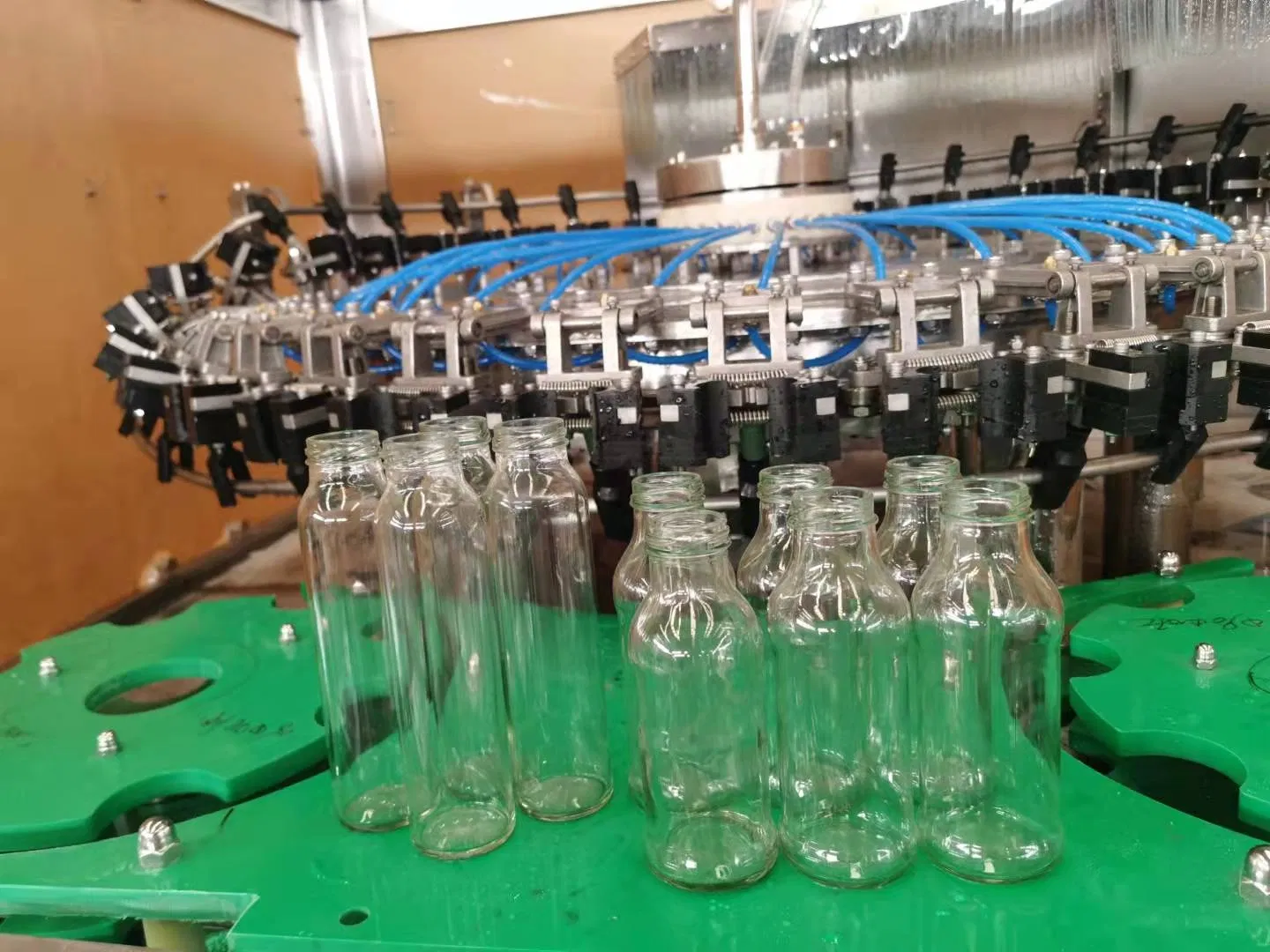

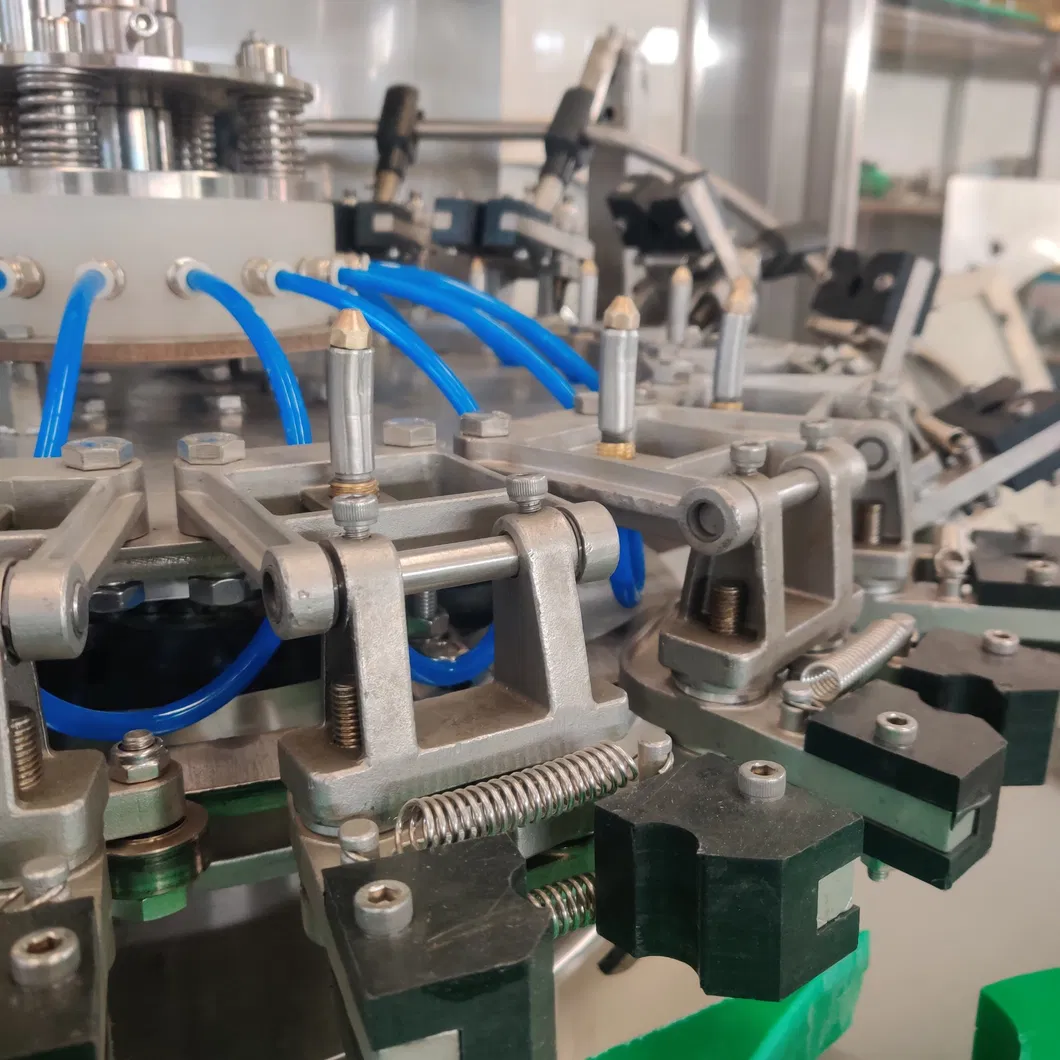

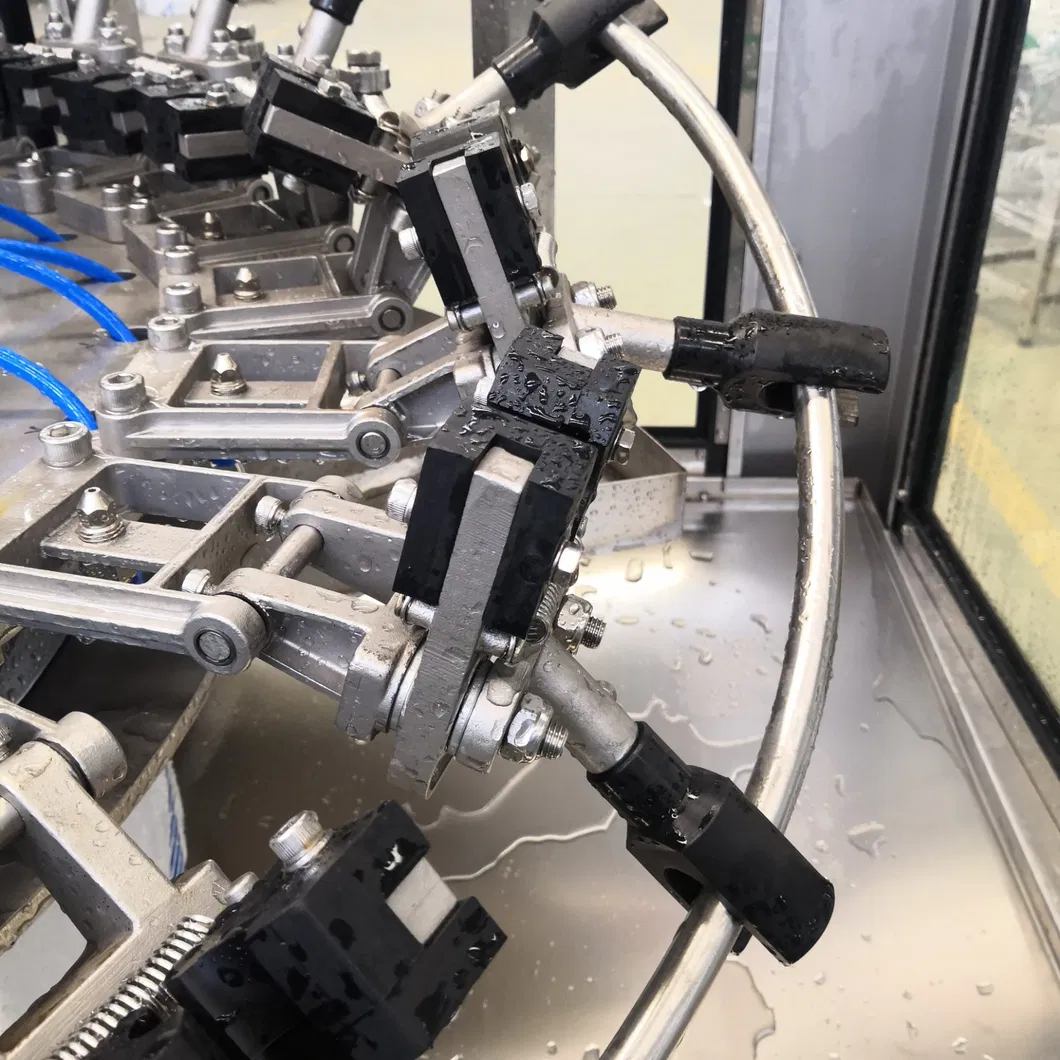

The mechanical hand stamping parts and casting materials are all made of national standard 304 material, which ensures corrosion resistance. The manipulator features accurate positioning and easy turnover.

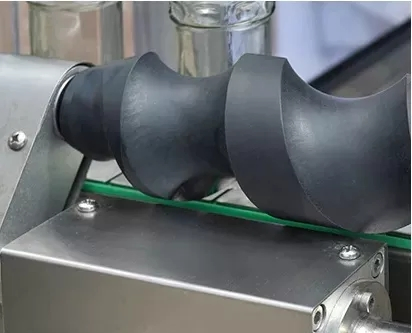

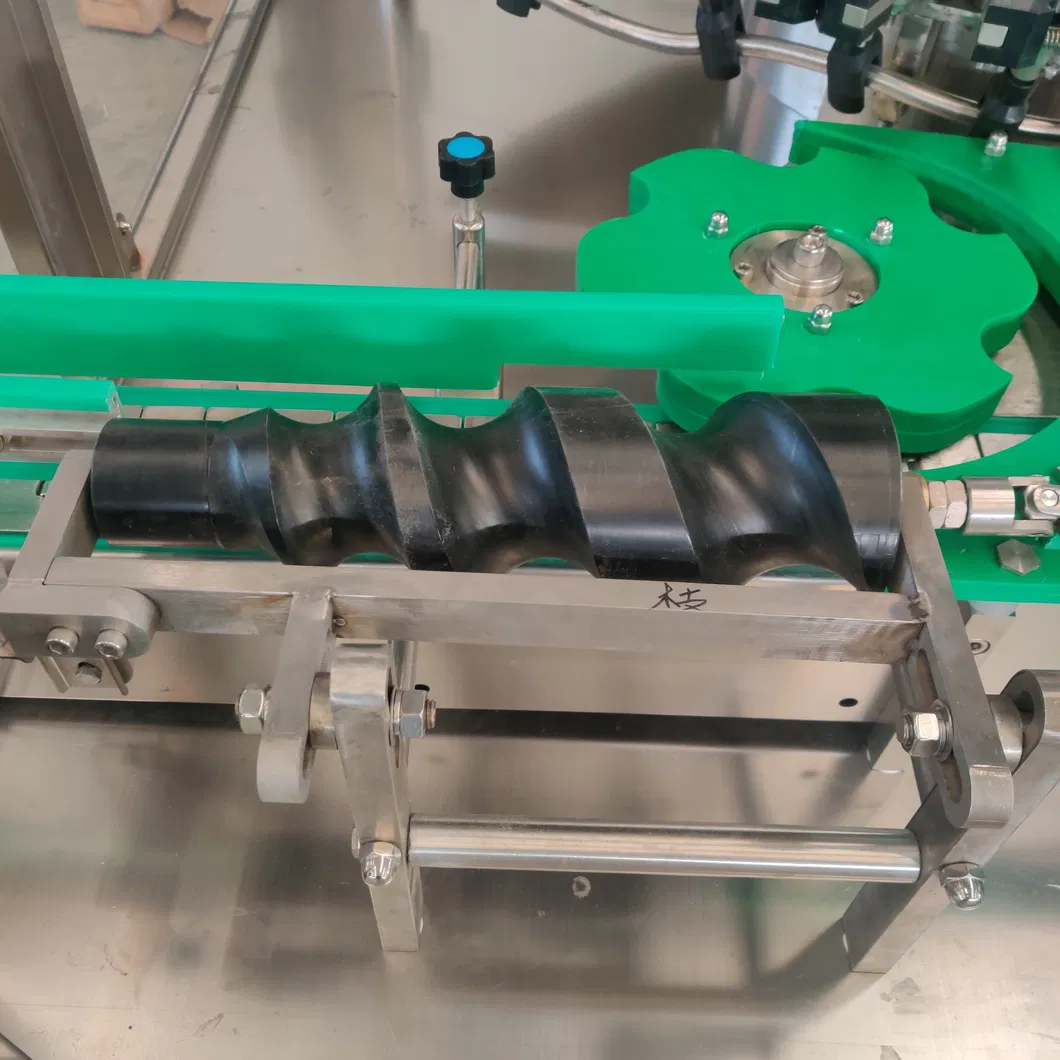

The Bottle pusher is made from organic polymer materials. It can adjust back or forward to adapt to the bottle's diameter and deliver bottles to the washing machine automatically.

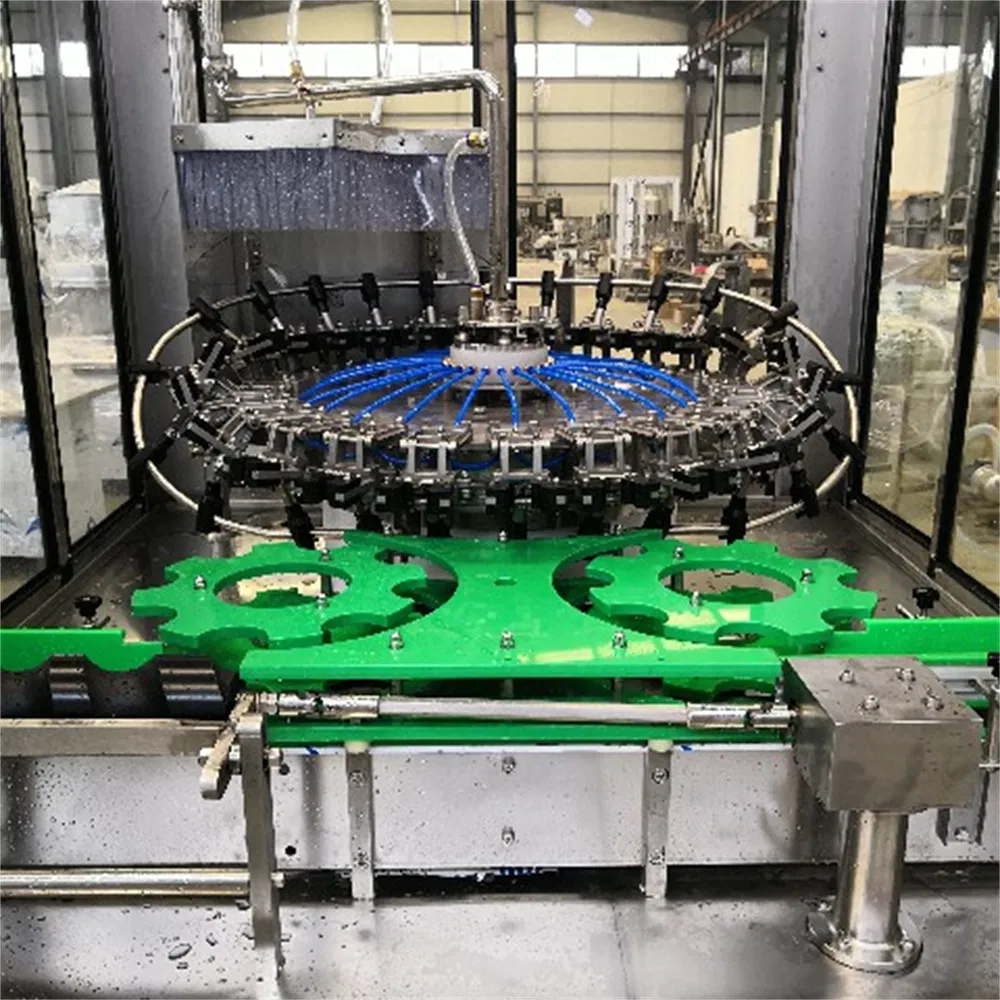

The Rinser part washes the bottle automatically, covering both the inside and outside surfaces.

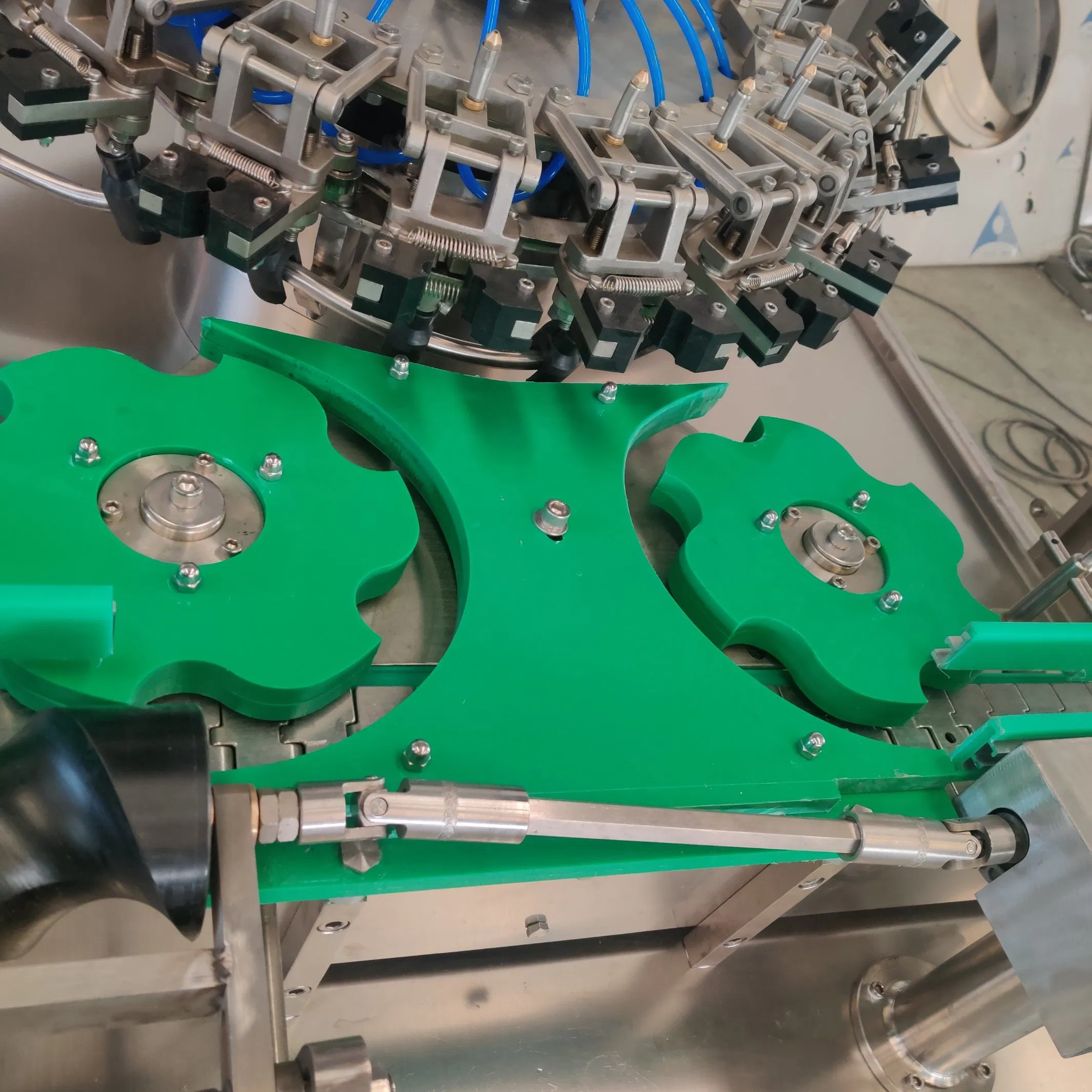

The custom-made bottle gear is responsible for transferring bottles between the gear and mechanical hand, returning them to the conveyor line once washing is complete.

📊

Technical Parameters

No.	Model Item	QSP-18 Specification
1	Washing heads	18 heads
2	Washing capacity	2000-4000 bottles/hour
3	Suitable for bottle height	100-380mm (Customizable)
4	Pressure of Work	0.2~0.3Mpa
5	Voltage	220V/380V, 50Hz (Customizable)
6	Power	0.75KW
7	Control mode	PLC program
8	Weight	700kg
9	Packaging dimension	130013002200mm

🌍

Application & Shipping

Suitable for cleaning bottles before filling various oils, pharmaceutical, and chemical products.

Packing & Logistics

Packing: Anti-rust treatment followed by plastic wrap. Delivery using thick wood and steel frame protection for long-distance sea transport.

Delivery time: We maintain a stock of core parts (electronic components, pumps, SUS materials) to ensure flexible delivery cycles.

Shipping: Primarily by sea. Urgent orders can be shipped via air or express.

🏭

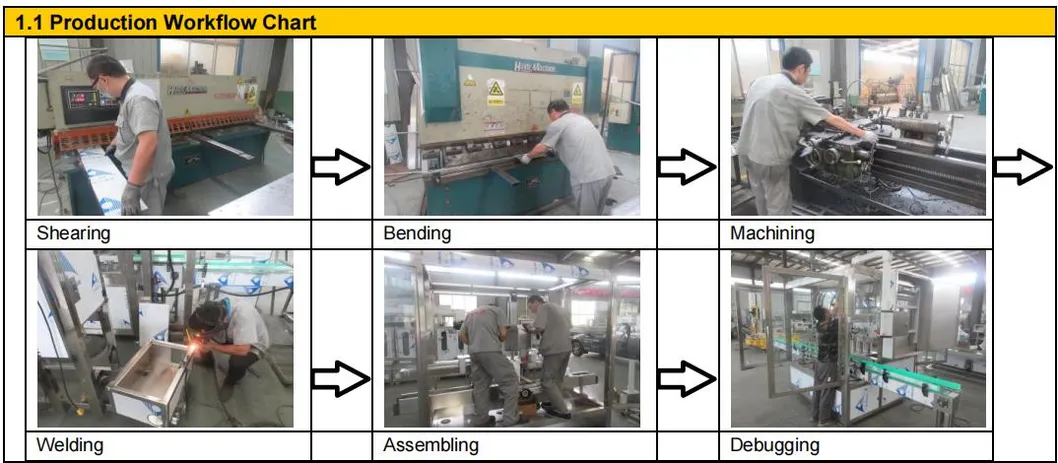

Manufacturing Excellence

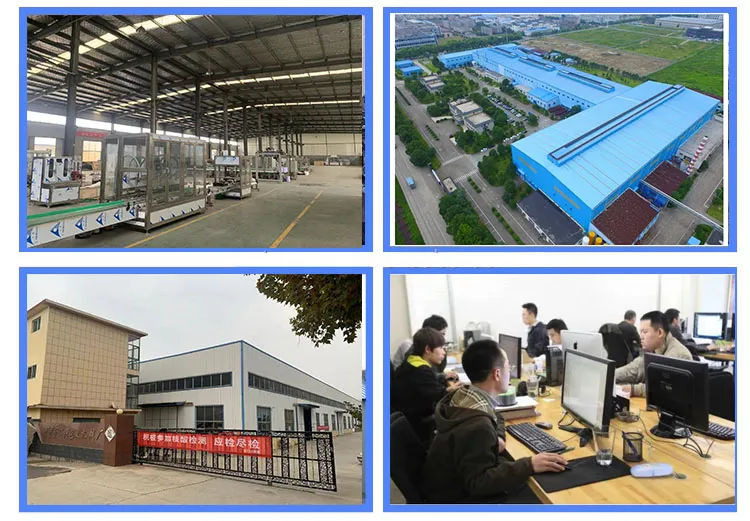

Our facility covers 6,000 square meters with a dedicated team of over 30 employees. We utilize advanced CNC machine tools and large cutting machines to ensure high production capacity and service levels.

Factory with 20,000 m2 | Technology Team: 5+ persons | Service Team: 10+ persons

Our Advantages

Over 10 years of experience in liquid packaging machinery design.

Standardized workshops with advanced CNC production equipment.

Professional team: 10+ R&D engineers, 10+ sales experts, and 20+ after-sales technicians.

95% of parts are manufactured in-house, ensuring quality control and flexible manufacturing cycles.

🛠️

Professional Services

During Production: Regular status updates and testing videos provided. Buyers are invited for final inspections before shipping.

Customized Service: Tailored machine designs based on material, power, and bottle types, plus free technical factory layout consultation.

Installation Support: Comprehensive installation videos and online guidance. On-site commissioning is also available upon request.

❓

Frequently Asked Questions

How long will it take for product delivery?

Standard models take 10 days (or immediate if in stock). Customized models usually require 20–30 days depending on specific requirements.

What is the after-sale service insurance?

All products undergo strict QC testing. We provide a one-year warranty for all machines and reliable technical support for any operation issues.

Is the machine easy to install at the work site?

Yes. We provide intuitive installation videos and remote technical support to ensure your setup is correct and efficient.

How can I get after-sale service during machine use?

We have experienced engineers available for on-site commissioning and training for your workers, ensuring smooth long-term operation.

Will accessories need frequent replacement?

Accessory life depends on daily maintenance. We provide free wearing parts with your order and share comprehensive maintenance strategies.

Can I visit the factory or see a running machine?

Absolutely. We welcome you to visit our facility to see the machines in action. We can also provide videos of running machines or contact info for existing customers where permitted.
