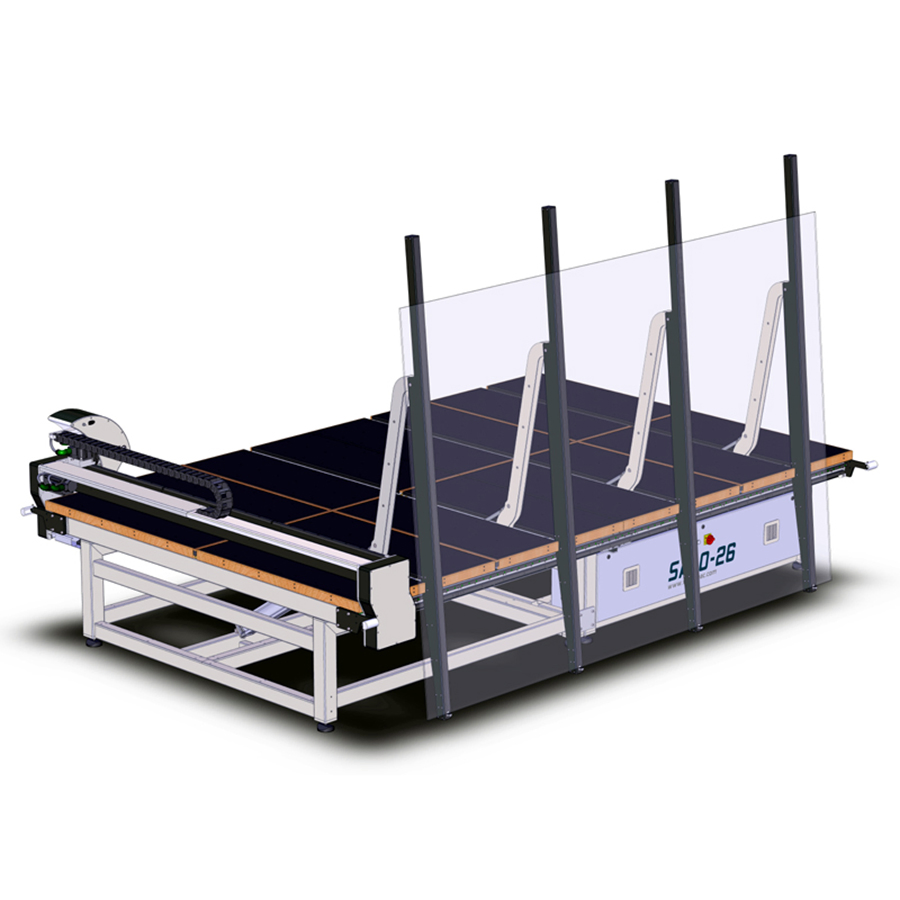

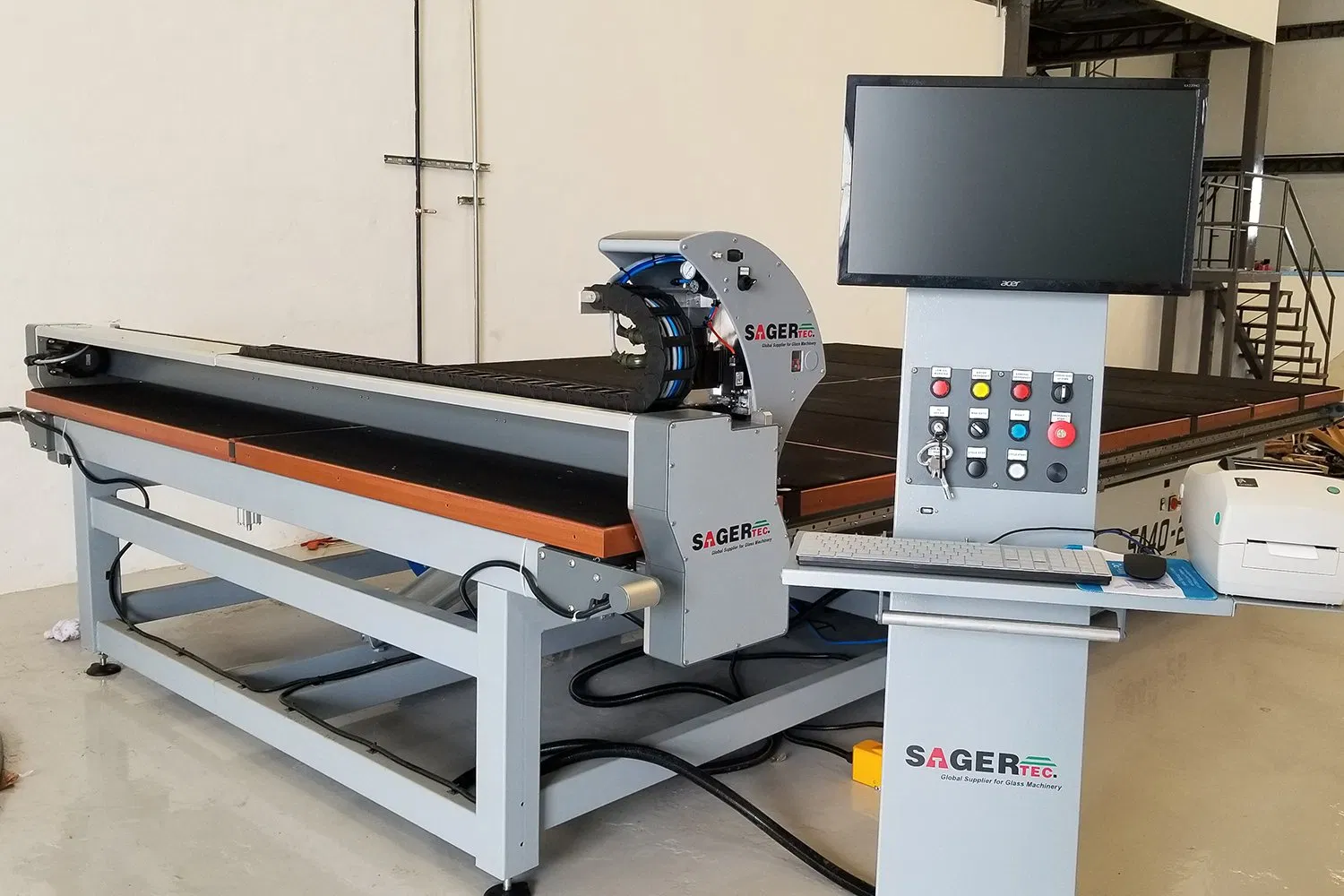

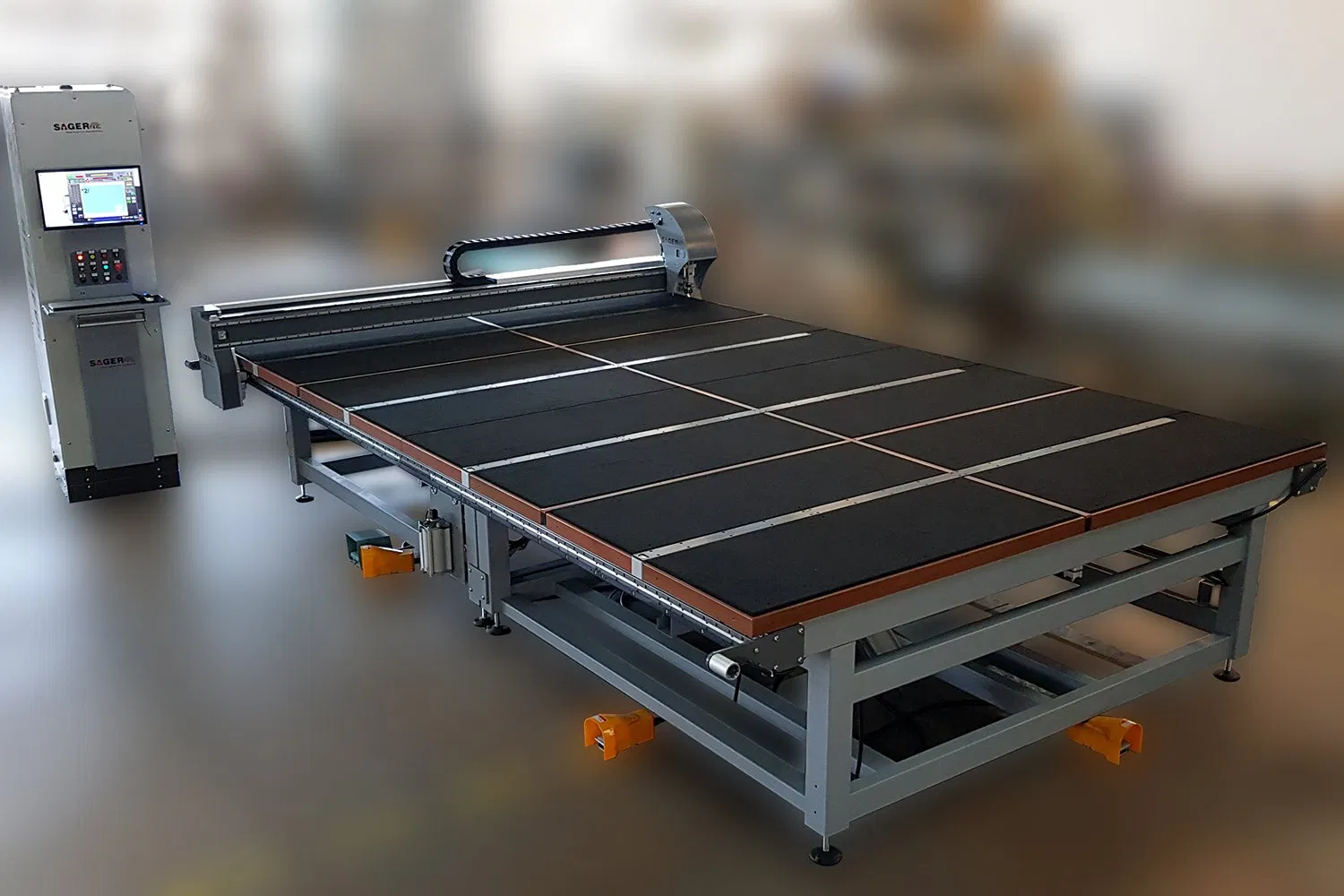

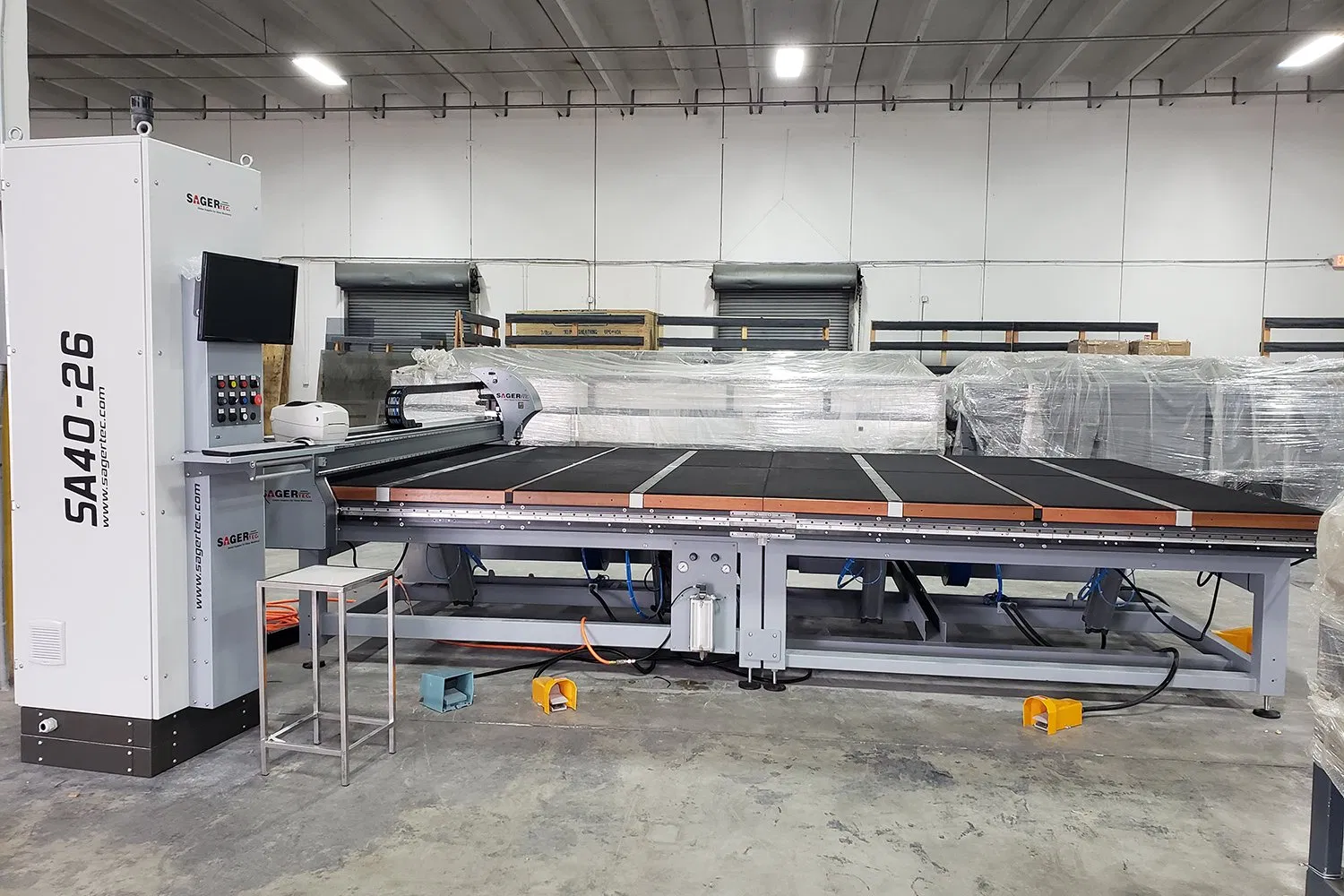

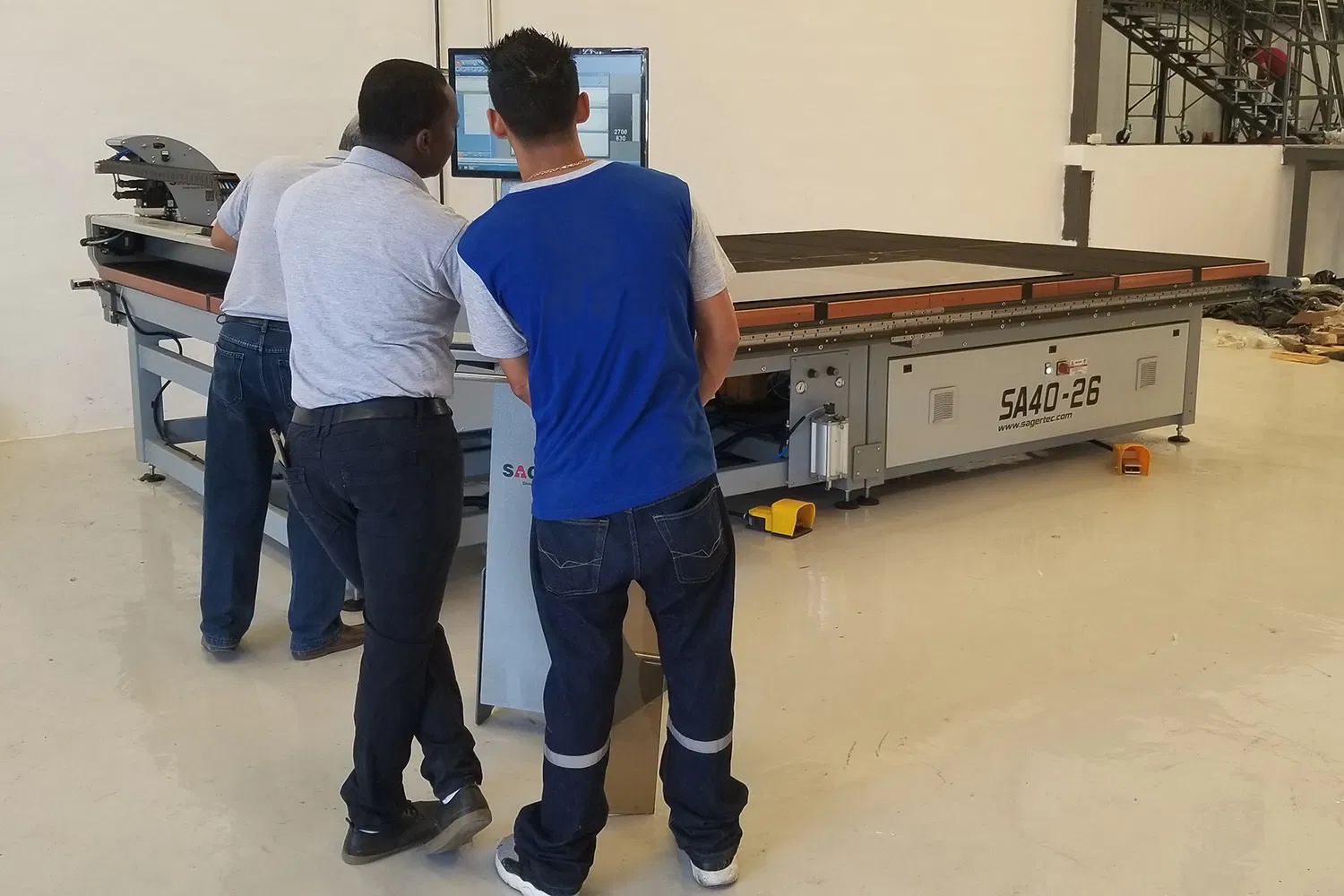

Automatic Laminated Glass Cutting Line specifically designed for EVA laminated glass processing. This high-performance system integrates advanced technology to ensure precision and efficiency in industrial glass cutting operations.
| Technology Parameter | SZ-SA3726 Specifications |
|---|---|
| Maximum Size | 4000 * 2600 mm |
| Maximum Thickness | 2 - 19 mm |
| Cutting Speed | 160 m/min |
| Cutting Tolerance | +/- 0.15 mm |
| Axis Control | CNC Servo Control |
| Axis Movement | Rack System |
| Shape Cutting | Standard Support (250+ Shapes) |
| Pressure Adjustment | Automatic Standard |
| Laser Positioning | Standard System Included |
| Total Weight | 2200 kg |
| Total Power | 8 KW |

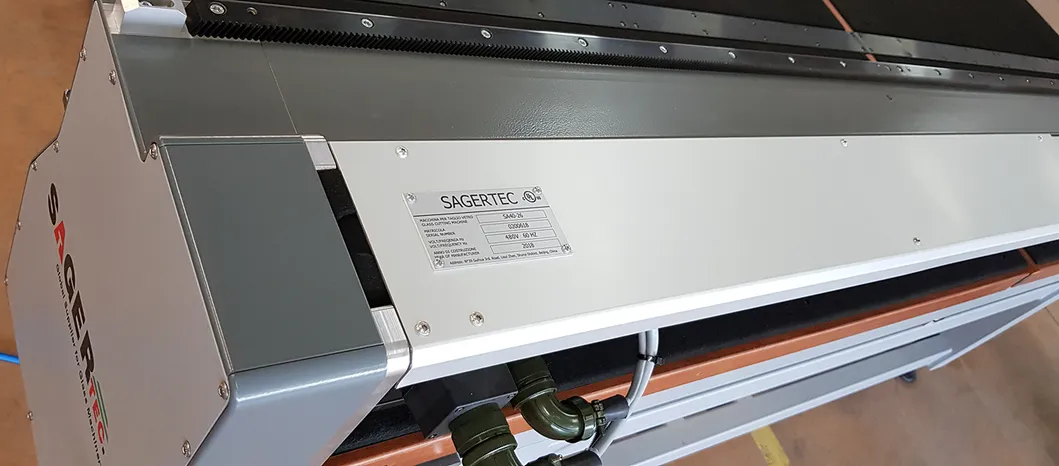

Sliding Systems: The bridge sliding systems utilize a high-precision pinion-rack system. Racks and pinions are tempered and refaced to maintain a ± 0.02 mm tolerance. The dual-pinion placement ensures the bridge remains perfectly perpendicular during rapid acceleration and deceleration phases.
Cutting Bridge: Manufactured from rigid steel, the bridge system is insensitive to temperature fluctuations, minimizing wear and tear. The aluminum cut trolley and recirculation ball-bearing system guarantee high responsiveness to glass surface variations.
Every machine is designed using 3D CAD technology and processed through CNC working centers. This innovative production concept guarantees uniformity and consistent quality across all units. The assembly process is strictly controlled by management software charts to guide technicians through every stage of construction.

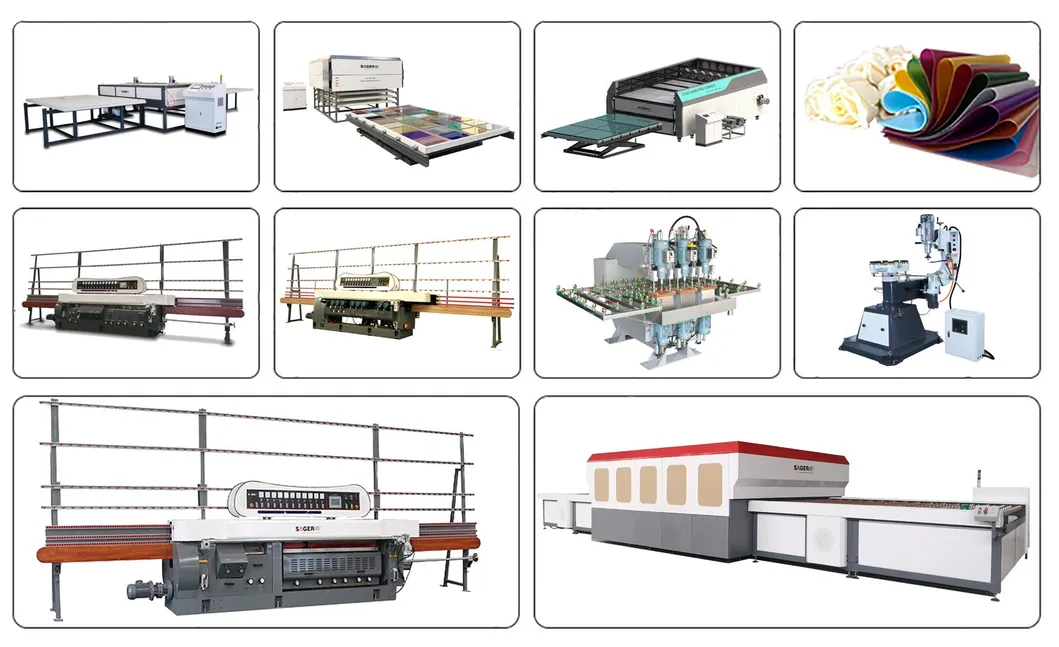

The mission is focused on technological renovation, cost containment, and rigorous quality control to provide advanced glass processing solutions, including completed PVB/EVA laminating lines, grinding, washing, and drilling machines.
