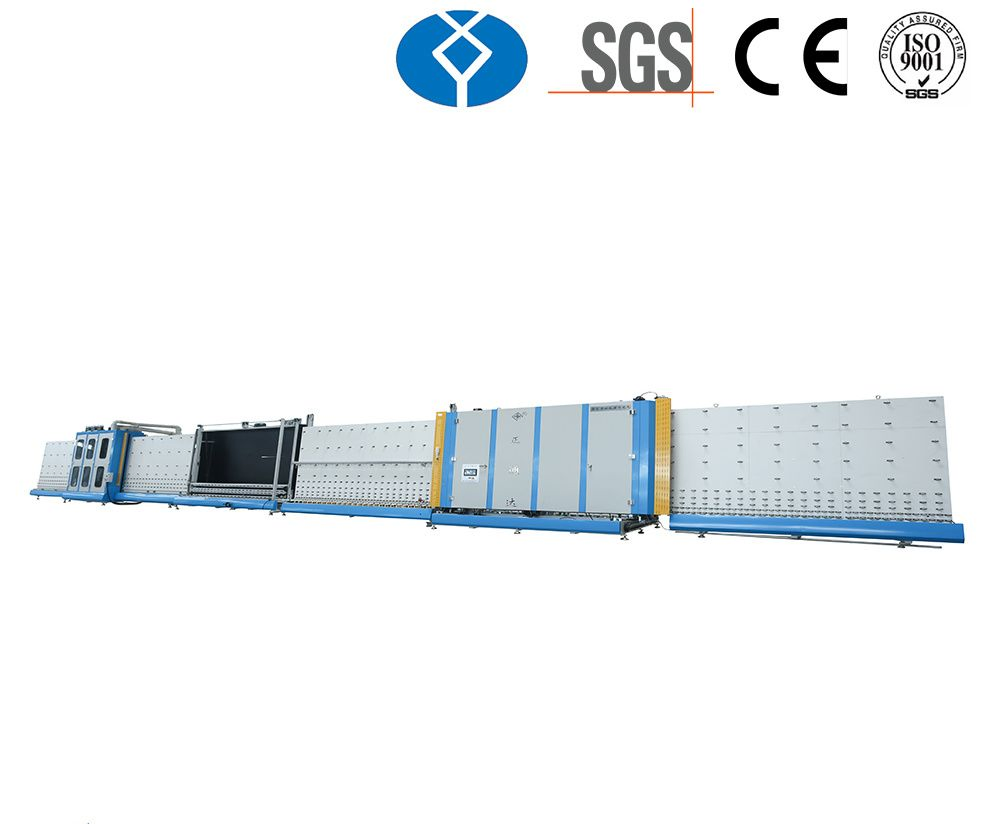

Automatic Insulating Glass Production Machine with Gas Filling on Line

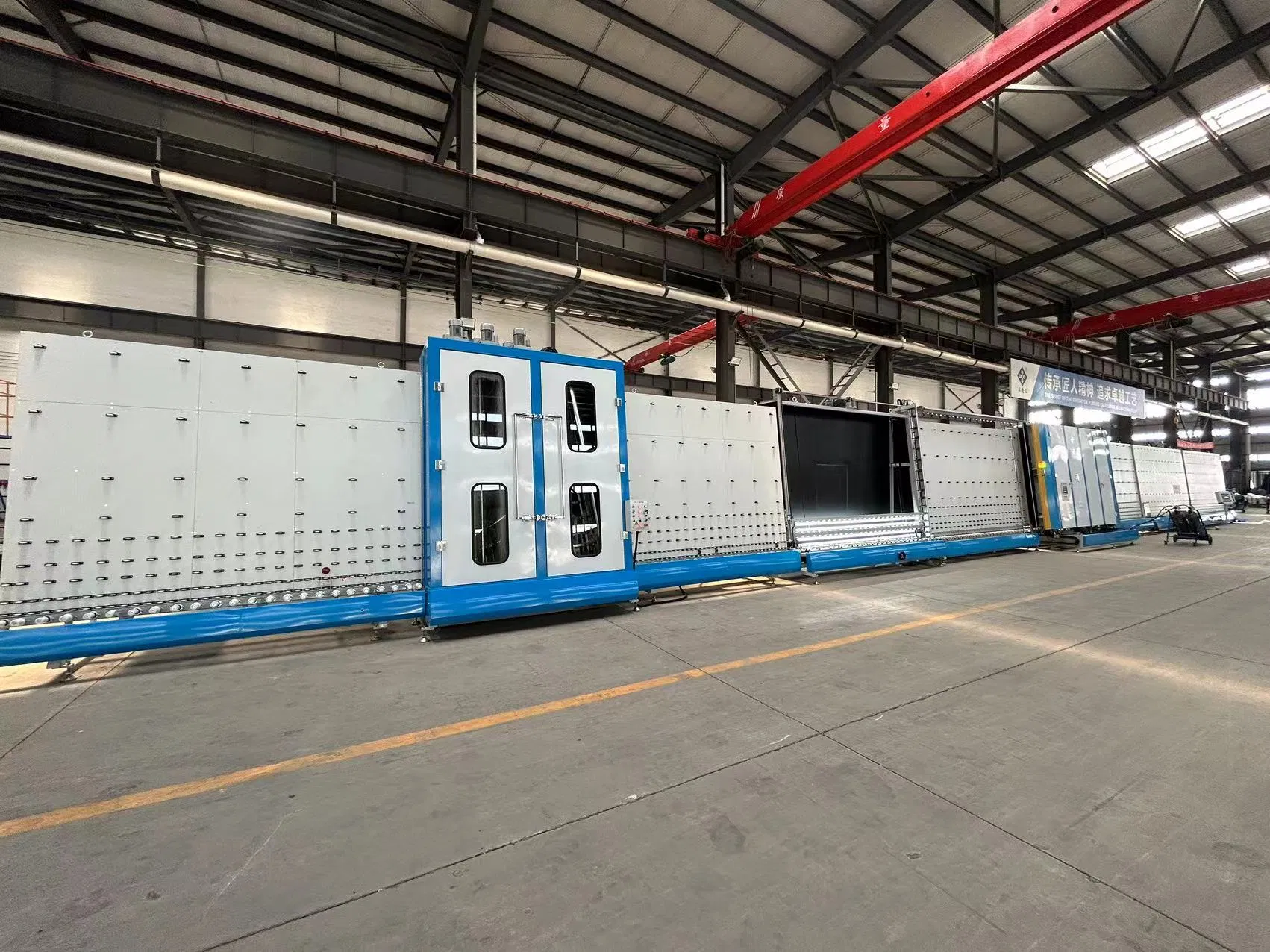

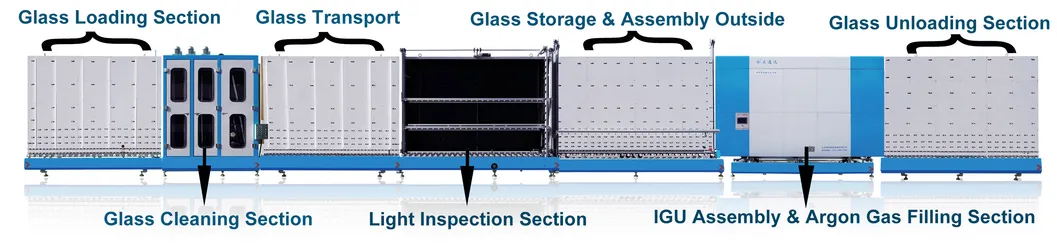

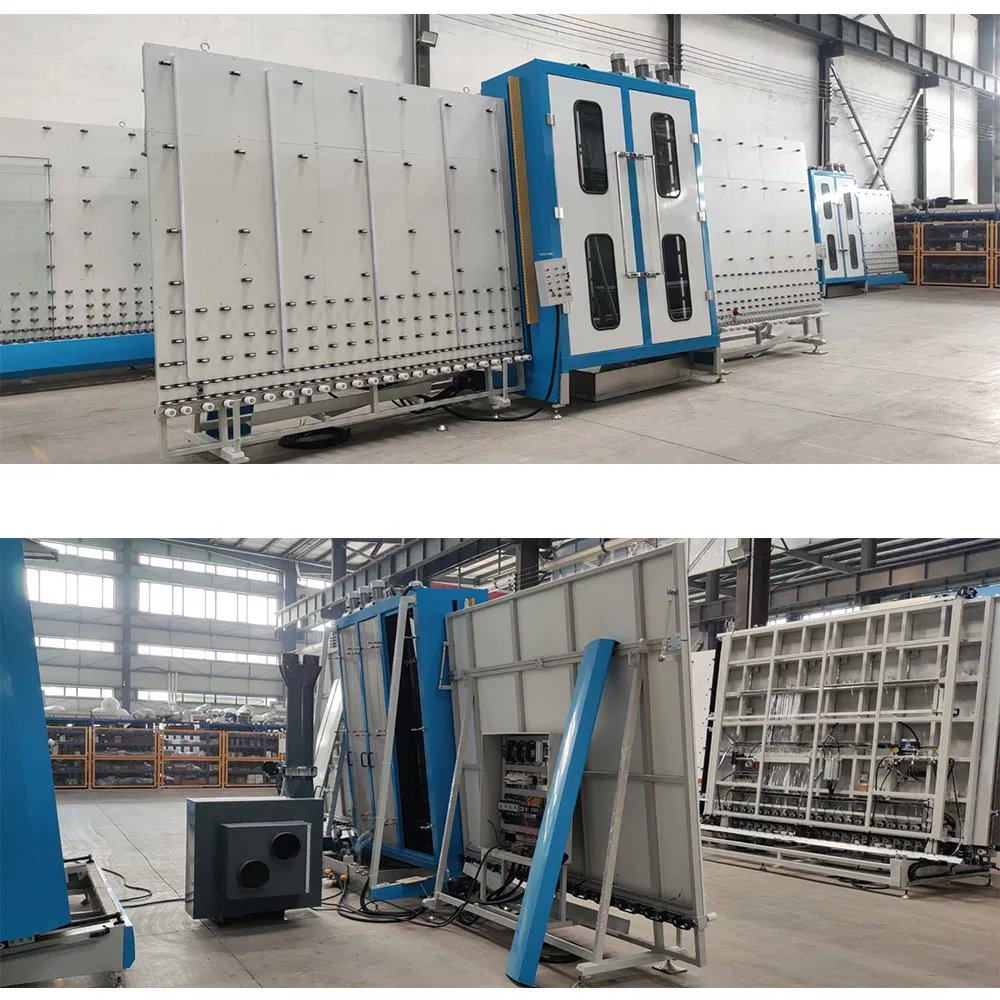

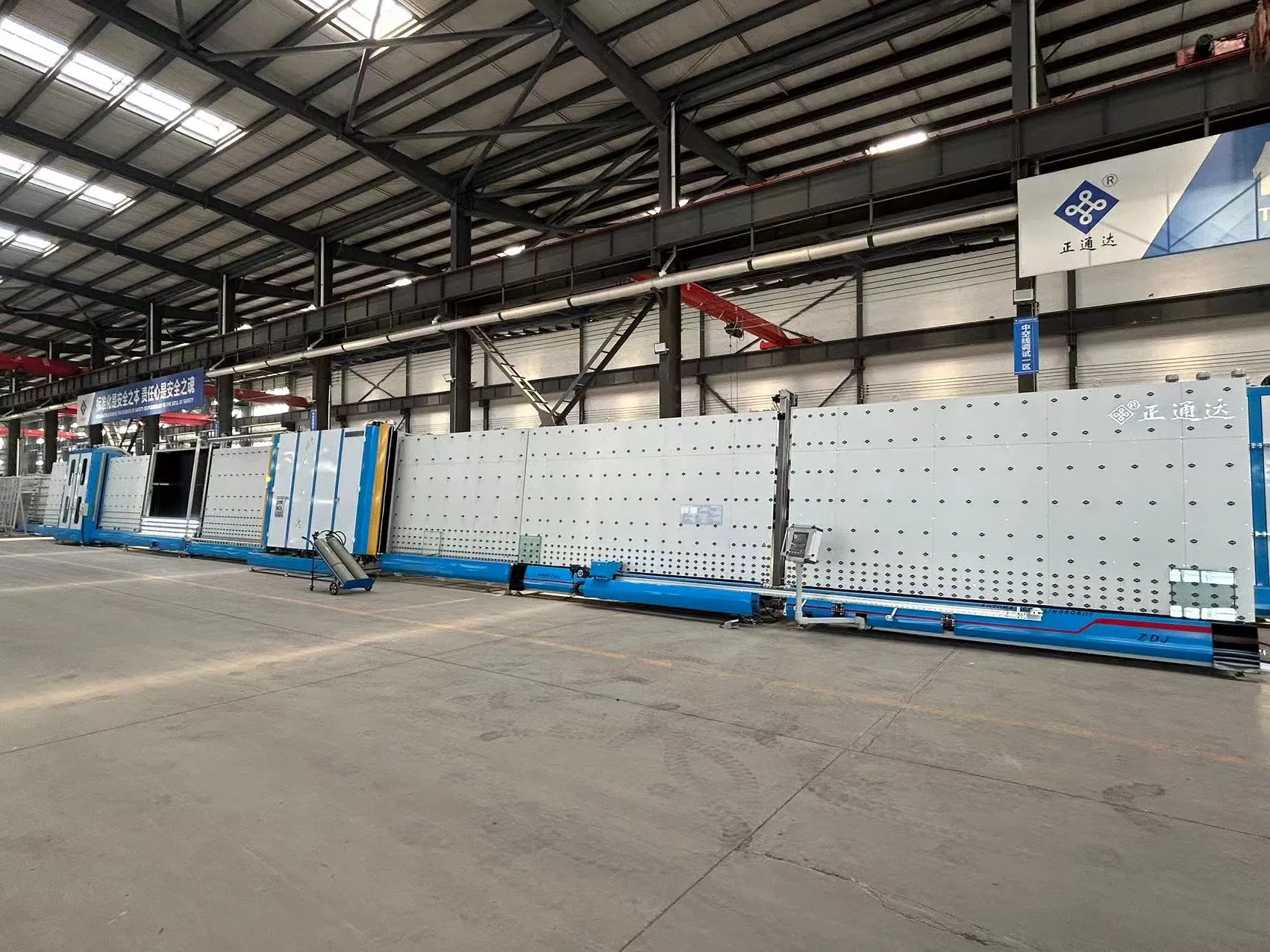

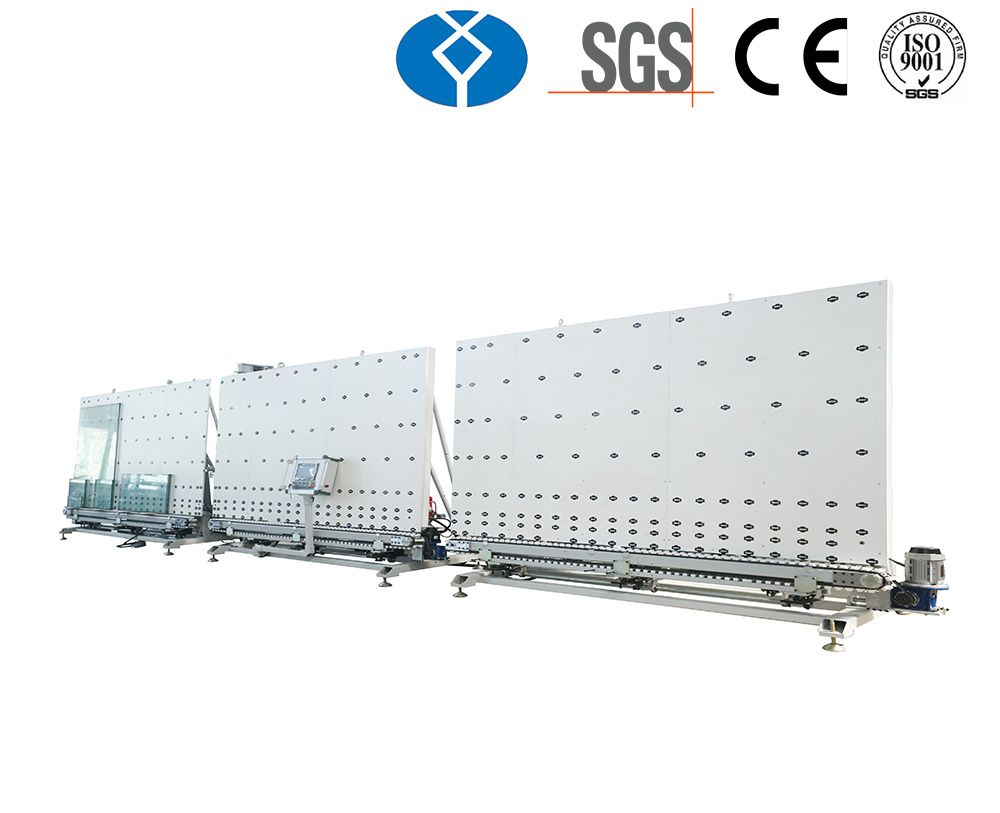

This Vertical Insulating glass machine is composed of 7 key sections designed for high-speed washing of Low-E glass and efficient gas filling. Controlled by PLC, it features automatic frequency control of motor speeds across the entire line.

Key Performance Characteristics

• Premium Brushes: Three pairs of DuPont brushes (USA) for durable use and Low-E glass compatibility.

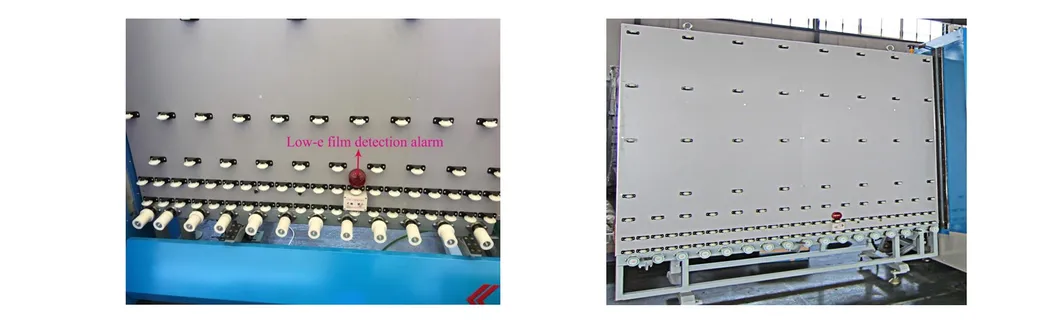

• Automatic Detection: Distinguishes coating sides of coated and Low-E glass with alarm signals.
• Quality Bearings: Uses SKF waterproof, oil-free bearings from Sweden to maintain water cleanliness.
• Robust Material: Washing body made of stainless steel and anti-rusting materials.
• Elite Controls: PLC and electrical elements utilize Schneider brand (France).
• High Efficiency Gas Filling: Achieves over 95% inert gas filling efficiency within the press section.
• Triple Layer Support: Capable of processing double and triple layers of insulating glass with ease.

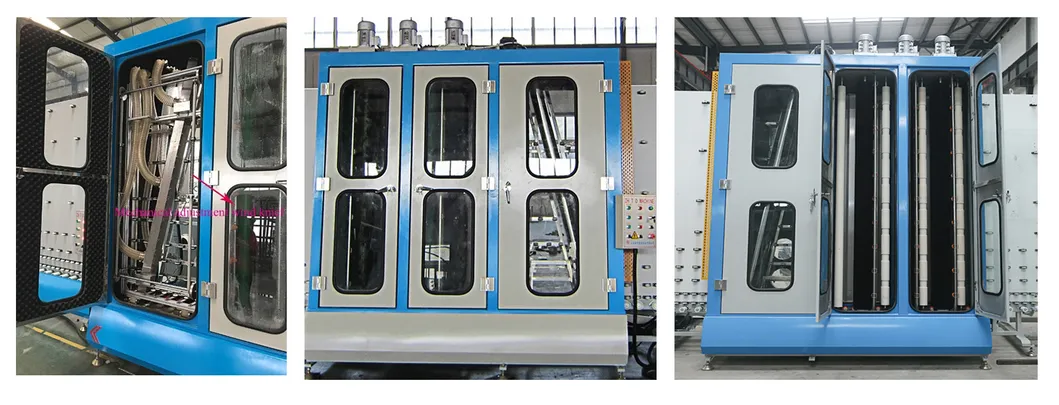

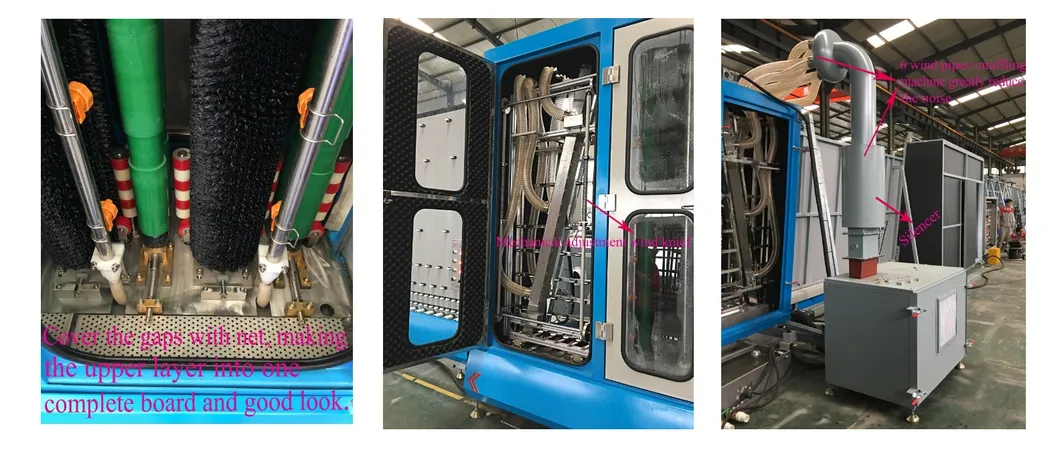

Section 2: Washing and Drying

Features a 15kw fan and two pairs of wind knives with muffling equipment to reduce noise. The washing section is a single piece of stainless steel to prevent leaking.

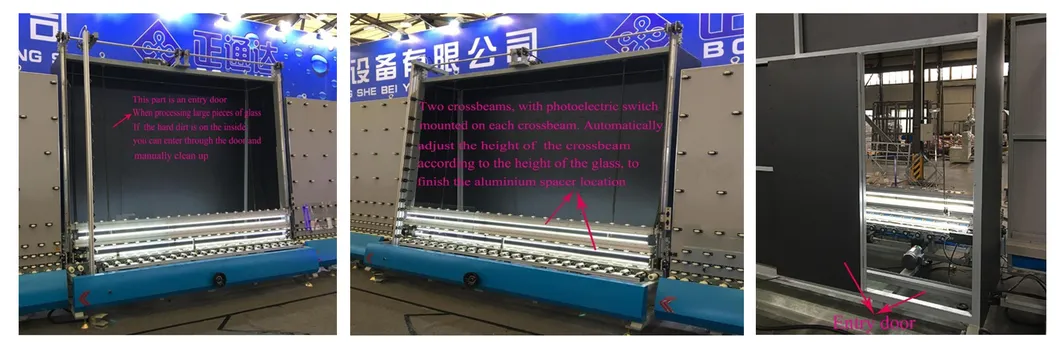

Section 4: Inspection & Spacer bar Positioning

Uses photoelectric switches for automatic height induction. Includes an entry design allowing workers to manually clean any stubborn dirt before assembly.

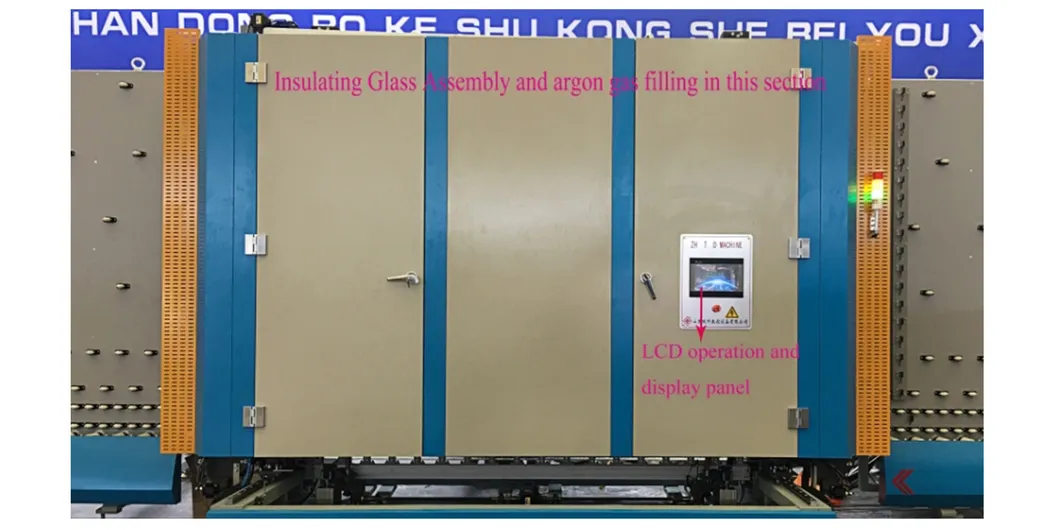

Section 6: Assembly & Gas Filling

Equipped with 18 photoelectric switches corresponding to 18 gas filling gears. The servo motor ensures the board is pressed smoothly at a uniform speed, achieving European standard gas filling levels.
