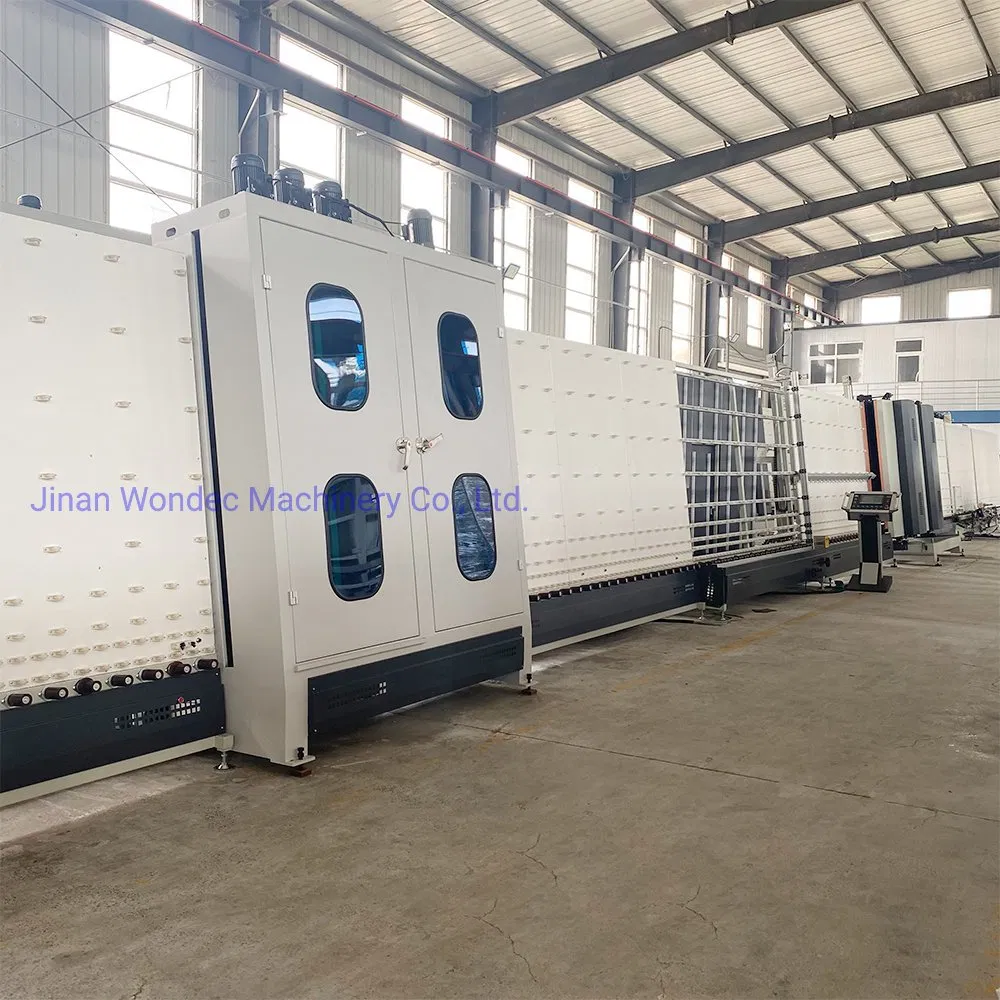

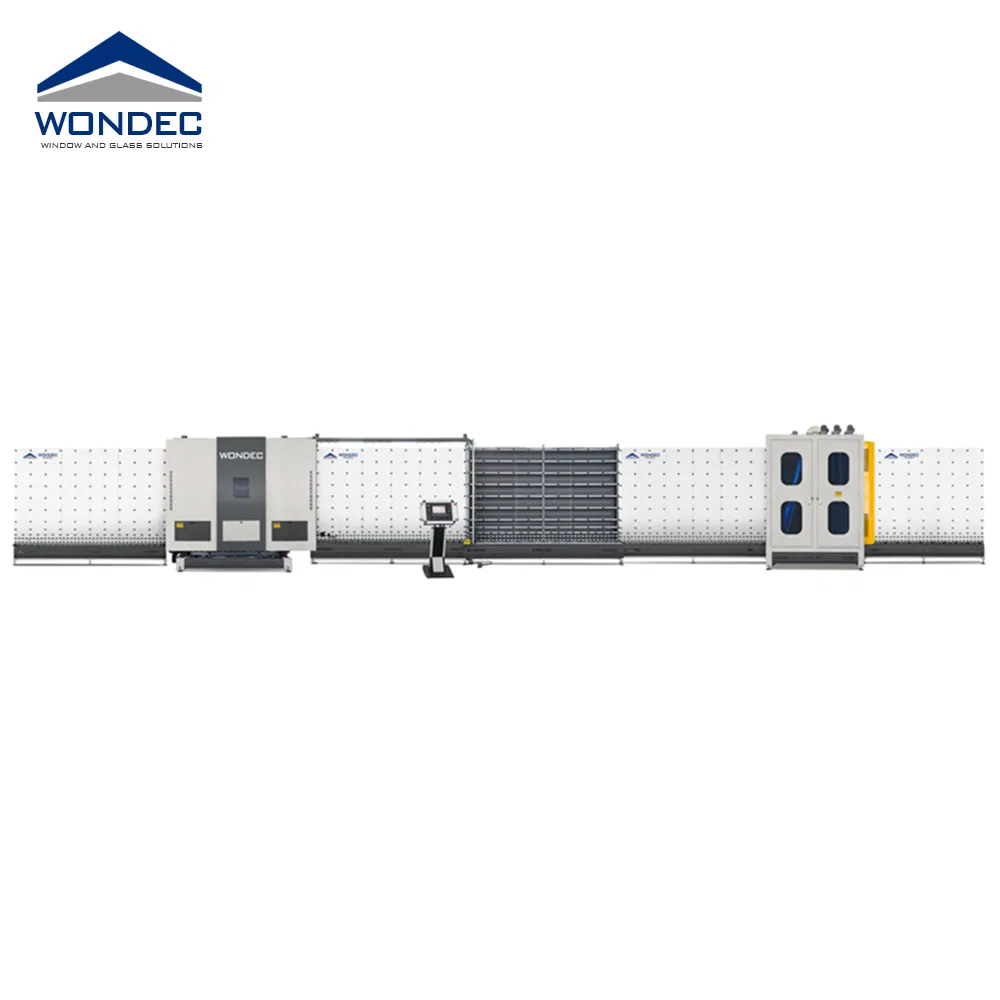

Automatic High Speed Vertical Double Glazing Glass Machine Production Line

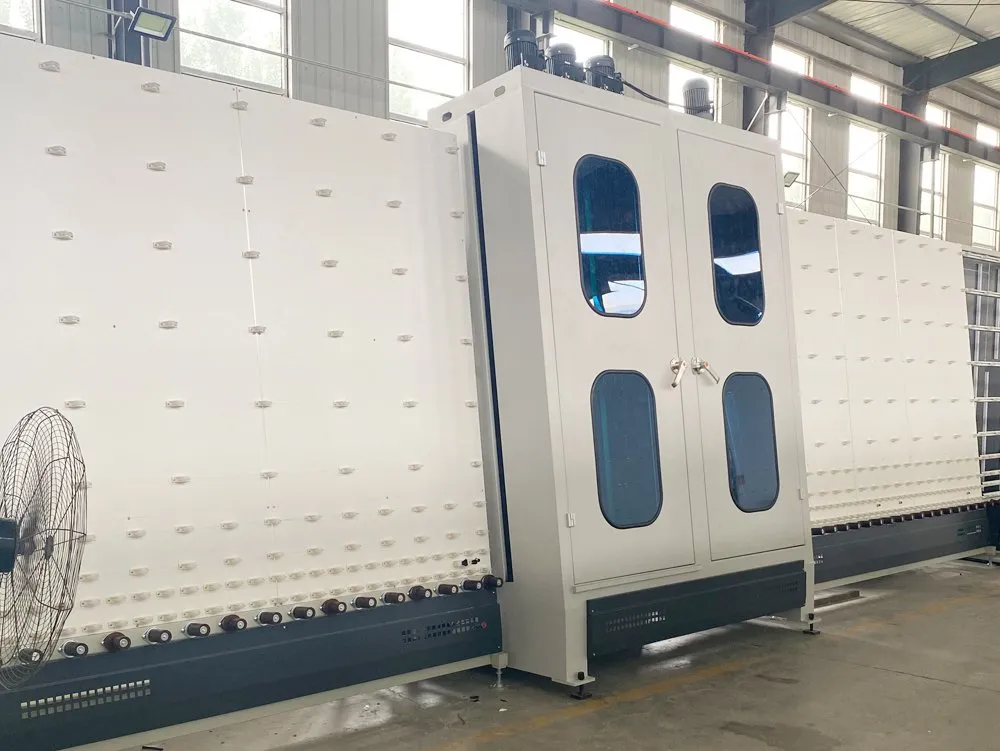

Automatic Vertical Insulating Glass Argon Gas Filling Production Line

This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance. It can be upgraded and expanded according to user's requirements.

Mainly used to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are utilized for coating glass and Low-e glass detection.

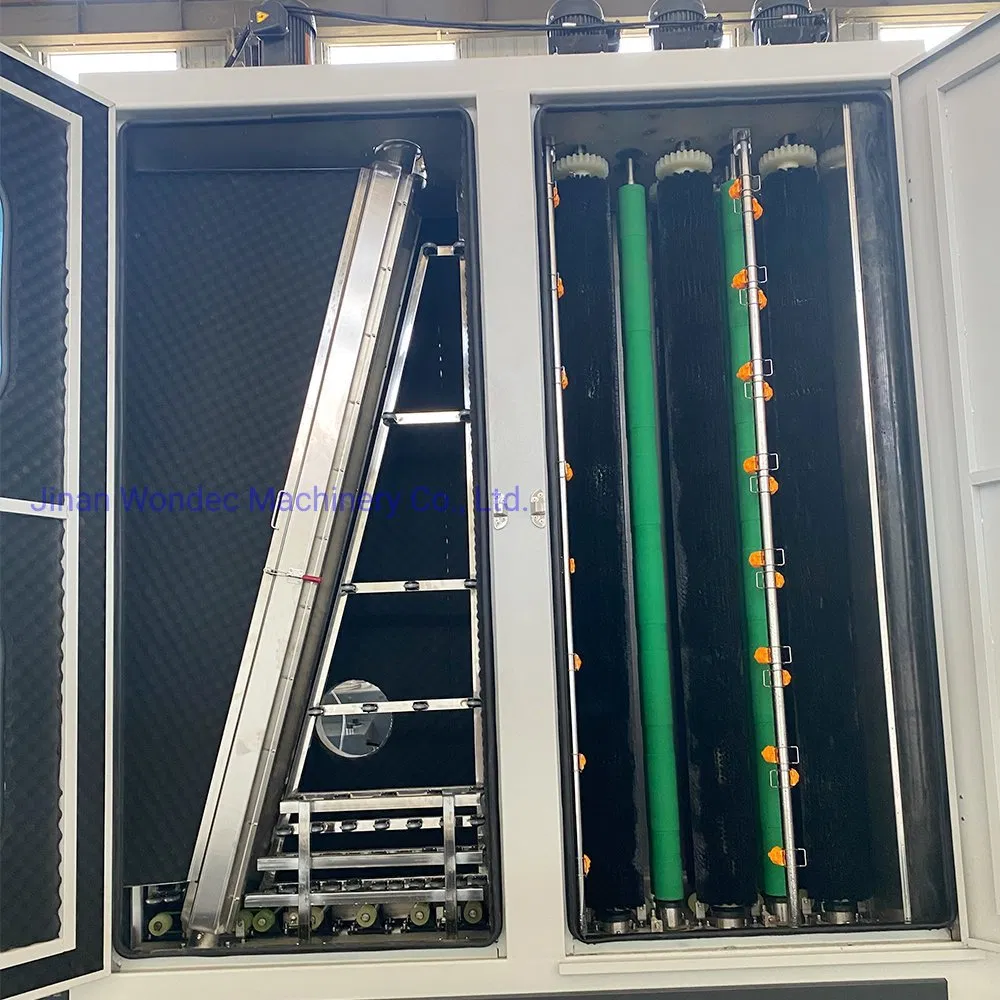

• Stainless steel and corrosion-resistant materials used for washing area and water system.
• 6 brushes driven by 6 independent motors for continuous operation.
• Direct coupling connection between brush and motor prevents slipping.
• Includes 0.1mm soft brushes for Low-E glass and 0.2mm hard brushes for ordinary glass.

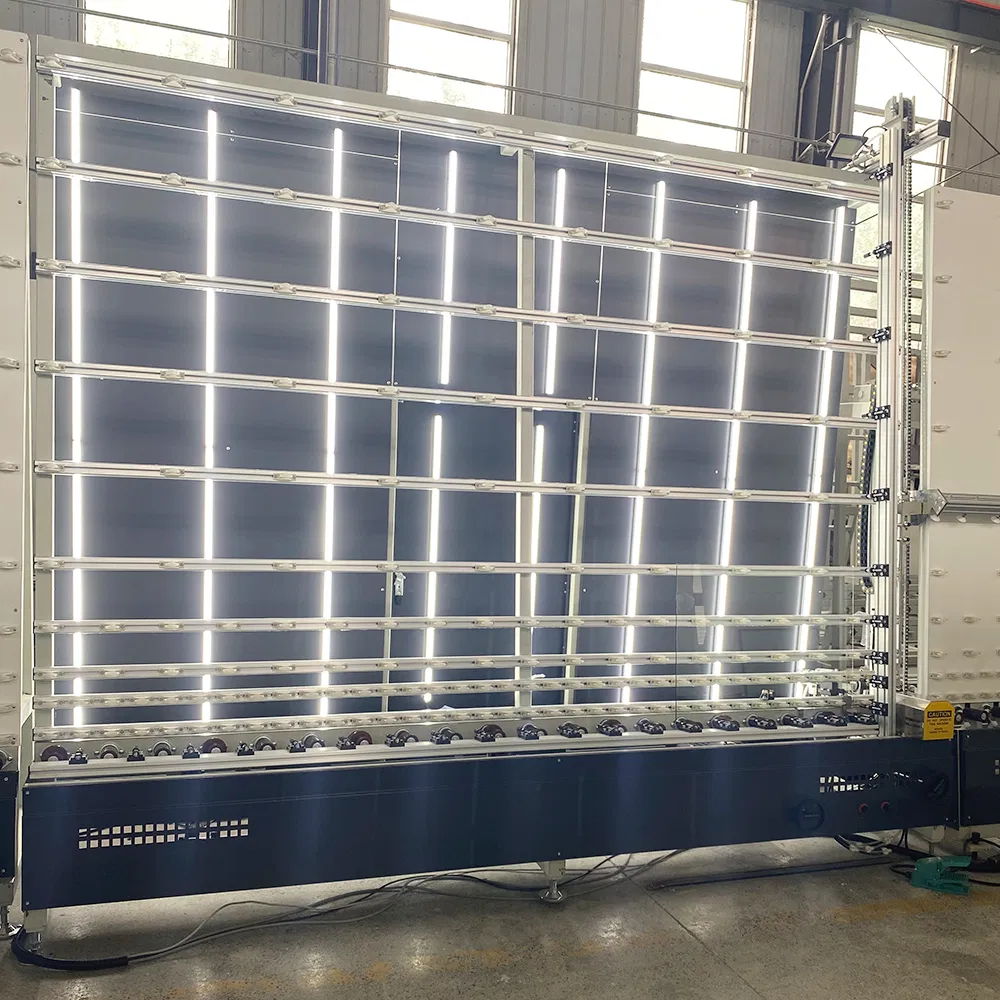

Adopts dual motors to drive the transmission. Two small glasses can be parked simultaneously to improve efficiency.

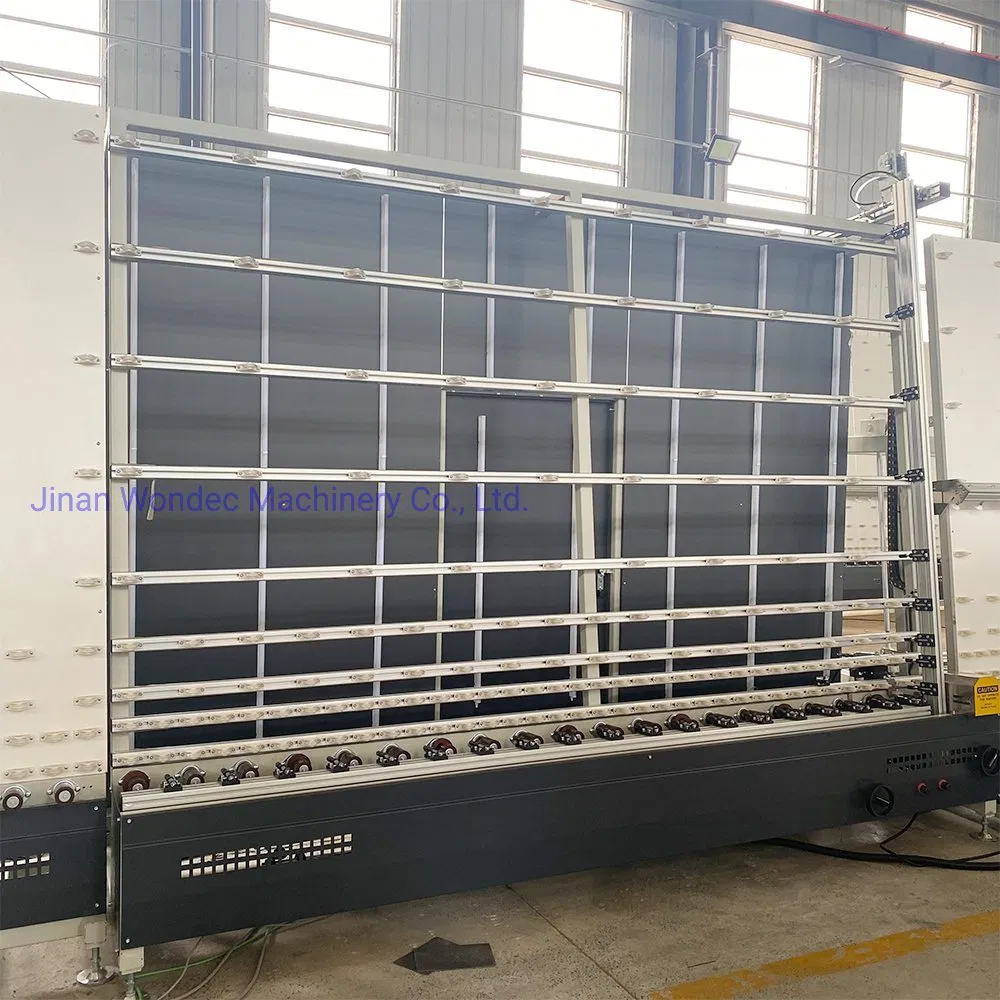

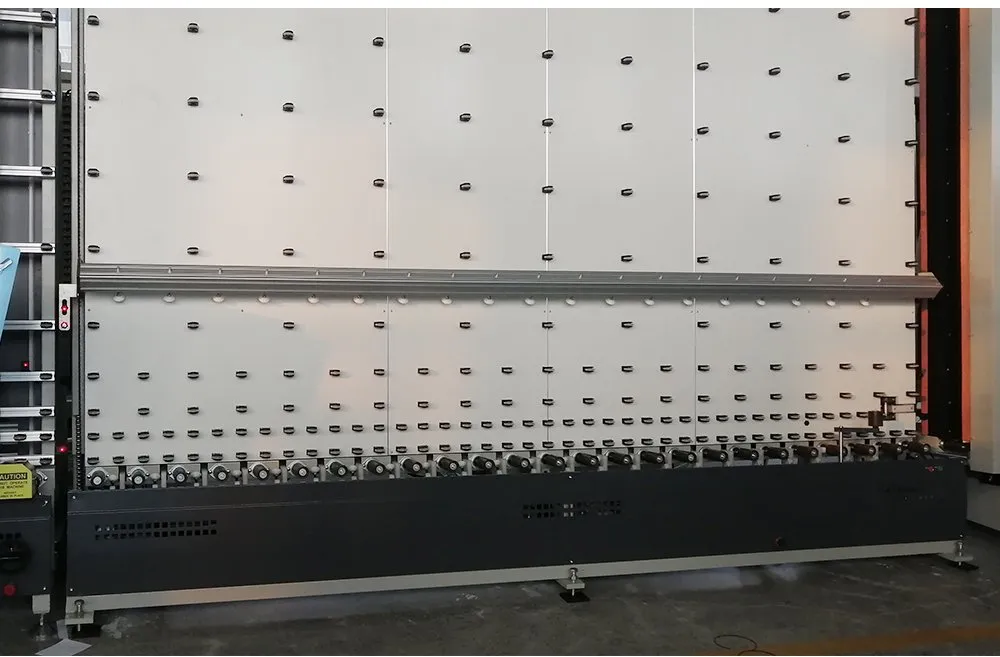

• Constructed with high-grade aluminum-alloy profiles.
• Equipped with a movable door for easy back-side glass cleaning checks.
• Energy-saving high-quality LED lamps for thorough inspection.

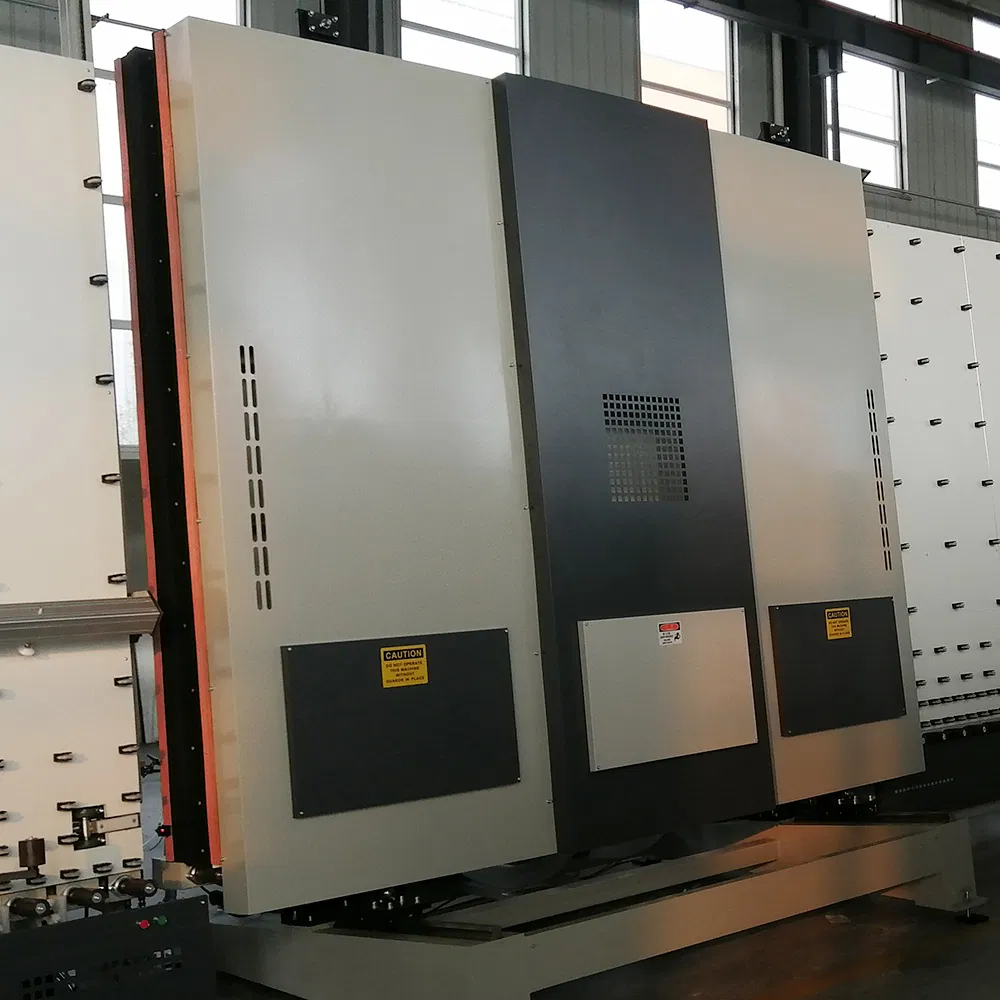

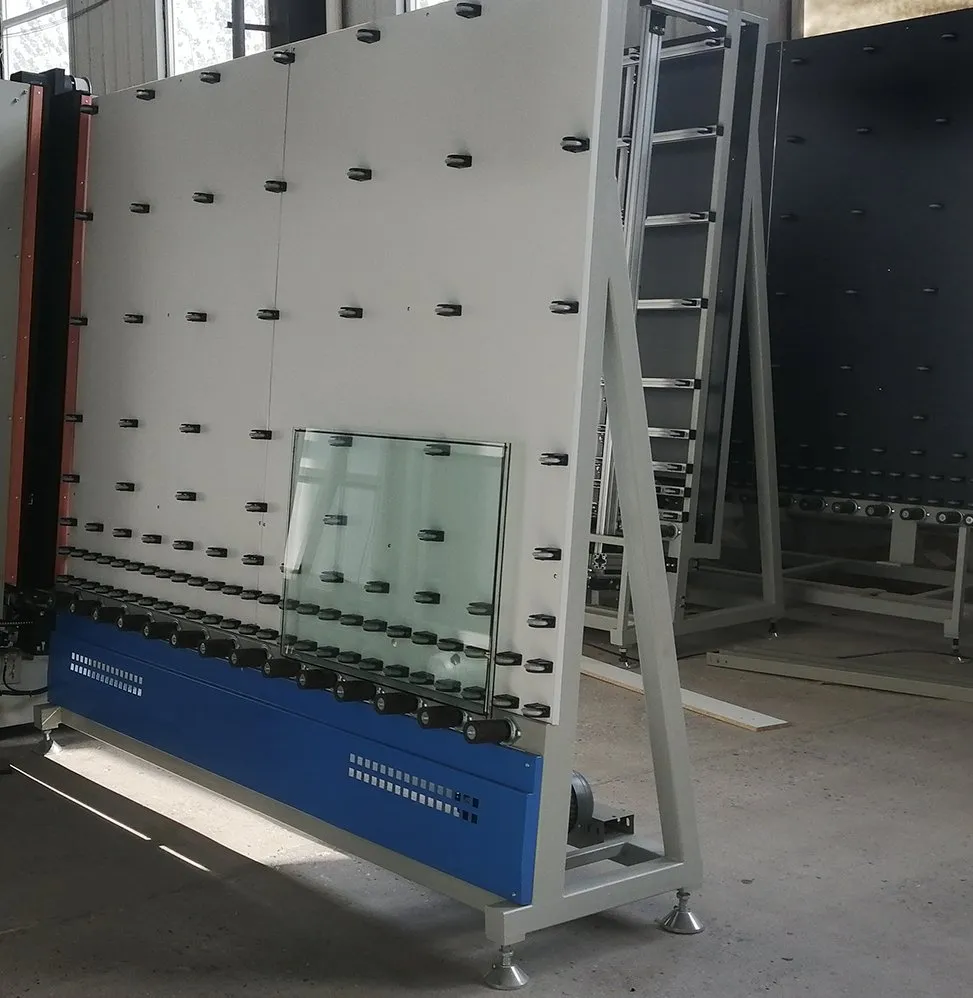

Offers fast and efficient assembly with a low failure rate.

• Denser steel frame for superior machine body strength.
• Panel press controlled by high-precision Servo motor.
• Adjustable two-layer front pressing plate ensures long-term flatness.

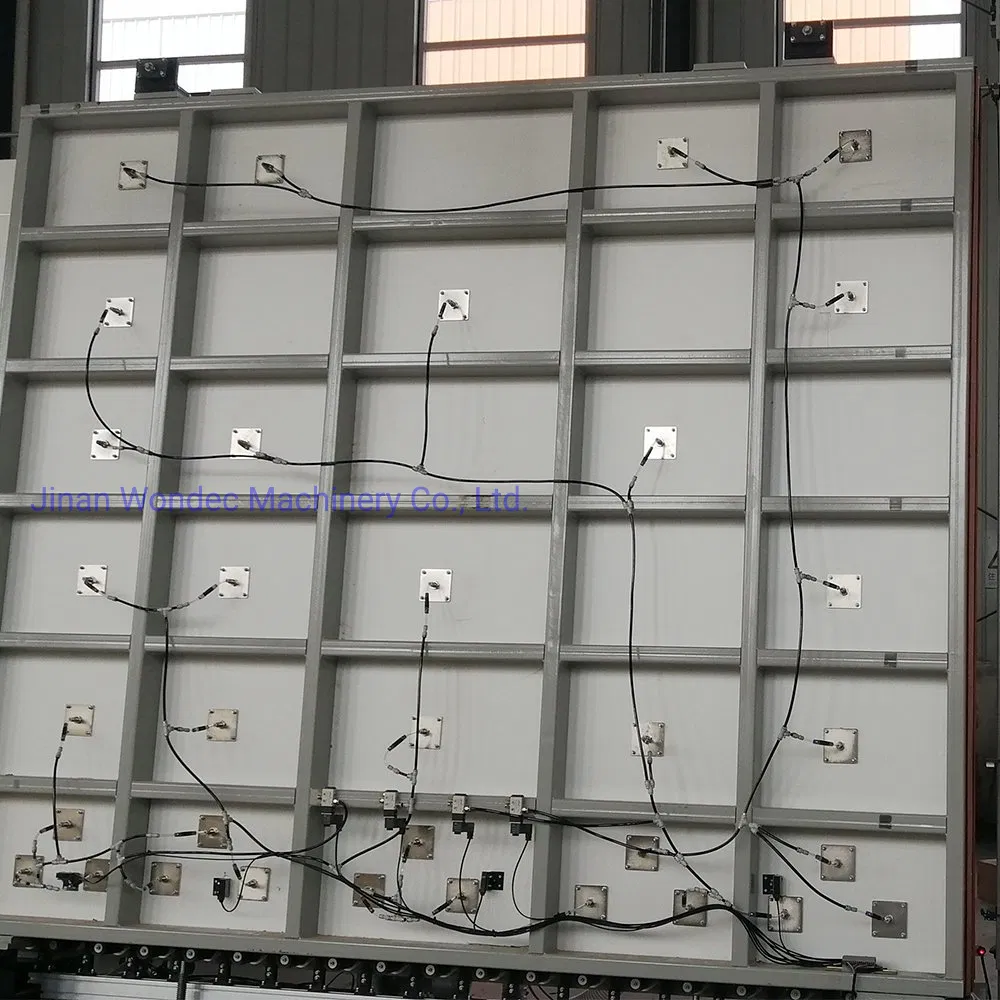

• Partitioned suction cups work via separate logic valves based on glass size.
• Automatic online gas filling suitable for double and triple IGU.

Used to transmit and store glass units. It integrates seamlessly with sealing robots to manage storage efficiently.
