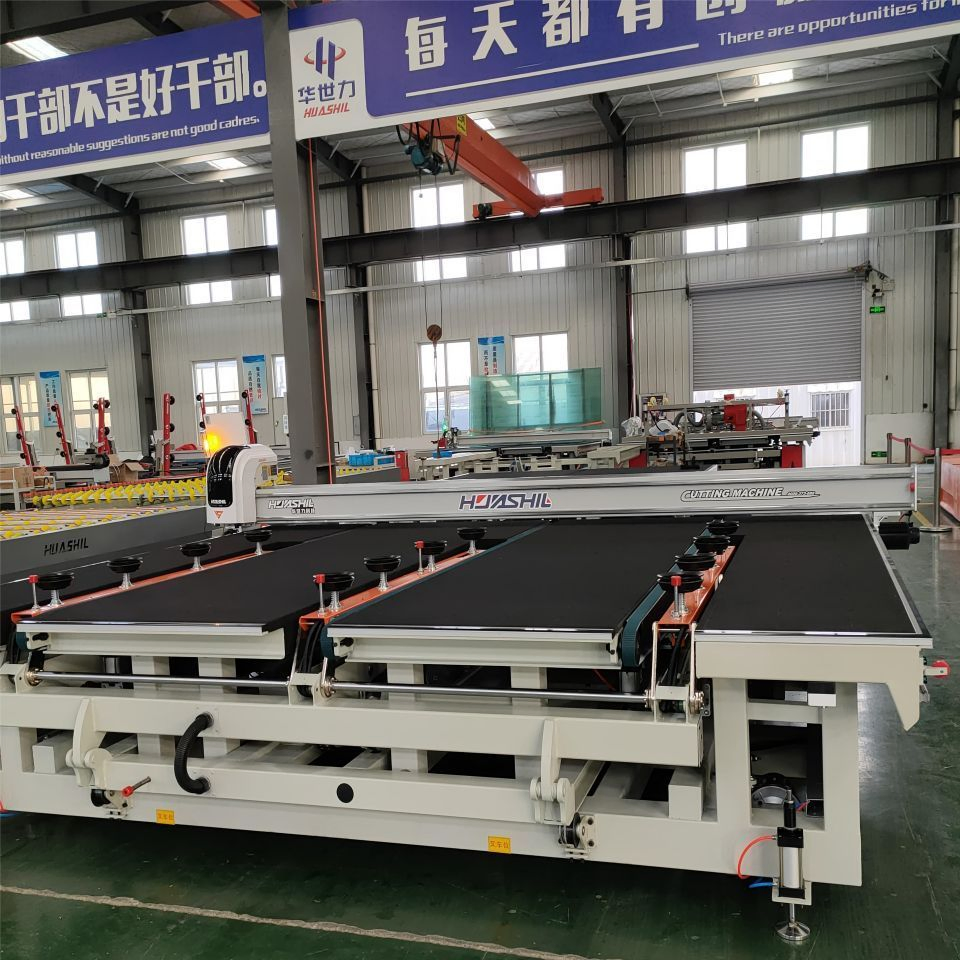

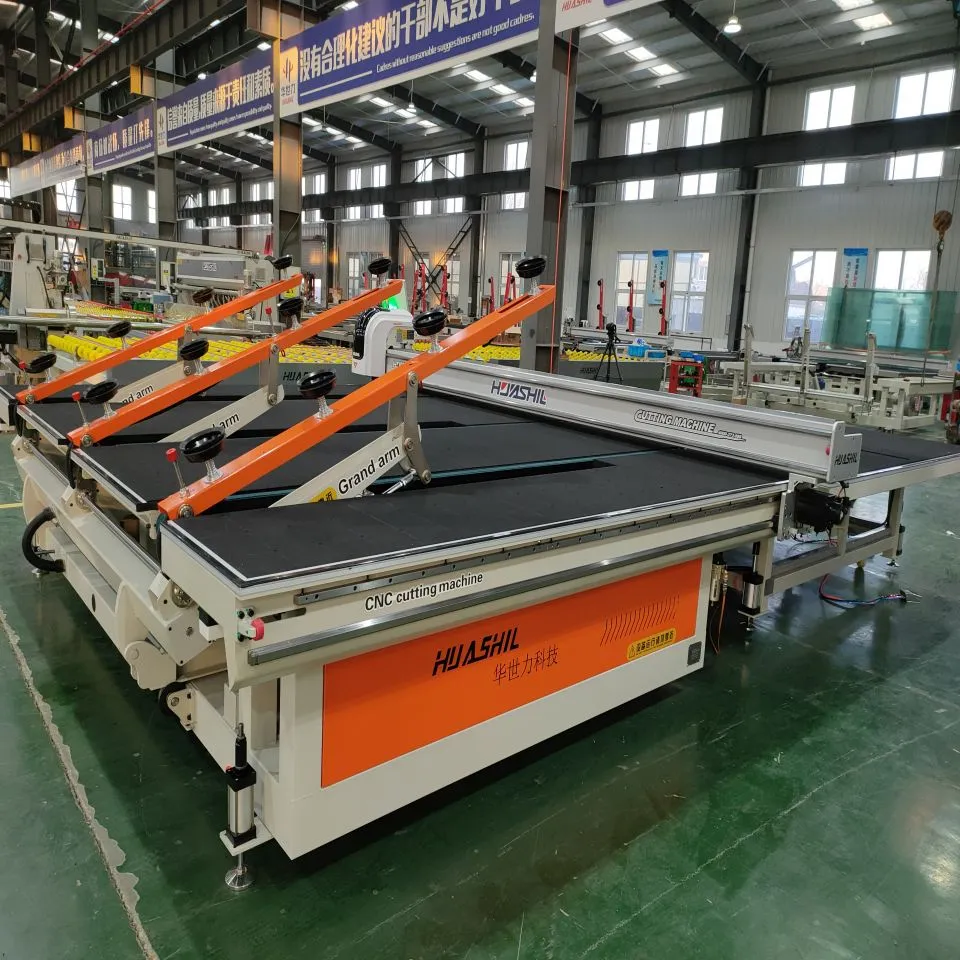

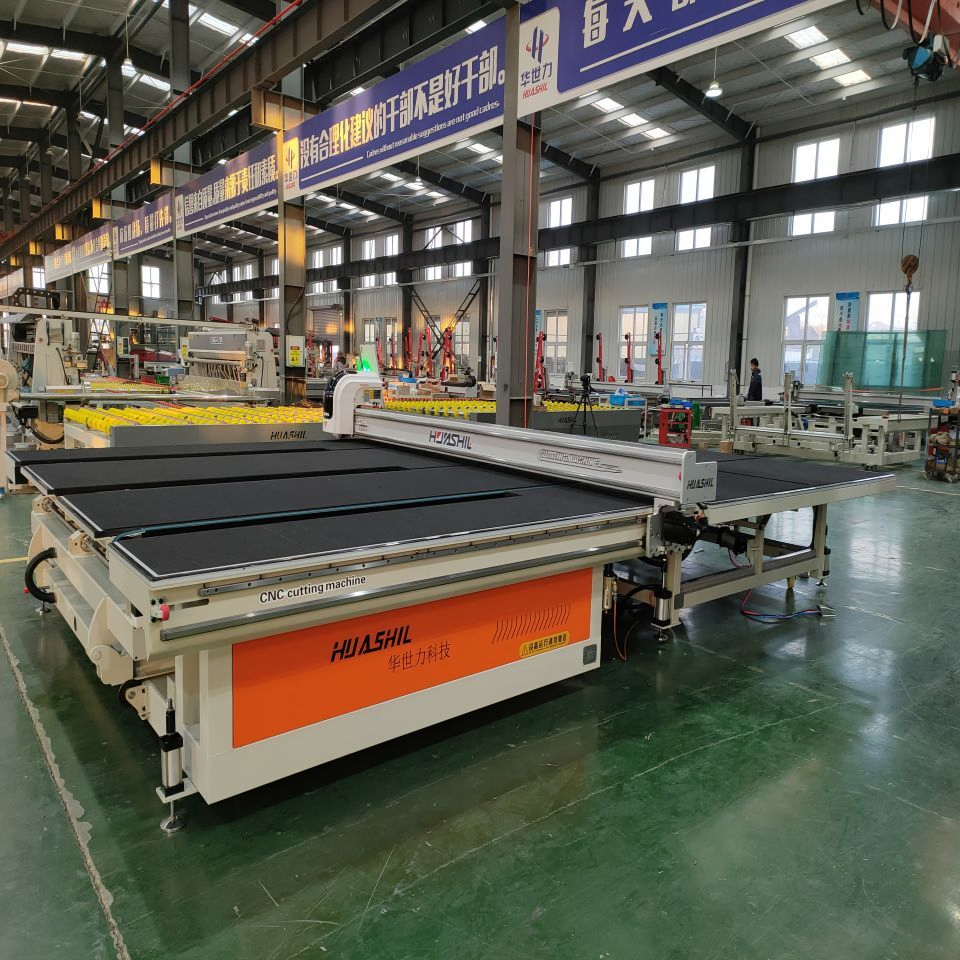

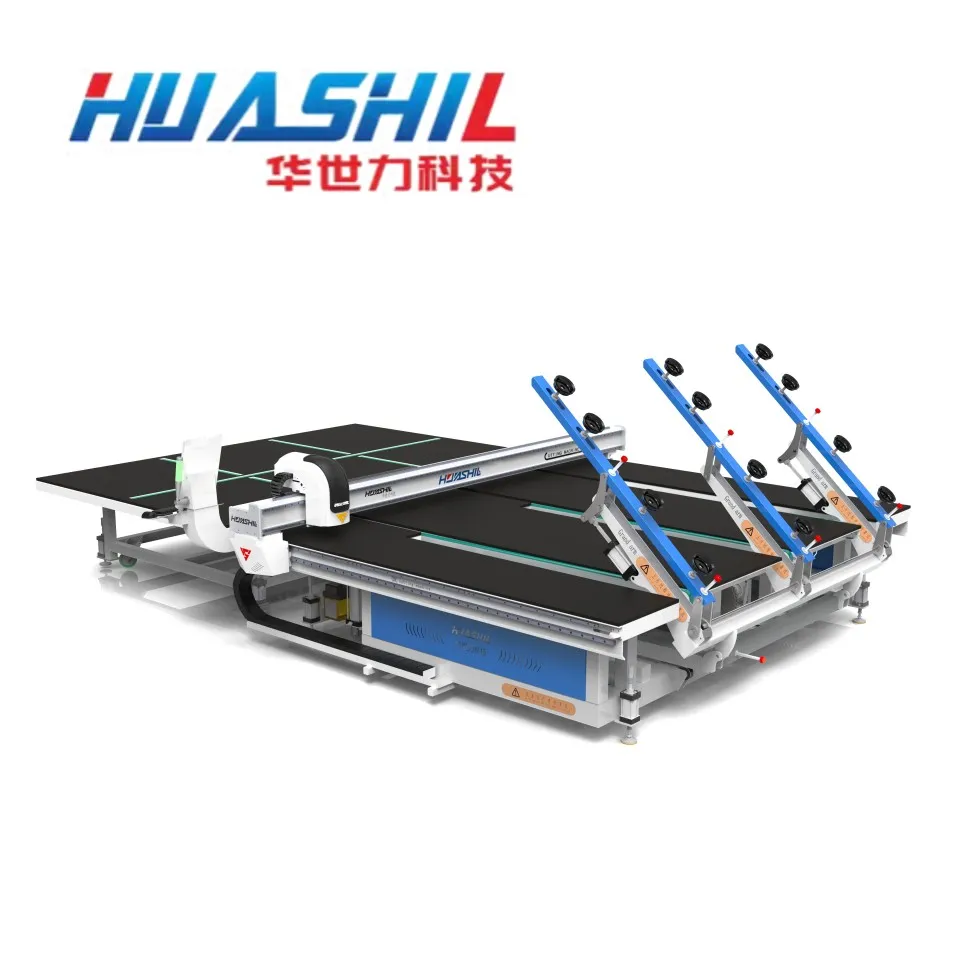

| Model NO. | HSL-YTJ3826 | Maximum Glass Size | 3660*2440mm |
| Power Supply | 380V/50Hz | Safety Features | Emergency Stop Button |
| Warranty | 1 Year | Power | 17.5kw |
| Dimensions | 5700*4400*1630mm | Cutting Speed | 0-200m/Min |
| Cutting Accuracy | <=+-0.2mm/M | Table Height | 0.87m |
| Color | Orange | Certification | CE, ISO |
| Structure | Horizontal | Production Capacity | 100set/Month |
| Cutting Control & Layout Optimization |

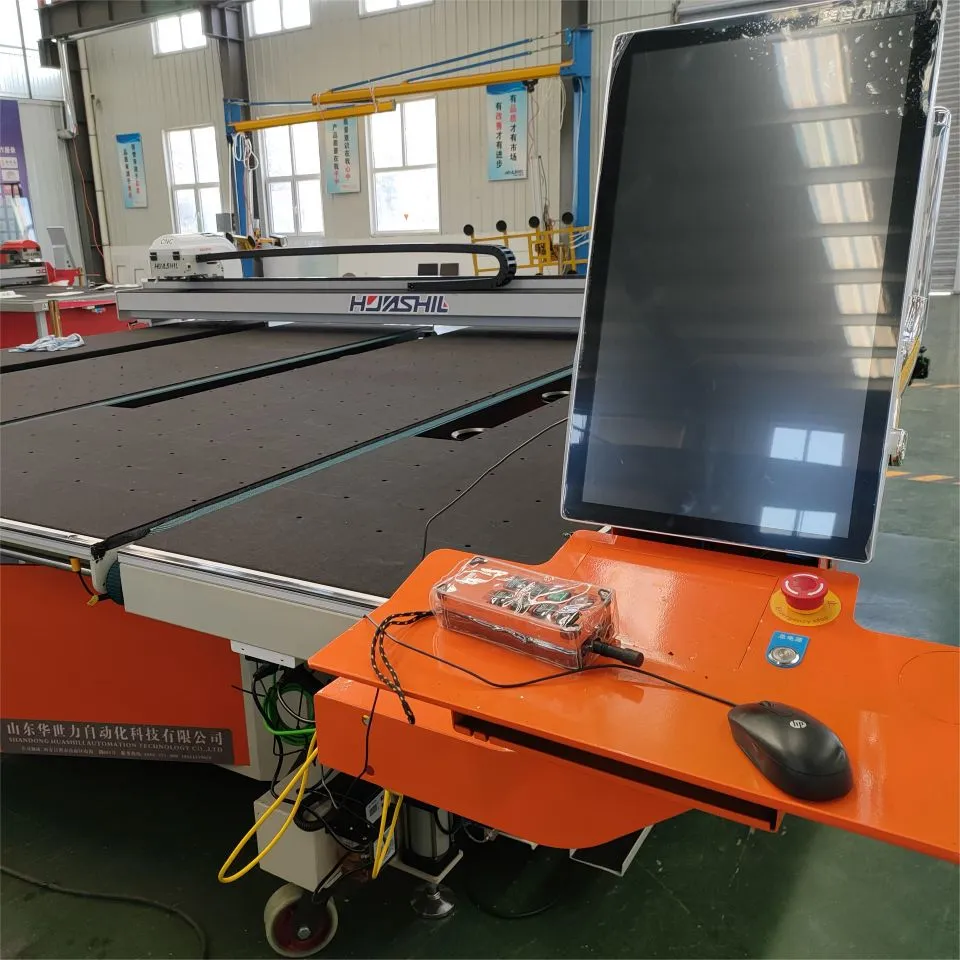

1. Professional glass cutting and optimized typesetting functions: greatly improve the glass cutting rate and production efficiency. 2. Italian OPTIMA optimization software: achieving versatility in processing files in different formats. 3. Fault diagnosis and alarm function: It can automatically record the machine operating status, fault alarm and display problems. |
| Fiber Laser Positioning |

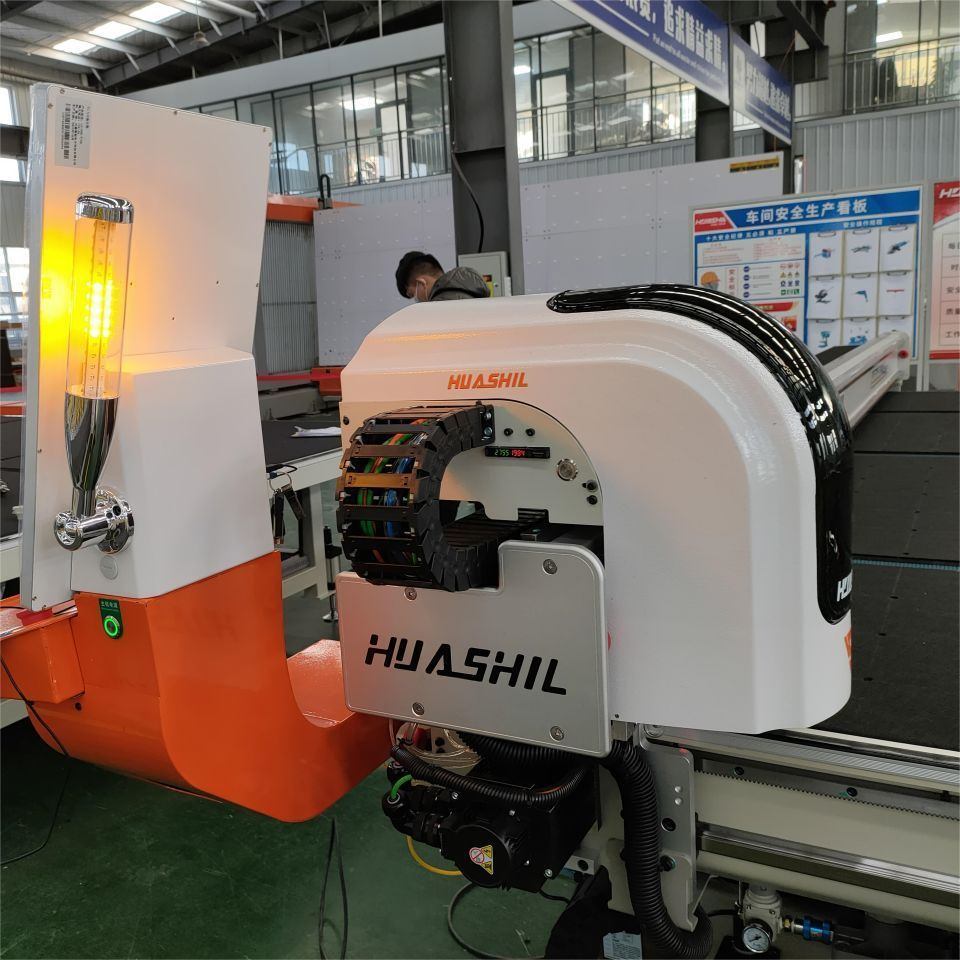

1. Automatic edge-finding and positioning: Accurately detect the actual position and deflection angle of the glass. 2. Intelligent special-shaped scanning: Intelligently scan special-shaped objects to automatically generate graphics for profiling cutting. |
| Cutting Technology | The pressure of the cutting head is controlled by an electromechanical precision pressure valve, enabling the head to perfectly fit the glass surface and avoiding knife skipping. |
| Automatic Oil Supply | Kerosene is automatically filled using pneumatic pressure control, synchronized with the cutting head via PLC. |

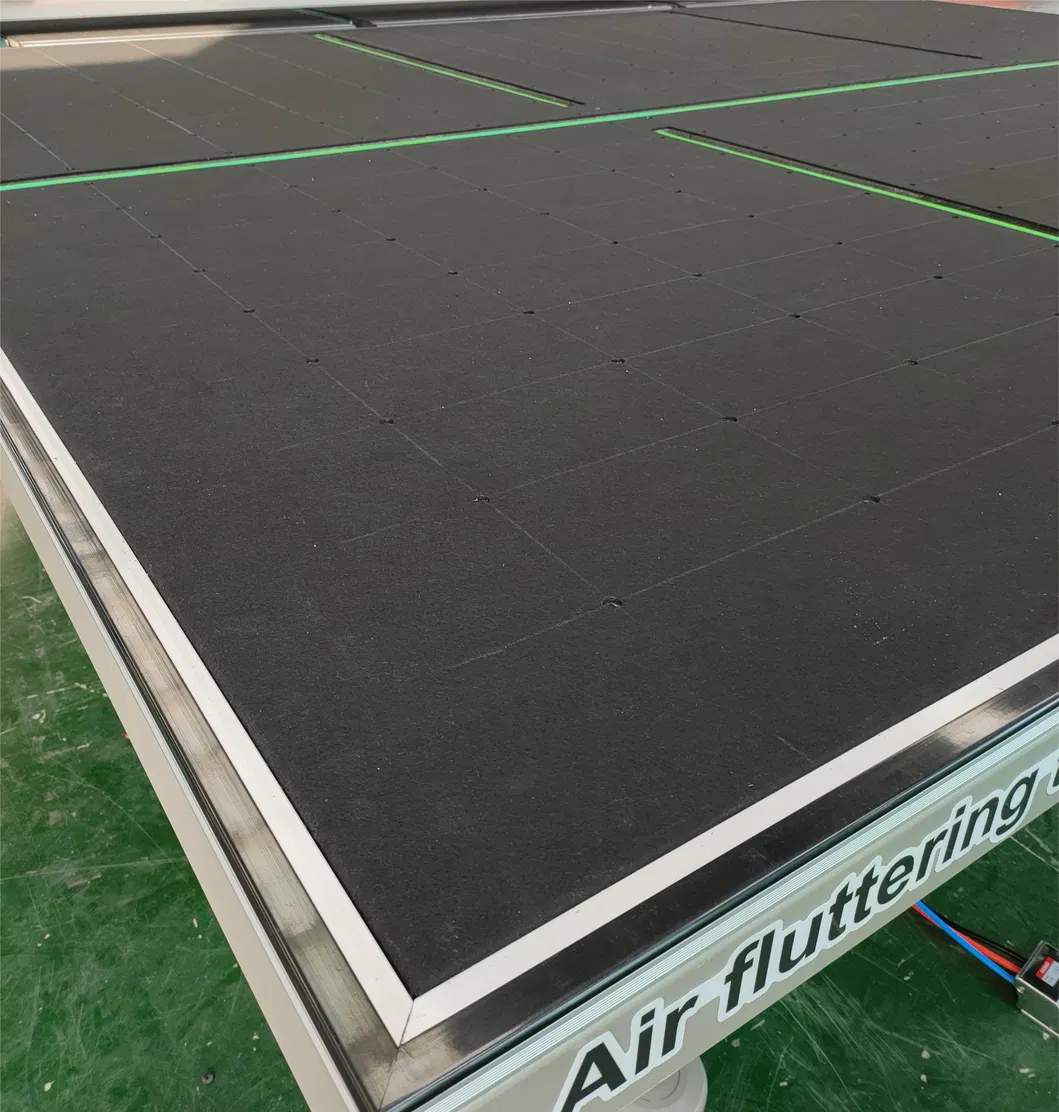

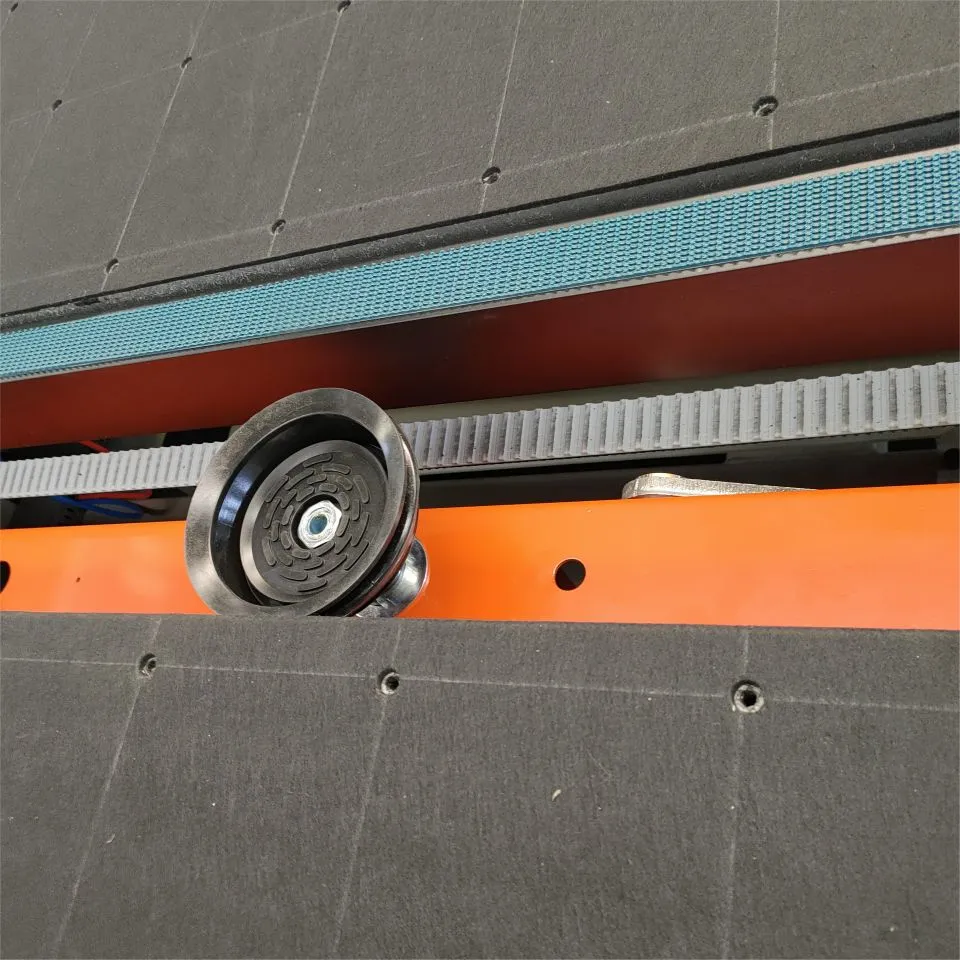

| Countertop Air Flotation | Equipped with air holes and a centrifugal fan providing high-pressure airflow to facilitate glass transportation and protect the table surface. |
With extensive experience in mechanical automation, the equipment performance and modeling remain at a leading level. The company adheres to the principle of "good faith first" and has established long-term cooperative relations with numerous global enterprises.
