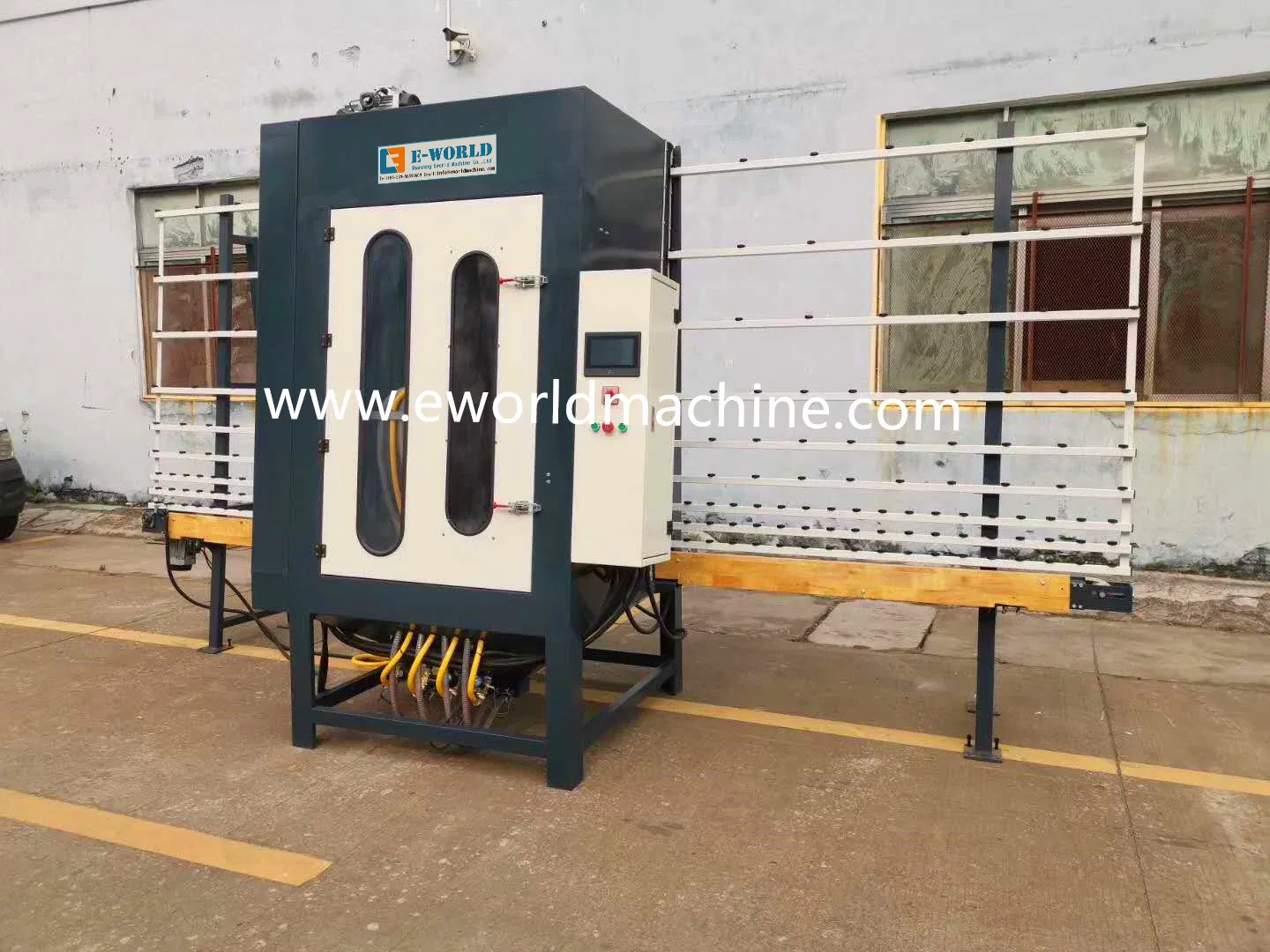

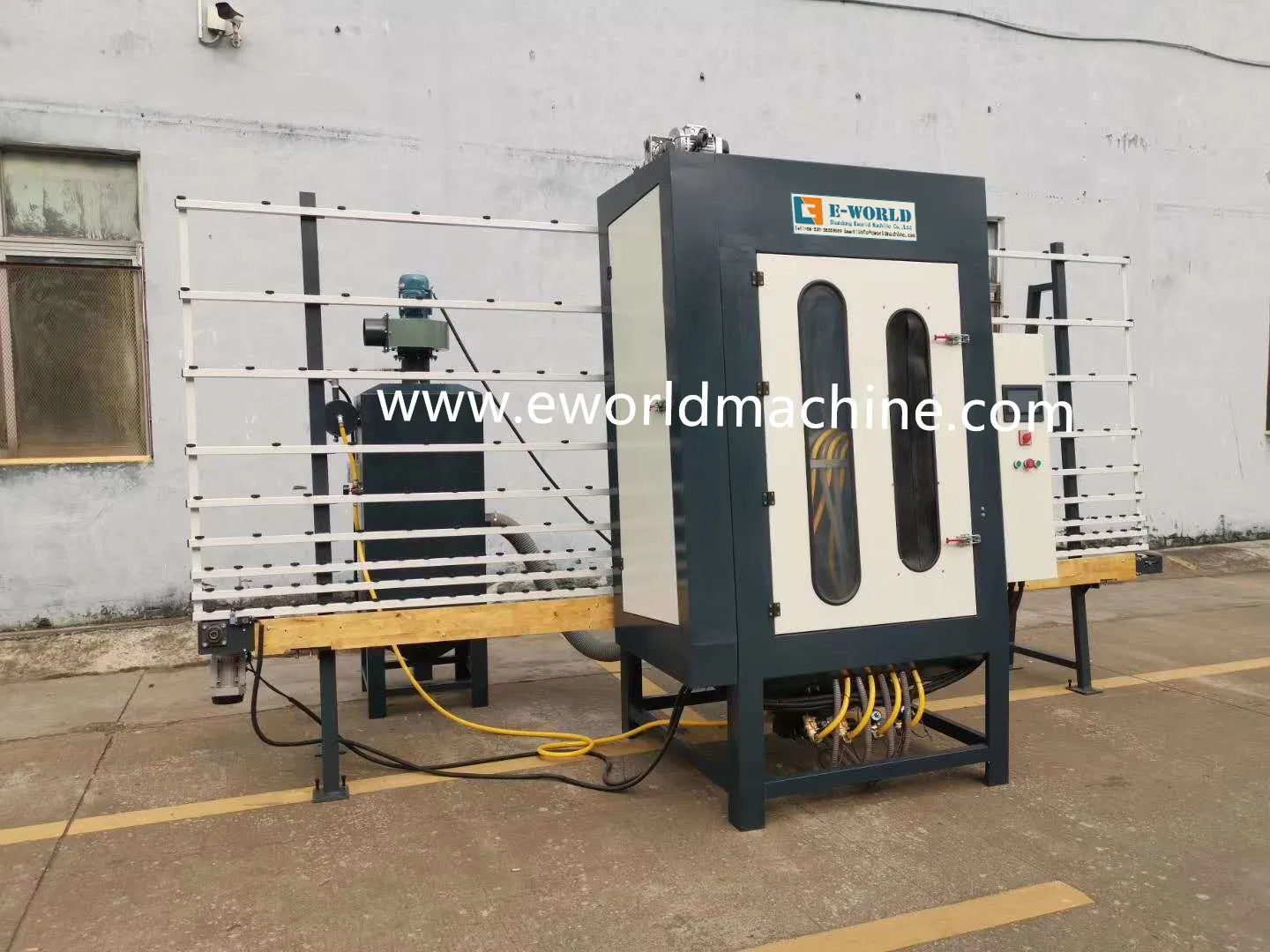

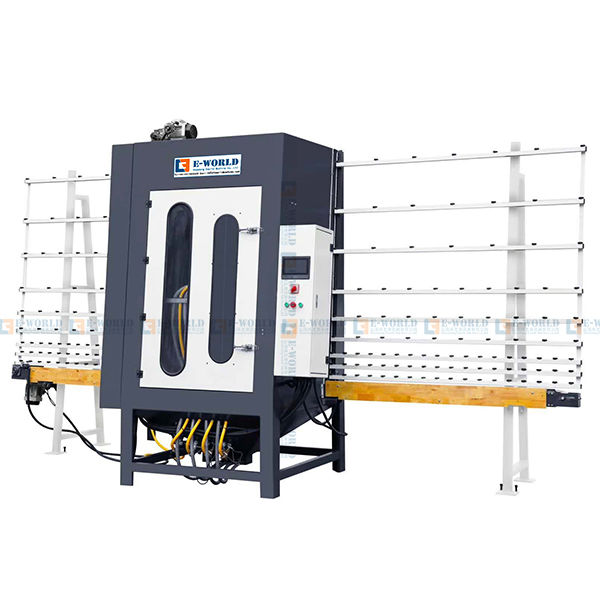

Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
1 / 5
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery
Automatic Glass Frosting Machine Vertical Sandblasting Machinery

Automatic Glass Frosting Machine Vertical Sandblasting Machinery

Customization: Available
Control System: Industrial Computer
Glass Thickness: 5-50mm
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
PS1600
Weight
1300kg
Installed Power
3.5kw
Max. Glass Size
1600mm
Min. Glass Size
200*200mm
Sandblasting Speed
15-20m/H
Type
Glass Sandblasting Machine
Certification
CE, ISO
Structure
Vertical
Warranty
One Year
Condition
New
HS Code
8464201000
⚙️

Product Overview

Glass Automatic Sandblasting Machine, touch screen PLC control, either manual or automatic operate function, with 3 automatic blasting guns and 1 manual operation gun, suitable for processing flat glass thickness 5-50mm for steric pattern, timing belts glass transmission, when glass arrive the position for sandblasting, the 3 blasting guns driven move up-and-down to spurt out sand.

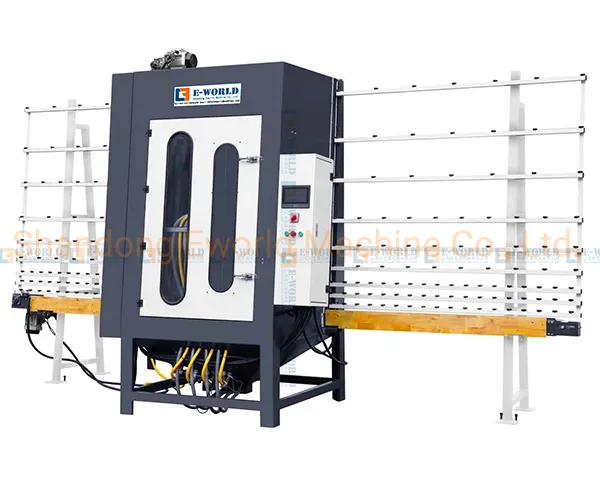

Automatic Glass Frosting Machine
📊

Technical Parameters Comparison

Model PS-1600 PS-2000 PS-2500
Max. Size1600mm2000mm2500mm
Min. Size200*200mm200*200mm200*200mm
Thickness of Glass5-50mm5-50mm5-50mm
Sandblasting Speed15-20m²/h15-20m²/h15-20m²/h
Total Power3.5kW3.5kW3.5kW
Overall size4700x1500x2300mm6800x1500x2800mm6800x1500x3300mm
Weight1300kg1500kg1500kg
🛠️

Main Functions & Features

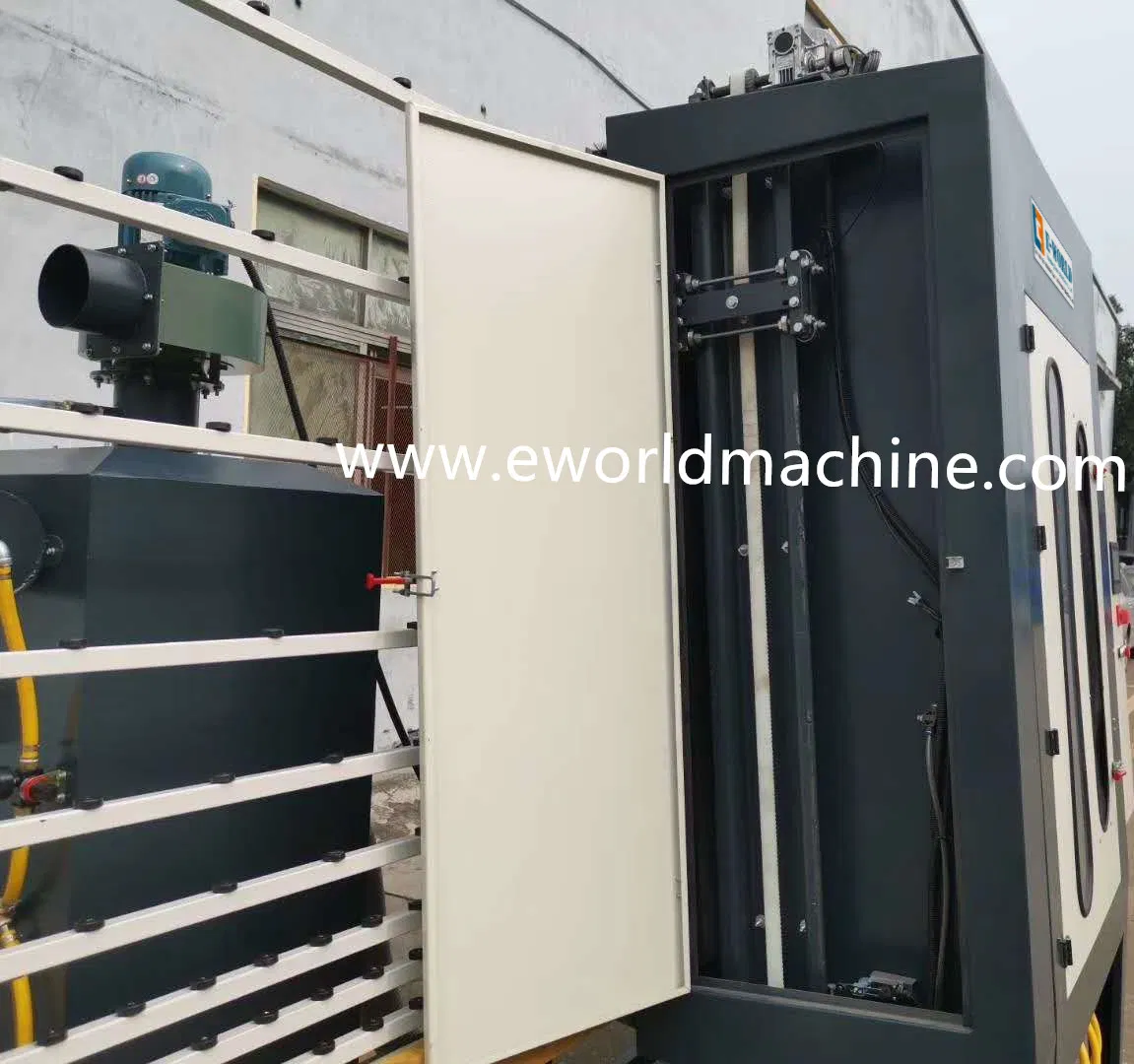

The height and the width of sandblasting can be adjusted according to the requirement. The advantages of the belts are stable on transmission, high efficiency and easy maintenance. The drive structure of the blasting gun is outside the machine which is good for a long period of working and daily maintenance.
Nozzle inner diameter: 8mm
Nozzle up/down speed: 8m/min
Glass conveyor speed: 5m/min
Production capability: 20m²/h
Conveyor belt width: 60mm
Air pressure: 0.6-0.8Mpa
🖼️

Product Gallery

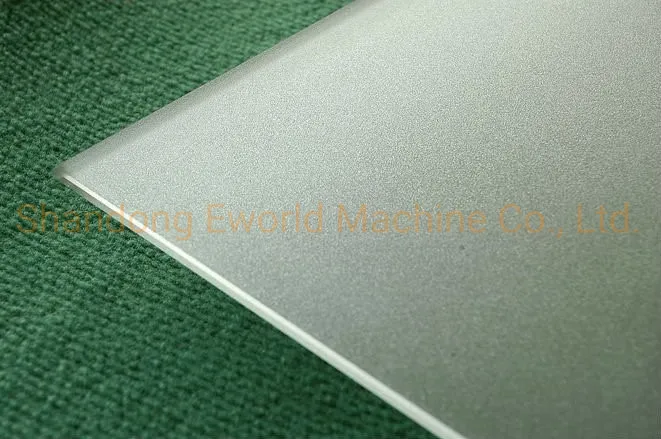

Gallery 1

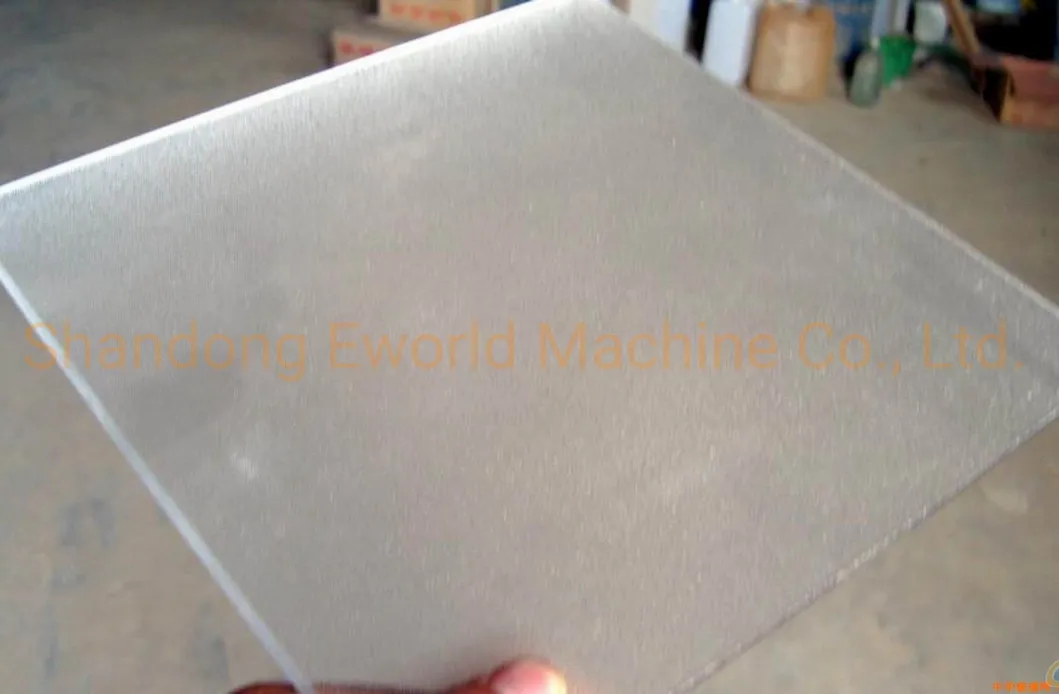

Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Gallery 7
Gallery 8
Gallery 9
❓

Frequently Asked Questions

1. Are you a professional manufacturer?
Yes, we are a professional manufacturer with more than 5 specialized workshops.
2. What kind of after-sales service do you provide?
We offer 24-hour after-sales service, respond within 12 hours, and have over 12 years of experience in the field with fluent English communication.
3. What is the warranty period for the machinery?
Our standard guarantee is 18 months, with a 2-year quality guaranty for the machine (excluding consumables).
4. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for installation, adjustment, and comprehensive operation training.
5. How long is the typical delivery time?
For standard machines, it takes 3-15 days. For non-standard or customized machines, it ranges from 15 to 30 days.
6. What are the available payment methods?
We accept various payment methods including T/T, L/C, D/P, and West-union according to your convenience.

Related Products

Industrial Automatic Vertical Laser Sandblasting Engraver Machine for Mirror Glass Frosting Etching

Industrial Automatic Vertical Laser Sandblasting Engraver Machine for Mirror Glass Frosting Etching
Automatic Glass Frosting Machine Vertical Sandblasting Machinery

Automatic Glass Frosting Machine Vertical Sandblasting Machinery

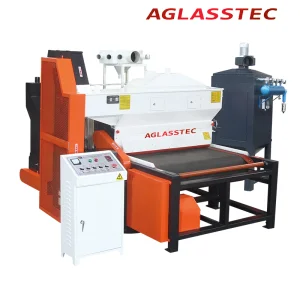

Horizontal Glass Sandblasting Frosting Machine with Electric Pulse Dust Remover Function

Horizontal Glass Sandblasting Frosting Machine with Electric Pulse Dust Remover Function

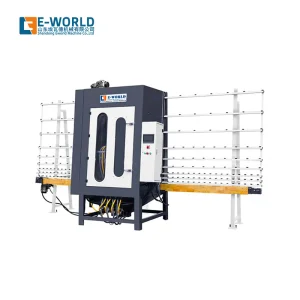

Automatic Glass Frosting Machine Sandblasting Machinery PS2000mm

Automatic Glass Frosting Machine Sandblasting Machinery PS2000mm
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

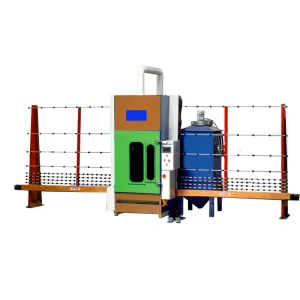

Decorate Glass Processing Vertical Flat Glass Frosting Sand Blasting Machine for Sale Glass Factory

Decorate Glass Processing Vertical Flat Glass Frosting Sand Blasting Machine for Sale Glass Factory
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R

Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R

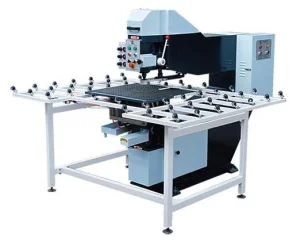

China Manufacture CNC Flat Float Frosting Infrared Ray Glass Drilling Machine for Glass Drilling Holes
