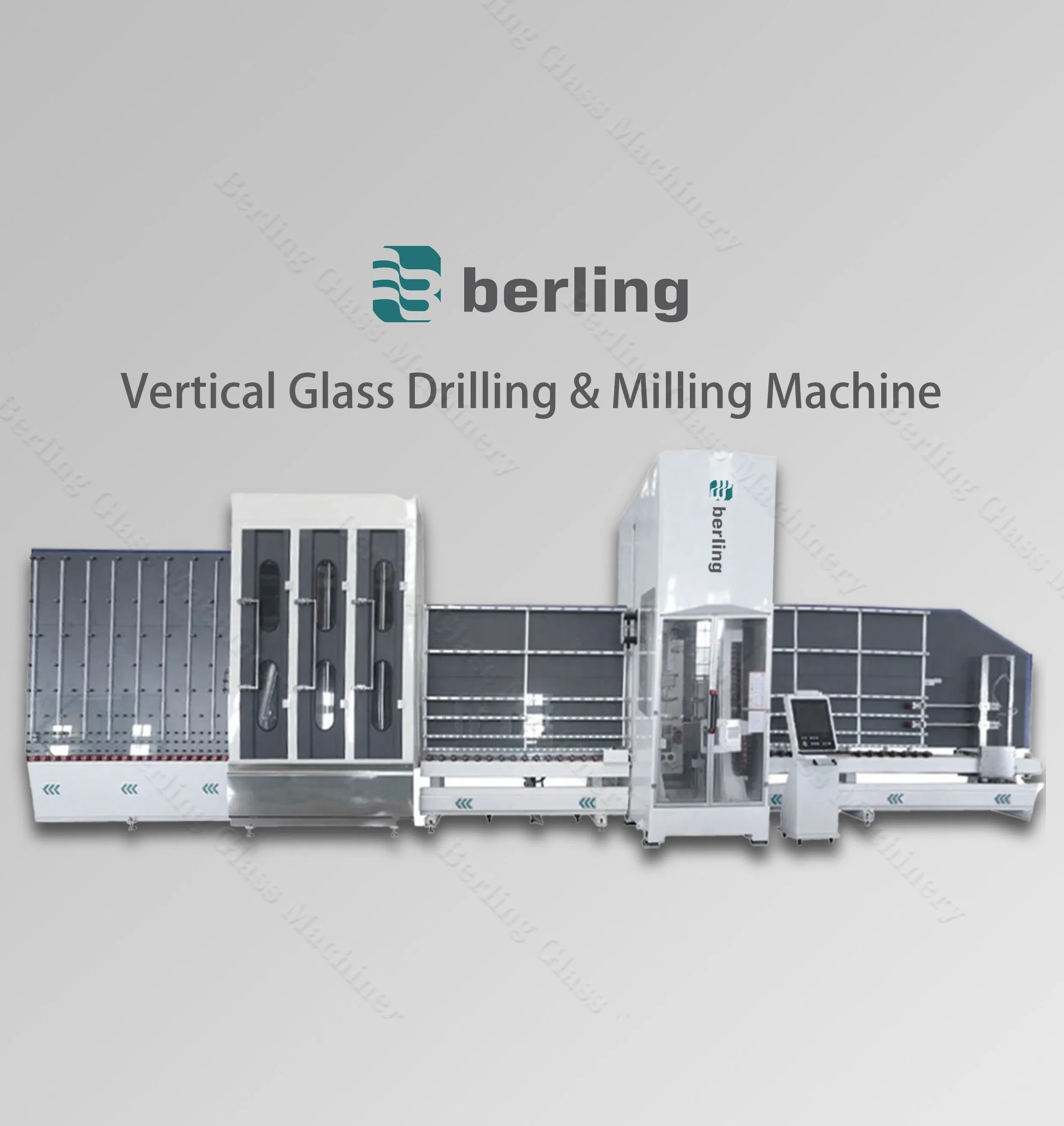

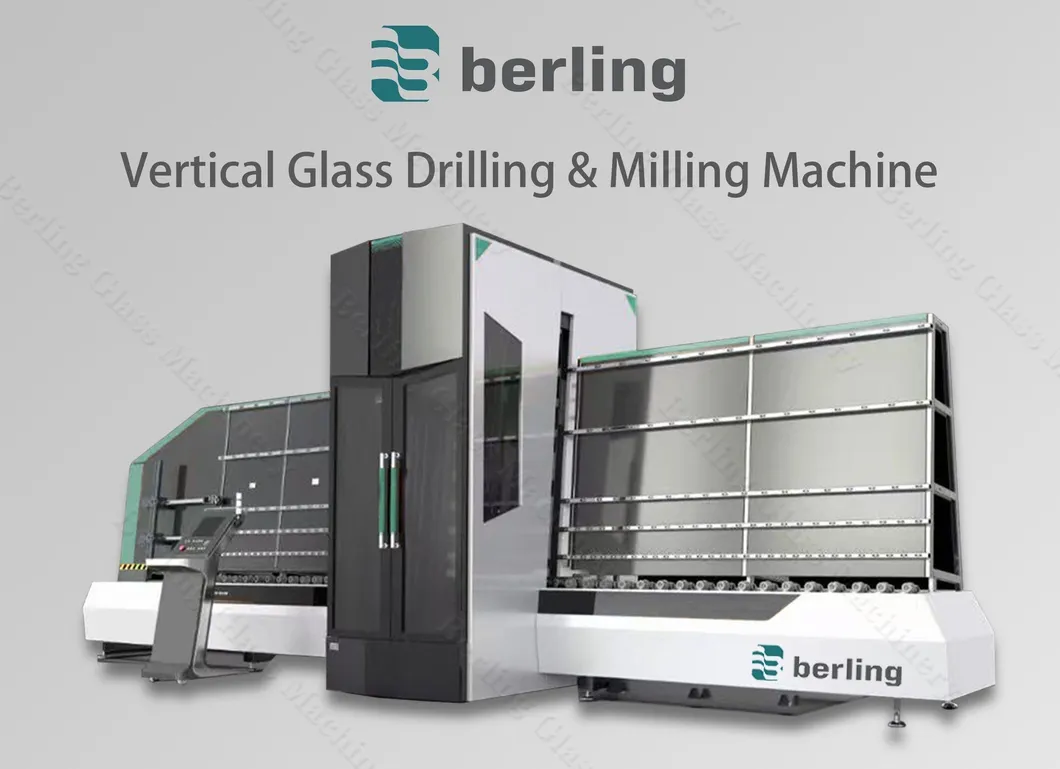

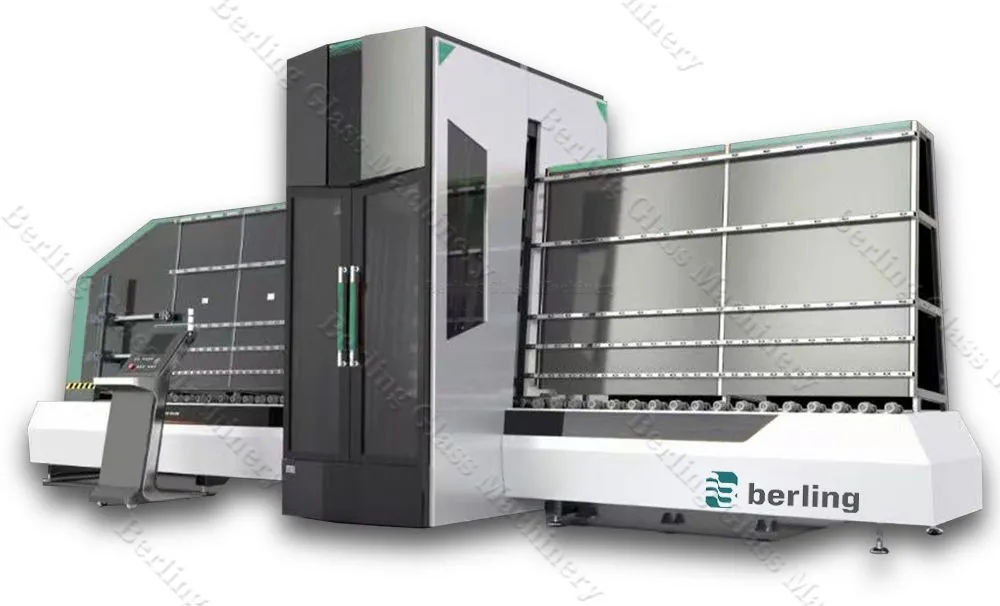

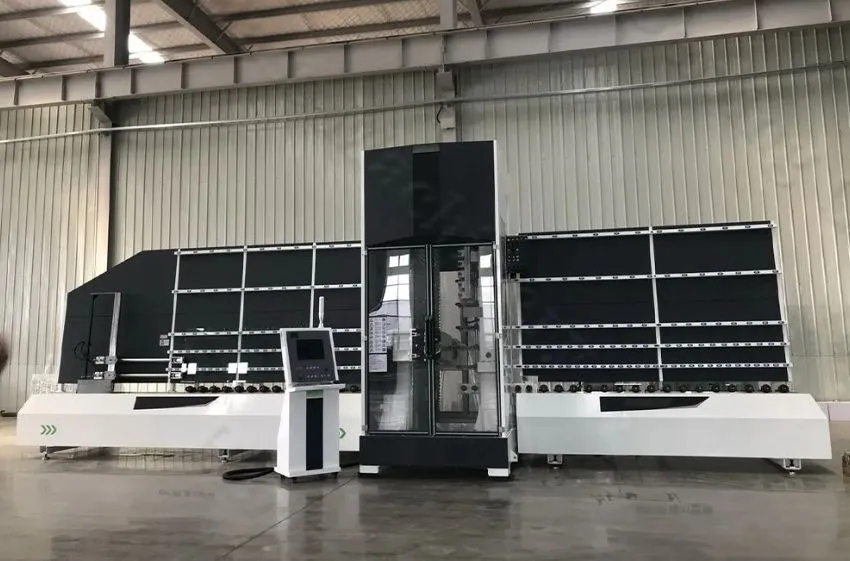

BLDM2542 is a high-tech vertical working center in the deep glass processing industry, capable of perfectly completing complex tasks. High-quality and high-precision glass can be processed in a short time, thereby reducing accuracy issues inherent in manual methods. The machining center adopts internationally advanced numerical control technology to achieve dynamic management and precise speed control of each axis.
?
Frequently Asked Questions
1. What are the primary functions of the BLDM2542 machine?

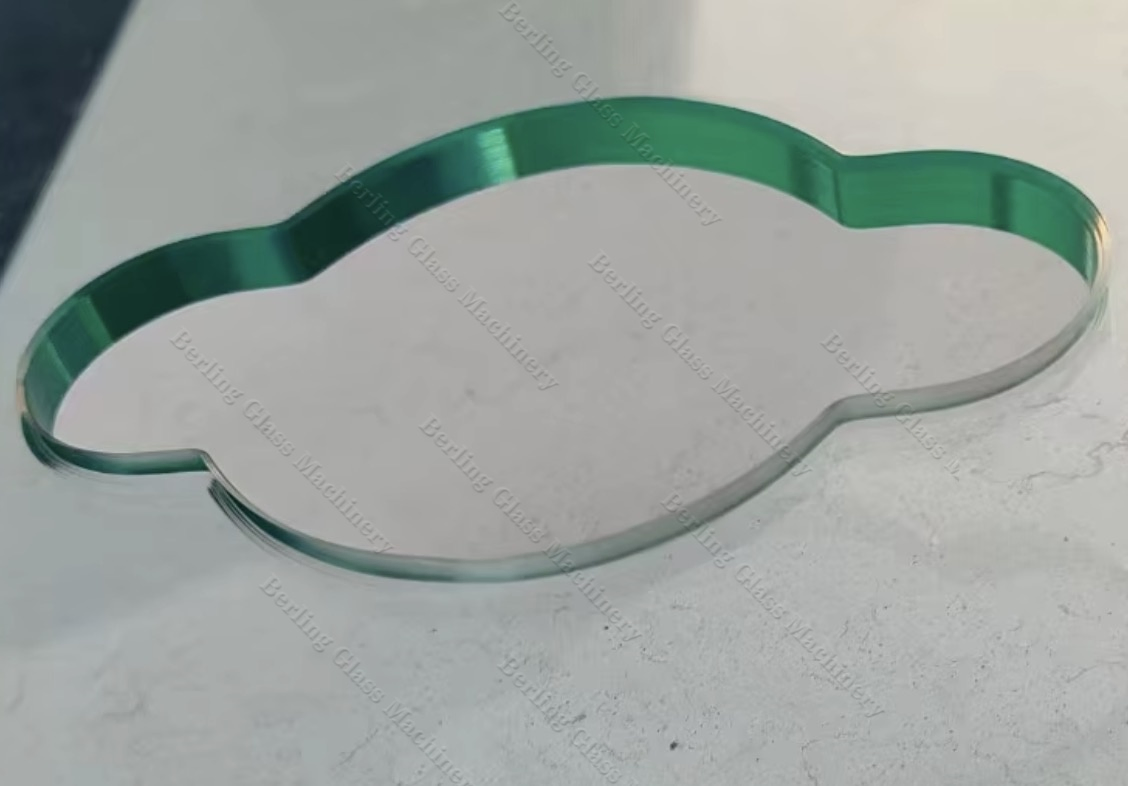

The BLDM2542 is a high-tech vertical machining center designed for drilling, milling, and polishing in the deep glass processing industry. It is ideal for structural glass like frameless doors and curtain walls.

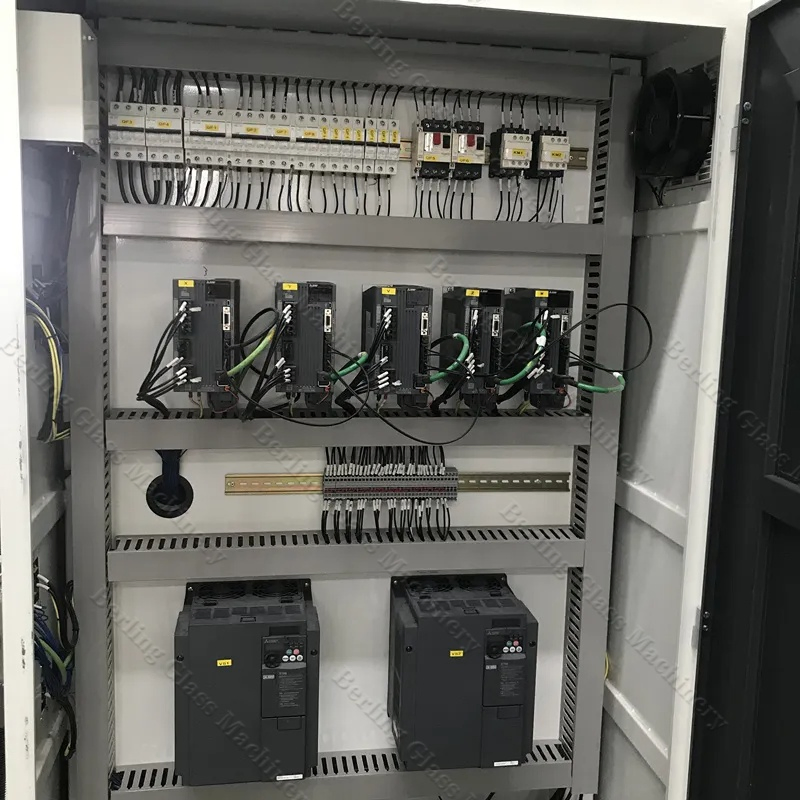

2. What type of control system and motors does the machine use?

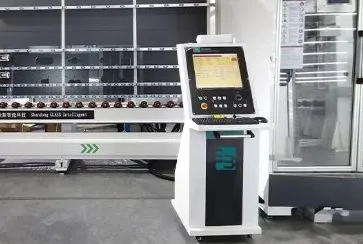

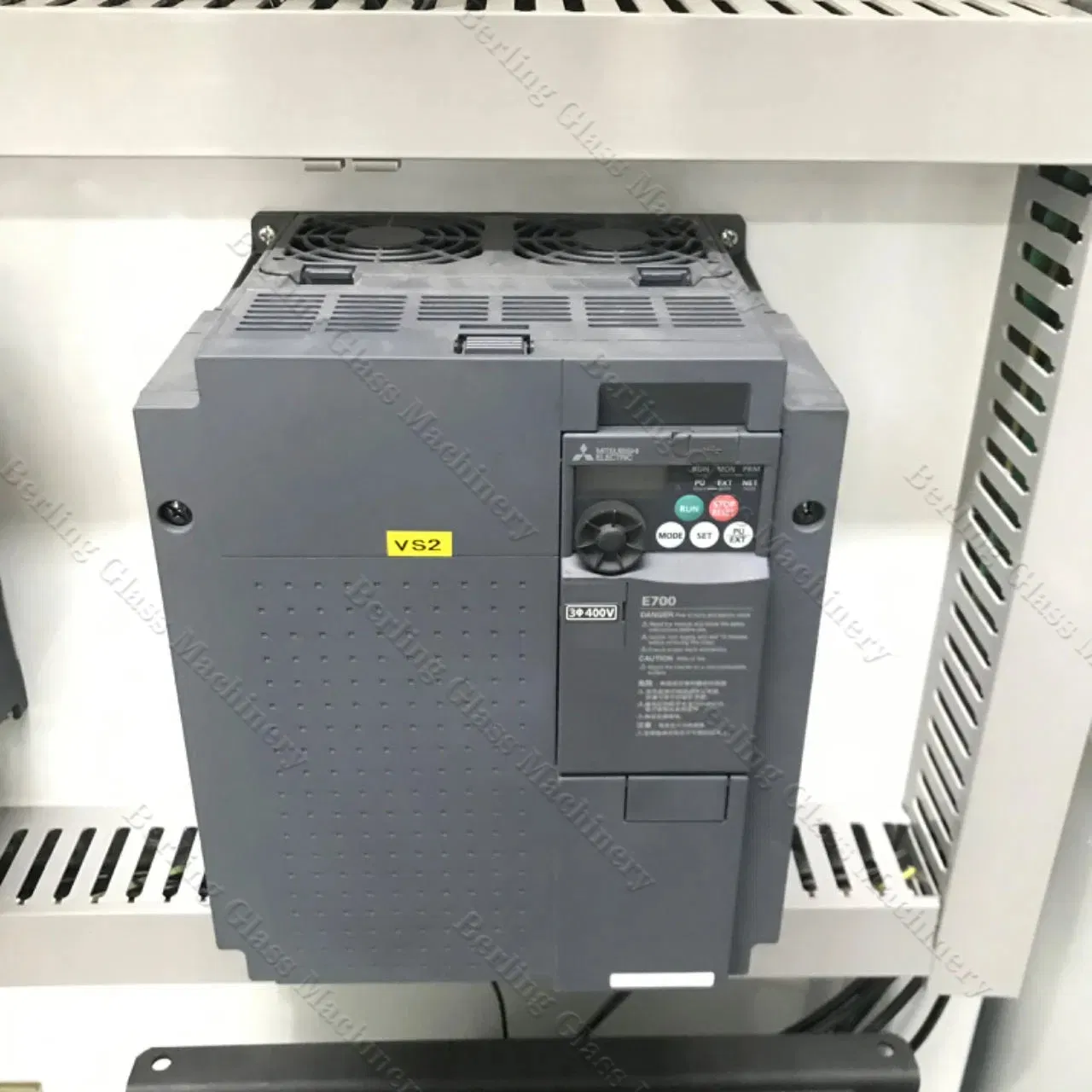

The machine is equipped with an internationally advanced Mitsubishi (Japan) numerical control system, along with Mitsubishi servo drives and motors for precise speed and dynamic management.
3. What is the maximum glass size and thickness it can process?
The BLDM2542 can handle a maximum glass size of 2500mm x 4200mm and supports glass thicknesses ranging from 4mm to 25mm.
4. How is the accuracy of the drilling and milling maintained?
The machine features a straight-line precision of ±0.1mm/m and utilizes high-quality Hiwin linear guides and ball screws to ensure consistent, high-precision processing.

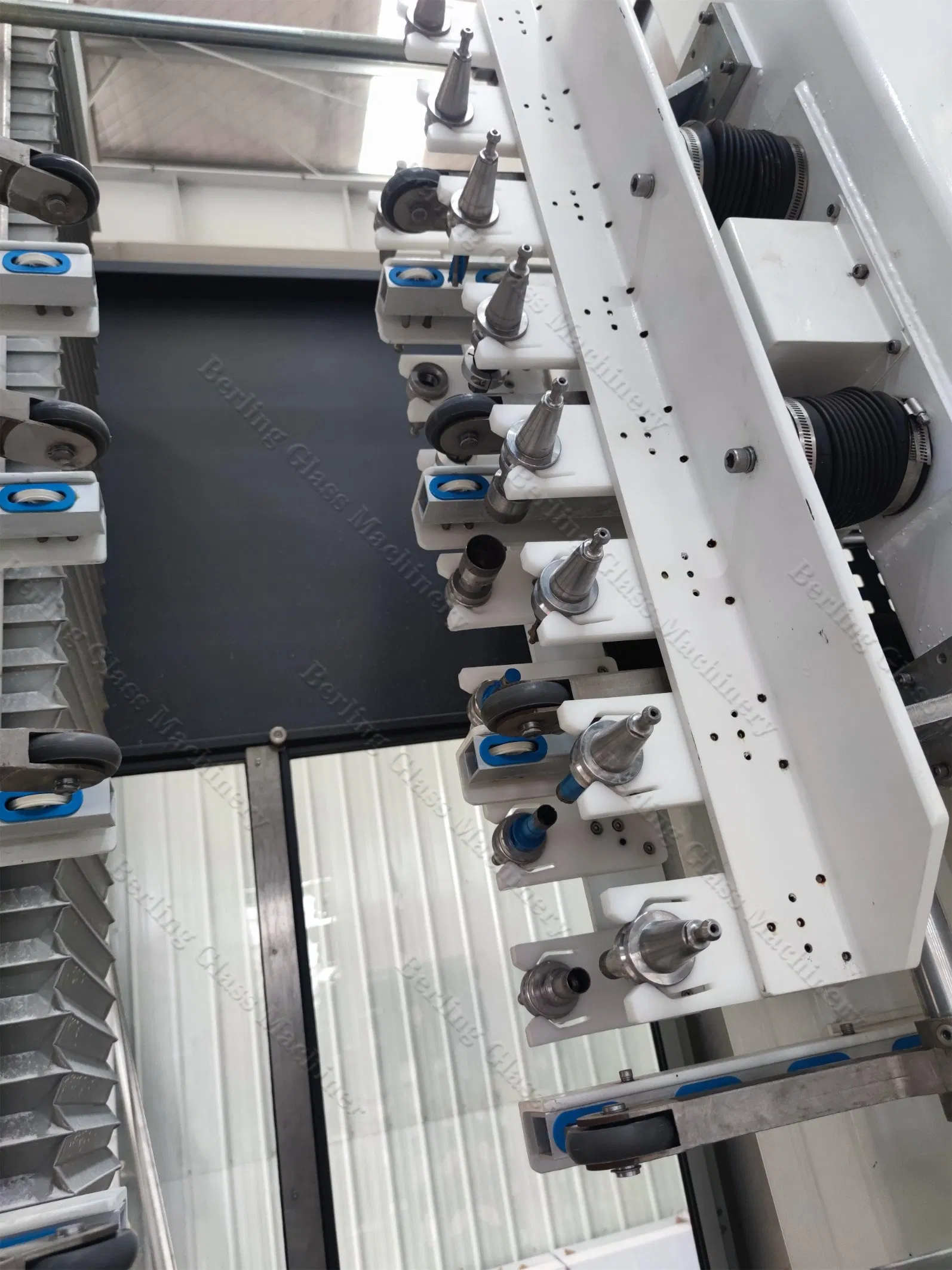

5. Does the machine support automatic tool changes?

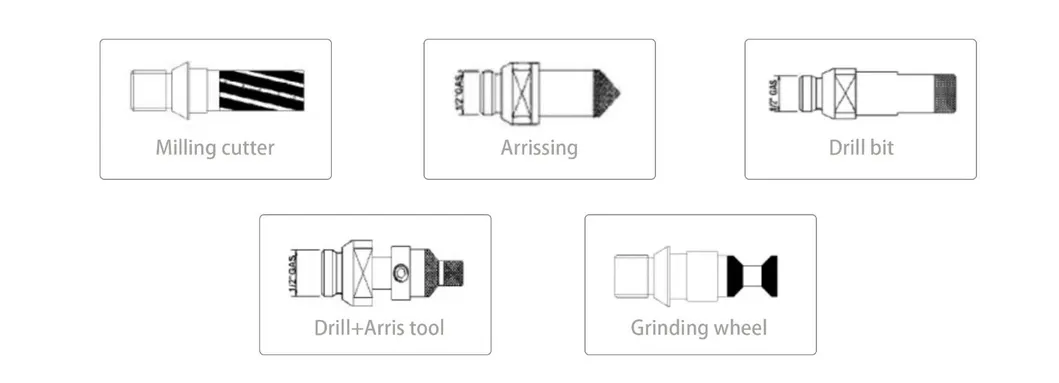

Yes, the machine includes a tool magazine (7+7 configuration) and supports automatic handling of complex drilling and milling functions once the glass is loaded.
6. What cooling systems are integrated into the machine?
The machine includes tools center cooling and a constant temperature water chiller to ensure the spindles and tools remain at optimal operating temperatures during heavy processing.
